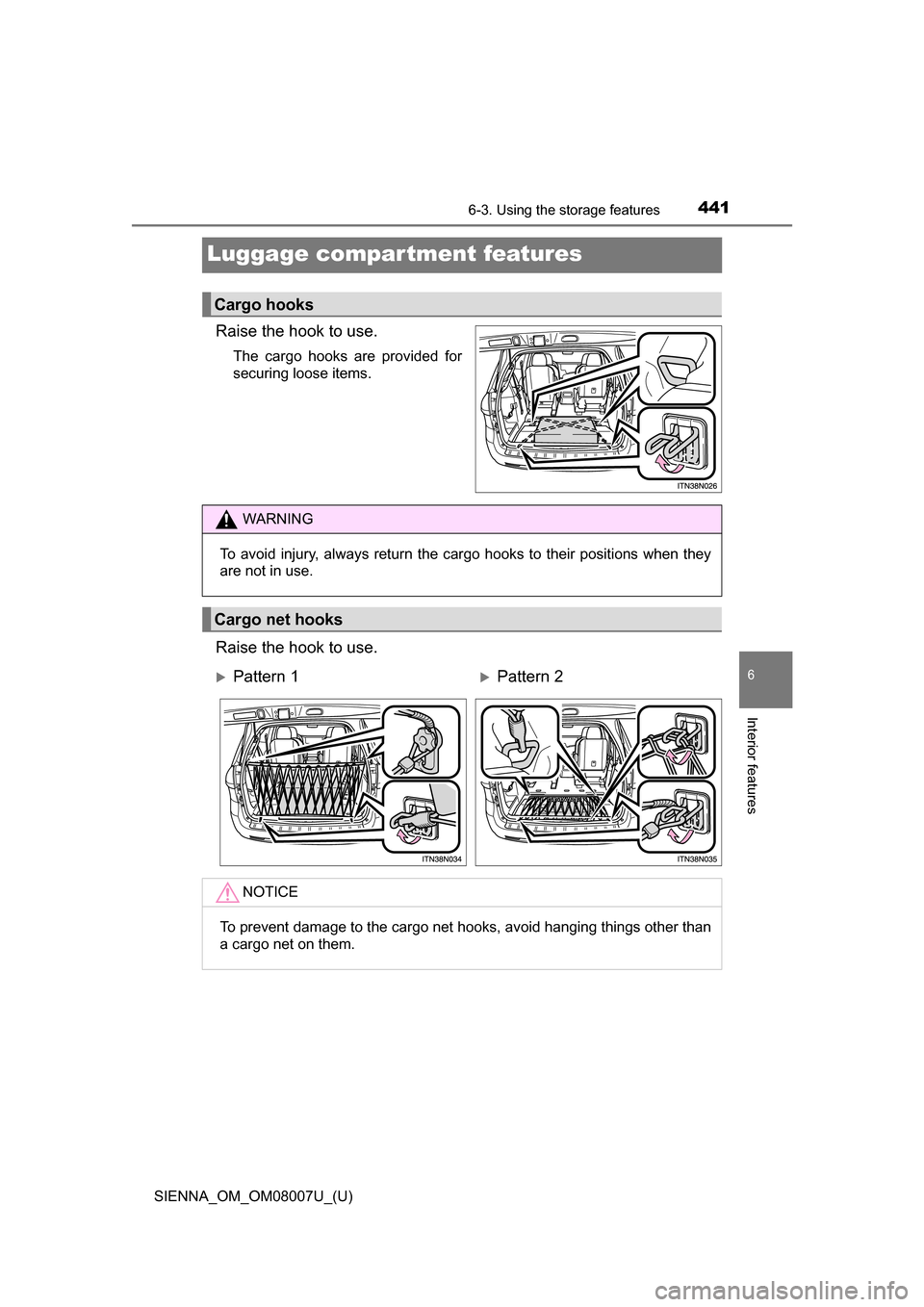

Page 441 of 672
441
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features
6
Interior features
Luggage compartment features
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Raise the hook to use.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Cargo net hooks
Pattern 1Pattern 2
NOTICE
To prevent damage to the cargo net hooks, avoid hanging things other than
a cargo net on them.

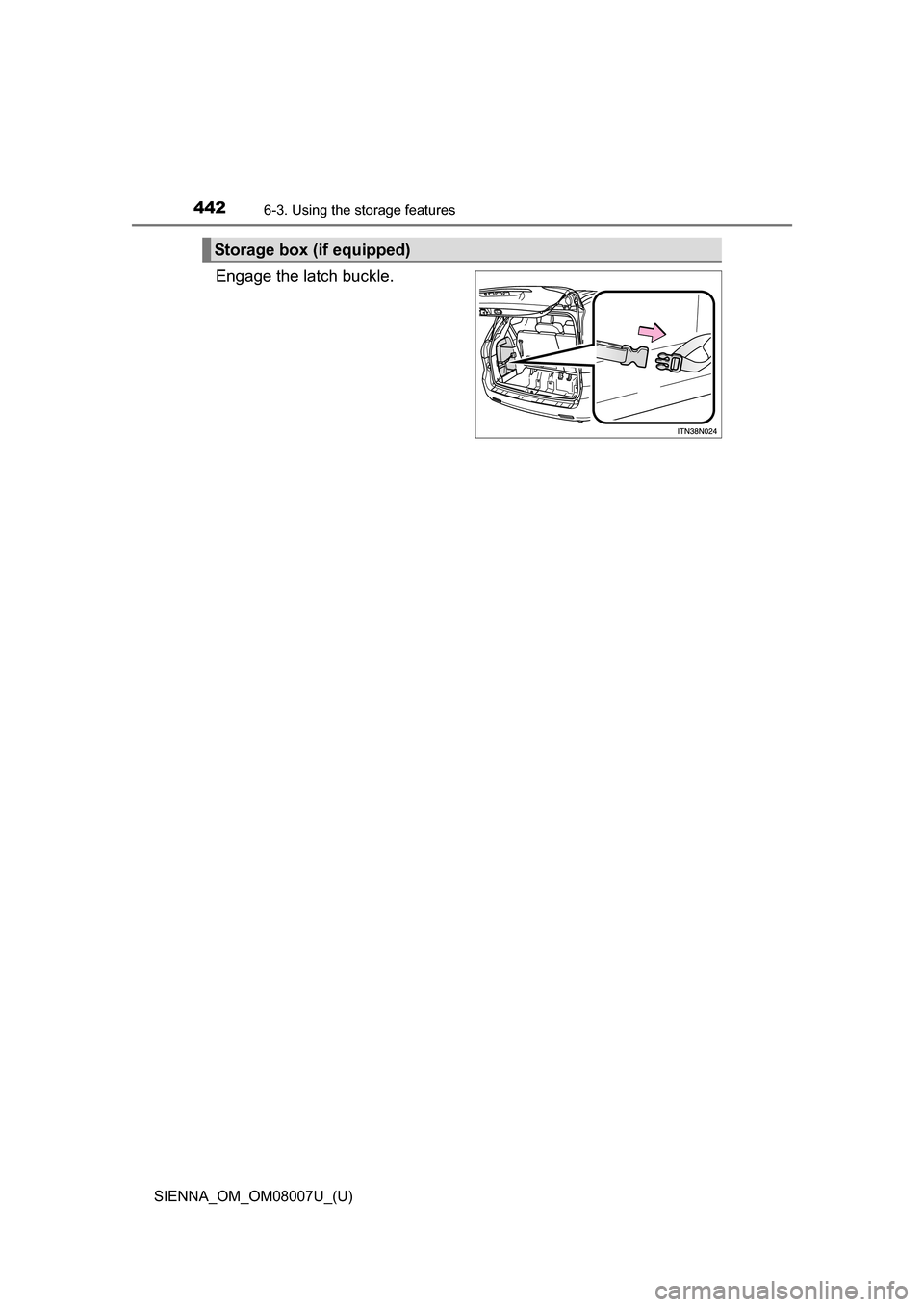

Page 442 of 672
442
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features
Engage the latch buckle.
Storage box (if equipped)

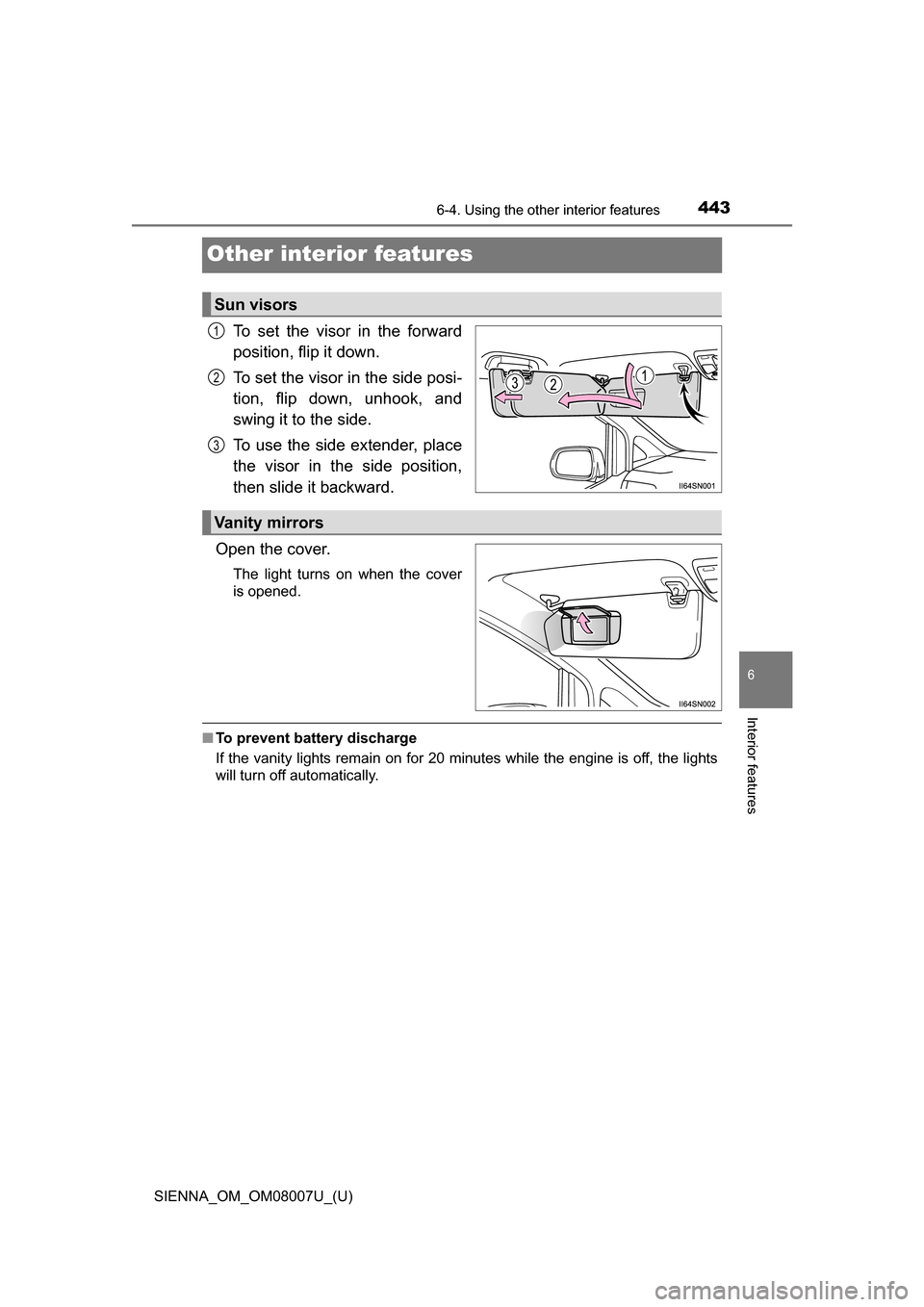

Page 443 of 672
443
SIENNA_OM_OM08007U_(U)
6-4. Using the other interior features
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Open the cover.
The light turns on when the cover
is opened.
■ To prevent battery discharge
If the vanity lights remain on for 20 minutes while the engine is off, the lights
will turn off automatically.
Sun visors
1
2
3
Vanity mirrors
Page 444 of 672
444
SIENNA_OM_OM08007U_(U)
6-4. Using the other interior features
Vehicles with an Entune Audio
P. 3 3 2
Vehicles with an Entune Audio
Plus or Entune Premium Audio
with Navigation
Refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Push the lid and allow the lid to
open.
Push the lid. To first locked
position.
Clock
Conversation mirror
1
2

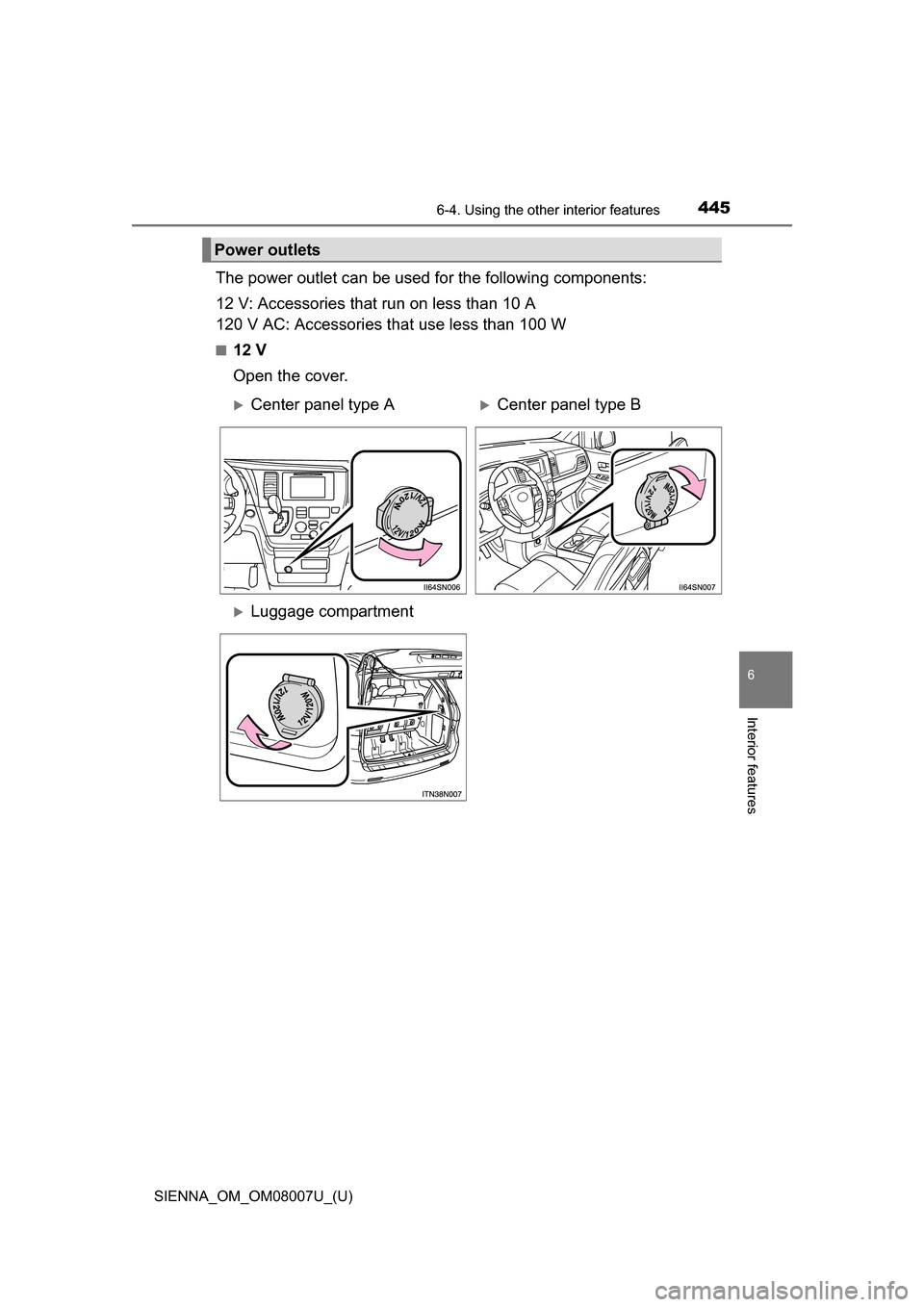

Page 445 of 672
SIENNA_OM_OM08007U_(U)
4456-4. Using the other interior features
6
Interior features
The power outlet can be used for the following components:
12 V: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W
■12 V
Open the cover.
Power outlets
Center panel type ACenter panel type B
Luggage compartment

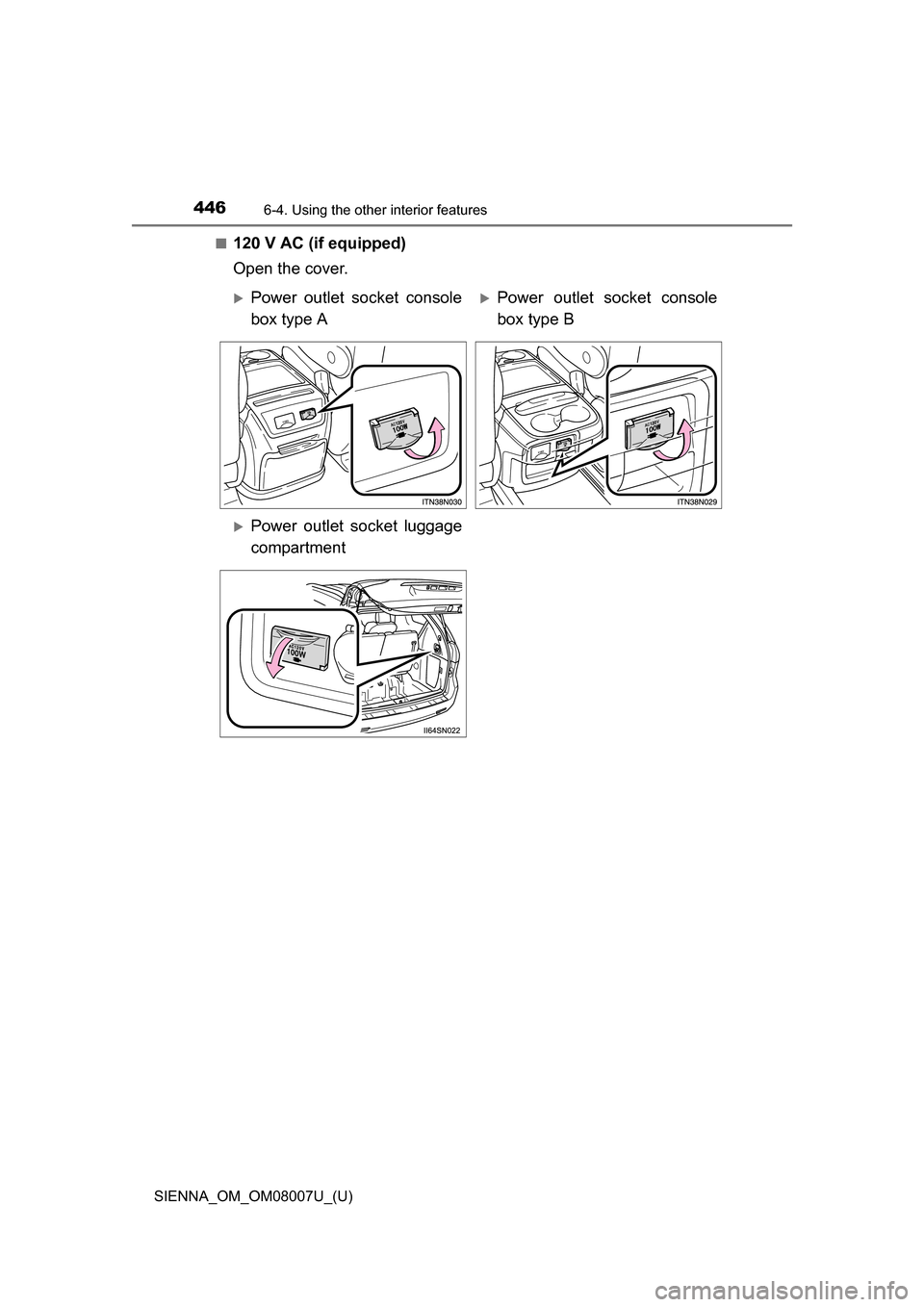

Page 446 of 672
446
SIENNA_OM_OM08007U_(U)
6-4. Using the other interior features
■120 V AC (if equipped)
Open the cover.
Power outlet socket console
box type APower outlet socket console
box type B
Power outlet socket luggage
compartment

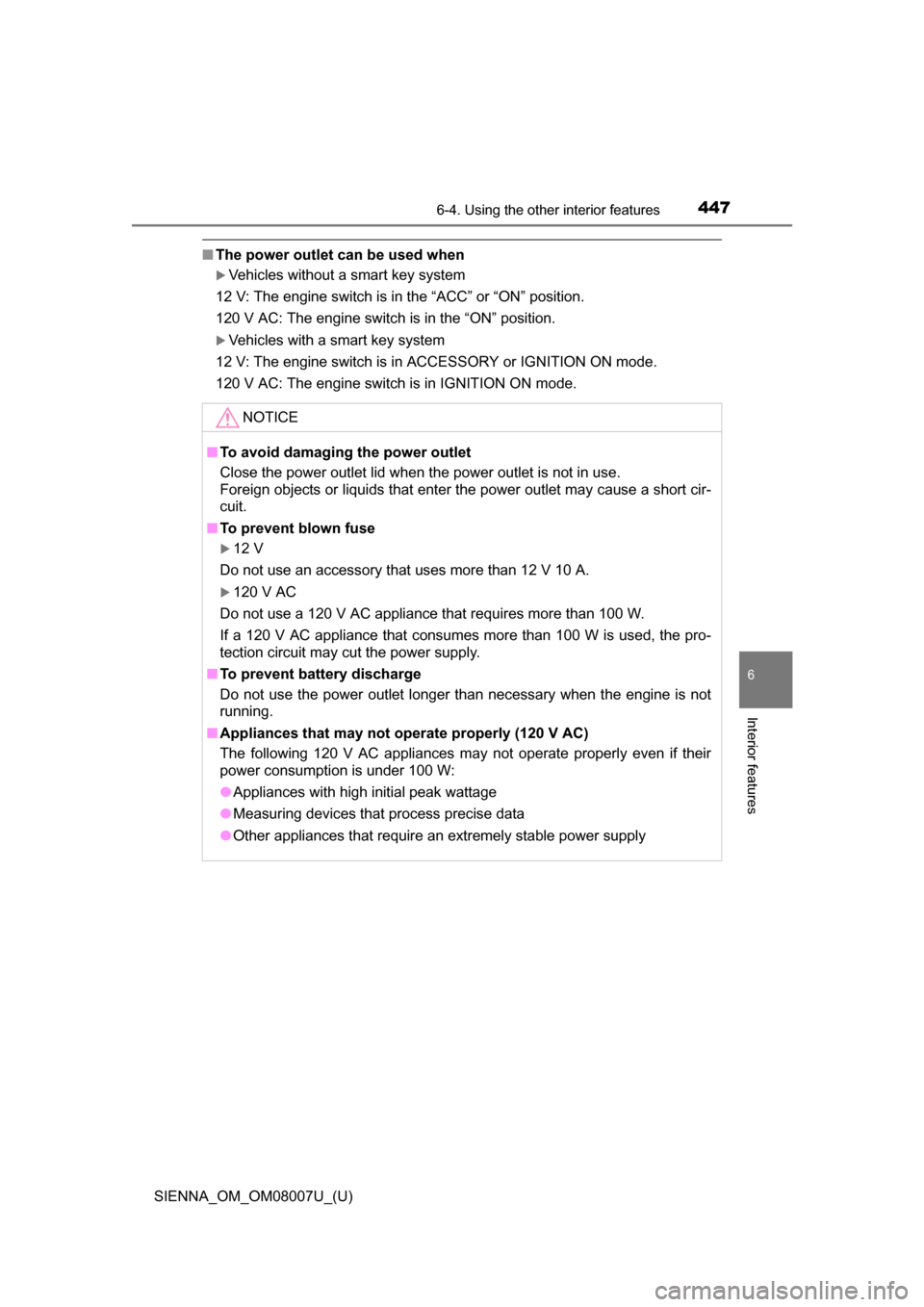

Page 447 of 672

SIENNA_OM_OM08007U_(U)
4476-4. Using the other interior features
6
Interior features
■The power outlet can be used when
Vehicles without a smart key system
12 V: The engine switch is in the “ACC” or “ON” position.
120 V AC: The engine switch is in the “ON” position.
Vehicles with a smart key system
12 V: The engine switch is in ACCESSORY or IGNITION ON mode.
120 V AC: The engine switch is in IGNITION ON mode.
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
12 V
Do not use an accessory that uses more than 12 V 10 A.
120 V AC
Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit may cut the power supply.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
■ Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate properly even if their
power consumption is under 100 W:
●Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

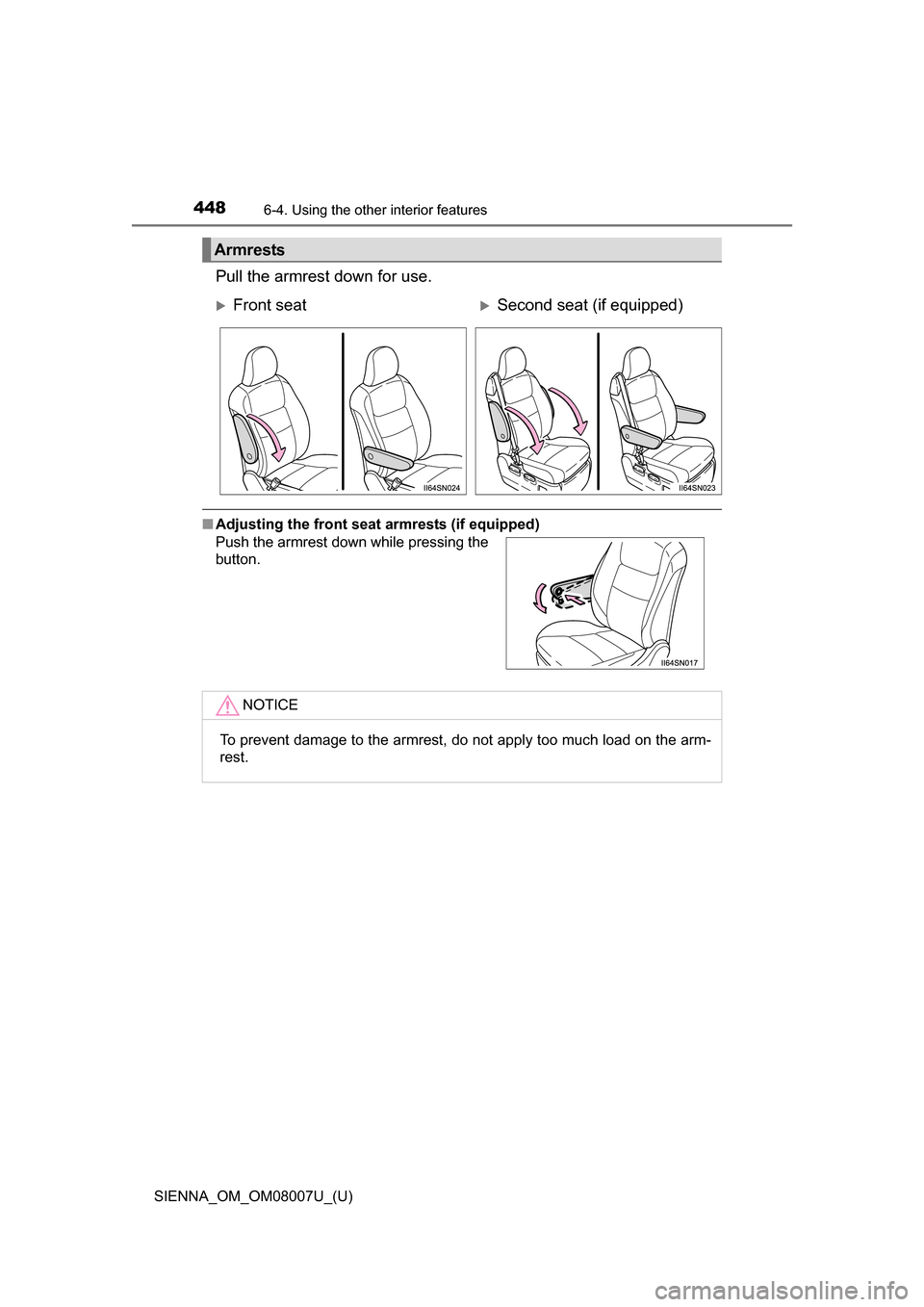

Page 448 of 672
448
SIENNA_OM_OM08007U_(U)
6-4. Using the other interior features
Pull the armrest down for use.
■Adjusting the front seat armrests (if equipped)
Armrests
Front seatSecond seat (if equipped)
Push the armrest down while pressing the
button.
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.

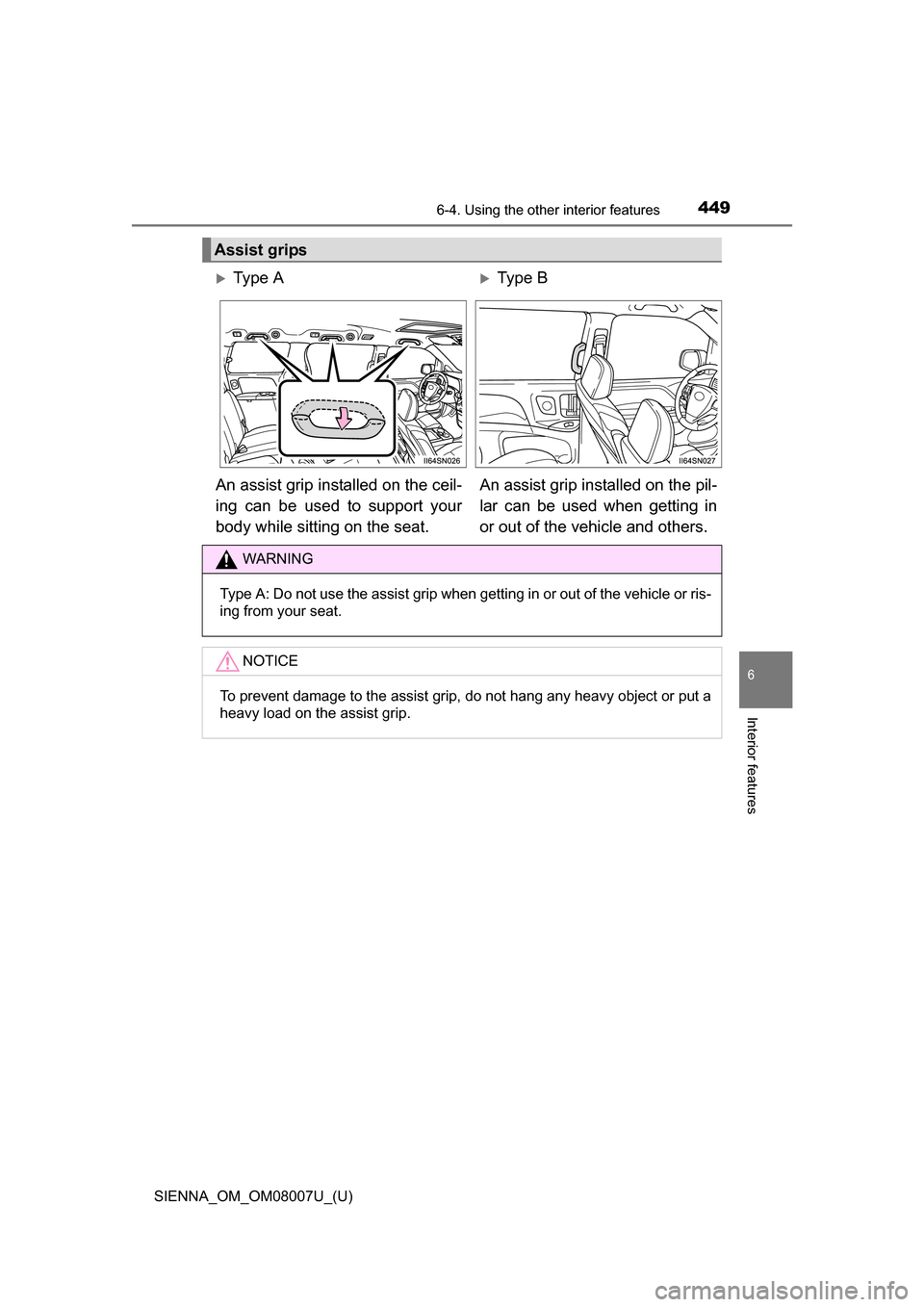

Page 449 of 672
SIENNA_OM_OM08007U_(U)
4496-4. Using the other interior features
6
Interior features
Assist grips
Ty p e AType B
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat. An assist grip installed on the pil-
lar can be used when getting in
or out of the vehicle and others.
WARNING
Type A: Do not use the assist grip when getting in or out of the vehicle or ris-
ing from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.

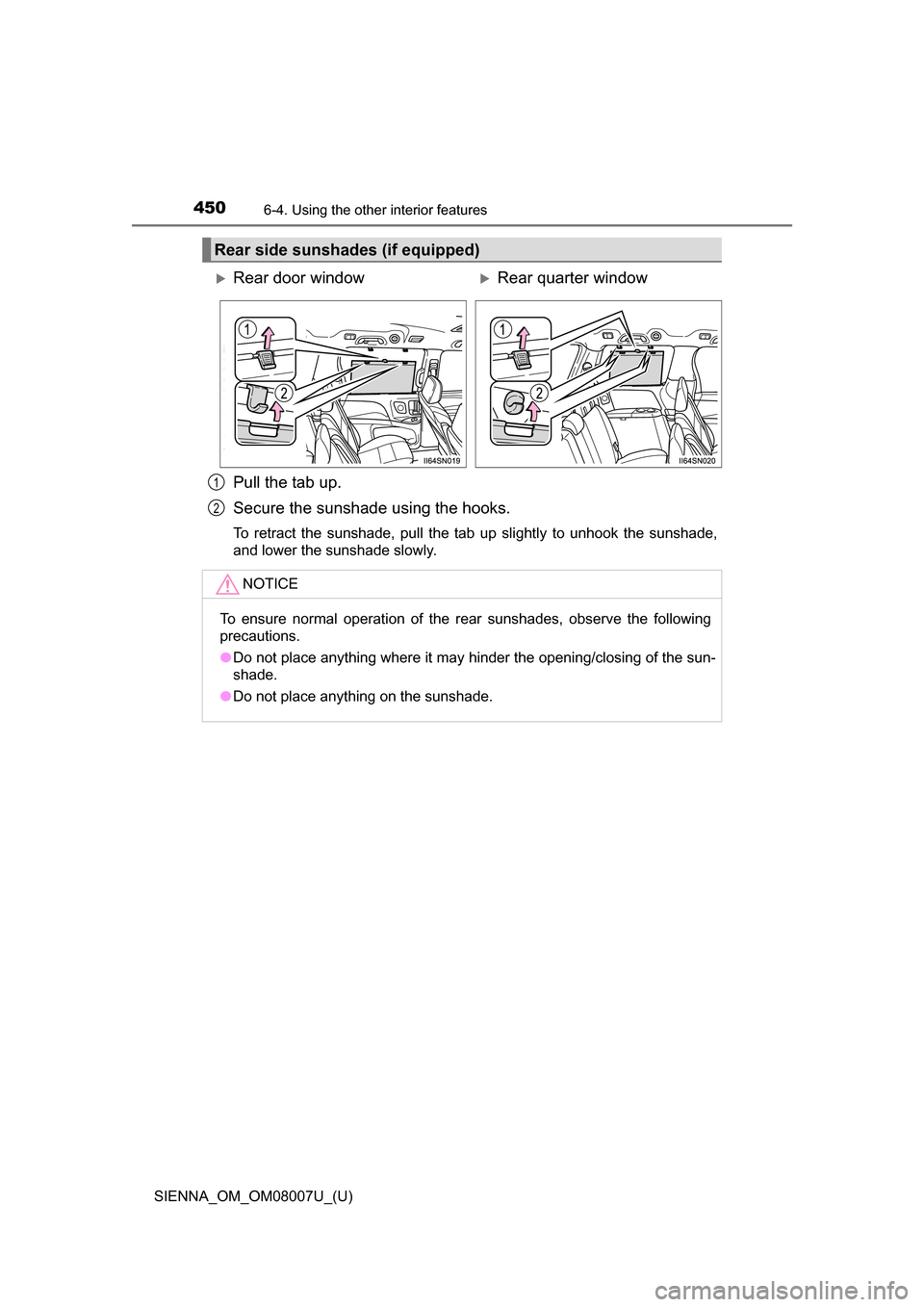

Page 450 of 672
450
SIENNA_OM_OM08007U_(U)
6-4. Using the other interior features
Pull the tab up.
Secure the sunshade using the hooks.
To retract the sunshade, pull the tab up slightly to unhook the sunshade,
and lower the sunshade slowly.
Rear side sunshades (if equipped)
Rear door windowRear quarter window
NOTICE
To ensure normal operation of the rear sunshades, observe the following
precautions.
●Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
1
2
