TOYOTA SIENNA 2018 Accessories, Audio & Navigation (in English)

161
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
AUDIO/VISUAL SYSTEM
3

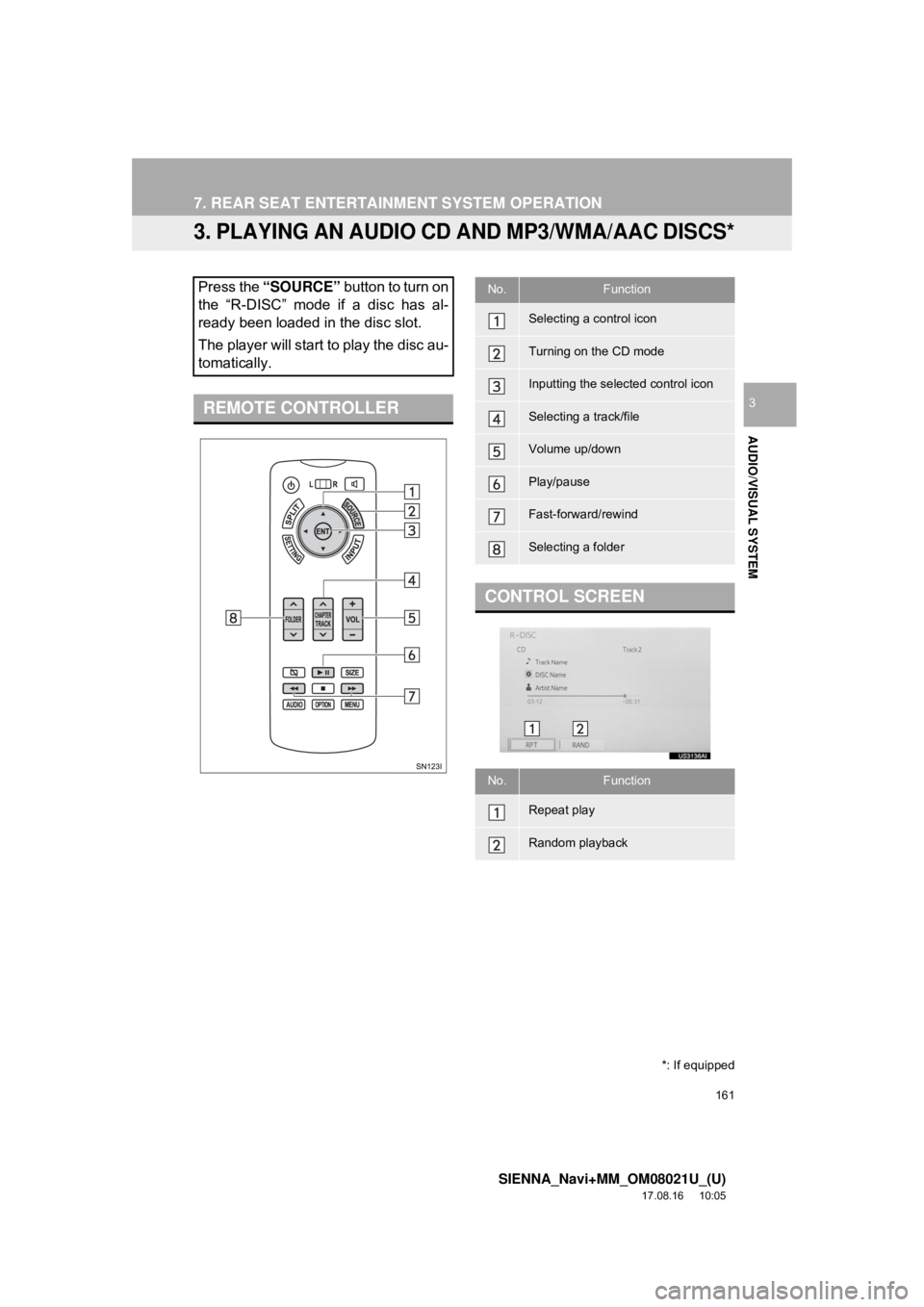

3. PLAYING AN AUDIO CD AND MP3/WMA/AAC DISCS*
Press the “SOURCE” button to turn on
the “R-DISC” mode if a disc has al-
ready been loaded in the disc slot.
The player will start to play the disc au-
tomatically.
REMOTE CONTROLLER
*: If equipped
No.Function
Selecting a control icon
Turning on the CD mode
Inputting the selected control icon
Selecting a track/file
Volume up/down
Play/pause
Fast-forward/rewind
Selecting a folder
CONTROL SCREEN
No.Function
Repeat play
Random playback

162
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1Insert a disc or press the “SOURCE”
button to turn on the “R-DISC” mode.
 The player will start to play the disc auto-
matically.
1Press the “” or “” button of
“CHAPTER/TRACK” repeatedly until
the desired track/file number appears
on the screen.
1Press and hold or .
 MP3/WMA/AAC
1Press “ ” or “ ” on the “FOLDER”
button until the desired folder number
appears.
 Press and hold “ ” on the “FOLDER”
button, the top file stored in the top folder
in the disc will be selected.
1Each time “RPT” is selected, the
mode changes as follow:
 Audio CD
“RPT” (track repeat) → Off
 MP3/WMA/AAC
“RPT” (file repeat) → “FLD.RPT” (folder re-
peat) → Off
1Each time “RAND” is selected, the
mode changes as follow:
 Audio CD
“RAND” (random) → Off
 MP3/WMA/AAC
“RAND” (1 folder random) → “FLD.RAND”
(1 disc random) → Off
TURNING ON THE CD MODE
SELECTING A TRACK/FILE
FAST FORWARDING OR
REWINDING A TRACK/FILE
SELECTING A FOLDER
REPEAT PLAY
RANDOM PLAYBACK

163
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
AUDIO/VISUAL SYSTEM
3
MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF
LAYER3)
• Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24
(kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32-320 (kbps)
MPEG2 LSF LAYER3: 8-160 (kbps)
• Compatible channel modes: stereo, joint
stereo, dual channel and mono 
WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9 (9.1/9.2)
• Compatible sampling frequencies
8, 11.025, 16, 22.05, 32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8, 9 (9.1/9.2): CBR 5-320 (kbps)
 AAC file compatibility
• Compatible standards
MPEG2/AAC-LC, MPEG4/AAC-LC
(ADIF is not supported)
• Compatible sampling frequencies ADTS (MPEG2 AAC): 16, 22.05, 24, 32,
44.1, 48 (kHz)
MP4 (MPEG4 AAC): 16, 22.05, 24, 32,
44.1, 48 (kHz)
• Compatible bit rates ADTS (MPEG2 AAC): 8-384 (kbps)
MP4 (MPEG4 AAC): 8-384 (kbps)
• Compatible channel mode ADTS (MPEG2 AAC): 1/0, 2/0, 3/0, 2/1,
2/2, 3/1, 3/2.1
MP4 (MPEG4 AAC): 1/0, 2/0, 3/0, 2/1,
2/2, 3/1, 3/2.1
 Compatible media
Media that can be used for MP3, WMA
and AAC playback:
• CD-ROM/R/RW
•DVD-ROM/R/RW
Playback in some instances may not be
possible, depending on the status of the
disc. Playback may not be possible or the
audio may jump if the disc is scratched or
marked with fingerprints.
MP3/WMA/AAC FILES
MP3 (MPEG Audio LAYER3) is a stan-
dard audio compression format. Files
can be compressed to approximately
1/10 of their original size by using MP3
compression.
WMA (Windows Media Audio) is a
Microsoft audio compression format.
This format compresses audio data to
a size smaller than that of the MP3 for-
mat.
AAC (Advanced Audio Coding) is a
standardized the audio compression
type that is designed to be the succes-
sor of the MP3 format. AAC generally
achieves good sound quality and high-
compression than MP3 at similar bit
rates.
There is a limit to the MP3, WMA and
AAC file standards and to the media/
formats recorded by them that can be
used.

164
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
Compatible disc formats
The following disc formats can be used.
• Disc formats: DVD-ROM, CD-ROM
Mode 1, CD-ROM XA Mode 2 Form 1
• File formats: ISO9660 Level 1, 2, 3, 4 (Romeo, Joliet, RockRidge), UDF (1.02,
1.50, 2.00, 2.01)
MP3, WMA and AAC files written in any
format other than those listed above may
not play correctly, and their file names
and folder names may not be displayed
correctly.
Items related to standards and limitations
are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: The number of the maximum
indication letters by design specifications
of the indication machine side (support
proportional font, and there are distinc-
tion of the half size and full size)
• Maximum number of folders: 255 (including the root)
• Maximum number of files per disc: 512
 File names
• The only files that can be recognized as
MP3/WMA/AAC and played are those
with the extension .mp3, .wma or .m4a.
 Multi-sessions
As the audio system is compatible with
multi-sessions, it is possible to play discs
that contain MP3, WMA and AAC files.
 ID3 tags
ID3 tags can be added to MP3 files, mak-
ing it possible to record the track title, art-
ist name, etc.
The system is compatible with ID3 Ver.
1.0, 1.1, 2.2, 2.3 and Ver. 2.4 ID3 tags.
(The number of characters is based on
ID3 Ver. 1.0 and 1.1.) 
WMA tags
WMA tags can be added to WMA files,
making it possible to record the track title
and artist name in the same way as with
ID3 tags.
 AAC tags
• ADTS(MPEG2 AAC)
ID3 tags can be added to MP3 files,
making it possible to record the track
title, artist name, etc.
• MP4(MPEG4 AAC)
The AAC file can be added information
(track title, artist name, etc.) that
acquired from the Box of the metadata of
the MP4 container.
 MP3, WMA and AAC playback
When a disc containing MP3, WMA or
AAC files is inserted, all files on the disc
are first checked. Once the file check is
finished, the first MP3, WMA or AAC file is
played. To make the file check finish more
quickly, we recommend you do not write in
any files other than MP3, WMA or AAC
files or create any unnecessary folders.
If the discs contain a mixture of music data
and MP3, WMA or AAC format data, only
music data can be played.
 Extensions
If the file extensions .mp3, .wma and .m4a
are used for files other than MP3, WMA
and AAC files, they will be mistakenly rec-
ognized and played as MP3, WMA and
AAC files. This may result in large
amounts of interference and damage to
the speakers.

165
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
AUDIO/VISUAL SYSTEM
3
Playback
• To play MP3 files with steady sound
quality, we recommend a fixed bit rate of
128 kbps and a sampling frequency of
44.1 kHz.
• Playback may not be possible in some instances, depending on the characteris-
tics of the disc.
• There is a wide variety of freeware and other encoding software for MP3, WMA
or AAC files on the market, and depend-
ing on the status of the encoding and the
file format, poor sound quality or noise at
the start of playback may result. In some
cases, playback may not be possible at
all.
• When files other than MP3, WMA or AAC files are recorded on a disc, it may
take more time to recognize the disc and
in some cases, playback may not be
possible at all.

166
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05

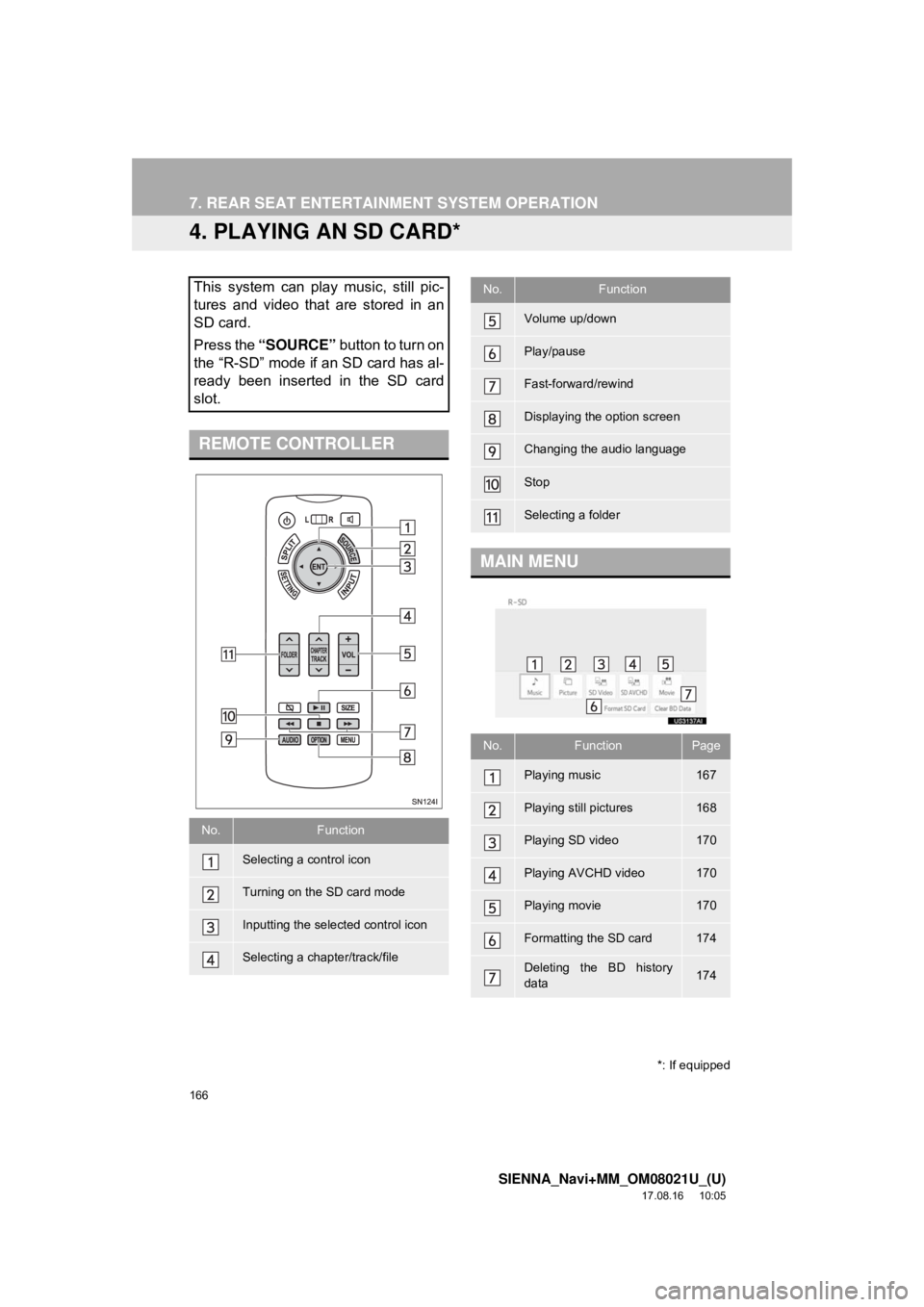

4. PLAYING AN SD CARD*
This system can play music, still pic-
tures and video that are stored in an
SD card.
Press the “SOURCE” button to turn on
the “R-SD” mode if an SD card has al-
ready been inserted in the SD card
slot.
REMOTE CONTROLLER
No.Function
Selecting a control icon
Turning on the SD card mode
Inputting the selected control icon
Selecting a chapter/track/file
*: If equipped
Volume up/down
Play/pause
Fast-forward/rewind
Displaying the option screen
Changing the audio language
Stop
Selecting a folder
MAIN MENU
No.FunctionPage
Playing music167
Playing still pictures168
Playing SD video170
Playing AVCHD video170
Playing movie170
Formatting the SD card174
Deleting the BD history
data174
No.Function

167
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
AUDIO/VISUAL SYSTEM
3
1Press the button to play/
pause.
Press and hold the button while
pausing, the video is played slowly.
1Press the “” or “” button of
“CHAPTER/TRACK” repeatedly until
the desired track/file number appears
on the screen.
1Press and hold or .
1Select “Music” .
2Music will start playing.
PLAYING/PAUSING A SD
CARD MEDIA
SELECTING A CHAPTER/
TRACK/FILE
FAST FORWARDING OR
REWINDING A CHAPTER/
TRACK/FILE
PLAYING MUSIC
You can play music that are stored in
an SD card.
No.Function
Repeat play
Random playback

168
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1Select “Picture” .
2Select the desired still picture to show.
Select or to show the next or
previous page.
3Selected picture is displayed on the
screen.
Press the “ ” or “ ” button to display the
next or previous still picture.
 Press the “SOURCE” button to return to
the SD menu screen.
PLAYING STILL PICTURES
You can display still pictures that are
stored in an SD card.
OPTION SCREEN
Press the “OPTION” button while dis-
playing a still picture, the following
screen appears. Press the “OPTION”
button once again or select
“Hide Buttons” to turn off the option
screen.
No.Function
Turning off the option screen
Displaying the slideshow setup
screen
Returning to “Library View” screen
Zooming out the still pictures
Rotating the still pictures
Displaying the detail informations of
the still picture
Starting slideshow

169
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
AUDIO/VISUAL SYSTEM
3
■STARTING SLIDESHOW
1Select “Slideshow” to start slideshow.
When pressing the “ ” or “ ” button
during slideshow, the previous or next still
picture will be shown, and the slideshow
will continue from that picture.
 Press the “ENT” or “OPTION” button to
stop slideshow.
■ROTATING THE STILL PICTURES
1Select or to rotate a still pic-
ture.
 The rotate information will be maintained
until the system is turned off or the SD
card is removed.
■ZOOM OUT THE STILL PICTURES
1Select to zoom out the still pic-
tures.
Select again to cancel zoom out.
 This function is only available for small-
sized still pictures.
■DISPLAYING THE DETAIL INFOR-
MATIONS OF THE STILL PICTURE
1Select “Detailed Information” .
2Detail informations of the still picture
are displayed.
You can display still pictures one by
one at a constant interval.

170
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
■SLIDESHOW SETUP
1Select “Setup” .
2The slideshow settings can be
changed. After the settings are
changed, select “OK”.
1Select “SD Video” , “SD AVCHD” or
“Movie”.
2Video will start playing.
 Press the “SOURCE” button to return to
the SD menu screen.
No.Function
Selects slideshow interval time (sec-
onds)
5
→ 10 → 15 → 30 → 60
Selects slideshow effect
“Fade”
→ “Slide” → “Wipe1” →
“Wipe2” → “Dissolve” → “Zoom”→ “Off”
Selects on/off repeat slideshow
Restores default settings
PLAYING VIDEO
You can play video that are stored in
an SD card.
