TOYOTA SIENNA 2018 (in English) Owner's Manual

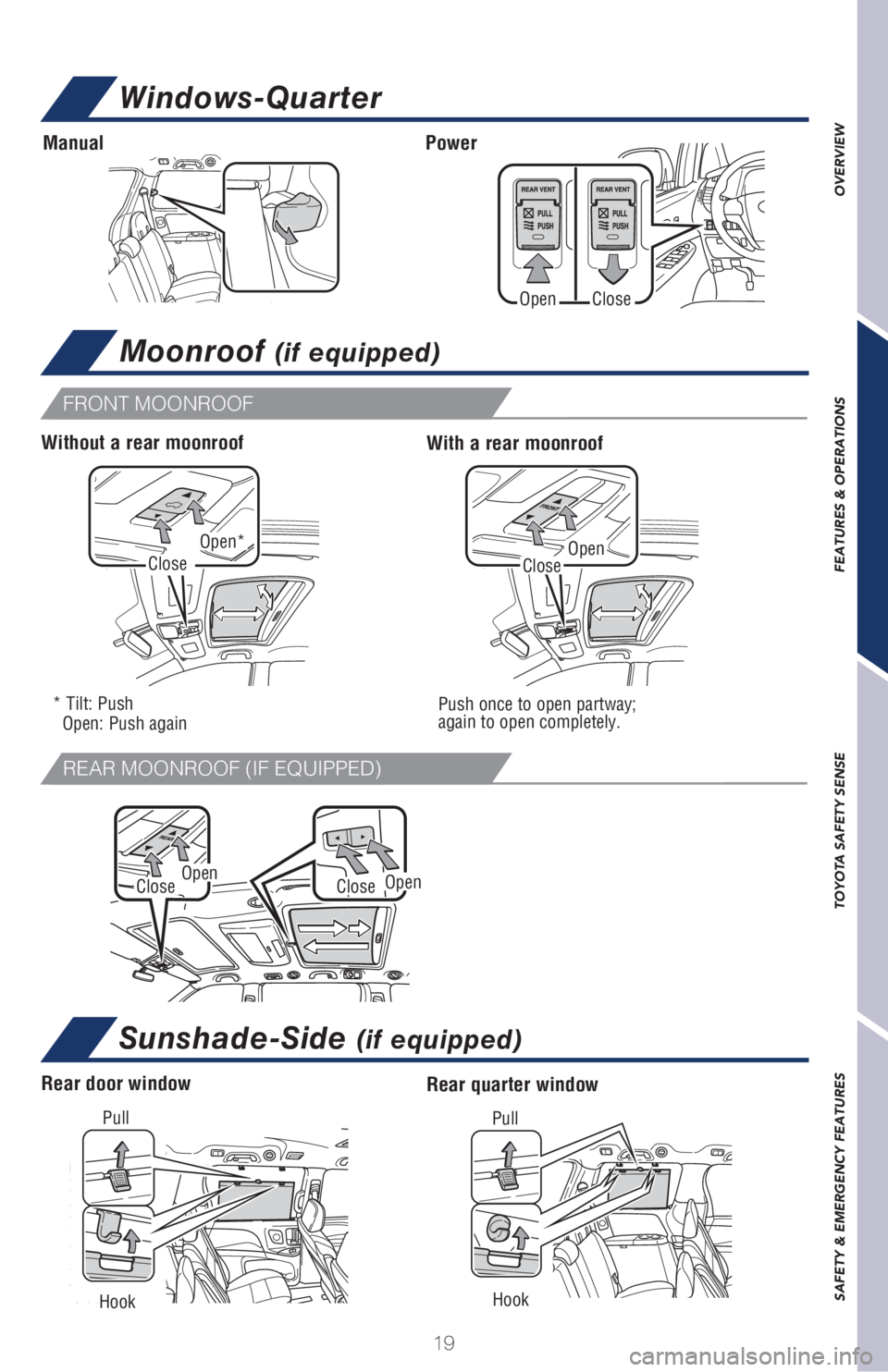

19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
ManualPower
CloseOpenCloseOpen*
OpenCloseCloseOpen
* Tilt: Push
Open: Push againPush once to open partway;
again to open completely.
Sunshade-Side (if equipped)
FRONT MOONROOF
REAR MOONROOF (IF EQUIPPED)
CloseOpen
Rear quarter window
With a rear moonroof
Rear door window
Without a rear moonroof
HookHook Pull
Pull
Moonroof (if equipped)
Windows-Quarter

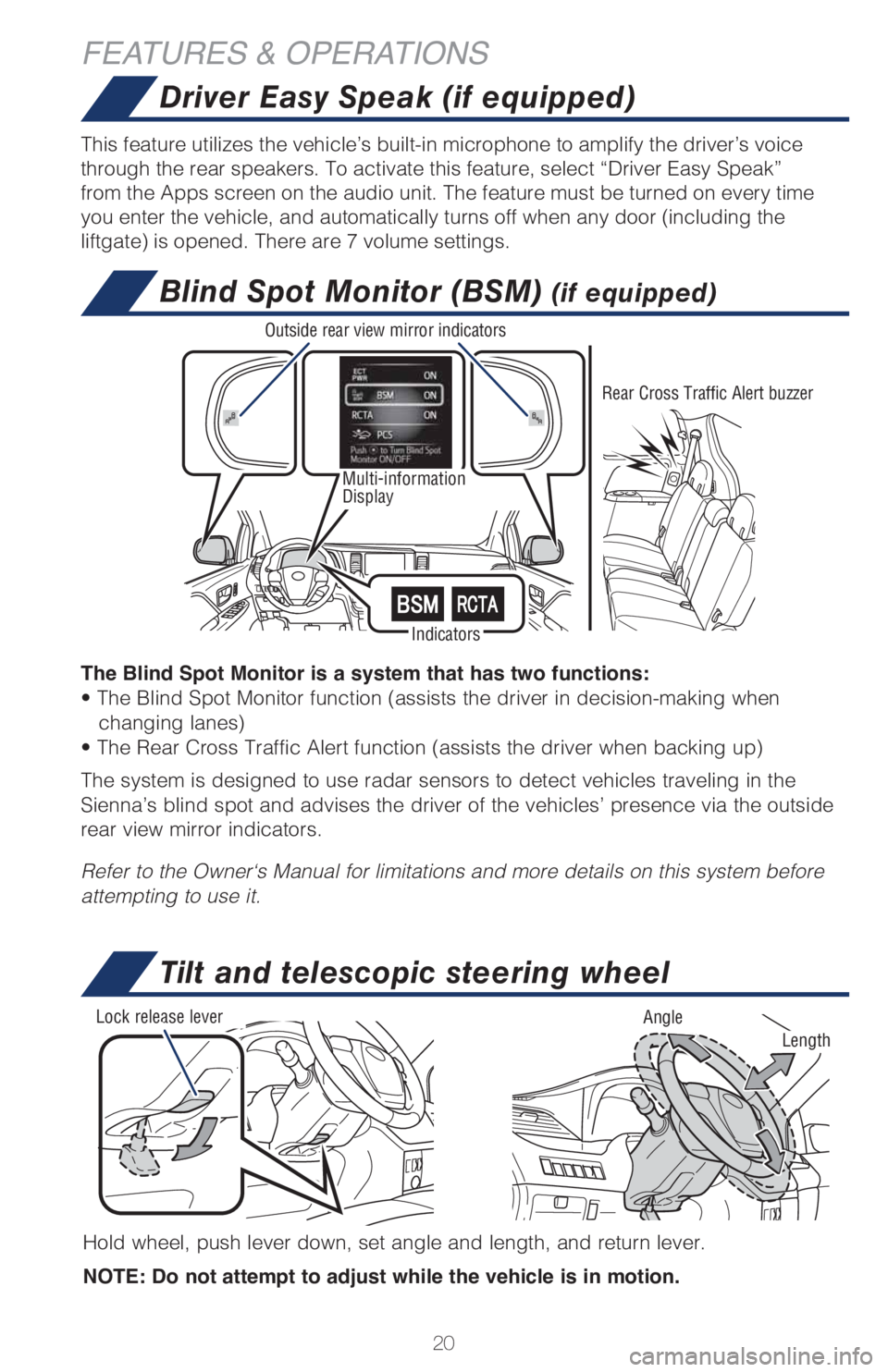

20
Driver Easy Speak (if equipped)
Blind Spot Monitor (BSM) (if equipped)
FEATURES & OPERATIONS
Multi-information
Display
This feature utilizes the vehicle’s built-in microphone to amplify the driver’s voice
through the rear speakers. To activate this feature, select “Driver Easy Speak”
from the Apps screen on the audio unit. The feature must be turned on every time
you enter the vehicle, and automatically turns off when any door (including the
liftgate) is opened. There are 7 volume settings.
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.


NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Lock release lever
Angle
IndicatorsRear Cross Traffic Alert buzzer Outside rear view mirror indicators
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in decision-making when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Sienna’s blind spot and advises the driver of the vehicles’ presence via the outside
rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.

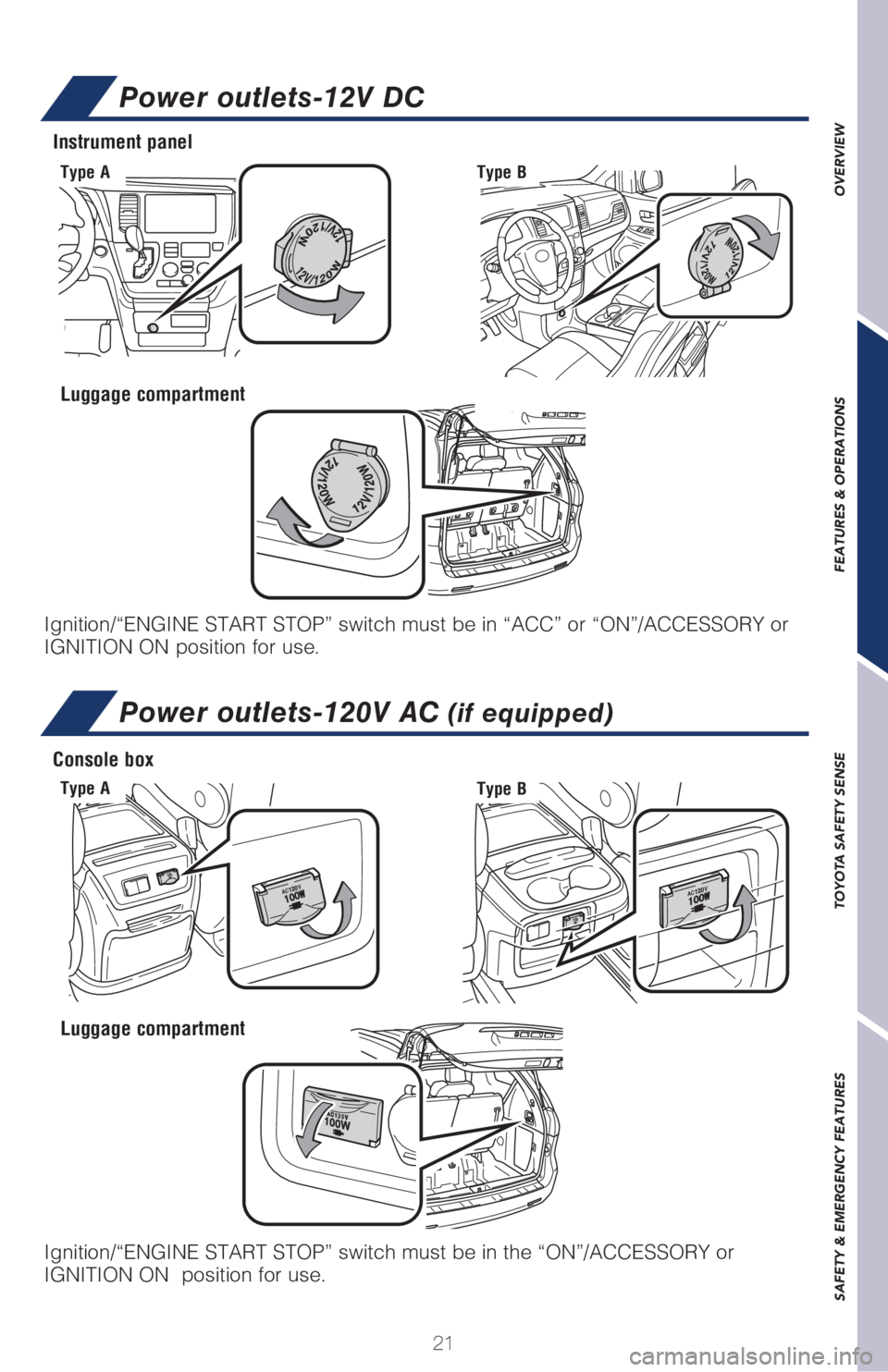

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Power outlets-12V DC
Power outlets-120V AC (if equipped)
Instrument panel
Luggage compartment
Ignition/“ENGINE START STOP” switch must be in the “ON”/ACCESSORY or
IGNITION ON position for use.
Console box
Luggage compartment
Type AType B
Type AType B
Ignition/“ENGINE START STOP” switch must be in “ACC” or “ON”/ACCESSORY or
IGNITION ON position for use.

22

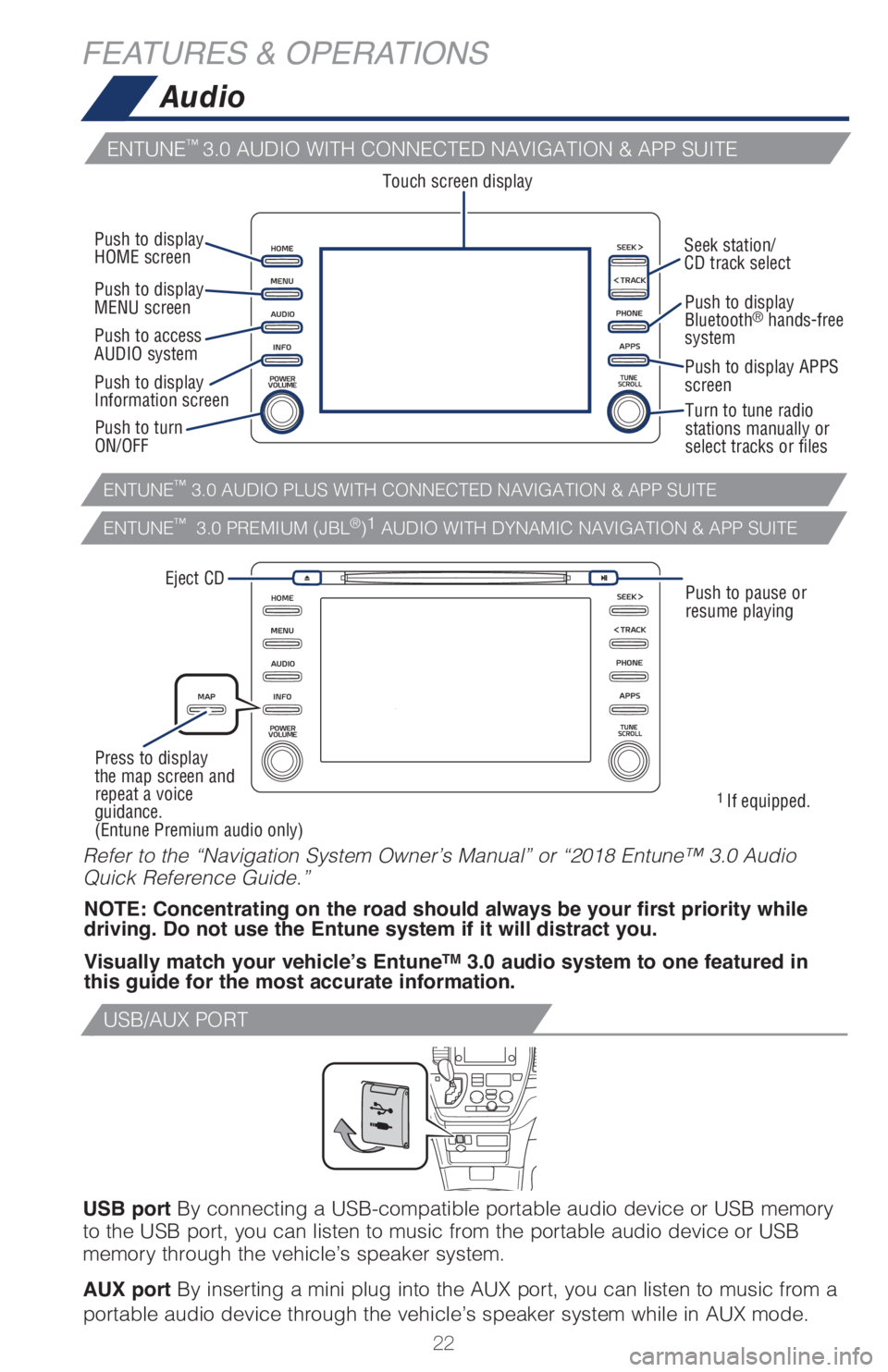

ENTUNE™
3.0 AUDIO WITH CONNECTED NAVIGATION & APP SUITE
Push to pause or
resume playing
Audio
FEATURES & OPERATIONS
Eject CD Push to turn
ON/OFF
Press to display
the map screen and
repeat a voice
guidance.
(Entune Premium audio only)Seek station/
CD track select Push to display
HOME screen
Turn to tune radio
stations manually or
select tracks or files
Touch screen display
Push to display
Bluetooth
® hands-free
system
Push to display APPS
screen Push to access
AUDIO system
Push to display
Information screen Push to display
MENU screen
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
9LVXDOO\PDWFK\RXUYHKLFOH

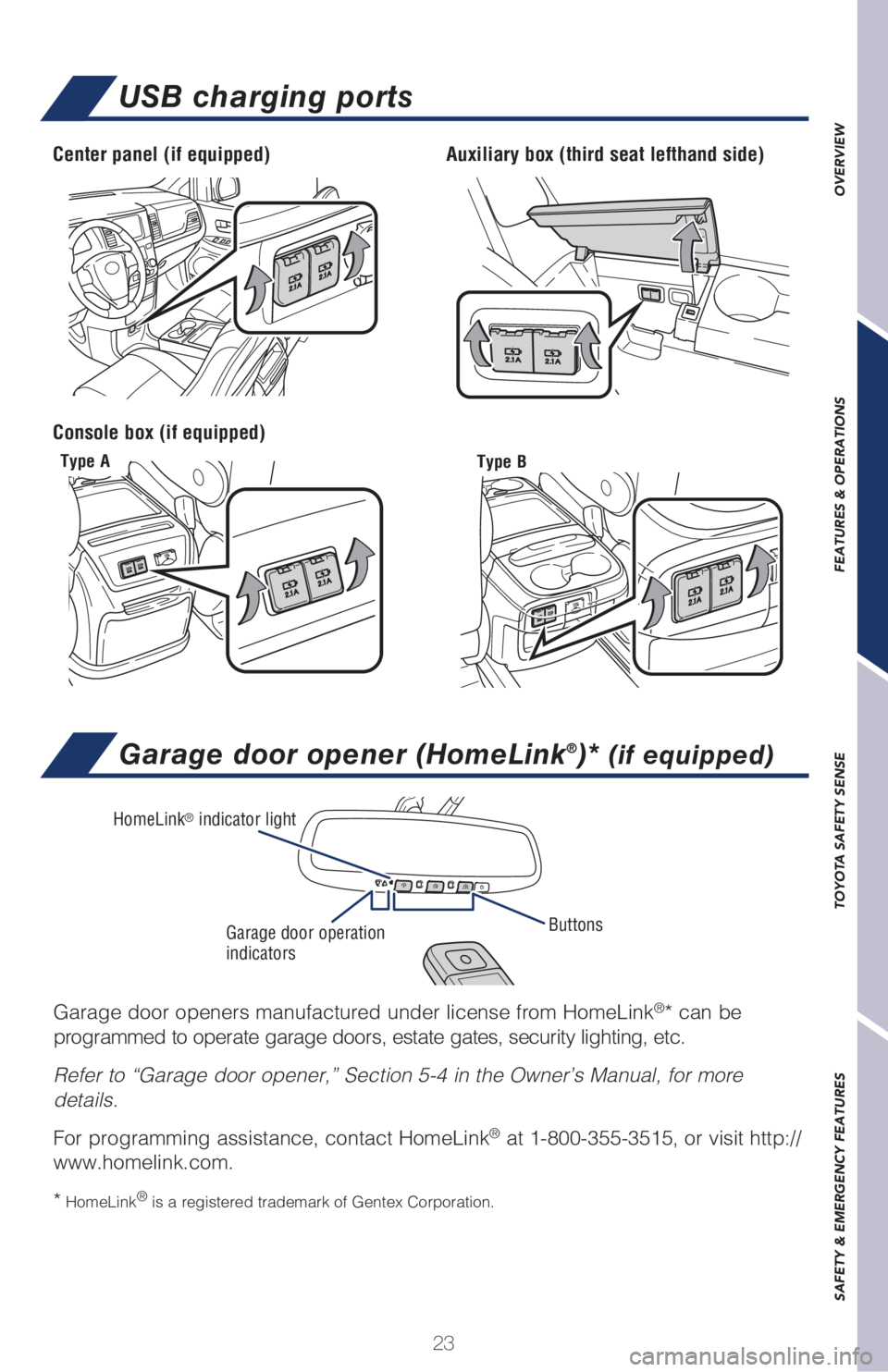

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
USB charging ports
Center panel (if equipped) Auxiliary box (third seat lefthand side)
Console box (if equipped)
Type AType B
Garage door opener (HomeLink®)* (if equipped)
HomeLink® indicator light
Garage door operation
indicatorsButtons
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual, for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com.
*
HomeLink® is a registered trademark of Gentex Corporation.

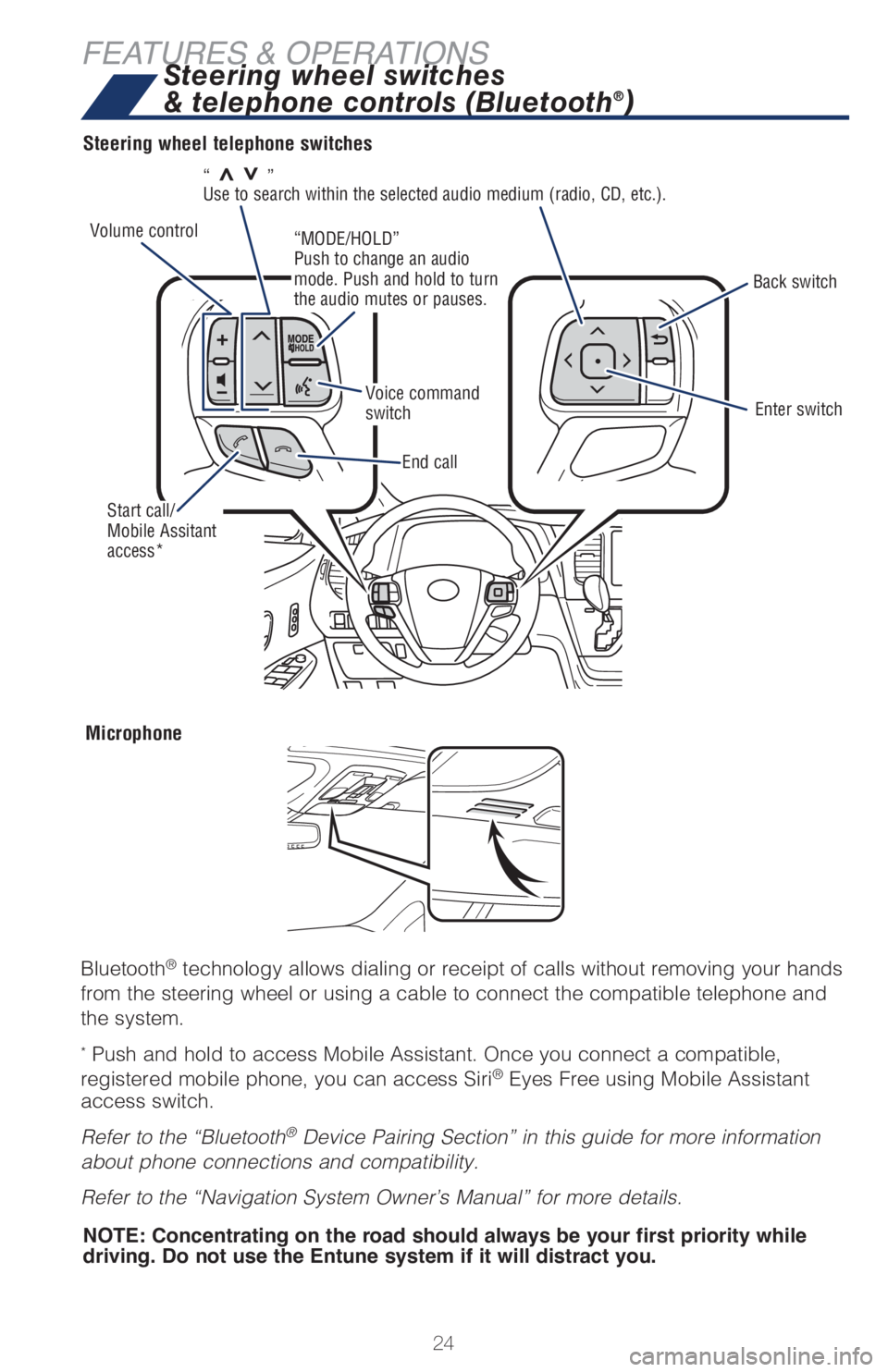

24
FEATURES & OPERATIONS
“>>”
Use to search within the selected audio medium (radio, CD, etc.).
Steering wheel telephone switches
Microphone
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel or using a cable to connect the compatible telephone and
the system.
* Push and hold to access Mobile Assistant. Once you connect a compatible,
registered mobile phone, you can access Siri® Eyes Free using Mobile Assistant
access switch.

Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Navigation System Owner’s Manual” for more details.
Steering wheel switches
& telephone controls (Bluetooth®)
Back switch
Enter switch
End call
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Volume control
Voice command
switch
Start call/
Mobile Assitant
access*
“MODE/HOLD”
Push to change an audio
mode. Push and hold to turn
the audio mutes or pauses.

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Air conditioning/heating
Airflow vent
In “” mode, use
outside air (“
” indicator “OFF”) to
reduce window
fogging. “
” mode
uses outside air only.
Temperature selector
(front passenger side)
Recirculated cabin air
(outside air when OFF)Air Conditioning
ON/OFF
Synchronizes driver, front passenger
and rear temperature settings Automatic climate
control ON
Adjusting the
temperature setting will
cause the airflow vents,
air intake and fan to
adjust automatically.Outside rearview mirror/Rear window defogger
and windshield wiper de-icer (if equipped)
Windshield defogger
Fan speed
Temperature selector
Automatic climate control ON
Airflow vent Climate control OFFRear fan speed
Temperature selector (rear) Front fan speed
Rear airflow vent Rear button Fan ON/OFF Temperature selector
(driver side)Display
Control panel
FRONT AIR CONDITIONING
REAR AUTOMATIC AIR CONDITIONING

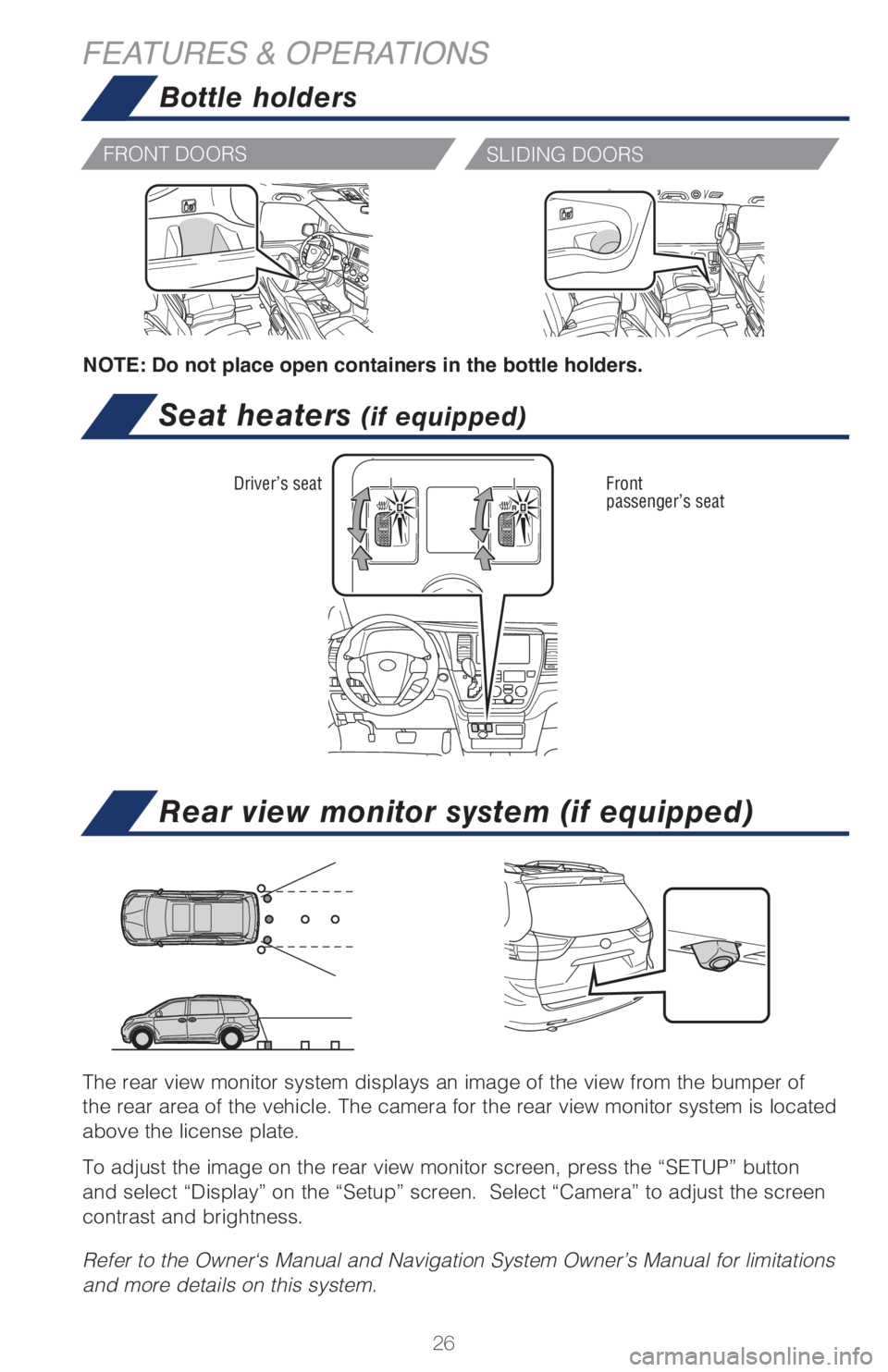

26
Seat heaters (if equipped)
Rear view monitor system (if equipped)
FEATURES & OPERATIONS
Front
passenger’s seatDriver’s seat
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual and Navigation System Owner’s Manual for limitations
and more details on this system.
FRONT DOORS
SLIDING DOORS
Bottle holders
NOTE: Do not place open containers in the bottle holders.

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

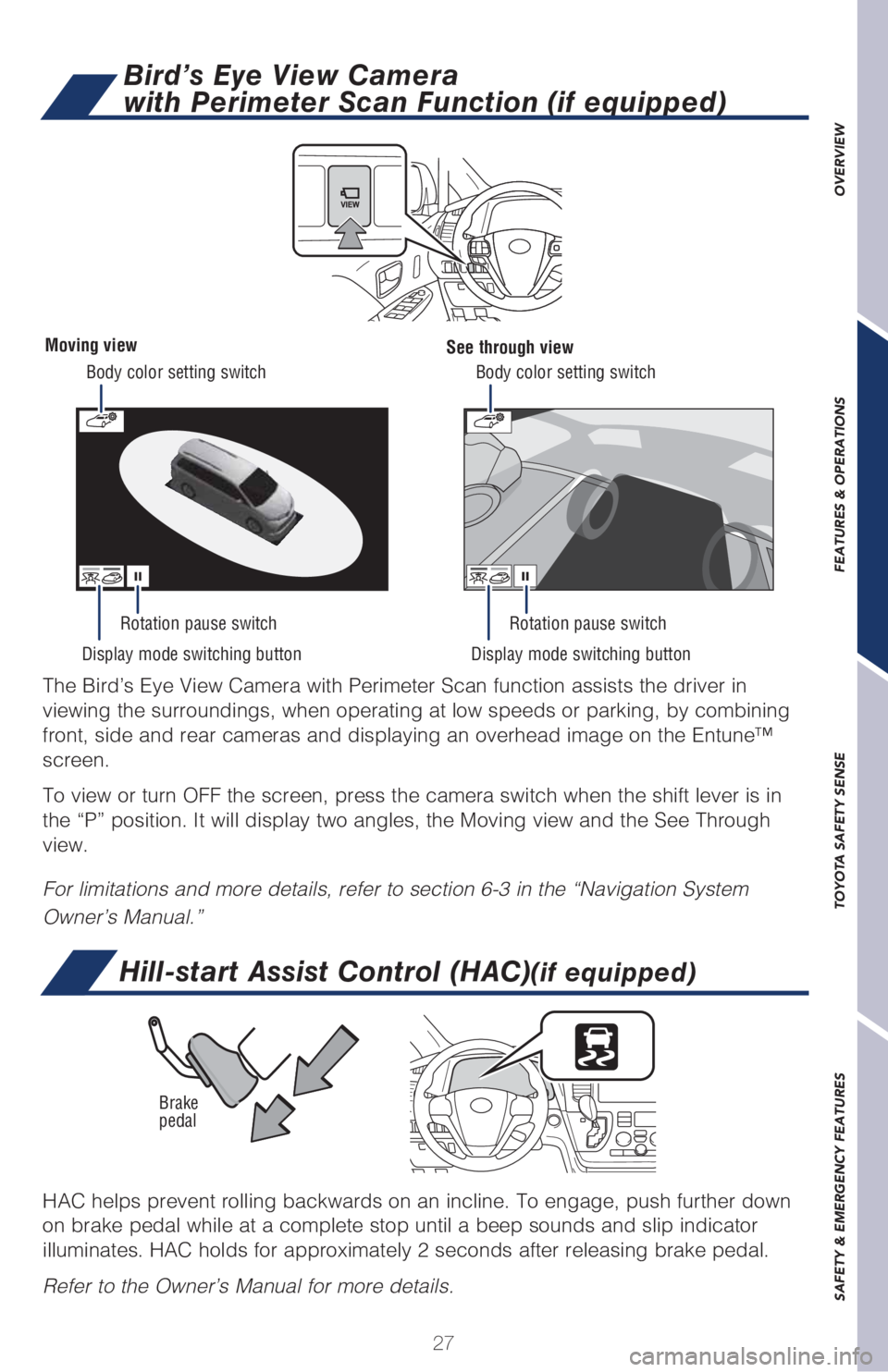

The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the Entune™
screen.
To view or turn OFF the screen, press the camera switch when the shift lever is in
the “P” position. It will display two angles, the Moving view and the See Through
view.
For limitations and more details, refer to section 6-3 in the “Navigation System
Owner’s Manual.”
Bird’s Eye View Camera
with Perimeter Scan Function (if equipped)
Moving viewSee through view
Rotation pause switch Rotation pause switch
Display mode switching button Display mode switching buttonBody color setting switch Body color setting switch
Hill-start Assist Control (HAC)(if equipped)
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately 2 seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal

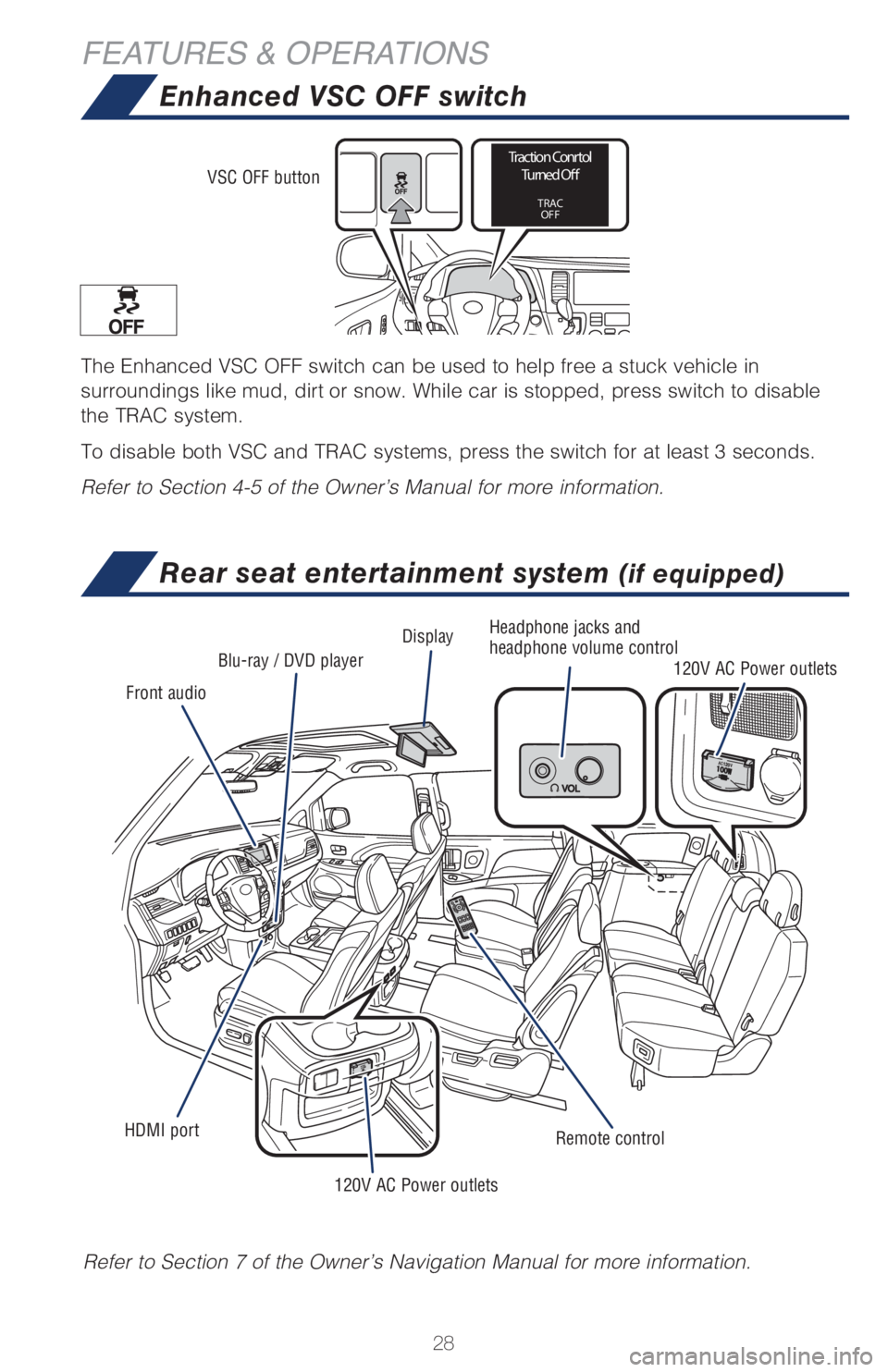

28
Rear seat entertainment system (if equipped)
Enhanced VSC OFF switch
FEATURES & OPERATIONS
Refer to Section 7 of the Owner’s Navigation Manual for more information.
TRAC
Traction Conrtol
Turned Off
OFF
VSC OFF button
Front audioBlu-ray / DVD playerDisplayHeadphone jacks and
headphone volume control
120V AC Power outlets
120V AC Power outletsRemote control HDMI port
The Enhanced VSC OFF switch can be used to help free a stuck vehicle in
surroundings like mud, dirt or snow. While car is stopped, press switch to disable
the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to Section 4-5 of the Owner’s Manual for more information.
