TOYOTA SIENNA 2018 (in English) User Guide

9
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

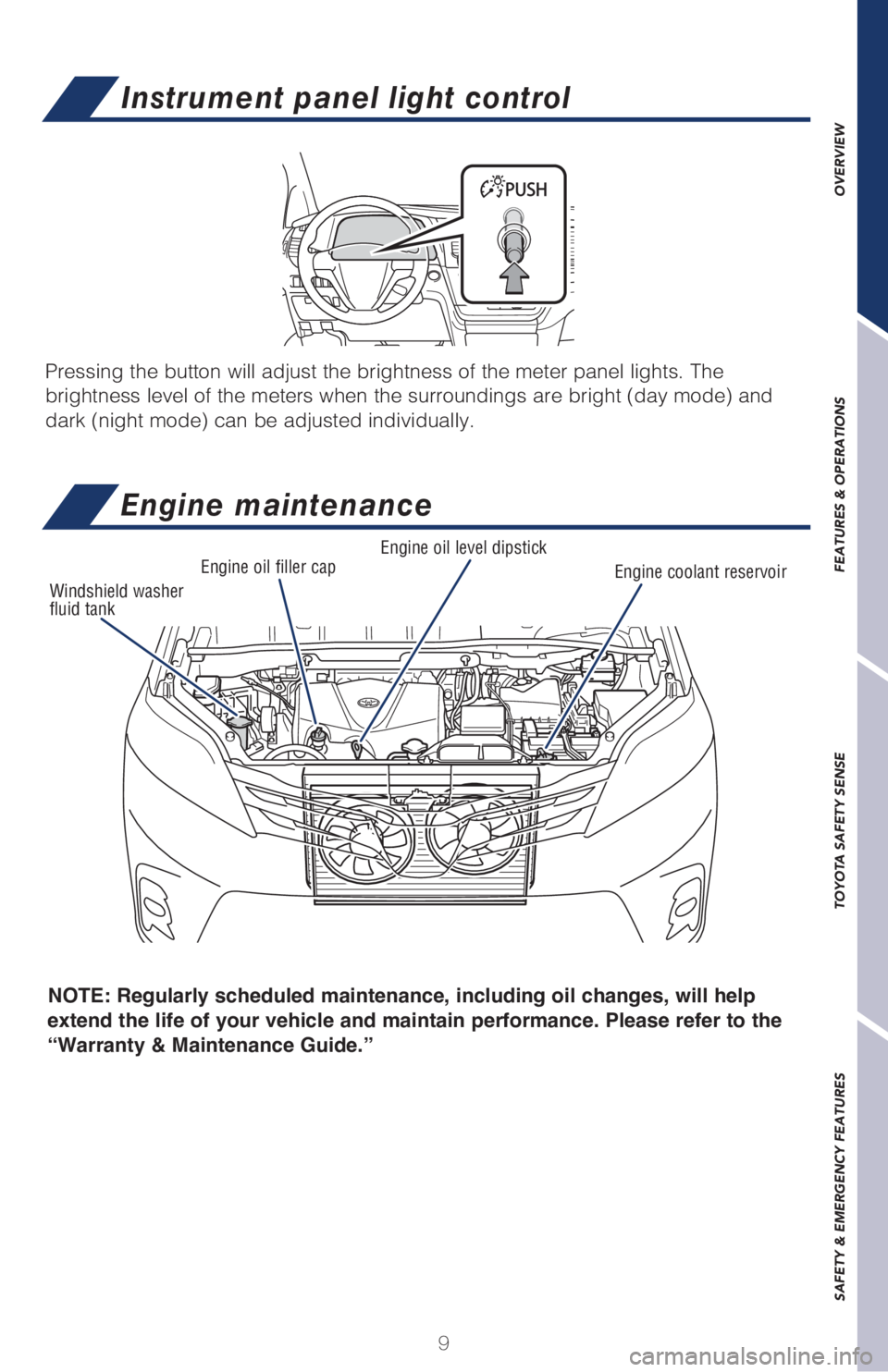

Windshield washer
fluid tankEngine coolant reservoirEngine oil filler capEngine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Pressing the button will adjust the brightness of the meter panel lights. The
brightness level of the meters when the surroundings are bright (day mode) and
dark (night mode) can be adjusted individually.
Instrument panel light control
Engine maintenance

10

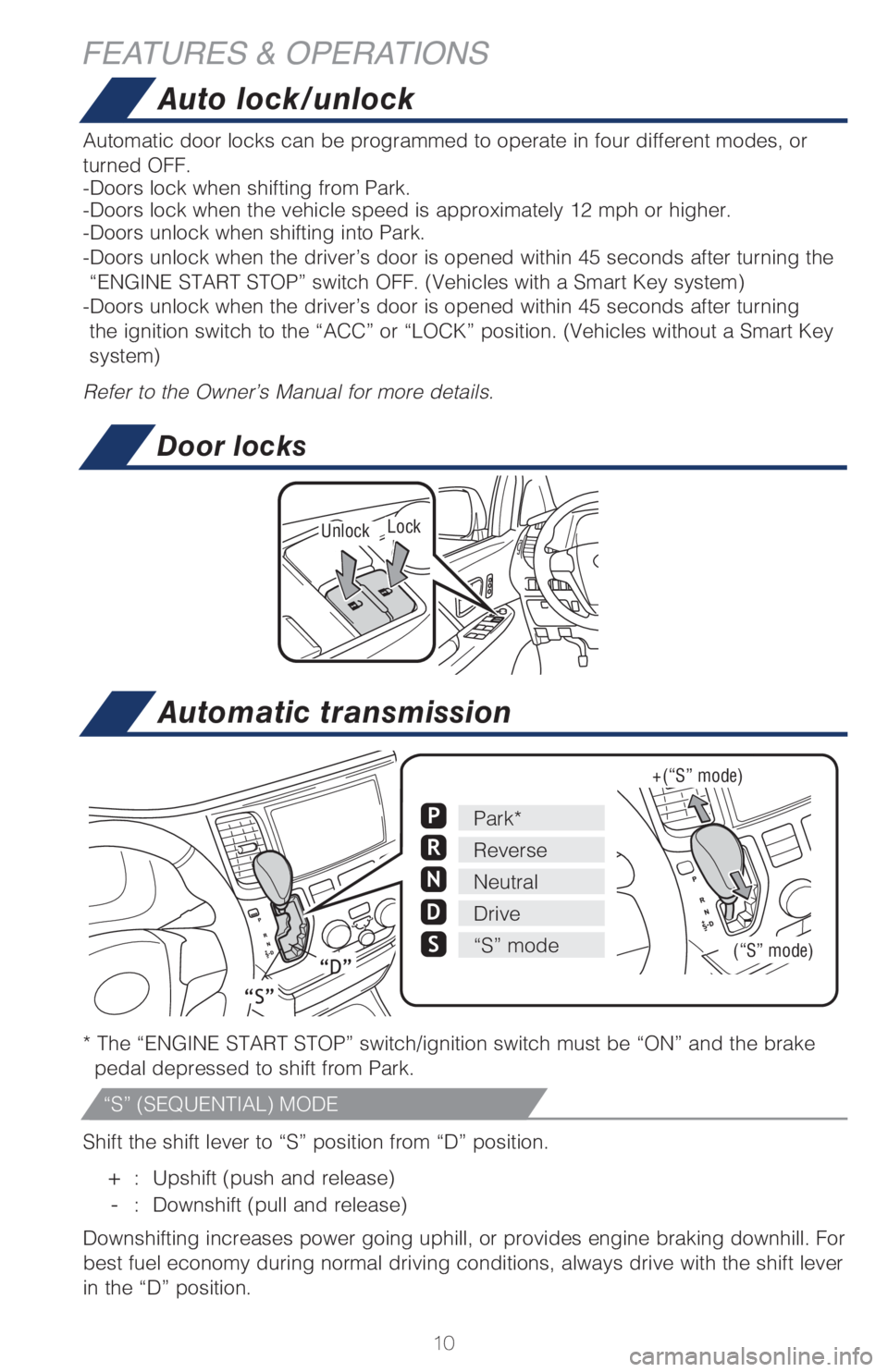

Auto lock/unlock
Automatic transmission
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF. (Vehicles with a Smart Key system)
-Doors unlock when the driver’s door is opened within 45 seconds after turning
the ignition switch to the “ACC” or “LOCK” position. (Vehicles without a Smart Key
system)
Refer to the Owner’s Manual for more details.
* The “ENGINE START STOP” switch/ignition switch must be “ON” and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Park*P
ReverseR
NeutralN
DriveD
S“S” mode
“S”
“D”
+ (“S” mode)
(“S” mode)
Door locks
UnlockLock
FEATURES & OPERATIONS
“S” (SEQUENTIAL) MODE

11
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

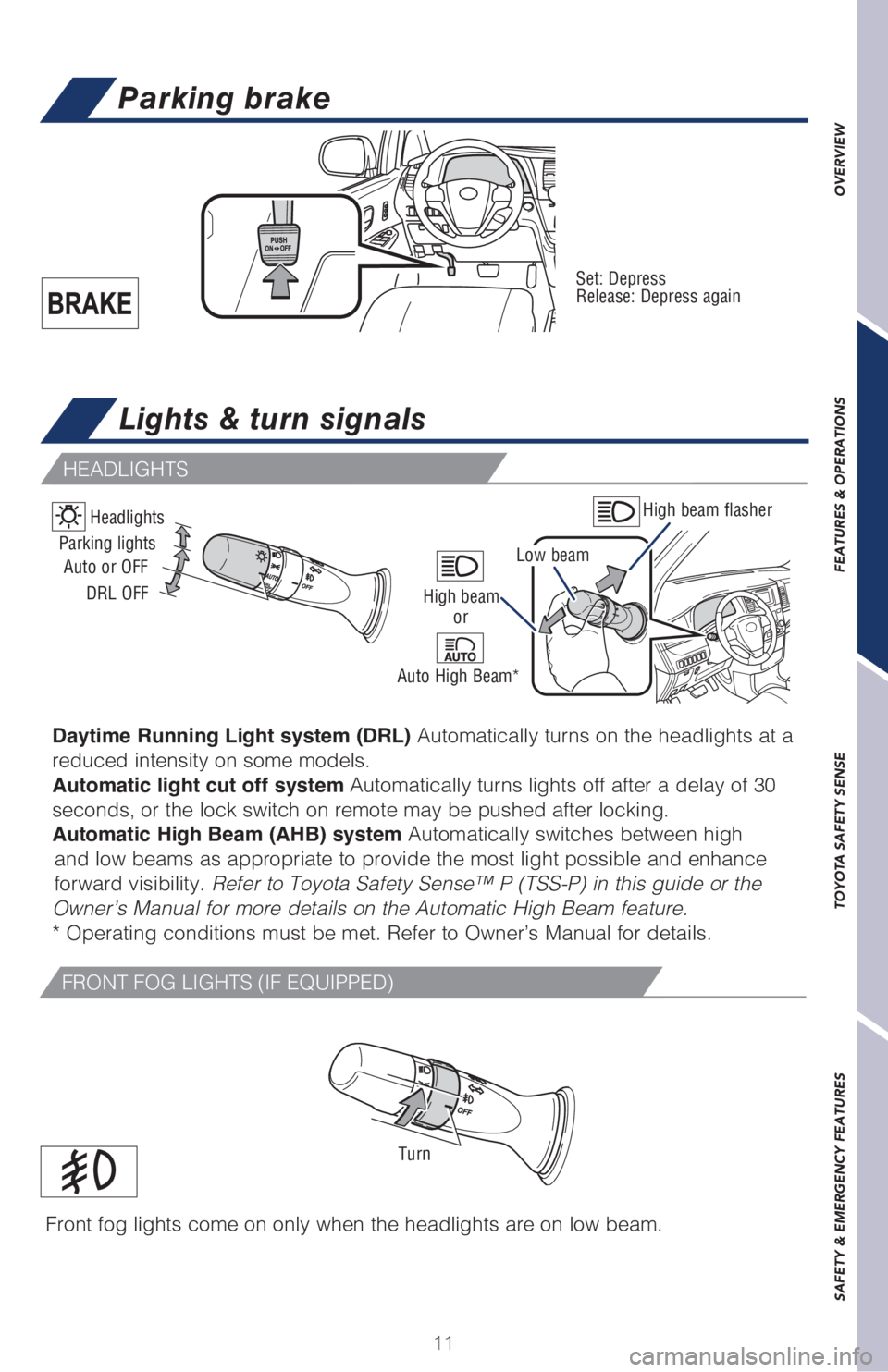

Lights & turn signals
Parking brake
Set: Depress
Release: Depress again
High beam flasher
Low beam Headlights
Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity on some models.
Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for details.
Parking lights
High beam
Auto or OFF
DRL OFF
Auto High Beam* or
Front fog lights come on only when the headlights are on low beam.
Turn
FRONT FOG LIGHTS (IF EQUIPPED)
HEADLIGHTS

12
FEATURES & OPERATIONS

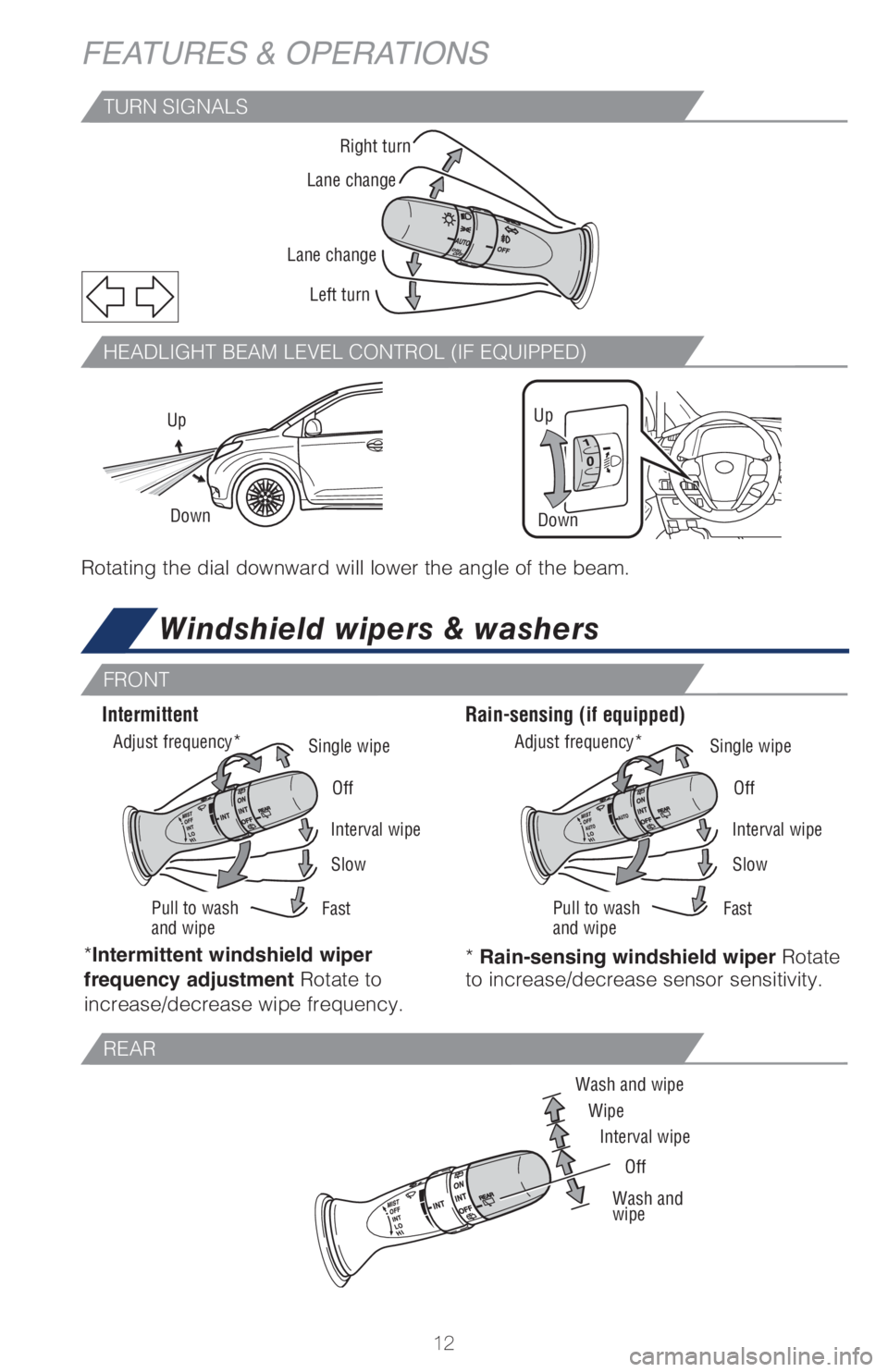

Rotating the dial downward will lower the angle of the beam.
Up
Down
DownUp
Right turn
Lane change
Lane change
Left turn
Wash and wipe
Wipe
Interval wipe
Wash and
wipeOff
Windshield wipers & washers
*Intermittent windshield wiper
frequency adjustment Rotate to
increase/decrease wipe frequency.* Rain-sensing windshield wiper Rotate
to increase/decrease sensor sensitivity. Intermittent
Adjust frequency* Adjust frequency*Single wipeSingle wipe
Interval wipeInterval wipe
Slow Slow
FastFastPull to wash
and wipePull to wash
and wipe Off Off
Rain-sensing (if equipped)
FRONT
REAR
TURN SIGNALS
HEADLIGHT BEAM LEVEL CONTROL (IF EQUIPPED)

13
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

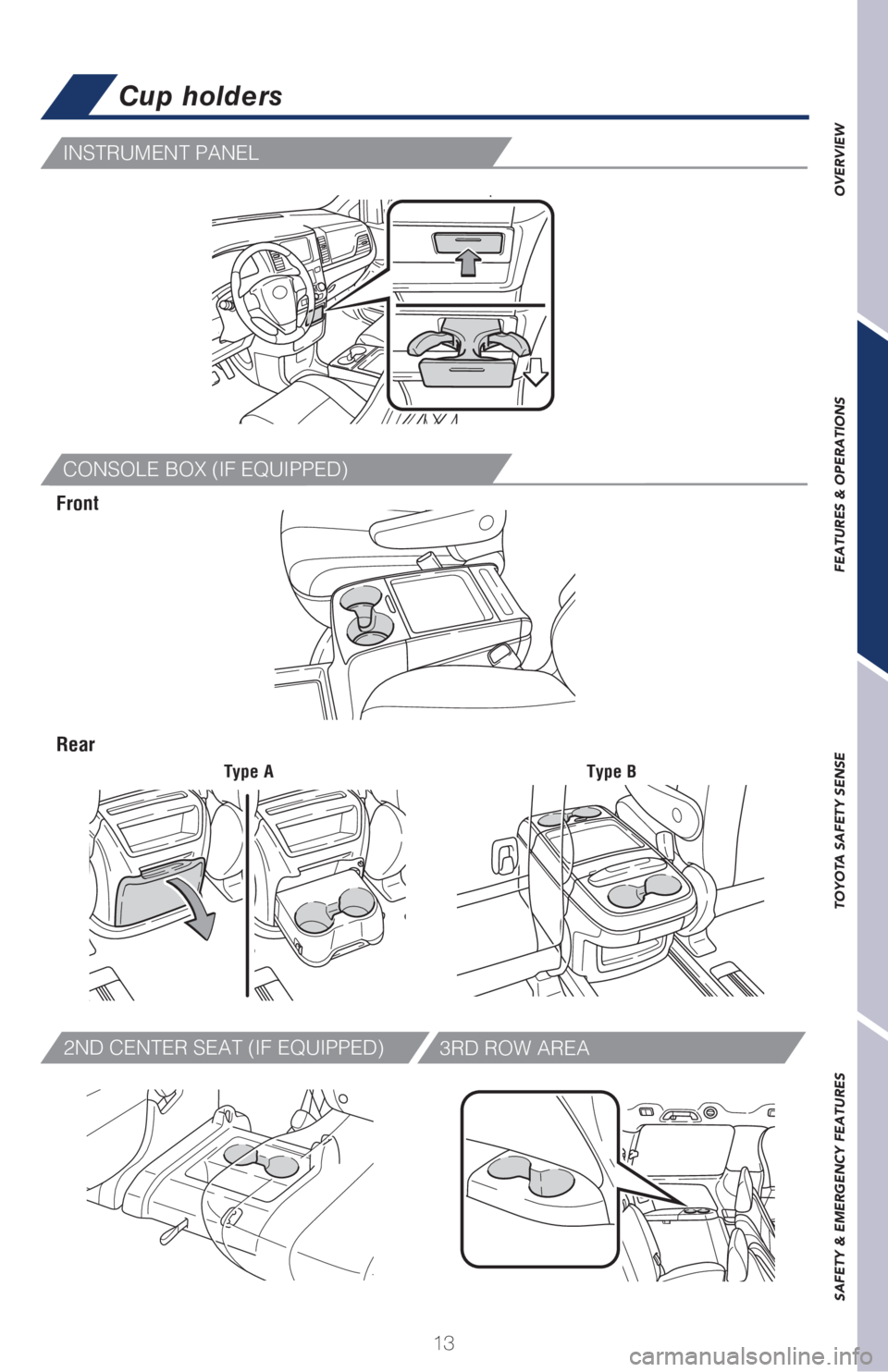

Cup holders
INSTRUMENT PANEL
CONSOLE BOX (IF EQUIPPED)
Front
Rear
Type A Type B
2ND CENTER SEAT (IF EQUIPPED)
3RD ROW AREA

14

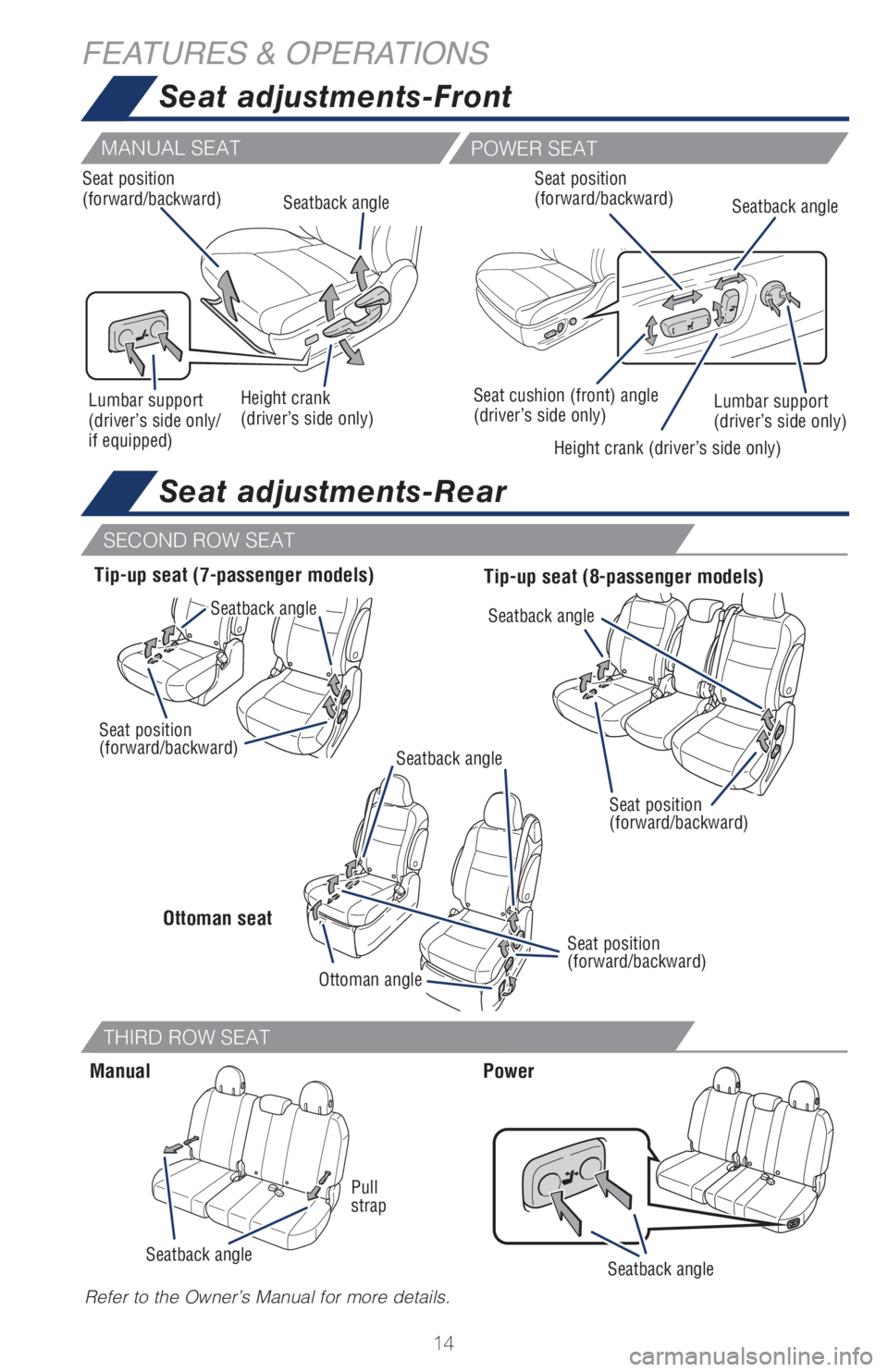

Seat adjustments-Front
Seat adjustments-Rear
FEATURES & OPERATIONS
SECOND ROW SEAT
THIRD ROW SEAT
Refer to the Owner’s Manual for more details.
Manual
Pull
strap
Tip-up seat (7-passenger models)
Ottoman seatTip-up seat (8-passenger models)
Power
Seat position
(forward/backward)
Height crank
(driver’s side only)
Height crank (driver’s side only) Seatback angle
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback angle
Seatback angleSeatback angle
Seatback angle
Ottoman angle
Seatback angle
Seat position
(forward/backward)Seatback angle Seat position
(forward/backward)
Lumbar support
(driver’s side only/
if equipped)Lumbar support
(driver’s side only) Seat cushion (front) angle
(driver’s side only)
MANUAL SEAT
POWER SEAT

15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES(2)
(2) (1)
(1)
Tip-up seats
Fold
Pull
Lift
Pull Pull
Tip-up
Pull Fold
Lift
Ottoman seats
Pull
Fold
Pull
Remove
(2) (1)
(3)

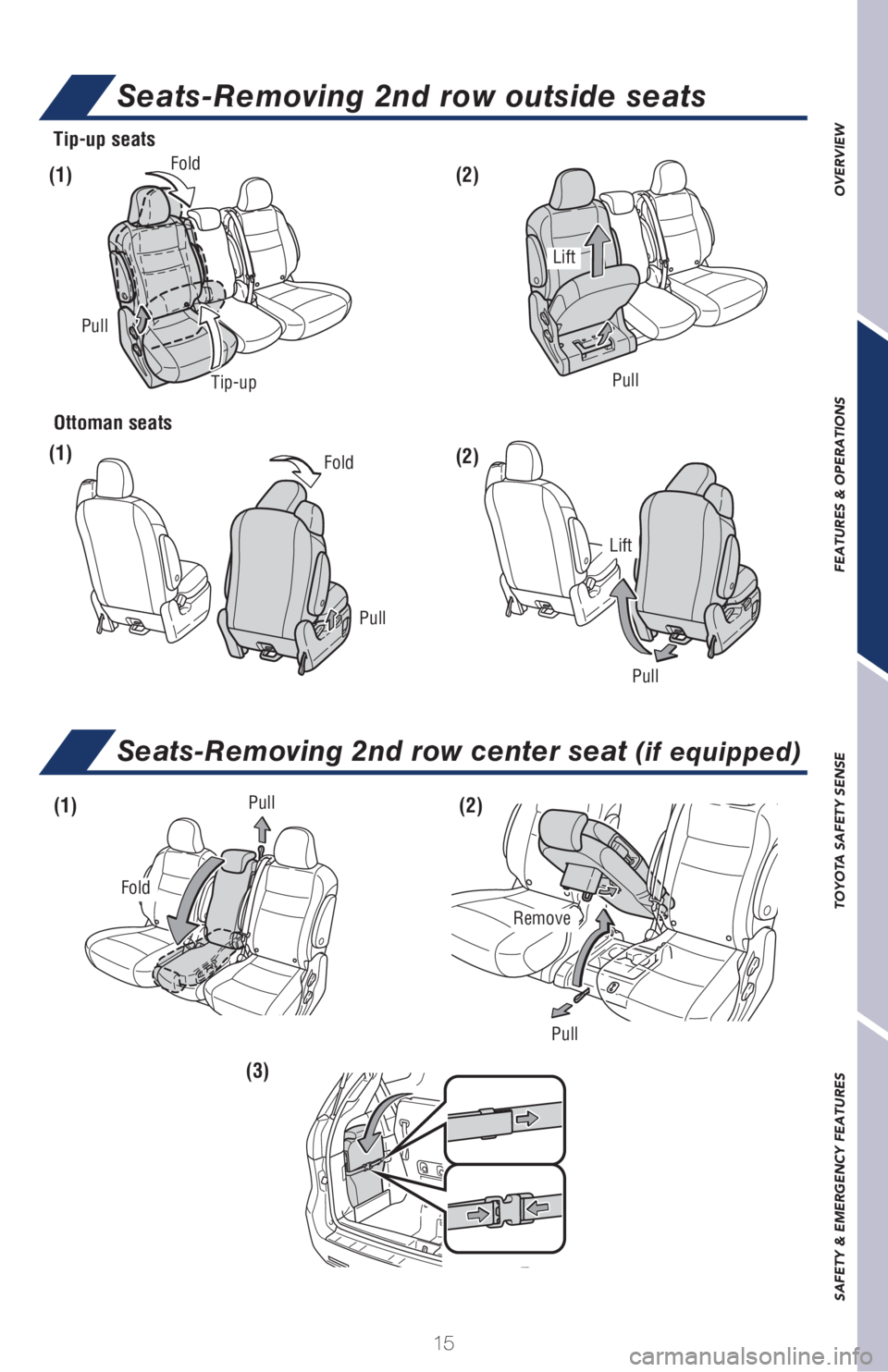

Seats-Removing 2nd row outside seats
Seats-Removing 2nd row center seat (if equipped)

16

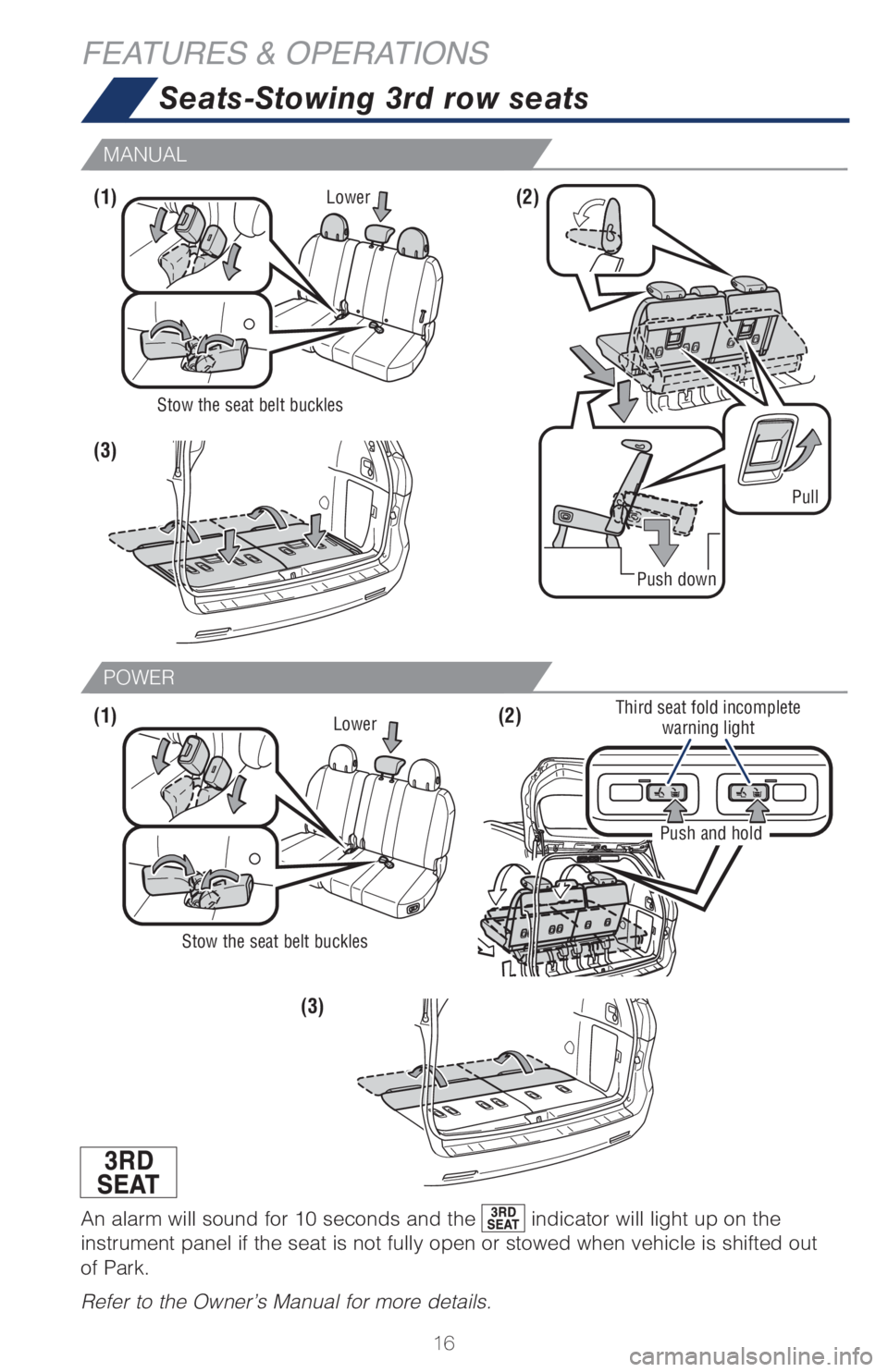

Seats-Stowing 3rd row seats
MANUAL
POWER
FEATURES & OPERATIONS
Lower
An alarm will sound for 10 seconds and the indicator will light up on the
instrument panel if the seat is not fully open or stowed when vehicle is shifted out
of Park.
Refer to the Owner’s Manual for more details.
Third seat fold incomplete
warning light
Stow the seat belt buckles
(2) (1)
(3)Lower
Push down Stow the seat belt buckles
Pull
(2) (1)
(3)
Push and hold

17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

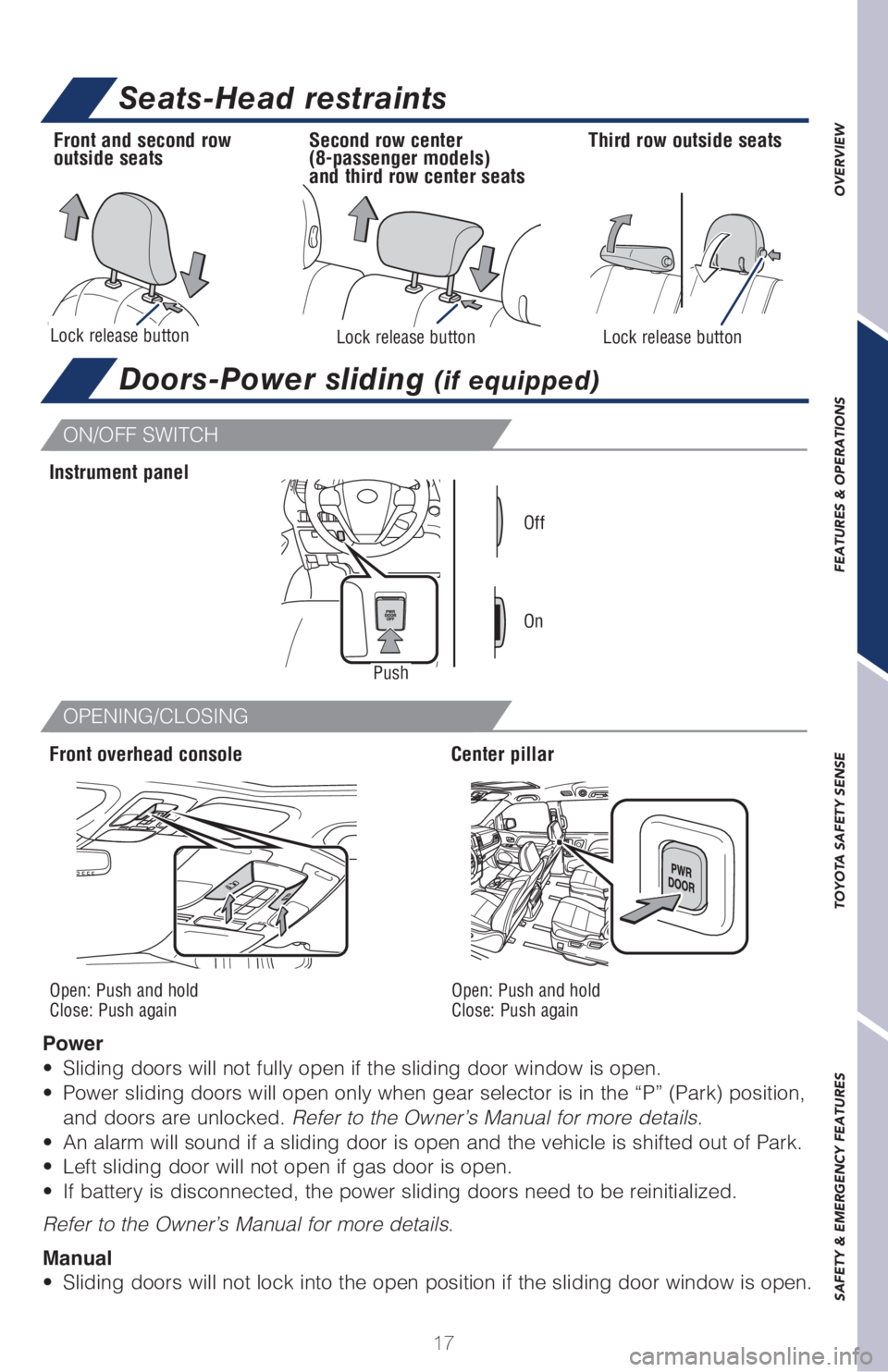

Doors-Power sliding (if equipped)
ON/OFF SWITCH
OPENING/CLOSING
Power
• Sliding doors will not fully open if the sliding door window is open.
• Power sliding doors will open only when gear selector is in the “P” (Park) position,
and doors are unlocked. Refer to the Owner’s Manual for more details.
• An alarm will sound if a sliding door is open and the vehicle is shifted out of Park.
• Left sliding door will not open if gas door is open.
• If battery is disconnected, the power sliding doors need to be reinitialized.
Refer to the Owner’s Manual for more details.
Manual
• Sliding doors will not lock into the open position if the sliding door window is open.
Front overhead console Instrument panel
Push
Center pillar
On Off
Open: Push and hold
Close: Push againOpen: Push and hold
Close: Push again
Seats-Head restraints
Lock release button
Front and second row
outside seatsThird row outside seats
Lock release buttonLock release button
Second row center
(8-passenger models)
and third row center seats

18
CLOSING
FEATURES & OPERATIONS
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop window partway, lightly push the switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Window lock switch
Up
Down
On OffPush
Instrument panelFront overhead console
Open: Push
Close: Push againPush
Push

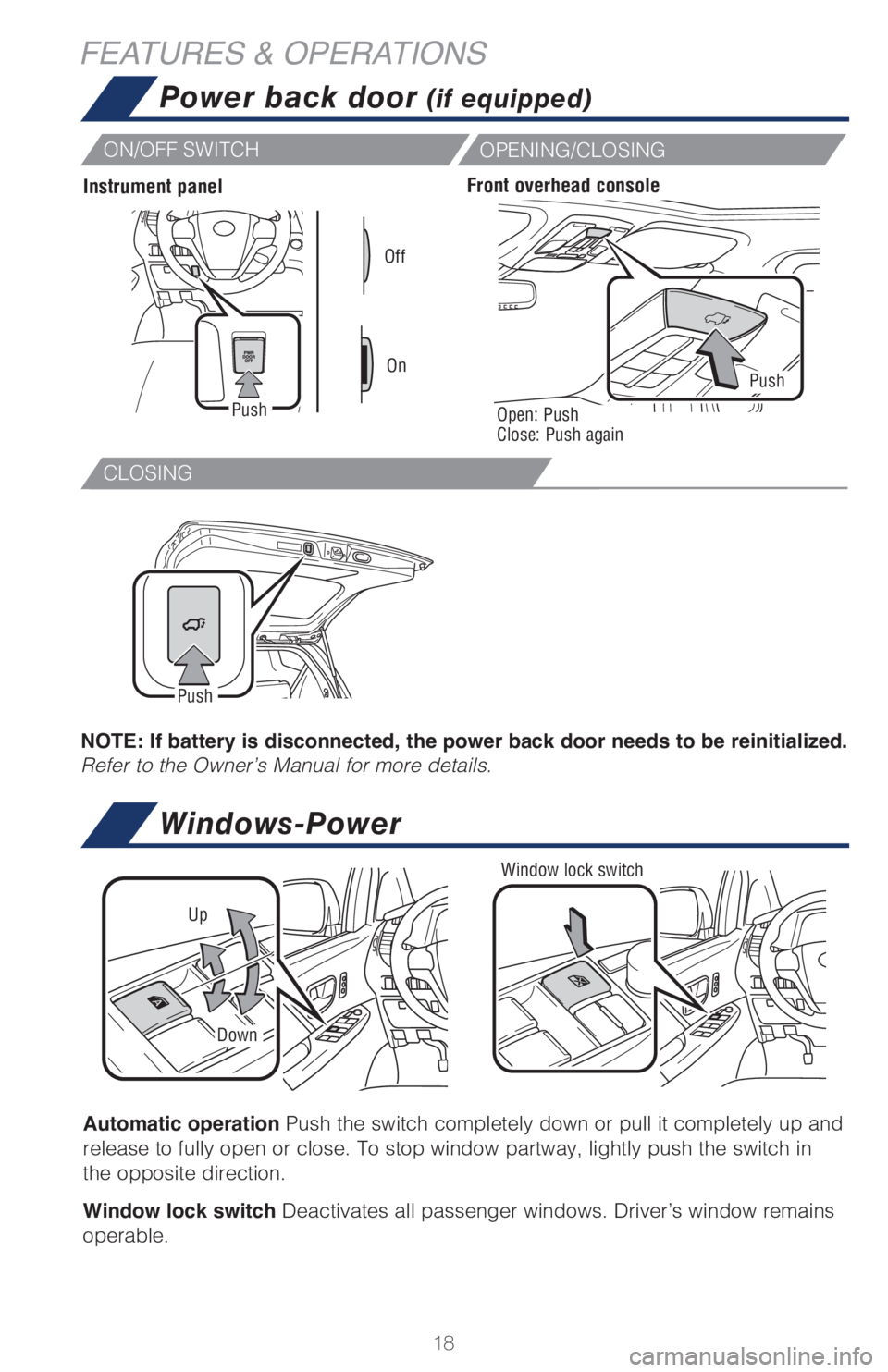

Power back door (if equipped)
Windows-Power
ON/OFF SWITCH
OPENING/CLOSING
