912. Instrument cluster
2
Instrument cluster
The brightness of the meter panel lights can be adjusted.
Pressing the butto n will adjust the
brightness of the meter panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
■ Outside temperature display
●In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 k m/h])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● The temperature range that can be displayed is from -40°F (-40° C) to 122°F
(50°C).
When the outside temperature drops below 37°F (3°C), the Low ou tside
temperature indicator will be displayed on the multi-informatio n display.
( P. 86)
● When “--” or “E” is displayed, the system may be malfunctioning. Take your
vehicle to your Toyota dealer.
Meter panel light control
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 509)
Page 92 of 584

92
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
Multi-information display
The multi-information display
presents the driver with a variety
of vehicle data.
●Menu icons
Displays the following information when an icon is selected.
( P. 93)
Some of the information may be di splayed automatically depending
on the situation.
Drive information
Select to display various drive data. ( P. 94)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio/visual system-linked display
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Dynamic radar cruise control display
Select to display the information and operation procedures of t he
dynamic radar cruise control. ( P. 289)
The tab will change to when the vehicle is in constant
speed control mode. ( P. 297)
Display contents
Page 93 of 584

SIENNA_OM_OM08019U_(U)
932. Instrument cluster
2
Instrument cluster
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 481)
When there is a warning message that can be displayed, the colo r of
changes to Amber.
Settings display
Select to change the meter display settings. ( P. 540)
●Intuitive parking assist display (if equipped)
Automatically displayed wh en the system is used (P. 314)
● Power mode ( P. 234)
The multi-information display is
operated using the meter control
switches. Enter/Set
Select an item/Change pages
Return to the previous screen
Press: Displays the screen reg-
istered as the top screen
When no screen has been registered, the drive information screen will be
displayed.
Press and hold: Registers the currently displayed screen as the top
screen
When the confirmation screen is displayed, select yes to regist er the
screen. If the selected screen cannot be registered, a registra tion failure
message will be shown.

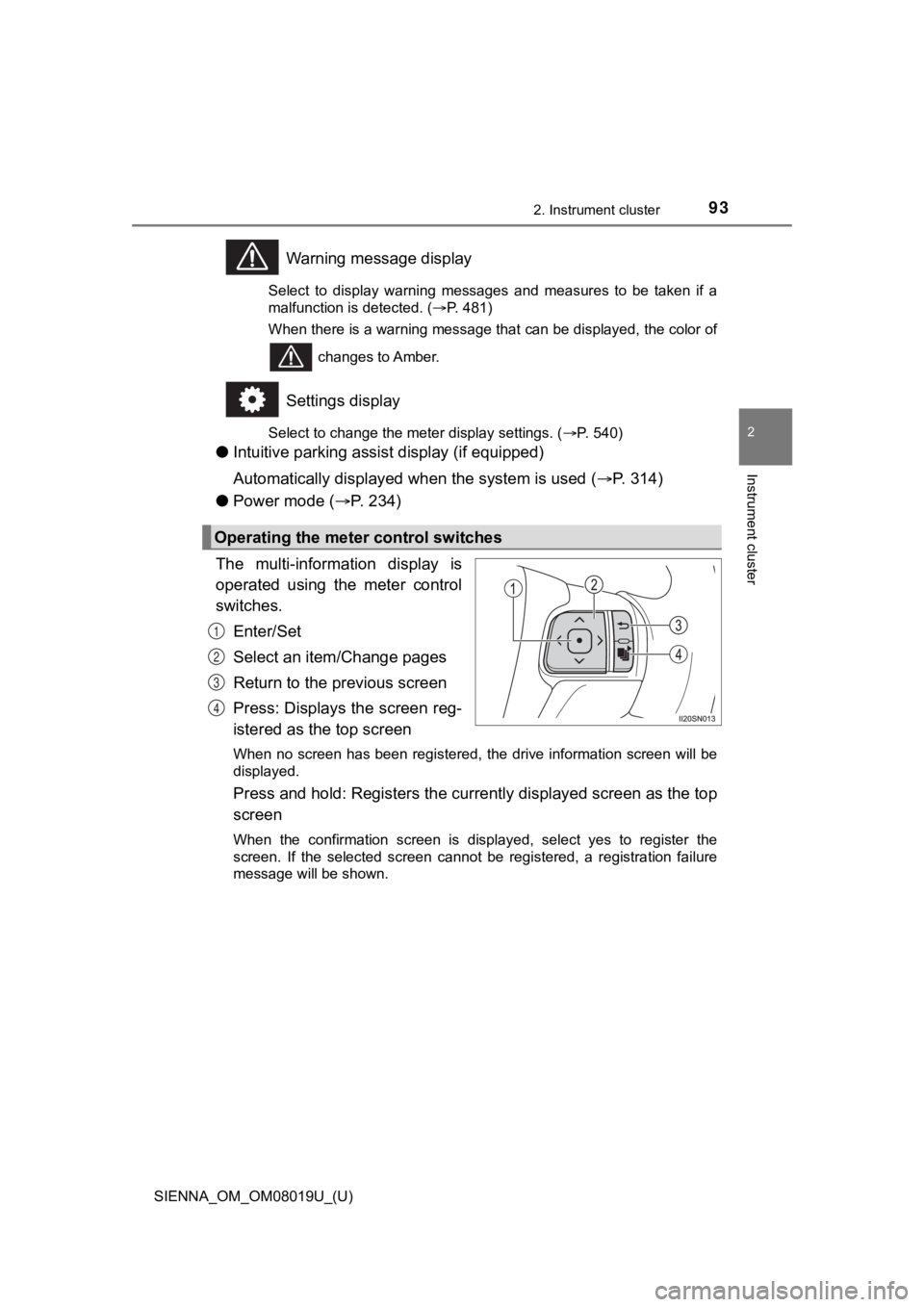

Operating the meter control switches
1
2
3
4
Page 94 of 584

94
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
●Average fuel economy*1, 2
Displays the average fuel consum ption since the function was
reset.
*3
● Tank average fuel economy*1, 2
Displays the average fuel consumption since the vehicle was ref u-
eled.
● Trip average fuel economy
*1, 2
Displays the average fuel consumption since the engine was
started.
● Current fuel economy
*1, 2
Displays the current rat e of fuel consumption.
● Distance to empty
*1
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed base d on your average fuel consump-
tion. As a result, the actual di stance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis -
play may not be updated.
When refueling, turn the engine switch off. If the vehicle is r efu-
eled without turning the engine sw itch off, the display may not be
updated.
● Trip distance
*1
Displays the driving distance after the engine was started.
● Distance
*1
Displays the driving distance s ince the function was reset.*3
●Trip elapsed time*1
Displays the elapsed time sin ce the function was reset.*3
●Elapsed time*1
Displays the elapsed time sin ce the engine was started.
● Trip average speed
*1
Displays the average vehicle spe ed since the function was reset.*3
●Average speed*1
Displays the average vehicle speed since the engine was started .
Drive information
Page 95 of 584

SIENNA_OM_OM08019U_(U)
952. Instrument cluster
2
Instrument cluster
●AWD control (if equipped)
Displays the torque distribution between the front and rear axl es of
the AWD control system
● Digital speedometer
*1
●Display off
A blank screen is displayed.
*1: Can be registered to Drive information 1 through 3. ( P. 96)
*2: Use the displayed fuel consumption as a reference.
*3: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there is more than one function that can be reset, check bo xes will be
displayed next to those functions.
Page 96 of 584

96
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
The settings of the following items can be changed, refer to P. 540
● Language
Select to change the l anguage on the display.
● Units
Select to change the unit for meas ure of the fuel consumption and
outside temperature.
● Drive information 1 through 3
Select to select up to 2 items th at will be displayed on a Drive infor-
mation screen, up to 3 Drive in formation screens can be set.
● Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
(
P. 8 8 )
● switch settings
You can register 1 screen as the top screen. To register, press and
hold while the desired screen is displayed.
● Pop-up display
Select to set the following pop-up displays, which may appear i n
some situations, on/off. • Instrument panel bright ness adjustment display
• Route guidance display of the navigation system-linked system (if equipped)
• Incoming call display of t he hands-free phone system
• Shift position display
Settings display
Page 97 of 584

SIENNA_OM_OM08019U_(U)
972. Instrument cluster
2
Instrument cluster
●Speed limit display (if equipped)
Select to set the display of speed limit information stored in the nav-
igation system to on with the speed limit caution indicator (ye llow)
enabled, on with the speed limit caution not enabled, or off. If
enabled, the speed limit caution indicator will come on if the vehicle
speed exceeds the di splayed speed limit.
The display may not be available for some regions.
●BSM (Blind Spot Mon itor) (if equipped)
The brightness of the outside rear view mirror indicators can b e
adjusted. ( P. 548)
● RCTA (Rear Cross Traffic Alert buzzer) (if equipped)
The buzzer sound volum e can be adjusted. (P. 548)
● Maintenance Reset
Select to reset the maintenance data ( P. 3 9 9 )
● Initialization
Registered or cha nged meter settings will be deleted or returne d to
their default setting.
■ Pop-up display
In some situations, such as when a switch operation is performe d, a pop-up
display, such as the operating shift position, will be temporar ily displayed on
the multi-information display.
The pop-up display function can be set on/off. ( P. 540)
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switch will automatically be turned off.
● If a warning message appears while the setting display is displ ayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
Page 98 of 584

98
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display , ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxi de (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.
Page 99 of 584

99
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
2
Instrument cluster
Fuel consumption information
Entune Audio or Entune Audio Plus (vehicles without Data Commu-
nication Module)
Press the “INFO” button.
If the “History” screen is displayed,
select “Trip Information”.
Entune Audio Plus (vehicles wi th Data Communication Module)
Press the “INFO” button.
Select “ECO” on the “Information” screen.
If the “History” screen is displayed, select “Trip Information” .

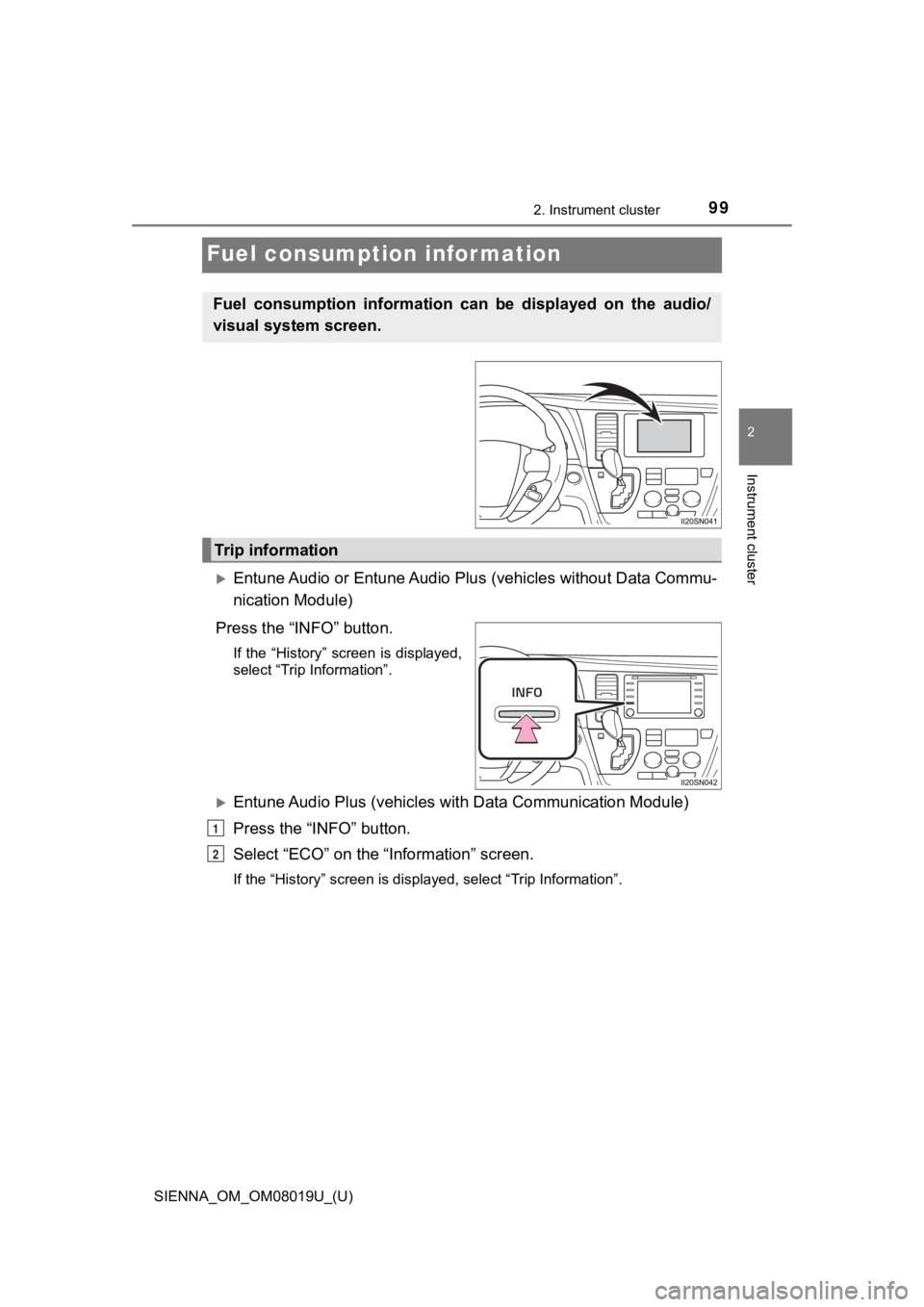

Fuel consumption information can be displayed on the audio/
visual system screen.
Trip information
1
2
Page 100 of 584

100
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Informa-
tion” screen.
If the “History” screen is displayed,
select “Trip Information”.
Resetting the consumption data
Average vehicle speed since
the engine was started
Elapsed time since the engine
was started
Fuel consumption in the past 15
minutes
Cruising range (P. 102)
Current fuel consumption

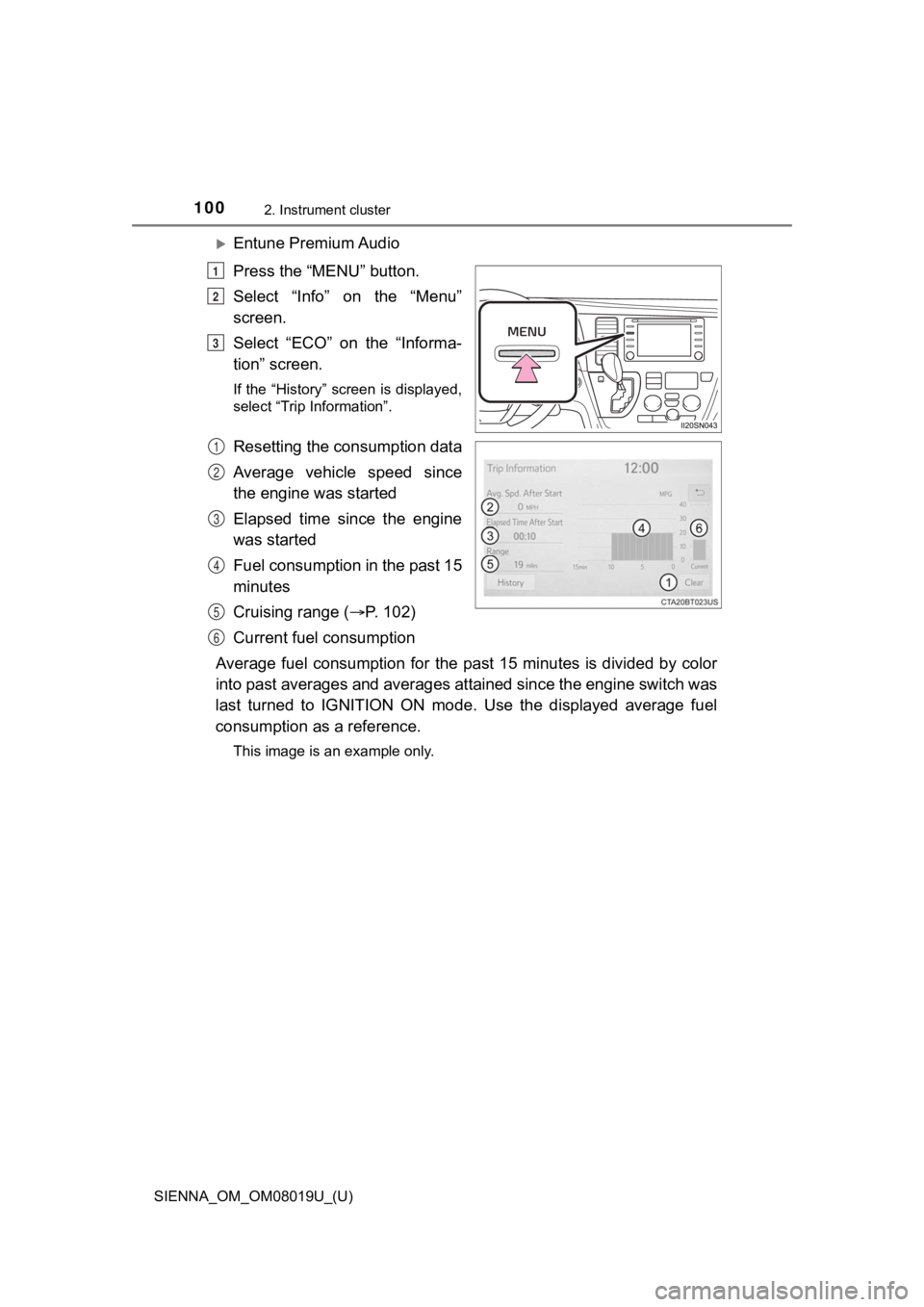

Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
1
2
3
1
2
3
4
5
6
