811-2. Theft deterrent system
SIENNA_OM_OM08019U_(U)
1
For safety and security
■Alarm-operated door lock
In the following cases, depending on the situations, the door m ay automati-
cally lock to prevent improper entry into the vehicle:
● When a person left in the vehicle triggers the alarm by unlocking a door or
the back door.
● When a person left in the vehicle unlocks a door or the back door while the
alarm is operating.
● When recharging or replacing the battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
Page 82 of 584

821-2. Theft deterrent system
SIENNA_OM_OM08019U_(U)
Page 83 of 584

83
SIENNA_OM_OM08019U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 84
Gauges and meters ............ 89
Multi-information display ..... 92
Fuel consumption information ........................ 99
Page 84 of 584

84
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
Warning lights and indicators
The units used on the meters and some indicators may differ depending on
the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

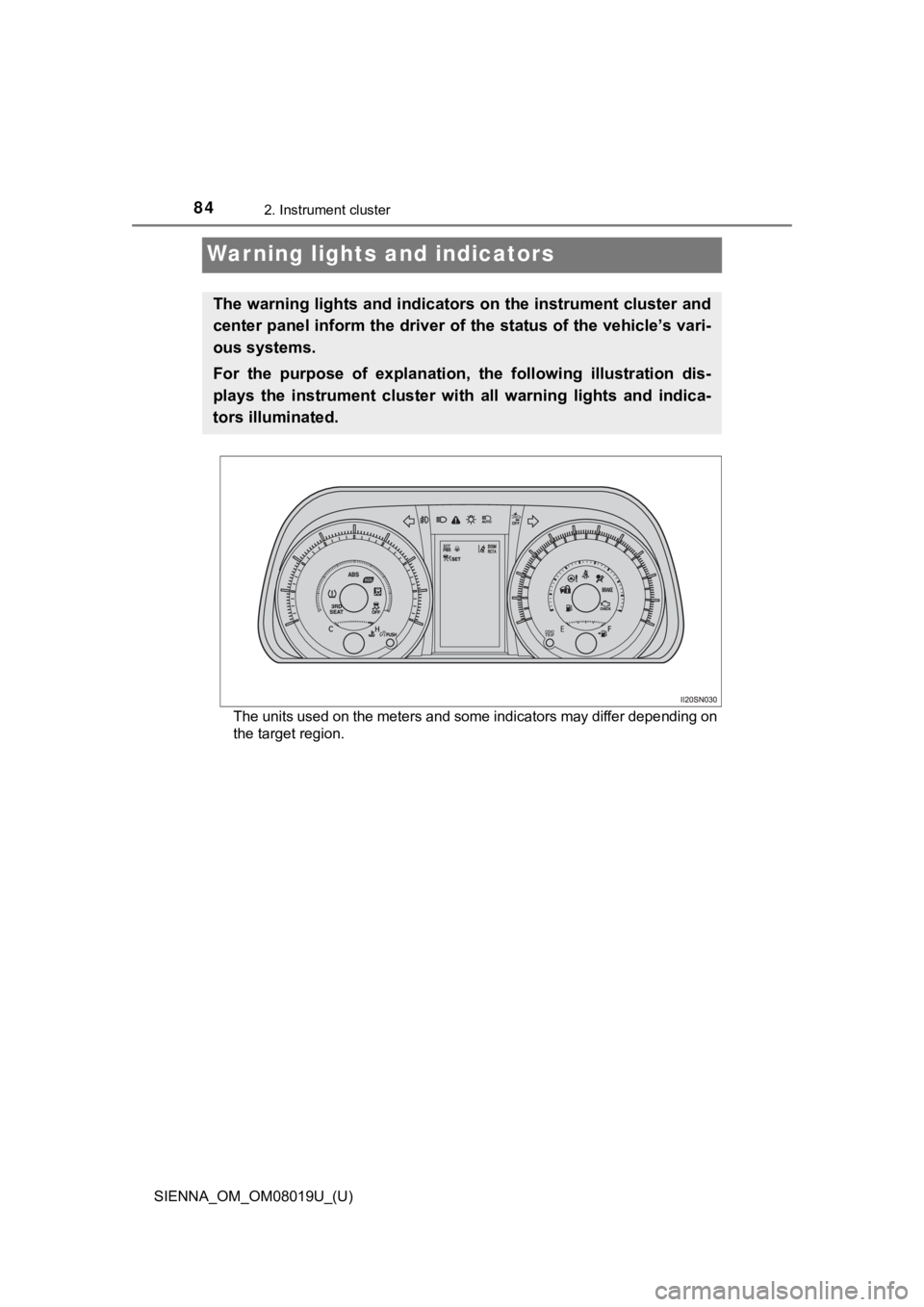

For the purpose of explanation, t he following illustration dis-
plays the instrument cluster wi th all warning lights and indica -
tors illuminated.
Page 85 of 584

SIENNA_OM_OM08019U_(U)
852. Instrument cluster
2
Instrument cluster

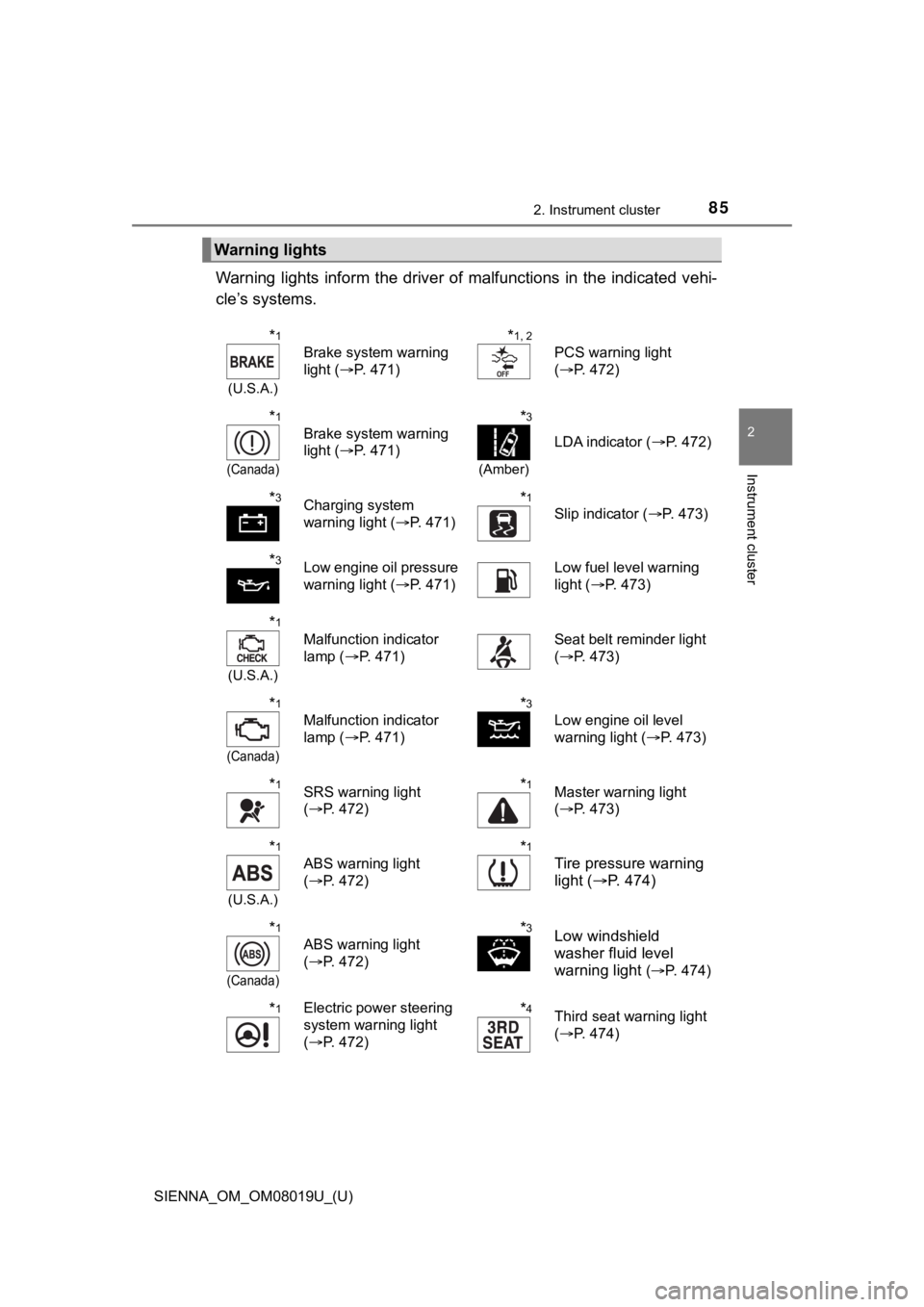

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 471)
*1, 2
PCS warning light
(P. 472)
*1
(Canada)
Brake system warning
light ( P. 471)
*3
(Amber)
LDA indicator ( P. 472)
*3Charging system
warning light (P. 471)*1
Slip indicator ( P. 473)
*3Low engine oil pressure
warning light (P. 471) Low fuel level warning
light (
P. 473)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 471) Seat belt reminder light
(
P. 473)
*1
(Canada)
Malfunction indicator
lamp ( P. 471)
*3
Low engine oil level
warning light ( P. 473)
*1SRS warning light
(P. 472)*1Master warning light
(P. 473)
*1
(U.S.A.)
ABS warning light
(P. 472)
*1
Tire pressure warning
light ( P. 4 7 4 )
*1
(Canada)
ABS warning light
(P. 472)
*3Low windshield
washer fluid level
warning light
(P. 474)
*1Electric power steering
system warning light
( P. 472)*4Third seat warning light
(P. 474)

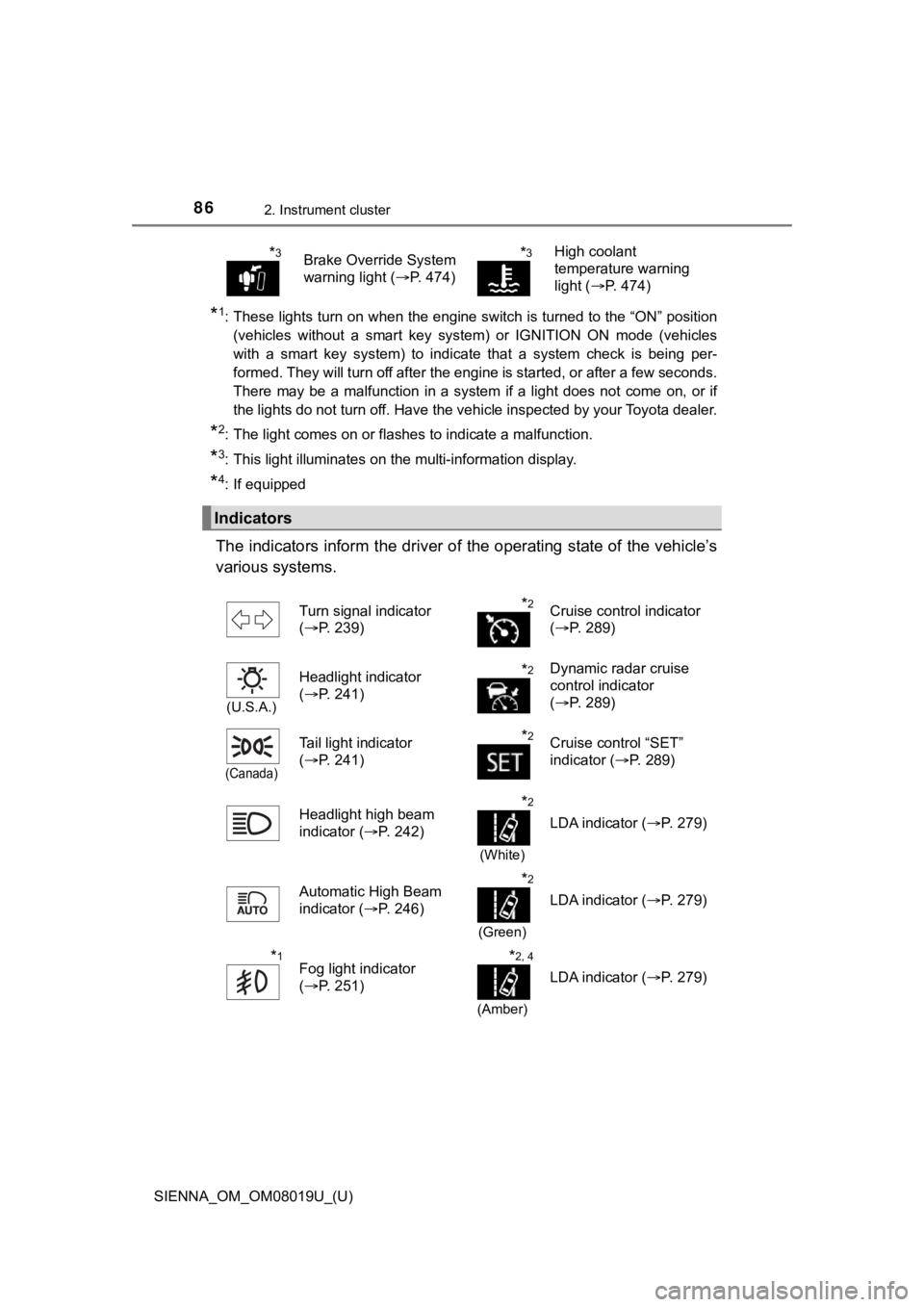

Page 86 of 584

86
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light comes on or flashes to indicate a malfunction.
*3: This light illuminates on the multi-information display.
*4: If equipped
The indicators inform the driver of the operating state of the vehicle’s
various systems.
*3Brake Override System
warning light ( P. 474)*3High coolant
temperature warning
light (P. 474)
Indicators
Turn signal indicator
(P. 239)*2Cruise control indicator
(P. 289)
(U.S.A.)
Headlight indicator
(P. 241)*2Dynamic radar cruise
control indicator
(P. 289)
(Canada)
Tail light indicator
(P. 241)*2Cruise control “SET”
indicator ( P. 289)
Headlight high beam
indicator ( P. 242)
*2
(White)
LDA indicator ( P. 279)
Automatic High Beam
indicator ( P. 246)
*2
(Green)
LDA indicator ( P. 279)
*1Fog light indicator
(P. 251)*2, 4
(Amber)
LDA indicator ( P. 279)

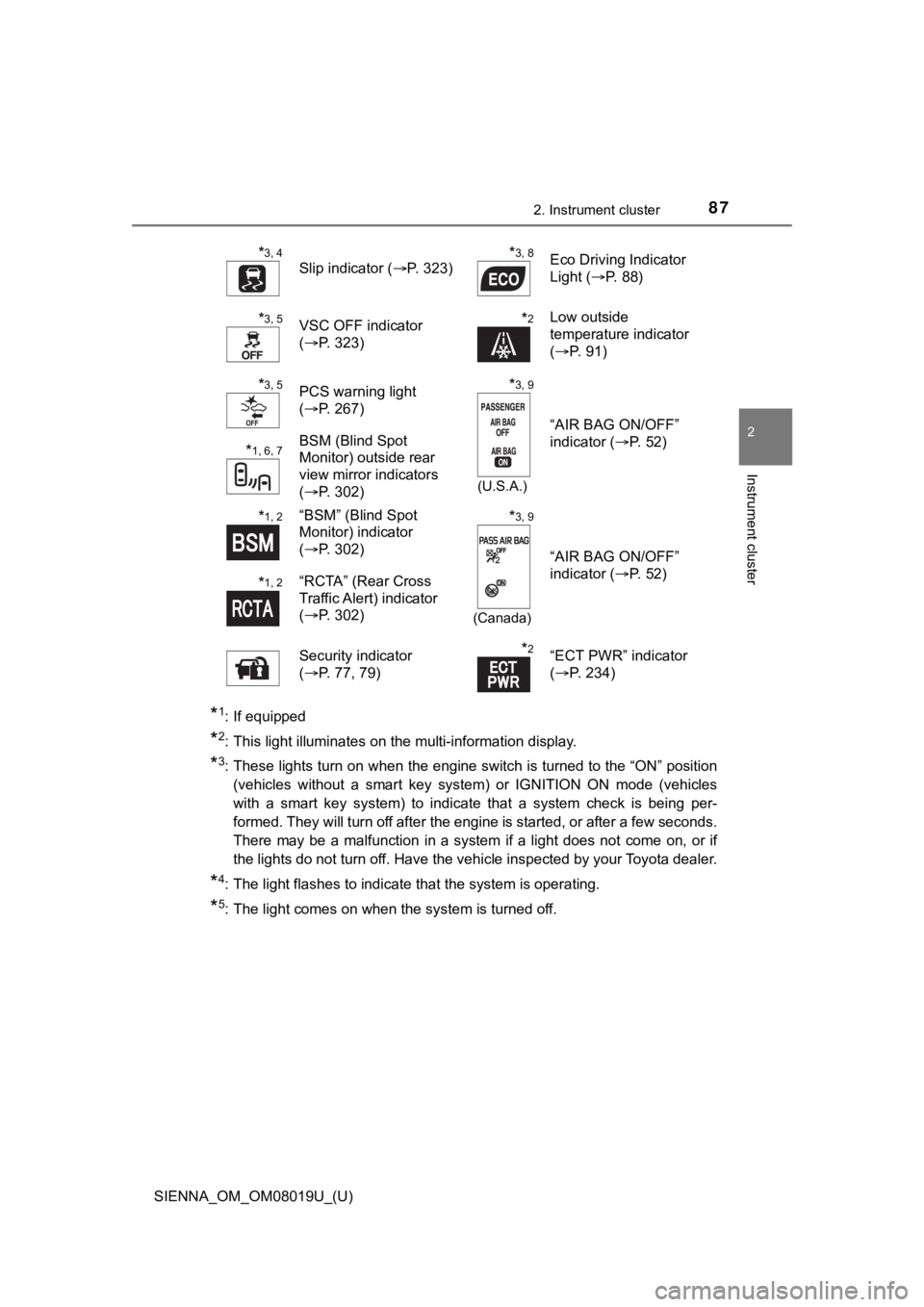

Page 87 of 584

SIENNA_OM_OM08019U_(U)
872. Instrument cluster
2
Instrument cluster
*1: If equipped
*2: This light illuminates on the multi-information display.
*3: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*4: The light flashes to indicate that the system is operating.
*5: The light comes on when the system is turned off.
*3, 4
Slip indicator (P. 323)*3, 8Eco Driving Indicator
Light (P. 88)
*3, 5VSC OFF indicator
(P. 323)*2Low outside
temperature indicator
(P. 91)
*3, 5PCS warning light
(P. 267)*3, 9
(U.S.A.)
“AIR BAG ON/OFF”
indicator ( P. 52)
*1, 6, 7BSM (Blind Spot
Monitor) outside rear
view mirror indicators
(P. 302)
*1, 2“BSM” (Blind Spot
Monitor) indicator
(P. 302)*3, 9
(Canada)
“AIR BAG ON/OFF”
indicator ( P. 52)
*1, 2“RCTA” (Rear Cross
Traffic Alert) indicator
(P. 302)
Security indicator
( P. 77, 79)
*2“ECT PWR” indicator
(P. 234)
Page 88 of 584

88
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
*6: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart ke y sys-
tem) while the BSM function is turned on.
• When the BSM function is turned on while the engine switch is in the
“ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*7: This light illuminates on the outside rear view mirrors.
*8: The light does not turn on when the system is disabled.
*9: This light illuminates on the center panel.

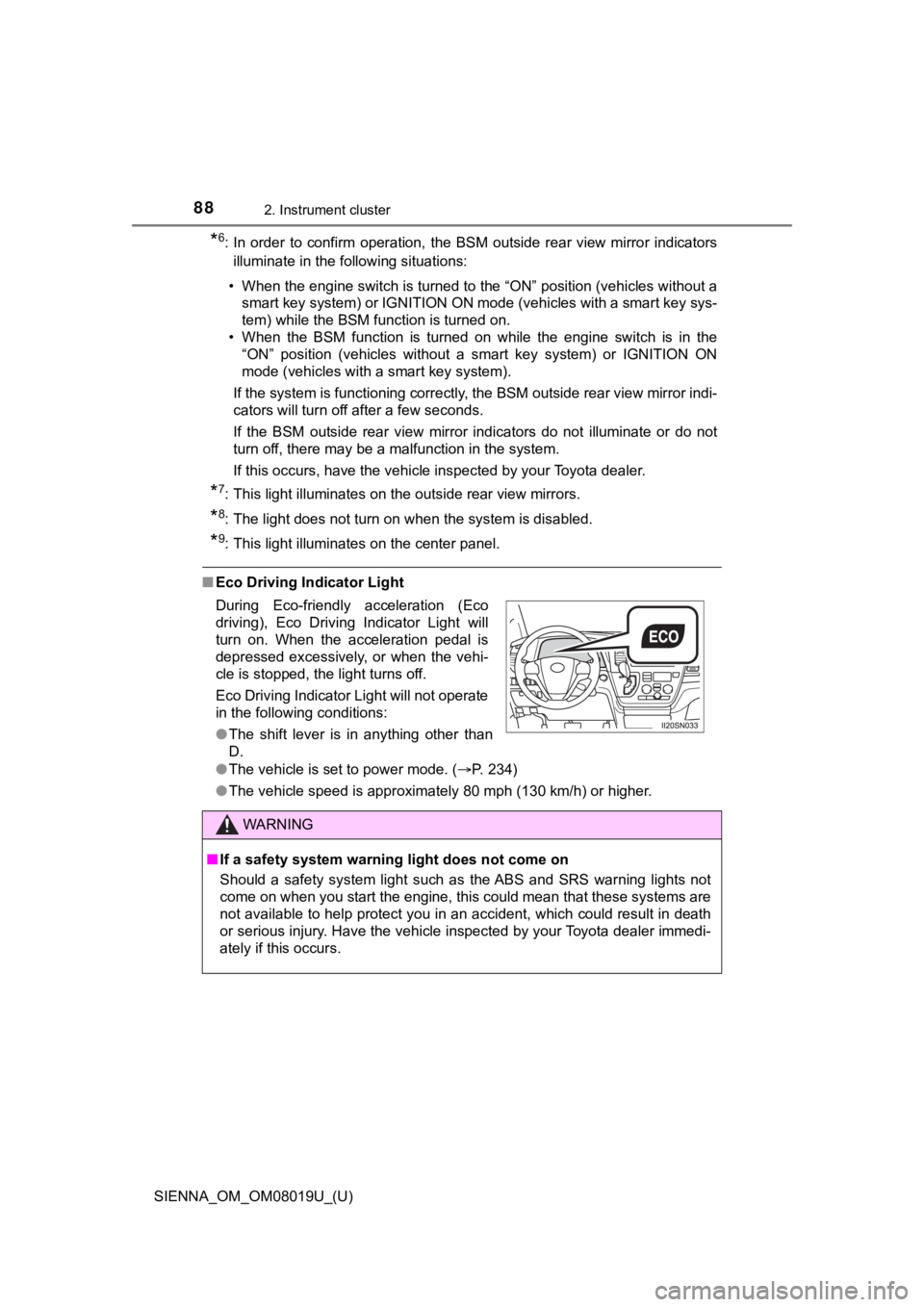

■Eco Driving Indicator Light
●The vehicle is set to power mode. ( P. 234)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration pedal is
depressed excessively, or when the vehi-
cle is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
●
The shift lever is in anything other than
D.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler immedi-
ately if this occurs.
Page 89 of 584

89
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
2
Instrument cluster
Gauges and meters

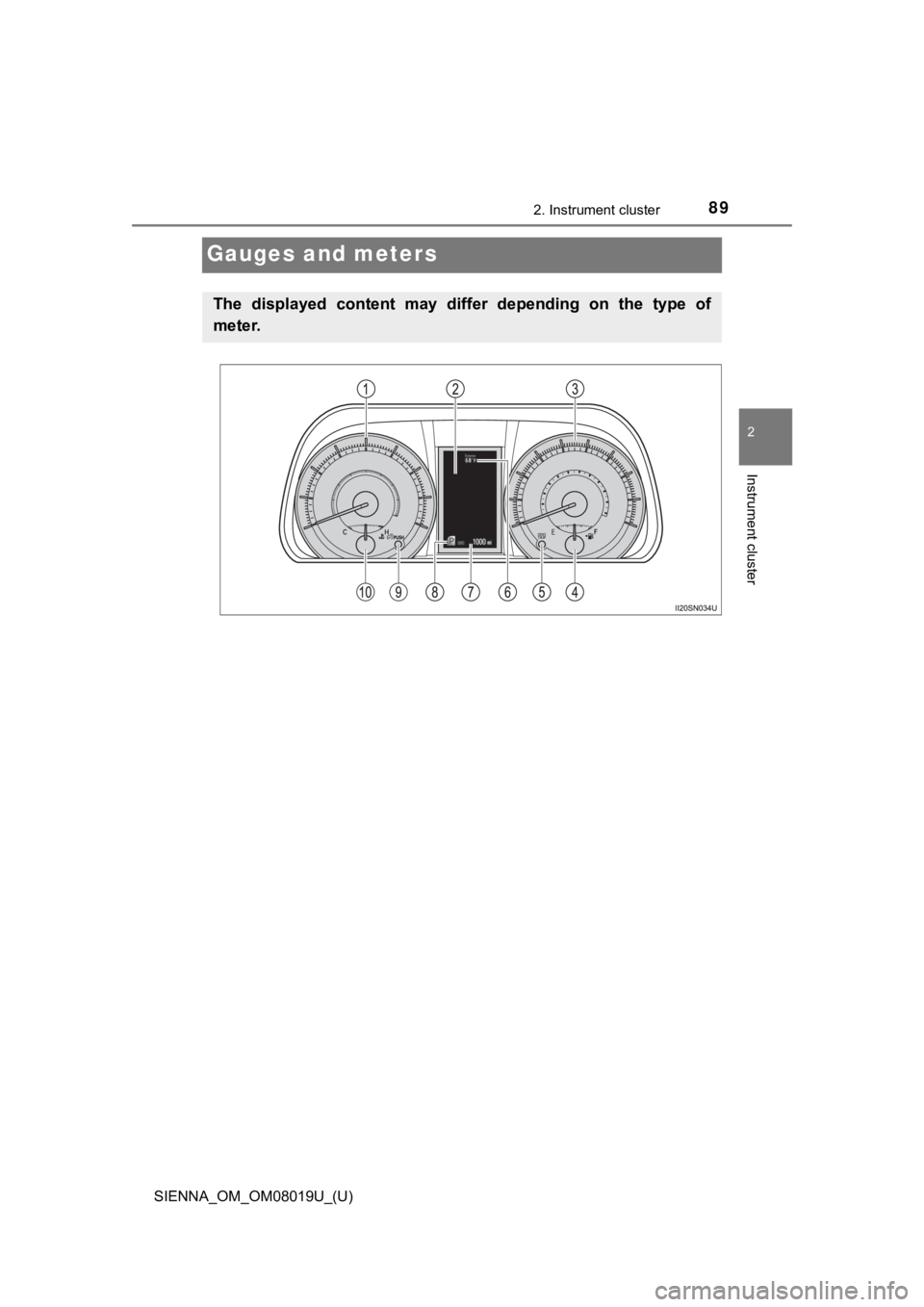

The displayed content may differ depending on the type of
meter.
Page 90 of 584

90
SIENNA_OM_OM08019U_(U)
2. Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute
Multi-information display
Presents the driver with a variety of driving-related data (P. 92)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter display change button
Outside temperature
P. 9 1
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Shift position and range
P. 233
Meter panel lights control button
P. 9 1
Engine coolant temperature gauge
Displays the engine coolant temperature
Pressing this button switches
among the odometer, trip meter
“A” and trip meter “B” displays.
When the trip meter is displayed,
pressing and holding the button
will reset the trip meter.

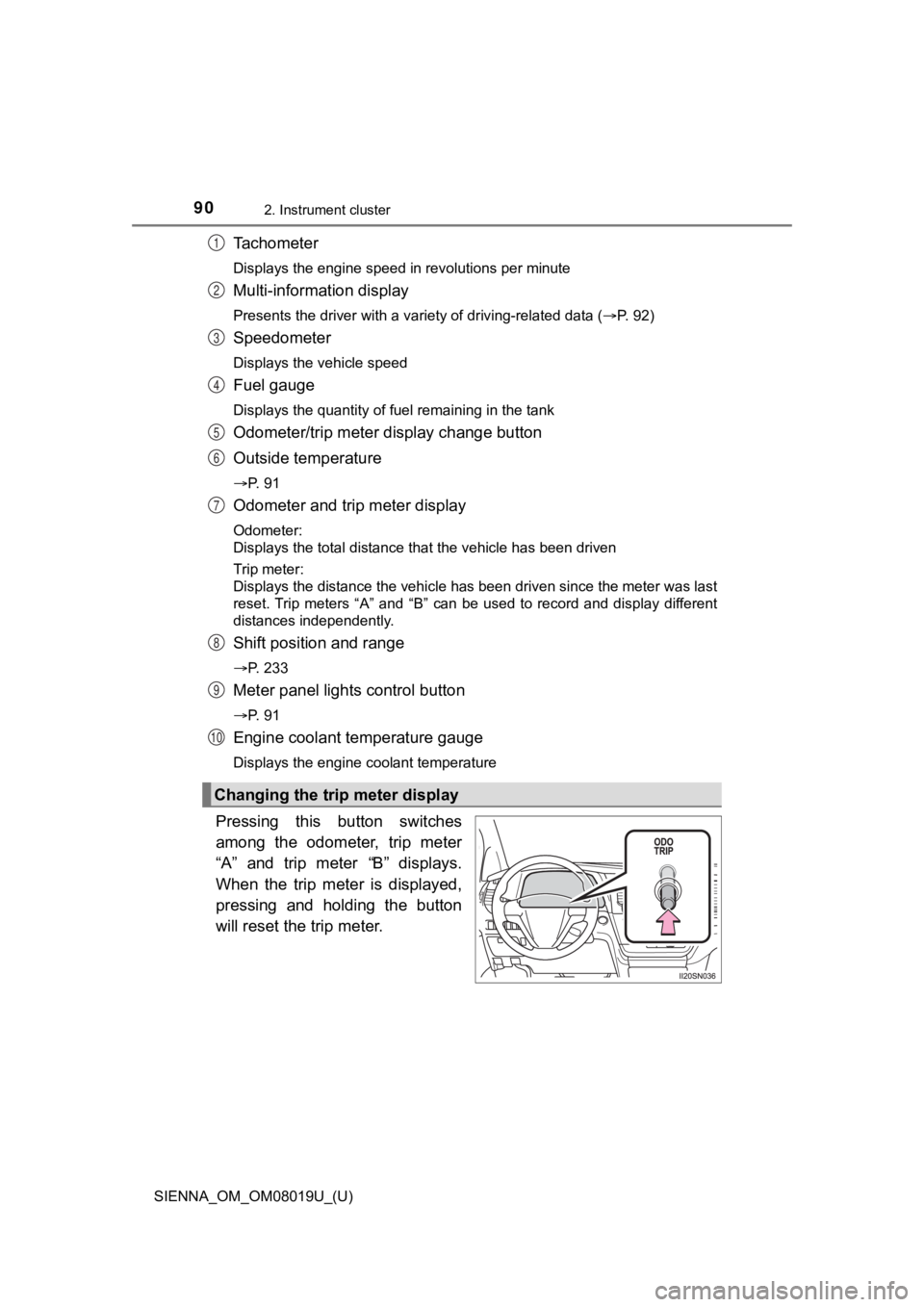

Changing the trip meter display
1
2
3
4
5
6
7
8
9
