TOYOTA SIENNA HYBRID 2021 Owners Manual (in English)

3805-4. Using the other interior features
USB Type-A
USB Type-C
Rear of console box
Open the lid.
USB Type-A
USB Type-C
Luggage compartmentUSB Type-A
USB Type-C
■The USB charging ports can be
used when
The power switch is in ACC or ON.
■Situations in which the USB
charging ports may not operate
correctly
●USB Type-A: If a device which
consumes more than 2.5 A at 5 V
is connected
USB Type-C: If a device which
consumes more than 3.0 A at 5 V
is connected
●If a device designed to communi-
cate with a personal computer,
such as a USB memory device, is
connected
●If the connected external device is
turned off (depend ing on device)
●If the temperature inside the vehi-
cle is high, such as after the vehi-
cle has been parked in the sun
■About connected external
devices
Depending on the connected exter-
nal device, charging may occasion-
ally be suspended and then start
again. This is not a malfunction.
■When using the USB charging
ports in the console box
The USB charging ports can be
used while the console box lid is
closed.
A
B
A
B
A
B
127,&(
■To prevent damage to the
USB charging ports
●Do not insert foreign objects into
the ports.

3815-4. Using the other interior features
5
Interior features
A portable device can be
charged by just placing Qi stan-
dard wireless charge compatible
portable devices according to
the Wireless Power Consortium,
such as smartphones and
mobile batteries, etc., on the
charge area.This function cannot be used
with portable devices that are
larger than the charging area.
Also, depending on the portable
device, it may not operate as
normal. Please read the opera-
tion manual for portable devices
to be used.
■The “Qi” symbol
The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.
■Name for all parts
Charge area
Operation indicator light
Power supply switch
NOTICE
●Do not spill water or other liq-
uids into the ports.
●Rear of console box: When the
USB charging ports are not in
use, close the lids. If a foreign
object or liquid enters a port
may cause a short circuit.
●Do not apply excessive force to
or impact the USB charging
ports.
●Do not disassemble or modify
the USB charging ports.
■To prevent damage to exter-
nal devices
●Do not leave external devices in
the vehicle. The temperature
inside the vehicle may become
high, resulting in damage to an
external device.
●Do not push down on or apply
unnecessary force to an exter-
nal device or the cable of an
external device while it is con-
nected.
■To prevent 12-volt battery dis-
charge
Do not use the USB charging
ports for a long period of time
when the hybrid system is off.
Wireless charger (if
equipped)
A
B
C

3825-4. Using the other interior features
■Using the wireless charger
1 Press the power supply
switch of the wireless char-
ger.
Switches on and off with each
press of the power supply switch.
When turned on, the operation indi-
cator light (green) comes on.
Even with the hybrid system off, the
on/off state of the power supply
switch is memorized.
2 Place the charging side of
the portable device down.
When charging, the operation indi-
cator light (orange) comes on.
If charging is not occurring, try plac-
ing the portable device as close to
the center of the charging area as
possible.
When charging is complete, the
operation indicator light (green)
comes on.
■Recharging function
 When charging is complete and after a fixed time in the
charge suspension state,
charging restarts.
 When the portable device is
moved, charging is stopped
for a moment and then it
restarts.
■Lighting conditions of oper-
ation indicator light
*: Depending on the portable
device, there are cases where the
operation indicato r light will con-
tinue being lit u p orange even
after the charging is complete.
 When the operation indicator
light flashes
When an error occurs, the oper-
ation indicator light flashes an
orange color.
Handle the error based on the
following tables.
Operation indicator light
Conditions
Turning off
When the Wireless
charger power supply
is off
Green
(comes
on)
On Standby (charging
possible state)
When charging is com-
plete
*
Orange
(comes
on)
When placing the por-
table device on the
charging area (detect-
ing the portable device)
Charging

3835-4. Using the other interior features
5
Interior features
• Flashing repeatedly once every second (Orange)
• Repeatedly flashes 3 times continuously (Orange) • Repeatedly flashes 4 times
continuously (Orange)
■The wireless charger can be
operated when
The power switch is in ACC or ON.
■Usable portable devices
Qi standard wireless charge stan-
dard can be used on compatible
devices.
However, not all Qi standard
devices and compat ibility are guar-
anteed.
Starting with mobile phones and
smartphones, it is aimed for low
power electrically supplied portable
devices of no more than 5W.
■When covers and accessories
are attached to portable devices
Do not charge in situations where
cover and accessories not able to
handle Qi are attached to the porta-
ble device. Depending on the type
of cover and acce ssory, it may not
be possible to charge. When
charging is not performed even with
the portable devic e placed on the
charge area, remove the cover and
accessories.
■While charging, noise enters
the AM radio
Turn off the wireless charger and
confirm that the noise has
decreased. If the noise decreases,
continuously pushing the power
supply switch of the wireless char-
ger for 2 seconds, the frequency of
the charger can be changed and the
noise can be reduced.Also, on that
occasion, the operation indicator

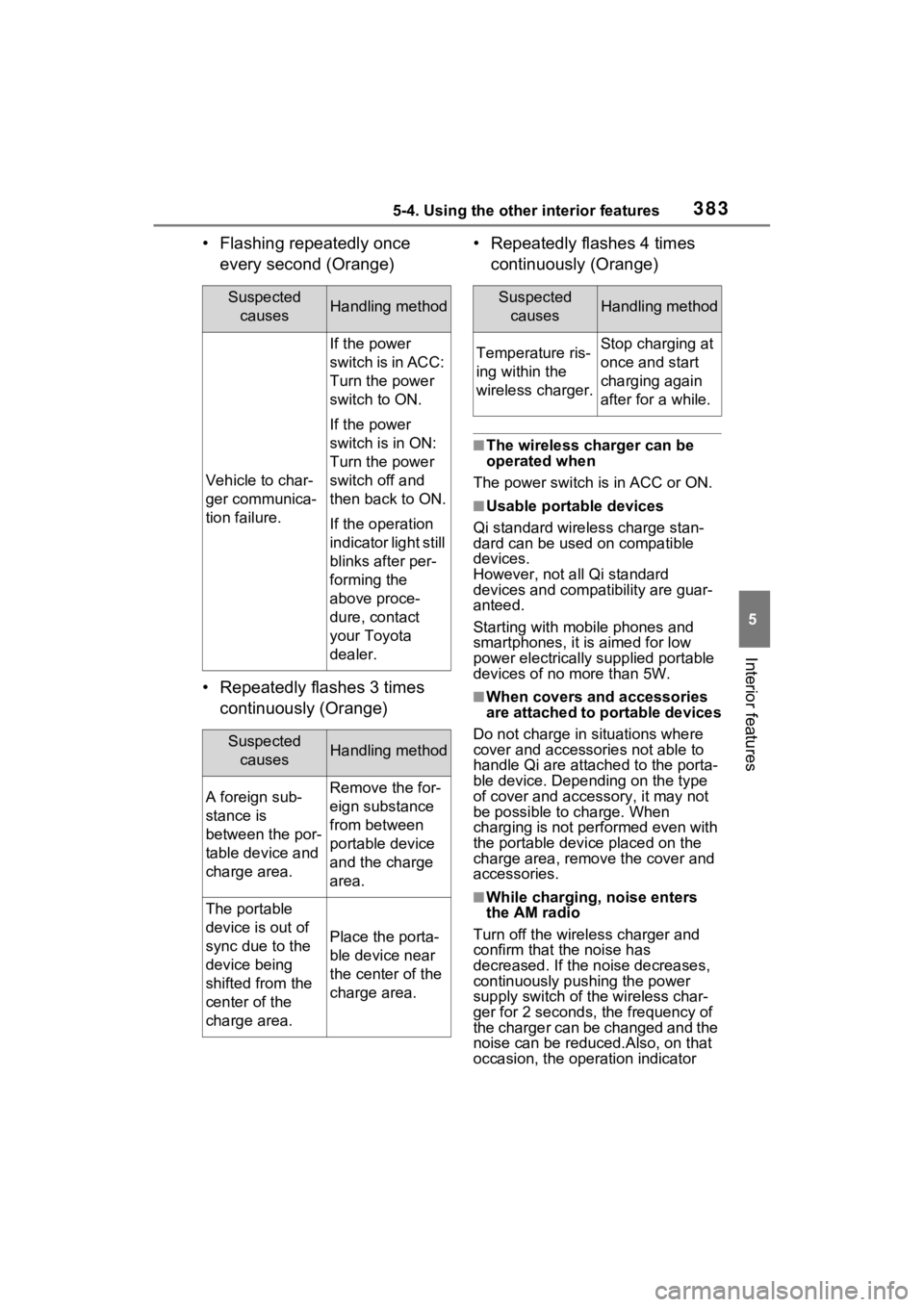

Suspected causesHandling method
Vehicle to char-
ger communica-
tion failure.
If the power
switch is in ACC:
Turn the power
switch to ON.
If the power
switch is in ON:
Turn the power
switch off and
then back to ON.
If the operation
indicator light still
blinks after per-
forming the
above proce-
dure, contact
your Toyota
dealer.
Suspected causesHandling method
A foreign sub-
stance is
between the por-
table device and
charge area.Remove the for-
eign substance
from between
portable device
and the charge
area.
The portable
device is out of
sync due to the
device being
shifted from the
center of the
charge area.
Place the porta-
ble device near
the center of the
charge area.
Suspected causesHandling method
Temperature ris-
ing within the
wireless charger.Stop charging at
once and start
charging again
after for a while.

3845-4. Using the other interior features
light will flash orange 2 times.
■Important points of the wireless
charger
●If the electronic key cannot be
detected within the vehicle inte-
rior, charging cannot be done.
When the door is opened and
closed, charging may be tempo-
rarily suspended.
●When charging, the wireless
charging device and portable
device will get warmer, however
this is not a malfunction.
When a portable device gets
warm while charging, charging
may stop due to the protection
function on the portable device
side. In this case, when the tem-
perature of the portable device
drops significantly, charge again.
■Operation sounds
When the power su pply is turned
on, while searching for the portable
device a sound will be produced,
however this is not a malfunction.
■Cleaning the wireless charger
 P.404
■Label indicating precautions for
using the wireless charger
There is a label on the wireless
charger. Follow the instructions on
the label.
WARNING
■Caution while driving
When charging a portable device,
for safety reasons, the driver
should not operate the main part
of the portable device while driv-
ing.
■Caution regarding interfer-
ence with electronic devices
People with implantable cardiac
pacemakers, cardiac resynchroni-
zation therapy-pacemakers or
implantable cardioverter def ibrilla-
tors, as well as any other electri-
cal medical device, should consult
their physician about the usage of
the wireless charger. The opera-
tions of the wireless charger may
have an affect on medical
devices.
■To prevent damage or burns
Observe the following precau-
tions.
Failure to do so may result in a
possibility of equipment failure
and damage, catch fire, burns due
to overheat.
●Do not insert any metallic
objects between the charging
area and the portable device
while charging
●Do not attach sti ckers, metallic
objects, etc., to the charger area
or portable device
●Do not cover wit h cloth, etc.,
and charge
●Do not charge portable devices
other than designated
●Do not attempt to dismantle for
disassembly or modifications
●Do not hit or apply a strong
force

3855-4. Using the other interior features
5
Interior features
Pull up the tab of the sun-
shade and hook the shade on
using the anchors.
To retract the sunshade, unhook
the sunshade and retract it slowly.
NOTICE
■Conditions in which the func-
tion may not operate cor-
rectly
In the following conditions, it may
not operate correctly
●The portable device is fully
charged
●There is foreign matter between
the charge area and portable
device
●The temperature of the portable
device gets higher from
charging
●The charging surface of the por-
table device is facing up
●The placement of the portable
device is out of alignment with
the charge area
●Near a TV tower, electric power
plant, gas station, radio station,
large display, airport or other
facility that generates strong
radio waves or electrical noise
●When the electronic key is in
contact with, or is covered by
the following metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have alu- minum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that
emit radio waves) are being
used nearby
In addition, excluding the above-
mentioned, when the charger
does not perform normally or the
operation display lamp is flashing
continuously, it is considered that
the wireless char ger is malfunc-
tioning. Contact authorized
Toyota dealer.
■To prevent failure or damage
to data
●Do not bring magnetic cards,
such as credit cards, or mag-
netic recording media, etc.,
close to the charger while
charging, otherwise, data may
disappear under the influence of
magnetism. Also, do not bring
precision instruments such as
wrist watches, etc., close to the
charger, as such objects may
break.
●Do not leave portable devices in
the cabin. The temperature
inside the cabin may become
high, when under the sun, and
cause damage to the device.
■To prevent 12-volt battery dis-
charge
When the hybrid system is
stopped, do not use the wireless
charger for a long time.
Sunshades
A

3865-4. Using the other interior features
Rear side windows
Rear quarter windows (if
equipped)Fold down the armrest for use.
Type A
An assist grip installed on the
ceiling can be used to support
your body while sitting on the
NOTICE
■To ensure norma l operation
of the sunshades
Observe the following precau-
tions:
●Do not place anything where it
may hinder the opening/closing
of the sunshades.
●Do not attach items to the sun-
shades.
●Do not apply excessive load to
the sunshades while they are
hanging from the hooks.
●Do not operate the sunshade for
the rear side windows while the
sliding door is opening/closing.
●Do not store the sunshade in a
tilted position.
If stored in a tilt ed position, the
sunshade screen may become
creased.
■To prevent damage to the
sunshade
Observe the following precau-
tions:
●Do not use the sunshade when
either hook is detached.
When the sliding door is
opened/closed, the sunshade
may be damaged.
●Do not pull on t he screen while
the hooks are attached.
The screen may be damaged.
Armrest
NOTICE
■To prevent damage to the
armrest
Do not apply too much load on the
armrest.
Assist grips

3875-4. Using the other interior features
5
Interior features
seat.
Type B
An assist grip installed on the
pillar can be used when getting
in or out of the vehicle and oth-
ers.
Type A (rear of console box)
Type B (third seatback)
Type C (luggage compart-
ment)
WARNING
■Assist grips
Type A: Do not use the assist grip
when getting in or out of the vehi-
cle or rising from your seat.
NOTICE
■To prevent damage to the
assist grip
Do not hang any heavy object or
put a heavy load on the assist
grip.
Grocery bag hooks
NOTICE
■To prevent damage to the
grocery bag hooks
Type A and B: Do not hang any
object heavier than 6.6 lb. (3 kg)
on the grocery bag hook.

3885-4. Using the other interior features
The coat hooks are provided
with the rear assist grips.
■Opening the refrigerator lid
Press the button to open.
■Turning the refrigerator
on/off
To turn the cooler mode on,
press the cooler mode switch .
When turned on, the indicator on
the switch comes on.
To turn the freeze mode on,
press the freeze mode switch .
When turned on, the indicator on
the switch comes on.
To turn the refrigerator off, press
the switch which indicator is illu-
minated.
Cooler mode switch
Freeze mode switch
■The refrigerator can be used
when
The power switch is in ON.
Coat hooks
WARNING
■Items that must not be
hanged on the hook
Do not hang coat hangers or
other hard or sharp objects on the
hook. If the SRS curtain shield air-
bags deploy, these items may
become projectiles, causing death
or serious injury.
NOTICE
■Coat hooks
●Do not hang heavy objects on
the hooks.
●When using the coat hook in the
assist grip of the second seats,
be careful not to get the hooked
object caught in the sliding
doors being opened or closed.
Refrigerator (if equipped)
A
B
A
B

3895-4. Using the other interior features
5
Interior features
■Things unsuitable for the refrig-
erator
●Drinks in unsealed containers
●Fragile things, perishables or any-
thing with strong odor
■To use the refrigerator effec-
tively
●Do not keep too many things in
the refrigerator.
●Cool things in advance before it is
put in the refrigerator. Especially,
hot things should be cooled off.
●When storing watery things, wrap
them up.
●Before using the freeze mode,
make sure that all items in the
cooler box are suitable for freez-
ing.
●To prevent the inside temperature
from getting higher, avoid stop-
ping the hybrid system for a long
time when using the refrigerator.
■After using the refrigerator
Water droplets inside of the refriger-
ator may cause an odor. It is recom-
mended to frequently wipe off water
droplets.
■Cleaning the refrigerator
Clean the inside o f the refrigerator
using a soft cloth dampened with a
diluted neutral detergent, and then
make sure to dry.
■Location of the compo-
nents
Vacuum port
Vacuum cleaner switch
Hose
Cleaning heads
■Before using the vacuum
cleaner
 Stop the vehicle in a safe
place.
 Set the parking brake.
 Shift the shift lever to P.
 Make sure the power switch is
in ON.
 Make sure the vacuum dust
bin is securely installed.
 Make sure the pre-filter and
main-filter are securely
installed in the dust bin.
WARNING
■Caution while driving
Always keep the refrigerator
closed to reduce the chance of
injury in case of an accident or
sudden stop.
NOTICE
■To prevent battery discharge
Do not leave the refrigerator on
longer than necessary when the
hybrid system is not running.
Vacuum cleaner (if
equipped)
A
B
C
D
