TOYOTA SOLARA 2001 (in English) Manual PDF

'01 SOLARA_U (L/O 0009)
672001 MY SOLARA (OM33527U)

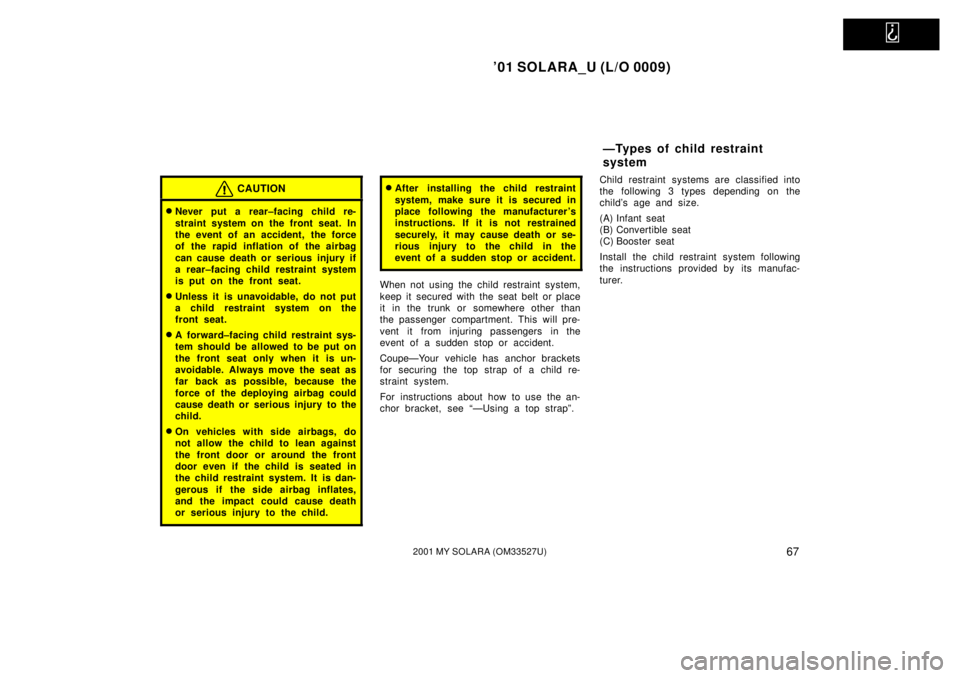

CAUTION

Never put a rear±facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear±facing child restraint system
is put on the front seat.

Unless it is unavoidable, do not put
a child restraint system on the
front seat.

A forward±facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.

On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.

After installing the child restraint
system, make sure it is secured in
place following the manufacturer 's
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.
CoupeÐYour vehicle has anchor brackets
for securing the top strap of a child re-
straint system.
For instructions about how to use the an-
chor bracket, see ªÐUsing a top strapº.Child restraint systems are classified into
the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
ÐTypes of child restraint
system

'01 SOLARA_U (L/O 0009)
682001 MY SOLARA (OM33527U)

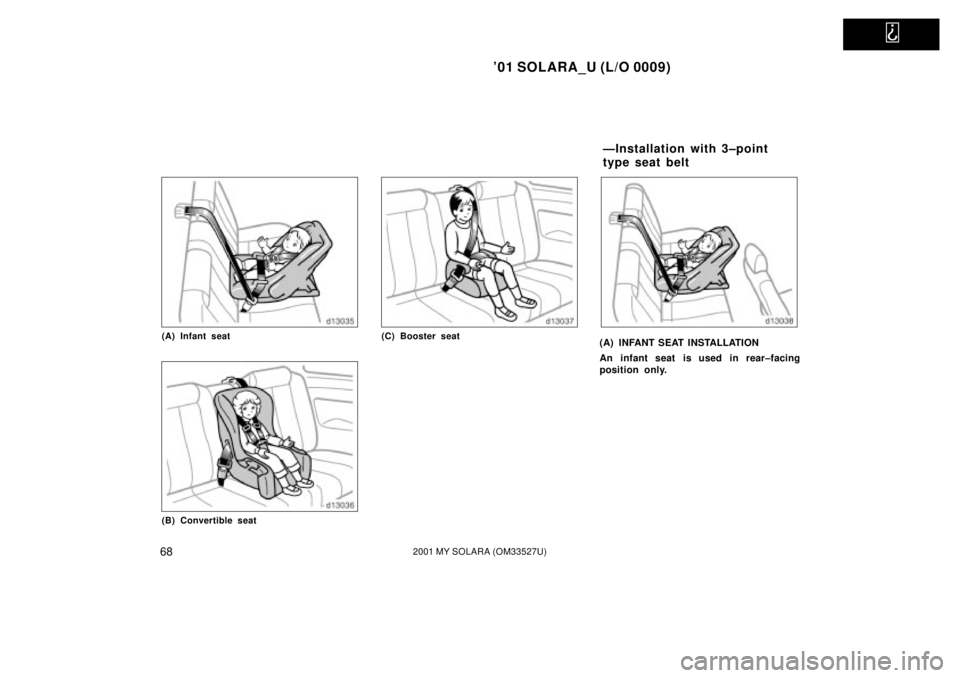

(A) Infant seat
(B) Convertible seat
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat is used in rear±facing
position only.
ÐInstallation with 3±point
type seat belt

'01 SOLARA_U (L/O 0009)
692001 MY SOLARA (OM33527U)

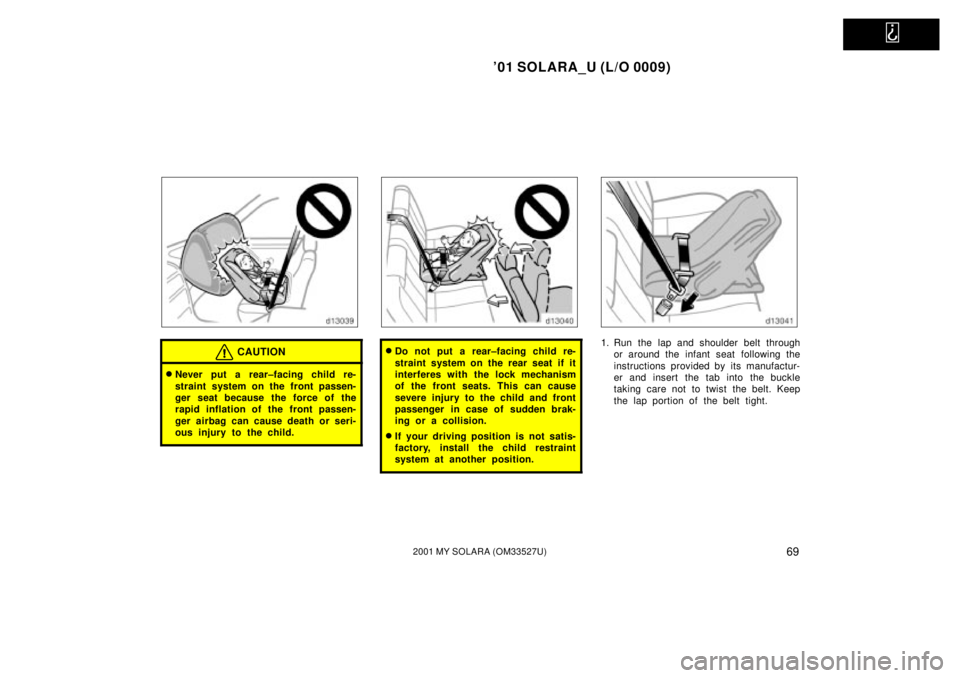

CAUTION

Never put a rear±facing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.

Do not put a rear±facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.

If your driving position is not satis-
factory, install the child restraint
system at another position.
1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

'01 SOLARA_U (L/O 0009)
702001 MY SOLARA (OM33527U)

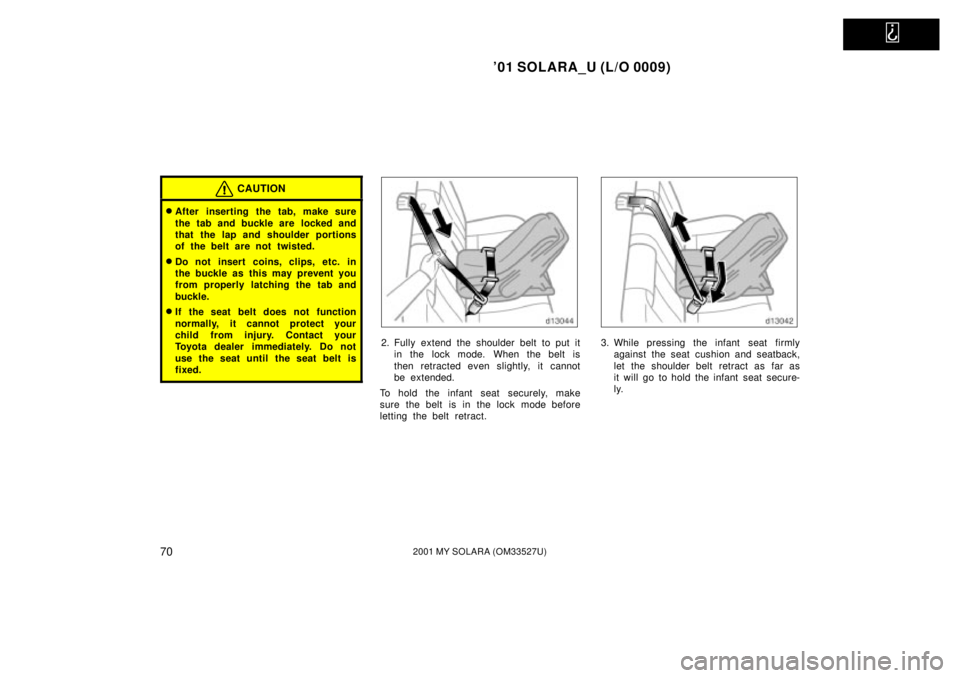

CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

'01 SOLARA_U (L/O 0009)
712001 MY SOLARA (OM33527U)

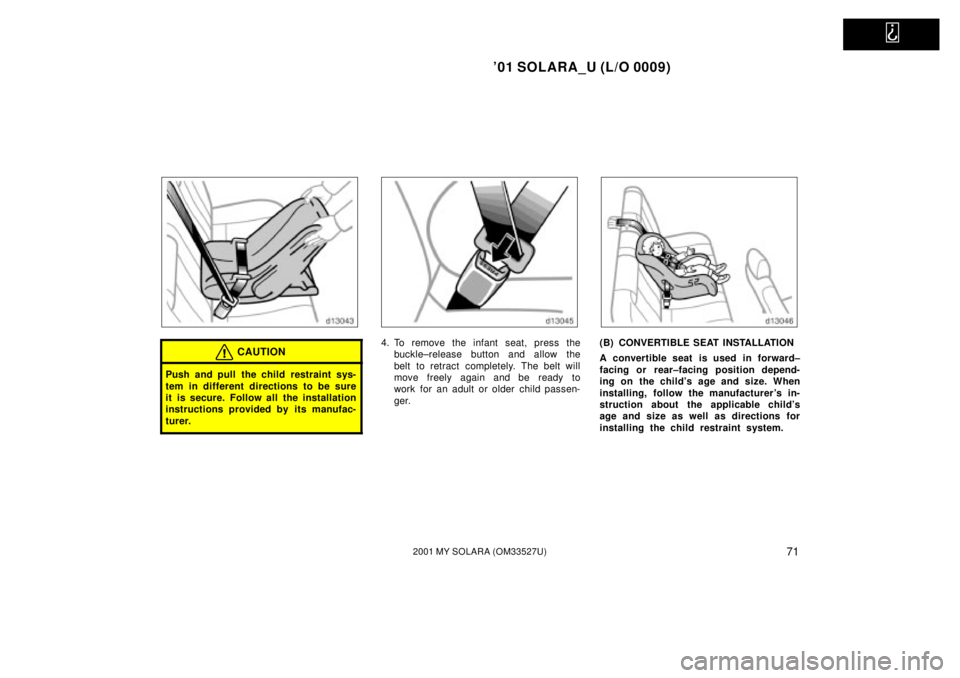

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press thebuckle±release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward±
facing or rear±facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's in-
struction about the applicable child's
age and size as well as directions for
installing the child restraint system.

'01 SOLARA_U (L/O 0009)
722001 MY SOLARA (OM33527U)

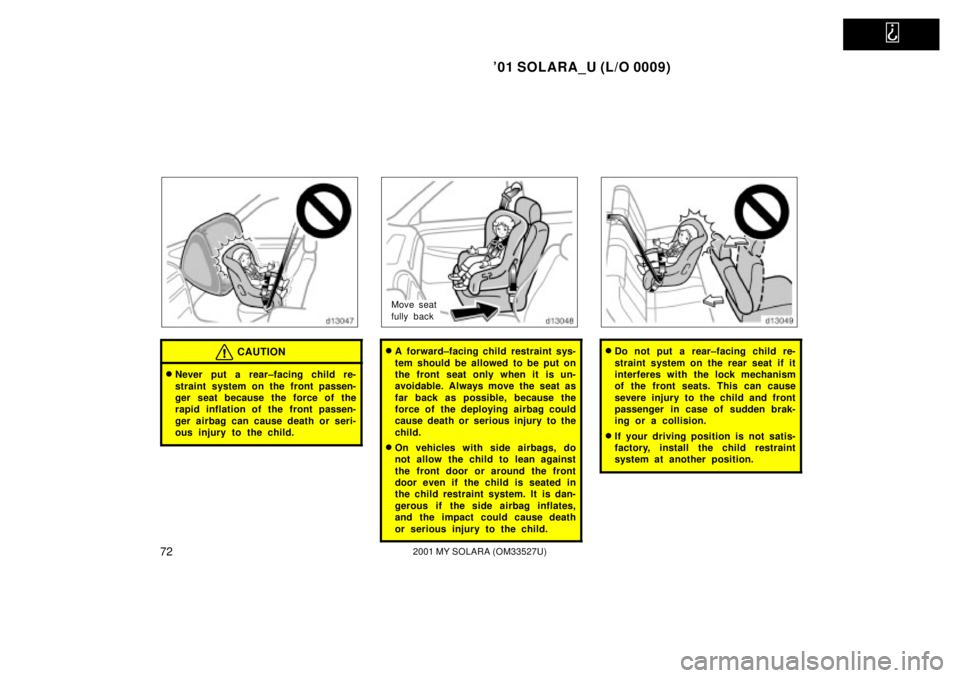

CAUTION

Never put a rear±facing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.
Move seat
fully back

A forward±facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.

On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.

Do not put a rear±facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.

If your driving position is not satis-
factory, install the child restraint
system at another position.

'01 SOLARA_U (L/O 0009)
732001 MY SOLARA (OM33527U)

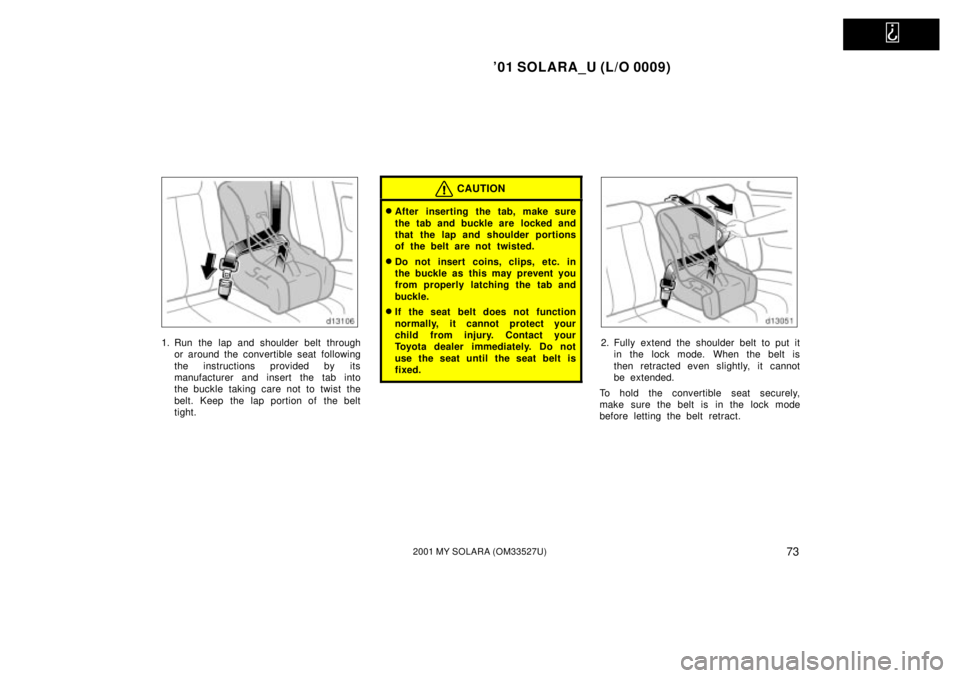

1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

'01 SOLARA_U (L/O 0009)
742001 MY SOLARA (OM33527U)

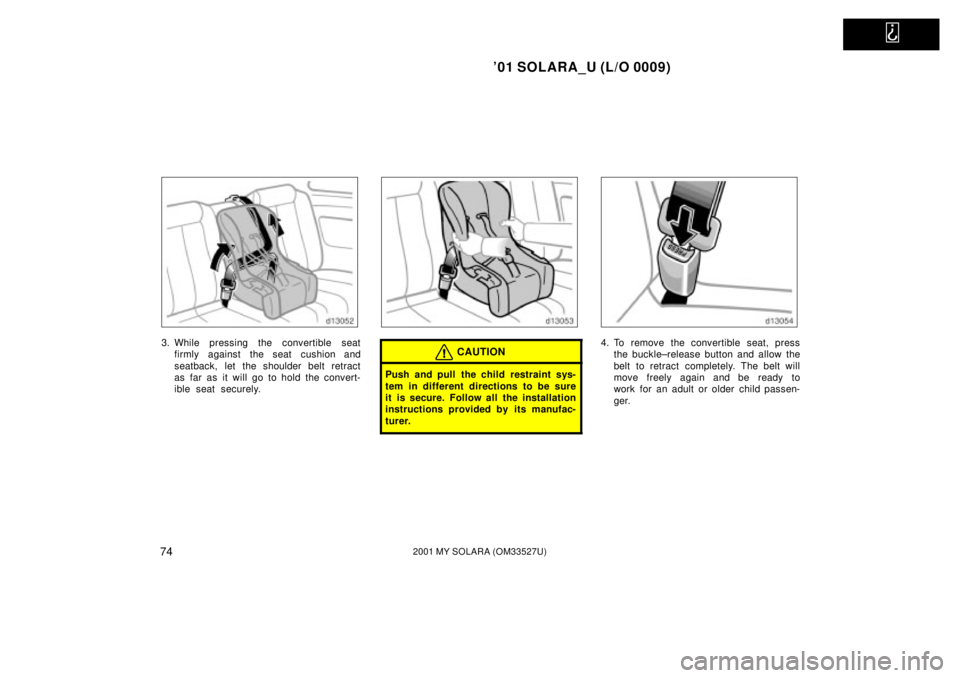

3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle±release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

'01 SOLARA_U (L/O 0009)
752001 MY SOLARA (OM33527U)

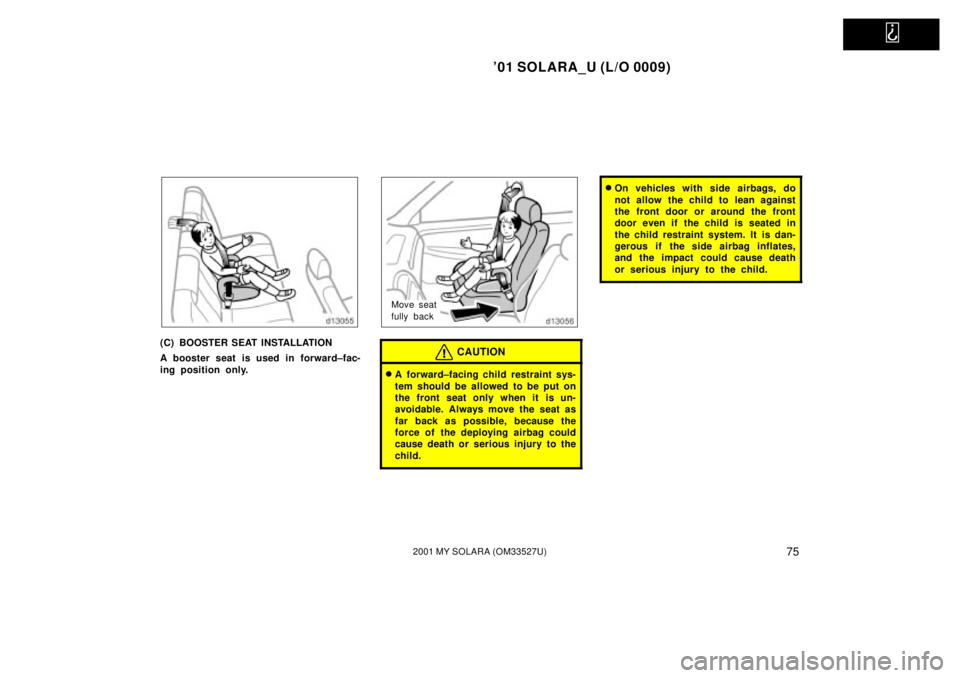

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward±fac-
ing position only.
Move seat
fully back
CAUTION

A forward±facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.

On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.

'01 SOLARA_U (L/O 0009)
762001 MY SOLARA (OM33527U)

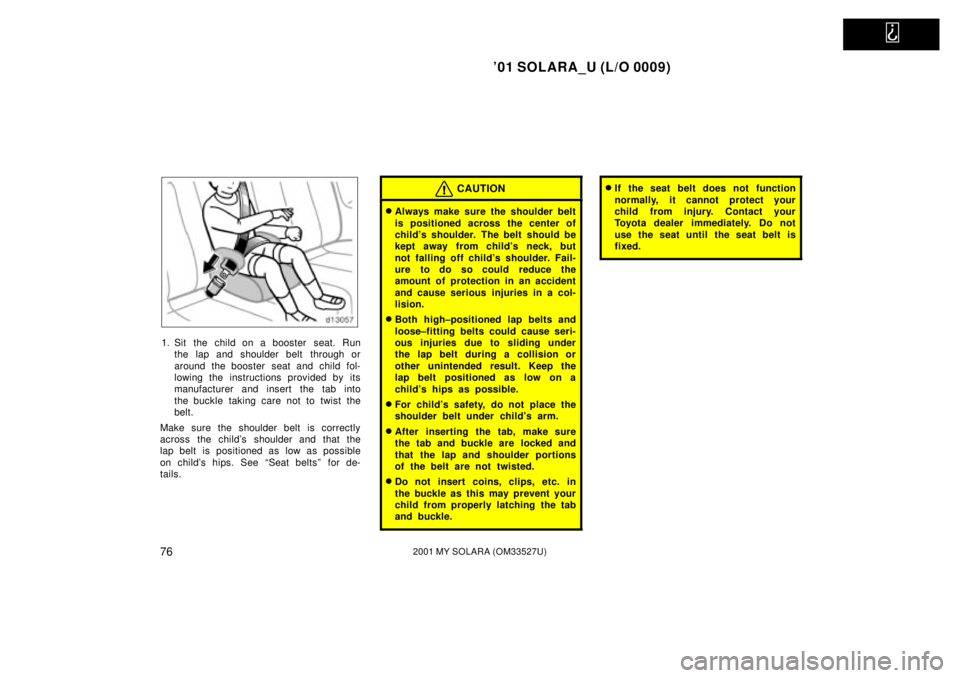

1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child's shoulder and that the
lap belt is positioned as low as possible
on child's hips. See ªSeat beltsº for de-
tails.
CAUTION

Always make sure the shoulder belt
is positioned across the center of
child's shoulder. The belt should be
kept away from child's neck, but
not falling off child's s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.

Both high±positioned lap belts and
loose±fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child's hips as possible.

For child's safety, do not place the
shoulder belt under child's arm.

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
