AUDIO SYSTEM
11 8
TYPE
º switch

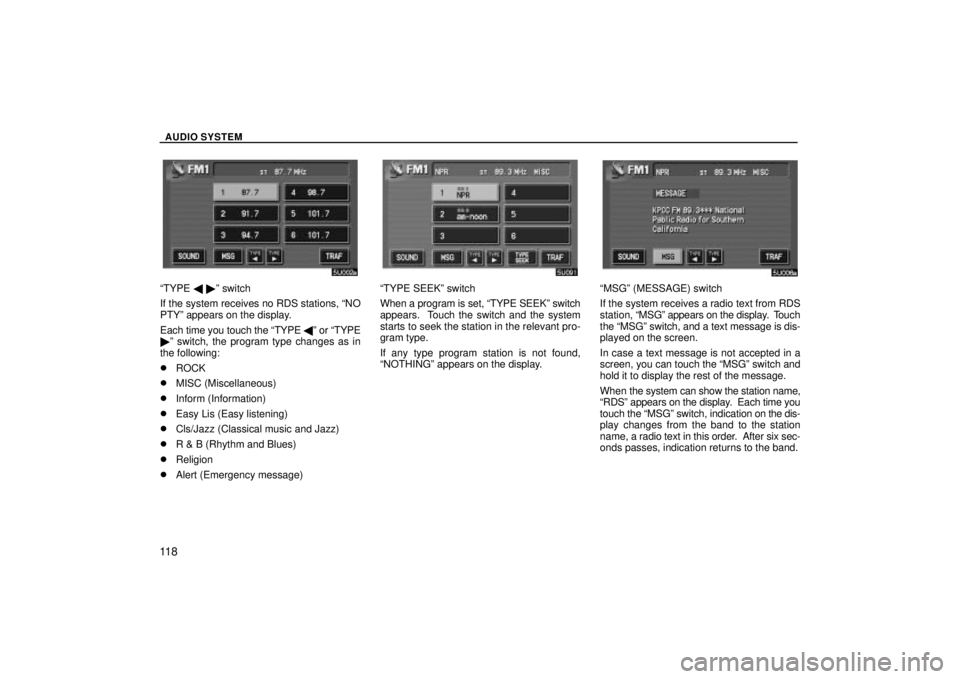

If the system receives no RDS stations, NO
PTYº appears on the display.
Each time you touch the TYPE º or TYPE

º switch, the program type changes as in
the following:
ROCK
MISC (Miscellaneous)
Inform (Information)
Easy Lis (Easy listening)
Cls/Jazz (Classical music and Jazz)
R & B (Rhythm and Blues)
Religion
Alert (Emergency message)
TYPE SEEKº switch
When a program is set, TYPE SEEKº switch
appears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
NOTHINGº appears on the display.MSGº (MESSAGE) switch
If the system receives a radio text from RDS
station, MSGº appears on the display. T ouch
the MSGº switch, and a text message is dis-
played on the screen.
In case a text message is not accepted in a
screen, you can touch the MSGº switch and
hold it to display the rest of the message.
When the system can show the station name,
RDSº appears on the display. Each time you
touch the MSGº switch, indication on the dis-
play changes from the band to the station
name, a radio text in this order. After six sec-
onds passes, indication returns to the band.

AUDIO SYSTEM
11 9
(e) Traffic announcement
TRAFº switch
A station that regularly broadcasts traffic in-
formation is automatically located.
When you push the TRAFº switch, TRAF
SEEKº appears on the display and the radio
will start seeking any traffic program station.
If any traffic program station is not found,
NOTHINGº appears on the display.
If the traffic program station is found, the
name for traffic program station is displayed
and TRAFº is lit for a while until traffic an-
nouncement is received.
Ð Radio operation
(XM satellite radio broadcast)
To listen to a satellite radio broadcast in your
vehicle, an additional genuine Toyota satellite
receiver and antenna must be purchased and
installed, and the subscription to the XM sat-
ellite radio is necessary. (a) How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed ex-
clusively to receive broadcasts provided un-
der a separate subscription. Availability is
limited to the 48 contiguous states.
How to subscribe: You must enter into a
separate service agreement with the XM ra-
dio in order to receive satellite broadcast pro-
gramming in the vehicle. Additional activation
and service subscription fees apply that are
not included in the purchase price of the ve-
hicle and optional digital satellite tuner. For
complete information on subscription rates
and terms, or to subscribe to the XM radio,
visit XM on the web at www.xmradio.com
or
call an XM's List ener Care at (800) 852-9696.
The XM radio is solely responsible for the
quality, availability and content of the satellite
radio services provided, which are subject to
the terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID ready;
the radio ID can be found by selecting the
channel 000º on the radio. For details, see
the Displaying the radio IDº that follows.
All fees and programming are the responsibil-
ity of the XM satellite radio and are subject to
change.
V

AUDIO SYSTEM
120
Satellite tuner technology notice:
Toyota's satellite radio tuners are awarded
Type Approval Certificates from XM Satellite
Radio Inc. on March 10, 2003º and April 15,
2003º as proof of compatibility with the ser-
vices offered by the XM satellite radio. (b) Displaying the radio ID
Each XM tuner is identified with a unique ra-
dio ID. You w
ill need the radio ID when activat-
ing XM service or when reporting a problem.
If you select the CH 000º using the TUNEº
knob, the ID code of 8 alphanumeric charac-
ters appears. If you select another channel,
display of the ID code is canceled. The chan-
nel (000) alternates the display between the
radio ID and the specific radio ID code.

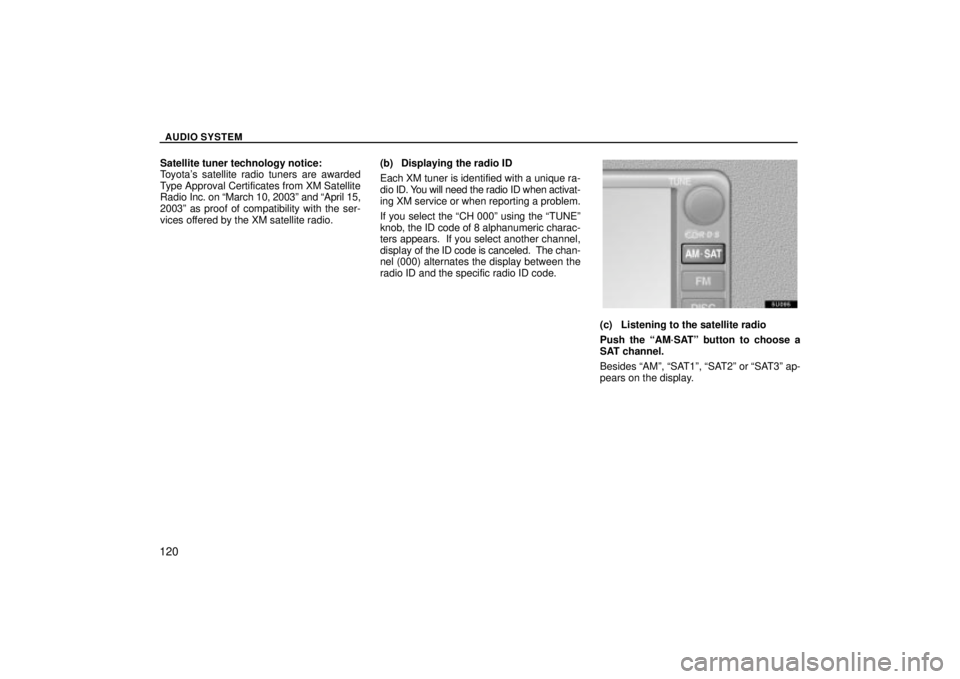

(c) Listening to the satellite radio
Push the AM´SATº button to choose a
SAT channel.
Besides AMº, SAT1º, SAT2º or SAT3º ap-
pears on the display.

AUDIO SYSTEM
122

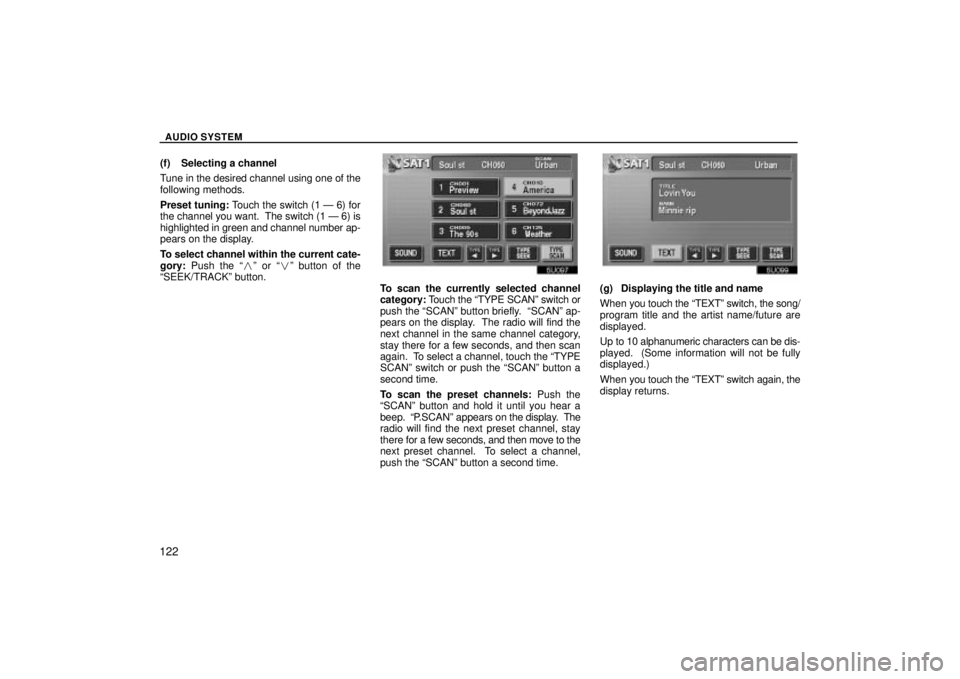

(f) Selecting a channel
Tune in the desired channel using one of the
following methods.
Preset tuning: Touch the switch (1 Ð 6) for
the channel you want. The switch (1 Ð 6) is
highlighted in green and channel number ap-
pears on the display.
To select channel within the current cate-
gory: Push the
º or º button of the
SEEK/TRACKº button.
To scan the currently selected channel
category: Touch the TYPE SCANº switch or
push the SCANº button briefly. SCANº ap-
pears on the display. The radio will find the
next channel in the same channel category,
stay there for a few seconds, and then scan
again. To select a channel, touch the TYPE
SCANº switch or push the SCANº button a
second time.
To scan the preset channels: Push the
SCANº button and hold it until you hear a
beep. P.SCANº appears on the display. The
radio will find the next preset channel, stay
there for a few seconds, and then move to the
next preset channel. To select a channel,
push the SCANº button a second time.(g) Displaying the title and name
When you touch the TEXTº switch, the song/
program title and the artist name/future are
displayed.
Up to 10 alphanumeric characters can be dis-
played. (Some information will not be fully
displayed.)
When you touch the TEXTº switch again, the
display returns.

AUDIO SYSTEM
123
(h) If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the display. Referring to the table below to identify the problem, take the
suggested corrective action.
ANTENNAThe XM antenna is not connected. Check whether the XM antenna cable is \
attached securely.ANTENNAA short-circuit occurs in the antenna or the surrounding antenna cable. \
See a Toyota certified dealer.
UPDATING
You have not subscribed to the XM satellite radio. The radio is being up\
dated with the latest encryption code.
Contact the XM satellite radio for subscription information. When a con\
tact is canceled, you can choose the
CH000º and all free-to-air channels.
UPDATINGThe premium channel you selected is not authorized. Wait for about 2 seconds until the radio returns to the pre-
vious channel or CH001º. If it does not change automatically, select another channel. If you want to listen to the
premium channel, contact the XM satellite radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your vehicle reaches a location with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Select an\
other channel.
-----There is no song/program title or artist name/feature associated with th\
e channel at that time. No action needed.
---The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous
channel or CH001º. If it does not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call \
(800) 852-9696 during the following hours:
Monday Ð Saturday: 7 a.m. Ð 1 a.m. Sunday: 12 p.m. Ð 12 a.m.
V

AUDIO SYSTEM
125

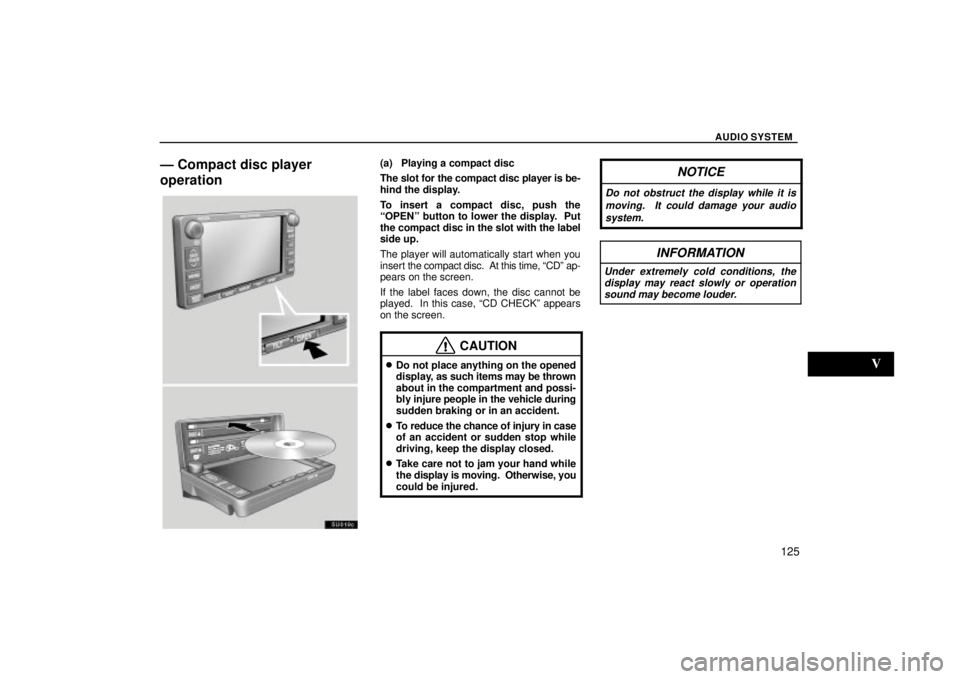

Ð Compact disc player
operation(a) Playing a compact disc
The slot for the compact disc player is be-
hind the display.
To insert a compact disc, push the
OPENº button to lower the display. Put
the compact disc in the slot with the label
side up.
The player will automatically start when you
insert the compact disc. At this time, CDº ap-
pears on the screen.
If the label faces down, the disc cannot be
played. In this case, CD CHECKº appears
on the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it ismoving. It could damage your audiosystem.
INFORMATION
Under extremely cold conditions, thedisplay may react slowly or operationsound may become louder.
V

AUDIO SYSTEM
126

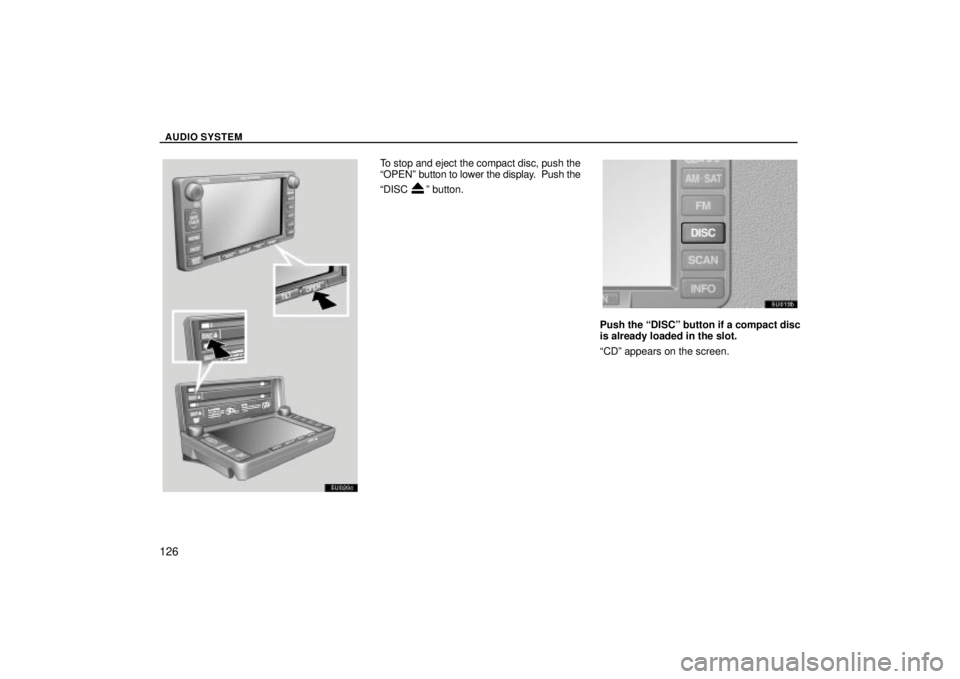

To stop and eject the compact disc, push the
OPENº button to lower the display. Push the
DISC
º button.
Push the DISCº button if a compact disc
is already loaded in the slot.
CDº appears on the screen.

AUDIO SYSTEM
127

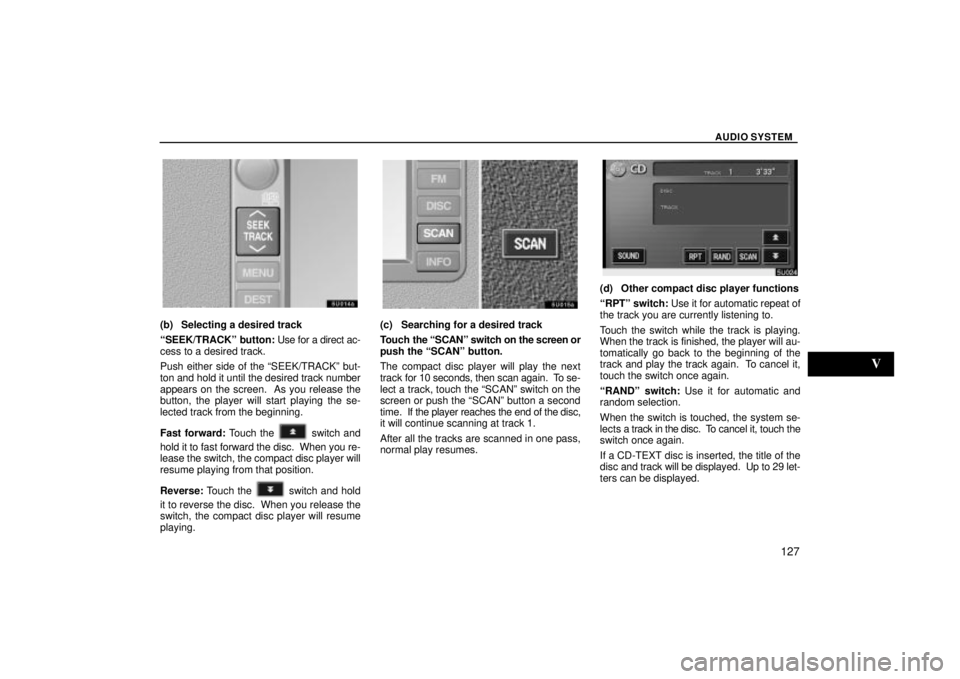

(b) Selecting a desired track
SEEK/TRACKº button: Use for a direct ac-
cess to a desired track.
Push either side of the SEEK/TRACKº but-
ton and hold it until the desired track number
appears on the screen. As you release the
button, the player will start playing the se-
lected track from the beginning.
Fast forward: Touch the
switch and
hold it to fast forward the disc. When you re-
lease the switch, the compact disc player will
resume playing from that position.
Reverse: Touch the
switch and hold
it to reverse the disc. When you release the
switch, the compact disc player will resume
playing.
(c) Searching for a desired track
Touch the SCANº switch on the screen or
push the SCANº button.
The compact disc player will play the next
track for 10 seconds, then scan again. To se-
lect a track, touch the SCANº switch on the
screen or push the SCANº button a second
time. If the player reaches the end of the disc,
it will continue scanning at track 1.
After all the tracks are scanned in one pass,
normal play resumes.
(d) Other compact disc player functions
RPTº switch: Use it for automatic repeat of
the track you are currently listening to.
Touch the switch while the track is playing.
When the track is finished, the player will au-
tomatically go back to the beginning of the
track and play the track again. To cancel it,
touch the switch once again.
RANDº switch: Use it for automatic and
random selection.
When the switch is touched, the system se-
lects a track in the disc. To cancel it, touch the
switch once again.
If a CD-TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.
