AUDIO SYSTEM

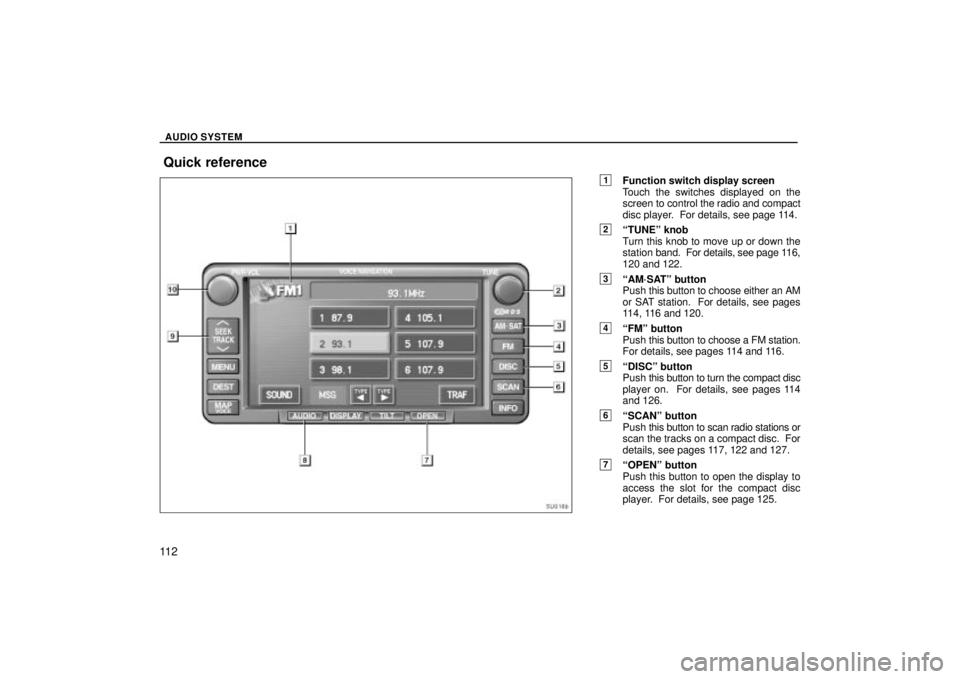

11 2
1Function switch display screen
Touch the switches displayed on the
screen to control the radio and compact
disc player. For details, see page 114.
2TUNEº knob
Turn this knob to move up or down the
station band. For details, see page 116,
120 and 122.
3AM´SATº button
Push this button to choose either an AM
or SAT station. For details, see pages
114, 116 and 120.
4FMº button
Push this button to choose a FM station.
For details, see pages 114 and 116.
5DISCº button
Push this button to turn the compact disc
player on. For details, see pages 114
and 126.
6SCANº button
Push this button to scan radio stations or
scan the tracks on a compact disc. For
details, see pages 117, 122 and 127.
7OPENº button
Push this button to open the display to
access the slot for the compact disc
player. For details, see page 125.
Quick reference

AUDIO SYSTEM
11 4
Push AM´SATº, FMº or DISCº button to
turn on the desired mode. The selected
mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the compact disc player
does not turn on.
You can turn off the compact disc player by
ejecting the compact disc. If the audio system
was previously off, then the entire audio sys-
tem will be turned off when you eject the com-
pact disc. If the another function was pre-
viously playing, it will come on again.
The switches for radio and compact disc
player operation are displayed on the
function switch display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted in green or
yellow.
INFORMATION
If the system does not respond to a
touch of a switch, move your fingeraway from the screen and then touchit again.
You cannot operate dimmedswitches.
Wipe off fingerprints on the surface ofthe display using a glass cleaningcloth.

AUDIO SYSTEM
11 6
(d) Your compact disc player
When you insert a compact disc, insert it with
the label side up. The compact disc player will
play from track 1 through the end of the disc.
Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any part
of the compact disc player. Do not in-sert anything other than compact discsinto the slot.
The player is intended for use with 12 cm (4.7
in.) discs only.
Ð Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
AMº,  FM1º or FM2º appears on the screen.
If your vehicle is equipped with satellite ra-
dio broadcast system, when you push the
AM´SATº button, AMº, SAT1º, SAT2º or
SAT3º station appears on the display. For
details about satellite radio broadcast, see
Ð Radio operation (XM satellite radio broad-
cast)º on page 119.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
STº disappears from the screen.

AUDIO SYSTEM
125
Ð Compact disc player
operation(a) Playing a compact disc
The slot for the compact disc player is be-
hind the display.
To insert a compact disc, push the
OPENº button to lower the display. Put
the compact disc in the slot with the label
side up.
The player will automatically start when you
insert the compact disc. At this time, CDº ap-
pears on the screen.
If the label faces down, the disc cannot be
played. In this case, CD CHECKº appears
on the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it ismoving. It could damage your audiosystem.
INFORMATION
Under extremely cold conditions, thedisplay may react slowly or operationsound may become louder.
V

AUDIO SYSTEM
127
(b) Selecting a desired track
SEEK/TRACKº button: Use for a direct ac-
cess to a desired track.
Push either side of the SEEK/TRACKº but-
ton and hold it until the desired track number
appears on the screen. As you release the
button, the player will start playing the se-
lected track from the beginning.
Fast forward: Touch the
switch and
hold it to fast forward the disc. When you re-
lease the switch, the compact disc player will
resume playing from that position.
Reverse: Touch the
switch and hold
it to reverse the disc. When you release the
switch, the compact disc player will resume
playing.
(c) Searching for a desired track
Touch the SCANº switch on the screen or
push the SCANº button.
The compact disc player will play the next
track for 10 seconds, then scan again. To se-
lect a track, touch the SCANº switch on the
screen or push the SCANº button a second
time. If the player reaches the end of the disc,
it will continue scanning at track 1.
After all the tracks are scanned in one pass,
normal play resumes.
(d) Other compact disc player functions
RPTº switch: Use it for automatic repeat of
the track you are currently listening to.
Touch the switch while the track is playing.
When the track is finished, the player will au-
tomatically go back to the beginning of the
track and play the track again. To cancel it,
touch the switch once again.
RANDº switch: Use it for automatic and
random selection.
When the switch is touched, the system se-
lects a track in the disc. To cancel it, touch the
switch once again.
If a CD-TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.
V

AUDIO SYSTEM
128
(e) If the player malfunctions
If CD ERRORº appears on the screen, audio
signals of the disc cannot be read or the sys-
tem has trouble. Push the DISCº button once
again.
If the player does not operate, check that the
disc surface is not soiled or damaged. If the
disc is O.K., the temperature of the player's
internal mechanism may be raised because
of high external temperature. Remove the
disc from the player to cool it.
If the player still does not operate, have it
checked by your dealer.Car audio system operating
hints
NOTICE
To ensure correct audio system opera-tions:

Be careful not to spill beverages overthe audio system.

Do not put anything other than a Com-pact Disc into the slot.

The use of a cellular phone inside ornear the vehicle may cause a noisefrom the speakers of the audio sys-tem which you are listening to. How-ever, this does not indicate a malfunc-
tion.
RADIO RECEPTION
Usually, a problem with radio reception does
not mean there is a problem with your radio Ð
it is just the normal result of conditions outside
the vehicle. For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited
range. The farther you are from a station,
the weaker its signal will be. In addition, re-
ception conditions change constantly as your
vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations Ð Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multi-path Ð FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering Ð These occur when sig-
nals are blocked by buildings, trees, or other
large objects. Increasing the bass level may
reduce static and fluttering.

AUDIO SYSTEM
129
Station swapping Ð If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading Ð AM broadcasts are reflected by the
upper atmosphere Ð especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference Ð When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static Ð AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static. CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended for
use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning to
cool the vehicle interior before you listen
to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound even
though your compact disc player appears
to be working. Remove the disc from the
player and wait until it dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed out-
side the unit. Be sure to operate the
player correctly.
Use only compact discs marked as shown
above. The following products
may not be
playable on your compact disc player.
Copy-protected CD
CD-R (CD-Recordable)
CD-R W (CD-Re-writable)
CD-ROM
V

AUDIO SYSTEM
130
Special shaped discs
Low quality discs
Labeled discs
NOTICE
To prevent damage to the player orchanger, do not use special shaped, lowquality or labeled discs such as thoseshown in the illustrations.

Correct
Wrong
Handle compact discs carefully, especial-
ly when you are inserting them. Hold them
on the edge and do not bend them. A void
getting fingerprints on them, particularly
on the shiny side.
Dirt, scrapes, warping, pin holes, or other
disc damage could cause the player to
skip or to repeat a section of a track. (To
see a pin hole, hold the disc up to the
light.)
Remove discs from the compact disc
player when you are not listening to them.
Store them in their plastic cases away
from moisture, heat, and direct sunlight.
