buttons TOYOTA SOLARA 2007 Accessories, Audio & Navigation (in English)

34 SETTING THE SEARCH POINT FROM
DESTINATIONS
1. Touch the destination buttons at the
bottom of the screen.
When an arrow facing the desired point is
touched, the map scrolls in that direction. Re-
leasing the finger from the arrow will stop the
scrolling.
2. Touch “Enter”.
The search point is set and the “POI Catego-
ry” screen will be displayed.
To search POIs near the search point
When the search point is set, the “POI Cate-
gory” screen will be displayed.
Select the desired POI categories.
“List”: If the desired POI categories have al-
ready been selected, a list of POI will be dis-
played from among the selected categories.
The selected category icon appears on the
top left of the screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list all
POI categories.
Select the desired POI categories from the
list and touch “OK”.
The selected category icon appears on the
top left of the screen.

55
3. Select the button below to select the
desired detour distance.
“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these buttons to start the
detour process. After detouring, the system
returns to the original guidance route.
“Whole Route”: By touching this button, the
system will calculate an entire new route to
the destination.
This picture shows an example of how the
system would guide around a delay caused
by a traffic jam.
1This position indicates the location of a
traffic jam caused by road repairs or an
accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
When your vehicle is on a freeway, the
detour distance selections are 5, 15,
and 25 miles (km).
The system may not be able to calcu-
late a detour route depending on the
selected distance and surrounding
road conditions.
— Route preference
A number of choices are provided on the con-
ditions which the system uses to determine
the route to the destination.
1. Touch “Route”.
2. Touch “Route Preference” to change
the conditions that determine the route to
the destination.

142
3. If the system recognized the command,
the recognition result “Home” is dis-
played on the top of the screen with the
screen message. (Displayed message
and the touchscreen buttons on the
screen depend on the situation.)
Touch or say “Cancel”, and the system will be
canceled. Touch or say “Help”, and displays
the help screen.4. Touch “Enter” or say “Enter destina-
tion”, and the system starts searching for
a route to your home. (If the destination is
already registered, “Add to
” or “Re-
place
” is displayed on the screen.)
Touch or say “Cancel”, and the search will be
canceled.
When you search the destination by “POI
Name”, this screen is displayed.
Touch “Enter” or say “Enter destination”.
When you touch “Show List”, you can
search another spot in its category.
INFORMATION
In the following conditions, the system
may not recognize the command proper-
ly.
The command is not correct or clear.
There are some noises such as wind
noise, etc.

143
Help screen
This system has a function which displays
the voice recognition help screen. You
can see the command list and operating
guide on it.
(a) Command list
1. If the “Operating Guide” screen is dis-
played, touch “Command List” on the up-
per side of the screen.
2. Select the desired category by touch-
ing the buttons on the right side of the
“Command List” screen.
3. You can scroll through the list of the
command list by touching
or .
Touch “OK” after you check it.(b) Operating guide
1. If the “Command List” screen is dis-
played, touch “Operating Guide” on the
upper side of the screen.
2. Select the desired category by touch-
ing the buttons on the right side of the
“Operating Guide” screen.
3. You can scroll through the list of the op-
erating guide by touching
or .
Touch “OK” after you check it.
Screen adjustment
The brightness or contrast of the screen can
be adjusted depending on the brightness of
your surroundings. You can also turn the dis-
play off.
To display the “Display” screen, push the
“DISPLAY” button.
1. Touch the desired button to adjust con-
trast and brightness.
“Contrast” “+”: Strengthens the contrast of
the screen.
“Contrast” “–”: Weakens the contrast of the
screen.
“Brightness” “+”: Brightens the screen.
“Brightness” “–”: Darkens the screen.
2. After adjusting the screen, touch “OK”.

145 (a) Automatic transition
You can select a function that enables auto-
matic return to the navigation screen from the
audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The navigation screen automatically
returns from the audio screen 20 seconds af-
ter the end of audio screen operation.
“OFF”: The audio screen remains on.(b) Switch color
You can select the color of the touch−screen
buttons.Select “Green” or “Orange” and then
touch “OK”.(c) Delete personal data
The following personal data can be deleted or
returned to their default settings:
Maintenance conditions
Maintenance information “off” setting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the ve-
hicle is not moving.

147

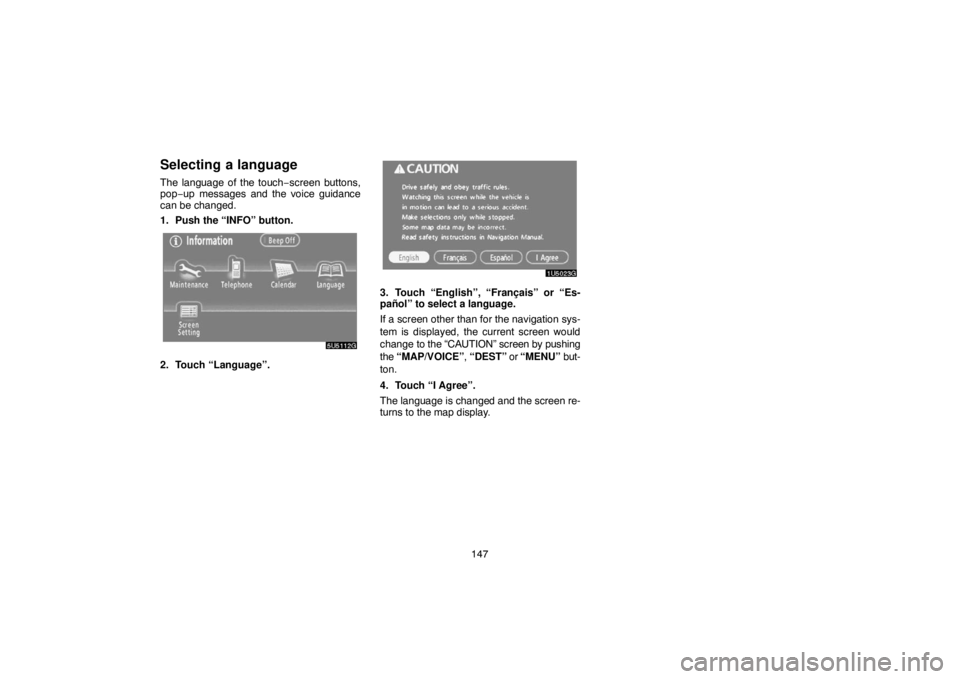

Selecting a language
The language of the touch−screen buttons,
pop−up messages and the voice guidance
can be changed.
1. Push the “INFO” button.
2. Touch “Language”.
3. Touch “English”, “Français” or “Es-
pañol” to select a language.
If a screen other than for the navigation sys-
tem is displayed, the current screen would
change to the “CAUTION” screen by pushing
the “MAP/VOICE”, “DEST” or “MENU” but-
ton.
4. Touch “I Agree”.
The language is changed and the screen re-
turns to the map display.

150

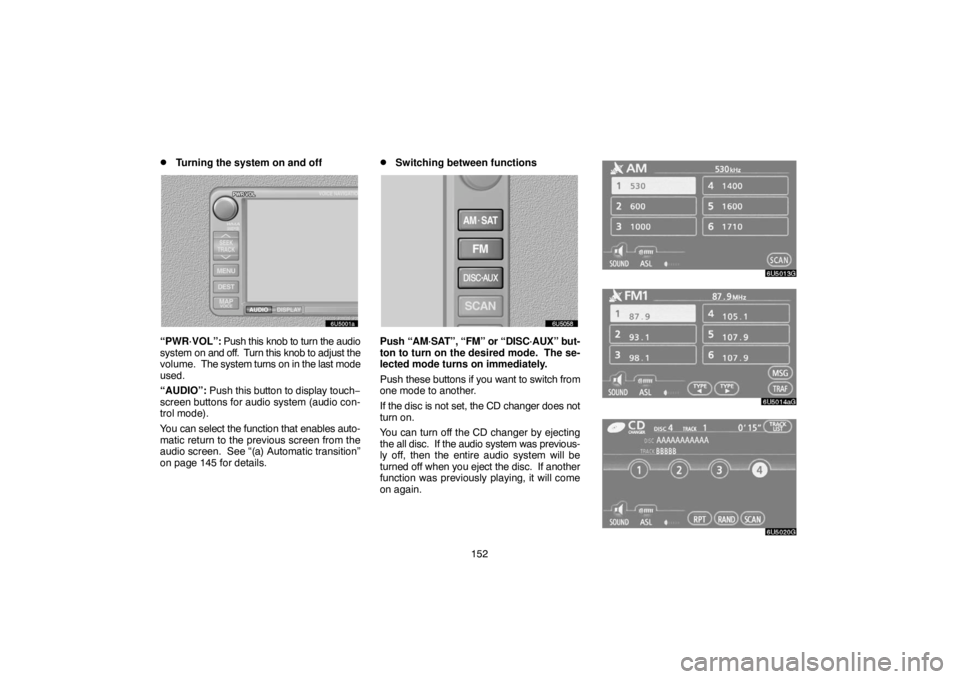

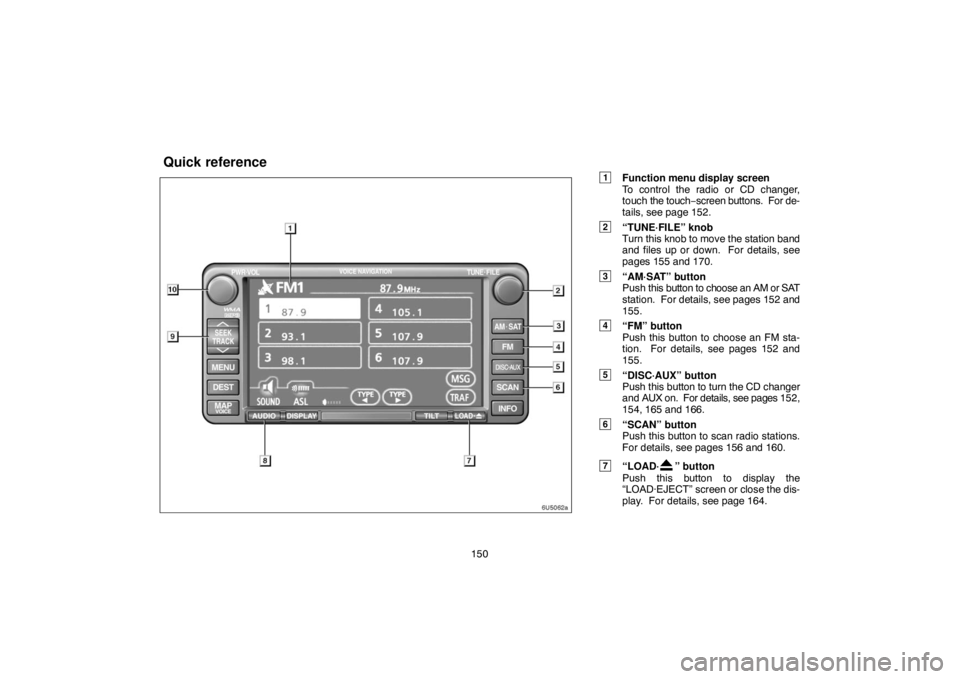

1Function menu display screen
To control the radio or CD changer,
touch the touch−screen buttons. For de-
tails, see page 152.
2“TUNE·FILE” knob
Turn this knob to move the station band
and files up or down. For details, see
pages 155 and 170.
3“AM·SAT” button
Push this button to choose an AM or SAT
station. For details, see pages 152 and
155.
4“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 152 and
155.
5“DISC·AUX” button
Push this button to turn the CD changer
and AUX on. For details, see pages 152,
154, 165 and 166.
6“SCAN” button
Push this button to scan radio stations.
For details, see pages 156 and 160.
7“LOAD·” button
Push this button to display the
“LOAD·EJECT” screen or close the dis-
play. For details, see page 164.
Quick reference

152
Turning the system on and off
“PWR·VOL”: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
“AUDIO”: Push this button to display touch−
screen buttons for audio system (audio con-
trol mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See “(a) Automatic transition”
on page 145 for details.
Switching between functions
Push “AM·SAT”, “FM” or “DISC·AUX” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the CD changer does not
turn on.
You can turn off the CD changer by ejecting
the all disc. If the audio system was previous-
ly off, then the entire audio system will be
turned off when you eject the disc. If another
function was previously playing, it will come
on again.

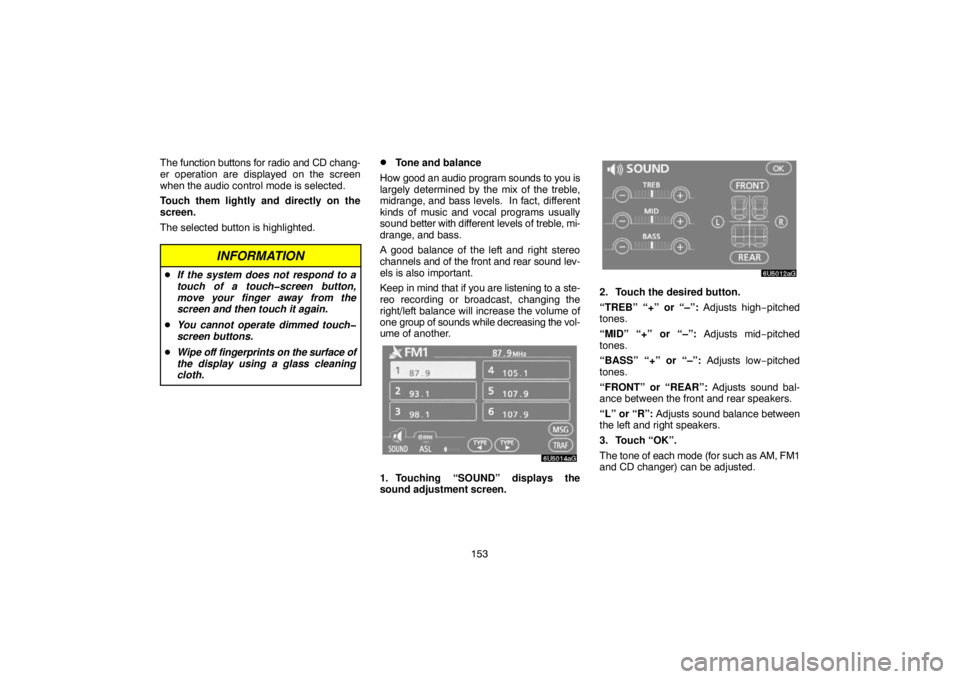

153 The function buttons for radio and CD chang-
er operation are displayed on the screen
when the audio control mode is selected.
Touch them lightly and directly on the
screen.
The selected button is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed touch
screen buttons.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different levels of treble, mi-
drange, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.
1. Touching “SOUND” displays the
sound adjustment screen.
2. Touch the desired button.
“TREB” “+” or “–”: Adjusts high−pitched
tones.
“MID” “+” or “–”: Adjusts mid−pitched
tones.
“BASS” “+” or “–”: Adjusts low−pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance between
the left and right speakers.
3. Touch “OK”.
The tone of each mode (for such as AM, FM1
and CD changer) can be adjusted.

155

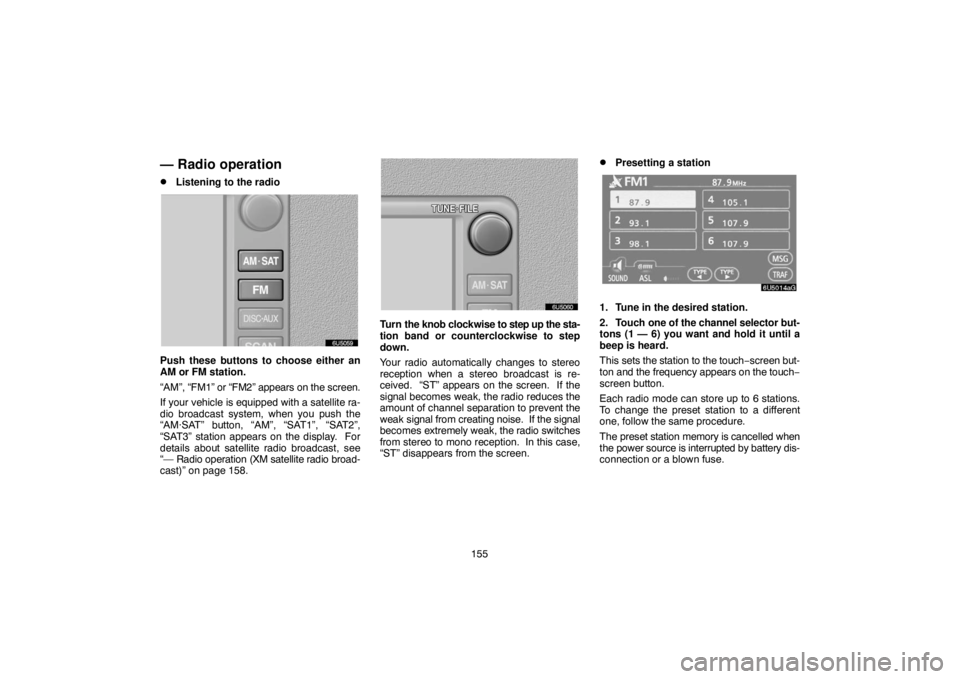

— Radio operation
Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
If your vehicle is equipped with a satellite ra-
dio broadcast system, when you push the
“AM·SAT” button, “AM”, “SAT1”, “SAT2”,
“SAT3” station appears on the display. For
details about satellite radio broadcast, see
“— Radio operation (XM satellite radio broad-
cast)” on page 158.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.
Presetting a station
1. Tune in the desired station.
2. Touch one of the channel selector but-
tons (1 — 6) you want and hold it until a
beep is heard.
This sets the station to the touch−screen but-
ton and the frequency appears on the touch−
screen button.
Each radio mode can store up to 6 stations.
To change the preset station to a different
one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse.
