ii
Important information about
this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.
INFORMATION
This provides additional information.
Safety Instruction
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reaching
the destination and, if used properly, can do
so. The driver is solely responsible for the
safe operation of your vehicle and the safety
of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and prevents
safe driving. The first priority while driving
should always be the safe operation of the
vehicle. While driving, be sure to observe all
traffic regulations.Prior to the actual use of this system, learn
how to use it and become thoroughly familiar
with it. Read the entire Navigation System
Owner’s Manual to make sure you under-
stand the system. Do not allow other people
to use this system until they have read and
understood the instructions in this manual.
For your safety, some functions may become
inoperable when driving. Unavailable
touch−screen buttons are dimmed. Only
when the vehicle is not moving, can the des-
tination and route selection be done.
CAUTION
For safety, the driver should not
operate the navigation system while
he/she is driving. Insufficient
attention to the road and traffic may
cause an accident.
While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions. If
a traffic sign on the road has been
changed, route guidance may
provide wrong information such as
the direction of a one way street.

iv

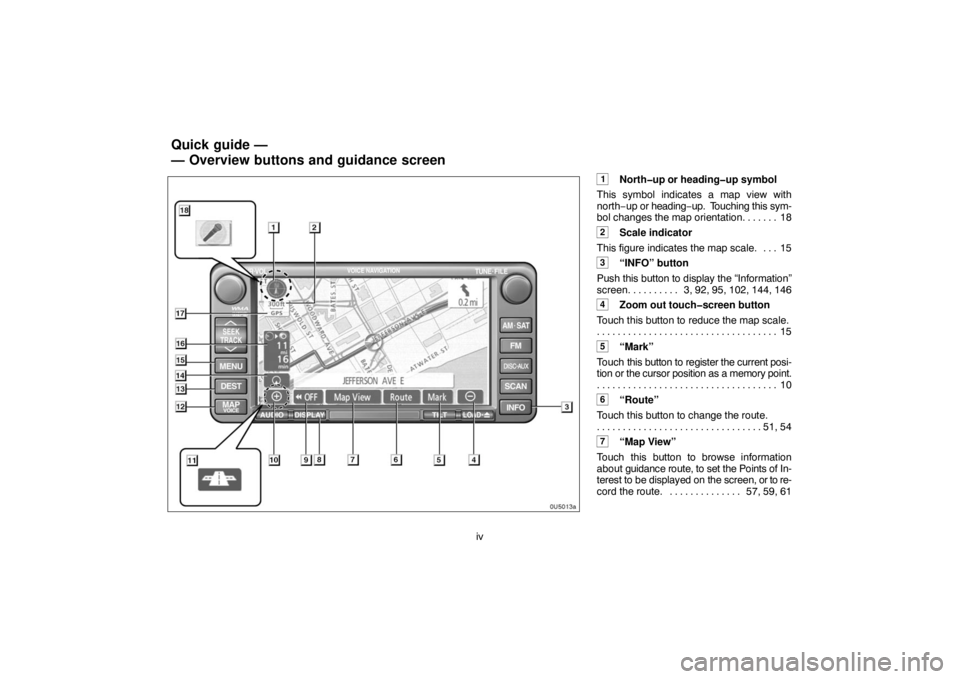

1Northup or headingup symbol
This symbol indicates a map view with
north−up or heading−up. Touching this sym-
bol changes the map orientation. 18. . . . . .
2Scale indicator
This figure indicates the map scale. 15. . .
3“INFO” button
Push this button to display the “Information”
screen. 3, 92, 95, 102, 144, 146. . . . . . . . .
4Zoom out touchscreen button
Touch this button to reduce the map scale.
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“Mark”
Touch this button to register the current posi-
tion or the cursor position as a memory point.
10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Route”
Touch this button to change the route.
51, 54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Map View”
Touch this button to browse information
about guidance route, to set the Points of In-
terest to be displayed on the screen, or to re-
cord the route. 57, 59, 61. . . . . . . . . . . . . .
Quick guide —
— Overview buttons and guidance screen

v
8“DISPLAY” button
Push this button to display the “Display”
screen. 143. . . . . . . . . . . . . . . . . . . . . . . . . . .
9“OFF”
Touch this button to obtain a broader view.
Some of the buttons on the screen are not
displayed. They are displayed again by
touching “ON”.84. . . . . . . . . . . . . . . . .
10Zoom in touchscreen button
Touch this button to magnify the map scale.
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Foot print map touchscreen button
Touch this button to display the foot print
map and the building information. 16. . . . .
12“MAP/VOICE” button
Push this button to repeat a voice guidance,
cancel one touch scroll, start guidance, and
display the current position. 9, 50. . . . . . . .
13“DEST” button
Push this button to display the “Destination”
screen. ix, x, 20, 21. . . . . . . . . . . . . . . . . . . .
14Screen configuration touchscreen
button
Touch this button to change the screen
mode. 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“MENU” button
Push this button to display the “Menu”
screen. vi, vii, 64. . . . . . . . . . . . . . . . . . . . . .
16Distance and time to destination
Displays the distance, the estimated travel
time to the destination, and the estimated ar-
rival time at the destination. 50. . . . . . . . . .
17“GPS” mark (Global Positioning
System)
Whenever the vehicle is receiving signals
from the GPS, this mark is displayed.
182 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Speech command system indicator
The microphone is shown by pushing the
speech command switch. The speech com-
mand system can be operated while this in-
dicator is shown. 141. . . . . . . . . . . . . . . . . .

viii
4. There are 13 different methods to
search preset memory point.
See “Destination search” on page 21.
5. Touch “Enter”.
The “Memory Point” screen is displayed.
6. Touch “Quick Access”.
7. Touch one of preset buttons 1 to 5.
8. Touch “OK”.
Registration of preset memory point is com-
plete.
You can change the icon, quick access,
name, location and phone number. (See “ —
Editing memory points” on page 72.)

4
Touch screen operation
This system is operated mainly by the touch−
screen buttons on the screen.
To prevent damage to the screen, lightly
touch buttons on the screen with the fin-
ger. When a button on the screen is
touched, a beep sounds.
Do not use objects other than the finger to
touch the screen.
INFORMATION
If the system does not respond to a
touch on a touchscreen button,
move the finger away from the screen
and then touch it again.
Dimmed touchscreen buttons can-
not be operated.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemical
cleaners to clean the touch screen.
The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the touchscreen buttons may
be harder than usual to depress.
The display may be tinged in purple
due to the reflection of sunlight, but
this is not a malfunction.
When you look at the screen through
polarised material such as polarised
sunglasses, the screen may be dark
and hard to see. If so, change the
angle of the screen or take off your
sunglasses.Inputting letters and
numbers/List screen
operation
When searching for an address or a name, or
entering a memo, letters and numbers can be
input via the touch screen.
INFORMATION
Keyboard layout can be changed. (See
page 83.)

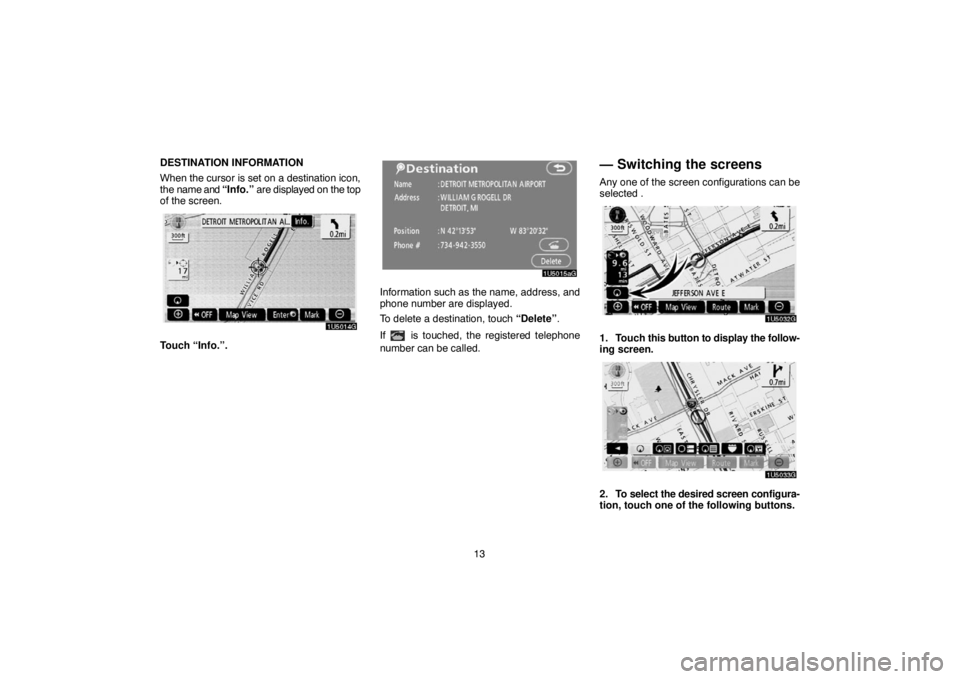

13 DESTINATION INFORMATION
When the cursor is set on a destination icon,
the name and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered telephone
number can be called.
— Switching the screens
Any one of the screen configurations can be
selected .
1. Touch this button to display the follow-
ing screen.
2. To select the desired screen configura-
tion, touch one of the following buttons.

14 Depending on the conditions, certain screen
configuration buttons cannot be selected.
:To display the single map screen.
(See page 14.)
:To display the dual map screen. (See
page 14.)
:To display the compass mode
screen. (See page 15.)
:To display the turn list screen. (See
page 48.)
:To display the arrow screen. (See
page 48.)
:To display the freeway information
screen. (See page 47.)
:To display the intersection guidance
screen or the guidance screen on the
freeway. (See page 47.)

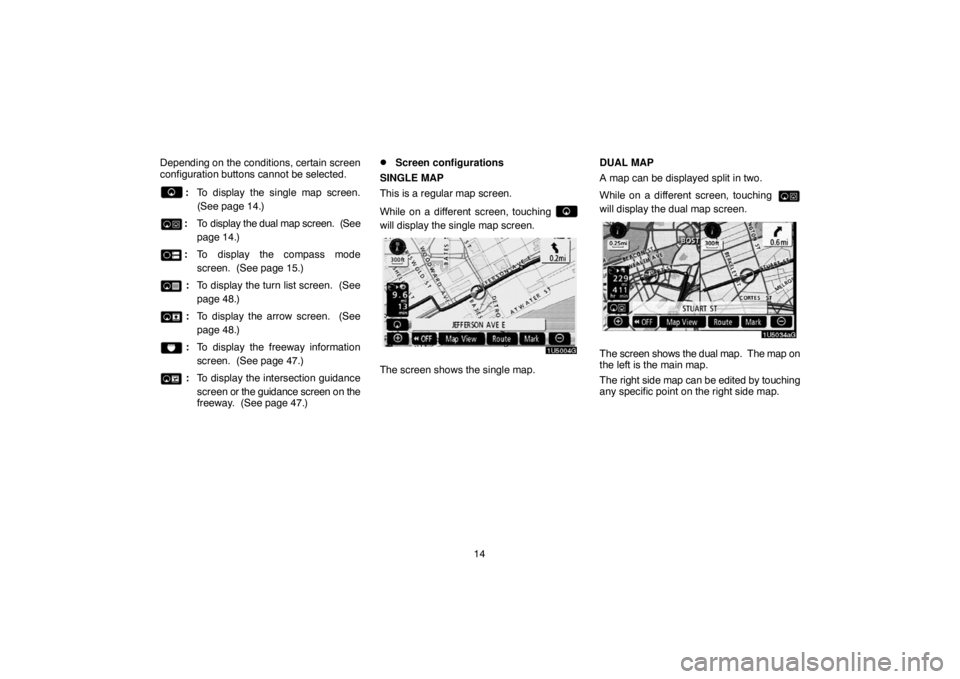

Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map on
the left is the main map.
The right side map can be edited by touching
any specific point on the right side map.

21
7“Map”
A destination can be selected simply by
touching the location on the displayed map.
37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8“Intersection”
The names of two intersecting streets can be
entered. This is helpful if only the general vi-
cinity, not the specific address, is known.
37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Freeway Ent./Exit”
The name of a freeway (interstate) entrance
or exit can be entered. 38. . . . . . . . . . . . . . .
10“?”
Function help for the “Destination” screen can
be viewed on this screen. 8. . . . . . . . . . . . . .
11“Change”
To change the search area, touch this button.
22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Quick access touchscreen buttons
One of 5 preset destinations can be selected
by touching the screen directly. To use this
function, it is necessary to set the “Quick
Access” for each memory point. (To register
a “Quick Access”, see “ — Editing memory
points” on page 72.) 24. . . . . . . . . . . . . . . . .
13Home touchscreen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set “Home”
for the memory point. (To register “Home”,
see “ — Registering home” on page 76.)
24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Phone #”
A destination can be entered by the telephone
number. 40. . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“Coordinates”
A destination can be set by using latitude and
longitude as coordinates. 39. . . . . . . . . . . . .

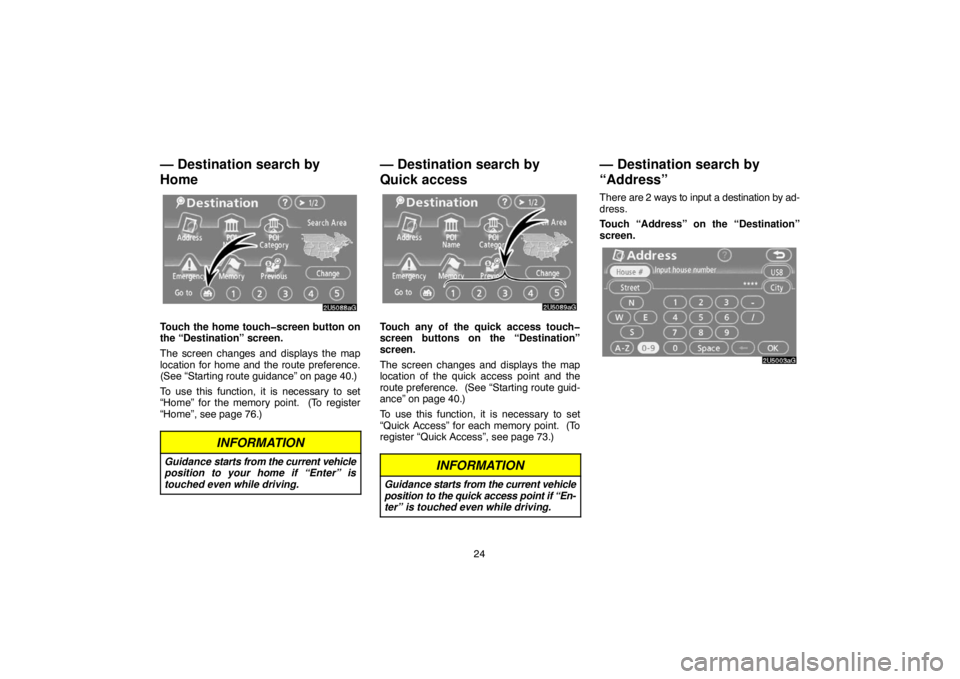

Destination search —
Push the “DEST” button and the “Destina-
tion” screen appears.
You can use one of 13 different methods to
search your destination. (See pages 24
through 40.)
INFORMATION
When searching the destination, the re-
sponse to the touchscreen button may
be slow.

23
2. Touch one of “US1” through “CAN” to
select a search area.
3. Touch “OK” and the previous screen
returns.U.S.A.
ButtonStates included in the search area
“US1”
Idaho
Oregon
Washington
“US2”California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5”Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
“US7”
Arkansas
Alabama
Louisiana
Mississippi
Tennessee
“US8”
Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont
“US9”
Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
“US10”
Florida
Georgia
North Carolina
South Carolina
Canada
ButtonProvinces and regions included in
the search area
“CAN”All provinces and regions in
Canada included in this button.

24
— Destination search by
Home
Touch the home touchscreen button on
the “Destination” screen.
The screen changes and displays the map
location for home and the route preference.
(See “Starting route guidance” on page 40.)
To use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see page 76.)
INFORMATION
Guidance starts from the current vehicle
position to your home if “Enter” is
touched even while driving.
— Destination search by
Quick access
Touch any of the quick access touch
screen buttons on the “Destination”
screen.
The screen changes and displays the map
location of the quick access point and the
route preference. (See “Starting route guid-
ance” on page 40.)
To use this function, it is necessary to set
“Quick Access” for each memory point. (To
register “Quick Access”, see page 73.)
INFORMATION
Guidance starts from the current vehicle
position to the quick access point if “En-
ter” is touched even while driving.
— Destination search by
“Address”
There are 2 ways to input a destination by ad-
dress.
Touch “Address” on the “Destination”
screen.
