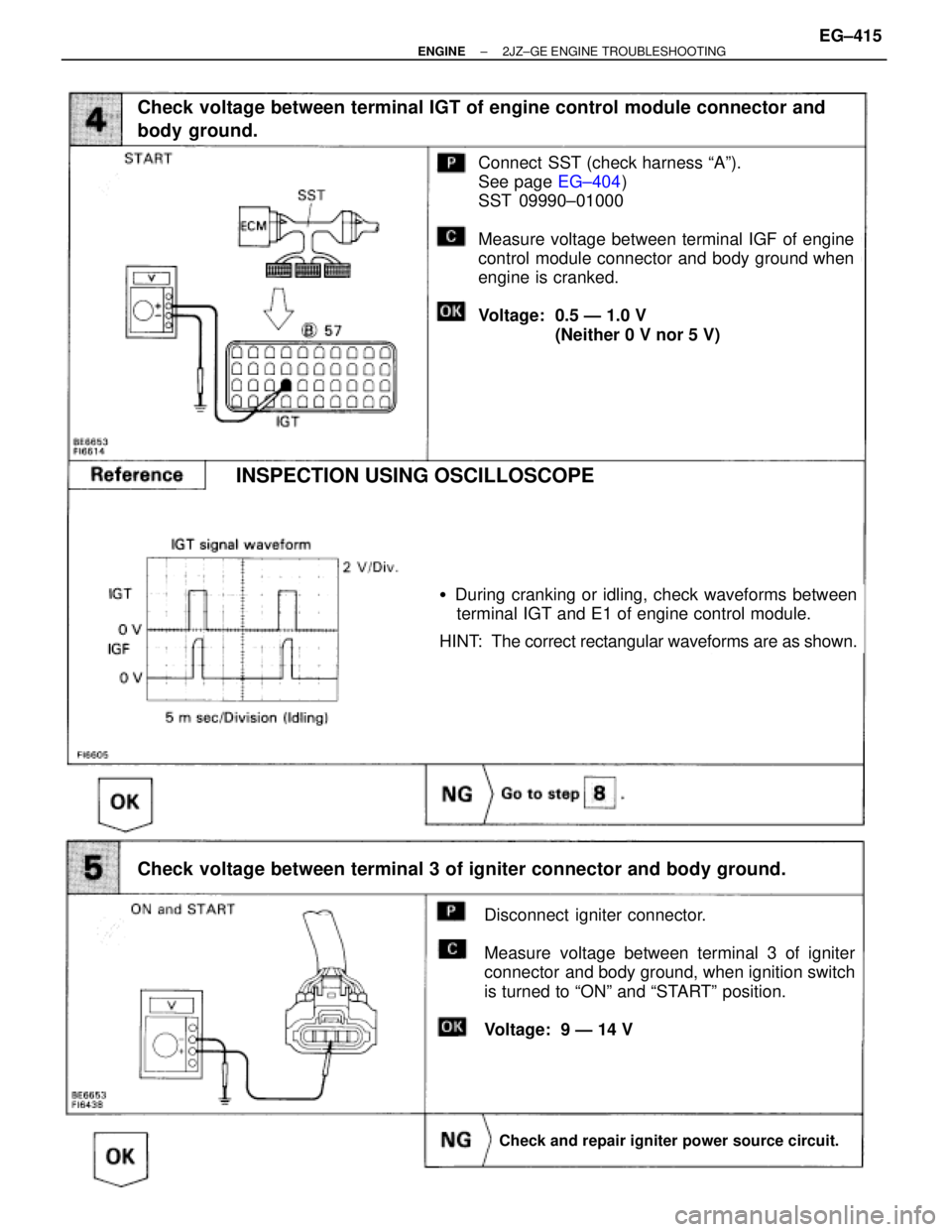

Connect SST (check harness ªAº).
See page EG±404)
SST 09990±01000
Measure voltage between terminal IGF of engine
control module connector and body ground when
engine is cranked.
Voltage: 0.5 Ð 1.0 V
(Neither 0 V nor 5 V)
Check voltage between terminal IGT of engine control module connector and
body ground.
INSPECTION USING OSCILLOSCOPE
During cranking or idling, check waveforms between
terminal IGT and E1 of engine control module.
HINT: The correct rectangular waveforms are as shown.
Check voltage between terminal 3 of igniter connector and body ground.
Disconnect igniter connector.
Measure voltage between terminal 3 of igniter
connector and body ground, when ignition switch
is turned to ªONº and ªSTARTº position.
Voltage: 9 Ð 14 V
Check and repair igniter power source circuit.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±415
Page 172 of 878

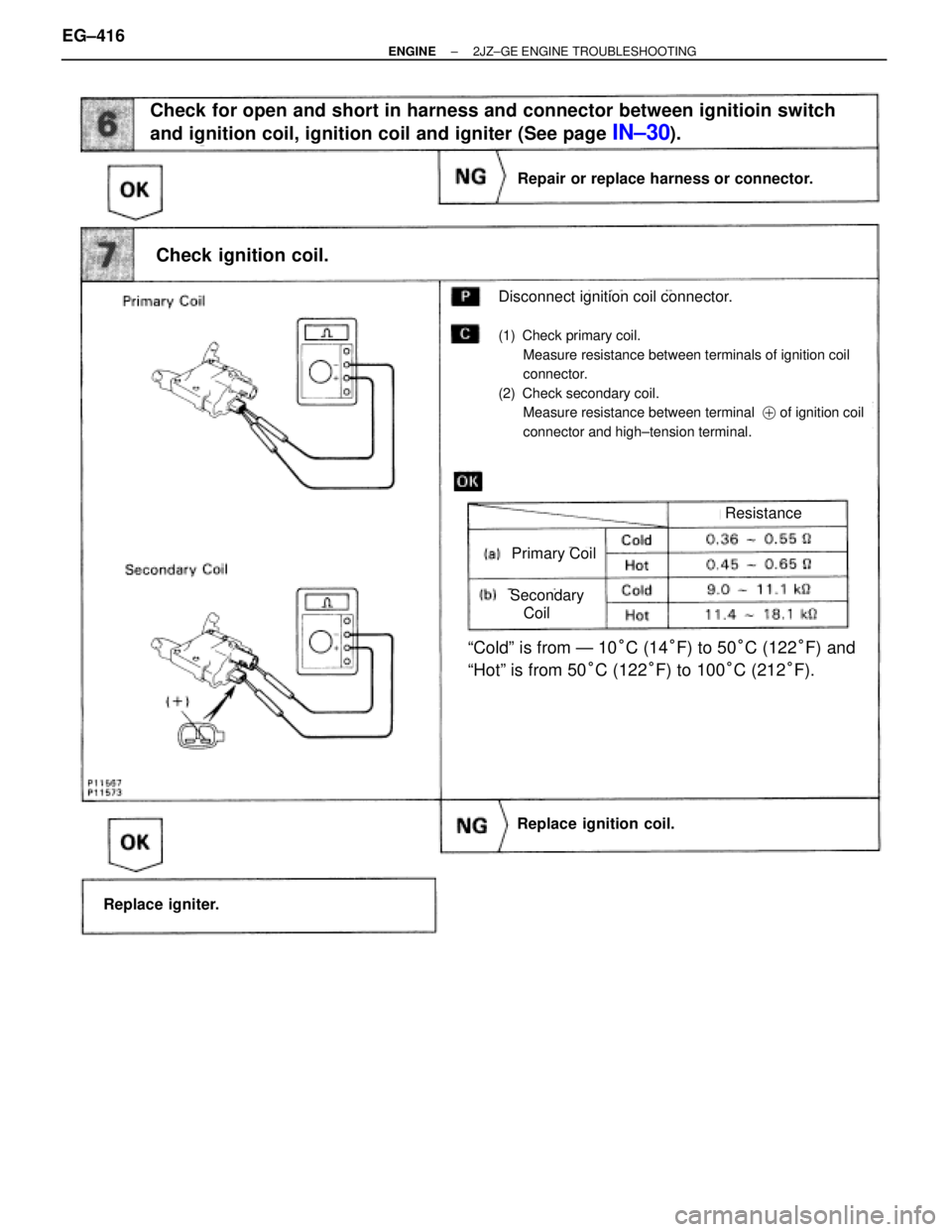

Check ignition coil.
Disconnect ignition coil connector.
(1) Check primary coil.
Measure resistance between terminals of ignition coil
connector.
(2) Check secondary coil.
Measure resistance between terminal of ignition coil
connector and high±tension terminal.
Repair or replace harness or connector.
Check for open and short in harness and connector between ignitioin switch
and ignition coil, ignition coil and igniter (See page
IN±30).
ªColdº is from Ð 10°C (14°F) to 50°C (122°F) and
ªHotº is from 50°C (122°F) to 100°C (212°F).
Replace ignition coil.
Replace igniter.
Resistance
Primary Coil
Secondary
Coil
EG±416± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 173 of 878

Disconnect igniter connector and check voltage between terminal IGT of engine
control module connector and body ground.
Check for open and short in harness and connector in IGT signal circuit be-
tween engine control module and igniter (See page
IN±30).
Replace igniter.
Repair or replace harness or connector.
Check and replace engine control module.
Disconnect igniter connector.
Measure voltage between terminal IGT of engine
control module connector and body ground when
engine is cranked.
Voltage: 0.5 Ð 1.0 V
(Neither 0 V nor 5 V)
During cranking or idling, check waveforms between
terminal IGT and E1 of engine control module.
HINT: The correct rectangular waveforms are as shown.
INSPECTION USING OSCILLOSCOPE
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±417
Page 174 of 878

DTC 16 A T Control Signal Malfunction
CIRCUIT DESCRIPTION
The signal from the A/T CPU retards the ignition timing of the engine during A/T gear shifting, thus momentarily
reducing torque output of the engine for smooth clutch operation inside the transmission and reduced shift
shock.
DTC No. Diagnostic Trouble Code Detecting Condition Trouble Area
16
Fault in communications between the engine CPU
ECM 16 Fault in communications between the engine CPU
and A/T CPU in the ECM ECM
If the ECM detects the diagnostic trouble code º16º in memory, it prohibits the torque control of the A/T which
performs smooth gear shifting.
INSPECTION PROCEDURE
Are there any otheer codes (besides Code 16) being output?
Repair engine control module.
Go to relevant diagnostic trouble code chart.
EG±418± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 175 of 878

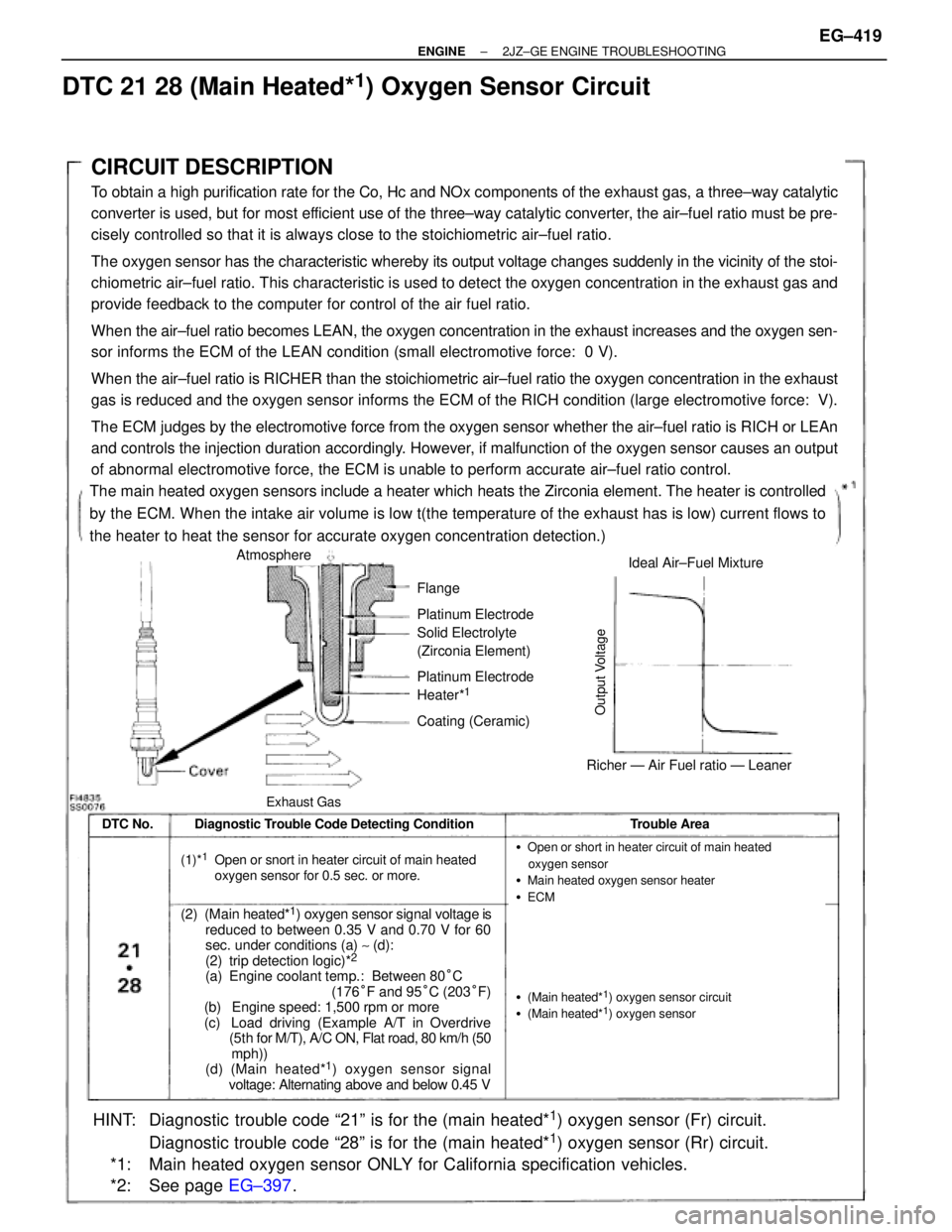

CIRCUIT DESCRIPTION
To obtain a high purification rate for the Co, Hc and NOx components of the exhaust gas, a three±way catalytic
converter is used, but for most efficient use of the three±way catalytic converter, the air±fuel ratio must be pre-
cisely controlled so that it is always close to the stoichiometric air±fuel ratio.
The oxygen sensor has the characteristic whereby its output voltage changes suddenly in the vicinity of the stoi-
chiometric air±fuel ratio. This characteristic is used to detect the oxygen concentration in the exhaust gas and
provide feedback to the computer for control of the air fuel ratio.
When the air±fuel ratio becomes LEAN, the oxygen concentration in the exhaust increases and the oxygen sen-
sor informs the ECM of the LEAN condition (small electromotive force: 0 V).
When the air±fuel ratio is RICHER than the stoichiometric air±fuel ratio the oxygen concentration in the exhaust
gas is reduced and the oxygen sensor informs the ECM of the RICH condition (large electromotive force: V).
The ECM judges by the electromotive force from the oxygen sensor whether the air±fuel ratio is RICH or LEAn
and controls the injection duration accordingly. However, if malfunction of the oxygen sensor causes an output
of abnormal electromotive force, the ECM is unable to perform accurate air±fuel ratio control.
The main heated oxygen sensors include a heater which heats the Zirconia element. The heater is controlled
by the ECM. When the intake air volume is low t(the temperature of the exhaust has is low) current flows to
the heater to heat the sensor for accurate oxygen concentration detection.)
Flange
Platinum Electrode
Solid Electrolyte
(Zirconia Element)
Platinum Electrode
Heater*
1
Coating (Ceramic)
Ideal Air±Fuel Mixture
Richer Ð Air Fuel ratio Ð Leaner
Trouble AreaDTC No.Diagnostic Trouble Code Detecting Condition
Exhaust Gas
Output Voltage
(1)*1Open or snort in heater circuit of main heated
oxygen sensor for 0.5 sec. or more.
(2) (Main heated*1) oxygen sensor signal voltage is
reduced to between 0.35 V and 0.70 V for 60
sec. under conditions (a) ~ (d):
(2) trip detection logic)*
2
(a) Engine coolant temp.: Between 80°C
(176°F and 95°C (203°F)
(b) Engine speed: 1,500 rpm or more
(c) Load driving (Example A/T in Overdrive
(5th for M/T), A/C ON, Flat road, 80 km/h (50
mph))
(d) (Main heated*
1) oxygen sensor signal
voltage: Alternating above and below 0.45 V
Atmosphere
Open or short in heater circuit of main heated
oxygen sensor
Main heated oxygen sensor heater
ECM
(Main heated*
1) oxygen sensor circuit
(Main heated*1) oxygen sensor
HINT: Diagnostic trouble code ª21º is for the (main heated*1) oxygen sensor (Fr) circuit.
Diagnostic trouble code ª28º is for the (main heated*
1) oxygen sensor (Rr) circuit.
*1: Main heated oxygen sensor ONLY for California specification vehicles.
*2: See page EG±397.
DTC 21 28 (Main Heated*1) Oxygen Sensor Circuit
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±419
Page 176 of 878

CIRCUIT DESCRIPTION (Cont'd)

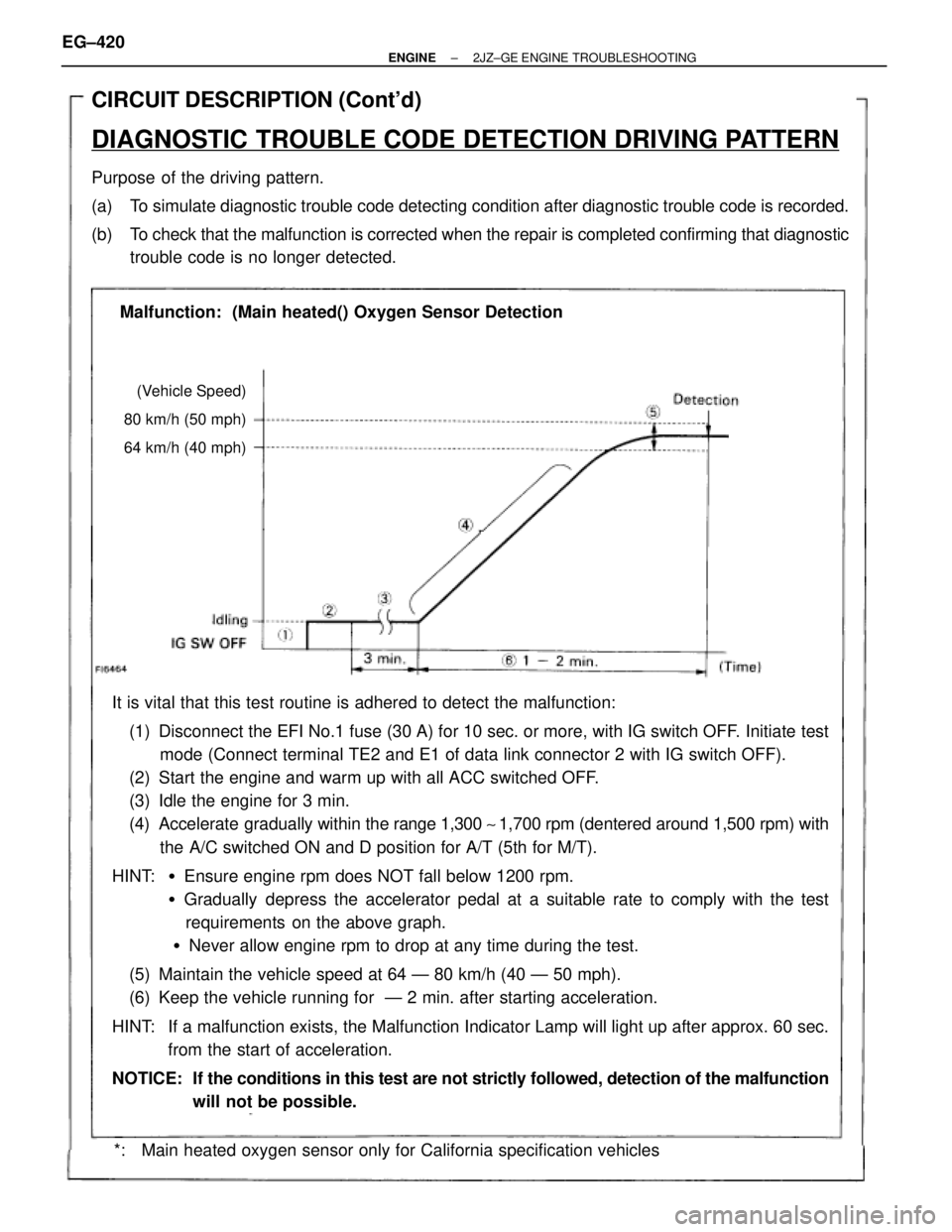

DIAGNOSTIC TROUBLE CODE DETECTION DRIVING PATTERN
Purpose of the driving pattern.
(a) To simulate diagnostic trouble code detecting condition after diagnostic trouble code is recorded.
(b) To check that the malfunction is corrected when the repair is completed confirming that diagnostic
trouble code is no longer detected.
Malfunction: (Main heated() Oxygen Sensor Detection
(Vehicle Speed)
80 km/h (50 mph)
64 km/h (40 mph)
It is vital that this test routine is adhered to detect the malfunction:
(1) Disconnect the EFI No.1 fuse (30 A) for 10 sec. or more, with IG switch OFF. Initiate test
mode (Connect terminal TE2 and E1 of data link connector 2 with IG switch OFF).
(2) Start the engine and warm up with all ACC switched OFF.
(3) Idle the engine for 3 min.
(4) Accelerate gradually within the range 1,300 ~ 1,700 rpm (dentered around 1,500 rpm) with
the A/C switched ON and D position for A/T (5th for M/T).
HINT: Ensure engine rpm does NOT fall below 1200 rpm.
Gradually depress the accelerator pedal at a suitable rate to comply with the test
requirements on the above graph.
Never allow engine rpm to drop at any time during the test.
(5) Maintain the vehicle speed at 64 Ð 80 km/h (40 Ð 50 mph).
(6) Keep the vehicle running for Ð 2 min. after starting acceleration.
HINT: If a malfunction exists, the Malfunction Indicator Lamp will light up after approx. 60 sec.
from the start of acceleration.
NOTICE: If the conditions in this test are not strictly followed, detection of the malfunction
will not be possible.
*: Main heated oxygen sensor only for California specification vehicles EG±420
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 177 of 878

Replace oxygen sensor.
Go to relevant diagnostic trouble code chart.
Are there any other codes (besides code 21 or 28) being output?

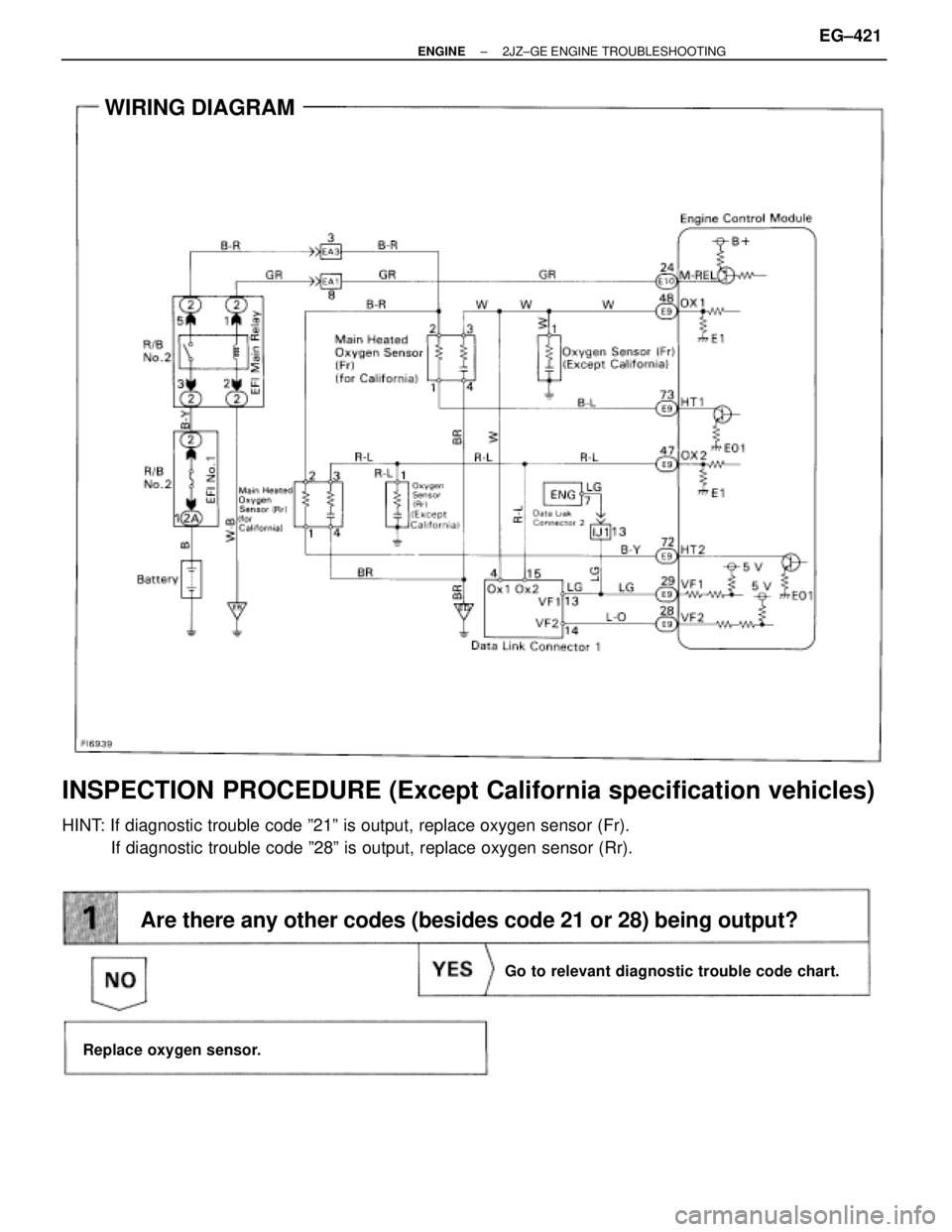

WIRING DIAGRAM
INSPECTION PROCEDURE (Except California specification vehicles)
HINT: If diagnostic trouble code º21º is output, replace oxygen sensor (Fr).
If diagnostic trouble code º28º is output, replace oxygen sensor (Rr).
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±421
Page 178 of 878

INSPECTION PROCEDURE (Only for California specification vehicles)
HINT: If diagnostic trouble code º21º is output, check the main heated oxygen sensor (Fr) circuit.
If diagnostic trouble code º28º is output, check the main heated oxygen sensor (Rr) circuit.
Check voltage between terminals HT1, HT2 of engine control module
connector and body ground.
Connect SST (check harness ªAº).
See page EG±404)
SST 09990±01000
Measure voltage between terminals HT1, HT2 of engine
control module connector and body ground.
Voltage: 9 Ð 14 V
Go to step
Check main heated oxygen sensor heater.
Disconnect main heated oxygen sensor connector.
Measure resistance between terminals 1 and 2 of main
heated oxygen sensor connector.
Resistance: 11 Ð 16 at 20°C (68°F)
Replace main heated oxygen sensor.
Check and repair harness or connector between main
relay and main heated oxygen sensor, main heated oxy-
gen sensor and engine control module.
EG±422± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 179 of 878

Check voltage between terminals HT1, HT2 of engine control module
connector and body ground.
INSPECTION USING OSCILLOSCOPE
Replace main heated oxygen sensor.*
Check and replace engine control module.
*: It is probable the oxygen sensor has deteriorated.
Usually, this cannot be confirmed by visual inspec±
tion.
Warm up engine to normal operating temperature.
Measure voltage between terminals HT1, HT2 of
engine control module connector and body ground.
when engine is idling and racing at 4,000 rpm.
In the 4,000 rpm racing check, continue engine rac-
ing at 4,000 rpm for approx. 20 seconds or more.
With the engine racing (4,000 rpm) measure wave±
form between terminals OX1, OX2 and E1 of engine
control module.
HINT: The correct waveform is as shown, oscillating be
tween approx. 0.1 V nd 0.9 V
If the oxygen sensor has deteriorated, the ampli±
tude of the voltage will be reduced as shown on the
left.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±423
Page 180 of 878

DTC 22 Engine Coolant Temp. Sensor Circuit

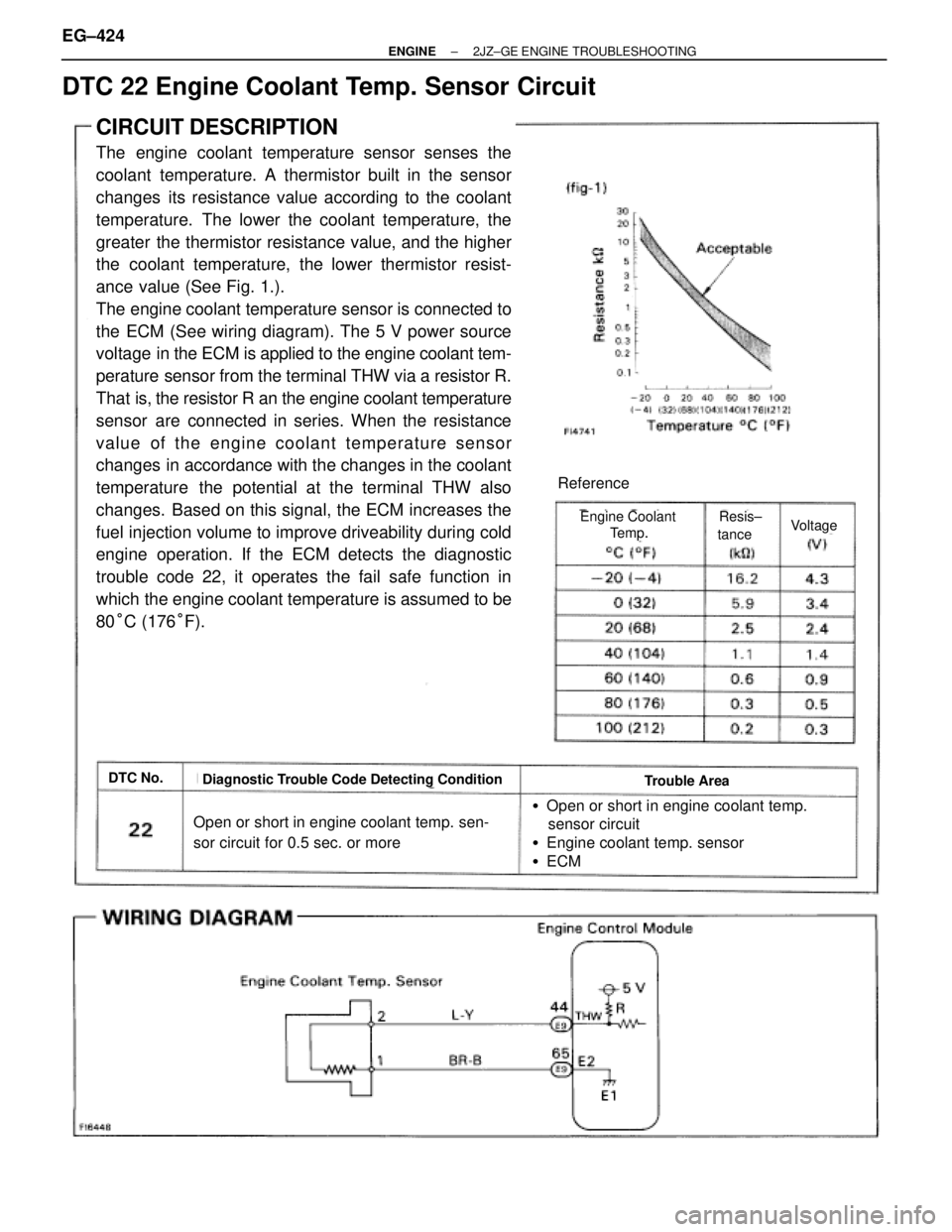

CIRCUIT DESCRIPTION
The engine coolant temperature sensor senses the
coolant temperature. A thermistor built in the sensor
changes its resistance value according to the coolant
temperature. The lower the coolant temperature, the
greater the thermistor resistance value, and the higher
the coolant temperature, the lower thermistor resist-
ance value (See Fig. 1.).
The engine coolant temperature sensor is connected to
the ECM (See wiring diagram). The 5 V power source
voltage in the ECM is applied to the engine coolant tem-
perature sensor from the terminal THW via a resistor R.
That is, the resistor R an the engine coolant temperature
sensor are connected in series. When the resistance
value of the engine coolant temperature sensor
changes in accordance with the changes in the coolant
temperature the potential at the terminal THW also
changes. Based on this signal, the ECM increases the
fuel injection volume to improve driveability during cold
engine operation. If the ECM detects the diagnostic
trouble code 22, it operates the fail safe function in
which the engine coolant temperature is assumed to be
80°C (176°F).
DTC No.Diagnostic Trouble Code Detecting ConditionTrouble Area
Open or short in engine coolant temp. sen-
sor circuit for 0.5 sec. or more
Open or short in engine coolant temp.
sensor circuit
Engine coolant temp. sensor
ECM
Reference
VoltageEngine Coolant
Temp.
Resis±
tance
