TOYOTA SUPRA 1996 Owners Manual

139
3. Rinse thoroughlyÐdried soap can
cause streaking. In hot weather you may need to rinse each section right after youwash it.
4. To prevent water spots, dry the vehicle using a clean soft cotton towel. Do not rub
or press hardÐyou might scratch the paint.
Automatic car wash
Your vehicle may be washed in an auto-
matic car wash, but remember that the
paint can be scratched by some type of
brushes, unfiltered washing water, or the
washing process itself. Scratching re- duces
paint durability and gloss, especial-
ly on darker colors. Also, automatic car wash equipment may interfere with and
damage the rear spoiler if your vehicle is
equipped with one. The manager of the car wash should be able to advise you whether the process is safe for the paint
on your vehicle or the vehicle body itself.
Waxing your Toyota
Polishing and waxing is recommended
to maintain the original beauty of your
Toyota's finish.
1. Always wash and dry the vehicle be-
fore you begin waxing, even if you are us-
ing a combined cleaner and wax. 2. Use a good quality polish and wax. Ifthe finish has become extremely weath-
ered, use a car-cleaning polish, followed
by a separate wax. Carefully follow the
manufacturer 's instructions and precau-
tions. Be sure to polish and wax thechrome trim as well as the paint.
3. Wax the vehicle again when water
does
not bead but remains on the surface
in large patches.
Always remove the plastic bumpers
if your vehicle is re-painted and
placed in a high heat paint waxingbooth. High temperatures could damage the bumpers.
NOTICE
CAUTION!
Do not wash the vehicle floor with wa-
ter, or allow water to get onto the floor
when cleaning the vehicle interior or
exterior. Water may get into audio
components or other electrical com-
ponents above or under the floor car-
pet (or mat) and cause a malfunction;
and it may cause body corrosion.
Vinyl interior
The vinyl upholstery may be easily
cleaned with a mild soap or detergent
and water.
First vacuum over the upholstery to re-
move loose dirt. Then, using a sponge or
soft cloth, apply the soap solution to the vi-
nyl. After allowing it to soak in for a few
minutes to loosen the dirt, remove the dirt
and wipe off the soap with a clean damp
cloth. If all the dirt does not come off, re-
peat the procedure. Commercial foam-
ing-type vinyl cleaners are also available
which work well. Follow the manufactur-
er's instructions.
Do not use solvent, thinner, gasoline
or window cleaner on the interior.
NOTICE
Carpets
Use a good foam-type shampoo to
clean the carpets.
Cleaning the interior

140Begin by vacuuming thoroughly to re-
move as much dirt as possible. Several
types of foam cleaners are available;some are in aerosol cans and others are
powders or
liquids which you mix with wa-
ter to produce a foam. To shampoo the
carpets, use a sponge or brush to apply the foam. Rub in overlapping circles. Do not apply waterÐthe best results are obtained by keeping the carpet as dry as possible. Read the shampoo instructions
and follow them closely. Seat belts
The seat belts may be cleaned with mild
soap and water or with lukewarm water. Use a cloth or sponge. As you are clean-
ing, check the belts for excessive wear,
fraying, or cuts.
Do not use dye or bleach on the
beltsÐit may weaken them.
NOTICE
Windows
The windows may be cleaned with any
household window cleaner.
When cleaning the inside of the win-
dows, be careful not to scratch or
damage the heater wires on the rear window.
NOTICE
Air conditioning control panel, car au-
dio, instrument panel, console panel,
and switches Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or luke-
warm water then lightly wipe off any dirt.

Do not use organic substances(solvents, kerosene, alcohol, gas-
oline, etc.) or alkaline or acidic
solutions. These chemicals cancause discoloring, staining or
peeling of the surface.
If you use cleaners or polishingagents, make sure their ingredi-
ents do not include the sub-
stances mentioned above.
If you use a liquid car freshener,do not spill the liquid onto the ve-
hicle's interior surfaces. It maycontain the ingredients men-
tioned above. Immediately clean
any spill using the method men-tioned above.
NOTICE
Leather Interior
The leather upholstery may be cleaned
with neutral detergent for wool. Remove dirt using a soft cloth dampened with 5% solution of neutral detergent for
wool. Then thoroughly wipe off all traces
of detergent with a clean damp cloth. After
cleaning or whenever any part of the
leather gets wet, dry with a soft clean
cloth. Allow the leather to dry in a venti-
lated shaded area.

If a stain should fail to come outwith a neutral detergent, apply a
cleaner that does not contain anorganic solvent.
Never use organic substances
such as benzine, alcohol or gaso-line, or alkaline or acid solutionsfor cleaning the leather as these
could cause discoloring.
Use of a nylon brush or syntheticfiber cloth, etc. may scratch the
fine grained surface of the leather.
Mildew may develop on soiled
leather upholstery. Be especially
careful to avoid oil spots. Try tokeep your upholstery alwaysclean.
Long exposure to direct sunlight
may cause the leather surface toharden and shrink. Keep your ve-
hicle in a shaded area, especiallyin the summer.
NOTICE

141

The interior of your vehicle is apt
to heat up on hot summer days,
so avoid placing on the uphol-
stery items made of vinyl or plas-tic or containing wax as these
tend to stick to leather when
warm.
Improper cleaning of the leatherupholstery could result in discol-
oration or staining.
If you have any questions about the
cleaning of your Toyota, your local To-
yota dealer will be pleased to answer them.

142

Part 6Maintenance requirements
143
VEHICLE
MAINTENANCE AND CARE
Maintenance requirements
General maintenance
Does your vehicle need repairing?
For scheduled maintenance infor-
mation, please refer to the sep-
arate Owner's Manual Sup-
plement/Maintenance Scheduleº.
Your Toyota vehicle has been designed
for fewer maintenance requirements with longer service intervals to save both your
time and money. However, each regular
maintenance, as well as day-to-day
care, is more important than ever before
to ensure smooth, trouble-free, safe, and
economical drivings.
It is the owner's responsibility to make sure
the specified maintenance, including
general maintenance service, is per-
formed. Note that both the new vehicle
and emission control system warranties
specify that proper maintenance and care
must be performed. See Owner's Guide,
Owner 's Manual Supplement or W arranty
Booklet for complete warranty informa-tion.
General maintenance General maintenance items are those
day-to-day care practices that are impor-
tant to your vehicle for proper operation.
It is the owner's responsibility to ensure
that the general maintenance items are
performed regularly.
These checks or inspections can be done
either by yourself or a qualified technician,
or if you prefer, your Toyota dealer will be
pleased to do them at a nominal cost. Scheduled maintenance
The scheduled maintenance items listed
in the Owner's Manual Supplement/
Maintenance Scheduleº are those re-
quired to be serviced at regular intervals. For details of your maintenance Sched-
ule, read the separate ºOwner's Manual
Supplement/Maintenance Scheduleº.
It is recommended that any replace-
ment parts used for maintenance or
for the repair of the emission control
system be Toyota supplied.
The owner may elect to use non-T
oyota
supplied parts for replacement pur-
poses without invalidating the emis-
sion control system warranty. How-
ever, use of replacement parts which
are not of equivalent quality may impair
the effectiveness of the emission con-
trol systems.
You may also elect to have mainte-
nance, replacement, or repair of the
emission control devices and system
performed by any automotive repair
establishment or individual without
invalidating this warranty. See Own-
er's Guide, Owner's Manual Supple-
ment or Warranty Booklet for complete
warranty information. Where to go for service?
Toyota technicians are well-trained spe- cialists and are kept up to date with the lat-
est service information through technical
bulletins, service tips, and in-dealership
training programs. They learn to work on
Toyotas before they work on your vehicle,
rather than while they are working on it.

144You can be confident that your Toyota
dealer's service department performs the
best
job to meet the maintenance require-
ments on your vehicleÐreliably and eco-
nomically.
Your copy of the repair order is proof that
all required maintenance has been per-
formed for warranty coverage. And if any
problems should arise with your vehicle
while under warranty, your Toyota dealer
will promptly take care of it. Again, be sure
to keep a copy of the repair order for any
service performed on your Toyota.
What about do-it-yourself mainte- nance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented in Part 7.
If you are a skilled do-it-yourself me-
chanic, the Toyota service manuals are recommended. Please be aware that do-
it-yourself maintenance can affect your
warranty coverage. See Owner's Guide,
Owner 's Manual Supplement or W arranty
Booklet for the details. Listed
below are the general maintenance
items that should be performed as fre- quently as specified. In addition to check-
ing the items listed, if you notice any un-
usual noise, smell or vibration, you should
investigate the cause or take your vehicle
to your T oyota dealer or a qualified service
shop immediately. It is recommended thatany problem you notice be brought to theattention of your dealer or the qualified service shop for their advice.
Make these checks only where
adequate ventilation can be ob-
tained if you run the engine. CAUTION
!
OUTSIDE THE VEHICLE
Items listed below should be per-
formed from time to time, unless other-
wise specified.
Tire pressure Check the pressure with a gauge every
two weeks, or at least once a month. See Chapter 7-2 for additional information. Tire surface and wheel nuts Check the tires carefully
for cuts, damage
or excessive wear. See Chapter 7-2 for
additional information. When checking the tires, make sure no nuts are missing,
and check the nuts for looseness. T ighten
them if necessary. Fluid leaks Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has been
parked for a while. If you smell fuel fumes
or notice any leak, have the cause found
and corrected immediately. Doors and engine hood
Check that all doors including back door
operate smoothly and all latches lock se-
curely. M ake sure the engine hood secon-
dary latch secures the hood from opening
when the primary latch is released. INSIDE THE VEHICLE Items listed below should be checked
regularly, e.g. while performing period-
ic services, cleaning the vehicle, etc. Lights Make sure the headlights, stop lights, tail lights, turn signal lights, and other lights are all working. Check headlight aim.
General maintenance

145
Service reminder indicators and
warn-
ing buzzers Check that all service reminder indicators
and warning buzzers function properly. Steering wheel
Be alert for changes in steering condition, such as hard steering or strange noise. Seats Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op- erate smoothly and that all latches lock
securely in any position. For folding-down
rear seatback, check that the latches lock
securely. Make sure the front headrestsare firmly secured. Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam- aged. Accelerator pedal Check the pedal for smooth operation and
uneven pedal effort or catching. Clutch pedal Check the pedal for smooth operation. Brake pedal Check
the pedal for smooth operation and
that the pedal has the proper clearance. Check the brake booster function. Brakes
At a safe place, check that the brakes do not pull to one side when applied. Parking brake Check that the lever has the proper travel and that, on a safe incline, your vehicle is
held securely with only the parking brake applied.
Automatic transmission Parkº mech-
anismCheck the lock release button of the selec-
tor lever for proper and smooth operation.
On a safe incline, check that your vehicle is held securely with the selector lever inPº position and all brakes released.
IN THE ENGINE COMPARTMENT Items listed below should be checked
from time to time , e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See Chapter 7-3 for additional infor-
mation.
Engine coolant level Make sure the coolant level is between
the FULLº and LOWº lines on the see-
through reservoir when the engine is cold.
See Chapter 7-2 for additional informa-tion. Battery electrolyte level Make sure the electrolyte level of all bat-
tery cells is correct. Add only distilled wa-
ter when replenishing. See Chapter 7-3
for additional information. Brake fluid level
Make sure the brake fluid level is correct. See Chapter 7-2 for additional informa- tion.
Engine oil level
Check the l
evel on the dipstick with the en-
gine turned off and the vehicle parked on
a level spot. See Chapter 7-2 for addition-
al information. Power steering fluid level Check the level on the dipstick. The level
should be in the HOTº or COLDº range
depending on the fluid temperature. See Chapter 7-2 for additional information. Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have the cause located and corrected immedi-
ately. (See engine exhaust cautions in
Part 2.)

146Be on the alert for changes in perfor-
mance, sounds, and visual tip-offs
that in-
dicate service is needed. Some important
clues are as follows: Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monox-
ide leak. Drive with the windows open
and have the exhaust system checked
immediately.)
Flat-looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspensionmovement
Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking
Engine coolant temperature continual-
ly higher than normal If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.

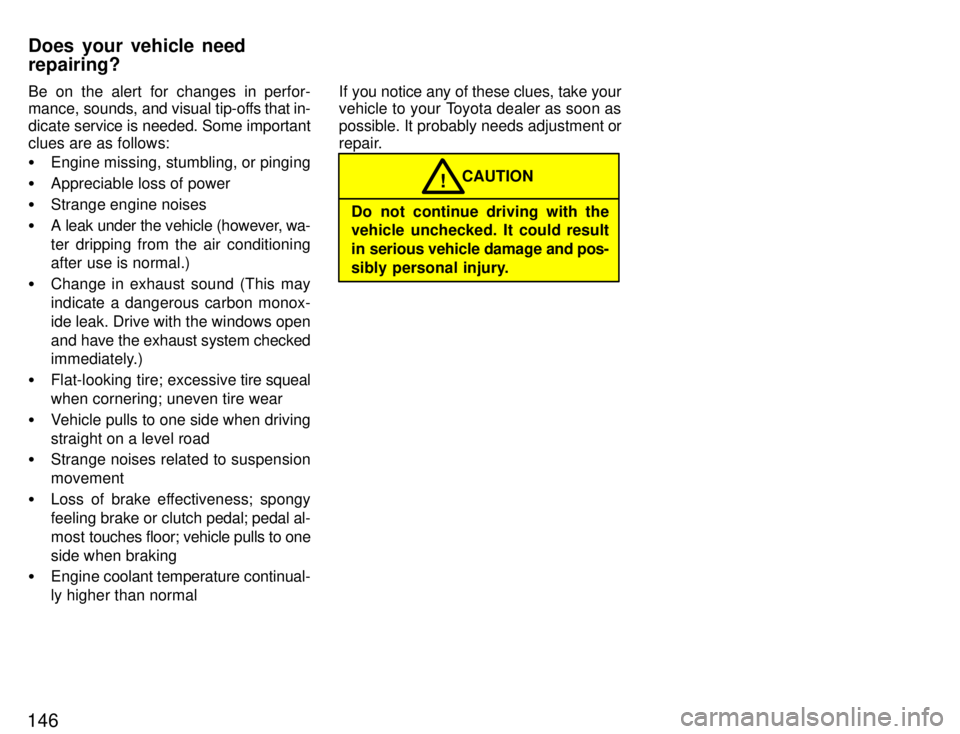

Do not continue driving with the
vehicle unchecked. It could result
in serious vehicle damage and
pos-
sibly personal injury. CAUTION
!
Does your vehicle need repairing?

Part 7147
DO-IT-YOURSELF MAINTENANCEÐ
Chapter 7-1 Introduction
Engine compartment overview
Fuse locations
Do-it-yourself service precautions
Parts and tools

148Engine compartment overview (2JZ-GE engine)
