TOYOTA SUPRA 2020 Owners Manual (in English)

3216-1. MOBILITY
Supra Owner's Manual
6
MOBILITY
on the windows, to minimize
loss of visibility due to smearing
and to reduce wiper noises and
wiper blade wear.
Regular care contributes to driv-
ing safety and value retention.
Environmental influences in
areas with elevated air pollution
or natural contaminants, such as
tree resin or pollen can affect
the vehicle's paintwork. Tailor
the frequency and extent of your
vehicle care to these influences.
Aggressive substances such as
spilled fuel, oil, grease or bird
droppings, must be removed
immediately to prevent the finish
from being altered or discolored.
Vehicle care
Vehicle care products
Safety information
WA R N I N G
Cleansers can contain sub-
stances that are dangerous and
harmful to your he alth. There is a
risk of injury. When cleaning the
interior, open the doors or win-
dows. Only use products intended
for cleaning vehicles. Follow the
instructions on the container.
Vehicle paint
General information
Safety information
WA R N I N G
Improperly performed work on the
vehicle paint can lead to a failure
or malfunction o f the radar sen-
sors and thereby result in a safety
risk. There is a risk of accidents or
risk of damage to property. Have
paintwork or paintwork repairs on
bumpers of vehicles with radar
sensors performed by your Toyota
dealer only.
NOTICE
■To prevent paint deteriora-
tion and corrosion on the
body and components (alumi-
num wheels etc.)
Observe the following precau-
tions:
●Wash the vehicle immediately in
the following cases:
• After driving nea r the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on
the paint surface
• After driving in an area contami- nated with soot, oily smoke,
mine dust, iron powder or chem-
ical substances
• If the vehicle becomes heavily soiled with d ust or mud
• If liquids such as benzene and gasoline are spilled on the paint
surface
●If the paint is chipped or
scratched, have it repaired
immediately.

3226-1. MOBILITY
Supra Owner's Manual
Only use cleaning and care
products suitable for vehicles
with matte finish.
Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.
 Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.
 For hard-to-remove marks,
use a neutral detergent and
rinse thoroughly with water.
 Wipe away any water.
 Never use wax or abrasive
compounds.
Remove dust from the leather
regularly, using a cloth or vac-
uum cleaner.
Otherwise, particles of dust and
road grime chafe in pores and
folds, and lead to increased
wear and premature degrada-
tion of the leather surface.
To guard against discoloration,
NOTICE
●To prevent the wheels from cor-
roding, remove any dirt and
store in a place with low humid-
ity when storing the wheels.
Matte finish
NOTICE
■To prevent paint deteriora-
tion and corrosion on the
body and components (alumi-
num wheels etc.)
Observe the following precau-
tions:
●Wash the vehicle immediately in
the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tre e sap is present
on the paint surface
• If dead insects, insect droppings or bird droppings are present on
the paint surface
• After driving in an area contami- nated with soot, oily smoke,
mine dust, iron powder or chem-
ical substances
• If the vehicle becomes heavily soiled with d ust or mud
• If liquids such as benzene and gasoline are spilled on the paint
surface
●If the paint is chipped or
scratched, have it repaired
immediately.
●To prevent the wheels from cor-
roding, remove any dirt and
store in a place with low humid-
ity when storing the wheels.
●If anything is spilled on a
painted surface, wipe it off as
soon as possible. If spilled
washer fluid or alkaline fluids
are left as is, the paint in the
affected area may deteriorate,
causing blemishing.
●Do not wax or apply coating to
the vehicle. Doing so may
cause a change in the body sur-
face's texture or irregularities in
the paint.
Leather care

3236-1. MOBILITY
Supra Owner's Manual
6
MOBILITY
such as from clothing, clean
leather and provide leather care
roughly every two months.
Clean light-colored leather more
frequently because soiling on
such surfaces is substantially
more visible.
Use leather care products; oth-
erwise, dirt and grease will grad-
ually break down the protective
layer of the leather surface.
Vacuum the upholstery regularly
with a vacuum cleaner.
If upholstery is very dirty, for
instance with beverage stains,
use a soft sponge or microfiber
cloth with a suitable interior
cleaner.
Clean the upholstery down to
the seams using large sweeping
motions. Avoid rubbing the
material vigorously. When cleaning the vehicle, use
only neutral wheel cleaners hav-
ing a pH value from 5 to 9. Do
not use abrasive cleaning
agents or steam jets above 140
°F/60 °C. Follow the manufac-
turer's instructions.
Aggressive, acidic or alkaline
cleaning agents can destroy the
protective layer of adjacent
components, such as the brake
disc.
After cleaning, apply the brakes
briefly to dry them. The heat
generated during braking dries
brake discs and brake pads and
protects them against corrosion.
Carefully clean components
such as the radiator grille or
door handles with plenty of
water, possibly with shampoo
added, particularly when they
have been exposed to road salt.
Environmental i
nfluences can
cause surface soiling of rubber
parts and a loss of gloss. Use
only water and suitable cleaning
agents for cleaning.
Upholstery material care
General information
Safety information
NOTICE
Open Velcro® fas teners on arti-
cles of clothing can damage the
seat covers. There is a risk of
damage to propert y. Ensure that
any Velcro® fasteners are closed.
Caring for special compo-
nents
Light-alloy wheels
Chrome surfaces
Rubber components

3246-1. MOBILITY
Supra Owner's Manual
Treat especially worn rubber
parts with rubber care agents at
regular intervals. When cleaning
rubber seals, do not use any sili-
con-containing vehicle care
products in order to avoid dam-
age or noises.
Clean with a microfiber cloth.
Dampen cloth lightly with water.
Do not soak the roofliner.
Dirty belt straps impede the reel-
ing action and thus have a neg-
ative impact on safety.
Use only a mild soapy solution
for cleaning the installed belt
straps.
Safety belts should only be allowed to retract if they are dry.
The floor mats can be removed
from the car's interior for clean-
ing.
If the floor carpets are very dirty,
clean with a microfiber cloth and
water or a textile cleaner. To
prevent matting of the carpet,
rub back and forth in the direc-
tion of travel only.
To clean sensors and camera
lenses, use a cloth moistened
with a small amount of glass
detergent.
Plastic components
NOTICE
Cleansers that contain alcohol or
solvents, such as lacquer thin-
ners, heavy-duty grease remov-
ers, fuel, or such, can damage
plastic parts. There is a risk of
damage to property. Clean with a
microfiber cloth. Dampen cloth
lightly with water.
Safety belts
WA R N I N G
Chemical cleansers can destroy
the safety belt webbing. Missing
protective effect of the safety
belts. There is a ri
sk of injuries or
danger to life. Use only a mild
soapy solution for cleaning the
safety belts.
Carpets and floor mats
WA R N I N G
Objects in the driver's floor area
can limit the pedal distance or
block a depressed pedal. There is
a risk of an accident. Stow objects
in the vehicle su ch that they are
secured and cannot enter into the
driver's floor are a. Use floor mats
that are suitable for the vehicle
and can be safely attached to the
floor. Do not use loose floor mats
and do not layer several floor
mats. Make sure that there is suf-
ficient clearance for the pedals.
Ensure that the floor mats are
securely fastened again after they
were removed, for instance for
cleaning.
Sensor/camera lenses

3256-1. MOBILITY
Supra Owner's Manual
6
MOBILITY
Clean with a clean, antistatic
microfiber cloth.
Clean the protective glass of the
Head-up Display, refer to page
150, using a microfiber cloth and
commercially available
dish-washing soap.
When the vehicle is shut down
for longer than three months,
special measures must be
taken. Further information is
available from your Toyota
dealer. Displays, screens, and pro-
tective glass of the Head-up
Display
NOTICE
Chemical cleanse
rs, moisture or
fluids of any kind can damage the
surface of displays and screens.
There is a risk of damage to prop-
erty. Clean with a clean, antistatic
microfiber cloth.
NOTICE
The surface of displays can be
damaged with improper cleaning.
There is a risk of damage to prop-
erty. Avoid pressure that is too
high and do not use any scratch-
ing materials.
Long-term vehicle storage

3266-1. MOBILITY
Supra Owner's Manual

327
Supra Owner's Manual
7
7
REFERENCE
REFERENCE
.7-1. REFERENCETechnical data ............. 328
Certification ................. 331

3287-1. REFERENCE
Supra Owner's Manual
7-1.REFERENCE
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and regulations must be observed.
The technical data and specifi-
cations in this Owner's Manual
are used as guidance values.
The vehicle-specific data can
deviate from this, for instance
due to the selected special
equipment, country version or
country-specific measurement
method. Detailed values can be
found in the approval docu-
ments, on labels on the vehicle
or can be obtained from your
Toyota dealer.
The dimensions can vary depending on the model version, equip-
ment or country-specific measurement method.
The specified heights do not take into account attached parts, for
instance a roof antenna, roof racks or spoiler. The heights can devi-
ate, for instance due to the selected special equipment, tires, load
and chassis version.
*1: SZ-R models
*2:RZ models
Technical data
Vehicle features and
optionsGeneral information
Dimensions
Width with mirrorsin/mm79.8 / 2026
Width without mirrorsin/mm73.0 / 1854
Heightin/mm51.1 / 1299*1
50.9 / 1294*2
Lengthin/mm172.5 / 4381
Wheelbasein/mm97.2 / 2470
Smallest turning radius diam.ft/m36.1 / 11

3297-1. REFERENCE
Supra Owner's Manual
7
REFERENCE
Observe further information on fuel quality, refer to page 291.
See the further information on engine oil grade, see page 295.

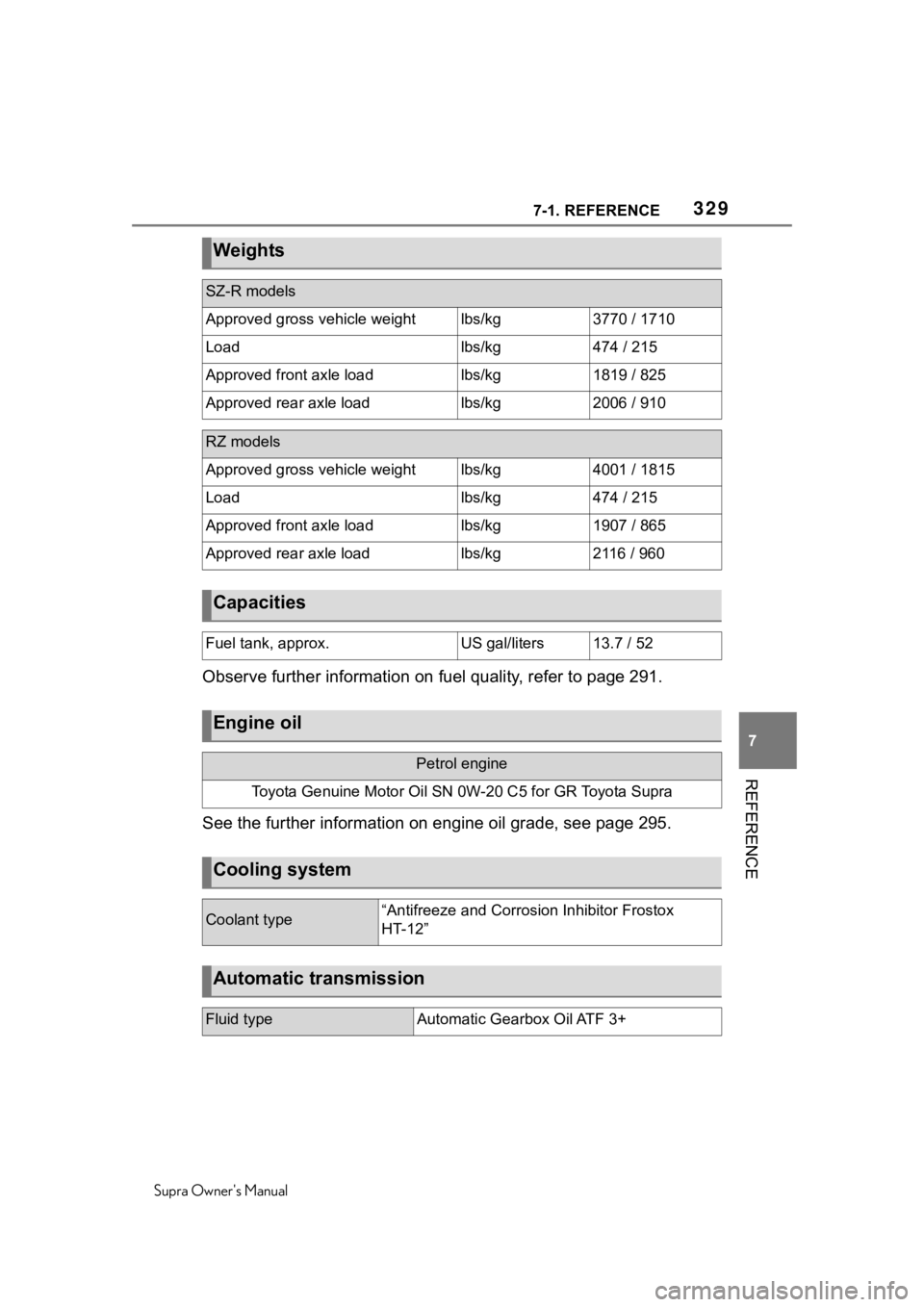

Weights
SZ-R models
Approved gross vehicle weightlbs/kg3770 / 1710
Loadlbs/kg474 / 215
Approved front axle loadlbs/kg1819 / 825
Approved rear axle loadlbs/kg2006 / 910
RZ models
Approved gross vehicle weightlbs/kg4001 / 1815
Loadlbs/kg474 / 215
Approved front axle loadlbs/kg1907 / 865
Approved rear axle loadlbs/kg2116 / 960
Capacities
Fuel tank, approx.US gal/liters13.7 / 52
Engine oil
Petrol engine
Toyota Genuine Motor Oil SN 0 W-20 C5 for GR Toyota Supra
Cooling system
Coolant type“Antifreeze and Corrosion Inhibitor Frostox
HT-12”
Automatic transmission
Fluid typeAutomatic Gearbox Oil ATF 3+

3307-1. REFERENCE
Supra Owner's Manual
Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
Differential
Oil type and viscosityHypoid Axle Oil G3
Oil type and viscosityHypoid Axle Oil G4
Brakes
Fluid typeBrake Fluid DOT 4, Low Viscosity
