TOYOTA SUPRA 2020 (in English) User Guide

1918

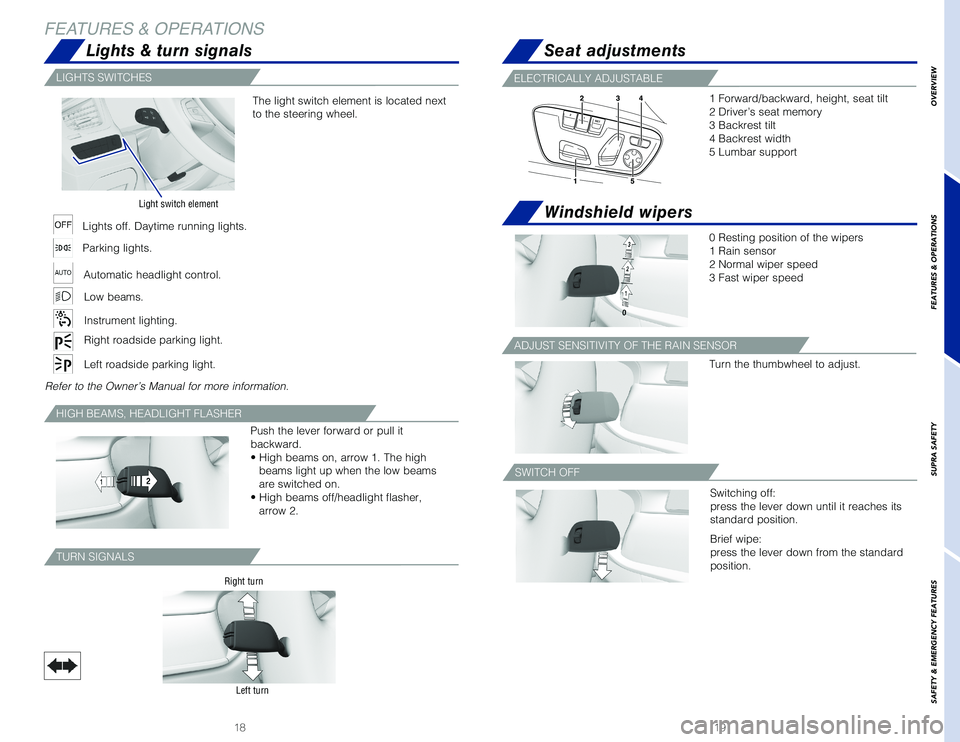

Windshield wipers
Lights & turn signals
Right turn
Light switch element
Left turn
HIGH BEAMS, HEADLIGHT FLASHER
TURN SIGNALS
1 Forward/backward, height, seat tilt
2 Driver’s seat memory
3 Backrest tilt
4 Backrest width
5 Lumbar support
0 Resting position of the wipers
1 Rain sensor
2 Normal wiper speed
3 Fast wiper speed
Switching off:
press the lever down until it reaches its
standard position.
Brief wipe:
press the lever down from the standard
position.
Turn the thumbwheel to adjust.
The light switch element is located next
to the steering wheel.
ELECTRICALLY ADJUSTABLE
SWITCH OFF
ADJUST SENSITIVITY OF THE RAIN SENSOR
Refer to the Owner’s Manual for more information.
Parking lights.
Automatic headlight control.
Low beams.
Right roadside parking light.
Left roadside parking light.
Instrument lighting.
Lights off. Daytime running lights.
Push the lever forward or pull it
backward.
• High beams on, arrow 1. The high
beams light up when the low beams
are switched on.
• High beams off/headlight flasher,
arrow 2.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Seat adjustments
FEATURES & OPERATIONS
LIGHTS SWITCHES

2120

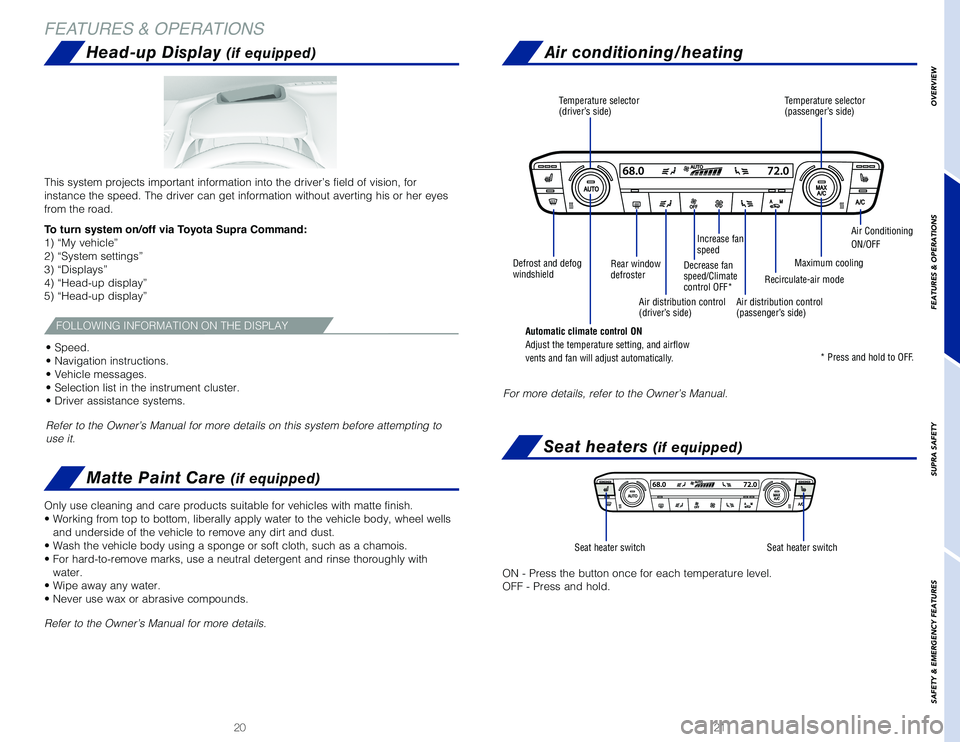

Head-up Display (if equipped)
Matte Paint Care (if equipped)
This system projects important information into the driver’s field of\
vision, for
instance the speed. The driver can get information without averting his \
or her eyes
from the road.
Only use cleaning and care products suitable for vehicles with matte fin\
ish.
• Working from top to bottom, liberally apply water to the vehicle bo\
dy, wheel wells
and underside of the vehicle to remove any dirt and dust.
• Wash the vehicle body using a sponge or soft cloth, such as a chamo\
is.
• For hard-to-remove marks, use a neutral detergent and rinse thoroug\
hly with
water.
• Wipe away any water.
• Never use wax or abrasive compounds.
Refer to the Owner’s Manual for more details.
To turn system on/off via Toyota Supra Command:
1) “My vehicle”
2) “System settings”
3) “Displays”
4) “Head-up display”
5) “Head-up display”
• Speed.
• Navigation instructions.
• Vehicle messages.
• Selection list in the instrument cluster.
• Driver assistance systems.
Refer to the Owner’s Manual for more details on this system before attempting to
use it.
Air conditioning/heating
Seat heaters (if equipped)
For more details, refer to the Owner’s Manual.
Rear window defrosterRecirculate-air mode
Decrease fan speed/Climate control OFF*
* Press and hold to OFF.
Air distribution control (passenger’s side)Air distribution control (driver’s side)
Defrost and defog windshieldMaximum cooling
Automatic climate control ON
Adjust the temperature setting, and airflow
vents and fan will adjust automatically.
Air Conditioning
ON/OFFIncrease fan speed
Temperature selector (driver’s side)Temperature selector (passenger’s side)
ON - Press the button once for each temperature level.
OFF - Press and hold.
Seat heater switchSeat heater switch
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
FEATURES & OPERATIONS
FOLLOWING INFORMATION ON THE DISPLAY

2322
FEATURES & OPERATIONS

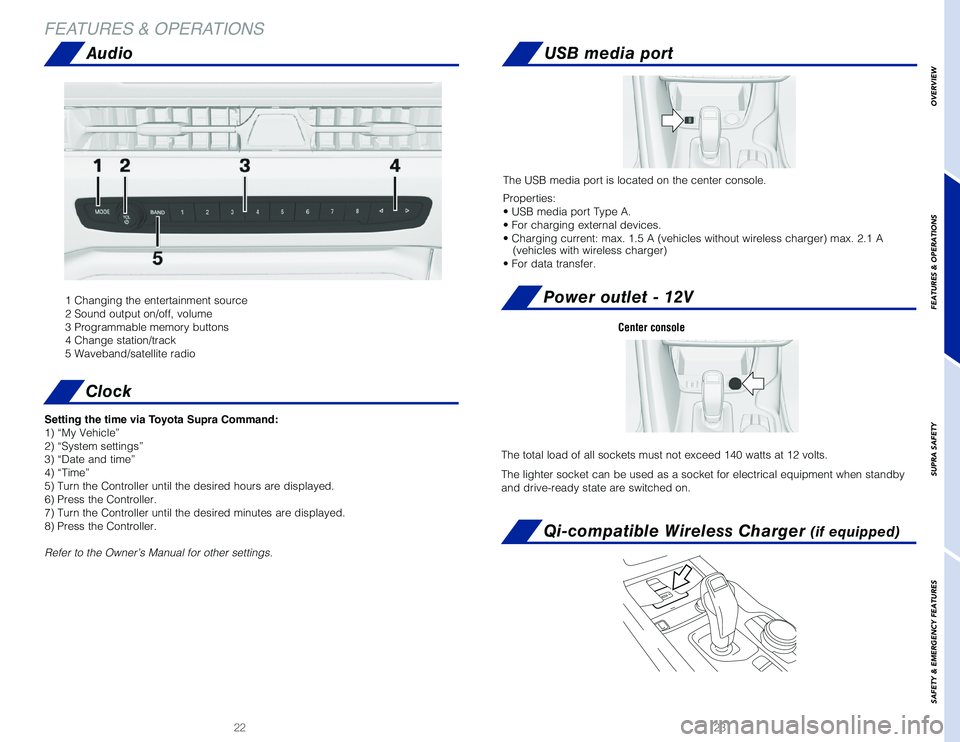

Power outlet - 12V
USB media port
The USB media port is located on the center console.
Properties:
• USB media port Type A.
• For charging external devices.
• Charging current: max. 1.5 A (vehicles without wireless charger) max. 2.1 A (vehicles with wireless charger)
• For data transfer.
The total load of all sockets must not exceed 140 watts at 12 volts.
The lighter socket can be used as a socket for electrical equipment when\
standby
and drive-ready state are switched on.
Center console
Clock
Audio
1 Changing the entertainment source
2 Sound output on/off, volume
3 Programmable memory buttons
4 Change station/track
5 Waveband/satellite radio
Setting the time via Toyota Supra Command:
1) “My Vehicle”
2) “System settings”
3) “Date and time”
4) “Time”
5) Turn the Controller until the desired hours are displayed.
6) Press the Controller.
7) Turn the Controller until the desired minutes are displayed.
8) Press the Controller.
Refer to the Owner’s Manual for other settings.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Qi-compatible Wireless Charger (if equipped)

2524
FEATURES & OPERATIONS
Park assistance button(on/off manually)

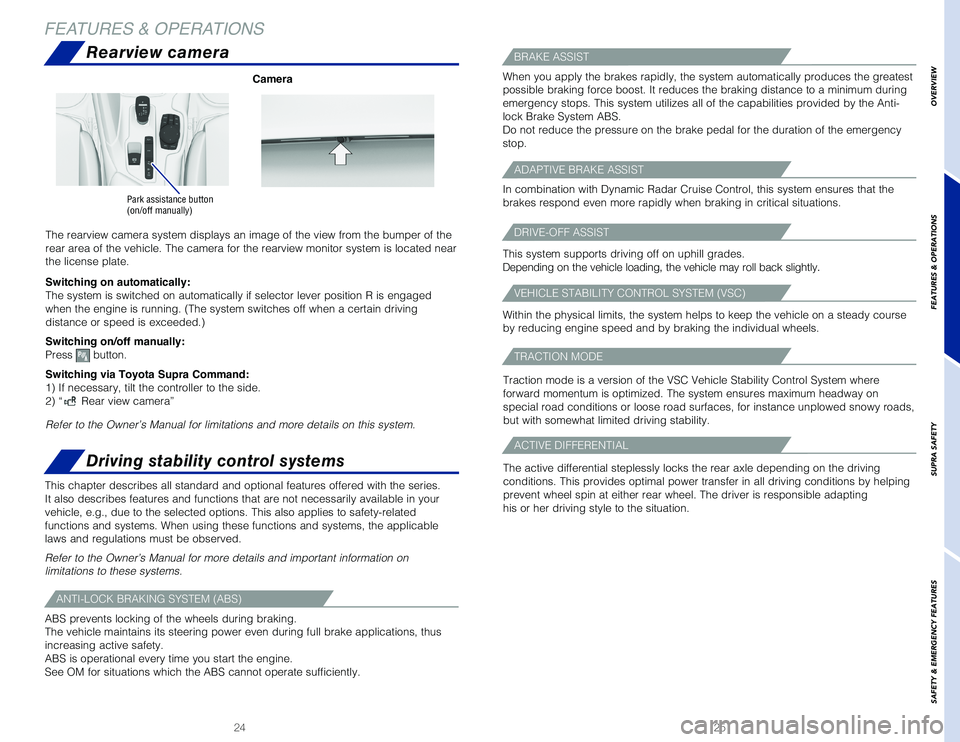

Camera
Rearview camera
The rearview camera system displays an image of the view from the bumper\
of the
rear area of the vehicle. The camera for the rearview monitor system is \
located near
the license plate.
Switching on automatically:
The system is switched on automatically if selector lever position R is \
engaged
when the engine is running. (The system switches off when a certain dri\
ving
distance or speed is exceeded.)
Switching on/off manually:
Press button.
Switching via Toyota Supra Command:
1) If necessary, tilt the controller to the side.
2) “ Rear view camera”
Refer to the Owner’s Manual for limitations and more details on this system.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Driving stability control systems
This chapter describes all standard and optional features offered with t\
he series.
It also describes features and functions that are not necessarily availa\
ble in your
vehicle, e.g., due to the selected options. This also applies to safety-\
related
functions and systems. When using these functions and systems, the appli\
cable
laws and regulations must be observed.
Refer to the Owner’s Manual for more details and important informatio\
n on
limitations to these systems.
ABS prevents locking of the wheels during braking.
The vehicle maintains its steering power even during full brake applicat\
ions, thus
increasing active safety.
ABS is operational every time you start the engine.
See OM for situations which the ABS cannot operate sufficiently.
When you apply the brakes rapidly, the system automatically produces the\
greatest
possible braking force boost. It reduces the braking distance to a minim\
um during
emergency stops. This system utilizes all of the capabilities provided b\
y the Anti-
lock Brake System ABS.
Do not reduce the pressure on the brake pedal for the duration of the em\
ergency
stop.
ANTI-LOCK BRAKING SYSTEM (ABS)
BRAKE ASSIST
ADAPTIVE BRAKE ASSIST
DRIVE-OFF ASSIST
VEHICLE STABILITY CONTROL SYSTEM (VSC)
In combination with Dynamic Radar Cruise Control, this system ensures th\
at the
brakes respond even more rapidly when braking in critical situations.
This system supports driving off on uphill grades.
Depending on the vehicle loading, the vehicle may roll back slightly.
Within the physical limits, the system helps to keep the vehicle on a st\
eady course
by reducing engine speed and by braking the individual wheels.
TRACTION MODE
ACTIVE DIFFERENTIAL
Traction mode is a version of the VSC Vehicle Stability Control System w\
here
forward momentum is optimized. The system ensures maximum headway on
special road conditions or loose road surfaces, for instance unplowed sn\
owy roads,
but with somewhat limited driving stability.
The active differential steplessly locks the rear axle depending on the \
driving
conditions. This provides optimal power transfer in all driving conditio\
ns by helping
prevent wheel spin at either rear wheel. The driver is responsible adapt\
ing
his or her driving style to the situation.

2726
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES

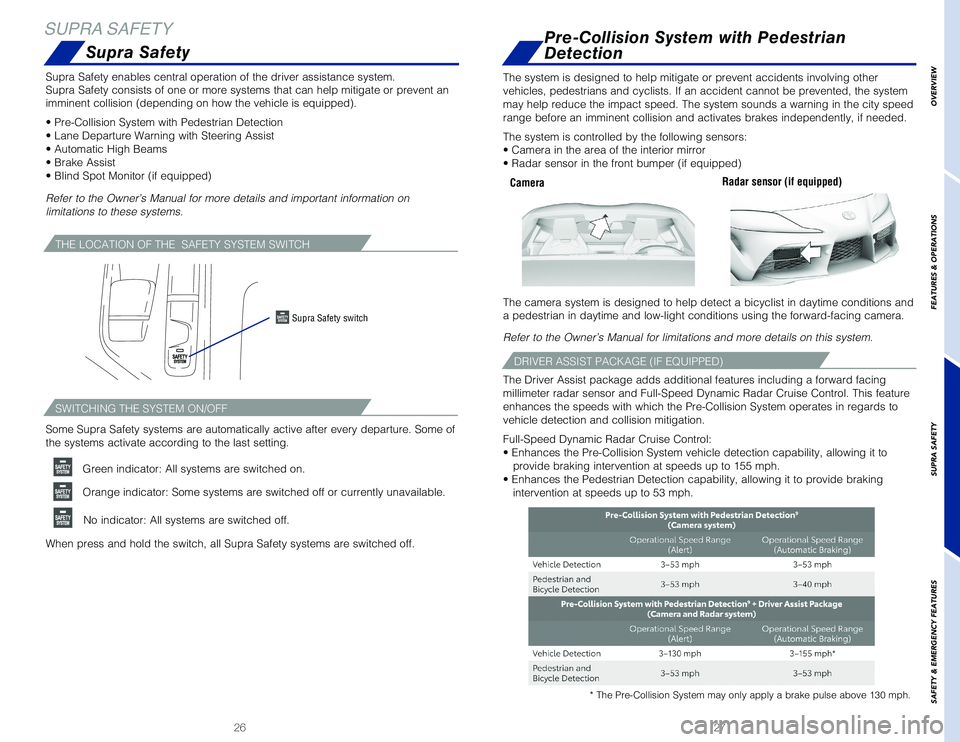

Supra Safety
Supra Safety enables central operation of the driver assistance system.
Supra Safety consists of one or more systems that can help mitigate or p\
revent an
imminent collision (depending on how the vehicle is equipped).
• Pre-Collision System with Pedestrian Detection

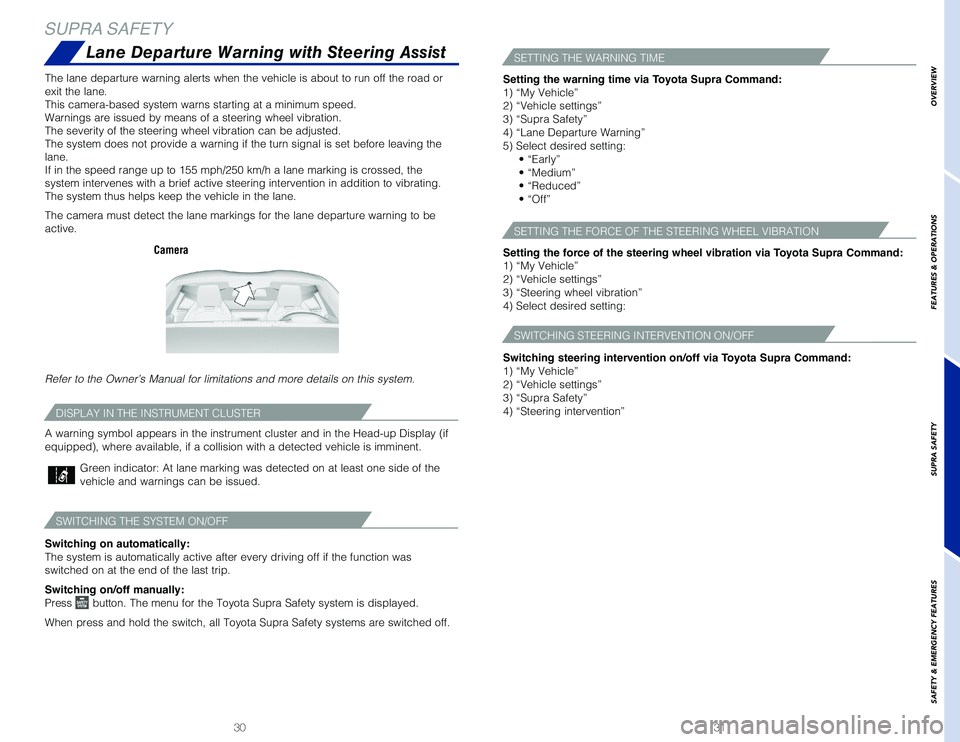

• Lane Departure Warning with Steering Assist

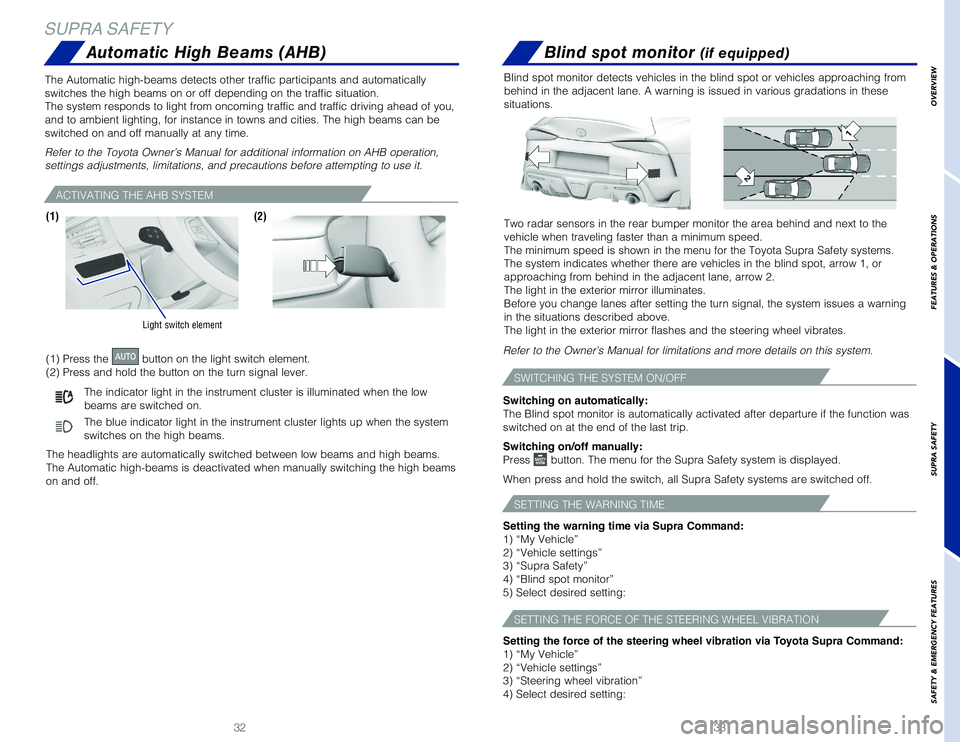

• Automatic High Beams
• Brake Assist
• Blind Spot Monitor (if equipped)
Some Supra Safety systems are automatically active after every departure\
. Some of
the systems activate according to the last setting.
When press and hold the switch, all Supra Safety systems are switched of\
f.
Refer to the Owner’s Manual for more details and important informatio\
n on
limitations to these systems.
THE LOCATION OF THE SAFETY SYSTEM SWITCH
SWITCHING THE SYSTEM ON/OFF
Supra Safety switch
Orange indicator: Some systems are switched off or currently unavailable\
.
No indicator: All systems are switched off.
Green indicator: All systems are switched on.
The system is designed to help mitigate or prevent accidents involving o\
ther
vehicles, pedestrians and cyclists. If an accident cannot be prevented, \
the system
may help reduce the impact speed. The system sounds a warning in the cit\
y speed
range before an imminent collision and activates brakes independently, i\
f needed.
The system is controlled by the following sensors:
• Camera in the area of the interior mirror
• Radar sensor in the front bumper (if equipped)
Pre-Collision System with Pedestrian
Detection
Radar sensor (if equipped)Camera
Refer to the Owner’s Manual for limitations and more details on this system.
The camera system is designed to help detect a bicyclist in daytime cond\
itions and
a pedestrian in daytime and low-light conditions using the forward-facin\
g camera.
DRIVER ASSIST PACKAGE (IF EQUIPPED)
The Driver Assist package adds additional features including a forward f\
acing
millimeter radar sensor and Full-Speed Dynamic Radar Cruise Control. Thi\
s feature
enhances the speeds with which the Pre-Collision System operates in rega\
rds to
vehicle detection and collision mitigation.
Full-Speed Dynamic Radar Cruise Control:
• Enhances the Pre-Collision System vehicle detection capability, all\
owing it to
provide braking intervention at speeds up to 155 mph.
• Enhances the Pedestrian Detection capability, allowing it to provide bra\
king
intervention at speeds up to 53 mph.
* The Pre-Collision System may only apply a brake pulse above 130 mph.
SUPRA SAFETY

2928
SUPRA SAFETY
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES

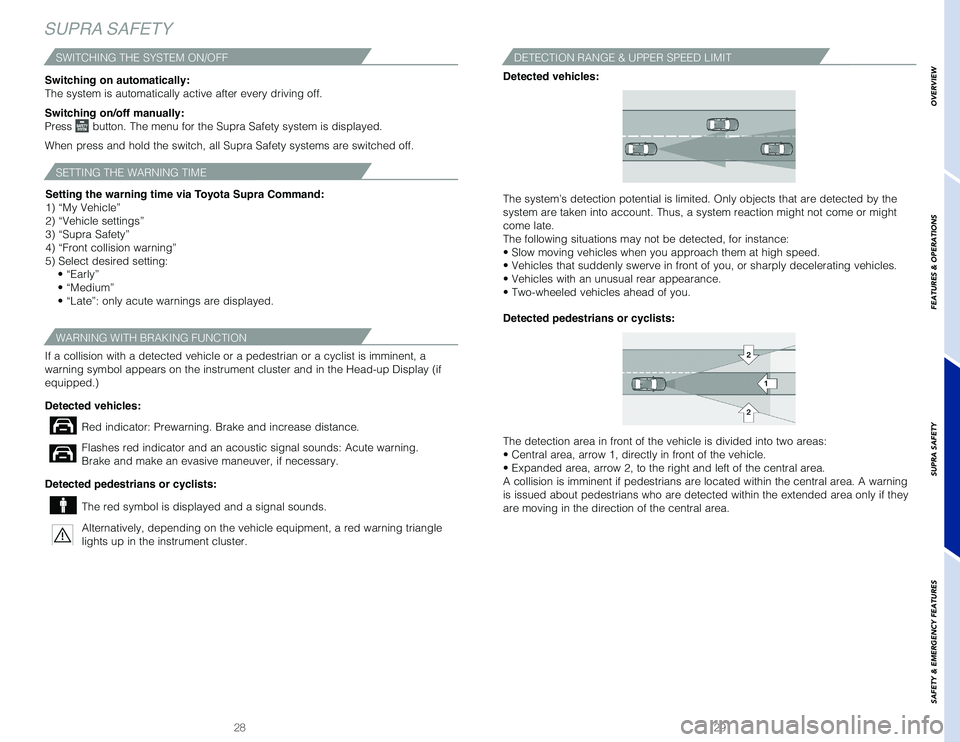

WARNING WITH BRAKING FUNCTION
The system’s detection potential is limited. Only objects that are de\
tected by the
system are taken into account. Thus, a system reaction might not come or\
might
come late.
The following situations may not be detected, for instance:
• Slow moving vehicles when you approach them at high speed.
• Vehicles that suddenly swerve in front of you, or sharply decelerat\
ing vehicles.
• Vehicles with an unusual rear appearance.
• Two-wheeled vehicles ahead of you.
Flashes red indicator and an acoustic signal sounds: Acute warning.
Brake and make an evasive maneuver, if necessary.
Red indicator: Prewarning. Brake and increase distance.
Detected vehicles:
Detected vehicles:
Detected pedestrians or cyclists:
If a collision with a detected vehicle or a pedestrian or a cyclist is i\
mminent, a
warning symbol appears on the instrument cluster and in the Head-up Disp\
lay (if
equipped.)
Alternatively, depending on the vehicle equipment, a red warning triangl\
e
lights up in the instrument cluster.
The red symbol is displayed and a signal sounds.
DETECTION RANGE & UPPER SPEED LIMIT
Detected pedestrians or cyclists:
The detection area in front of the vehicle is divided into two areas:
• Central area, arrow 1, directly in front of the vehicle.
• Expanded area, arrow 2, to the right and left of the central area.
A collision is imminent if pedestrians are located within the central ar\
ea. A warning
is issued about pedestrians who are detected within the extended area on\
ly if they
are moving in the direction of the central area.
SWITCHING THE SYSTEM ON/OFF
SETTING THE WARNING TIME
Switching on automatically:
The system is automatically active after every driving off.
Switching on/off manually:
Press button. The menu for the Supra Safety system is displayed.
When press and hold the switch, all Supra Safety systems are switched of\
f.
Setting the warning time via Toyota Supra Command:
1) “My Vehicle”
2) “Vehicle settings”
3) “Supra Safety”
4) “Front collision warning”
5) Select desired setting:
• “Early”
• “Medium”
• “Late”: only acute warnings are displayed.

3130
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
SUPRA SAFETY
SWITCHING THE SYSTEM ON/OFF
Switching on automatically:
The system is automatically active after every driving off if the functi\
on was
switched on at the end of the last trip.
Switching on/off manually:
Press button. The menu for the Toyota Supra Safety system is displayed.
When press and hold the switch, all Toyota Supra Safety systems are swit\
ched off.
Refer to the Owner’s Manual for limitations and more details on this system.
DISPLAY IN THE INSTRUMENT CLUSTER
A warning symbol appears in the instrument cluster and in the Head-up Di\
splay (if
equipped), where available, if a collision with a detected vehicle is imminent.
Green indicator: At lane marking was detected on at least one side of the
vehicle and warnings can be issued.
SETTING THE WARNING TIME
SETTING THE FORCE OF THE STEERING WHEEL VIBRATION
SWITCHING STEERING INTERVENTION ON/OFF
Setting the warning time via Toyota Supra Command:
1) “My Vehicle”
2) “Vehicle settings”
3) “Supra Safety”
4) “Lane Departure Warning”
5) Select desired setting:
• “Early”
• “Medium”
• “Reduced”
• “Off”
Setting the force of the steering wheel vibration via Toyota Supra Command:
1) “My Vehicle”
2) “Vehicle settings”
3) “Steering wheel vibration”
4) Select desired setting:
Switching steering intervention on/off via Toyota Supra Command:
1) “My Vehicle”
2) “Vehicle settings”
3) “Supra Safety”
4) “Steering intervention”
Lane Departure Warning with Steering Assist
The lane departure warning alerts when the vehicle is about to run off t\
he road or
exit the lane.
This camera-based system warns starting at a minimum speed.
Warnings are issued by means of a steering wheel vibration.
The severity of the steering wheel vibration can be adjusted.
The system does not provide a warning if the turn signal is set before l\
eaving the
lane.
If in the speed range up to 155 mph/250 km/h a lane marking is crossed, \
the
system intervenes with a brief active steering intervention in addition \
to vibrating.
The system thus helps keep the vehicle in the lane.
The camera must detect the lane markings for the lane departure warning \
to be
active.
Camera

3332
SUPRA SAFETY
Blind spot monitor (if equipped)
Blind spot monitor detects vehicles in the blind spot or vehicles approa\
ching from
behind in the adjacent lane. A warning is issued in various gradations i\
n these
situations.
Two radar sensors in the rear bumper monitor the area behind and next to\
the
vehicle when traveling faster than a minimum speed.
The minimum speed is shown in the menu for the Toyota Supra Safety syste\
ms.
The system indicates whether there are vehicles in the blind spot, arrow\
1, or
approaching from behind in the adjacent lane, arrow 2.
The light in the exterior mirror illuminates.
Before you change lanes after setting the turn signal, the system issues\
a warning
in the situations described above.
The light in the exterior mirror flashes and the steering wheel vibrates\
.
SWITCHING THE SYSTEM ON/OFF
Switching on automatically:
The Blind spot monitor is automatically activated after departure if the\
function was
switched on at the end of the last trip.
Switching on/off manually:
Press button. The menu for the Supra Safety system is displayed.
When press and hold the switch, all Supra Safety systems are switched of\
f.
SETTING THE WARNING TIME
Setting the warning time via Supra Command:
1) “My Vehicle”
2) “Vehicle settings”
3) “Supra Safety”
4) “Blind spot monitor”
5) Select desired setting:
SETTING THE FORCE OF THE STEERING WHEEL VIBRATION
Setting the force of the steering wheel vibration via Toyota Supra Command:
1) “My Vehicle”
2) “Vehicle settings”
3) “Steering wheel vibration”
4) Select desired setting:
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Automatic High Beams (AHB)
ACTIVATING THE AHB SYSTEM
The Automatic high-beams detects other traffic participants and automati\
cally
switches the high beams on or off depending on the traffic situation.
The system responds to light from oncoming traffic and traffic driving a\
head of you,
and to ambient lighting, for instance in towns and cities. The high beam\
s can be
switched on and off manually at any time.
Refer to the Toyota Owner’s Manual for additional information on AHB \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
(2) (1)
(1) Press the button on the light switch element.
(2) Press and hold the button on the turn signal lever.
The headlights are automatically switched between low beams and high bea\
ms.
The Automatic high-beams is deactivated when manually switching the high\
beams
on and off.
Light switch element
The indicator light in the instrument cluster is illuminated when the lo\
w
beams are switched on.
The blue indicator light in the instrument cluster lights up when the sy\
stem
switches on the high beams.
Refer to the Owner’s Manual for limitations and more details on this system.

3534
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES

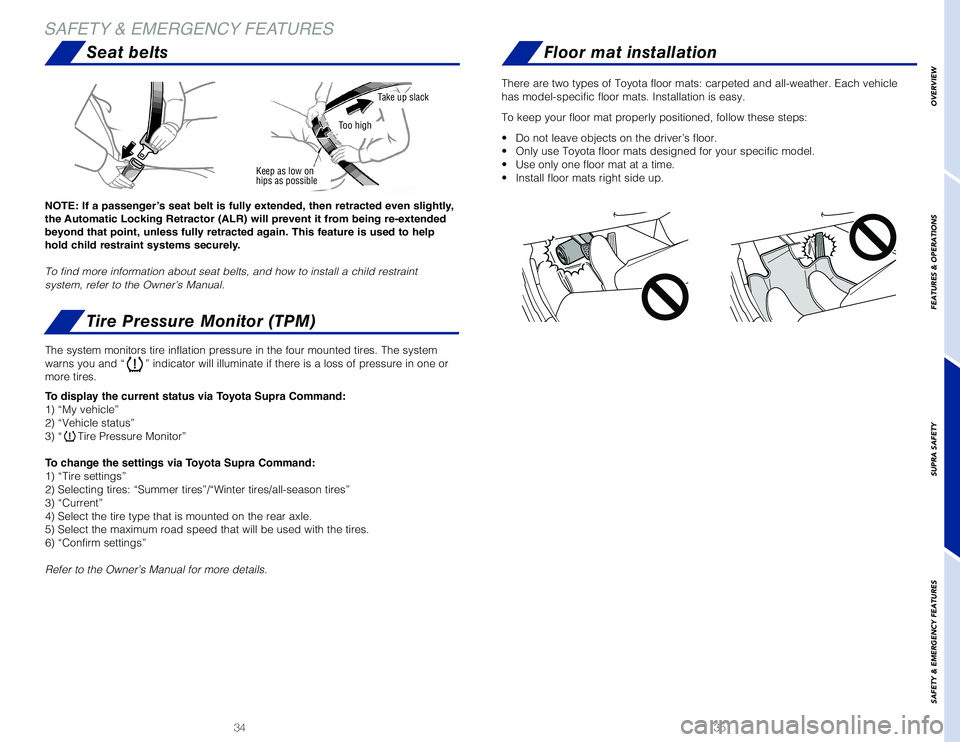

SAFETY & EMERGENCY FEATURES
Seat belts
Tire Pressure Monitor (TPM)
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic Locking Retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
Keep as low onhips as possible
Take up slack
Too high
The system monitors tire inflation pressure in the four mounted tires. T\
he system
warns you and “” indicator will illuminate if there is a loss of pressure in one or
more tires.
To display the current status via Toyota Supra Command:
1) “My vehicle”
2) “Vehicle status”
3) “Tire Pressure Monitor”
To change the settings via Toyota Supra Command:
1) “Tire settings”
2) Selecting tires: “Summer tires”/“Winter tires/all-season tires”
3) “Current”
4) Select the tire type that is mounted on the rear axle.
5) Select the maximum road speed that will be used with the tires.
6) “Confirm settings”
Refer to the Owner’s Manual for more details.
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Do not leave objects on the driver’s floor.
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time.
• Install floor mats right side up.

3736
Option 2. Through Connected Services Menu (if equipped)

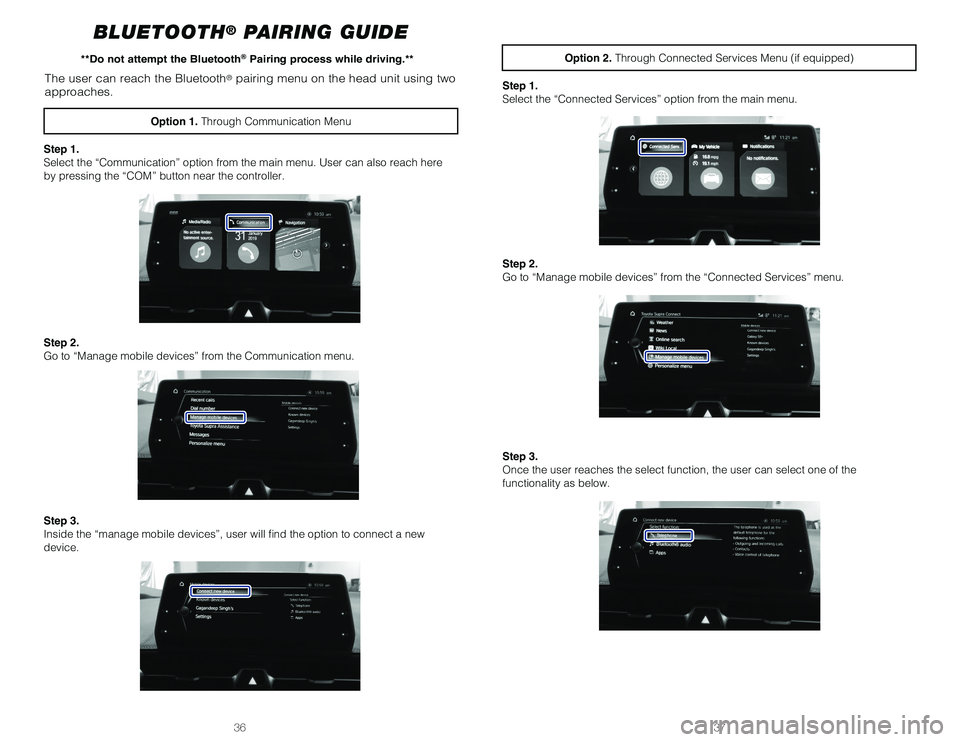

BLUETOOTH® PAIRING GUIDE
Step 1.
Select the “Communication” option from the main menu. User can also reach here
by pressing the “COM” button near the controller.
Step 2.
Go to “Manage mobile devices” from the “Connected Services” menu.
Step 1.
Select the “Connected Services” option from the main menu.
Step 2.
Go to “Manage mobile devices” from the Communication menu.
Step 3.
Once the user reaches the select function, the user can select one of th\
e
functionality as below.
Step 3.
Inside the “manage mobile devices”, user will find the option to connect a new
device.
Option 1. Through Communication Menu
The user can reach the Bluetooth® pairing menu on the head unit using two
approaches.
**Do not attempt the Bluetooth® Pairing process while driving.**
