TOYOTA SUPRA 2020 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2020, Model line: SUPRA, Model: TOYOTA SUPRA 2020Pages: 25, PDF Size: 13.28 MB
Page 1 of 25
QUICK
REFERENCE
GUIDE
2020

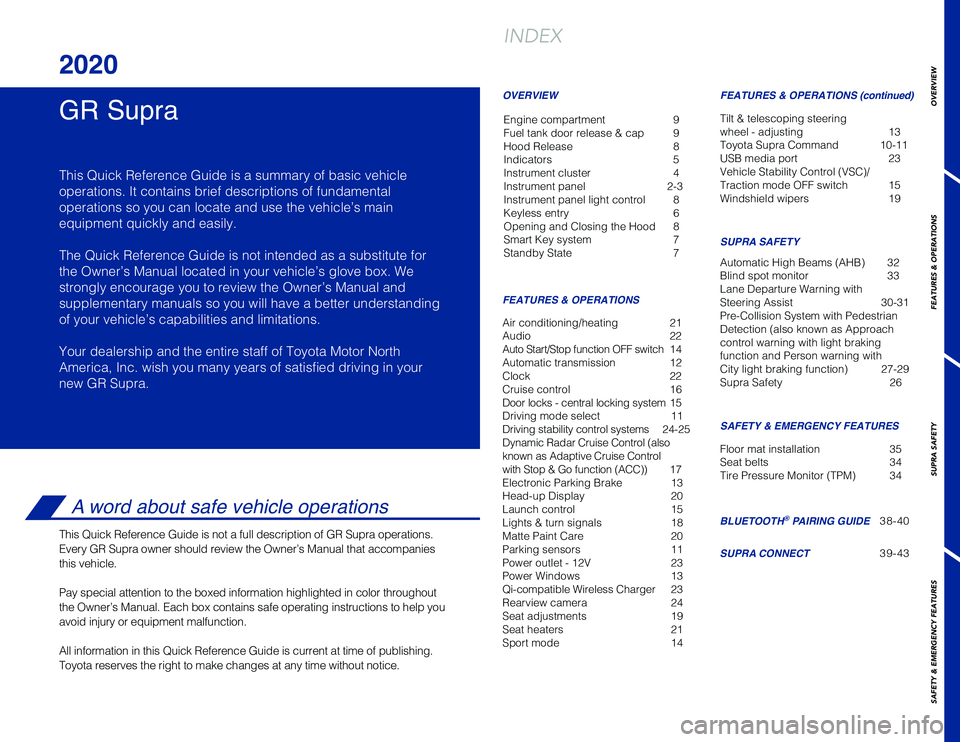

Page 2 of 25
1
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
INDEX
Engine compartment 9
Fuel tank door release & cap 9
Hood Release 8
Indicators 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry 6
Opening and Closing the Hood 8
Smart Key system 7
Standby State 7
OVERVIEW
FEATURES & OPERATIONS
FEATURES & OPERATIONS (continued)
SUPRA SAFETY
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 21
Audio 22
Auto Start/Stop function OFF switch 14
Automatic transmission 12
Clock 22
Cruise control 16
Door locks - central locking system 15
Driving mode select 11
Driving stability control systems 24-25
Dynamic Radar Cruise Control (also
known as Adaptive Cruise Control
with Stop & Go function (ACC)) 17
Electronic Parking Brake 13
Head-up Display 20
Launch control 15
Lights & turn signals 18
Matte Paint Care 20
Parking sensors 11
Power outlet - 12V 23
Power Windows 13
Qi-compatible Wireless Charger 23
Rearview camera 24
Seat adjustments 19
Seat heaters 21
Sport mode 14
Tilt & telescoping steering
wheel - adjusting 13
Toyota Supra Command 10-11
USB media port 23
Vehicle Stability Control (VSC)/
Traction mode OFF switch 15
Windshield wipers 19
Automatic High Beams (AHB) 32
Blind spot monitor 33
Lane Departure Warning with
Steering Assist 30-31
Pre-Collision System with Pedestrian
Detection (also known as Approach
control warning with light braking
function and Person warning with
City light braking function) 27-29
Supra Safety 26
Floor mat installation 35
Seat belts 34
Tire Pressure Monitor (TPM) 34
GR Supra
2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new GR Supra.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of GR Supra operations.
Every GR Supra owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at time of publishing.
Toyota reserves the right to make changes at any time without notice.
BLUETOOTH® PAIRING GUIDE 38-40
SUPRA CONNECT 39-43

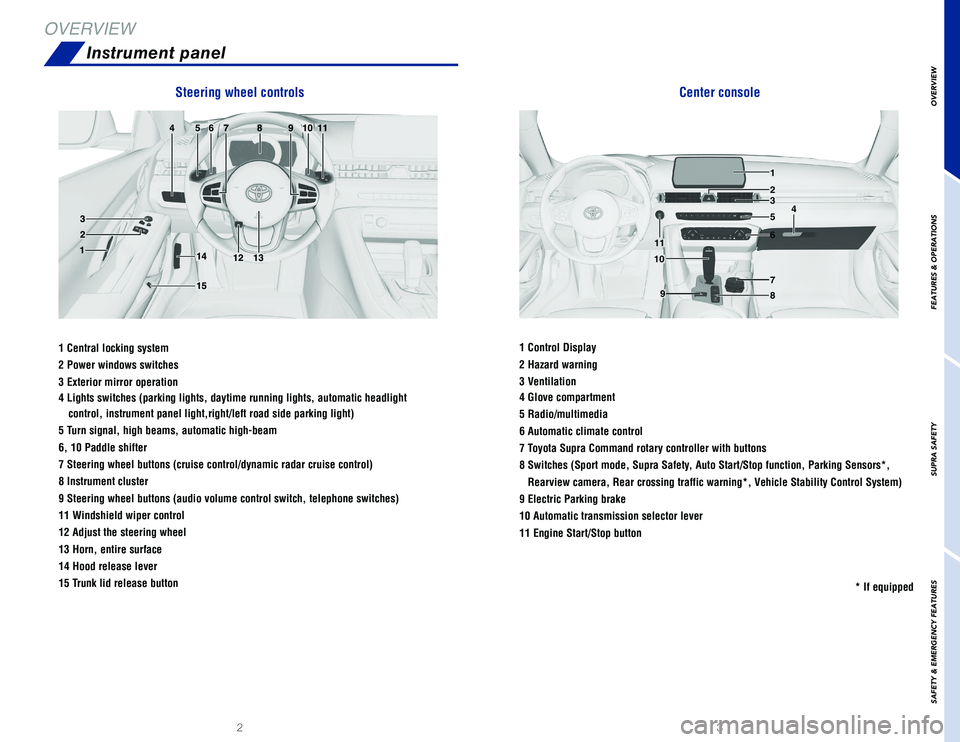

Page 3 of 25
32
Instrument panel
1
4
23
5
6
7
89
10
11
Steering wheel controlsCenter console
OVERVIEW
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
1 Central locking system
2 Power windows switches
3 Exterior mirror operation
4 Lights switches (parking lights, daytime running lights, automatic he\
adlight
control, instrument panel light,right/left road side parking light)
5 Turn signal, high beams, automatic high-beam
6, 10 Paddle shifter
7 Steering wheel buttons (cruise control/dynamic radar cruise control)\
8 Instrument cluster
9 Steering wheel buttons (audio volume control switch, telephone switch\
es)
11 Windshield wiper control
12 Adjust the steering wheel
13 Horn, entire surface
14 Hood release lever
15 Trunk lid release button
1 Control Display
2 Hazard warning
3 Ventilation
4 Glove compartment
5 Radio/multimedia
6 Automatic climate control
7 Toyota Supra Command rotary controller with buttons
8 Switches (Sport mode, Supra Safety, Auto Start/Stop function, Parking Sensors*,
Rearview camera, Rear crossing traffic warning*, Vehicle Stability Control System)
9 Electric Parking brake
10 Automatic transmission selector lever
11 Engine Start/Stop button
* If equipped

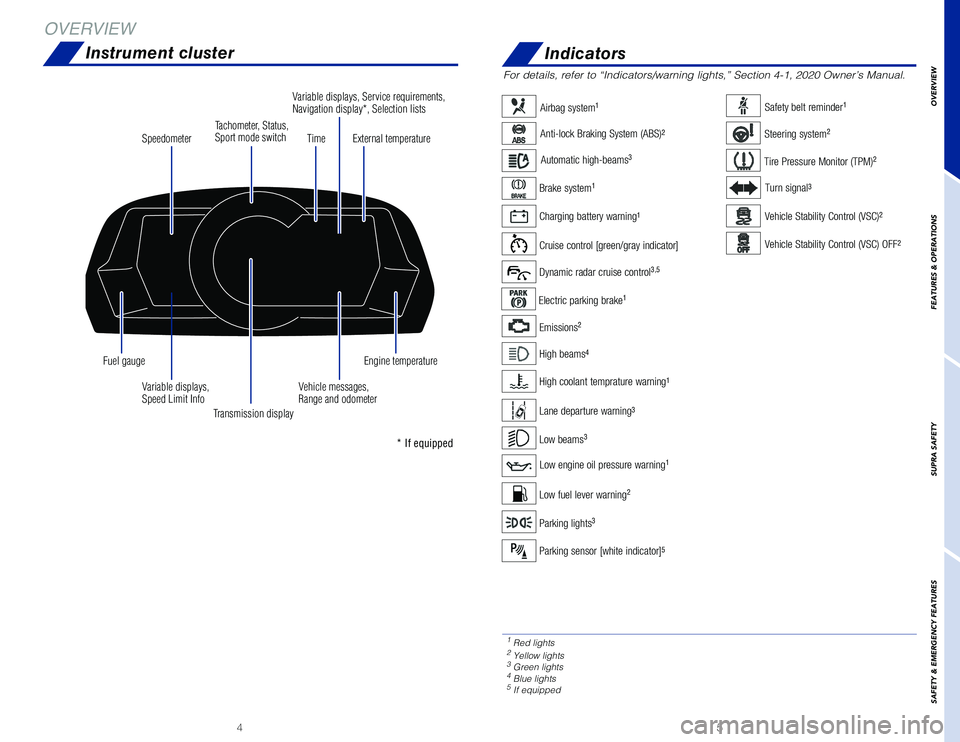

Page 4 of 25
54
Vehicle Stability Control (VSC)2
Vehicle Stability Control (VSC) OFF2
Brake system1
For details, refer to “Indicators/warning lights,” Section 4-1, 2020 Owner’s Manual.
Electric parking brake1
Airbag system1
Tire Pressure Monitor (TPM)2
Steering system2
Instrument cluster
Anti-lock Braking System (ABS)2
Safety belt reminder1
High beams4
Charging battery warning1
Automatic high-beams3
Low engine oil pressure warning1
Emissions2
Low fuel lever warning2
Parking lights3
Cruise control [green/gray indicator]
Turn signal3
High coolant temprature warning1
Lane departure warning3
Parking sensor [white indicator]5
Low beams3
Dynamic radar cruise control3,5
1 Red lights 2 Yellow lights3 Green lights4 Blue lights5 If equipped
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Indicators
Fuel gauge
Speedometer
Tachometer, Status, Sport mode switchTime
Variable displays, Service requirements, Navigation display*, Selection lists
External temperature
Engine temperature
Vehicle messages, Range and odometer
Transmission display
Variable displays, Speed Limit Info
* If equipped
OVERVIEW

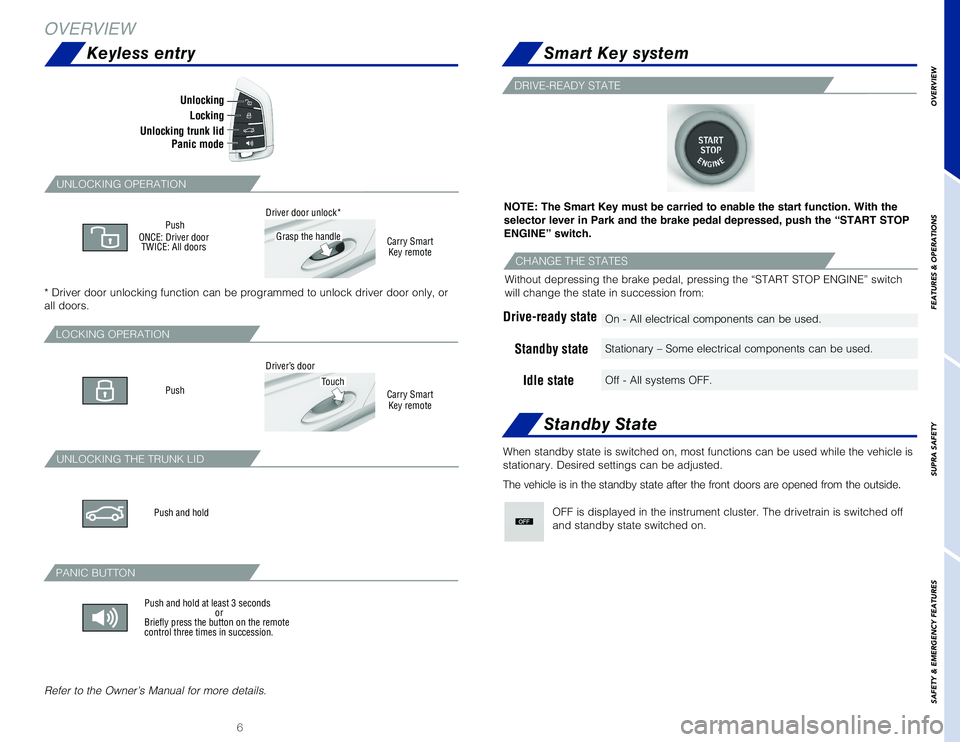

Page 5 of 25
76
Keyless entry
LOCKING OPERATION
UNLOCKING OPERATION
UNLOCKING THE TRUNK LID
PANIC BUTTON
Carry Smart Key remote
Carry Smart Key remote
Grasp the handle
Touch
Driver door unlock*
Driver’s door
PushONCE: Driver doorTWICE: All doors
Push
Push and hold
Push and hold at least 3 secondsorBriefly press the button on the remote control three times in succession.
Smart Key system
Standby State
DRIVE-READY STATE
CHANGE THE STATES
On - All electrical components can be used.
Stationary – Some electrical components can be used.
Off - All systems OFF.
NOTE: The Smart Key must be carried to enable the start function. With the
selector lever in Park and the brake pedal depressed, push the “START STOP
ENGINE” switch.
Without depressing the brake pedal, pressing the “START STOP ENGINE” switch
will change the state in succession from:* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors.
Unlocking
Locking
Unlocking trunk lid
Panic mode
Idle state
Standby state
Drive-ready state
Refer to the Owner’s Manual for more details.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
When standby state is switched on, most functions can be used while the \
vehicle is
stationary. Desired settings can be adjusted.
The vehicle is in the standby state after the front doors are opened fro\
m the outside.
OFF is displayed in the instrument cluster. The drivetrain is switched o\
ff
and standby state switched on.
OVERVIEW

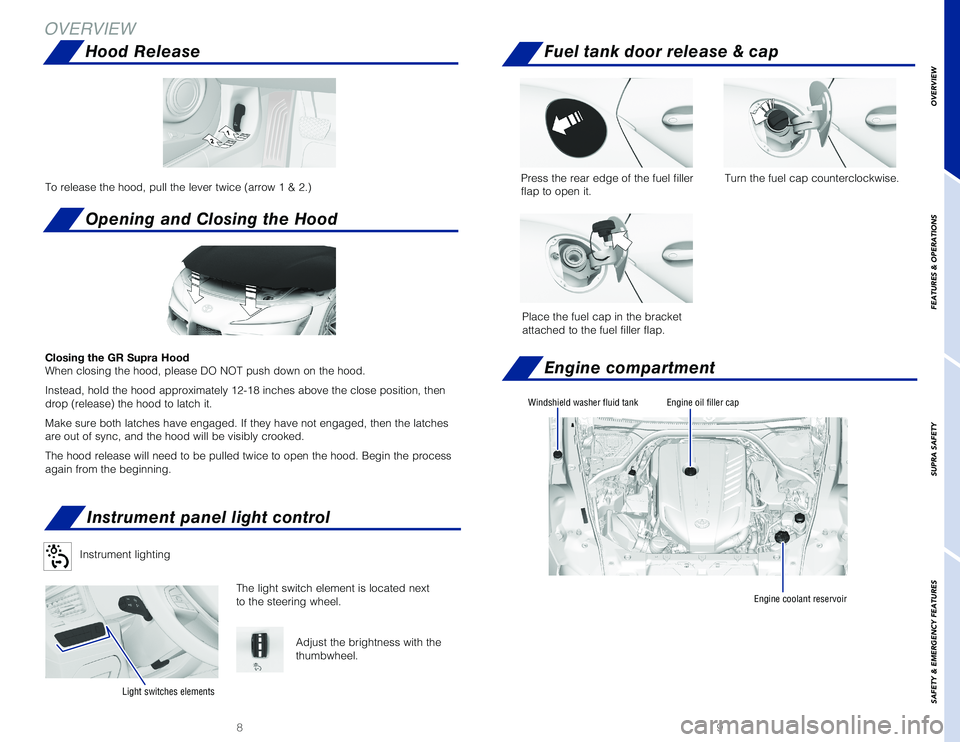

Page 6 of 25
98
Hood Release
Opening and Closing the Hood
Instrument panel light control
Fuel tank door release & cap
To release the hood, pull the lever twice (arrow 1 & 2.)
Closing the GR Supra Hood
When closing the hood, please DO NOT push down on the hood.
Instead, hold the hood approximately 12-18 inches above the close positi\
on, then
drop (release) the hood to latch it.
Make sure both latches have engaged. If they have not engaged, then the \
latches
are out of sync, and the hood will be visibly crooked.
The hood release will need to be pulled twice to open the hood. Begin th\
e process
again from the beginning.
Instrument lighting
Press the rear edge of the fuel filler
flap to open it.
Turn the fuel cap counterclockwise.
Place the fuel cap in the bracket
attached to the fuel filler flap.
Light switches elements
The light switch element is located next
to the steering wheel.
Adjust the brightness with the
thumbwheel.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine compartment
OVERVIEW
Page 7 of 25
1110

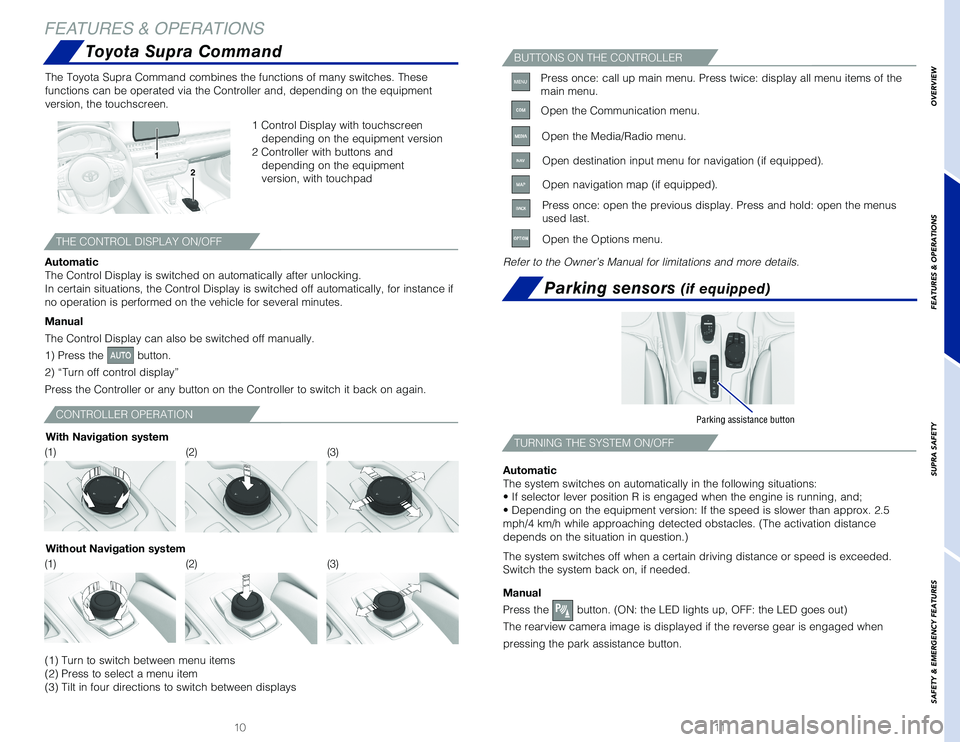

Toyota Supra Command
Parking sensors (if equipped)
The Toyota Supra Command combines the functions of many switches. These \
functions can be operated via the Controller and, depending on the equip\
ment
version, the touchscreen.
Refer to the Owner’s Manual for limitations and more details.
1
2
1 Control Display with touchscreen
depending on the equipment version
2 Controller with buttons and
depending on the equipment
version, with touchpad
(1) Turn to switch between menu items
(2) Press to select a menu item
(3) Tilt in four directions to switch between displays
Automatic
The Control Display is switched on automatically after unlocking.
In certain situations, the Control Display is switched off automatically\
, for instance if
no operation is performed on the vehicle for several minutes.
Manual
The Control Display can also be switched off manually.
1) Press the button.
2) “Turn off control display”
Press the Controller or any button on the Controller to switch it back o\
n again.
With Navigation system
Without Navigation system
(1)
(1)
(2)
(2)
(3)
(3)
CONTROLLER OPERATION
BUTTONS ON THE CONTROLLER
Open the Communication menu.
Open the Media/Radio menu.
Open destination input menu for navigation (if equipped).
Press once: open the previous display. Press and hold: open the menus
used last.
Open the Options menu.
Open navigation map (if equipped).
Press once: call up main menu. Press twice: display all menu items of th\
e
main menu.
Parking assistance button
TURNING THE SYSTEM ON/OFF
Automatic
The system switches on automatically in the following situations:
• If selector lever position R is engaged when the engine is running, and;\
• Depending on the equipment version: If the speed is slower than approx. 2.5
mph/4 km/h while approaching detected obstacles. (The activation distan\
ce
depends on the situation in question.)
The system switches off when a certain driving distance or speed is exce\
eded.
Switch the system back on, if needed.
Manual
Press the button. (ON: the LED lights up, OFF: the LED goes out)
The rearview camera image is displayed if the reverse gear is engaged wh\
en
pressing the park assistance button.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
FEATURES & OPERATIONS
THE CONTROL DISPLAY ON/OFF

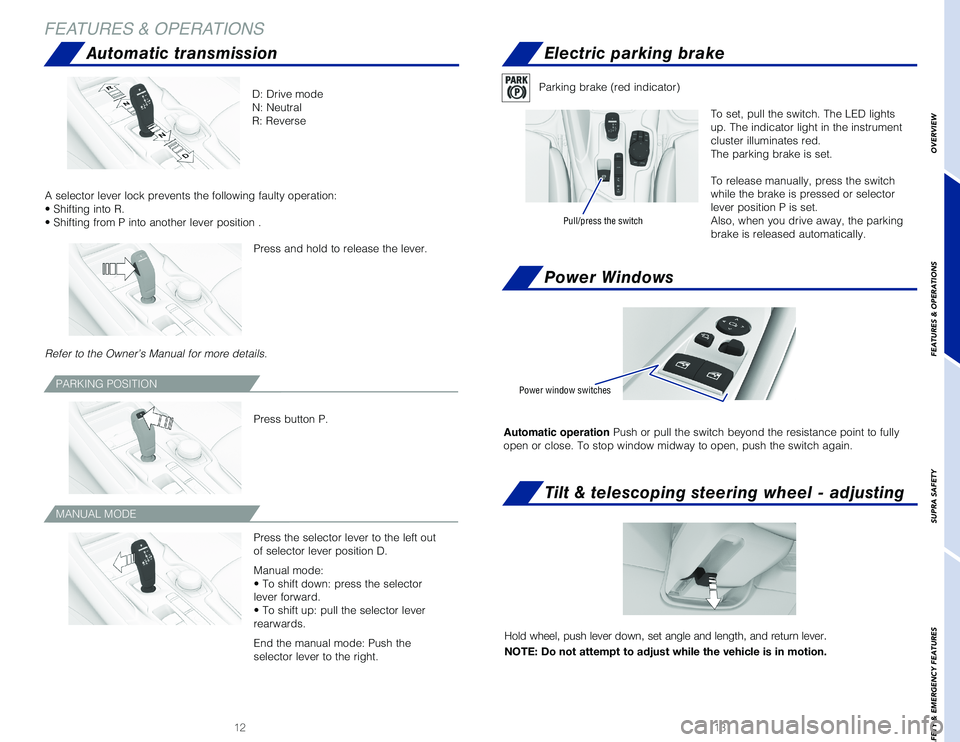

Page 8 of 25
1312
Refer to the Owner’s Manual for more details.
MANUAL MODE
Automatic transmissionElectric parking brake
D: Drive mode
N: Neutral
R: Reverse
Press button P.
Press and hold to release the lever.
Press the selector lever to the left out
of selector lever position D.
Manual mode:
• To shift down: press the selector
lever forward.
• To shift up: pull the selector lever
rearwards.
End the manual mode: Push the
selector lever to the right.
A selector lever lock prevents the following faulty operation:
• Shifting into R.
• Shifting from P into another lever position .
To set, pull the switch. The LED lights
up. The indicator light in the instrument
cluster illuminates red.
The parking brake is set.
To release manually, press the switch
while the brake is pressed or selector
lever position P is set.
Also, when you drive away, the parking
brake is released automatically.
Parking brake (red indicator)
Power Windows
Automatic operation Push or pull the switch beyond the resistance point to fully
open or close. To stop window midway to open, push the switch again.
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescoping steering wheel - adjusting
Power window switches
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
FEATURES & OPERATIONS
Pull/press the switch
PARKING POSITION
Page 9 of 25
1514

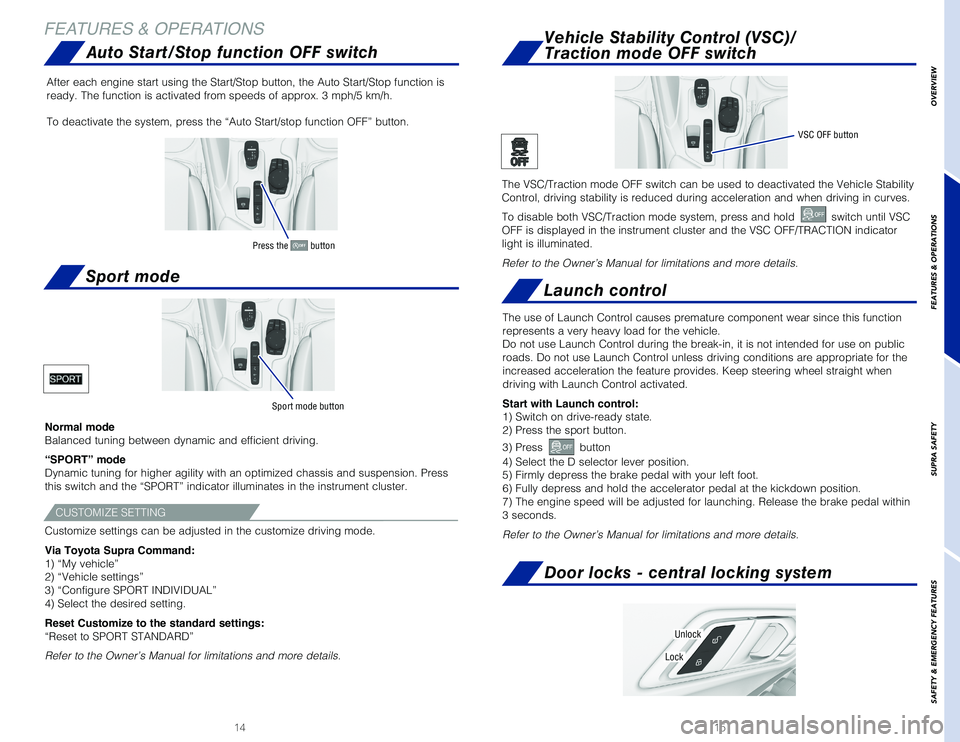

FEATURES & OPERATIONS
Normal mode
Balanced tuning between dynamic and efficient driving.
“SPORT” mode
Dynamic tuning for higher agility with an optimized chassis and suspensi\
on. Press
this switch and the “SPORT” indicator illuminates in the instrument cluster.
Sport mode
Launch control
CUSTOMIZE SETTING
Customize settings can be adjusted in the customize driving mode.
Via Toyota Supra Command:
1) “My vehicle”
2) “Vehicle settings”
3) “Configure SPORT INDIVIDUAL”
4) Select the desired setting.
Reset Customize to the standard settings:
“Reset to SPORT STANDARD”
Refer to the Owner’s Manual for limitations and more details.
Sport mode button
The VSC/Traction mode OFF switch can be used to deactivated the Vehicle \
Stability
Control, driving stability is reduced during acceleration and when drivi\
ng in curves.
To disable both VSC/Traction mode system, press and hold switch until VSC
OFF is displayed in the instrument cluster and the VSC OFF/TRACTION indi\
cator
light is illuminated.
Refer to the Owner’s Manual for limitations and more details.
The use of Launch Control causes premature component wear since this fun\
ction
represents a very heavy load for the vehicle.
Do not use Launch Control during the break-in, it is not intended for us\
e on public
roads. Do not use Launch Control unless driving conditions are appropria\
te for the
increased acceleration the feature provides. Keep steering wheel straigh\
t when
driving with Launch Control activated.
Start with Launch control:
1) Switch on drive-ready state.
2) Press the sport button.
3) Press button
4) Select the D selector lever position.
5) Firmly depress the brake pedal with your left foot.
6) Fully depress and hold the accelerator pedal at the kickdown position.
7) The engine speed will be adjusted for launching. Release the brake pedal within
3 seconds.
Refer to the Owner’s Manual for limitations and more details.
Vehicle Stability Control (VSC)/
Traction mode OFF switchAuto Start/Stop function OFF switch
After each engine start using the Start/Stop button, the Auto Start/Stop\
function is
ready. The function is activated from speeds of approx. 3 mph/5 km/h.
To deactivate the system, press the “Auto Start/stop function OFF” button.
Press the button
VSC OFF button
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Door locks - central locking system
Lock
Unlock
Page 10 of 25
1716
FEATURES & OPERATIONS

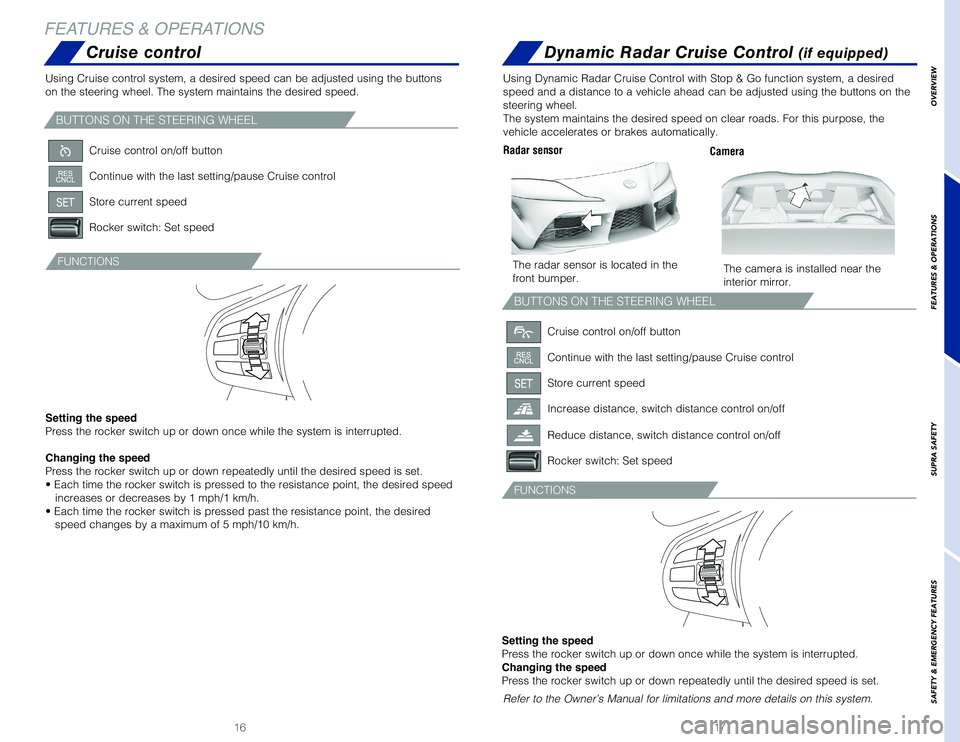

Cruise controlDynamic Radar Cruise Control (if equipped)
BUTTONS ON THE STEERING WHEEL
BUTTONS ON THE STEERING WHEEL
FUNCTIONS
Cruise control on/off button
Cruise control on/off button
Continue with the last setting/pause Cruise control
Continue with the last setting/pause Cruise control
Store current speed
Store current speed
Reduce distance, switch distance control on/off
Rocker switch: Set speed
Increase distance, switch distance control on/off
Rocker switch: Set speed
Setting the speed
Press the rocker switch up or down once while the system is interrupted.\
Changing the speed
Press the rocker switch up or down repeatedly until the desired speed is\
set.
• Each time the rocker switch is pressed to the resistance point, the\
desired speed
increases or decreases by 1 mph/1 km/h.
• Each time the rocker switch is pressed past the resistance point, t\
he desired
speed changes by a maximum of 5 mph/10 km/h.
Radar sensorCamera
The radar sensor is located in the
front bumper.
Using Cruise control system, a desired speed can be adjusted using the b\
uttons
on the steering wheel. The system maintains the desired speed.
Using Dynamic Radar Cruise Control with Stop & Go function system, a desired
speed and a distance to a vehicle ahead can be adjusted using the button\
s on the
steering wheel.
The system maintains the desired speed on clear roads. For this purpose,\
the
vehicle accelerates or brakes automatically.
The camera is installed near the
interior mirror.
FUNCTIONS
Setting the speed
Press the rocker switch up or down once while the system is interrupted.\
Changing the speed
Press the rocker switch up or down repeatedly until the desired speed is\
set.
OVERVIEW
FEATURES & OPERATIONS
SUPRA SAFETY
SAFETY
& EMERGENCY FEATURES
Refer to the Owner’s Manual for limitations and more details on this system.
