TOYOTA SUPRA 2021 Owners Manual (in English)

3316-1. MOBILITY
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
6
MOBILITY
Remove dust from the leather
regularly, using a cloth or vac-
uum cleaner.
Otherwise, particles of dust and
road grime chafe in pores and
folds, and lead to increased
wear and premature degrada-
tion of the leather surface.
To guard against discoloration,
such as from clothing, clean
leather and provide leather care
roughly every two months.
Clean light-colored leather more
frequently because soiling on
such surfaces is substantially
more visible.
Use leather care products; oth-
erwise, dirt and grease will grad-
ually break down the protective
layer of the leather surface.
Vacuum the upholstery regularly
with a vacuum cleaner.
If upholstery is very dirty, for
instance with beverage stains,
use a soft sponge or microfiber
cloth with a suitable interior
cleaner.
Clean the upholstery down to
the seams using large sweeping
motions. Avoid rubbing the
material vigorously.
NOTICE
●Wash the vehicle immediately in
the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tre e sap is present
on the paint surface
• If dead insects, insect droppings or bird droppings are present on
the paint surface
• After driving in an area contami- nated with soot, oily smoke,
mine dust, iron powder or chem-
ical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint
surface
●If the paint is chipped or
scratched, have it repaired
immediately.
●To prevent the wheels from cor-
roding, remove any dirt and
store in a place with low humid-
ity when storing the wheels.
For the matte finish, pay attention
to the following as well:
●If anything is spilled on a
painted surface, wipe it off as
soon as possible. If spilled
washer fluid or alkaline fluids
are left as is, the paint in the
affected area may deteriorate,
causing blemishing.
●Do not wax or apply coating to
the vehicle. Doing so may
cause a change in the body sur-
face's texture or irregularities in
the paint.
Leather care
Upholstery material care
General information

3326-1. MOBILITY
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
When cleaning the vehicle, use
only neutral wheel cleaners hav-
ing a pH value from 5 to 9. Do
not use abrasive cleaning
agents or steam jets above 140
°F/60 °C. Follow the manufac-
turer's instructions.
Aggressive, acidic or alkaline
cleaning agents can destroy the
protective layer of adjacent
components, such as the brake
disc.
After cleaning, apply the brakes
briefly to dry them. The heat
generated during braking dries
brake discs and brake pads and
protects them against corrosion.
Carefully clean components
such as the radiator grille or
door handles with plenty of
water, possibly with shampoo
added, particularly when they have been exposed to road salt.
Environmental i
nfluences can
cause surface soiling of rubber
parts and a loss of gloss. Use
only water and suitable cleaning
agents for cleaning.
Treat especially worn rubber
parts with rubber care agents at
regular intervals. When cleaning
rubber seals, do not use any sili-
con-containing vehicle care
products in order to avoid dam-
age or noises.
Clean with a microfiber cloth.
Dampen cloth lightly with water.
Do not soak the roofliner.
Safety information
NOTICE
Open hook-and-loop fasteners on
articles of clothing can damage
the seat covers. There is a risk of
damage to propert
y. Ensure that
any hook-and-loop fasteners are
closed.
Caring for special compo-
nents
Light-alloy wheels
Chrome surfaces
Rubber components
Plastic components
NOTICE
Cleansers that contain alcohol or
solvents, such a s lacquer thin-
ners, heavy-duty grease remov-
ers, fuel, or su ch, can damage
plastic parts. Ther e is a risk of
damage to property. Clean with a
microfiber cloth. Dampen cloth
lightly with water.

3336-1. MOBILITY
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
6
MOBILITY
Dirty belt straps impede the reel-
ing action and thus have a neg-
ative impact on safety.
Use only a mild soapy solution
for cleaning the installed belt
straps.
Safety belts should only be
allowed to retract if they are dry.
The floor mats can be removed
from the car's interior for clean-
ing.
If the floor carpets are very dirty, clean with a microfiber cloth and
water or a textile cleaner. To
prevent matting of the carpet,
rub back and forth in the direc-
tion of travel only.
To clean sensors and camera
lenses, use a cloth moistened
with a small amount of glass
detergent.
Clean with a clean, antistatic
microfiber cloth.
Clean the protective glass of the
Head-up Display, refer to page
154, using a microfiber cloth and
commercially available
dish-washing soap.
Safety belts
WA R N I N G
Chemical cleansers can destroy
the safety belt webbing. Missing
protective effect of the safety
belts. There is a ri
sk of injuries or
danger to life. Use only a mild
soapy solution for cleaning the
safety belts.
Carpets and floor mats
WA R N I N G
Objects in the dri ver's floor area
can limit the peda l distance or
block a depressed pedal. There is
a risk of an accident. Stow objects
in the vehicle such that they are
secured and cannot enter into the
driver's floor area. Use floor mats
that are suitable for the vehicle
and can be safely attached to the
floor. Do not use loose floor mats
and do not layer several floor
mats. Make sure t hat there is suf-
ficient clearance for the pedals.
Ensure that the floor mats are
securely fastened again after they
were removed, fo r instance for
cleaning.
Sensors and camera lenses
Displays, screens, and pro-
tective glass of the Head-up
Display
NOTICE
Chemical cleansers, moisture or
fluids of any kind can damage the
surface of display s and screens.
There is a risk of damage to prop-
erty. Clean with a clean, antistatic
microfiber cloth.
NOTICE
The surface of displays can be
damaged with improper cleaning.
There is a risk of damage to prop-
erty. Avoid pressure that is too
high and do not use any scratch-
ing materials.

3346-1. MOBILITY
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
When the vehicle is shut down
for longer than three months,
special measures must be
taken. Further information is
available from your Toyota
dealer.Long-term vehicle storage

335
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
7
7
REFERENCE
REFERENCE
.7-1. REFERENCETechnical data ............. 336
Certification ................. 339

3367-1. REFERENCE
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
7-1.REFERENCE
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and regulations must be observed.
The technical data and specifi-
cations in this Owner's Manual
are used as guidance values.
The vehicle-specific data can
deviate from this, for instance
due to the selected special
equipment, country version or
country-specific measurement
method. Detailed values can be
found in the approval docu-
ments, on labels on the vehicle
or can be obtained from your
Toyota dealer.
The dimensions can vary depending on the model version, equip-
ment or country-specific measurement method.
The specified heights do not take into account attached parts, for
instance a roof antenna, roof racks or spoiler. The heights can devi-
ate, for instance due to the selected special equipment, tires, load
and chassis version.
*1: SZ-R models
*2:RZ models
Technical data
Vehicle features and
optionsGeneral information
Dimensions
Width with mirrorsin/mm79.8 / 2026
Width without mirrorsin/mm73.0 / 1854
Heightin/mm51.1 / 1299*1
50.9 / 1292*2
Lengthin/mm172.5 / 4381
Wheelbasein/mm97.2 / 2470
Smallest turning radius diam.ft/m36.1 / 11

3377-1. REFERENCE
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
7
REFERENCE
Observe further information on fuel quality, refer to page 270.
See the further information on engine oil grade, see page 303.

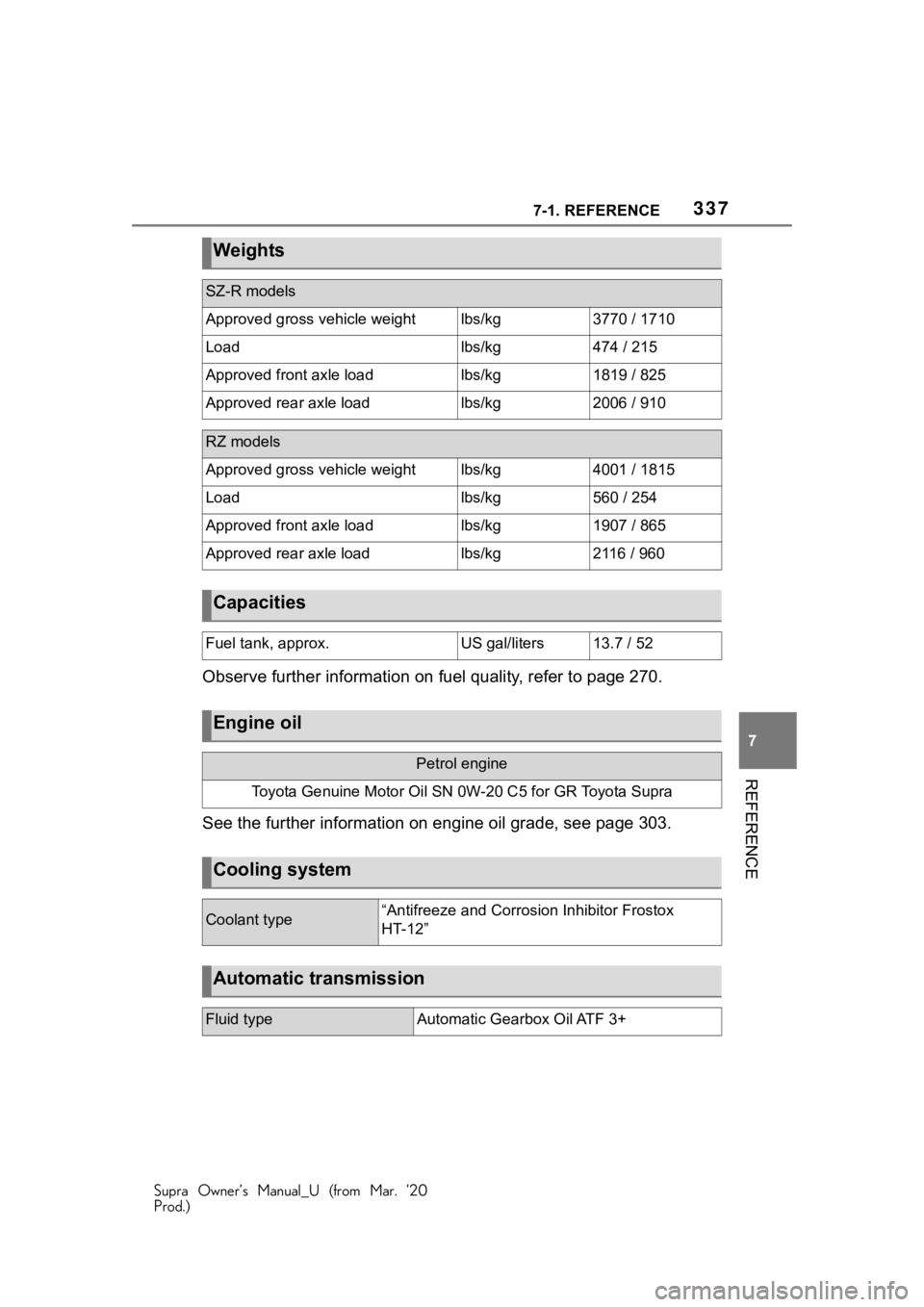

Weights
SZ-R models
Approved gross vehicle weightlbs/kg3770 / 1710
Loadlbs/kg474 / 215
Approved front axle loadlbs/kg1819 / 825
Approved rear axle loadlbs/kg2006 / 910
RZ models
Approved gross vehicle weightlbs/kg4001 / 1815
Loadlbs/kg560 / 254
Approved front axle loadlbs/kg1907 / 865
Approved rear axle loadlbs/kg2116 / 960
Capacities
Fuel tank, approx.US gal/liters13.7 / 52
Engine oil
Petrol engine
Toyota Genuine Motor Oil SN 0 W-20 C5 for GR Toyota Supra
Cooling system
Coolant type“Antifreeze and Corrosion Inhibitor Frostox
HT-12”
Automatic transmission
Fluid typeAutomatic Gearbox Oil ATF 3+

3387-1. REFERENCE
Supra Owner’s Manual_U (from Mar. ’20
Prod.)

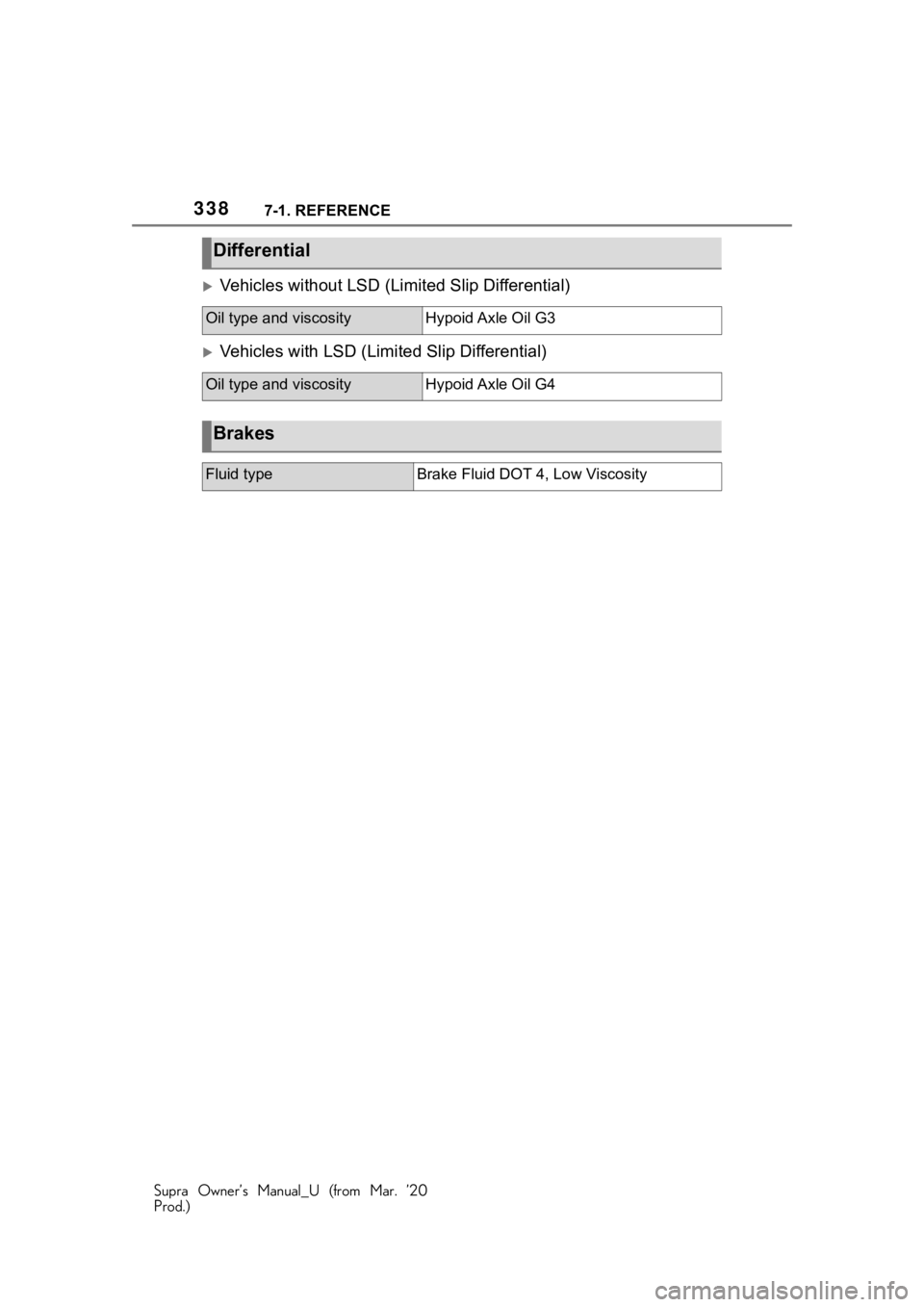

Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
Differential
Oil type and viscosityHypoid Axle Oil G3
Oil type and viscosityHypoid Axle Oil G4
Brakes
Fluid typeBrake Fluid DOT 4, Low Viscosity

3397-1. REFERENCE
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
7
REFERENCE
The following note is for all
radio-based Components of the
vehicle and the vehicle inte-
grated information systems and
communication devices:
The radio-based components of
this vehicle are in accordance
with the basic requirements and
the rest relevant provisions of
the Directive 2014/53 / EU. Fur-
ther information is available
from your Toyota dealer.

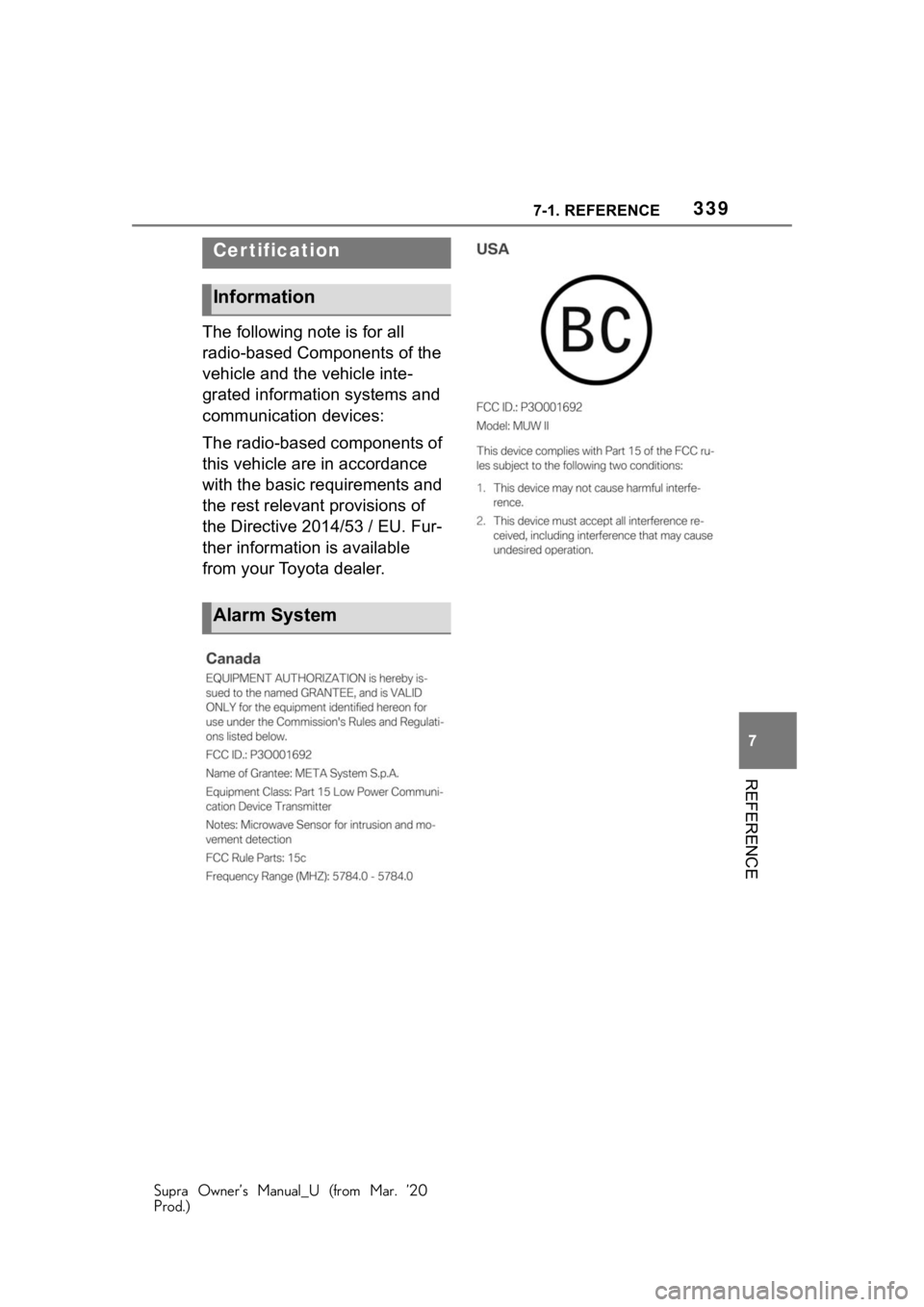

Cer tification
Information
Alarm System

3407-1. REFERENCE
Supra Owner’s Manual_U (from Mar. ’20
Prod.)

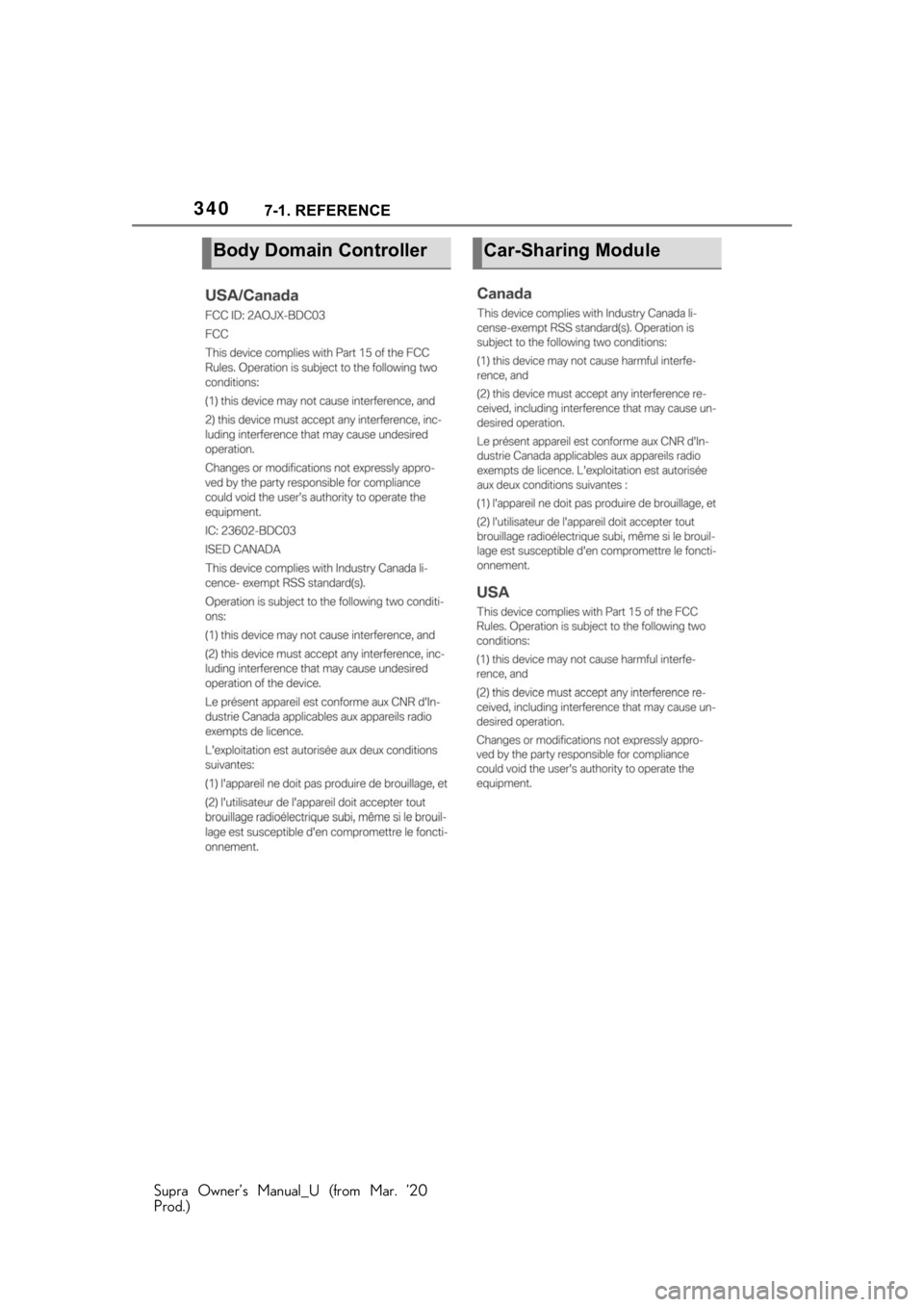

Body Domain ControllerCar-Sharing Module
