TOYOTA TACOMA 2013 Owners Manual (in English)

121
1-7. Safety information
1
Before driving
Child restraint systems with a top tether strap (Regular Cab models)
■
Bench type seat
Remove the head restraint.
Installing position:Right side passenger seat
Center passenger seat
Swing the seatback forward
slightly ( P. 48) and remove the
anchor bracket covers.
Installing position:
Right side passenger seat
Center passenger seat
Store the removed cover in a safe
place such as the glove box.
Right side passenger seat
Route the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.

122 1-7. Safety information
Center passenger seatRoute the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.
Secure the child restraint using a seat belt or lower anchors,
and tighten the top tether strap.
Make sure the top tether strap is securely latched.
Replace the head restraint.
Installing position:Right side passenger seat
Center passenger seat

123
1-7. Safety information
1
Before driving
■
Separated type seat
Remove the head restraint.
Swing the seatback forward
slightly (P. 47) and remove the
anchor bracket cover.
Store the removed cover in a safe
place such as the glove box.
Route the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.
Secure the child restraint usi ng a seat belt or lower anchor,
and tighten the top tether strap.
Make sure the top tether strap is securely latched.

124 1-7. Safety information
Replace the head restraint.
Child restraint systems with a top tether strap (Access Cab models)
Remove the anchor bracket cov-
ers.
Store the removed covers in a
safe place such as the glove box.
Secure the child restraint using a seat belt or lower anchors.Route the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Latch the hook onto the
anchor bracket and tighten the
top tether strap.
Make sure the top tether strap is
securely latched.

125
1-7. Safety information
1
Before driving
Child restraint systems with a top tether strap (Double Cab models)
Remove the head restraint.
Installing position:
Outside passenger seat
Center passenger seat
Outside passenger seat Swing the seatback forward
slightly. (P. 53)
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.
Center passenger seat
Swing the seatback forward
slightly. (P. 53)
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.

126 1-7. Safety information
Secure the child restraint using a seat belt or lower anchors,
and tighten the top tether strap.
Make sure the top tether strap is securely latched.
Replace the head restraint.
Installing position:Outside passenger seat
Center passenger seat
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.

127
1-7. Safety information
1
Before driving
CAUTION
■
When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode. ( P. 63)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
●Access Cab and Double Cab models: If
the driver’s seat interferes with the child
restraint system and prevents it from
being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Access Cab and Double Cab models:
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing or booster
child seat on the front seat when it is
unavoidable. When installing a forward-
facing or booster child seat on the front
passenger seat, move the seat as far
back as possible even if AIR BAG OFF
indicator light is illuminated. Failing to
do so may result in death or serious
injury if the airbags deploy (inflate).

128 1-7. Safety information
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child restraint system from side to side and forward to be
sure it is secure.
● After securing the child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child r estraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child or other passengers in the event of
a sudden stop, sudden swerve or accident.

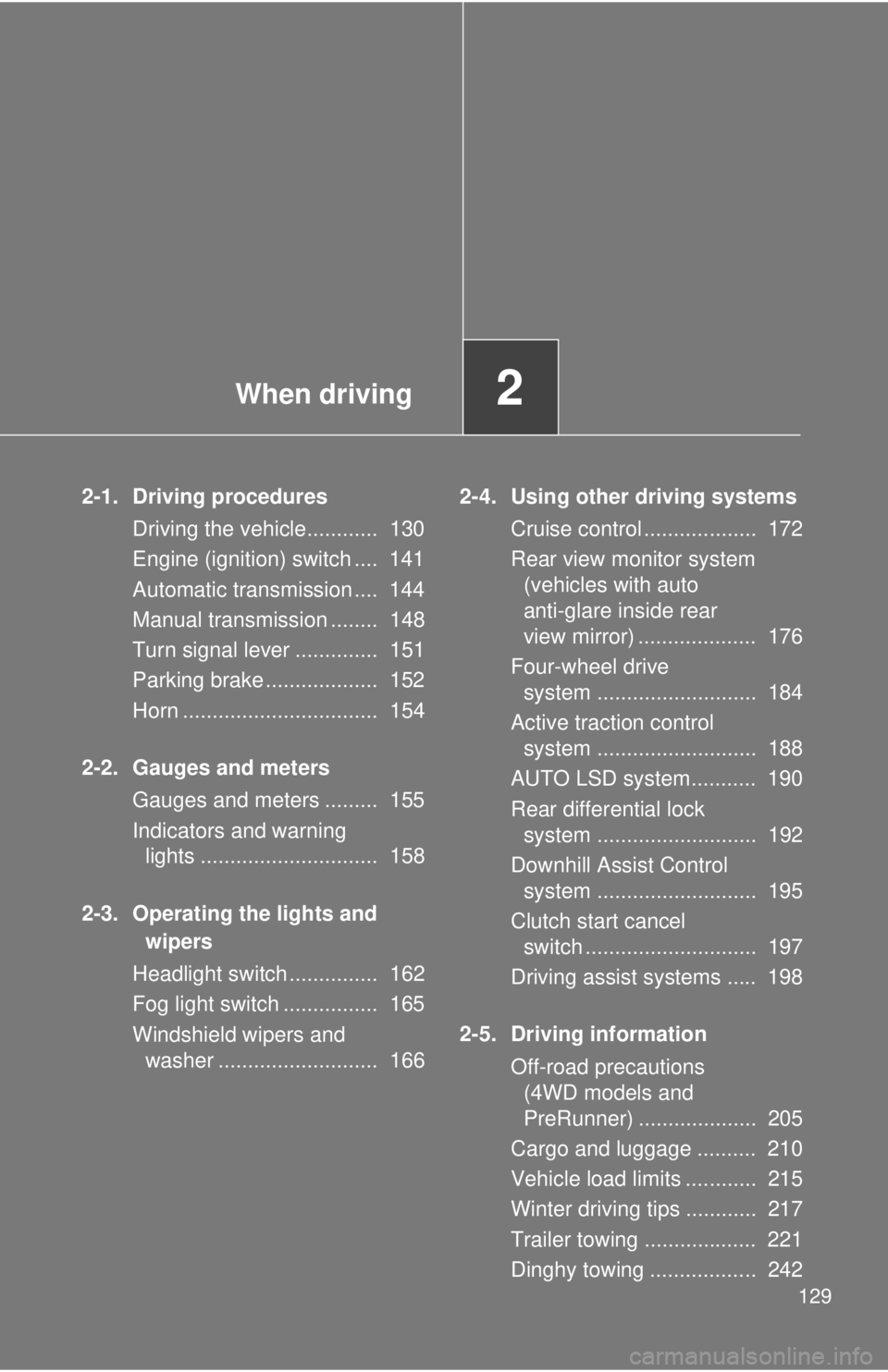

When driving2
129
2-1. Driving proceduresDriving the vehicle............ 130
Engine (ignition) switch .... 141
Automatic transmission .... 144
Manual transmission ........ 148
Turn signal lever .............. 151
Parking brake ................... 152
Horn ................................. 154
2-2. Gauges and meters Gauges and meters ......... 155
Indicators and warning lights .............................. 158
2-3. Operating the lights and wipers
Headlight switch ............... 162
Fog light switch ................ 165
Windshield wipers and washer ........................... 166 2-4. Using other driving systems
Cruise control ................... 172
Rear view monitor system (vehicles with auto
anti-glare inside rear
view mirror) .................... 176
Four-wheel drive system ........................... 184
Active traction control system ........................... 188
AUTO LSD system........... 190
Rear differential lock system ........................... 192
Downhill Assist Control system ........................... 195
Clutch start cancel switch ............................. 197
Driving assist systems ..... 198
2-5. Driving information Off-road precautions (4WD models and
PreRunner) .................... 205
Cargo and luggage .......... 210
Vehicle load limits ............ 215
Winter driving tips ............ 217
Trailer towing ................... 221
Dinghy towing .................. 242

130
2-1. Driving procedures

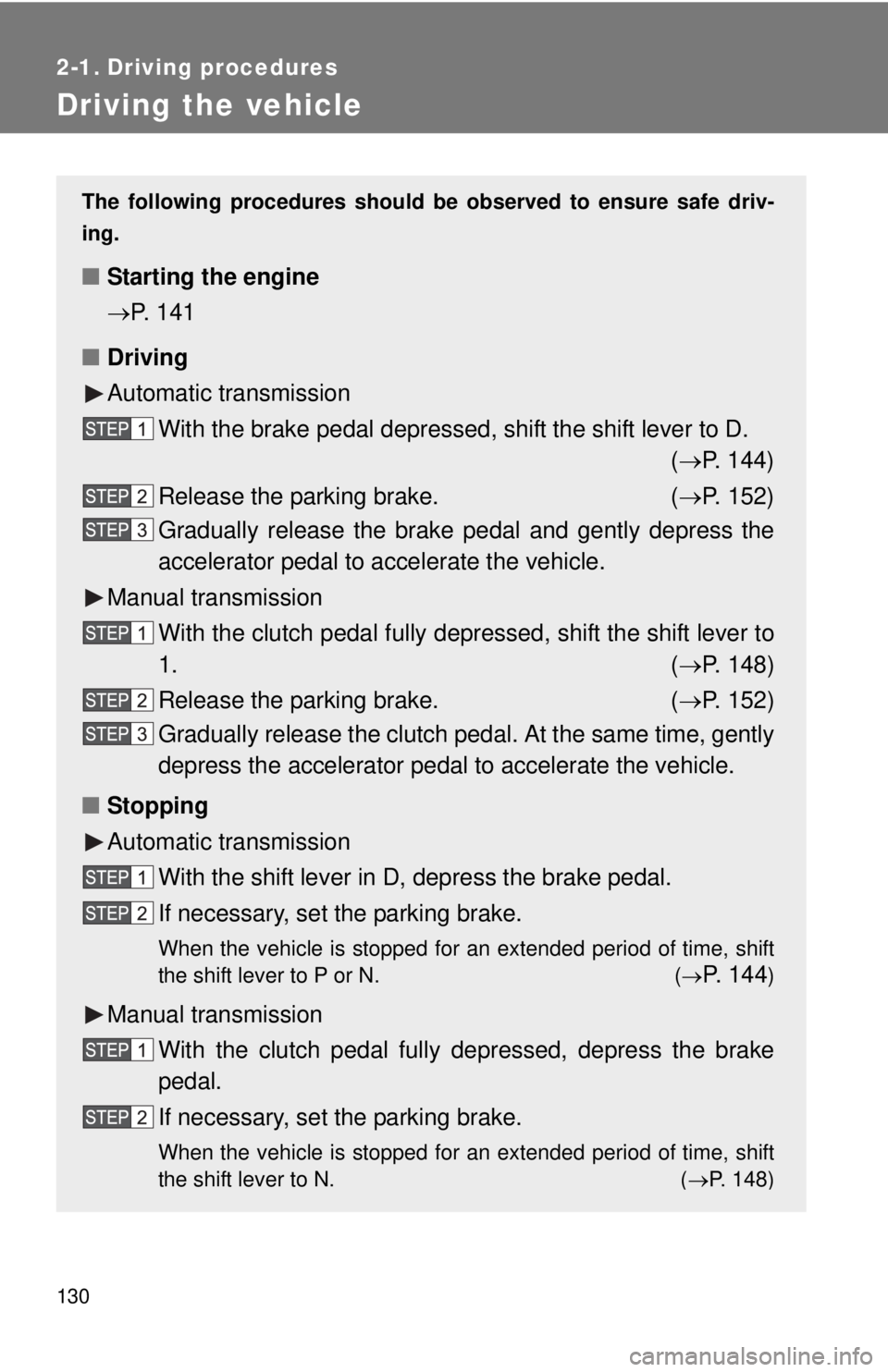

Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the engine
P. 141
■ Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D. ( P. 144)
Release the parking brake. ( P. 152)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission With the clutch pedal fully depressed, shift the shift lever to
1. ( P. 148)
Release the parking brake. ( P. 152)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to P or N. ( 
P. 1 4 4)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to N. ( P. 148)
