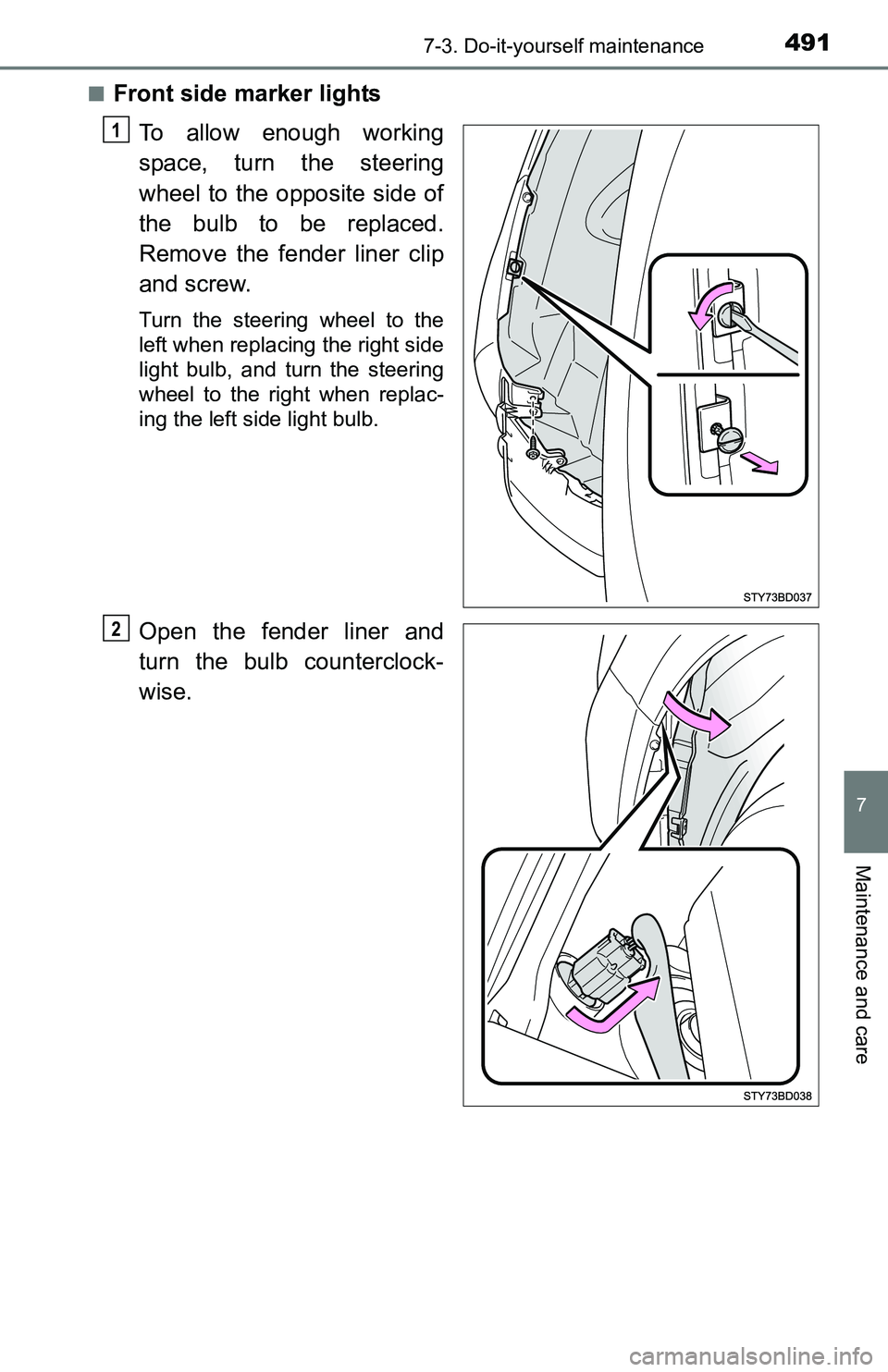

TOYOTA TACOMA 2016 Owners Manual (in English)

4917-3. Do-it-yourself maintenance
7
Maintenance and care
■Front side marker lights
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner clip
and screw.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
turn the bulb counterclock-
wise.
1
2

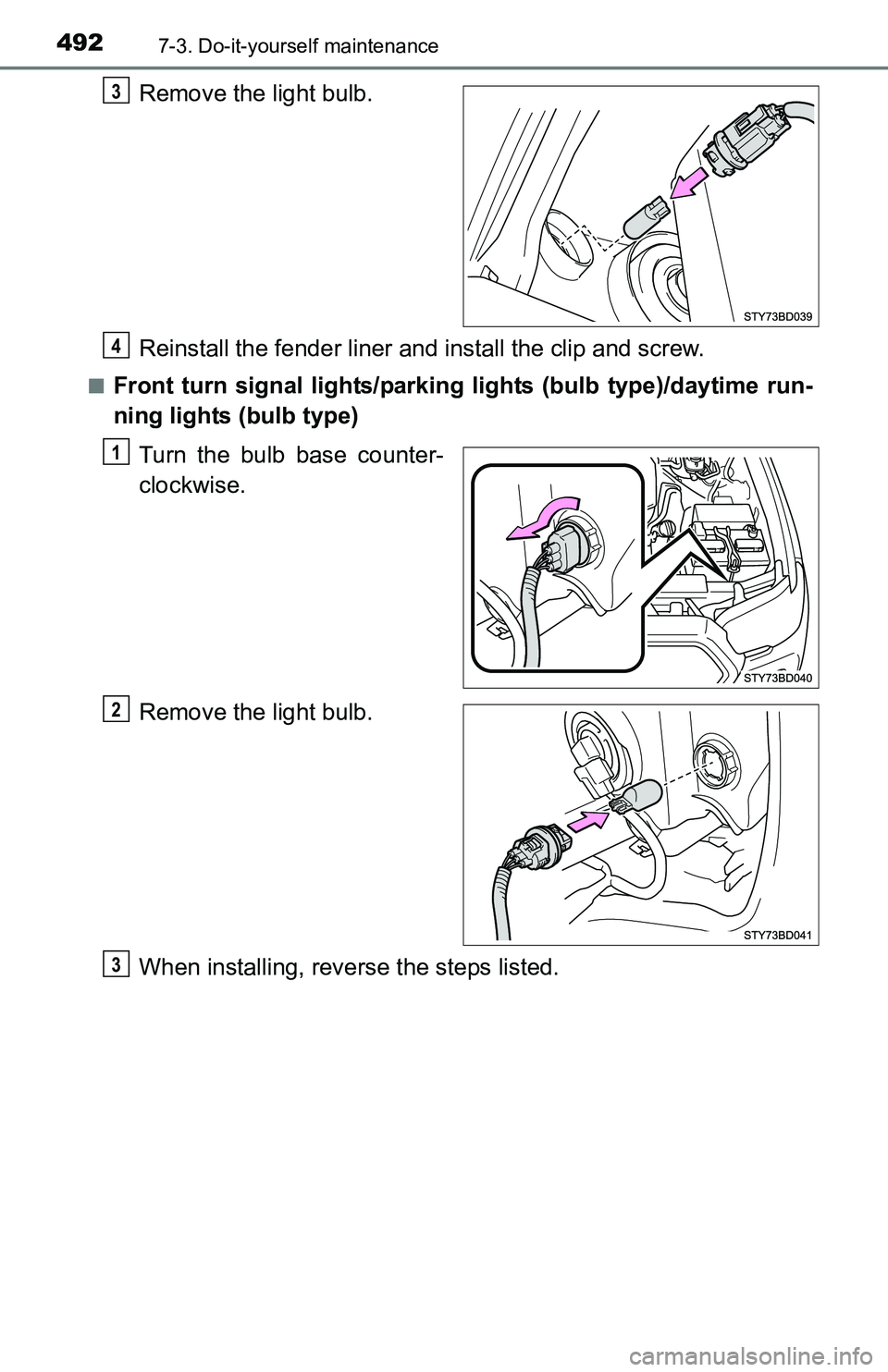

4927-3. Do-it-yourself maintenance
Remove the light bulb.
Reinstall the fender liner and install the clip and screw.
■Front turn signal lights/parking lights (bulb type)/daytime run-
ning lights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
3
4
1
2
3

4937-3. Do-it-yourself maintenance
7
Maintenance and care
■Front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner clip
and screw.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector while
depressing the lock release.
1
2

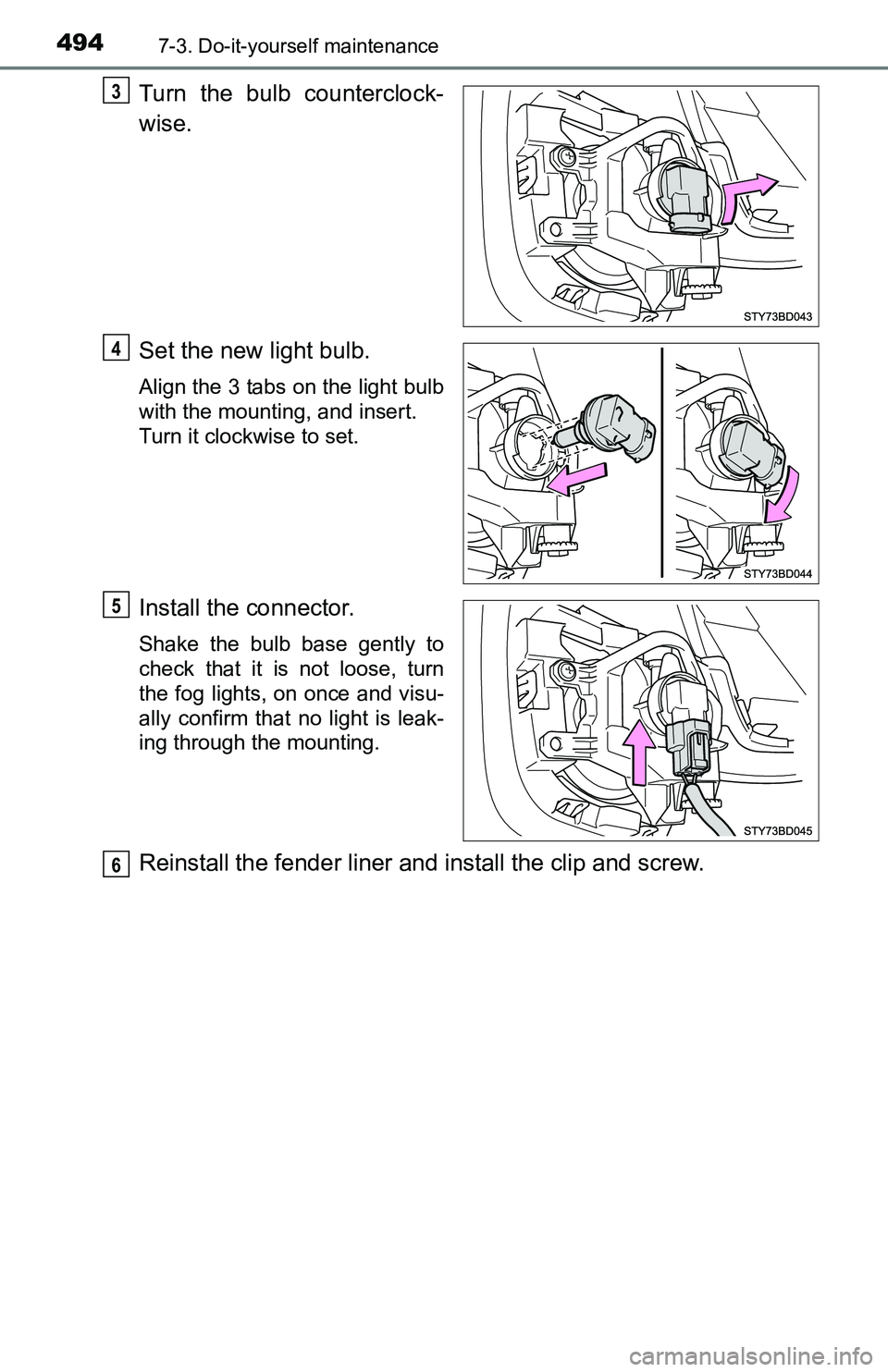

4947-3. Do-it-yourself maintenance
Turn the bulb counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the fog lights, on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and install the clip and screw.
3
4
5
6

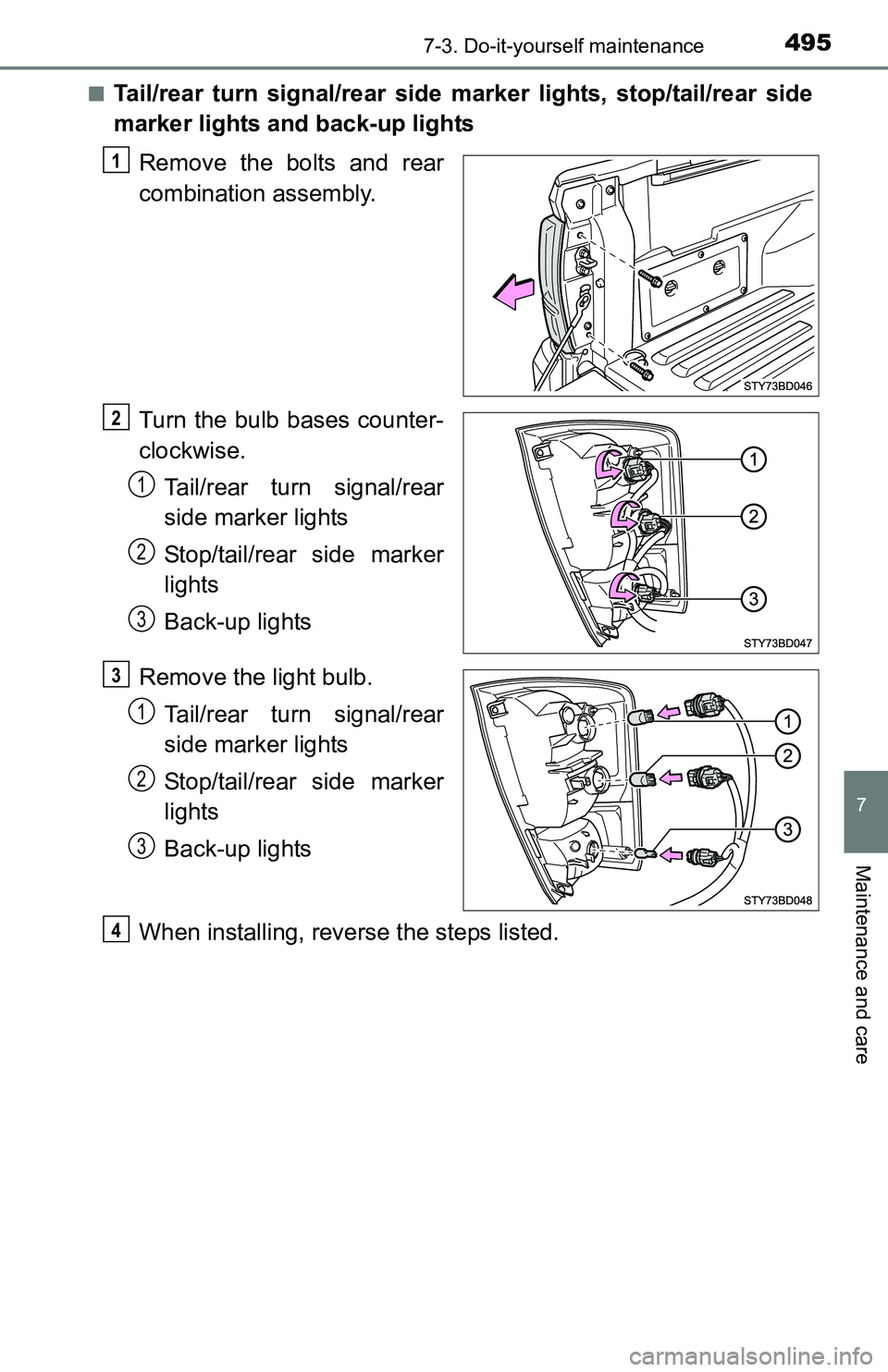

4957-3. Do-it-yourself maintenance
7
Maintenance and care
■Tail/rear turn signal/rear side marker lights, stop/tail/rear side
marker lights and back-up lights
Remove the bolts and rear
combination assembly.
Turn the bulb bases counter-
clockwise.
Tail/rear turn signal/rear
side marker lights
Stop/tail/rear side marker
lights
Back-up lights
Remove the light bulb.
Tail/rear turn signal/rear
side marker lights
Stop/tail/rear side marker
lights
Back-up lights
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4

4967-3. Do-it-yourself maintenance

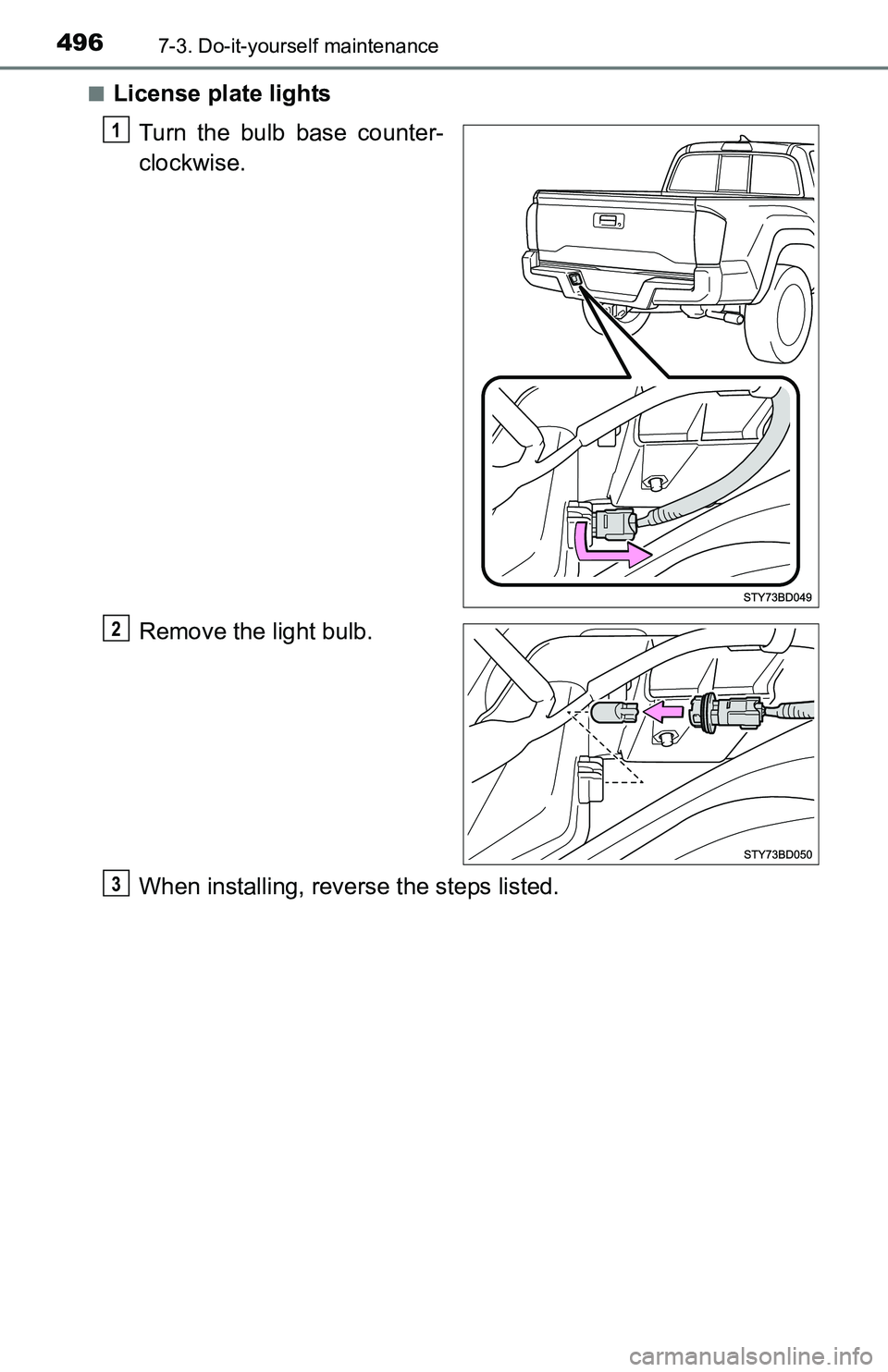

■License plate lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

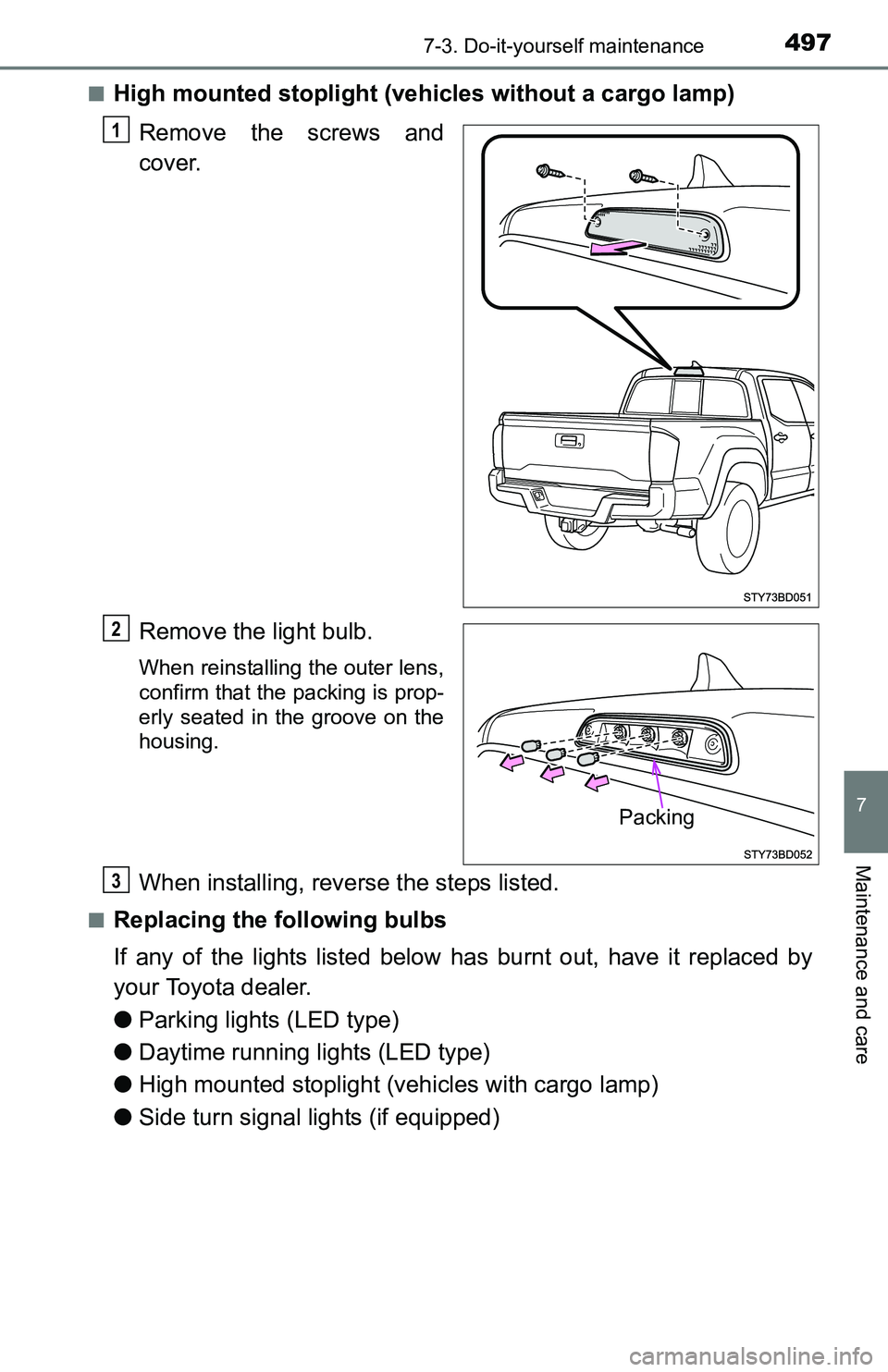

4977-3. Do-it-yourself maintenance
7
Maintenance and care
■High mounted stoplight (vehicles without a cargo lamp)
Remove the screws and
cover.
Remove the light bulb.
When reinstalling the outer lens,
confirm that the packing is prop-
erly seated in the groove on the
housing.
When installing, reverse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
●Parking lights (LED type)
●Daytime running lights (LED type)
●High mounted stoplight (vehicles with cargo lamp)
●Side turn signal lights (if equipped)
1
Packing
2
3

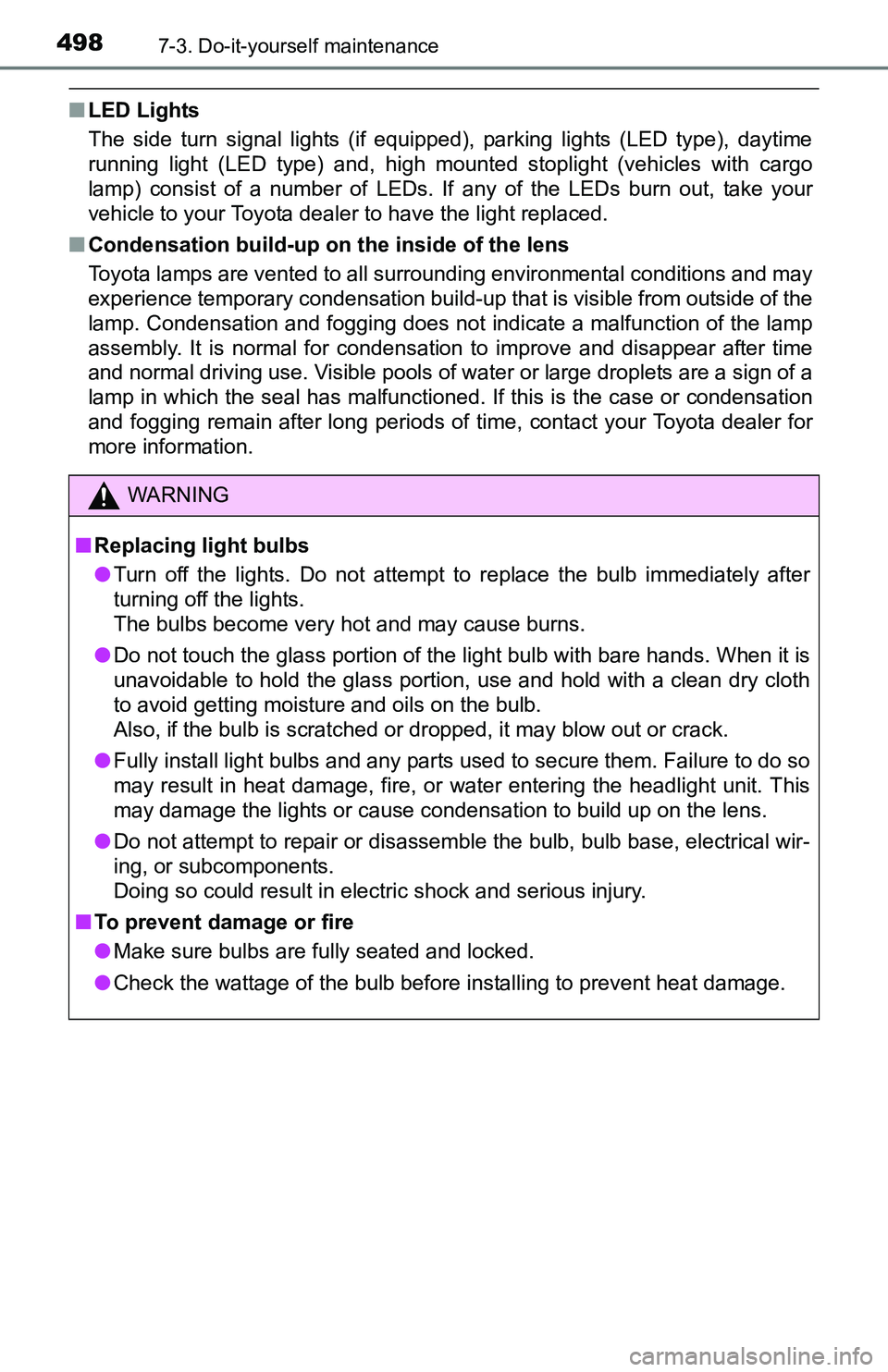

4987-3. Do-it-yourself maintenance
■LED Lights
The side turn signal lights (if equipped), parking lights (LED type), daytime
running light (LED type) and, high mounted stoplight (vehicles with cargo
lamp) consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Toyota lamps are vented to all surrounding environmental conditions and may
experience temporary condensation build-up that is visible from outside of the
lamp. Condensation and fogging does not indicate a malfunction of the lamp
assembly. It is normal for condensation to improve and disappear after time
and normal driving use. Visible pools of water or large droplets are a sign of a
lamp in which the seal has malfunctioned. If this is the case or condensation
and fogging remain after long periods of time, contact your Toyota dealer for
more information.
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the lights or cause condensation to build up on the lens.
●Do not attempt to repair or disassemble the bulb, bulb base, electrical wir-
ing, or subcomponents.
Doing so could result in electric shock and serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

499

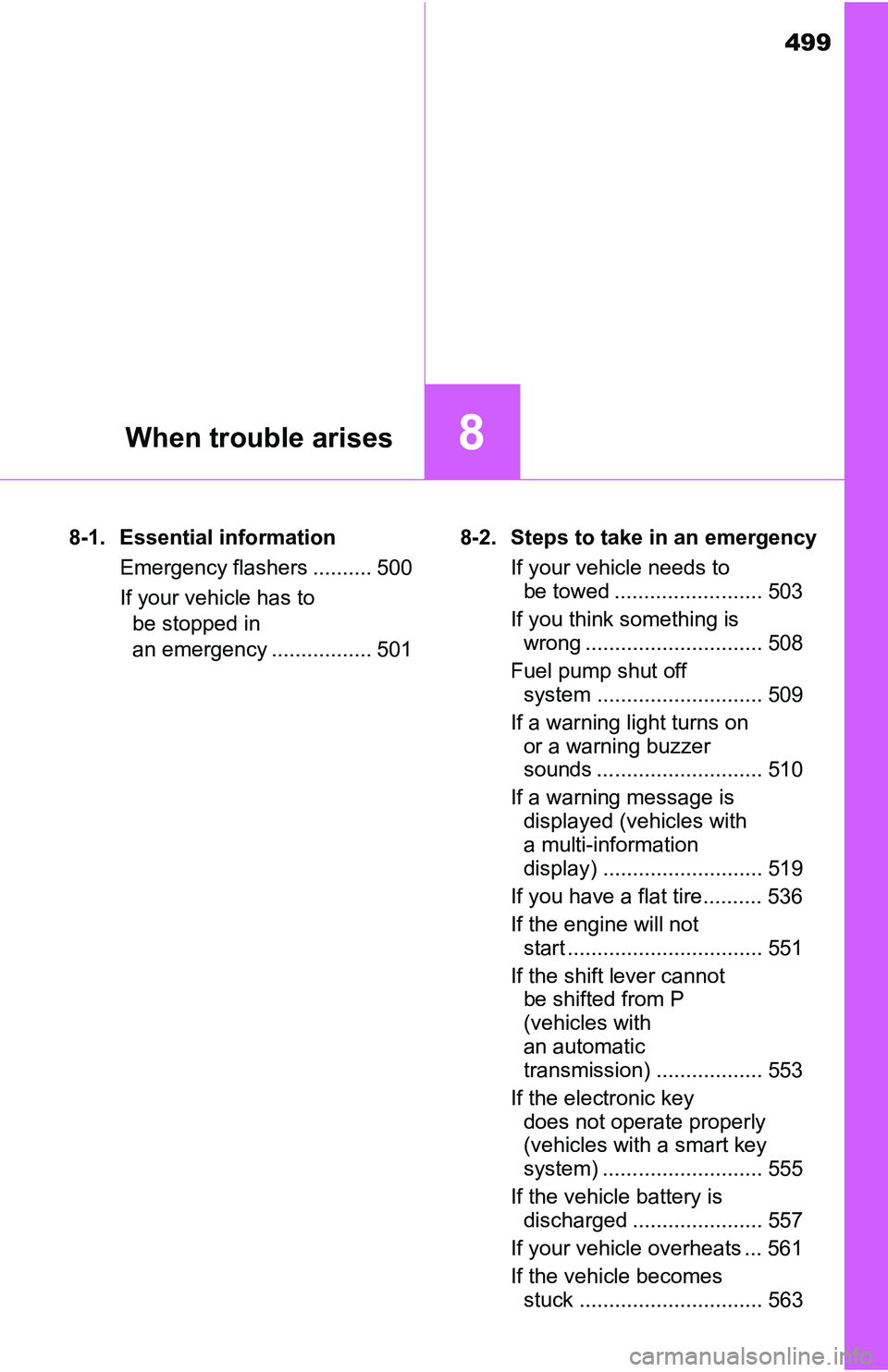

8When trouble arises
8-1. Essential information
Emergency flashers .......... 500
If your vehicle has to
be stopped in
an emergency ................. 5018-2. Steps to take in an emergency
If your vehicle needs to
be towed ......................... 503
If you think something is
wrong .............................. 508
Fuel pump shut off
system ............................ 509
If a warning light turns on
or a warning buzzer
sounds ............................ 510
If a warning message is
displayed (vehicles with
a multi-information
display) ........................... 519
If you have a flat tire.......... 536
If the engine will not
start ................................. 551
If the shift lever cannot
be shifted from P
(vehicles with
an automatic
transmission) .................. 553
If the electronic key
does not operate properly
(vehicles with a smart key
system) ........................... 555
If the vehicle battery is
discharged ...................... 557
If your vehicle overheats ... 561
If the vehicle becomes
stuck ............................... 563

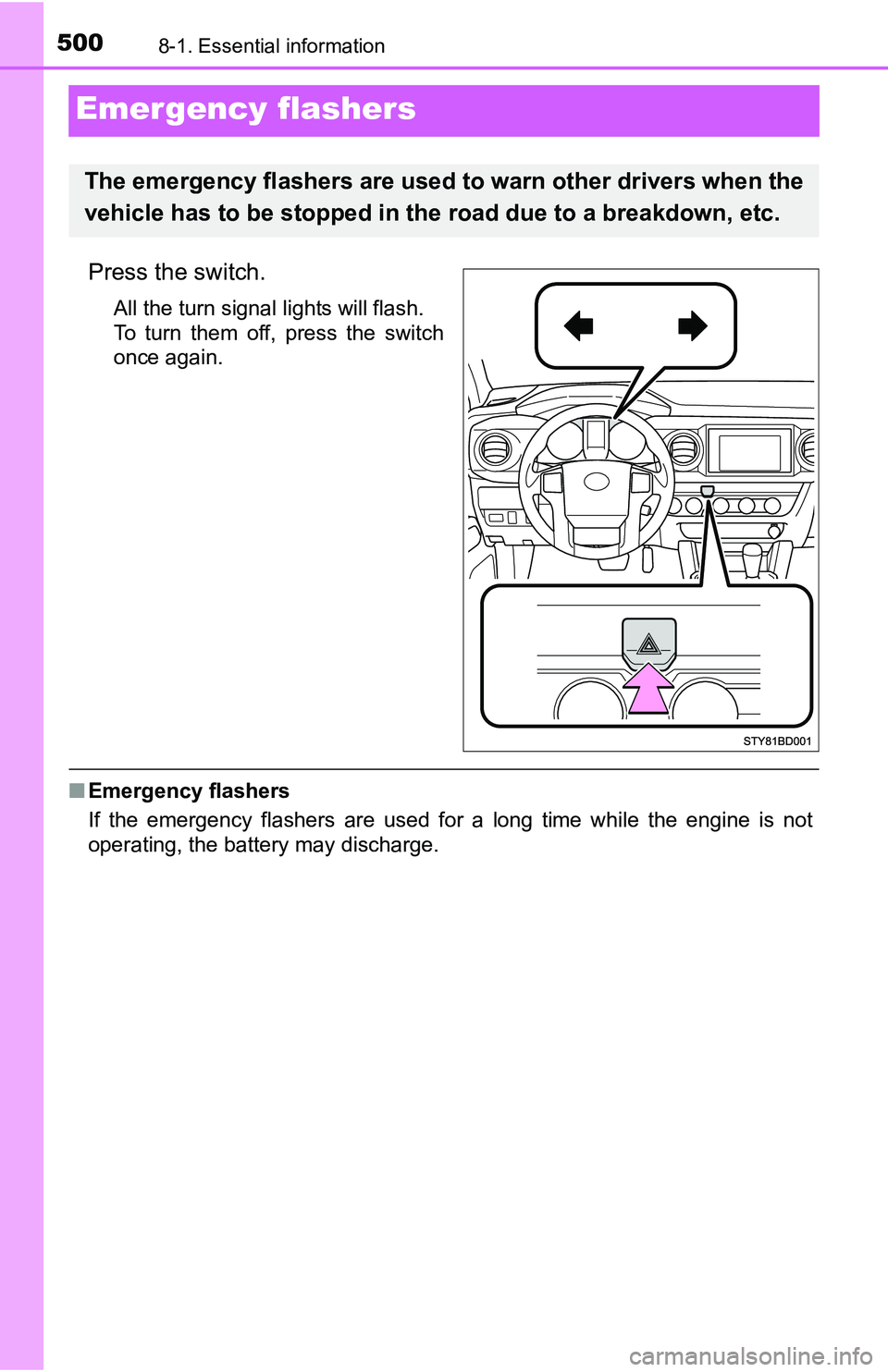

5008-1. Essential information
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
