2037-2. Panoramic view monitor
7
Peripheral monitoring system
■When any part of the vehi-
cle sags
When any part of the vehicle
sags due to the number of pas-
sengers or the distribution of the
load, there is a margin of error
between the guide lines on the
screen and the actual dis-
tance/course on the road.
A margin of error When there are three-dimen-
sional objects (such as vehicle
bumpers, etc.) nearby in posi-
tions higher than the surface of
the road, take extra care when
using the following.
Since the panoramic view pro-
cess and display images based
on flat road surfaces, it cannot
depict the position of three-
dimension objects (such as
vehicle bumpers, etc.) that are
in positions higher than the sur-
face of the road. For example,
even though it appears that
there is space between the
bumpers of the two vehicles in
the illustration below and they
are not likely to collide, in reality,
a collision is about to occur.
A
When approaching three-
dimensional objects
WARNING
●When a sensor indicator on the
intuitive parking assist display
illuminates in red or a buzzer
sounds continuously, be sure to
check the area around the vehi-
cle immediately and do not pro-
ceed any further until safety has
been ensured, otherwise an
unexpected accident may occur.
Panoramic view display

2047-2. Panoramic view monitor
Since the projected course
lines is displayed for a flat
road surface, it can not depict
the position of three-dimen-
sional objects (such as vehi-
cle bumpers, etc.) that are in
positions higher than the sur-
face of the road. Even if the
bumpers of the vehicle is on
the outside of the projected
course lines in the image, in
reality, the vehicles are on a
collision course. Projected course lines
 Three-dimensional objects
(such as the overhang of a
wall or loading platform of a
truck) in high positions may
not be projected on the
screen. Check the safety of
the surroundings directly.
Projected course lines
A

2057-2. Panoramic view monitor
7
Peripheral monitoring system
The overhang of a wall
 Visually check the surround-
ings and the area behind the
vehicle. In the case shown
below, the truck appears to be
outside of the projected
course lines and the vehicle
does not look as if it hits the
truck. However, the rear body
of the truck may actually
cross over the projected
course lines. In reality if you
back up as guided by the esti-
mated course lines, the vehi-
cle may hit the truck. Projected course lines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point . How-
ever, in reality if you back up to
point , you will hit the truck.
On the screen, it appears that
is closest and is farthest
away. However, in reality, the
distance to and is the
same, and is farther than
and .A
Distance guide lines
A
B
A
A
C
AC
BA
C

2067-2. Panoramic view monitor
Approx. 3 ft. (1 m)D

2077-2. Panoramic view monitor
7
Peripheral monitoring system
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.
Things you should know
If you notice any symptoms
SymptomLikely causeSolution
The image is difficult to
see
 The vehicle is in a
dark area
 The temperature
around the lens is
either high or low
 The outside tempera-
ture is low
 There are water drop-
lets on the camera
 It is raining or humid
 Foreign matter (mud
etc.) is adhering to the
camera
 Sunlight or headlights
are shining directly
into the camera
 The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights etc.
Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
The procedure for
adjusting the picture
quality of the pan-
oramic view monitor
system is the same as
the procedure for
adjusting the navigation
screen. ( P.33)
The image is blurry
Dirt or fore ign matter
(such as water drop-
lets, snow, mud etc.) is
adhering to the camera.Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.
The image is out of
alignment
The camera or sur-
rounding area has
received a strong
impact.Have the vehicle
inspected by your Toy-
ota dealer.

2087-2. Panoramic view monitor
The guide lines are very
far out of alignment
The camera position is
out of alignment.Have the vehicle
inspected by your Toy-
ota dealer.
The vehicle is tilted.
(There is a heavy load
on the vehicle, tire
pressure is low due to
a tire puncture, etc.)
 The vehicle is used on
an incline.If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.
The estimated course
lines move even though
the steering wheel is
straightThere is a malfunction
in the signals being out-
put by the steering sen-
sor.Have the vehicle
inspected by your Toy-
ota dealer.
Guide lines are not dis-
playedThe tailgate is open.
Close the tailgate.
If this does not resolve
the symptom, have the
vehicle inspected by
your Toyota dealer.
is displayed
Battery has been rein-
stalled.
 The steering wheel
has been moved while
the battery was being
reinstalled.
 Battery power is low.
 The steering sensor
has been reinstalled.
 There is a malfunction
in the signals being
output by the steering
sensor.
Stop the vehicle, and
turn the steering wheel
as far as it will go to the
left and right.
If this does not resolve
the symptom, have the
vehicle inspected by
your Toyota dealer.
SymptomLikely causeSolution

2097-3. Multi-terrain Monitor
7
Peripheral monitoring system
7-3.Multi-terrain Monitor
*: If equipped
The Multi-terrain Monitor screen
will be displayed when the cam-
era switch is pressed while the
engine switch is in ON.Camera switch
Display
●The Multi-terrain Monitor is dis-
played by operating the camera
switch when vehicle speed is
approximately 7 mph (12 km/h) or
less.
Multi-terrain Monitor*
The Multi-terrain Monitor
helps the driver to check the
vehicle surroundings. It
assists in determining the
conditions around the
driver in a variety of situa-
tions, such as when judging
conditions during off-road
driving or checking for
obstacles when parking.
WARNING
Observe the following precautions
to avoid an accident that could
result in death or serious injuries.
■When using the Multi-terrain
Monitor system
●Never rely solely on the Multi-
terrain Monitor. As with
unequipped vehicles, drive
carefully while directly confirm-
ing the safety o f your surround-
ings and the area to the rear of
the vehicle. Take particular care
to avoid parked cars and other
obstacles.
●Due to the characteristics of the
camera lens, the actual position
and distance of people and
other obstacles will differ from
those shown on the Multi-terrain
Monitor screen. Directly con-
firm the safety of your surround-
ings before driving.
●Do not drive while only looking
at the screen. When driving,
make sure to directly confirm
the safety of your surroundings,
such as by visually checking the
area and using the vehicle’s
mirrors.
●In low temperatures, the screen
may darken or the images may
become faint. Images of moving
objects in particular may distort
or disappear from the screen.
Therefore, make sure to drive
carefully while directly visually
confirming the safety of your
surroundings.
Displaying the Multi-ter-
rain Monitor screen
A
B

2107-3. Multi-terrain Monitor
The front-wheel drive control
switch in the case of 4L, the
multi-terrain monitor can dis-
play a screen suitable for off-
road.
The driver can drive while
confirming the following
guidelines with a front view
• Distance with the obstacle in the
front
• Estimated course line
 The driver can drive while
confirming the obstacle in the
flank of tire neighborhood and
the vehicle with a side screen
Front view & dual side view
( P.213)
Under vehicle terrain view &
dual side view ( P.213)
Rear view & dual side view
(P.213)
Wide rear view ( P.213)
Screens when the front-
wheel drive control switch
is in 4L (for off-road)
Checking the area to the
front and sides of the vehi-
cle
Checking the condition of
the road surface under the
vehicle
Checking the area to the
rear of the vehicle

2117-3. Multi-terrain Monitor
7
Peripheral monitoring system
The front-wheel drive control
switch in the case of 2WD or 4H,
the multi-terrain monitor can dis-
play a screen suitable for on-
road.
The multi-terrane monitor
does a screen division into
two of right and left and dis-
plays it.
• Left side screen: Front view or
rear view
• Right side screen: Panoramic view
In addition, even both side views,
wide rear view can identify the
obstacle around the vehicle.
Panoramic view & wide front
view ( P.215)
Side views ( P.215)
Panoramic view & rear view
( P.215)
Wide rear view ( P.215)
When automatic display mode is
turned on, the Multi-terrain Mon-
itor screen is displayed in the
following conditions, even if the
Screens when the front-
wheel drive control switch
is in 2WD or 4H (for on-
road)
Checking the front and
around the vehicle
Checking the sides of the
vehicle
Checking the rear and
around the vehicle
Automatic display mode

2127-3. Multi-terrain Monitor
camera switch has not been
operated.
• Vehicles with an automatic transmission: When the shift
lever is shifted to “N” or “D”
position.
• Vehicles with a manual trans- mission: When the shift lever
is in a position other than “R”
and the vehicle starts moving.
• When vehicle speed is reduced to approximately 6
mph (10 km/h) or less.

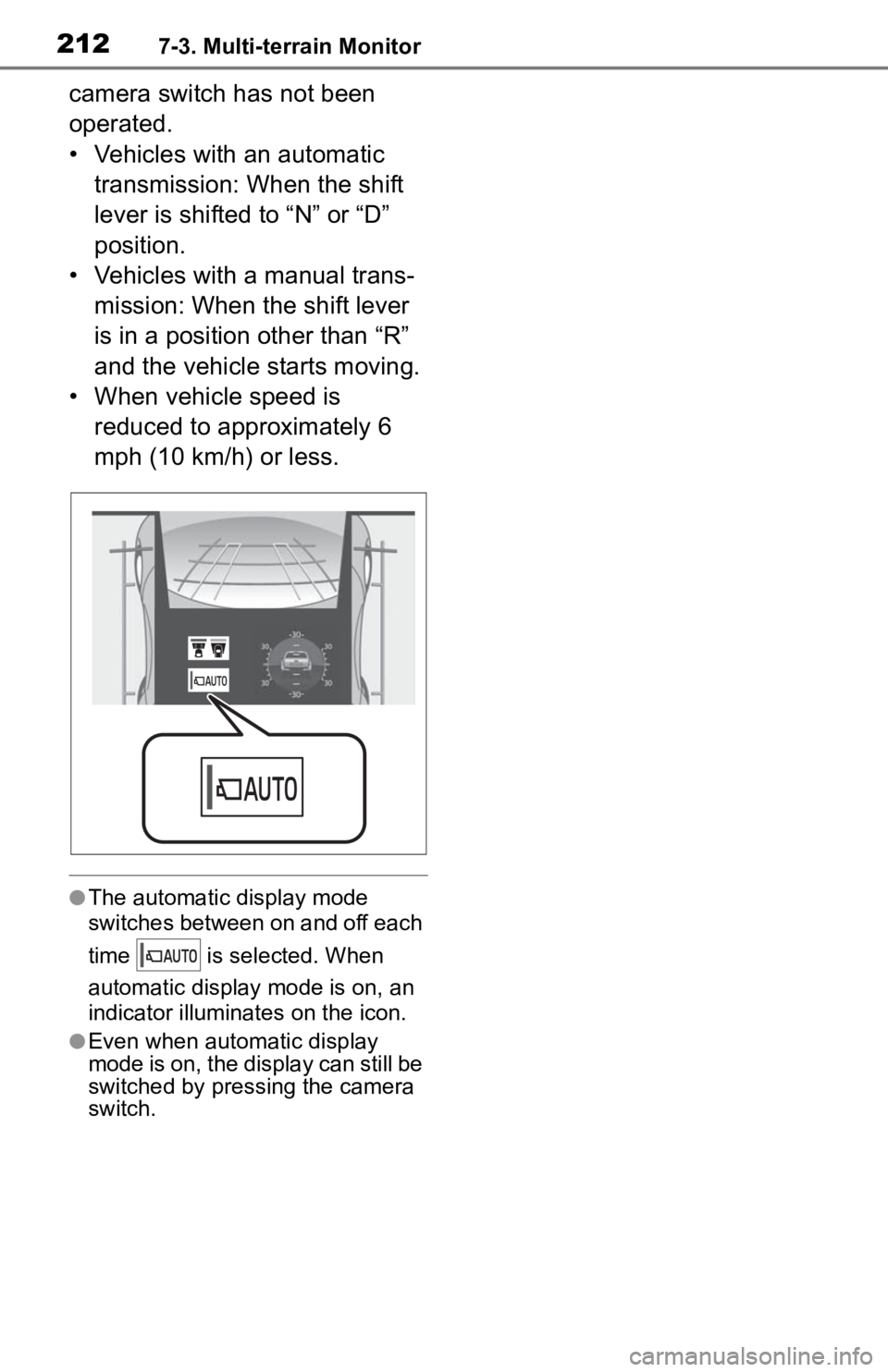

●The automatic display mode
switches between on and off each
time is selected. When
automatic display mode is on, an
indicator illuminates on the icon.
●Even when automatic display
mode is on, the display can still be
switched by pressing the camera
switch.
