2137-3. Multi-terrain Monitor
7
Peripheral monitoring system
●The Multi-terrain Monitor is displayed by operating the camera switch
when vehicle speed is approximately 7 mph (12 km /h) or less. If the vehi-
cle speed exceeds approximately 7 mph (12 km/h), the Multi-terrain Moni-
tor display is canceled.
When the shift lever is in a position other than “R”

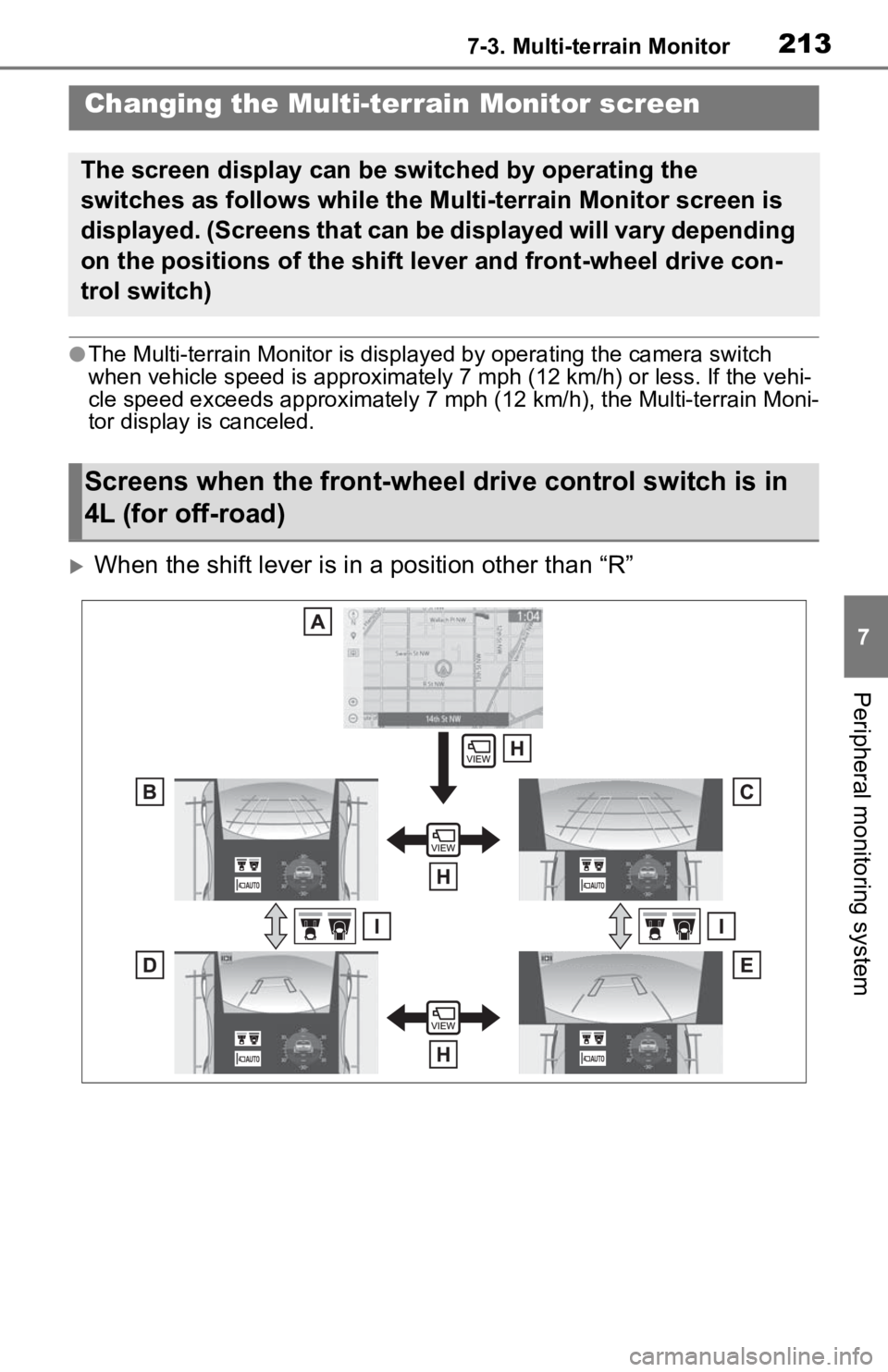

Changing the Multi-te rrain Monitor screen
The screen display can be switched by operating the
switches as follows while the Multi-terrain Monitor screen is
displayed. (Screens that can be displayed will vary depending
on the positions of the shift lever and front-wheel drive con-
trol switch)
Screens when the front-whee l drive control switch is in
4L (for off-road)
Page 212 of 314

2147-3. Multi-terrain Monitor
When the shift lever is in the “R” positionMap screen, audio screen, etc.
Front view & dual side view
Front view & dual side view (front magnified)
Under vehicle terrain view & dual side view
Under vehicle terrain view & dual side view (front magnified)
Rear view & dual side view
Wide rear view
Pressing the camera switch
Selecting the under vehicle terrain view selection button
*
Selecting the display mode switching button*
*: The screen display can be switch ed by touching the image from the cam-
era on the screen.
A
B
C
D
E
F
G
H
I
J
Page 213 of 314

2157-3. Multi-terrain Monitor
7
Peripheral monitoring system
When the shift lever is in a position other than “R”
When the shift lever is in the “R” positionMap screen, audio screen, etc.
Panoramic view & wide front view
Side views
Panoramic view & rear view
Wide rear view
Pressing the camera switch
Selecting the display mode switching button
*
*: The screen display can be switch ed by touching the image from the cam-
era on the screen.
Screens when the front-whee l drive control switch is in
2WD or 4H (for on-road)
A
B
C
D
E
F
G
Page 214 of 314

2167-3. Multi-terrain Monitor
Front view & dual side view can be used to check the area around
the front of the vehicle.
In addition to an image of the front of the vehicle, guide line s are
displayed in a composite view to provide reference for when
deciding a direction to move forward in.
If the camera switch is pressed while the screen is displayed, the
screen switches from normal to magnified display. (Pressing the
switch again returns the screen to the normal display)
If the steering wheel is turned 90° or more, guide lines and other
features to support turning are automatically displayed.

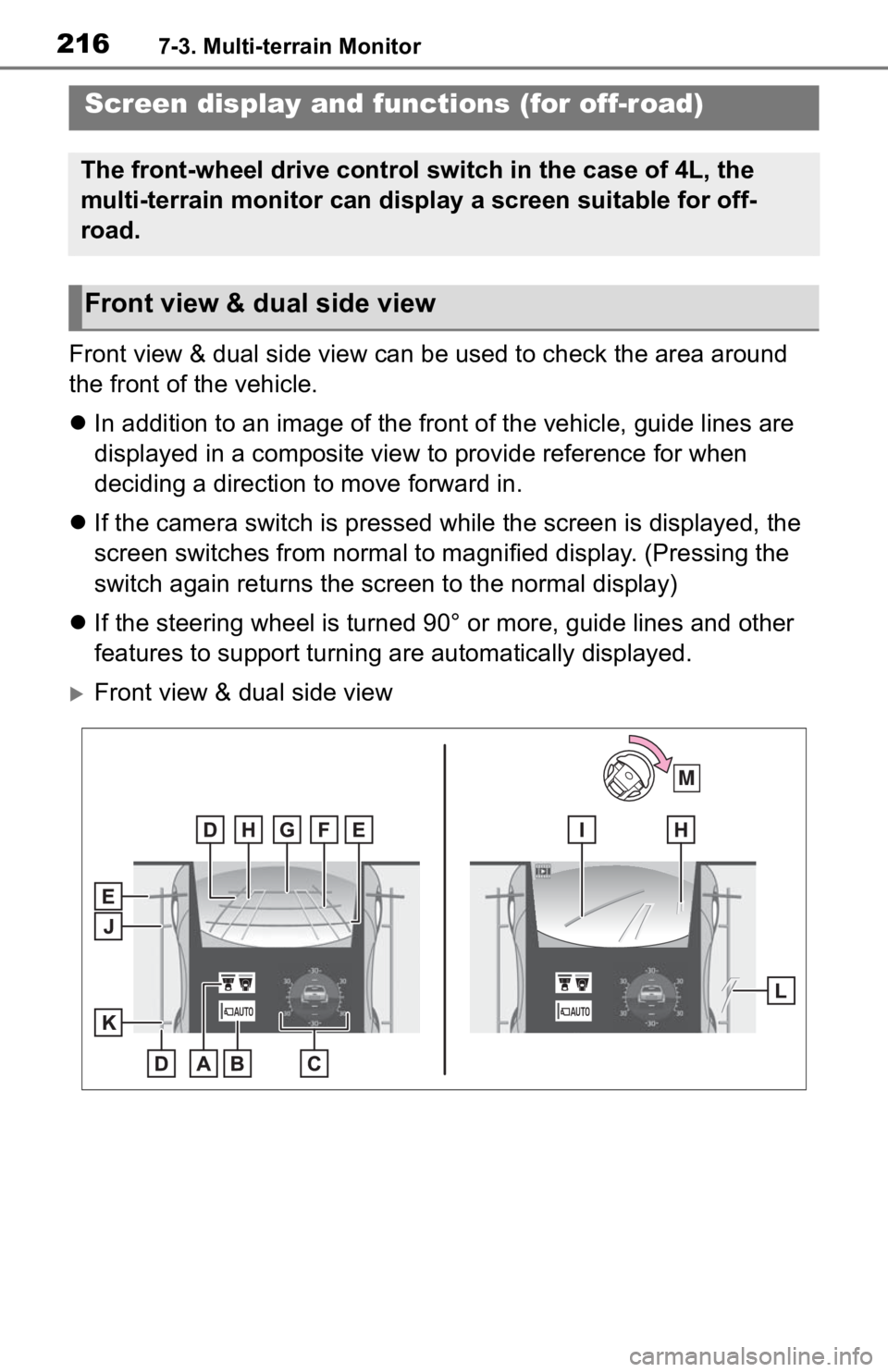

Front view & dual side view
Screen display and func tions (for off-road)
The front-wheel drive control switch in the case of 4L, the
multi-terrain monitor can display a screen suitable for off-
road.
Front view & dual side view
M
Page 215 of 314

2177-3. Multi-terrain Monitor
7
Peripheral monitoring system
Front view & dual side view (front magnified)Under vehicle terrain view selection button
Select to switches between front view and under vehicle terrain view.
Automatic display button
Select to turn automatic display mode on/off. The indicator on the button
illuminates during autom atic display mode. (P.211)
Tilt meter/slip display
Displays the vehicle’s estimate d degree of incline or indicates a tire slip-
page. ( P.218, 219)
Vehicle width lines (blue)
Shows guide lines of the vehicle’ s width including the outside rear view mir-
rors.
1.5 ft. (0.5 m) distance guide line (red)
Show distance in front of the vehicle.
• Display points approximately 1 .5 ft. (0.5 m) from the edge of the bumper.
3 ft. (1 m) distance guide line (blue)
6 ft. (2 m) distance guide line (blue)
Front tire course line (yellow)
Shows the estimated course of the front tires according to steering wheel
position.
Forward movement guide line (blue)
Shows the estimated tire cours e of the tightest possible turn.
Front tire contact line (blue)
M
A
B
C
D
E
F
G
H
I
J
Page 216 of 314

2187-3. Multi-terrain Monitor
Shows guide lines of where the front tire touches the ground.
Rear tire contact line (blue)
Shows guide lines of where the rear tire touches the ground.
Rear tire course line (yellow)
Shows the estimated course of the rear tires.
When the steering wheel is turned by 90° or more
●The screen can be displayed when the shift lever is in a positi on other
than “R”.
●When the intuitive parking assist detects an obstacle or anothe r vehicle, a
warning message pops up in the tilt meter/slip display area.
This function operates when the front-wheel drive control switch is in
4L. The front view image is autom atically adjusted to be parallel and
assist the driver to check road surface conditions regardless o f the
vehicle inclination.
●The vehicle inclination displayed on the screen may differ from the actual
state.
●When the rotated screen is displ ayed, the corners of the front bumper may
not be seen on the screen.
Tilt meter displays the vehicle
inclination to the front, rear, left
and right within a range of 0° to
approximately 30°. Front view rotating display function
K
L
M
7 L O W P H W H U
Page 217 of 314

2197-3. Multi-terrain Monitor
7
Peripheral monitoring system
Degree markers of incline to
the front and rear
Indicates the vehicle inclination in
degrees in the front and rear direc-
tions.
Degree markers of incline to
the left and right
Indicates the vehicl e inclination in
degrees in the left and right direc-
tions.
Pointer
Indicates the degree of the vehicle
inclination in comparison to a paral-
lel line.
●The display indicates the incline of
the vehicle in degrees shown by
the movement of the pointer and
the rotation of the vehicle image.
●The color of the degree markers of
incline to the fron t, rear, left and
right changes according to the
current incline of the vehicle.
●After the engine switch is in ON,
the degree of incline is not dis-
played until such information is
determined.
●The degree of incline showed on
the tilt meter is only an approxi-
mate indication, and may differ from the degree
of incline mea-
sured using other equipment.
When tire slippage is detected,
the tilt meter display area is
automatically switched to the
slip display.
Tire display
Indicates the position of freely spin-
ning tires in yellow if the tire spins.
(During Crawl Cont rol is operating,
all of the tires are indicated in yel-
low.)
Pop-up display of the intuitive
parking assist
Displayed if an obstacle is detected
while the intuitive parking assist is
turned on.

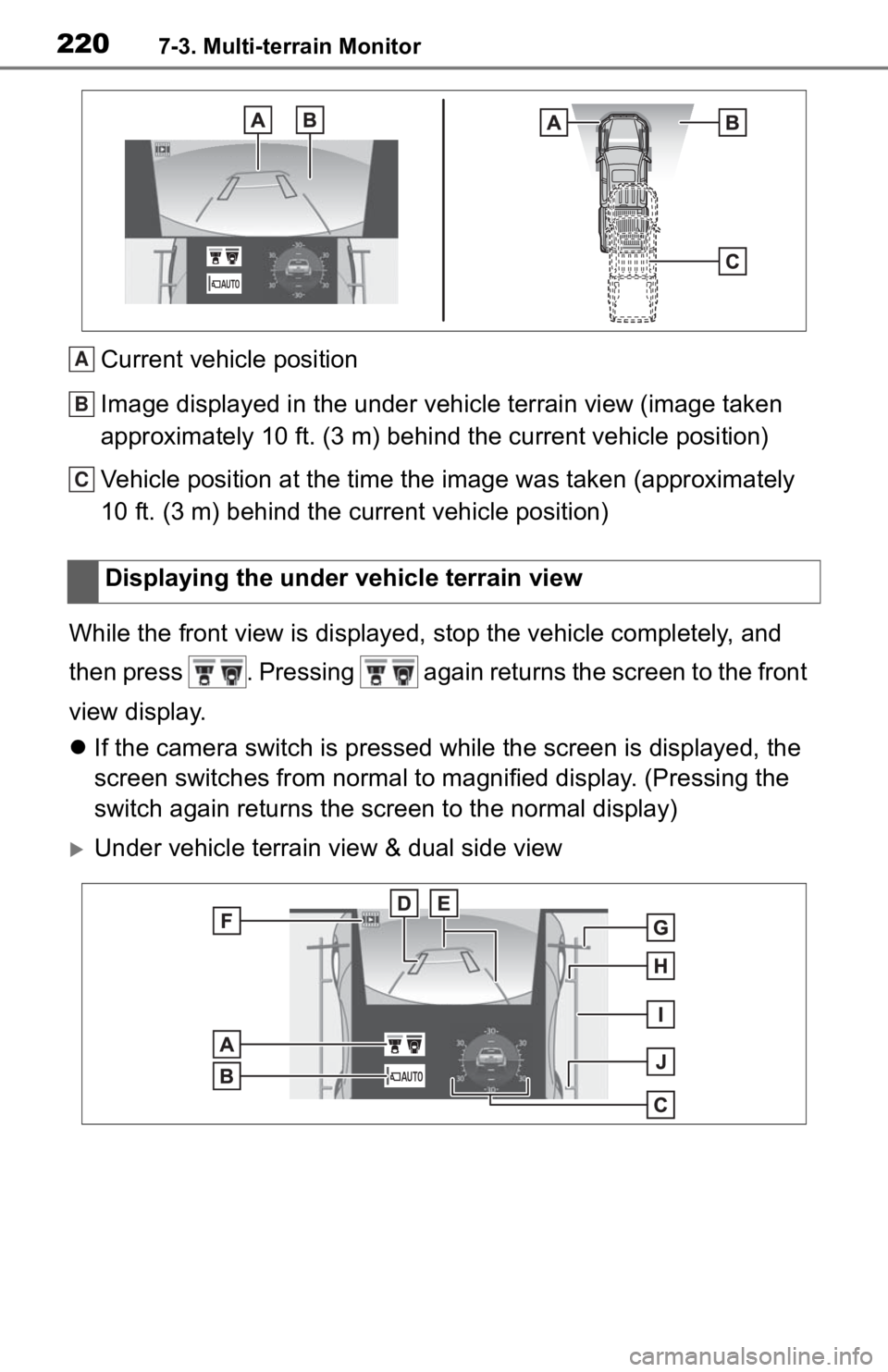

Lines indicating current vehicle and tire position are displayed in a
composite view on an image taken approximately 10 ft. (3 m) beh ind
the current vehicle position and assists the driver to check conditions
underneath the vehicle or determine the position of the front t ires.
A
B
C
Slip display
A
B
8 Q G H U Y H K L F O H \
W H U U D L Q Y L H Z G X D O V L G H Y L H Z
Page 218 of 314

2207-3. Multi-terrain Monitor
Current vehicle position
Image displayed in the under vehicle terrain view (image taken
approximately 10 ft. (3 m) behind the current vehicle position)
Vehicle position at the time the image was taken (approximately
10 ft. (3 m) behind the current vehicle position)
While the front view is displayed, stop the vehicle completely, and
then press . Pressing again returns the screen to the front
view display.
If the camera switch is pressed while the screen is displayed, the
screen switches from normal to magnified display. (Pressing the
switch again returns the screen to the normal display)
Under vehicle terrain view & dual side view Displaying the under vehicle terrain view
A
B
C
Page 219 of 314

2217-3. Multi-terrain Monitor
7
Peripheral monitoring system
Under vehicle terrain view & dual side view (front magnified)Under vehicle terrain view selection button
Select to switches between front view and under vehicle terrain view.
Automatic display button
Select to turn automatic display mode on/off. The indicator on the button
illuminates during autom atic display mode. (P.211)
Tilt meter/slip display
Displays the vehicle’s estimate d degree of incline or indicates a tire slip-
page. ( P.218, 219)
Tire position indicator lines (black)
Indicates the estimated po sition of the front tires.
Vehicle position indicator lines (blue)
Indicates the estimated position of the vehicle.
Icon (flashing)
Indicates that the under vehicle terrain view display is of an image taken in
the past.
1.5 ft. (0.5 m) distance guide line (red)
Show distance in front of the vehicle.
• Display points approximately 1 .5 ft. (0.5 m) from the edge of the bumper.
Front tire contact line (blue)
Shows guide lines of where the f ront tire touches the ground.
Vehicle width lines (blue)
Shows guide lines of the vehicle’ s width including the outside rear view mir-
rors.
Rear tire contact line (blue)
Shows guide lines of where the rear tire touches the ground.
A
B
C
D
E
F
G
H
I
J
Page 220 of 314

2227-3. Multi-terrain Monitor
●The screen can be displayed when the shift lever is in a position other
than “R”.
●While the under vehicle terrain view is displayed, if the vehicle speed
reaches or exceeds approximately 3 mph (5 km/h), the screen automati-
cally returns to the front view display.
●In the following situations, the under vehicle terrain view sel ection button
cannot be operated.
• The vehicle is not completely stopped
• After the engine starts, a fixed distance or more has not been driven
• After the front-wheel drive cont rol switch is shifted to 4L, a fixed distance
or more has not been driven
●In the following situations, the system may not operate normall y, or it may
not be possible to switch to the under vehicle terrain view.
• The road is covered with snow
• It is nighttime and the road has no illumination
• Dirt or foreign matter is adhering to the camera lens
• There is water in front of the vehicle (a river, puddle, sea water, etc.)
The rear view & dual side view/wide rear view screen provide sup-
port when checking the areas of behind the vehicle and around t he
vehicle while backing up, for example while parking.
The screens will be displayed when the shift lever is in the “R” posi-
tion.
WARNING
●The tire position indicator lines and vehicle pos ition indicator lines may
differ from actual vehicle positions depending on the number of passen-
gers, cargo weight, road grade, r oad surface conditions, brightness of
the surrounding environment, etc. Always drive the vehicle whil e con-
firming the safety of your surroundings.
●The image displayed is one that was previously taken at a point approx-
imately 10 ft. (3 m) behind the current vehicle position. In cases such as
when objects move after the image is taken, the image displayed on the
screen may differ fr om the actual state.
Rear view & dual side view/wide rear view
