Fan speed selector
Push the “” (increase) or “ ” (decrease)
button to adjust the fan speed.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
When you adjust the temperature selector
to maximum cooling while the air condi-
tioning is on and the air flow mode is set
to panel, bi −level or floor, a “MAX A/C”
message appears on the display and the
air intake mode will be automatically
changed to RECIRCULATE.
“OFF” button
Push the button to turn off the air condi-
tioning system.
18T010
“MODE” button
Push the button to select your desired air
flow mode.
1. Panel— Air flows mainly from the
instrument panel vents.
2. Bi–level— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH.
18T005
Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and
turns on the defogging function with the
purpose of clearing the front view.
Pressing this button once again returns
the air flow mode to the last one used.
This button allows the air intake to select
FRESH automatically. This is to clean up
the windshield more quickly. If you want
to return the setting to RECIRCULATE
mode, press the air intake selector button
once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

134
For details about air flow selector settings,
see “Air flow selector settings” described
below.
18T006
Air intake selector
Push the button to select the air source.1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem.
Recirculate mode or Fresh mode may be
automatically switched to in accordance
with the temperature setting and the inside
temperature. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.

135
Air flow selector settingsOperating tips
To cool off your Scion after it has been
parked in the hot sun, drive with the
windows open for a few minutes. This
vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

136
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
During use, various odors from inside
and outside the vehicle may enter into
and accumulate in the air conditioning
system. This may then cause odor to
be emitted from the vents.
To reduce potential odors from occur-
ring:
It is recommended that the air condi-
tioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
To prevent the windshield from fogging
up, do not use the windshield air flow
button during cool air operation in ex-
tremely humid weather. The difference
between the temperature of the outside
air and that of the windshield can
cause the outer surface of the wind-
shield to fog up, blocking your vision.
NOTICE
To prevent battery discharge, do not
leave the air conditioning system on
longer than necessary when the en-
gine is stopped.
Heating
For best results, set controls to:
Fan speed— To the desired fan speed
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— To the desired fan speed
Temperature— To w a r d s blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speed— To the desired fan speed
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF

137
Defogging
The inside of the windshield
For best results, set controls to:Fan speed— To the desired fan speed
Temperature— Towards red zone to heat;
blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— To the desired fan speed
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
OPEN OPEN
CLOSE CLOSE
1. Side vents
2. Center vents
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
18T008
1. Side vents
2. Center vents
You can change air flow direction by turn-
ing the instrument panel vents.
Instrument panel vents

138
The air conditioning filter information
label is placed as shown and indicates
that a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is set behind
the glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioner and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Air conditioning filter—
—Checking and replacing the
air conditioning filter

139
REMOVAL METHOD:1. Open the glove box, and slide off the damper as shown.
When removing, turn off the engine.2. Push in each side of the glove boxto disconnect the claws.3. Pull the filter case toward you totake it out.

140
4. Remove the filter from the filter caseand replace it with a new one. 5. Install the filter and filter case in the
reverse order of removal.
When setting the filter to the filter case,
ensure that the flat side of the filter is
down and the ribbed side is up.

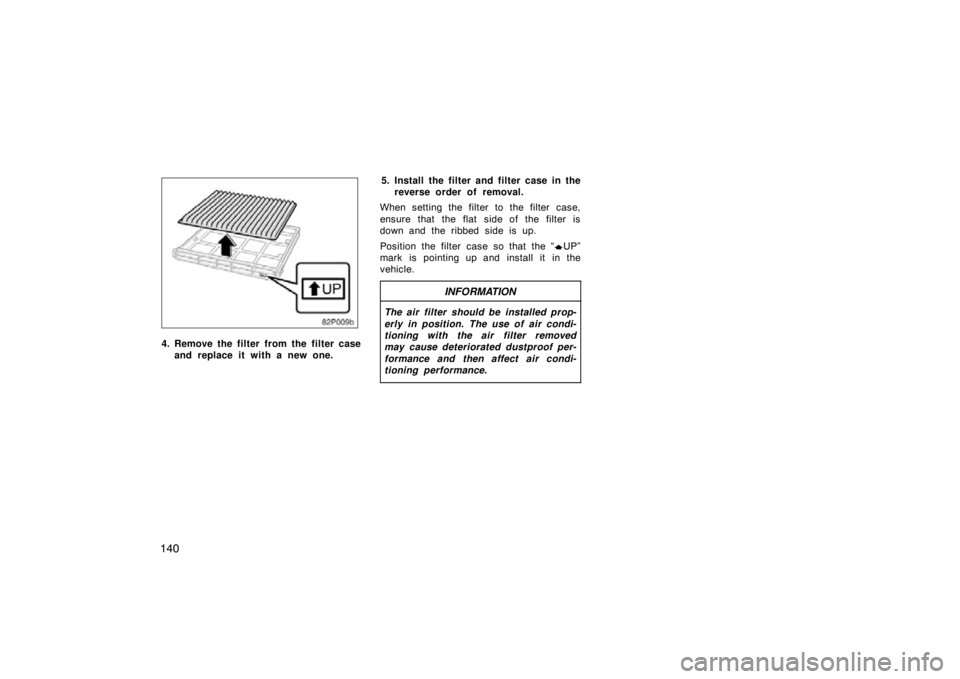

Position the filter case so that the “ UP”
mark is pointing up and install it in the
vehicle.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

141
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature display 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls (steering switches) 143
. . . . . . . . . . . . . . . . . . . . .
AUX adapter 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
iPod jack 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cigarette lighter 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power outlet 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary box 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear console box 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tie–down hooks 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage storage box 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Side mudguard 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 1– 9

142
Clock
The digital clock indicates the time with
the ignition off. To reset the time, the
engine switch must be in the “ON” posi-
tion.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.

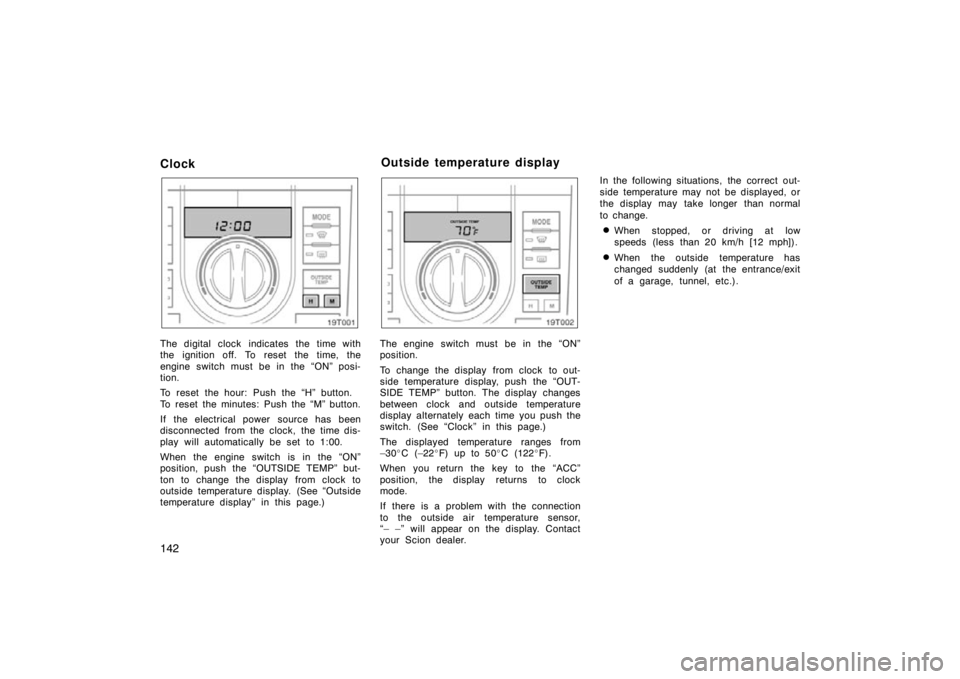

When the engine switch is in the “ON”
