94
Headlights and turn signals

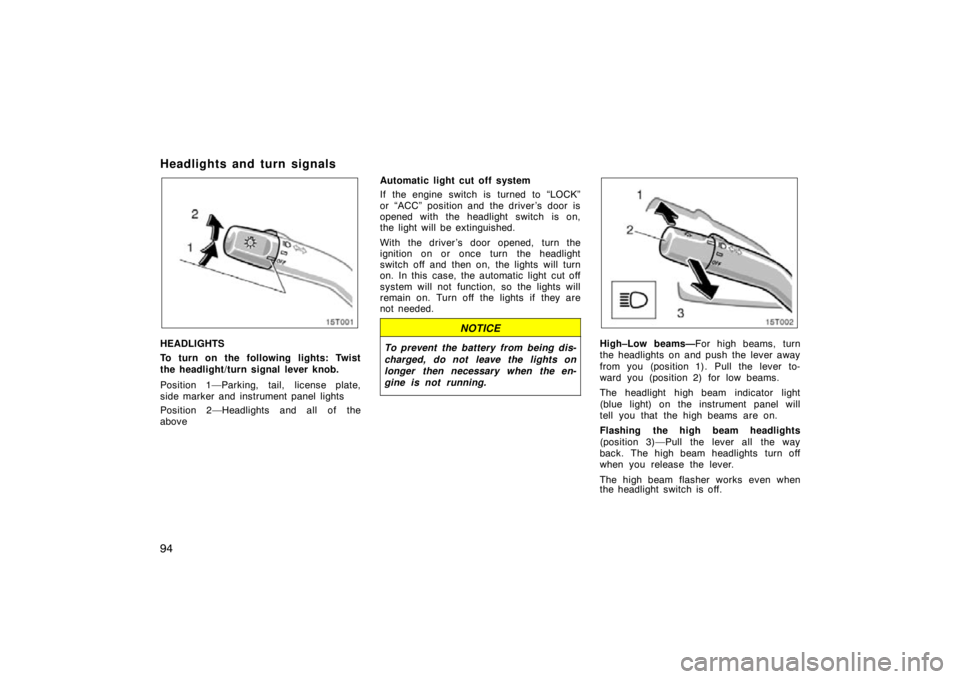

HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveAutomatic light cut off system
If the engine switch is turned to “LOCK”
or “ACC” position and the driver’s door is
opened with the headlight switch is on,
the light will be extinguished.
With the driver ’s door opened, turn the
ignition on or once turn the headlight
switch off and then on, the lights will turn
on. In this case, the automatic light cut off
system will not function, so the lights will
remain on. Turn off the lights if they are
not needed.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
longer then necessary when the en-
gine is not running.High–Low beams—
For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
The high beam flasher works even when
the headlight switch is off.

95

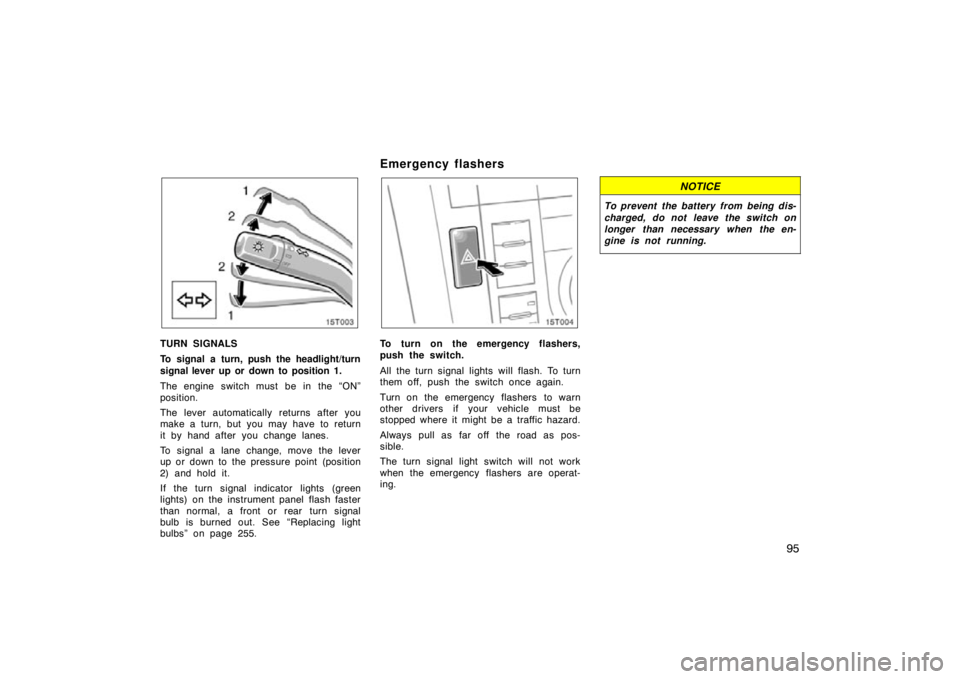

TURN SIGNALS
To signal a turn, push the headlight/turn
signal lever up or down to position 1.
The engine switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 255.
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.

96

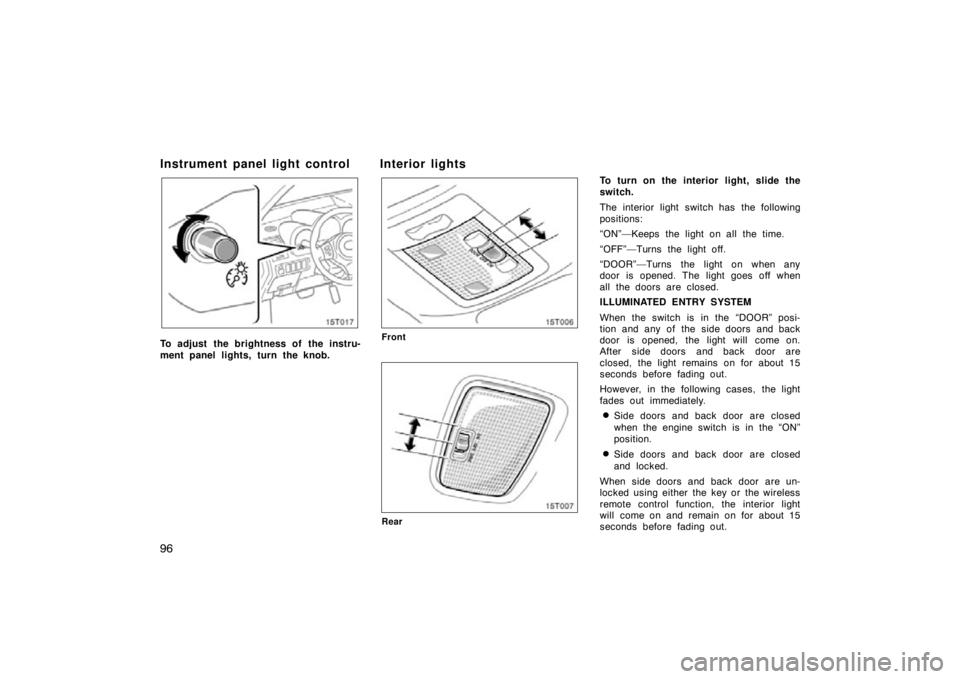

Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior lights
Front
15T007
Rear
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any
door is opened. The light goes off when
all the doors are closed.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately.
Side doors and back door are closed
when the engine switch is in the “ON”
position.
Side doors and back door are closed
and locked.
When side doors and back door are un-
locked using either the key or the wireless
remote control function, the interior light
will come on and remain on for about 15
seconds before fading out.

97
To prevent the battery from being dis-
charged, the light will automatically turn
off when the key is removed and the door
is left opened with the switch at the
“DOOR” position for 20 minutes or more.
15T012

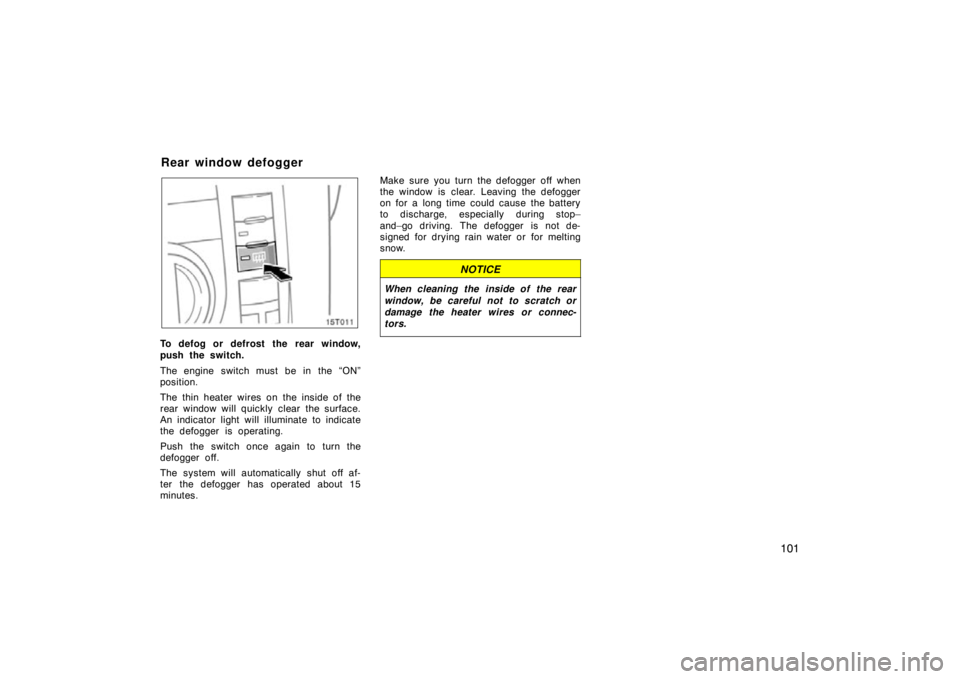

For easy access to the engine switch,
the engine switch light comes on when
any of the side doors and back door is
opened.
The light remains on for about 15 seconds
after all the doors are closed.
However, in the following cases, the light
goes off immediately.
Side doors and back door are closed
when the engine switch is in the “ON”
position.
Side doors and back door are closed
and locked.When side doors and back door are un-
locked using either the key or the wireless
remote control function, the engine switch
light will come on and remain on for about
15 seconds before fading out.
To prevent the battery from being dis-
charged, the light will automatically turn
off when the key is removed and the door
is left opened with the switch at the
“DOOR” position for 20 minutes or more.
Engine (ignition) switch light

98
15T008

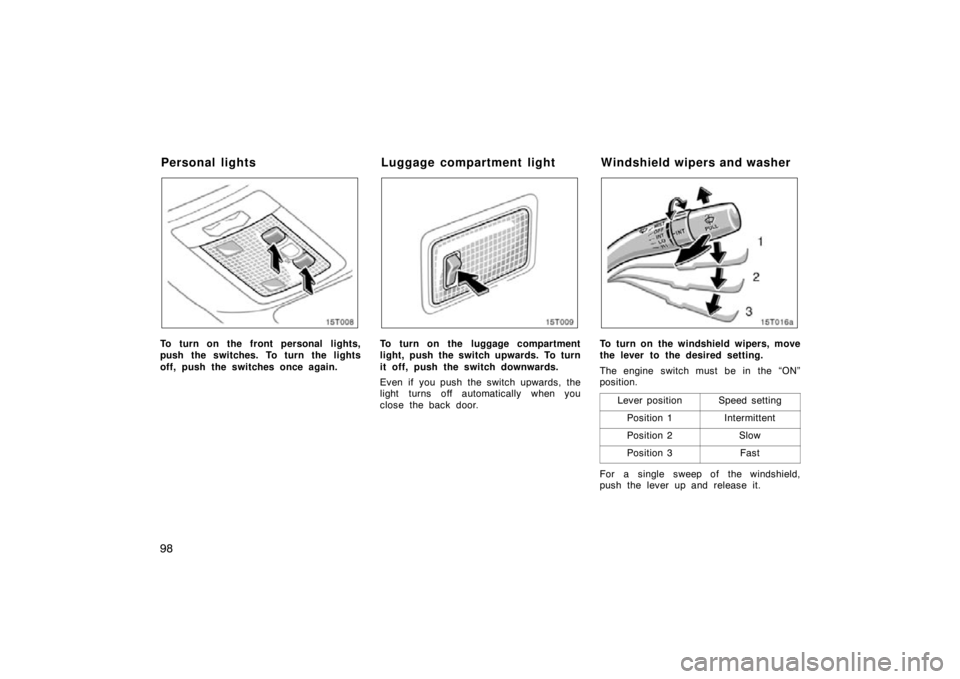

To turn on the front personal lights,
push the switches. To turn the lights
off, push the switches once again.
15T009
To turn on the luggage compartment
light, push the switch upwards. To turn
it off, push the switch downwards.
Even if you push the switch upwards, the
light turns off automatically when you
close the back door.To turn on the windshield wipers, move
the lever to the desired setting.
The engine switch must be in the “ON”
position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
Personal lights Luggage compartment light Windshield wipers and washer

99
With interval adjuster: The “INT” band lets
you adjust the wiping time interval when
the wiper lever is in the intermittent posi-
tion (position 1). Twist the band upward to
increase the time between sweeps, and
downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 255.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Scion dealer to have the ve-
hicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
15T013

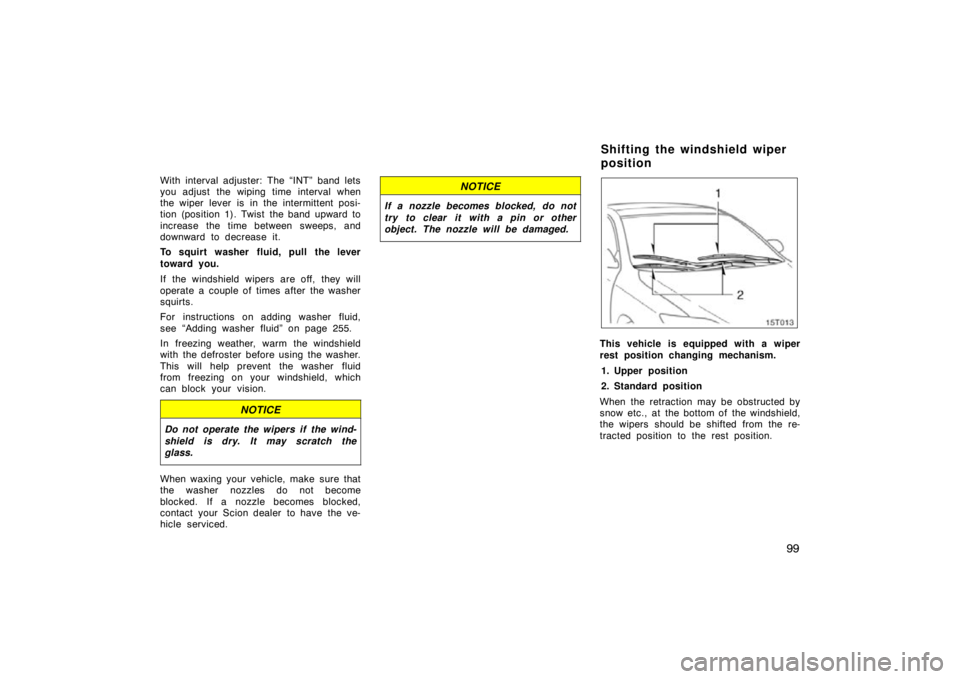

This vehicle is equipped with a wiper
rest position changing mechanism.1. Upper position
2. Standard position
When the retraction may be obstructed by
snow etc., at the bottom of the windshield,
the wipers should be shifted from the re-
tracted position to the rest position.
Shifting the windshield wiper
position

100
Changing the wiper rest position can be
difficult if there is a build–up of snow.
Also, if the wipers are in the upper rest
position, it will be more difficult for the
wiper blades to make contact with the
glass.
If the wipers are operated from their stan-
dard position, and there is a build–up of
snow on the wipers, the wipers are de-
signed to automatically change to the up-
per position for winter. Depending on the
amount of accumulated snow, the wipers
may make a scraping noise. If such a
sound is heard, change the wipers to the
upper position and remove any accumu-
lated snow.

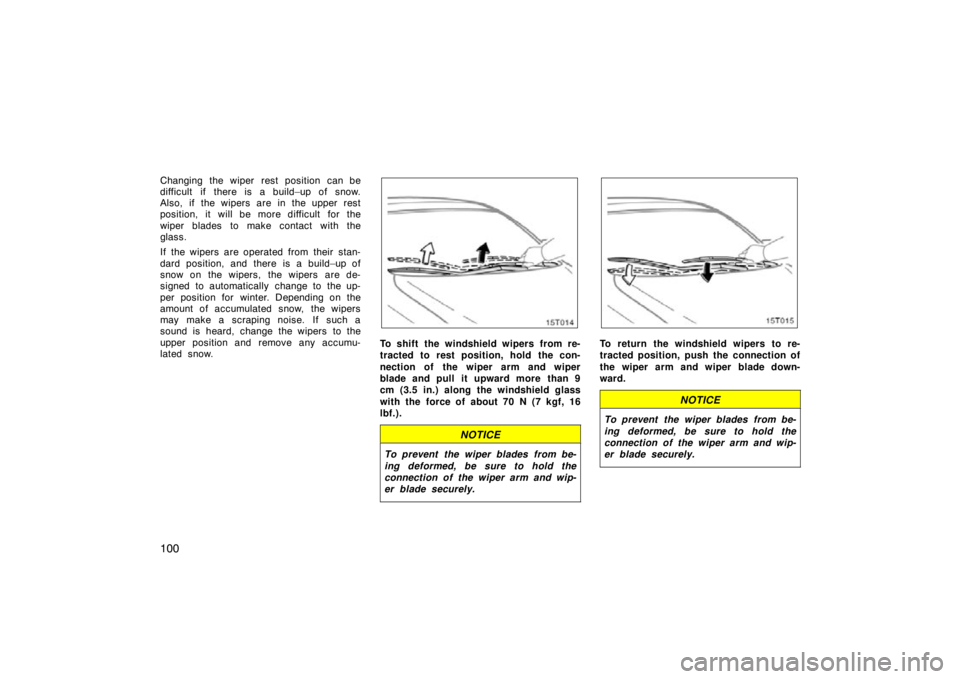

15T014
To shift the windshield wipers from re-
tracted to rest position, hold the con-
nection of the wiper arm and wiper
blade and pull it upward more than 9
cm (3.5 in.) along the windshield glass
with the force of about 70 N (7 kgf, 16
lbf.).
NOTICE
To prevent the wiper blades from be-
ing deformed, be sure to hold the
connection of the wiper arm and wip-
er blade securely.
15T015
To return the windshield wipers to re-
tracted position, push the connection of
the wiper arm and wiper blade down-
ward.
NOTICE
To prevent the wiper blades from be-
ing deformed, be sure to hold the
connection of the wiper arm and wip-
er blade securely.

101
To defog or defrost the rear window,
push the switch.
The engine switch must be in the “ON”
position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop–
and–go driving. The defogger is not de-
signed for drying rain water or for melting
snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window defogger
