Hood
12T045

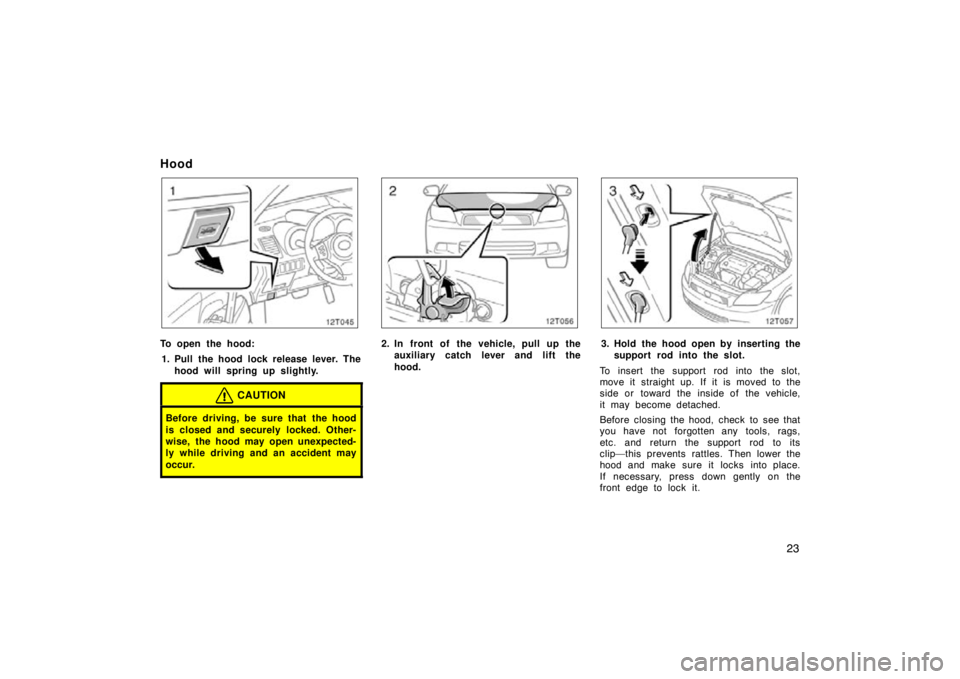

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
12T056
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
12T057
3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.

24
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
Fuel tank cap
12T025

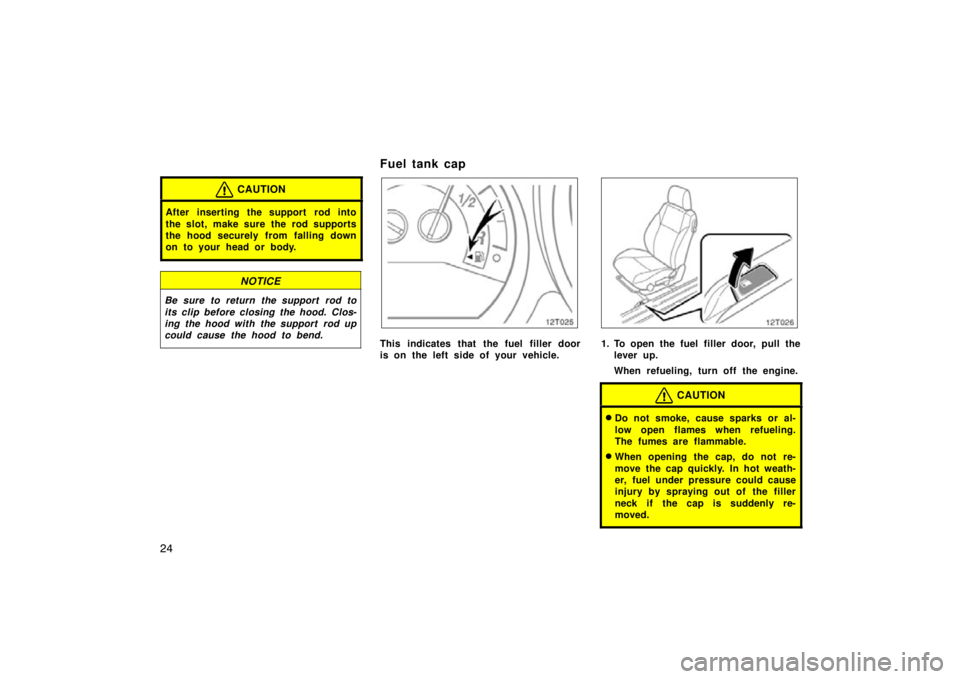

This indicates that the fuel filler door
is on the left side of your vehicle.
12T026
1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.

25

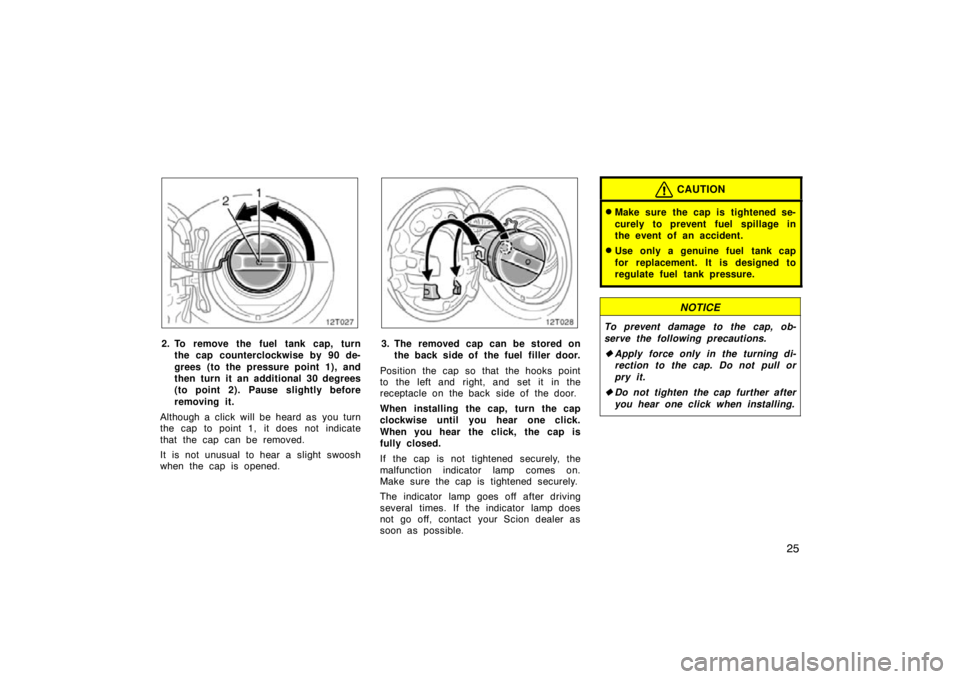

2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
Although a click will be heard as you turn
the cap to point 1, it does not indicate
that the cap can be removed.
It is not unusual to hear a slight swoosh
when the cap is opened.
12T028
3. The removed cap can be stored on the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door.
When installing the cap, turn the cap
clockwise until you hear one click.
When you hear the click, the cap is
fully closed.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Scion dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine fuel tank cap
for replacement. It is designed to
regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, ob-
serve the following precautions.
 Apply force only in the turning di-
rection to the cap. Do not pull or
pry it.
 Do not tighten the cap further after
you hear one click when installing.

26
12T042
Position 1
Position
2
Position
3
: Push the “OPEN” side briefly

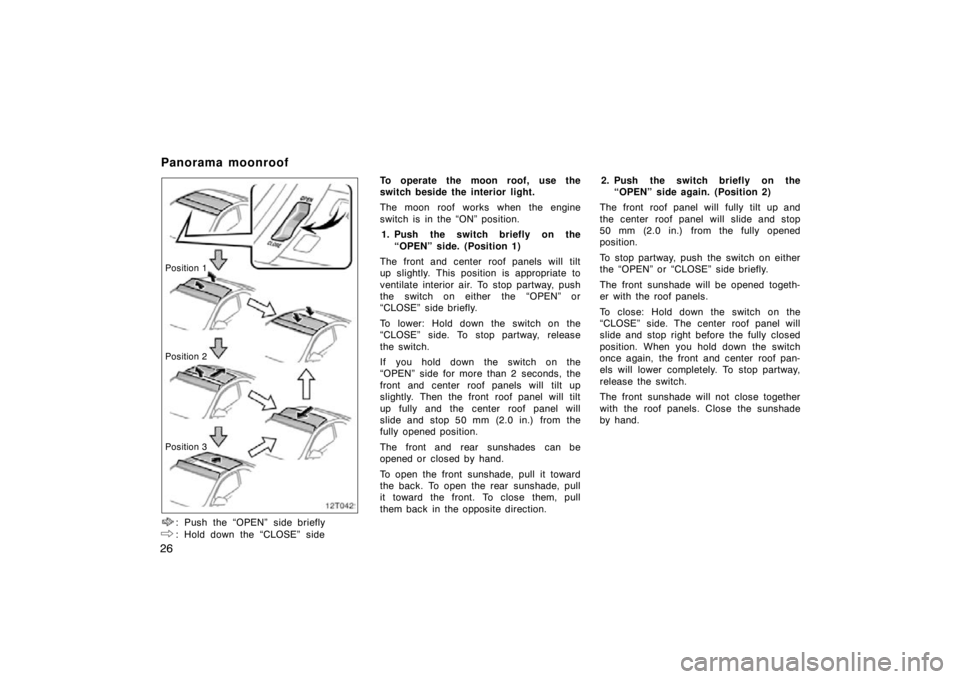

: Hold down the “CLOSE” side To operate the moon roof, use the
switch beside the interior light.
The moon roof works when the engine
switch is in the “ON” position.
1. Push the switch briefly on the “OPEN” side. (Position 1)
The front and center roof panels will tilt
up slightly. This position is appropriate to
ventilate interior air. To stop partway, push
the switch on either the “OPEN” or
“CLOSE” side briefly.
To lower: Hold down the switch on the
“CLOSE” side. To stop partway, release
the switch.
If you hold down the switch on the
“OPEN” side for more than 2 seconds, the
front and center roof panels will tilt up
slightly. Then the front roof panel will tilt
up fully and the center roof panel will
slide and stop 50 mm (2.0 in.) from the
fully opened position.
The front and rear sunshades can be
opened or closed by hand.
To open the front sunshade, pull it toward
the back. To open the rear sunshade, pull
it toward the front. To close them, pull
them back in the opposite direction. 2. Push the switch briefly on the
“OPEN” side again. (Position 2)
The front roof panel will fully tilt up and
the center roof panel will slide and stop
50 mm (2.0 in.) from the fully opened
position.
To stop partway, push the switch on either
the “OPEN” or “CLOSE” side briefly.
The front sunshade will be opened togeth-
er with the roof panels.
To close: Hold down the switch on the
“CLOSE” side. The center roof panel will
slide and stop right before the fully closed
position. When you hold down the switch
once again, the front and center roof pan-
els will lower completely. To stop partway,
release the switch.
The front sunshade will not close together
with the roof panels. Close the sunshade
by hand.
Panorama moonroof

27
3. Push the switch briefly on the“OPEN” side one more time. (Posi-
tion 3)
The center roof panel will slide fully.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof 50 mm
(2.0 in.) from the fully opened position.
To stop partway, push the switch on either
the “OPEN” or “CLOSE” side briefly.
The front sunshade will be opened togeth-
er with the roof panels.
To close: Hold down the switch on the
“CLOSE” side. The center roof panel will
slide and stop right before the fully closed
position. When you hold down the switch
once again, the front and center roof pan-
els will lower completely. To stop partway,
release the switch.
The front sunshade will not close together
with the roof panels. Close the sunshade
by hand. Key off operation:
If both side doors are
closed, the moon roof works for 43 sec-
onds even after the engine switch is
turned off. It stops working when either
side door is opened.
Jam protection function: If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens to a full open posi-
tion or the position opened about 200 mm
(7.9 in.).
If the moon roof receives a strong impact,
this function may work even if nothing is
caught. If the battery is disconnected or run
down,
the moon roof may not operate au-
tomatically and the jam protection function
will not function correctly after you recon-
nect, replace or recharge the battery. In
any of these cases, you should normalize
the moon roof.
To normalize the moon roof, hold the
switch on the “CLOSE” side for more than
2 seconds with the moon roof fully closed.
Make sure that the moon roof opens auto-
matically. If the moon roof cannot be oper-
ated properly, have it checked by your
Scion dealer.
There are cases where malfunctions may
activate the jam protection function, which
will prevent the roof from closing com-
pletely. In this case, pushing and holding
the switch on the “CLOSE” side will close
the roof completely.

28

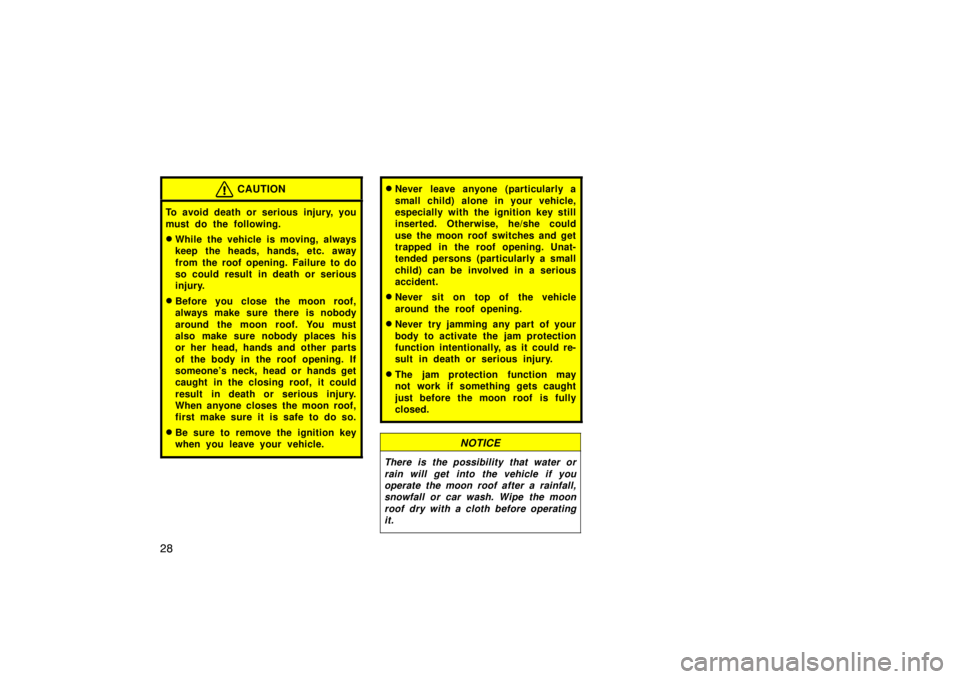

CAUTION
To avoid death or serious injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands, etc. away
from the roof opening. Failure to do
so could result in death or serious
injury.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended persons (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
NOTICE
There is the possibility that water or
rain will get into the vehicle if you
operate the moon roof after a rainfall,
snowfall or car wash. Wipe the moon
roof dry with a cloth before operating
it.

29
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Head restraints 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbags and front passenger airbag 48
. . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 56
. . . . . . . . . . . . . . . . . . . .
Child restraint 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1– 3

30
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

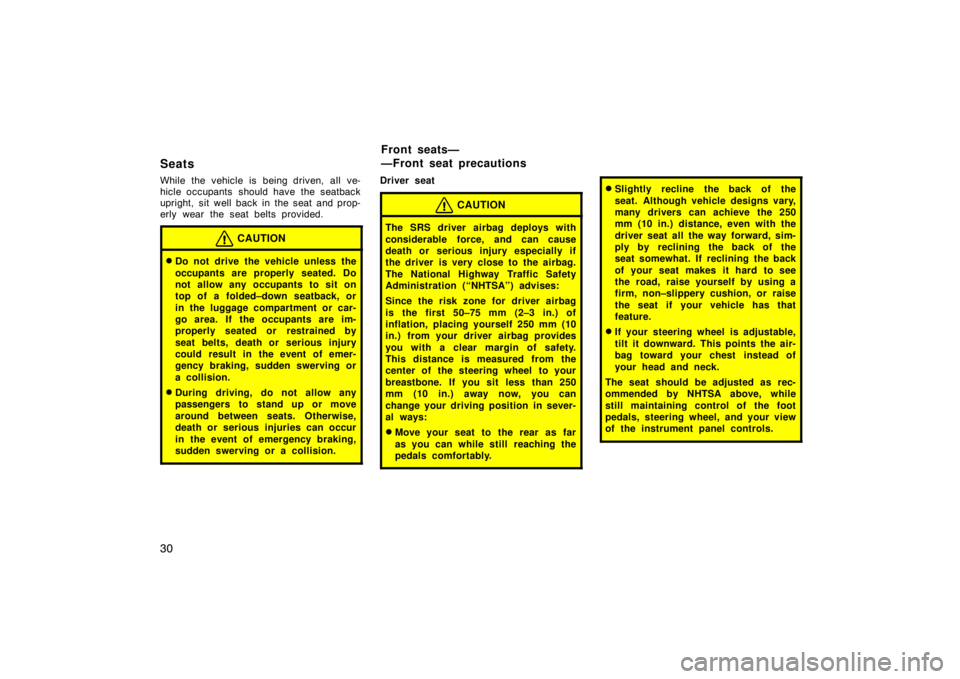

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any occupants to sit on
top of a folded–down seatback, or
in the luggage compartment or car-
go area. If the occupants are im-
properly seated or restrained by
seat belts, death or serious injury
could result in the event of emer-
gency braking, sudden swerving or
a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or serious injuries can occur
in the event of emergency braking,
sudden swerving or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50–75 mm (2–3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non–slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Front seats—
—Front seat precautions

31

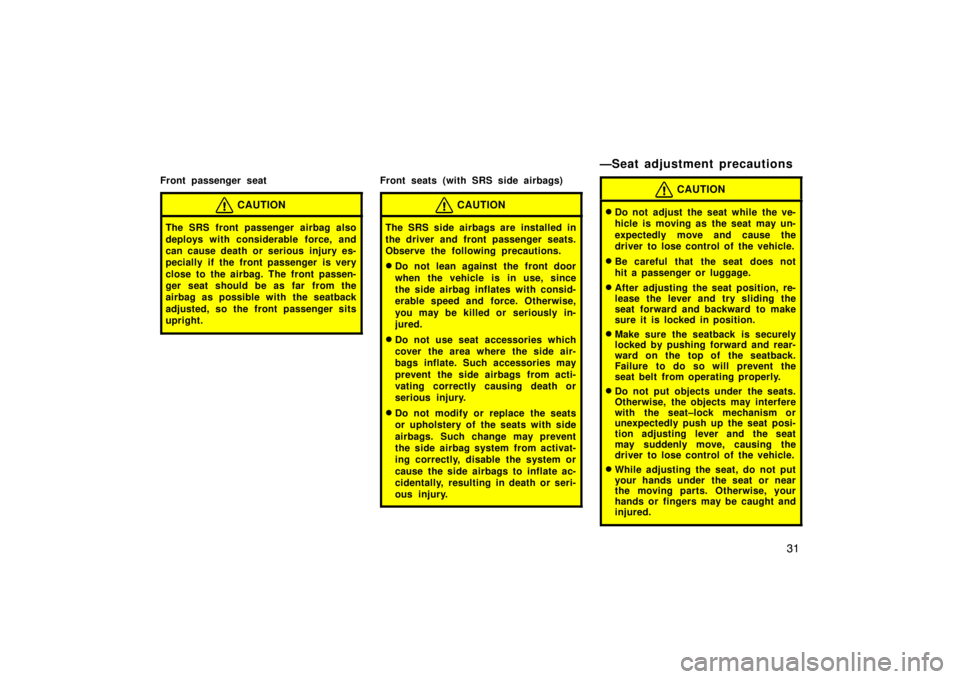

Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
—Seat adjustment precautions
CAUTION
Do not adjust the seat while the ve-
hicle is moving as the seat may un-
expectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seat–lock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.

32
—Adjusting front seats
13T001
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEAT HEIGHT ADJUSTING LEVER (for driver ’s seat only)
To change the height of the seat, pull
up or push down the lever. 4. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
5. SEATBACK LOCK RELEASE LEVER
Lift the lever. The seatback will fold
forward, and the seat’s slide lock is
released.
Driver ’s seat only:
The seatback lock release lever is
equipped with the seat position memory
function. For details, see “—Moving
front seats for rear seat entry” on page
33.
