251
3-5. Other interior features
3
Interior features

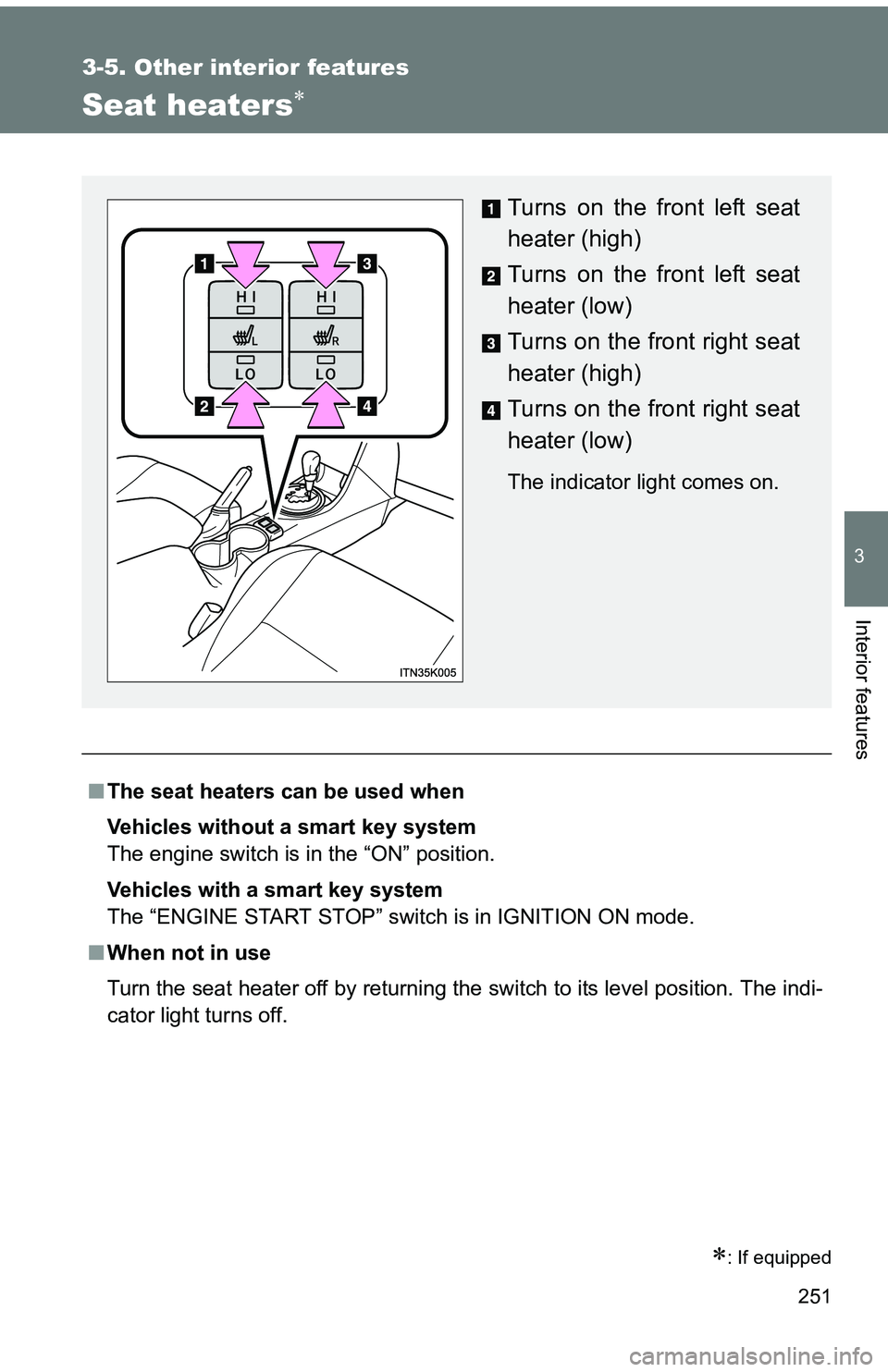

Seat heaters
■The seat heaters can be used when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When not in use
Turn the seat heater off by returning the switch to its level position. The indi-
cator light turns off.
: If equipped
Turns on the front left seat
heater (high)
Turns on the front left seat
heater (low)
Turns on the front right seat
heater (high)
Turns on the front right seat
heater (low)
The indicator light comes on.

252 3-5. Other interior features

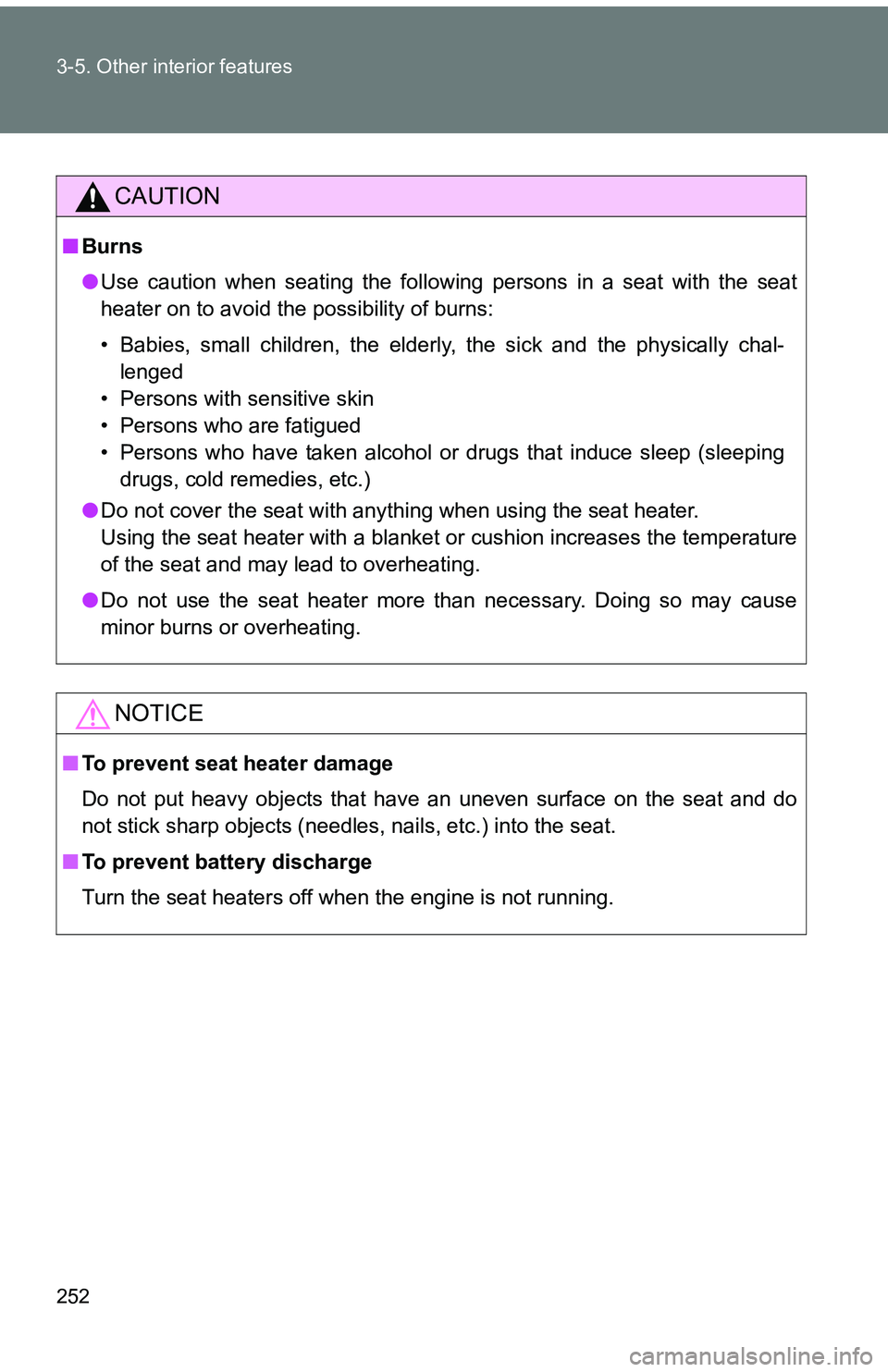

CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

253
3-5. Other interior features
3
Interior features

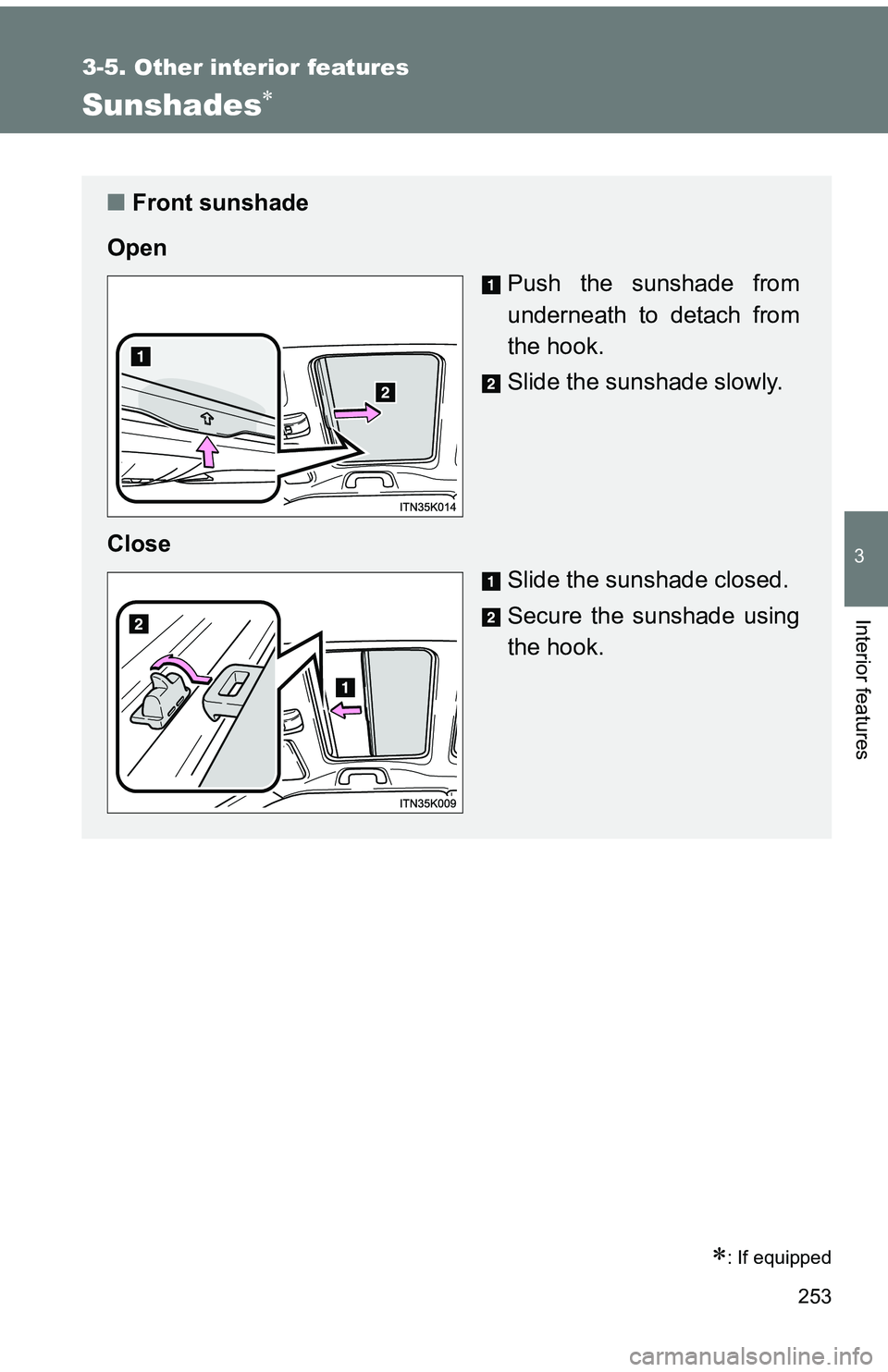

Sunshades
: If equipped
■Front sunshade
Open Push the sunshade from
underneath to detach from
the hook.
Slide the sunshade slowly.
Close Slide the sunshade closed.
Secure the sunshade using
the hook.

254 3-5. Other interior features

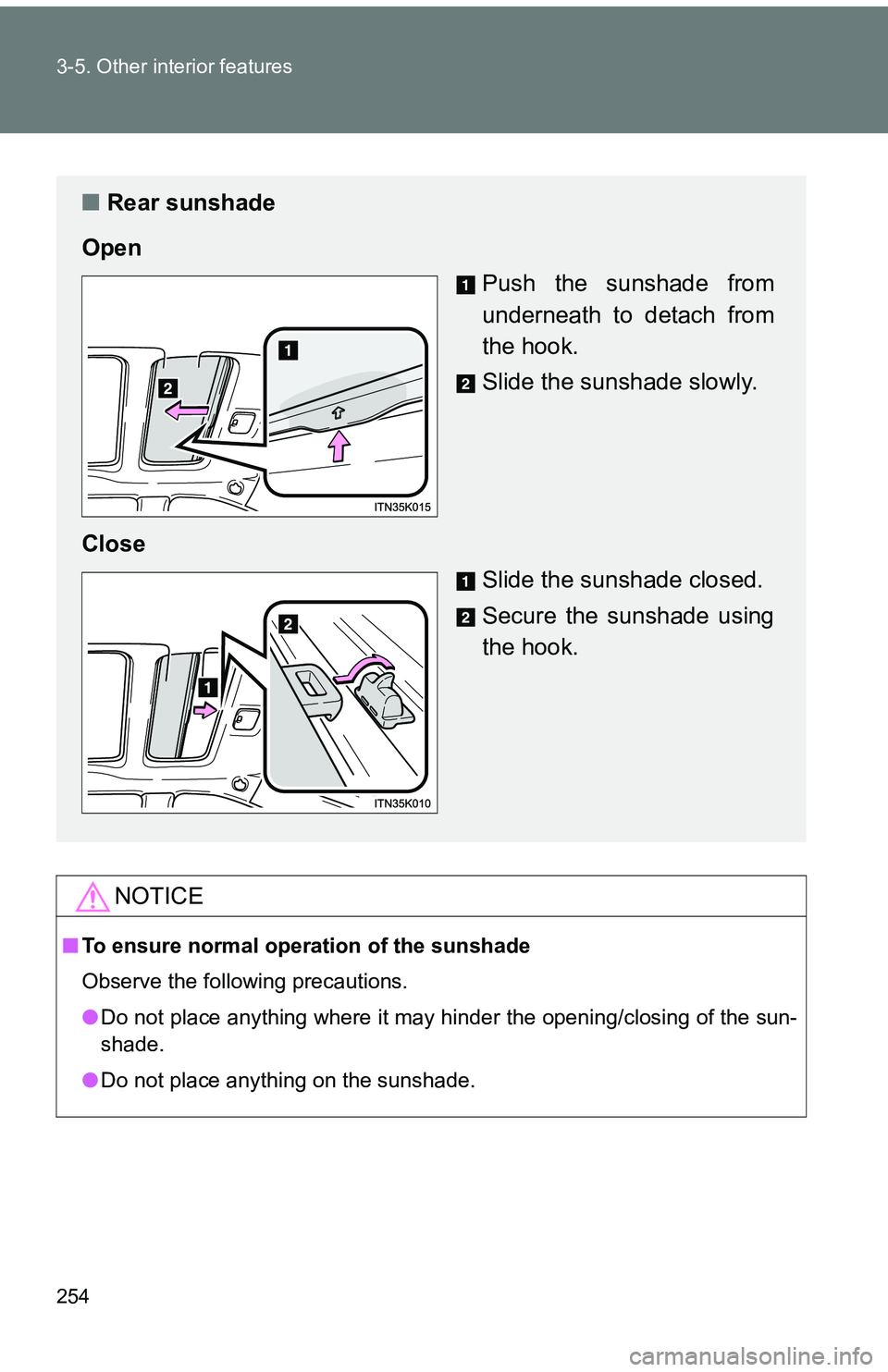

NOTICE
■To ensure normal operation of the sunshade
Observe the following precautions.
●Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
■ Rear sunshade
Open Push the sunshade from
underneath to detach from
the hook.
Slide the sunshade slowly.
Close Slide the sunshade closed.
Secure the sunshade using
the hook.

255
3-5. Other interior features
3
Interior features

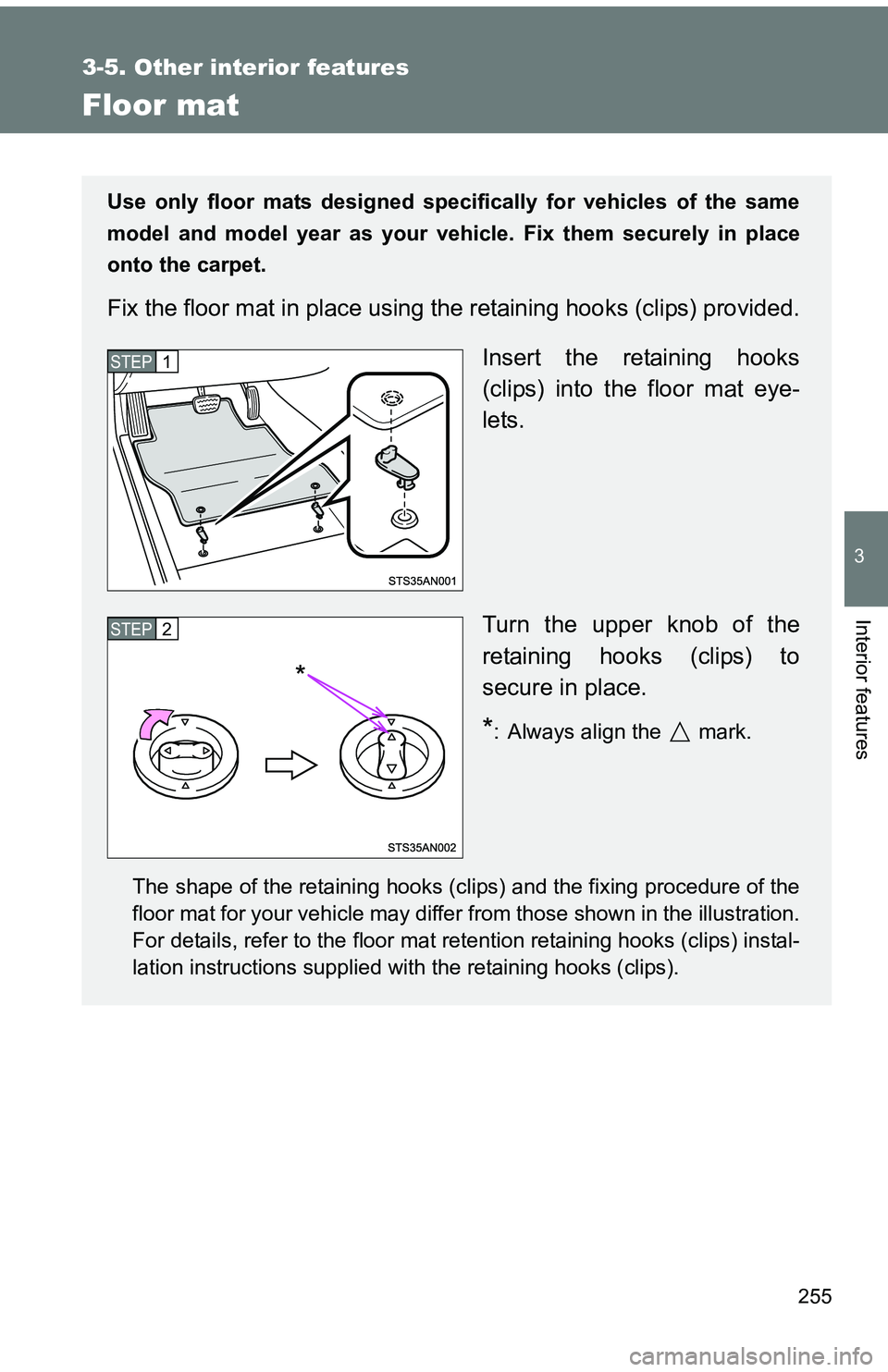

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using t he retaining hooks (clips) provided.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of the
retaining hooks (clips) to
secure in place.
*: Always align the mark.
The shape of the retaining hooks (clips) and the fixing procedure of the
floor mat for your vehicle may differ from those shown in the illustration.
For details, refer to the floor mat retention retaining hooks (clips) instal-
lation instructions supplied with the retaining hooks (clips).
STEP 1
STEP 2
*

256 3-5. Other interior features
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Scion Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the right place with all the pro-
vided retaining hooks (clips). Be espe-
cially careful to perform this check after
cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

257
3-5. Other interior features
3
Interior features

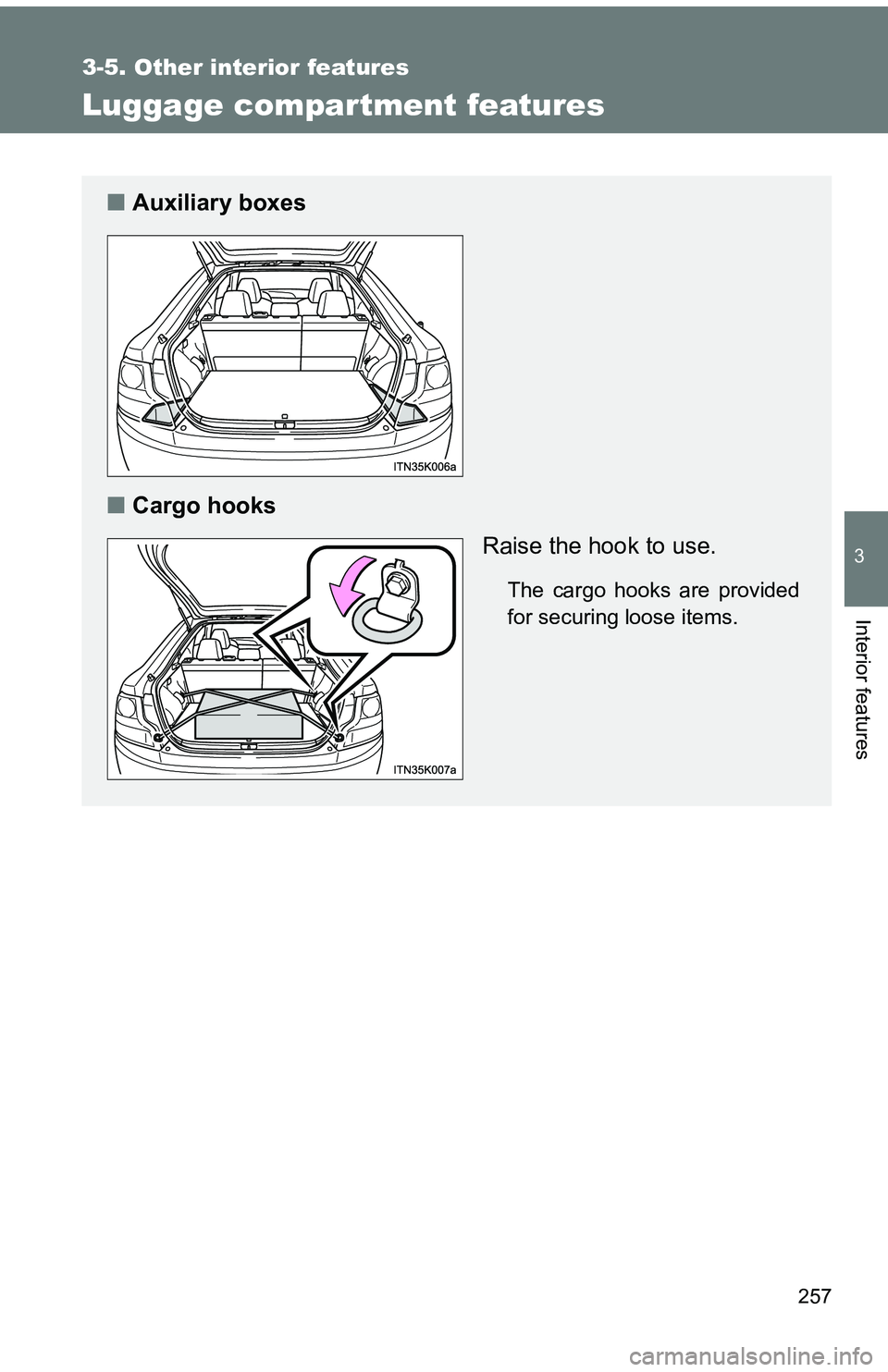

Luggage compar tment features
■Auxiliary boxes
■ Cargo hooks
Raise the hook to use.
The cargo hooks are provided
for securing loose items.

258 3-5. Other interior features
■Luggage cover (if equipped)
Hook the side of the luggage
cover.
Attach the front hooks of the
luggage cover to the rear seat
head restraints.
If the luggage cover cannot be
hooked, recline the rear seats
a little.
Remove the cap.
Attach the cap to the under-
side of the luggage cover.
STEP 1
STEP 2
STEP 3

259
3-5. Other interior features
3
Interior features

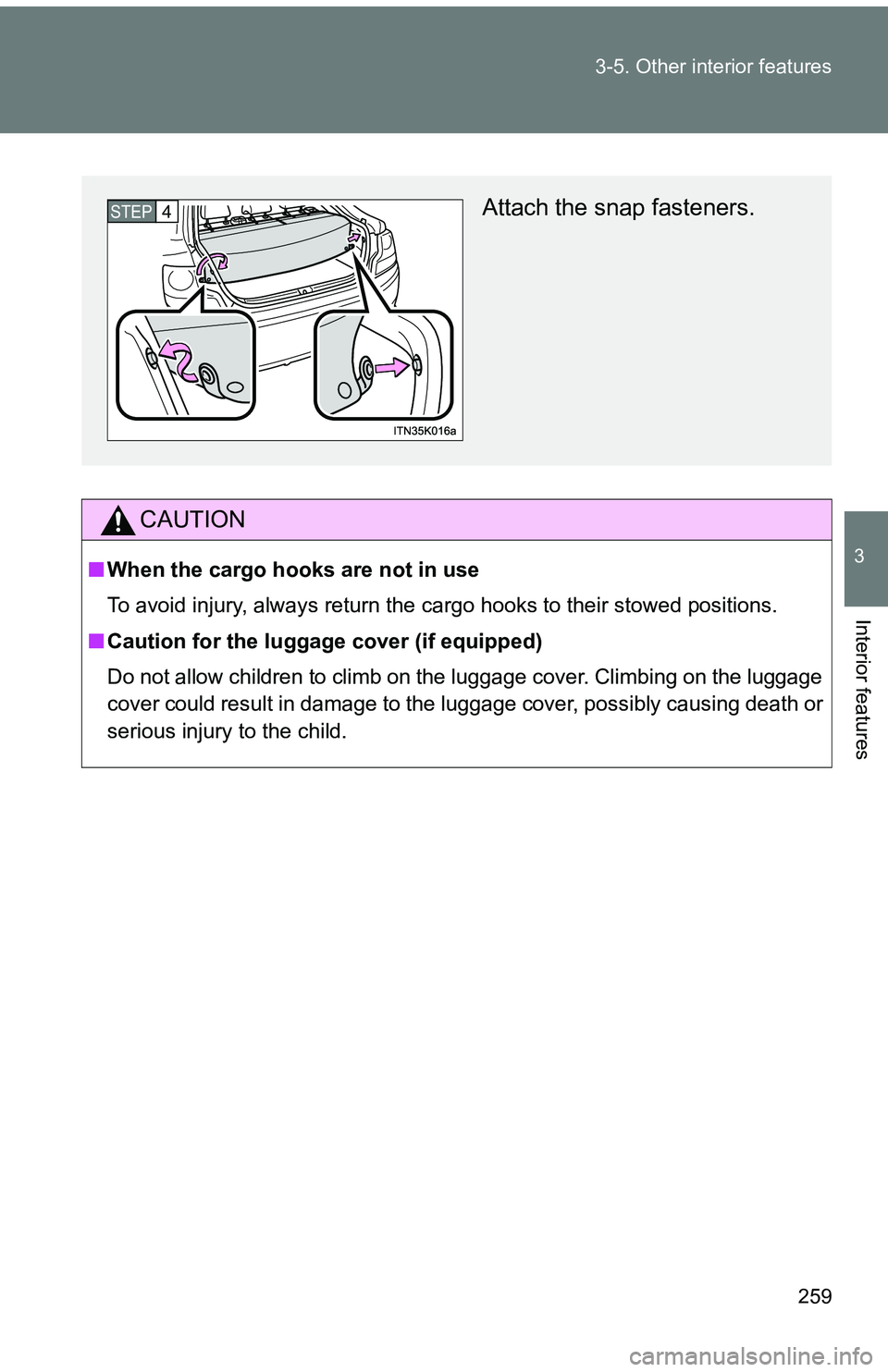

CAUTION
■
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■ Caution for the luggage cover (if equipped)
Do not allow children to climb on the luggage cover. Climbing on the luggage
cover could result in damage to the luggage cover, possibly causing death or
serious injury to the child.
Attach the snap fasteners.STEP 4
