About iPod
Reproducing and playing back
non-copyrighted material and
material that can legally be
reproduced and played back for
private use is permitted with the
iPod. Infringement of copyright is
legally prohibited.
iPod and iPhone are trademarks
of Apple Inc., registered in the
U.S. and other countries.
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not
responsible for the operation of
this device or its compliance with
safety and regulatory standards.
Please note that the use of this
accessory with iPod or iPhone
may af fect wireless performance.
•
•
•
Apple is not responsible for
the operation of this device or
its compliance with safety and
regulatory standards.
In this manual, iPod and iPhone
will be referred to as iPod.
About XM Radio
XM Satellite Radio and all related
marks and logos are trademarks
of Sirius XM Radio Inc. and its
subsidiaries. All rights reserved.
Service not available in Alaska and
Hawaii.
•
•
About HD Radio™
Technology
HD Radio™ Technology manu-
factured under license from iBiq-
uity Digital Corporation. U.S. and
Foreign Patents. HD RadioTM and
the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiq-
uity Digital Corp.
About Bluetooth

The Bluetooth® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Pioneer
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.

17
17

Changing the Frequency
Manually
Touch [] and then, after chang-ing the MULTI SELECTOR to TUNE mode, turn the MULTI SELECTOR to the right to increase the frequency and to the left to decrease the fre-quency.• If the volume fluctuates, touch [] to change to the TUNE mode, where you can change the frequency.
Searching for Frequencies That
Can Be Tuned In
Touch either [] or [] to search in either ascending or descending order for stations that can be tuned in. When a station is detected, that station will be tuned in. If you press down on either of these for 1.5 seconds or longer, even with frequency loops, the SEEK function continues to operate (Non-stop SEEK function). If you release either during operations of the Non-Stop SEEK function, the SEEK function will take over.For FM, the PT Y select function is activated when the PT Y genre is established. However, when the Non-Stop SEEK function is active, the PT Y selection function is can-
celled.
•
•
Listening to Preset Channels
Touch [Presets] to display the Preset screen. Touch on any channel from 1 to 6 on the Preset screen. Frequencies recorded on the preset channel will be tuned in. Touch [>>] to switch the display to the next preset page, and [<<] to switch the display to the previous preset page.
The pages change in the order of AM d FM1 d FM2 d SAT1 d SAT2 d SAT3 (d Return to AM). (SAT is only displayed when the SAT unit is con-nected.)
Recording the current frequency
on the preset channel
Touch any channel from 1 to 6 on the Preset screen, continuing to touch the channel for 1.7 seconds or longer.
NOTICE
You can store up to 6 stations
per band.
Temporarily Muting the Sound
Touch [] to temporarily mute the sound. Touch [] to resume audio output.
•
•
•
Searching for Frequencies That
Can be Tuned In (Only for FM/
HD Radio / XM Satellite Radio)
Touch [SCAN] to search for frequen-cies that can be tuned in. Audio output will be produced in 5 -second snippets for stations that have been located. If you touch on [SCAN] again during the time of the audio output from the station you want to listen to, that station will be tuned in. When setting the PT Y genre, audio from stations applicable to the PT Y genre that has been set up is output continuously in 5 -second snippets. If you again touch [SCAN], the broad-cast being output will continue to be tuned in and you will be able to select a PT Y genre. If you loop the search for stations without touching [SCAN], a beeping sound will be emitted and the last radio station to be picked up will be tuned in and then you will be able to select a PT Y genre (Only for XM Satellite Radio). Audio broadcasts cor-responding to the current categories are continuously output in 5 -second snippets. If you touch [SCAN] again, you will continue to receive the broad-cast being output. If you loop the detection of stations without touching [SCAN], you will hear a beeping sound and the last station to be received will be tuned in.
•

18
18

Searching for, and listening to
broadcasts of preferred genres
(Only for FM/HD Radio)
Each time you touch [Options] d [], the various PT Y genres will flash on and off. If you touch on the genre that you want to listen to while the PT Y genres are flashing on and off, the system will search stations that can be tuned in and which offer broadcasts corre-sponding to the PT Y genres that you are interested in. Each time you touch [], the PT Y genre display chang-es cyclically.
Searching for, and listening to
broadcasts of preferred genres
(Only for XM Satellite Radio)
Touch [Options] d [] to search for stations that can be tuned in and which offer broadcasts corresponding to the cat-
egories that have been set up.
Setting Up the RBDS Message
Display (Only for FM)
Each time you touch [Options] d [FM Info], the RBDS message display tog-gles between ON and OFF.
•
•
•

3
3

NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio
broadcast in your vehicle.
NOTICE
An XM Satellite Radio sub-
scription is required to listen to
Satellite radio in your vehicle.
CAUTION
This XM tuner supports Audio
Services (Music and Talk) of
only XM Satellite Radio and
*Text Information linked to the
respective Audio Service.
*Text Information includes,
Station Name, (Artist) Name,
(Song) Title and Category
Name.
Sirius XM Satellite Radio
Inc. is solely responsible for
providing services over the air
to XM receivers.
•
•
CAUTION
This XM tuner is awarded
a Type Approval Certificate
from XM Satellite Radio Inc.
as a proof of compliance for
the services XM Satellite
Radio provides.
•
How to subscribe to
XM Satellite Radio

NOTICE
All fees and programming
are the responsibility of XM
Satellite Radio and are subject
to change.
Listeners can subscribe by visiting
XM on the Web at
w w w.xmradio.com or by calling
XM’s Listener Care toll-free at
(800)85-9696.
Customers should have their
RADIO ID ready.
Display the RADIO ID
Each XM tuner is identified with a unique RADIO ID. You will need the Radio ID when activating XM service or when reporting a problem.
How to display RADIO IDIf you select CH 000, the ID Code is displayed.Select the Channel Number zero (000) by turning the MULTI SELECTOR or pressing it to the lef t or right.
The RADIO ID is displayed as 8 alphanumeric characters.
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
If you select another Channel,
display of the ID Code is
canceled.
•

45
45

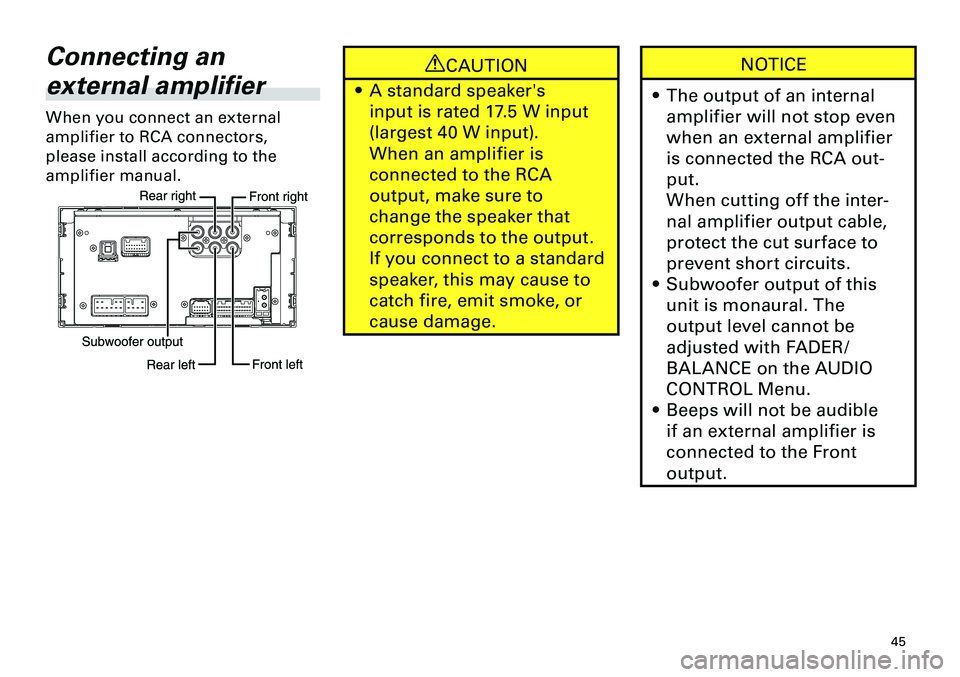

Connecting an
external amplifier
When you connect an external
amplifier to RCA connectors,
please install according to the
amplifier manual.
CAUTION
A standard speaker's
input is rated 17.5 W input
(largest 40 W input).
When an amplifier is
connected to the RCA
output, make sure to
change the speaker that
corresponds to the output.
If you connect to a standard
speaker, this may cause to
catch fire, emit smoke, or
cause damage.
•
NOTICE
The output of an internal
amplifier will not stop even
when an external amplifier
is connected the RCA out-
put.
When cutting off the inter-
nal amplifier output cable,
protect the cut surface to
prevent short circuits.
Subwoofer output of this
unit is monaural. The
output level cannot be
adjusted with FADER/
BALANCE on the AUDIO
CONTROL Menu.
Beeps will not be audible
if an external amplifier is
connected to the Front
output.
•
•
•

49
49

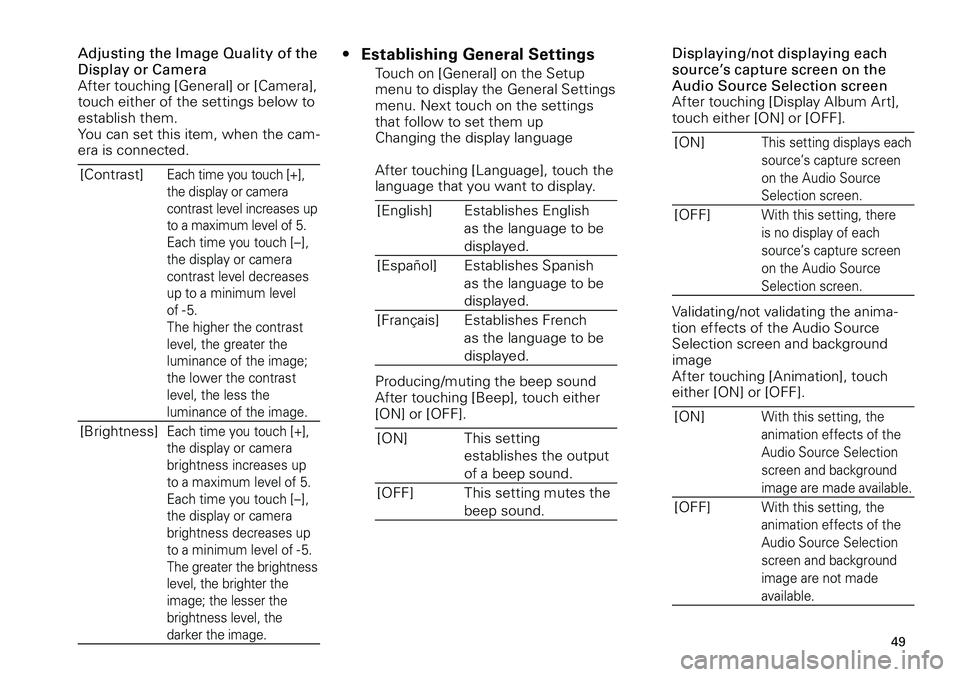

Adjusting the Image Quality of the Display or CameraAfter touching [General] or [Camera], touch either of the settings below to establish them.You can set this item, when the cam-era is connected.
[Contrast]Each time you touch [+],
the display or camera
contrast level increases up
to a maximum level of 5.
Each time you touch [–],
the display or camera
contrast level decreases
up to a minimum level
of - 5.
The higher the contrast
level, the greater the
luminance of the image;
the lower the contrast
level, the less the
luminance of the image.
[Brightness]Each time you touch [+],
the display or camera
brightness increases up
to a maximum level of 5.
Each time you touch [–],
the display or camera
brightness decreases up
to a minimum level of - 5.
The greater the brightness
level, the brighter the
image; the lesser the
brightness level, the
darker the image.
Establishing General Settings
Touch on [General] on the Setup menu to display the General Settings menu. Next touch on the settings that follow to set them upChanging the display language
After touching [Language], touch the language that you want to display.
[English]Establishes English
as the language to be
displayed.
[Español]Establishes Spanish
as the language to be
displayed.
[Français]Establishes French
as the language to be
displayed.
Producing/muting the beep soundAfter touching [Beep], touch either [ON] or [OFF].
[ON]This setting
establishes the output
of a beep sound.
[OFF]This setting mutes the
beep sound.
•Displaying/not displaying each source’s capture screen on the Audio Source Selection screenAfter touching [Display Album Art], touch either [ON] or [OFF].
[ON]This setting displays each
source’s capture screen
on the Audio Source
Selection screen.
[OFF]With this setting, there
is no display of each
source’s capture screen
on the Audio Source
Selection screen.
Validating/not validating the anima-tion effects of the Audio Source Selection screen and background imageAfter touching [Animation], touch either [ON] or [OFF].
[ON]With this setting, the
animation effects of the
Audio Source Selection
screen and background
image are made available.
[OFF]With this setting, the
animation effects of the
Audio Source Selection
screen and background
image are not made
available.

59
59

Making calls to selected Speed
Dial numbers
The Speed Dial function allows you to quickly call up frequently dialed phone numbers. You can make calls by selecting num-bers registered on Speed Dial. You must first register the phone number to Speed Dial. For more information, see Registering telephone numbers on Speed Dial on page 61.
1. Touch [Speed Dial] on the Phone
screen.
2. Touch on any Speed Dial number
that has been registered.
* Speed Dial consists of [Speed Dial1] - [Speed Dial3], which are further divided up into six numbers each. Touch on [Speed Dial1] - [Speed Dial3] to toggle between the tabs.
* Touch [Options] to edit the Speed
Dial entries. For more information, refer to Editing Speed Dial Entries on page 61.
Making calls to numbers selected
from the call history
You can make calls by selecting phone numbers from the call history.
1. Touch [Call History] on the Phone
screen.
2. Touch a phone number on Call
History, and then touch [].
* Touch [Add Speed Dial] after touch-ing on a number to register this phone number to Speed Dial.
* Touch [All] to display the history of
all calls.
* Touch [Missed] to display the history
of missed calls.
* Touch [Incoming] to display the histo
-ry of incoming calls; touch [Outgoing] to display the history of outgoing calls.
* Touch [Delete] to select phone num
-bers to delete from the Call History. Touch [All Delete] to delete all phone numbers.
Making calls to selected contacts
Contacts includes data such as phone numbers and names that are imported from the address book of the cell phone to the system. To use Contacts, you must first import the cell phone data – which will function as contact information – to the sys-tem. (Refer to Editing Contact s on page 61.)
1. Touch [Contacts] on the Phone
screen.
2. Touch the desired person’s name
on the Contacts screen.
* Touch [ Transfer] to import the Contacts (Refer to page 61).
* Touch [Options] to edit Contacts and
Speed Dial numbers.
* Touch the group of letters on the
right to display the corresponding names.
3. If more than one number has
been registered for this person,
touch one of the numbers and
then touch [].

65
65

MP3 additional
information
• Files are compatible with the ID3 Tag Ver. 1.0, 1.1, 2.2, 2.3 and 2.4 formats for display of album (disc title), track (track title), artist (track artist) and comments. Ver. 2.x of ID3 Tag is given priority when both Ver. 1.x and Ver. 2.x exist.
• The emphasis function is valid only when
MP3 files of 32 kHz, 44.1 kHz and 48 kHz frequencies are played back. (16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz sampling frequencies can be played back.)
• There is no m3u playlist compatibility.
• There is no compatibility with the MP3i
(MP3 interactive) or mp3 PRO formats.
• The sound quality of MP3 files generally
becomes better with an increased bit rates. This unit can play recordings with bit rates from 8 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using only discs recorded with a bit rate of at least 128 kbps.
WMA additional
information
• This unit plays back WMA files encoded by Windows Media Player.
• You can only play back WMA files in the
frequencies 32 kHz, 44.1 kHz and 48 kHz.
• The sound quality of WMA files generally
becomes better with an increased bit rate. This unit can play recordings with bit rates from 48 kbps to 320 kbps (CBR) or from 48 kbps to 384 kbps (VBR), but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher bit rate.
• This unit doesn't support the following for-mats.
-
Windows Media Audio 9 Professional
(5.1ch)
- Windows Media Audio 9 Lossless
- Windows Media Audio 9 Voice
•
The folder selection sequence for playback
and other operations becomes the writing sequence used by the writing software. For this reason, the expected sequence at the time of playback may not coincide with the actual playback sequence. However, there also is some writing software which permits setting of the playback order.
IMPORTANT
When naming an MP3/ WMA
file, add the corresponding
filename extension (.mp3,
.wma).
This unit plays back files
with the filename extension
(.mp3, .wma) as an MP3/ WMA
file. To prevent noise and
malfunctions, do not use these
extensions for files other than
MP3/ WMA files.
•
•

70
70

DualDiscs
• DualDiscs are two -sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other.
• Since the CD side of DualDiscs is not
physically compatible with the general CD standard, it may not be possible to play the CD side with this unit. •
Frequent loading and ejecting of a
DualDisc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recom-mend you refrain from using DualDisc with this unit.
• Please refer to the information from
the disc manufacturer for more detailed information about DualDiscs.
Error indications
If the CD player does not work, the CD stops suddenly during playback, or a similar problem occurs, an error
indication will appear on the display. The cause of the trouble will be indicated by an error number, and you
should check the corresponding item shown in the table below.
Check DISCWhen the disc is dirty or has been inserted upside-down.Check the disc.
DISC ErrorThere is probably an electrical or mechanical fault in the CD player.Contact your Scion dealer and ask for repair.
No music files found.
This appears when an MP3/WMA file format is unusual and not supported by this unit
like WAV format recordings.Please check the MP3/WMA file format.
