Page 4 of 76

4
About iPod
Reproducing and playing back
non-copyrighted material and
material that can legally be
reproduced and played back for
private use is permitted with the
iPod. Infringement of copyright is
legally prohibited.
iPod and iPhone are trademarks
of Apple Inc., registered in the
U.S. and other countries.
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not
responsible for the operation of
this device or its compliance with
safety and regulatory standards.
Please note that the use of this
accessory with iPod or iPhone
may af fect wireless performance.
•
•
•
Apple is not responsible for
the operation of this device or
its compliance with safety and
regulatory standards.
In this manual, iPod and iPhone
will be referred to as iPod.
About XM Radio
XM Satellite Radio and all related
marks and logos are trademarks
of Sirius XM Radio Inc. and its
subsidiaries. All rights reserved.
Service not available in Alaska and
Hawaii.
•
•
About HD Radio™
Technology
HD Radio™ Technology manu-
factured under license from iBiq-
uity Digital Corporation. U.S. and
Foreign Patents. HD RadioTM and
the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiq-
uity Digital Corp.
About Bluetooth
The Bluetooth® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Pioneer
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
Page 6 of 76

6
Contents
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About WMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About XM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About HD Radio Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Impor tant information about this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5To ensure the correct audio system operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5The Safety of Your Ears is in Your Hands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Common Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Listening to the RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Listening to the HD Radio broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0Listening to a XM Satellite Radio broadcast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Listening to a CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Listening to a MP3/ WMA Disc and USB Por table audio player/USB Memor y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6About handling the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30Connecting the iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Disconnecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Listening to the iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33Listening to the Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36Listening to Pandora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40Watching the V TR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Connecting an ex ternal amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45Using the AUX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46Setting Up Audio-Visual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48Setting Up the Sound Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53Connecting a Bluetooth Cell Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56Using Hands-Free Phoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58Setting Up the Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61Using the Phonebook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Using Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63MP3 and WMA files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64MP3 additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65WMA additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65About folders and MP3/ WMA files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66USB por table audio player/ USB memor y compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67CD player and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68CD-R and CD-RW discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69DualDiscs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70Error indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70Changing or disconnecting your batter y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Page 9 of 76
![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
9
<CRB3643-A/S>9
Steering Switch Operations
This section contains an explanation regarding audio -related operations involving utilization of the steering switch.
1 [MODE]Each time this button is pr TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
9
<CRB3643-A/S>9
Steering Switch Operations
This section contains an explanation regarding audio -related operations involving utilization of the steering switch.
1 [MODE]Each time this button is pr](/img/14/43266/w960_43266-8.png)
9
Steering Switch Operations
This section contains an explanation regarding audio -related operations involving utilization of the steering switch.
1 [MODE]Each time this button is pressed, the source changes in the order indi-cated below.FM d Disk (CD or MP3 or WMA) d USB or iPod d Pandora d Bluetooth audio d A/V or AUX d SAT d AM (d FM)* When the power is on or after the end of a traffic report, the source is automatically switched back to what was being used immediately before-hand.
* Any unconnected devices, discs or
sources that cannot be played back due to antenna errors or the like are skipped over in the above -noted sequence.
If the MODE button is kept pressed down for 0.8 seconds or more, a beep is emitted and the following
actions are performed.
•If you press the button again, play-back is resumed.
SourceActions when the button
is kept pressed down for
0.8 seconds of longer
CDPlayback is paused.
MP3
WMA
USB
iPod
Pandora
Bluetooth
audio
AMThe sound is muted.
FM
SAT
AUXVideo playback continues,
but the sound is muted.A / V
2 [Λ]Actions vary depending on the source that is being selected and the length of time the button is pressed down.
SourceActions
when
pressed
down
Actions when
the button is
kept pressed
down for 0.8
seconds of
longer
CDThe next
track is
played
back.
Nothing
happens.
MP3The next
file is
played
back.
The first song
in the next
folder is played
back.
WMA
USBThe next
file is
played
back.
The first song
in the next
folder is played
back.
iPodThe next
file is
played
back.
Nothing
happens.
PandoraThe next
station is
tuned in.
Nothing
happens.
Page 10 of 76

10
Bluetooth
audio
The next
track is
played
back.
The first
song in the
next album is
played back.
AMPlay is
switched
over to
the next
preset
channel.
If you remove
your hand from
the button
for less than
1.5 seconds,
the system
searches for
stations where
reception is
possible in
ascending
order. When
such a station
is detected, it
is tuned in.
HD Radio
broadcast
If you press
this button
down on for
1.5 seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function).
If you release
the button
during
operations of
the non-stop
SEEK function,
this changes
to the SEEK
function.
FM
HD Radio
broadcast
Switches
over to
the next
preset
channel.
If you remove
your hand from
the button
for less than
1.5 seconds,
the system
searches for
stations where
reception is
possible in
ascending
order. When
such a station
is detected,
it is tuned
in. The PT Y
select function
becomes
active when
the PT Y genre
is established.

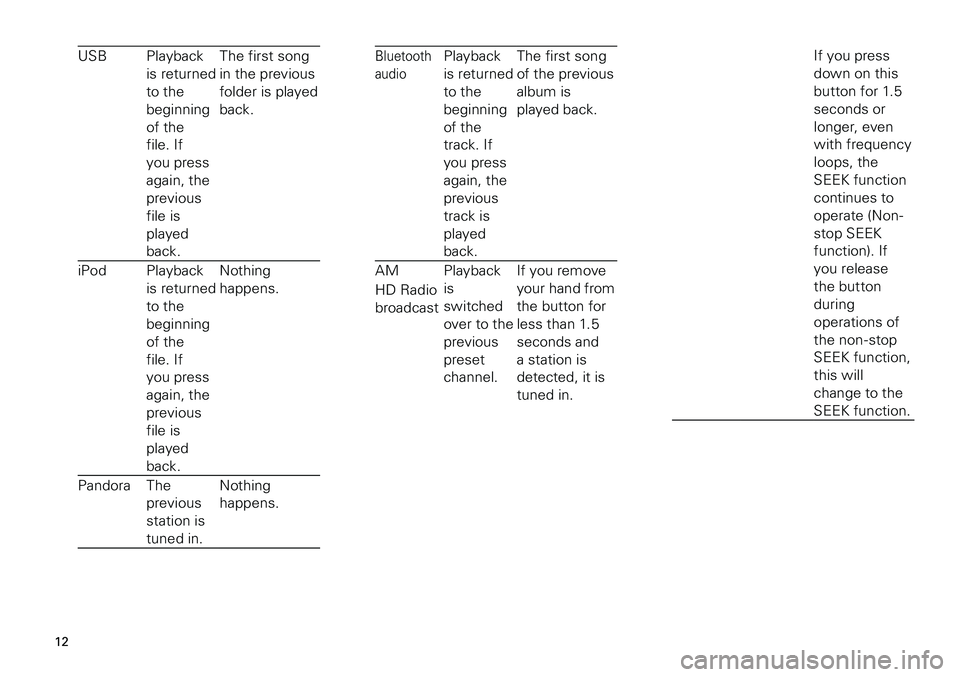

Page 12 of 76

1
USBPlayback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.
The first song
in the previous
folder is played
back.
iPodPlayback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.
Nothing
happens.
PandoraThe
previous
station is
tuned in.
Nothing
happens.
Bluetooth
audio
Playback
is returned
to the
beginning
of the
track. If
you press
again, the
previous
track is
played
back.
The first song
of the previous
album is
played back.
AMPlayback
is
switched
over to the
previous
preset
channel.
If you remove
your hand from
the button for
less than 1.5
seconds and
a station is
detected, it is
tuned in.
HD Radio
broadcast
If you press
down on this
button for 1.5
seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function). If
you release
the button
during
operations of
the non-stop
SEEK function,
this will
change to the
SEEK function.
Page 14 of 76

14
Common Operation
Although the keys displayed for
each source vary, the common
functions for each source are
indicated below.
Refer to Sound Quality Settings
(Setting Up the Sound Quality)
(page 53) to find out more about
establishing the sound quality.
Changing the Source
Touch [Source] to display the Source Selection screen. Touch [] on the Source Selection screen and the source to be selected will be changed in the order indicated below.
AM d FM d DISC (CD or MP3 or WMA) d
USB or iPod d Pandora d Bluetooth audio
d A/V or AUX d SAT (XM Satellite Radio)
(d AM)
•
Page 15 of 76

15
Refer to Listening to the RADIO (page 16) for details on using FM/HD Radio broadcast / XM Satellite Radio.
Refer to Listening to the HD Radio broadcast (page 20) for details on using the unique features of the XM Satellite Radio.
Refer to Listening to a CD (page 24) for details on listening to CDs.
Refer to Listening to a MP3/ WMA DISC and USB Portable audio player/USB memory (page 26) for details on listening to MP3/ WMA discs, and using USB portable audio players and memory
Refer to Listening to the iPod (page 33) for details on listening to an iPod.
Refer to Listening to the Bluetooth Audio (page 36) for details on listening to Bluetooth audio.
Refer to Listening to Pandora (page 40) for details on listening to Pandora.
Refer to Watching the V TR (page 42) for details on watching the V TR.
Refer to Using the AUX (page 46) for details on using AUX.
Adjusting the Volume
Turn the MULTI SELECTOR to the left to turn the volume down and to the right to turn the volume up. When songs or stations change without any change in the volume, carry out the operations above after touching [].
•
Setting up the audio
Touch on [] to display the audio setup screen (Refer to page 48).
Delete the Audio Screen
If you press [POWER], the display will disappear and the screen will change to black. If you press it again, the source screen that is being selected will be displayed. If the display does not disappear, press [POWER] after touching on [].
•
•
Page 36 of 76

36

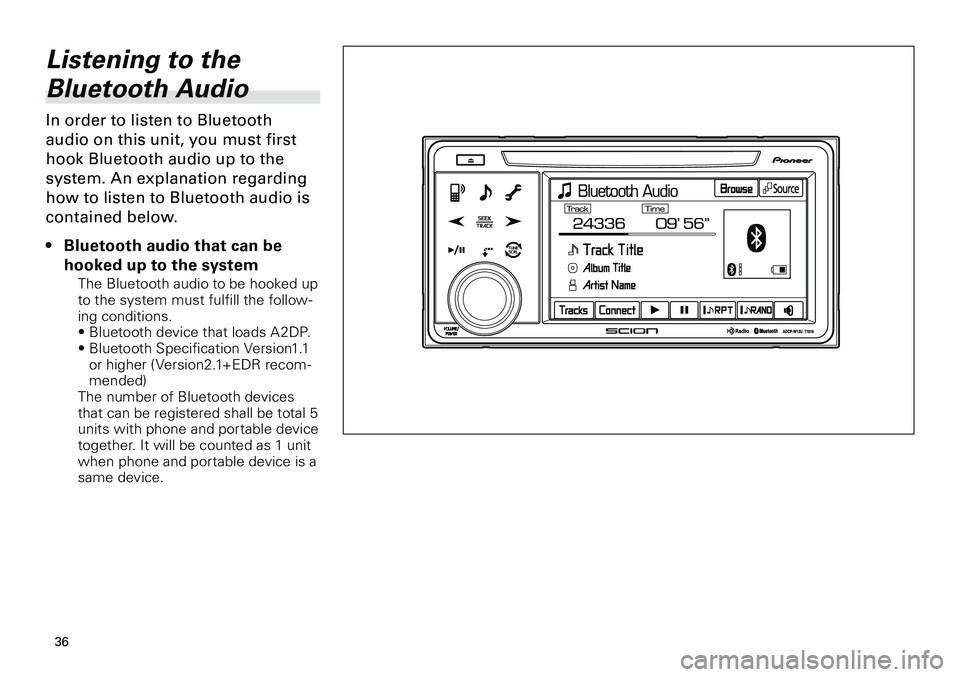

Listening to the
Bluetooth Audio
In order to listen to Bluetooth
audio on this unit, you must first
hook Bluetooth audio up to the
system. An explanation regarding
how to listen to Bluetooth audio is
contained below.
Bluetooth audio that can be
hooked up to the system
The Bluetooth audio to be hooked up to the system must fulfill the follow-ing conditions.
• Bluetooth device that loads A 2DP.
• Bluetooth Specification Version1.1
or higher ( Version2.1+EDR recom-mended)The number of Bluetooth devices that can be registered shall be total 5 units with phone and portable device together. It will be counted as 1 unit when phone and portable device is a same device.
•
Page 37 of 76

37

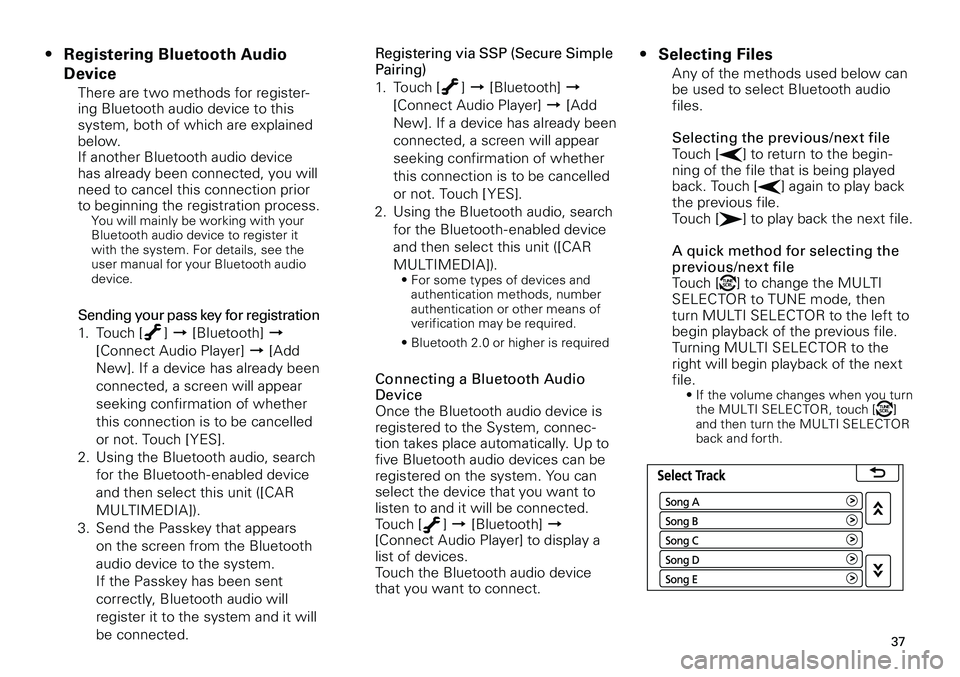

Registering Bluetooth Audio
Device
There are two methods for register-ing Bluetooth audio device to this system, both of which are explained below. If another Bluetooth audio device has already been connected, you will need to cancel this connection prior to beginning the registration process.You will mainly be working with your Bluetooth audio device to register it with the system. For details, see the user manual for your Bluetooth audio device.
Sending your pass key for registration
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be cancelled
or not. Touch [YES].
2. Using the Bluetooth audio, search
for the Bluetooth- enabled device
and then select this unit ([CAR
MULTIMEDIA]).
3. Send the Passkey that appears
on the screen from the Bluetooth
audio device to the system.
If the Passkey has been sent
correctly, Bluetooth audio will
register it to the system and it will
be connected.
•Registering via SSP (Secure Simple Pairing)
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be cancelled
or not. Touch [YES].
2. Using the Bluetooth audio, search
for the Bluetooth- enabled device
and then select this unit ([CAR
MULTIMEDIA]). • For some types of devices and authentication methods, number authentication or other means of verification may be required.
• Bluetooth 2.0 or higher is required
Connecting a Bluetooth Audio DeviceOnce the Bluetooth audio device is registered to the System, connec-tion takes place automatically. Up to five Bluetooth audio devices can be registered on the system. You can select the device that you want to listen to and it will be connected.Touch [] d [Bluetooth] d [Connect Audio Player] to display a list of devices. Touch the Bluetooth audio device that you want to connect.
Selecting Files
Any of the methods used below can be used to select Bluetooth audio files.
Selecting the previous/next fileTouch [] to return to the begin-ning of the file that is being played back. Touch [] again to play back the previous file. Touch [] to play back the next file.
A quick method for selecting the
previous/next fileTouch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous file. Turning MULTI SELECTOR to the right will begin playback of the next file.• If the volume changes when you turn the MULTI SELECTOR, touch [] and then turn the MULTI SELECTOR back and forth.
•
