Basic Operation
Your audio system works when the
ignition switch is in the “ACC” or
“ON” position.
If the Audio screen does not
display, press [POWER]. (Refer to
page 8.)
NOTICE
To avoid draining the battery,
do not leave the car audio on
longer than necessary when the
engine is not running.
Audio operations are carried out by
either of the operations explained
below.
The touch keys on the Display
screen, touch buttons or the
POWER/MULTI-SELECTOR (Refer
to page 8)
The Steering Switch (Refer to
page 9)
The Display screen touch keys,
touch buttons and POWER/
MULTI-SELECTOR are used by
way of example when explaining
operations in this manual.
•
•

8
8

The Operations of the Keys Near
the Display
1 Touch buttonsYour audio system is equipped with the following buttons.
Use this button for
hands-free phoning and
voice operations. These
operations are not covered
in this manual, which
is dedicated to audio
operations.
If you touch this button
when the SETUP or
HANDS - FREE PHONING
screens are displayed, the
system will switch over
to the Source Operations
screen that is being
selected.
Use this button to create
a variety of audio settings.
(Refer to page 48.)
Use these buttons for
playback and signal
reception operations. The
exact operations depend
on the source. Refer to
the operations procedures
for the source.
•Touch this button to pause
playback and to mute the
sound. Touch it again to
resume playback and turn
the sound back on. The
exact operations depend
on the source. Refer to
the operations procedures
for the source.
Each time you touch this
button, the functions of
the MULTI SELECTOR
and POWER button
change as indicated
below.
MULTI SELECTOR
function: volume
adjustment  AM/FM/
SAT frequency adjustment
or cursor operations of the
list screen.
POWER button function:
POWER on/off 
determination processing.
2 EJECTPress to eject the disc.
3 Disc insertion/ejection slotThis is where you insert and eject discs.
4 DisplayInformation and images regarding the source being played back are dis-played here. The key to be displayed varies depending on the source that is being selected.
5 POWERPress this when adjusting the vol-ume and to turn the system power OFF and ON. Also used as the selec-tor button when CD tracks and other
information is displayed in list form.
6 MULTI SELECTOR
By touching on [], you can switch between the functions below. When in Tune mode, the lights that sur-round the MULTI SELECTOR blink on and off.
VOLUMETurn the MULTI
SELECTOR to raise/lower
the volume levels.
TUNETurn the MULTI
SELECTOR to tune.
MULTI SELECTOR operation varies depending on the audio source or Menu. (Refer to page 14.)

14
14

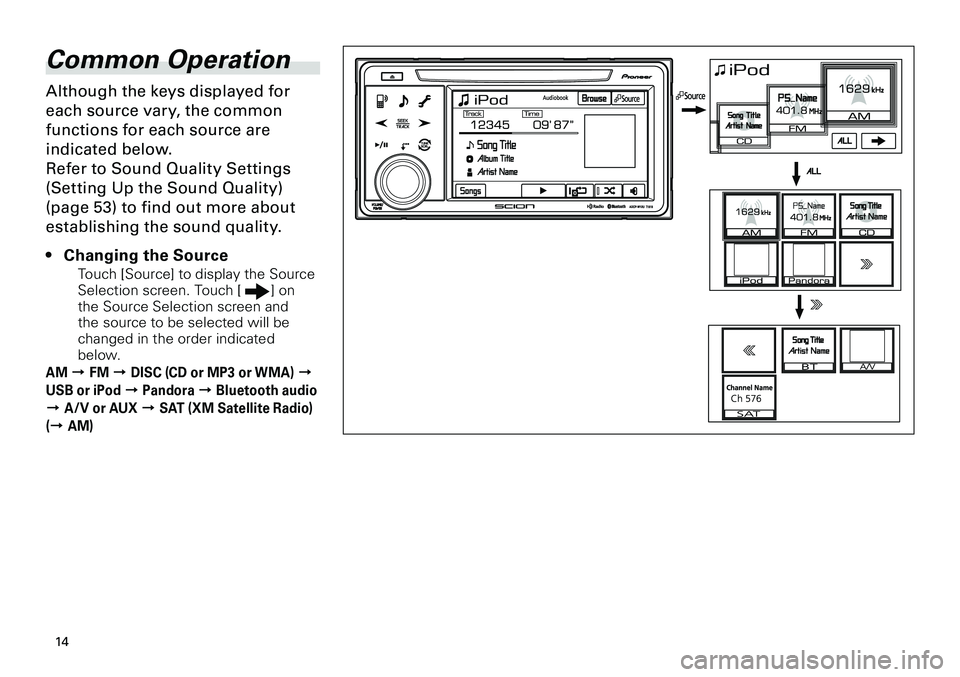

Common Operation
Although the keys displayed for
each source vary, the common
functions for each source are
indicated below.
Refer to Sound Quality Settings
(Setting Up the Sound Quality)
(page 53) to find out more about
establishing the sound quality.
Changing the Source
Touch [Source] to display the Source Selection screen. Touch [] on the Source Selection screen and the source to be selected will be changed in the order indicated below.
AM d FM d DISC (CD or MP3 or WMA) d
USB or iPod d Pandora d Bluetooth audio
d A/V or AUX d SAT (XM Satellite Radio)
(d AM)
•

15
15

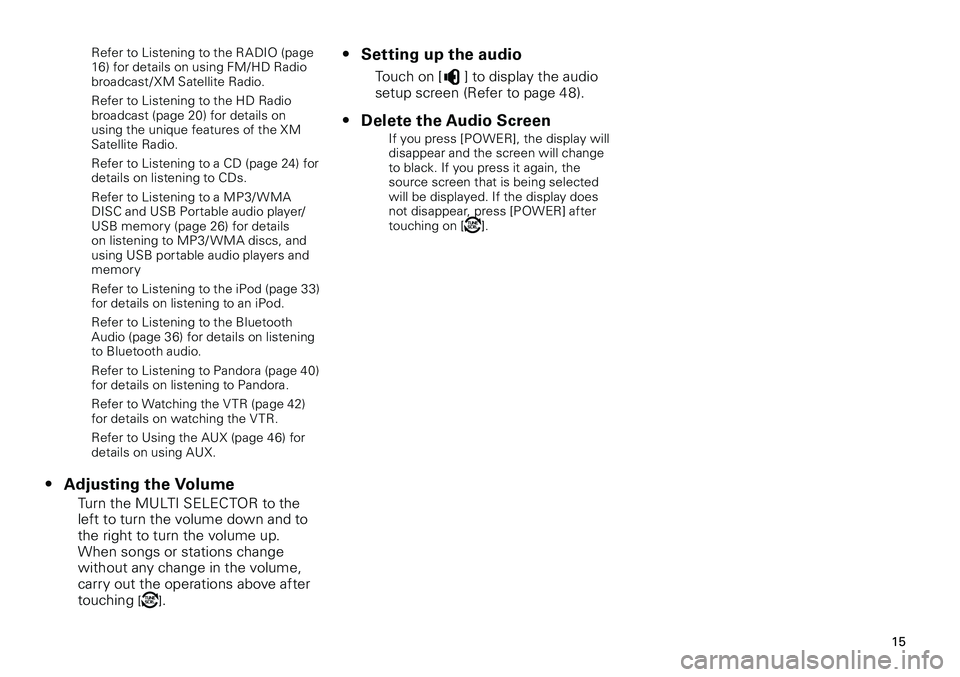

Refer to Listening to the RADIO (page 16) for details on using FM/HD Radio broadcast / XM Satellite Radio.
Refer to Listening to the HD Radio broadcast (page 20) for details on using the unique features of the XM Satellite Radio.
Refer to Listening to a CD (page 24) for details on listening to CDs.
Refer to Listening to a MP3/ WMA DISC and USB Portable audio player/USB memory (page 26) for details on listening to MP3/ WMA discs, and using USB portable audio players and memory
Refer to Listening to the iPod (page 33) for details on listening to an iPod.
Refer to Listening to the Bluetooth Audio (page 36) for details on listening to Bluetooth audio.
Refer to Listening to Pandora (page 40) for details on listening to Pandora.
Refer to Watching the V TR (page 42) for details on watching the V TR.
Refer to Using the AUX (page 46) for details on using AUX.
Adjusting the Volume
Turn the MULTI SELECTOR to the left to turn the volume down and to the right to turn the volume up. When songs or stations change without any change in the volume, carry out the operations above after touching [].
•
Setting up the audio
Touch on [] to display the audio setup screen (Refer to page 48).
Delete the Audio Screen
If you press [POWER], the display will disappear and the screen will change to black. If you press it again, the source screen that is being selected will be displayed. If the display does not disappear, press [POWER] after touching on [].
•
•

17
17

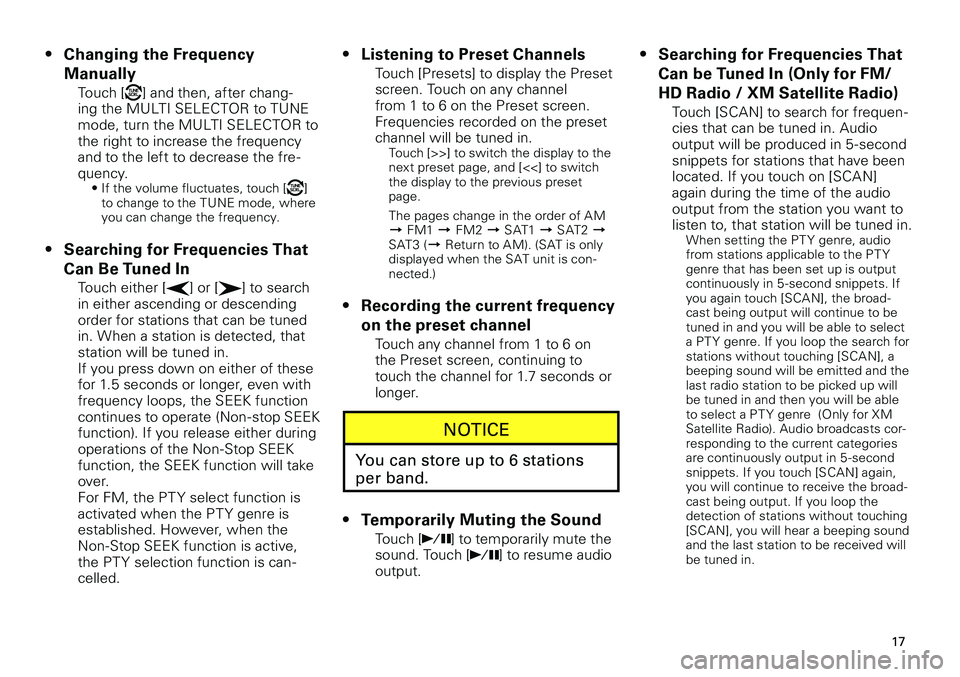

Changing the Frequency
Manually
Touch [] and then, after chang-ing the MULTI SELECTOR to TUNE mode, turn the MULTI SELECTOR to the right to increase the frequency and to the left to decrease the fre-quency.• If the volume fluctuates, touch [] to change to the TUNE mode, where you can change the frequency.
Searching for Frequencies That
Can Be Tuned In
Touch either [] or [] to search in either ascending or descending order for stations that can be tuned in. When a station is detected, that station will be tuned in. If you press down on either of these for 1.5 seconds or longer, even with frequency loops, the SEEK function continues to operate (Non-stop SEEK function). If you release either during operations of the Non-Stop SEEK function, the SEEK function will take over.For FM, the PT Y select function is activated when the PT Y genre is established. However, when the Non-Stop SEEK function is active, the PT Y selection function is can-
celled.
•
•
Listening to Preset Channels
Touch [Presets] to display the Preset screen. Touch on any channel from 1 to 6 on the Preset screen. Frequencies recorded on the preset channel will be tuned in. Touch [>>] to switch the display to the next preset page, and [<<] to switch the display to the previous preset page.
The pages change in the order of AM d FM1 d FM2 d SAT1 d SAT2 d SAT3 (d Return to AM). (SAT is only displayed when the SAT unit is con-nected.)
Recording the current frequency
on the preset channel
Touch any channel from 1 to 6 on the Preset screen, continuing to touch the channel for 1.7 seconds or longer.
NOTICE
You can store up to 6 stations
per band.
Temporarily Muting the Sound
Touch [] to temporarily mute the sound. Touch [] to resume audio output.
•
•
•
Searching for Frequencies That
Can be Tuned In (Only for FM/
HD Radio / XM Satellite Radio)
Touch [SCAN] to search for frequen-cies that can be tuned in. Audio output will be produced in 5 -second snippets for stations that have been located. If you touch on [SCAN] again during the time of the audio output from the station you want to listen to, that station will be tuned in. When setting the PT Y genre, audio from stations applicable to the PT Y genre that has been set up is output continuously in 5 -second snippets. If you again touch [SCAN], the broad-cast being output will continue to be tuned in and you will be able to select a PT Y genre. If you loop the search for stations without touching [SCAN], a beeping sound will be emitted and the last radio station to be picked up will be tuned in and then you will be able to select a PT Y genre (Only for XM Satellite Radio). Audio broadcasts cor-responding to the current categories are continuously output in 5 -second snippets. If you touch [SCAN] again, you will continue to receive the broad-cast being output. If you loop the detection of stations without touching [SCAN], you will hear a beeping sound and the last station to be received will be tuned in.
•

18
18

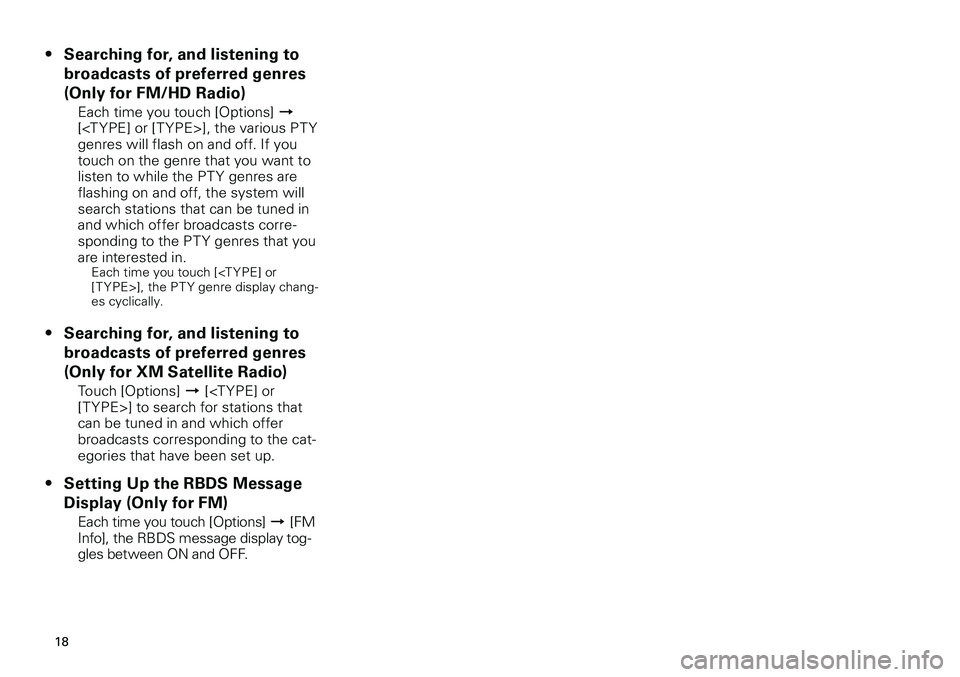

Searching for, and listening to
broadcasts of preferred genres
(Only for FM/HD Radio)
Each time you touch [Options] d [], the various PT Y genres will flash on and off. If you touch on the genre that you want to listen to while the PT Y genres are flashing on and off, the system will search stations that can be tuned in and which offer broadcasts corre-sponding to the PT Y genres that you are interested in. Each time you touch [], the PT Y genre display chang-es cyclically.
Searching for, and listening to
broadcasts of preferred genres
(Only for XM Satellite Radio)
Touch [Options] d [] to search for stations that can be tuned in and which offer broadcasts corresponding to the cat-
egories that have been set up.
Setting Up the RBDS Message
Display (Only for FM)
Each time you touch [Options] d [FM Info], the RBDS message display tog-gles between ON and OFF.
•
•
•

1
1

Storing Song Information that
is Being Tuned In on HD Radio
Broadcast
If you touch [Tag] while the HD Radio broadcast signal is being received, the tag information of the song that being broadcast is stored.Sometimes when songs are being toggled and the like, tag information cannot be accessed very effectively or multiple tags are recorded.
Viewing HD Radio Broadcast
Text Information
Touch [Text] to display the Text Display screen, where music, title, artist name, album title and genre name are displayed. Touch [Additional Information] to dis-play the Additional Information screen.
Touch [] or [] to scroll the page.
Touch [] to return to the HD Radio Screen.
•
•
Setting up the HD Radio
Broadcast Reception Method
Touch on [HD Radio] to switch over to analogue mode and tune in ana-logue broadcasts. Touch [HD Radio] again to switch over to digital mode and tune in digital broadcasts.
Multicast Channel Support
When receiving the HD Radio Broadcast signal and tuning in a Multicast Channel-supported broadcast in something other than analogue, the following actions will occur each time you touch on [Multicast].
When
receiving
MPS
signal
The next SPS is tuned in.
When
receiving
SPS
signal
The next SPS is tuned in.
When
receiving
last SPS
MPS is tuned in.
•
•

3
3

NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio
broadcast in your vehicle.
NOTICE
An XM Satellite Radio sub-
scription is required to listen to
Satellite radio in your vehicle.
CAUTION
This XM tuner supports Audio
Services (Music and Talk) of
only XM Satellite Radio and
*Text Information linked to the
respective Audio Service.
*Text Information includes,
Station Name, (Artist) Name,
(Song) Title and Category
Name.
Sirius XM Satellite Radio
Inc. is solely responsible for
providing services over the air
to XM receivers.
•
•
CAUTION
This XM tuner is awarded
a Type Approval Certificate
from XM Satellite Radio Inc.
as a proof of compliance for
the services XM Satellite
Radio provides.
•
How to subscribe to
XM Satellite Radio

NOTICE
All fees and programming
are the responsibility of XM
Satellite Radio and are subject
to change.
Listeners can subscribe by visiting
XM on the Web at
w w w.xmradio.com or by calling
XM’s Listener Care toll-free at
(800)85-9696.
Customers should have their
RADIO ID ready.
Display the RADIO ID
Each XM tuner is identified with a unique RADIO ID. You will need the Radio ID when activating XM service or when reporting a problem.
How to display RADIO IDIf you select CH 000, the ID Code is displayed.Select the Channel Number zero (000) by turning the MULTI SELECTOR or pressing it to the lef t or right.
The RADIO ID is displayed as 8 alphanumeric characters.
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
If you select another Channel,
display of the ID Code is
canceled.
•

5
5

Loading the CD
Load a CD in the disc slot.
The CD will begin to play.
Taking Out the CD
Press [] (EJECT ).
Playing a CD That is Loaded
Touch [] to play the CDList of tune of CD screen
Selecting Songs
You can select songs from the CD to
be played using any of the following methods.
Selecting the previous/next songTouch [] to return to the begin-ning of the song currently being played. Touch [] again to play the previous song. Touch [] to play the next song.
•
•
•
•
A quick method for selecting the pre-vious or next songTouch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous song. Turning MULTI SELECTOR to the right will begin playback of the next song.
• If the volume changes, touch [] and then turn the MULTI SELECTOR back and forth.
Selecting songs from the listTouch [Tracks] and then select the song you want to listen to by touch-ing on it.
Touch [] while the list is being displayed and then after setting the MULTI SELECTOR to tune mode, turn MULTI SELECTOR to the left to move the cursor to the previous song. Turning MULTI SELECTOR to
the right will move the cursor to the next song. Press the POWER button to play the song that has been selected.
• If the volume changes when you turn the MULTI SELECTOR, touch [] and then go through the same procedures.
Scrolling through the pages of the listTouch [] while the list is being dis-played to display the previous page. Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the song that is being playedTouch [].Touch [] or [] when the names of all the songs will not fit on the list display to display letters in a scrolling format.
Playing the Songs on a CD in
Random Order
Touch [RAND] to play the songs on the CD in random order. Touch [RAND] again and the songs will play in their usual order.
Repeating Songs
Touch [RPT] to repeat play of the song that is currently playing. Touch [RPT] again to cancel the repeating of the song.
Pausing the Playback of Songs
Touch [] while a song is being played to pause playback. Retouch it to resume playback.
•
•
•

7
7

Handling MP3/WMA discs
Load a MP3/ WMA disc.Load a MP3/ WMA disc in the disc slot.The MP3/ WMA disc will begin to play.Removing the MP3/ WMA discPress [].
About handling the USB
portable audio player/USB
memory
• For information on USB portable
audio player/USB memory restric-tions, refer to page 67 “USB port-able audio player/USB memory compatibility”.
• For information on restrictions on
folders in the USB portable audio player/USB memory, refer to page 66 “About folders and MP3/ WMA files”.
•
•
Connecting the USB portable
audio player/USB memory
• Connect the USB portable audio player/USB memory to the USB port of the USB connector.
• For instructions on connecting and
disconnecting the iPod, refer to page 31 “Connecting the iPod” and page 31 “Disconnecting the iPod”.
Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files
Touch [] to play back either an MP3 disc, a WMA disc and USB portable audio player or the USB memory.
Selecting a File
Any of the methods described below can be used to select files from an MP3 disc, a WMA disc and USB portable audio player or the USB memory.
Selecting the previous/next fileTouch [] to return to the begin-ning of the file that is being played. Touch [] again to play the previ-ous file. Touch [] to play the next file.
•
•
•
A quick method for selecting the previous/next file Touch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous file. Turning MULTI SELECTOR to the right will begin playback of the next file. • If the volume changes, touch [] and then turn the MULTI SELECTOR back and forth.
Selecting files from the listTouch [Files] and then select the song you want to listen to by touch-ing on it. Touch [Folders] to display the folder list.
