6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
Cooling system
Ignition system
Capacity (reference)
Vehicles with an automatic transmission:

6.0 qt. (5.7 L, 5.0 Imp.qt.)
Vehicles with a manual transmission: 
6.1 qt. (5.8 L, 5.1 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO SK16HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

422 6-1. Specifications
Scion_tC_U_(OM21041U)
Electrical system
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Scion dealer.
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged

12.2  12.4 V Half charged 
11 . 8  12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity*6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using a transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

423
6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
Manual transmission
Clutch
Gear oil capacity (reference) 2.4 qt. (2.3 L, 2.0 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

424 6-1. Specifications
Scion_tC_U_(OM21041U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 67.5 lbf (300 N, 30.6 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N, 20 kgf)
Steering
Pedal clearance*13.86 in. (98 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)

425
6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
Tires and wheels
17-inch tires
18-inch tires
Tire size P215/50R17 90W,

T145/80D16 105M (spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure) Front:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17  7J, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P225/45R18 91W,

T145/80D16 105M (spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure) Front:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 18  7 1/2J, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

426 6-1. Specifications
Scion_tC_U_(OM21041U)
Light bulbs
A: H11 halogen bulbsD: Wedge base bulbs (clear)
B: HB3 halogen bulbs E: Double end bulbs
C: Wedge base bulbs (amber)
Light BulbsBulb No.WTy p e
Exterior Headlights

Low beam 
High beam 
9005 55
60A
B
Front turn signal lights 21 C
Parking and front side
marker lights 
5C
Rear turn signal lights 21 C
Stop/tail lights and
rear side marker lights 
21/5 D
Back-up lights 16 D
License plate lights 5D
Interior Front interior lights
(with moon roof)

8D
Personal/interior
lights (without moon
roof) 
5D
Rear interior light 5E
Luggage compart-
ment light 
5E

427
6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Scion has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Scion dealer.
■ Gasoline quality standards
● Automotive manufacturers in the U.S.A., the Europe and Japan have
developed a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.

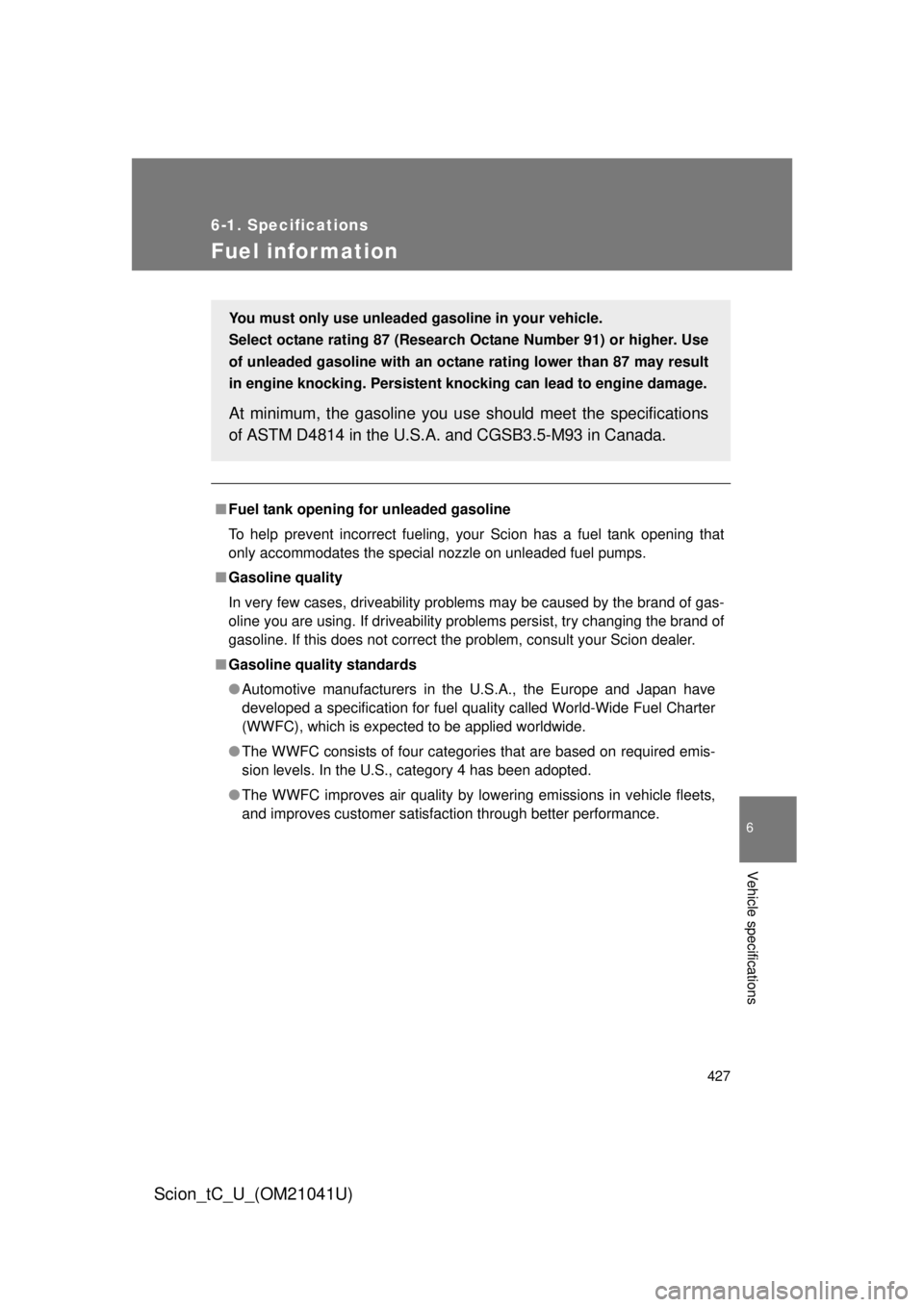

You must only use unleaded gasoline in your vehicle. 
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

428 6-1. Specifications
Scion_tC_U_(OM21041U)
■Recommendation of the use of gaso line containing detergent additives
● Scion recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains detergent additives to clean and/
or keep clean intake systems.
■ Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Scion recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Scion does not recommend the use of gasoline containing methanol.

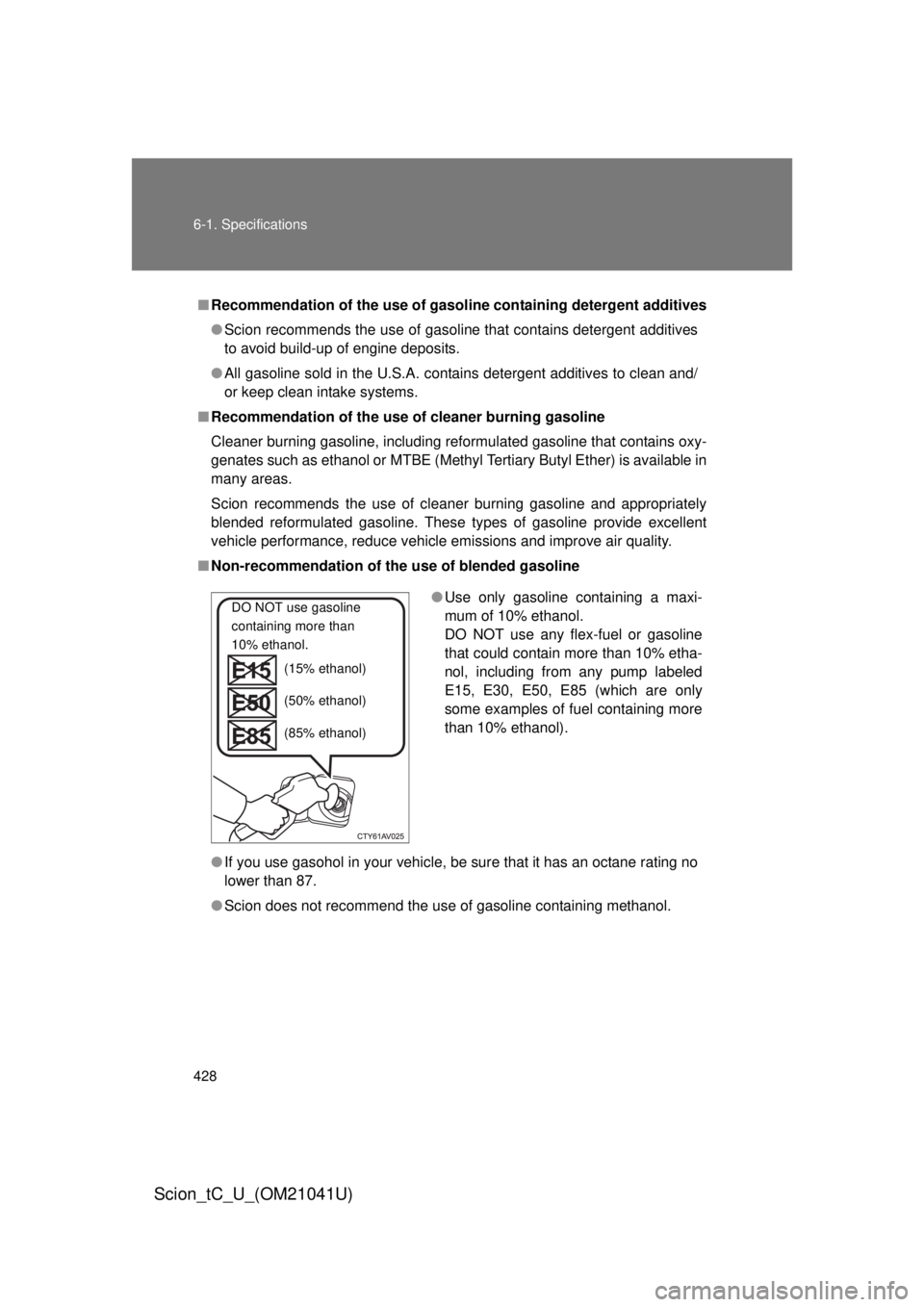

●Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).DO NOT use gasoline 
containing more than 
10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

429
6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
■
Non-recommendation of the use of gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Scion does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Scion dealer for service.
■ If your engine knocks
● Consult your Scion dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline. 
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated. 
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking. 
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor hot
starting, vaporization, engine knocking, etc.), discontinue the use of that type
of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

430
6-1. Specifications
Scion_tC_U_(OM21041U)
Tire infor mation

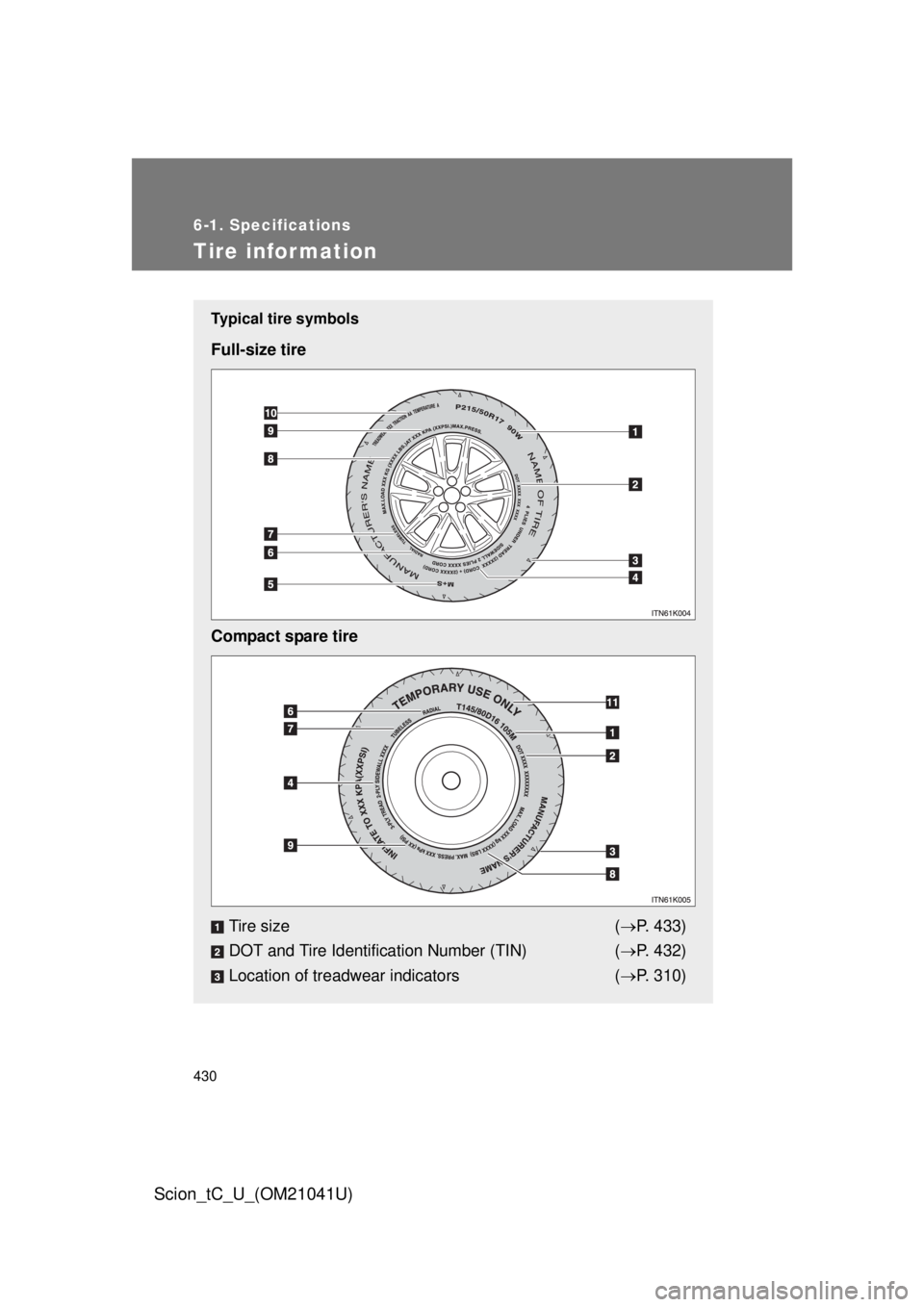

Typical tire symbols
Full-size tire
Compact spare tireTire size ( P. 433)
DOT and Tire Identification Number (TIN) ( P. 432)
Location of treadwear indicators ( P. 310)
