5
When trouble arises
411
5-2. Steps to take in an emergency
Scion_tC_U_(OM21041U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striki ng other vehicles, objects or people. The
vehicle may also lunge forward or lu nge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever (vehic les with an automatic transmission)
Be careful not to shift the shift lever with the accelerator pedal depressed. 
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Stop the engine. Set the parki ng brake and shift the shift
lever to P (automatic transmission) or N (manual transmis-
sion).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the engine.
Shift the shift lever to the D or R position (automatic trans-
mission) or 1 or R position (manual transmission) and care-
fully apply the accelerator to free the vehicle. 
Turn off TRAC and VSC if these functions are hampering
your attempts to free the vehicle. ( P. 212)STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

412 5-2. Steps to take in an emergency
Scion_tC_U_(OM21041U)
NOTICE
■To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5
When trouble arises
413
5-2. Steps to take in an emergency
Scion_tC_U_(OM21041U)

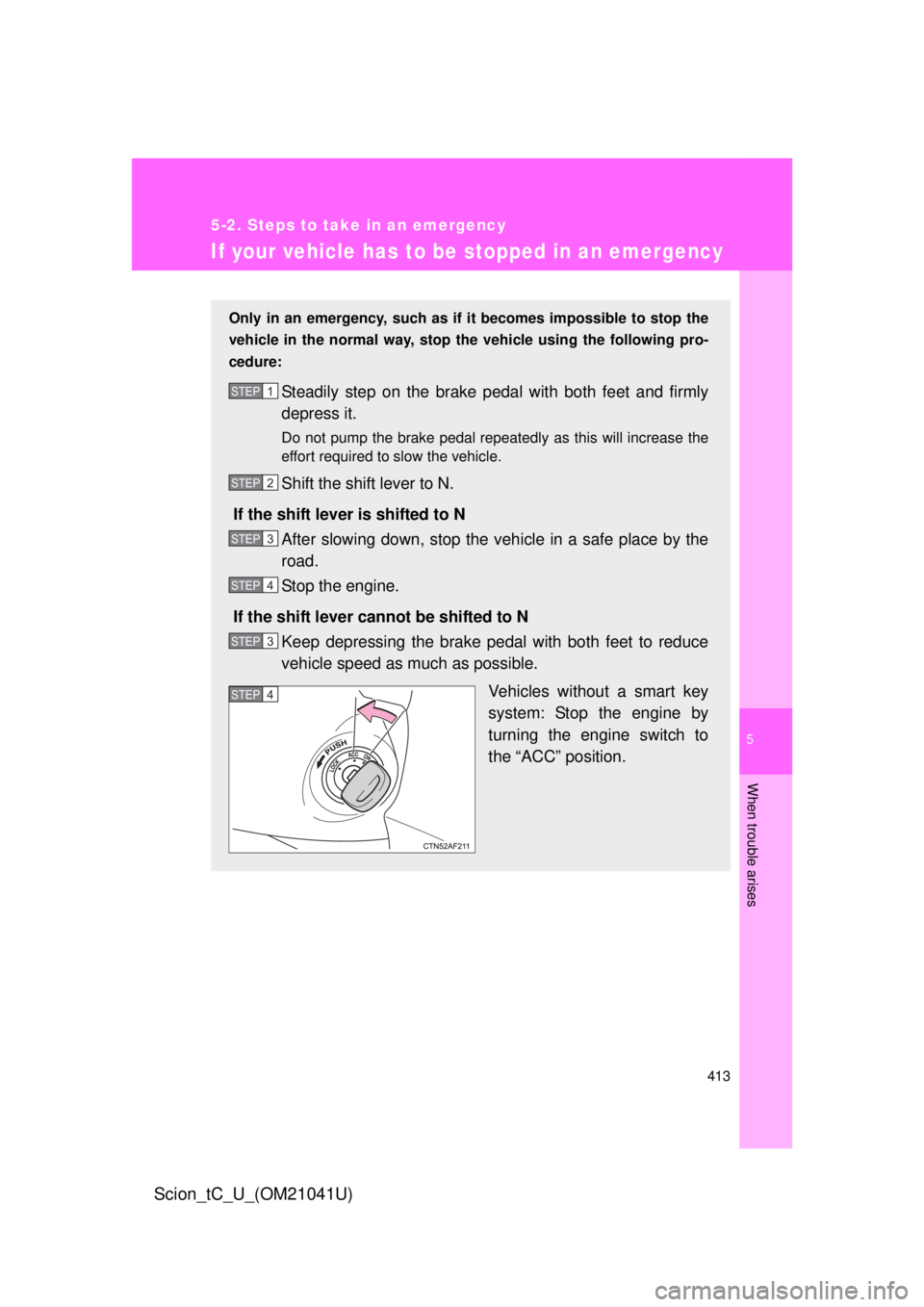

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4

414 5-2. Steps to take in an emergency
Scion_tC_U_(OM21041U)
CAUTION
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the “ENGINE START
STOP” switch for 3 consecu-
tive seconds or more, or press
it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.STEP 4
Press and hold for 3 seconds or more, or press briefly 3 times or more
STEP 5

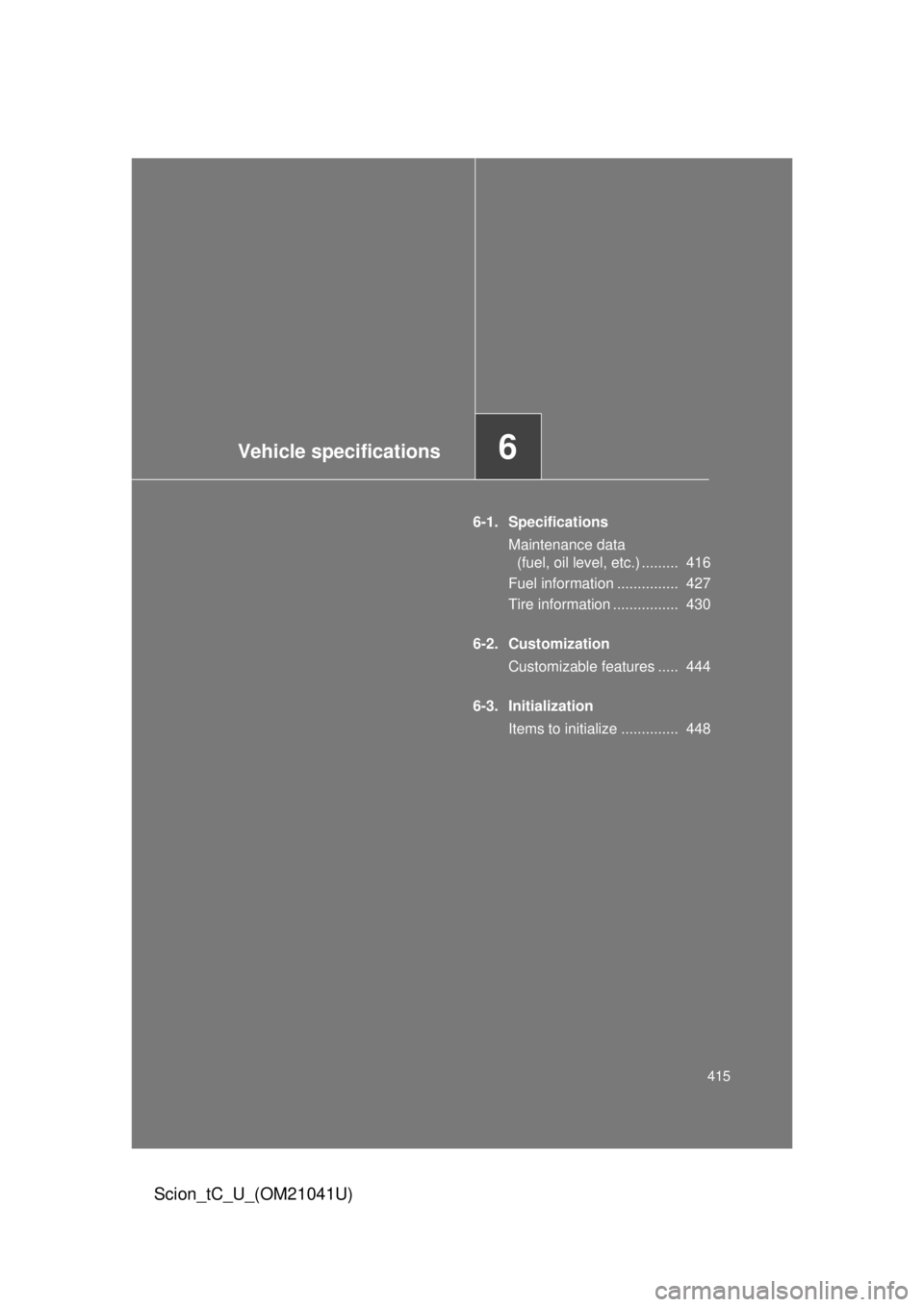

Vehicle specifications6
415
Scion_tC_U_(OM21041U)
6-1. SpecificationsMaintenance data 
(fuel, oil level, etc.) ......... 416
Fuel information ............... 427
Tire information ................ 430
6-2. Customization Customizable features ..... 444
6-3. Initialization Items to initialize .............. 448

416
Scion_tC_U_(OM21041U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registeri ng the ownership of your vehicle.
This number is stamped under
the passenger seat.
Overall length 174.0 in. (4420 mm)
Overall width70.7 in. (1795 mm)
Overall height*55.7 in. (1415 mm)
Wheelbase106.3 in. (2700 mm)
TreadFront 60.6 in. (1540 mm)
Rear 61.4 in. (1560 mm)
Vehicle capacity weight
(occupants + luggage) 865 lb. (390 kg)

417
6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.

418 6-1. Specifications
Scion_tC_U_(OM21041U)
Engine
Fuel
Model2AR-FE engine
Ty pe 4 cylinder in line, 
4 cycle, gasoline
Bore and stroke3.54 
3.86 in. 
(90.0  98.0 mm)
Displacement 152.2 cu.in. (2494 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold) Automatic adjustment
Fuel type
Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

419
6-1. Specifications
6
Vehicle specifications
Scion_tC_U_(OM21041U)
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill — 
reference)
With filter
Without filter 4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)
Outside temperature

420 6-1. Specifications
Scion_tC_U_(OM21041U)
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is adde d to some oil containers to help
you select the oil you should use.
