TOYOTA tC 2013 Accessories, Audio & Navigation (in English)

11
11

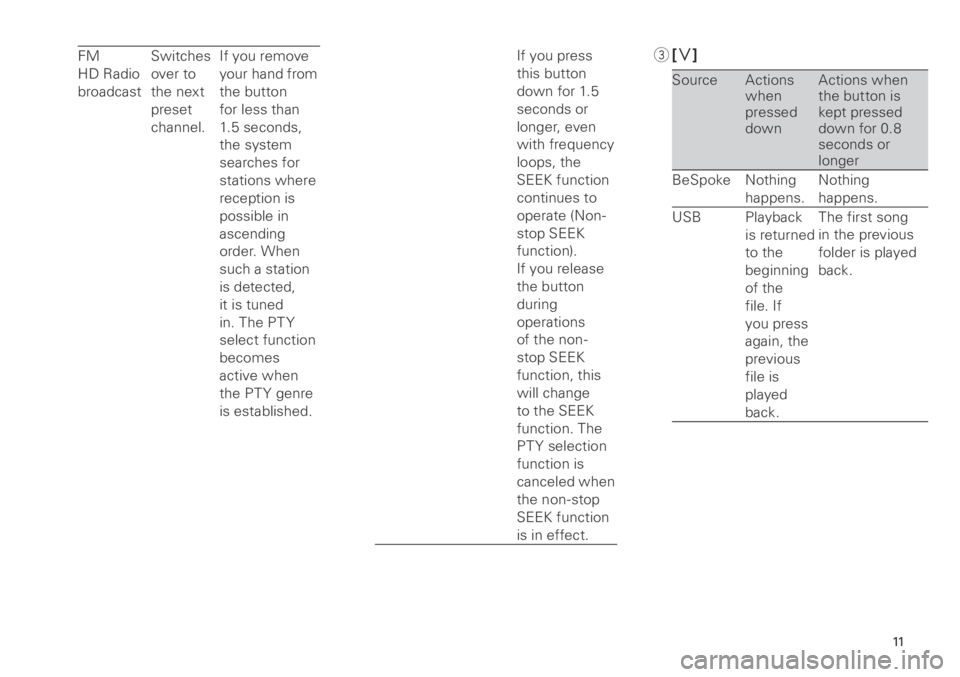

FM
HD Radio
broadcastSwitches
over to
the next
preset
channel.If you remove
your hand from
the button
for less than
1.5 seconds,
the system
searches for
stations where
reception is
possible in
ascending
order. When
such a station
is detected,
it is tuned
in. The PT Y
select function
becomes
active when
the PT Y genre
is established.If you press
this button
down for 1.5
seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function).
If you release
the button
during
operations
of the non-
stop SEEK
function, this
will change
to the SEEK
function. The
PT Y selection
function is
canceled when
the non-stop
SEEK function
is in effect.3
[∨ ]
Source Actions
when
pressed
downActions when
the button is
kept pressed
down for 0.8
seconds or
longer
BeSpoke Nothing happens.Nothing
happens.
USB Playback is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.The first song
in the previous
folder is played
back.

1
1

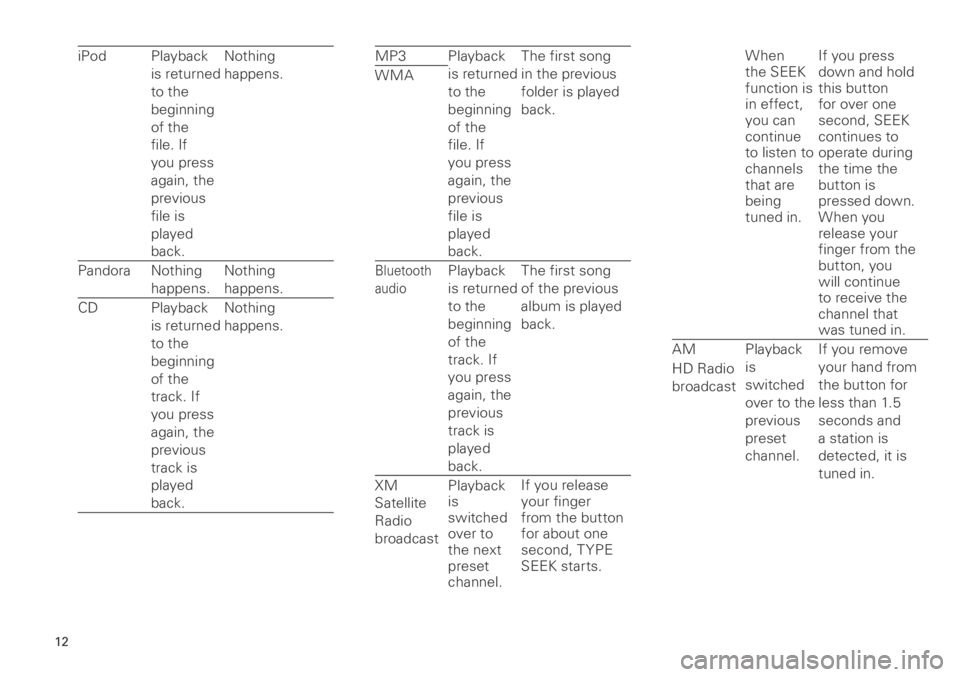

iPod Playback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.Nothing
happens.
Pandora Nothing happens.Nothing
happens.
CD Playback is returned
to the
beginning
of the
track. If
you press
again, the
previous
track is
played
back.Nothing
happens.MP3 Playback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.The first song
in the previous
folder is played
back.
WMA
Bluetooth
audioPlayback
is returned
to the
beginning
of the
track. If
you press
again, the
previous
track is
played
back. The first song
of the previous
album is played
back.
XM
Satellite
Radio
broadcast Playback
is
switched
over to
the next
preset
channel.If you release
your finger
from the button
for about one
second, T YPE
SEEK starts.
When
the SEEK
function is
in effect,
you can
continue
to listen to
channels
that are
being
tuned in.If you press
down and hold
this button
for over one
second, SEEK
continues to
operate during
the time the
button is
pressed down.
When you
release your
finger from the
button, you
will continue
to receive the
channel that
was tuned in.
AM Playback is
switched
over to the
previous
preset
channel.If you remove
your hand from
the button for
less than 1.5
seconds and
a station is
detected, it is
tuned in.
HD Radio
broadcast

13
13

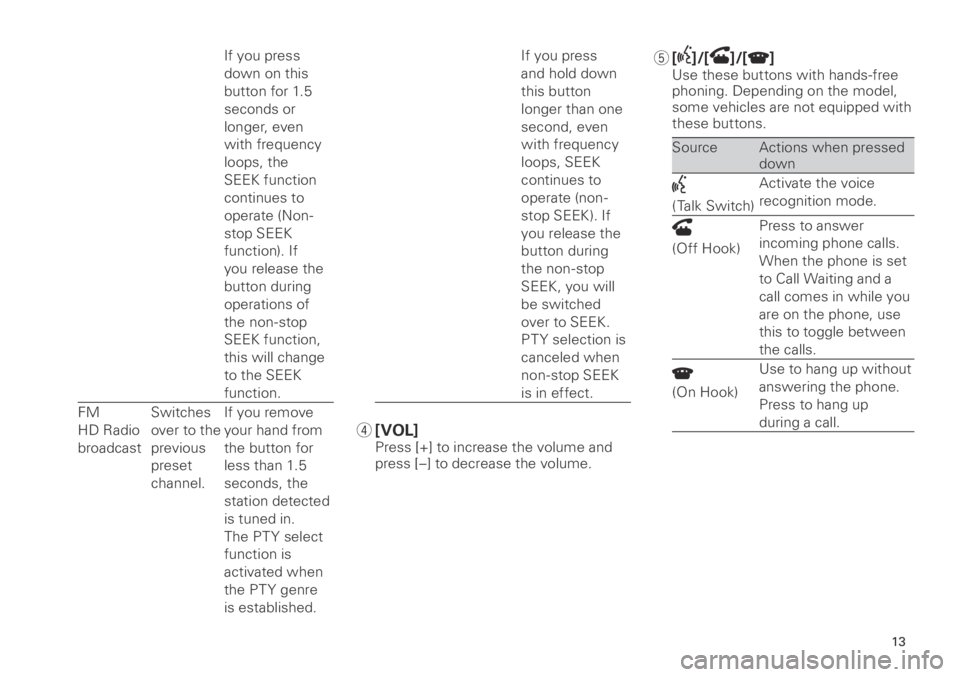

If you press
down on this
button for 1.5
seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function). If
you release the
button during
operations of
the non-stop
SEEK function,
this will change
to the SEEK
function.
FM
HD Radio
broadcast Switches
over to the
previous
preset
channel.If you remove
your hand from
the button for
less than 1.5
seconds, the
station detected
is tuned in.
The PT Y select
function is
activated when
the PT Y genre
is established.If you press
and hold down
this button
longer than one
second, even
with frequency
loops, SEEK
continues to
operate (non-
stop SEEK). If
you release the
button during
the non-stop
SEEK, you will
be switched
over to SEEK.
PT Y selection is
canceled when
non-stop SEEK
is in effect.
4
[VOL]Press [+] to increase the volume and
press [–] to decrease the volume.
5 []/[]/[]Use these buttons with hands-free
phoning. Depending on the model,
some vehicles are not equipped with
these buttons.
Source Actions when pressed
down
( Talk Switch)Activate the voice
recognition mode.
(Off Hook)Press to answer
incoming phone calls.
When the phone is set
to Call Waiting and a
call comes in while you
are on the phone, use
this to toggle between
the calls.
(On Hook)Use to hang up without
answering the phone.
Press to hang up
during a call.

1
1

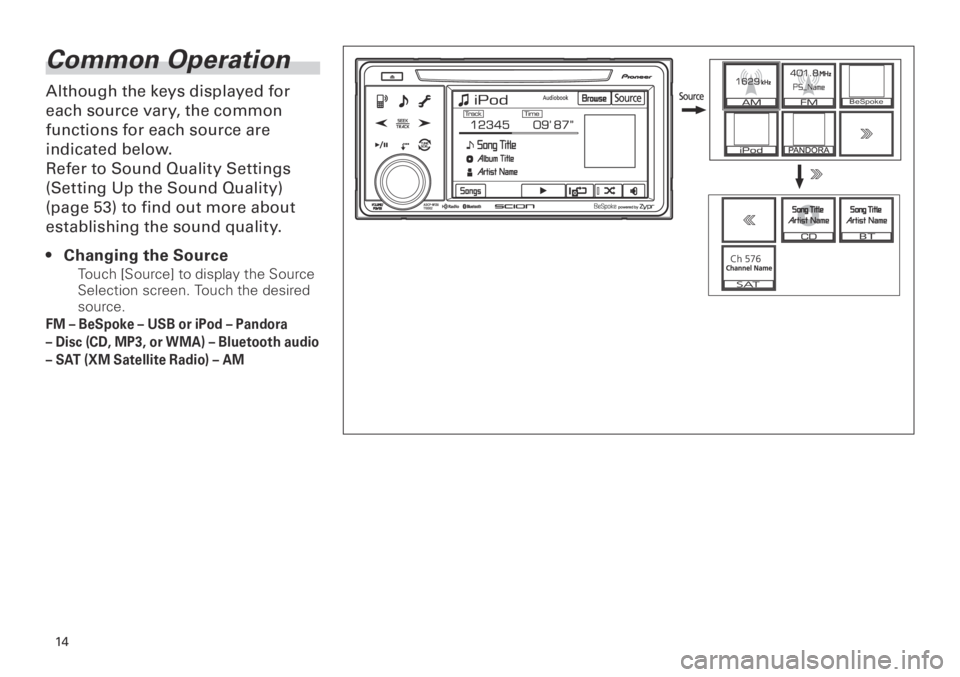

Common Operation
Although the keys displayed for
each source vary, the common
functions for each source are
indicated below.
Refer to Sound Quality Settings
(Setting Up the Sound Quality)
(page 53) to find out more about
establishing the sound quality.
Changing the Source
Touch [Source] to display the Source
Selection screen. Touch the desired
source.
FM – BeSpoke – USB or iPod – Pandora
– Disc (CD, MP3, or WMA) – Bluetooth audio
– SAT (XM Satellite Radio) – AM
•
BeSpoke

15
15

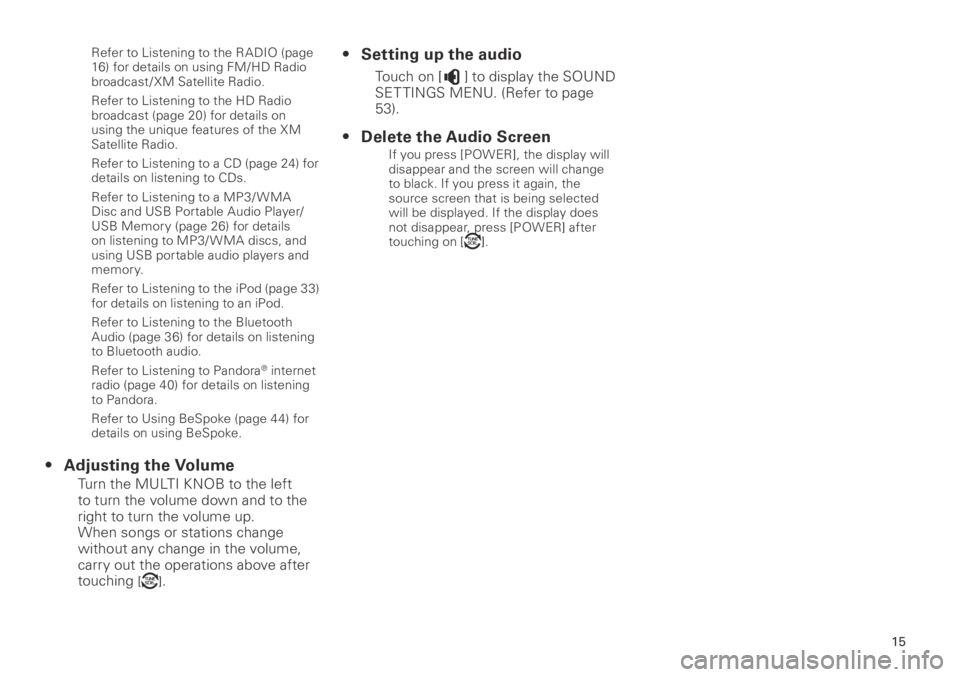

Refer to Listening to the RADIO (page
16) for details on using FM/HD Radio
broadcast / XM Satellite Radio.
Refer to Listening to the HD Radio
broadcast (page 20) for details on
using the unique features of the XM
Satellite Radio.
Refer to Listening to a CD (page 24) for
details on listening to CDs.
Refer to Listening to a MP3/ WMA
Disc and USB Portable Audio Player/
USB Memory (page 26) for details
on listening to MP3/ WMA discs, and
using USB portable audio players and
memory.
Refer to Listening to the iPod (page 33)
for details on listening to an iPod.
Refer to Listening to the Bluetooth
Audio (page 36) for details on listening
to Bluetooth audio.
Refer to Listening to Pandora
® internet
radio (page 40) for details on listening
to Pandora.
Refer to Using BeSpoke (page 4 4) for
details on using BeSpoke.
Adjusting the Volume
Turn the MULTI KNOB to the left
to turn the volume down and to the
right to turn the volume up.
When songs or stations change
without any change in the volume,
carry out the operations above after
touching
[].
• Setting up the audio
Touch on [] to display the SOUND
SET TINGS MENU. (Refer to page
53).
Delete the Audio Screen
If you press [POWER], the display will
disappear and the screen will change
to black. If you press it again, the
source screen that is being selected
will be displayed. If the display does
not disappear, press [POWER] after
touching on [
].
•
•

16
16

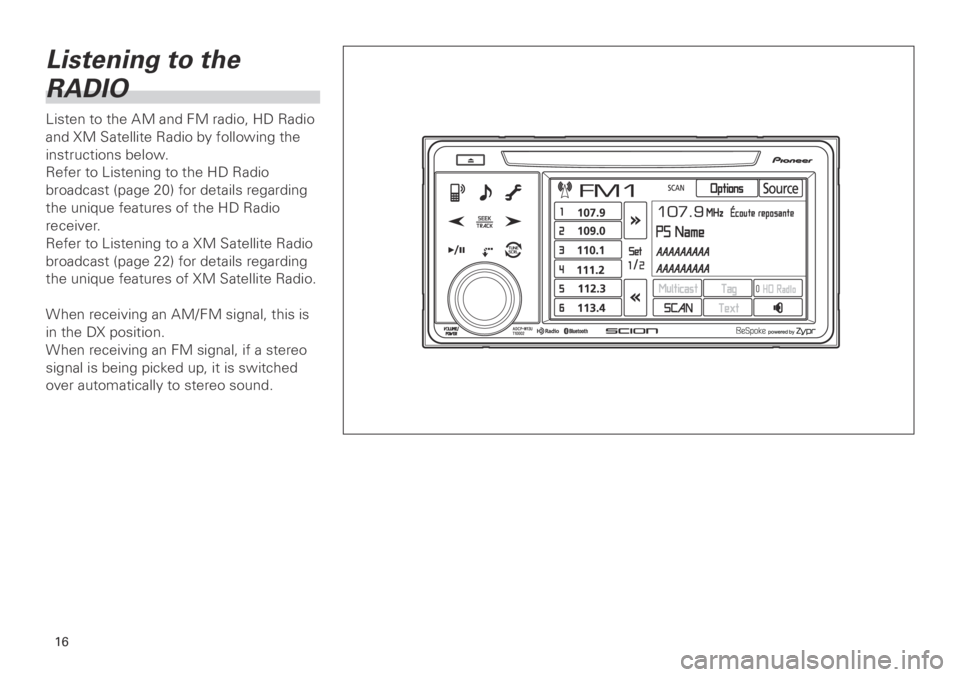

Listening to the
RADIO
Listen to the AM and FM radio, HD Radio
and XM Satellite Radio by following the
instructions below.
Refer to Listening to the HD Radio
broadcast (page 20) for details regarding
the unique features of the HD Radio
receiver.
Refer to Listening to a XM Satellite Radio
broadcast (page 22) for details regarding
the unique features of XM Satellite Radio.
When receiving an AM/FM signal, this is
in the DX position.
When receiving an FM signal, if a stereo
signal is being picked up, it is switched
over automatically to stereo sound.

17
17
Changing the Frequency
Manually
Touch [] and then, after chang-
ing the MULTI KNOB to Tune/Scroll
mode, turn the MULTI KNOB to the
right to increase the frequency and
to the left to decrease the frequency.
• If the volume fluctuates, touch []
to change to the Tune/Scroll mode,
where you can change the frequency.
Searching for Frequencies That
Can Be Tuned In
Touch either [] or [] to search
in either ascending or descending
order for stations that can be tuned
in. When a station is detected, that
station will be tuned in.
If you press down on either of these
for 1.5 seconds or longer, even with
frequency loops, the SEEK function
continues to operate (Non-stop SEEK
function). If you release either during
operations of the Non-Stop SEEK
function, the SEEK function will take
over.
For FM, the PT Y select function is
activated when the PT Y genre is
established. However, when the
Non-Stop SEEK function is active,
the PT Y selection function is can-
celed.
•
• Listening to Preset Channels
Touch [Presets] to display the Preset
screen. Touch on any channel
from 1 to 6 on the Preset screen.
Frequencies recorded on the preset
channel will be tuned in.
Touch [>>] to switch the display to the
next preset page, and [<<] to switch
the display to the previous preset
page.
The pages change in the order of AM
d FM1
d FM2 d SAT1 d SAT2 d
SAT3 ( d Return to AM). (SAT is only
displayed when the SAT unit is con-
nected.)
Recording the current frequency
on the preset channel
Touch any channel from 1 to 6 on
the Preset screen, continuing to
touch the channel for 1.7 seconds or
longer.
NOTICE
You can store up to 6 stations
per band.
Temporarily Muting the Sound
Touch [] to temporarily mute the
sound. Touch [] to resume audio
output.
•
•
• Searching for Frequencies That
Can be Tuned In (Only for FM/
HD Radio / XM Satellite Radio)
Touch [SCAN] to search for frequen-
cies that can be tuned in. Audio
output will be produced in 5 -second
snippets for stations that have been
located. If you touch on [SCAN]
again during the time of the audio
output from the station you want to
listen to, that station will be tuned in.
When setting the PT Y genre, audio
from stations applicable to the PT Y
genre that has been set up is output
continuously in 5 -second snippets. If
you again touch [SCAN], the broad -
cast being output will continue to be
tuned in and you will be able to select
a PT Y genre. If you loop the search for
stations without touching [SCAN], a
beeping sound will be emitted and the
last radio station to be picked up will
be tuned in and then you will be able
to select a PT Y genre (Only for XM
Satellite Radio). Audio broadcasts cor-
responding to the current categories
are continuously output in 5 -second
snippets. If you touch [SCAN] again,
you will continue to receive the broad-
cast being output. If you loop the
detection of stations without touching
[SCAN], you will hear a beeping sound
and the last station to be received will
be tuned in.
•

18
18

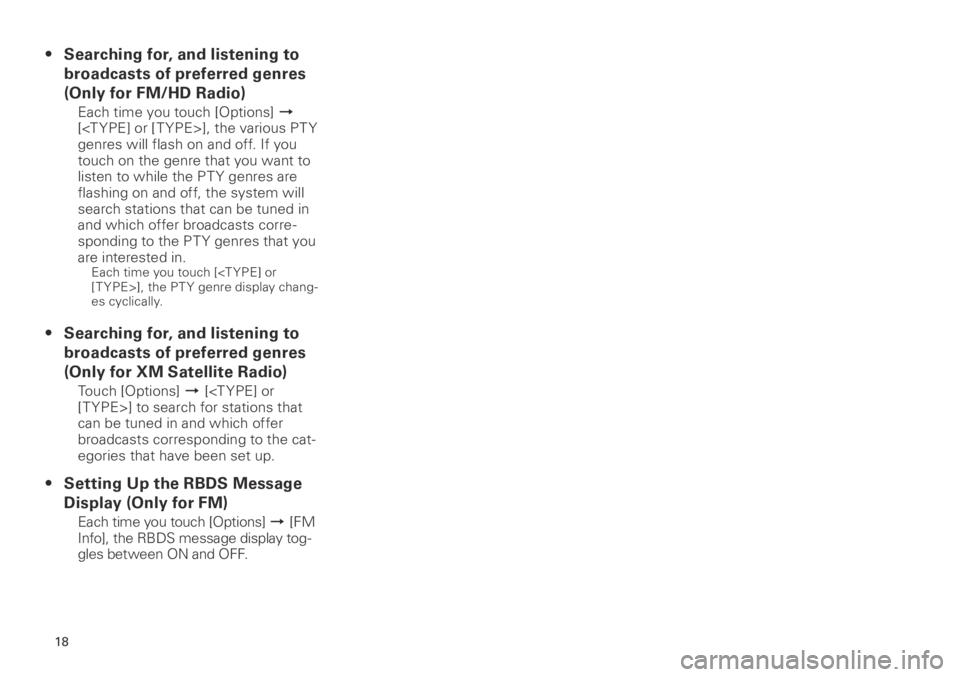

Searching for, and listening to
broadcasts of preferred genres
(Only for FM/HD Radio)
Each time you touch [Options] d
[], the various PT Y
genres will flash on and off. If you
touch on the genre that you want to
listen to while the PT Y genres are
flashing on and off, the system will
search stations that can be tuned in
and which offer broadcasts corre -
sponding to the PT Y genres that you
are interested in.
Each time you touch [ [ T YPE>], the PT Y genre display chang-
es cyclically.
Searching for, and listening to
broadcasts of preferred genres
(Only for XM Satellite Radio)
Touch [Options] d [ [T YPE>] to search for stations that
can be tuned in and which offer
broadcasts corresponding to the cat-
egories that have been set up.
Setting Up the RBDS Message
Display (Only for FM)
Each time you touch [Options] d [FM
Info], the RBDS message display tog-
gles between ON and OFF.
•
•
•

19
19

0
0
Listening to the
HD Radio broadcast
HD Radio™ Technology is a
terrestrial digital radio broadcast
that utilizes AM/FM analog
broadcasting frequencies to
transmit digital signals.
For information regarding viewing
methods, refer to Listening to
the RADIO (page 16). This section
contains explanations solely
regarding HD Radio broadcast
functions.
About HD Radio™ broadcasting
HD Radio™ broadcasting is high quality
audio and data services. HD Radio broad-
casting is brought to you by your local
FM/AM stations.
HD Ra d

io broadcasting features the fol-
lowing:
• High quality audio• FM multicasting• Data services
