TOYOTA tC 2013 Accessories, Audio & Navigation (in English)

1
1
(MPS)
(MPS)
(MPS)
(SPS)
(SPS)
Program Service Data: Contributes to the
superior user experience of HD Radio
Technology. Presents song name, artist,
station IDs, HD2/HD3 Channel Guide, and
other relevant data streams.
Adjacent to traditional main stations are extra
local FM channels. These HD2/HD3 Channels
provide new, original music as well as deep
cuts into traditional genre.
iTunes® Tagging provides you the opportunity
to discover a wide range of content and the
means to “tag” that content for later review
and purchase from the iTunes
® Store
Storing Song Information that
is Being Tuned In on HD Radio
Broadcast
If you touch [Tag] while the HD Radio
broadcast signal is being received,
the tag information of the song that
is being broadcast is stored.
Sometimes when songs are being
toggled and the like, tag information
cannot be accessed very effectively or
multiple tags are recorded.
Viewing HD Radio Broadcast
Text Information
Touch [Text] to display the Text Display
screen, where music, title, artist
name, album title and genre name are
displayed.
Touch [Additional Information] to dis-
play the Additional Information screen.
Touch [
] or [] to scroll the page.
Touch [
] to return to the HD Radio
Screen.
Setting up the HD Radio
Broadcast Reception Method
Touch on [HD Radio] to switch over
to analog mode and tune in analog
broadcasts. Touch [HD Radio] again
to switch over to digital mode and
tune in digital broadcasts.
Multicast Channel Support
When receiving the HD Radio
Broadcast signal and tuning in a
Multicast Channel-supported broad-
•
•
•
•cast in something other than analog,
the following actions will occur each
time you touch on [Multicast].
When receiving
MPS signal The next SPS is
tuned in.
When receiving
SPS signal The next SPS is
tuned in.
When receiving
last SPS MPS is tuned in.
NOTICE
When an analog station is
received, tuning down operation
is conducted within the analog
broadcasting. (
6d 2)
If a digital broadcast is not yet
received, tuning-up operation
tunes in the next analog station.
( 2 d 6)•
•

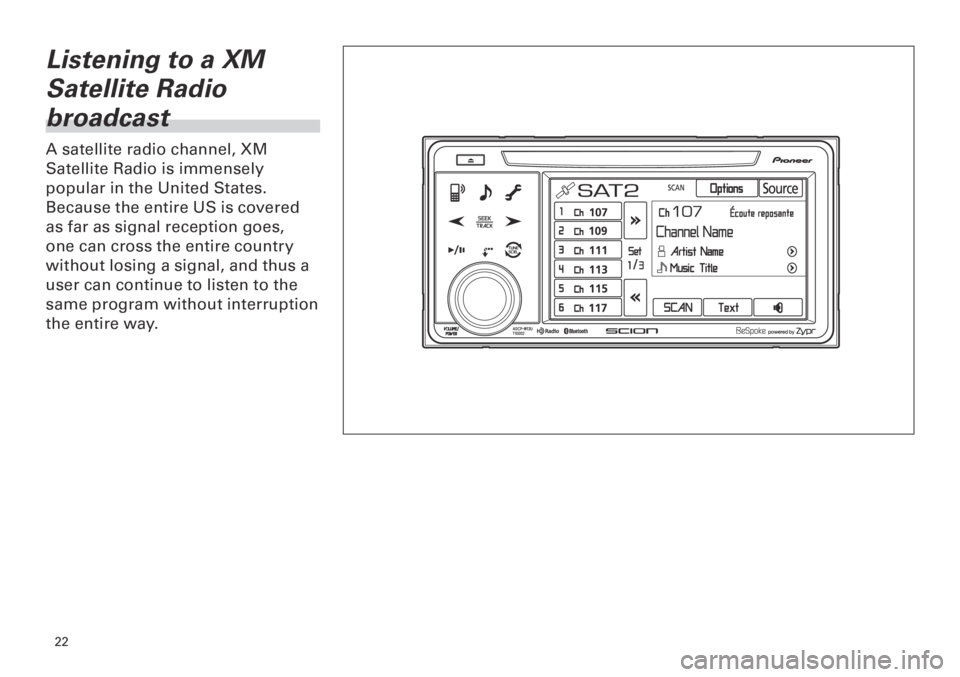

Listening to a XM
Satellite Radio
broadcast
A satellite radio channel, XM
Satellite Radio is immensely
popular in the United States.
Because the entire US is covered
as far as signal reception goes,
one can cross the entire country
without losing a signal, and thus a
user can continue to listen to the
same program without interruption
the entire way.

3
3

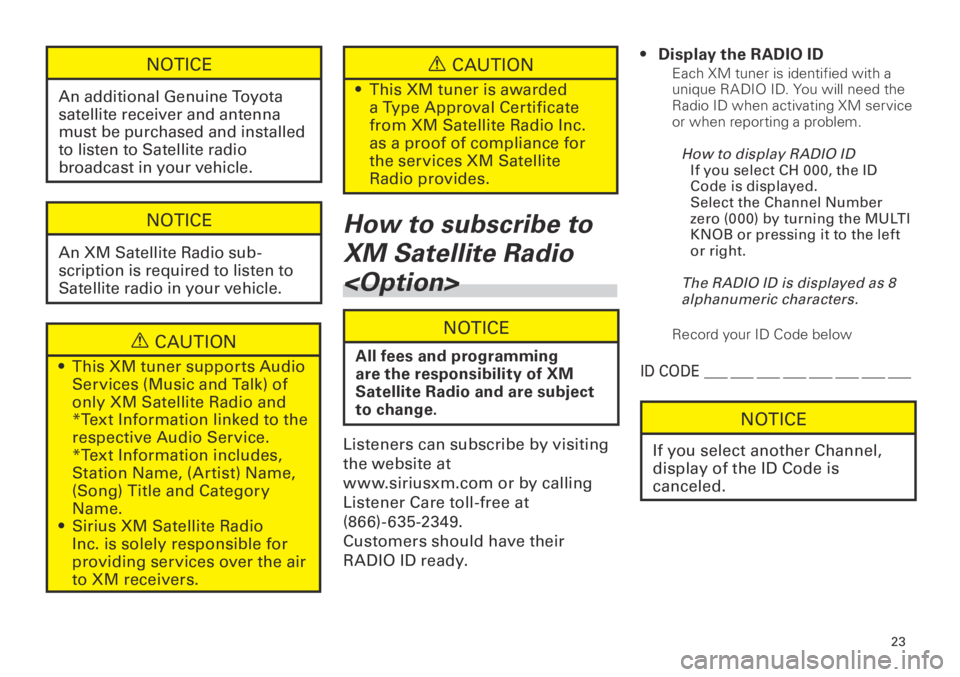

NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio
broadcast in your vehicle.
NOTICE
An XM Satellite Radio sub-
scription is required to listen to
Satellite radio in your vehicle.
CAUTION
This XM tuner supports Audio
Services (Music and Talk) of
only XM Satellite Radio and
*Text Information linked to the
respective Audio Service.
*Text Information includes,
Station Name, (Artist) Name,
(Song) Title and Category
Name.
Sirius XM Satellite Radio
Inc. is solely responsible for
providing services over the air
to XM receivers.
•
•
CAUTION
This XM tuner is awarded
a Type Approval Certificate
from XM Satellite Radio Inc.
as a proof of compliance for
the services XM Satellite
Radio provides.
•
How to subscribe to
XM Satellite Radio

NOTICE
All fees and programming
are the responsibility of XM
Satellite Radio and are subject
to change.
Listeners can subscribe by visiting
the website at
w w w.siriusxm.com or by calling
Listener Care toll-free at
(86 6

)-635- 3  9.
Customers should have their
RADIO ID ready. Display the RADIO ID
Each XM tuner is identified with a
unique RADIO ID. You will need the
Radio ID when activating XM service
or when reporting a problem.
How to display RADIO IDIf you select CH 000, the ID
Code is displayed.
Select the Channel Number
zero (000) by turning the MULTI
KNOB or pressing it to the lef t
or right.
The RADIO ID is displayed as 8
alphanumeric characters.
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
If you select another Channel,
display of the ID Code is
canceled.
•

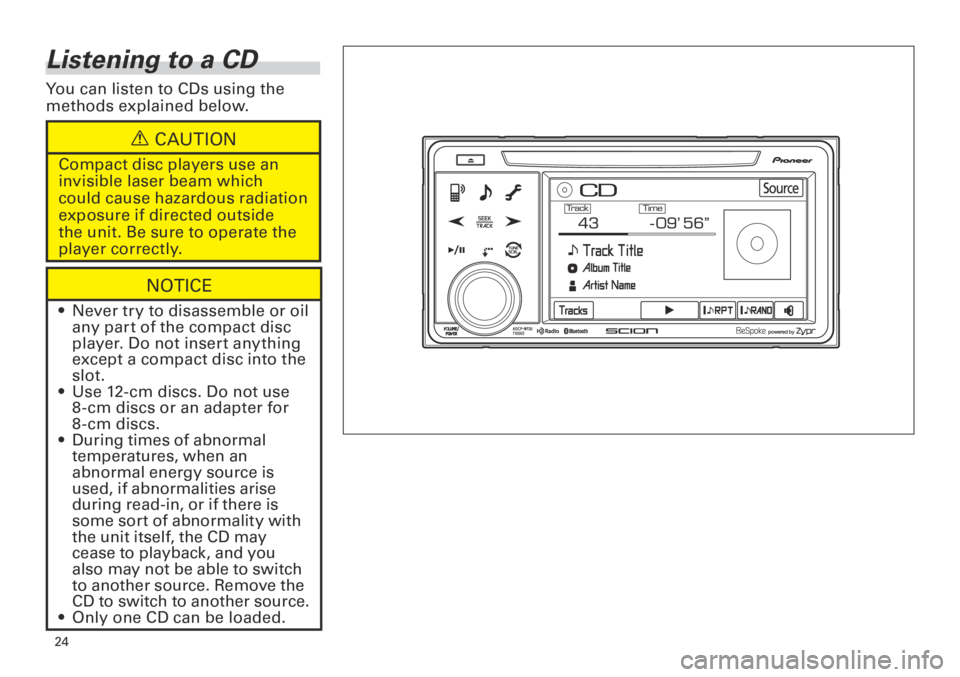

Listening to a CD
You can listen to CDs using the
methods explained below.
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.
NOTICE
Never try to disassemble or oil
any part of the compact disc
player. Do not insert anything
except a compact disc into the
slot.
Use 1-c

m discs. Do not use
8-cm discs or an adapter for
8-cm discs.
During times of abnormal
temperatures, when an
abnormal energy source is
used, if abnormalities arise
during read-in, or if there is
some sort of abnormality with
the unit itself, the CD may
cease to playback, and you
also may not be able to switch
to another source. Remove the
CD to switch to another source.
Only one CD can be loaded.
•
•
•
•

5
5

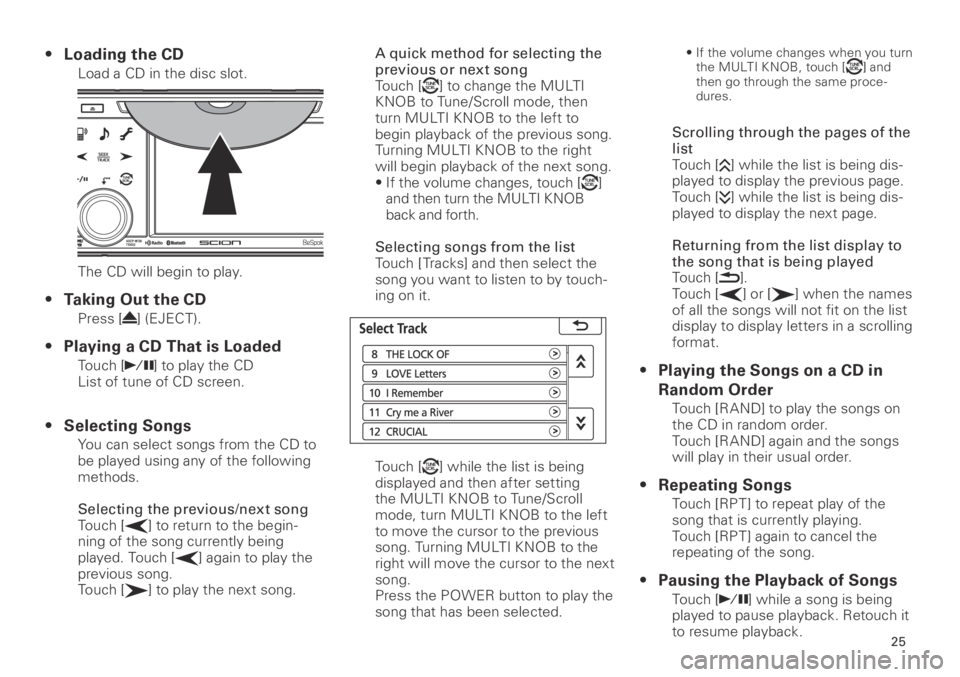

Loading the CD
Load a CD in the disc slot.
The CD will begin to play.
Taking Out the CD
Press [] (EJECT ).
Playing a CD That is Loaded
Touch [] to play the CD
List of tune of CD screen.
Selecting Songs
You can select songs from the CD to
be played using any of the following
methods.
Selecting the previous/next song
Touch [
] to return to the begin-
ning of the song currently being
played. Touch [
] again to play the
previous song.
Touch [
] to play the next song.
•
•
•
•A quick method for selecting the
previous or next song
Touch [
] to change the MULTI
KNOB to Tune/Scroll mode, then
turn MULTI KNOB to the left to
begin playback of the previous song.
Turning MULTI KNOB to the right
will begin playback of the next song.
• If

the volume changes, touch []
and then turn the MULTI KNOB
back and forth.
Selecting songs from the list
Touch [Tracks] and then select the
song you want to listen to by touch-
ing on it.
Touch [] while the list is being
displayed and then after setting
the MULTI KNOB to Tune/Scroll
mode, turn MULTI KNOB to the left
to move the cursor to the previous
song. Turning MULTI KNOB to the
right will move the cursor to the next
song.
Press the POWER button to play the
song that has been selected.
• If the volume changes when you turn
the MULTI KNOB, touch [] and
then go through the same proce -
dures.
Scrolling through the pages of the
list
Touch [
] while the list is being dis-
played to display the previous page.
Touch [
] while the list is being dis-
played to display the next page.
Returning from the list display to
the song that is being played
Touch [
].
Touch [] or [] when the names
of all the songs will not fit on the list
display to display letters in a scrolling
format.
Playing the Songs on a CD in
Random Order
Touch [RAND] to play the songs on
the CD in random order.
Touch [RAND] again and the songs
will play in their usual order.
Repeating Songs
Touch [RPT] to repeat play of the
song that is currently playing.
Touch [RPT] again to cancel the
repeating of the song.
Pausing the Playback of Songs
Touch [] while a song is being
played to pause playback. Retouch it
to resume playback.
•
•
•

6
6

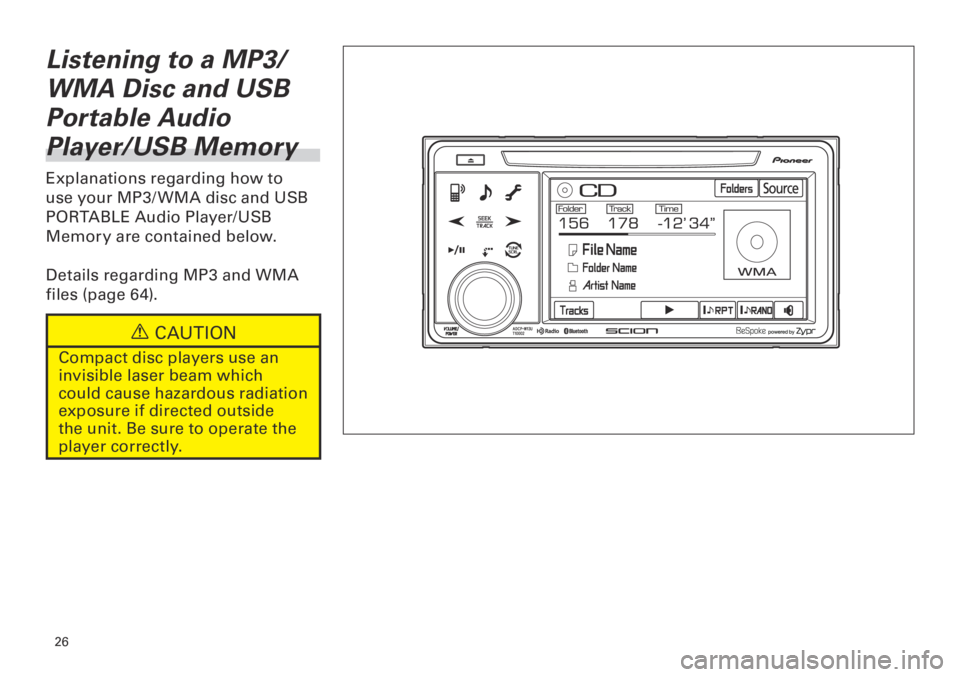

Listening to a MP3/
WMA Disc and USB
Portable Audio
Player/USB Memory
Explanations regarding how to
use your MP3/ WMA disc and USB
PORTABLE Audio Player/USB
Memory are contained below.
Details regarding MP3 and WMA
file
s (page 6 ).
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.

7
7

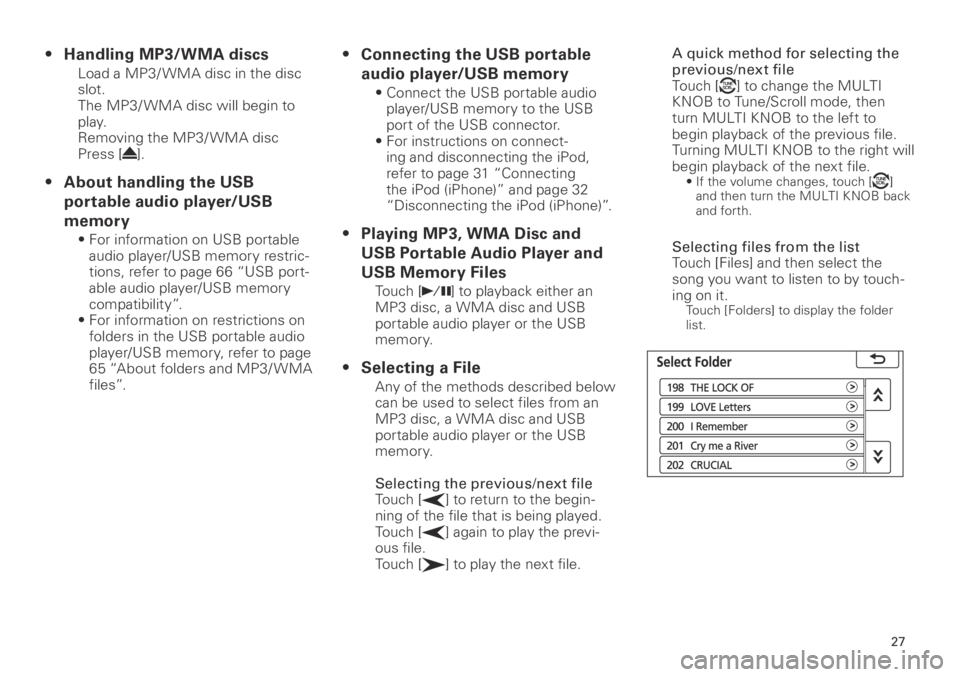

Handling MP3/WMA discs
Load a MP3/ WMA disc in the disc
slot.
The MP3/ WMA disc will begin to
play.
Removing the MP3/ WMA disc
Press [
].
About handling the USB
portable audio player/USB
memory
• For information on USB portable
audio player/USB memory restric-
tions, refer to page 66 “USB port-
able audio player/USB memory
compatibility”.
• Fo r i

nformation on restrictions on
folders in the USB portable audio
player/USB memory, refer to page
65 “About folders and MP3/ WMA
files”.
•
• Connecting the USB portable
audio player/USB memory
•
Connect the USB portable audio
player/USB memory to the USB
port of the USB connector.
• Fo r i

nstructions on connect-
ing and disconnecting the iPod,
refer to page 31 “Connecting
the iPod (iPhone)” and page 32
“Disconnecting the iPod (iPhone)”.
Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files
Touch [] to playback either an
MP3 disc, a WMA disc and USB
portable audio player or the USB
memory.
Selecting a File
Any of the methods described below
can be used to select files from an
MP3 disc, a WMA disc and USB
portable audio player or the USB
memory.
Selecting the previous/next file
Touch [
] to return to the begin-
ning of the file that is being played.
Touch [
] again to play the previ-
ous file.
Touch [
] to play the next file.
•
•
•A quick method for selecting the
previous/next file
Touch [
] to change the MULTI
KNOB to Tune/Scroll mode, then
turn MULTI KNOB to the left to
begin playback of the previous file.
Turning MULTI KNOB to the right will
begin playback of the next file.
• If the volume changes, touch []
and then turn the MULTI KNOB back
and forth.
Selecting files from the list
Touch [Files] and then select the
song you want to listen to by touch-
ing on it.
Touch [Folders] to display the folder
list.

8
8
Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files in Random
Order
Each time you touch [RAND], MP3,
WMA disc and USB portable audio
player and USB memory files are
played back as described below.
Normal playback d Files in the folder are
played in random order d All files on the
disc are played in random order ( d Normal
playback)
Repeating Files
Each time you touch [RPT], MP3,
WMA disc and USB portable audio
player/USB memory files are played
as described below.
Normal playback d Playback of files is
repeated d Files in the folder are played in
random order* ( d Normal playback)
* If the random function is available,
this is skipped.
Pausing Playback of Files
Touch on [] while the file is
playing. Touch it again and playback
resumes.
•
•

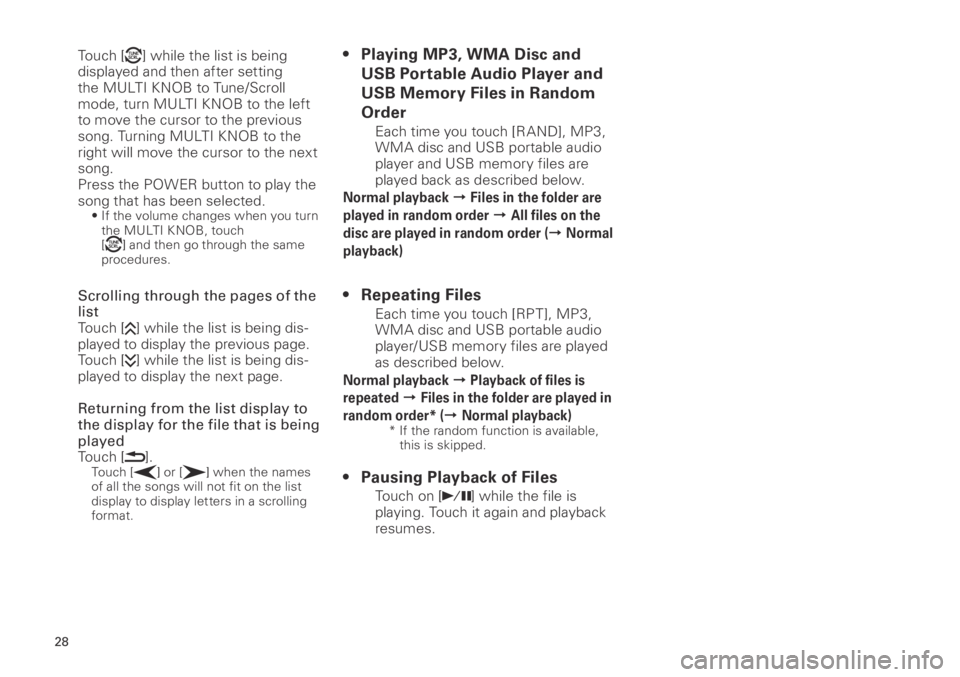

•Touch [] while the list is being
displayed and then after setting
the MULTI KNOB to Tune/Scroll
mode, turn MULTI KNOB to the left
to move the cursor to the previous
song. Turning MULTI KNOB to the
right will move the cursor to the next
song.
Press the POWER button to play the
song that has been selected.
• If the volume changes when you turn
the MULTI KNOB, touch
[
] and then go through the same
procedures.
Scrolling through the pages of the
list
Touch [
] while the list is being dis-
played to display the previous page.
Touch [
] while the list is being dis-
played to display the next page.
Returning from the list display to
the display for the file that is being
played
Touch [
]. Touch [] or [] when the names
of all the songs will not fit on the list
display to display letters in a scrolling
format.

9
9

30
30

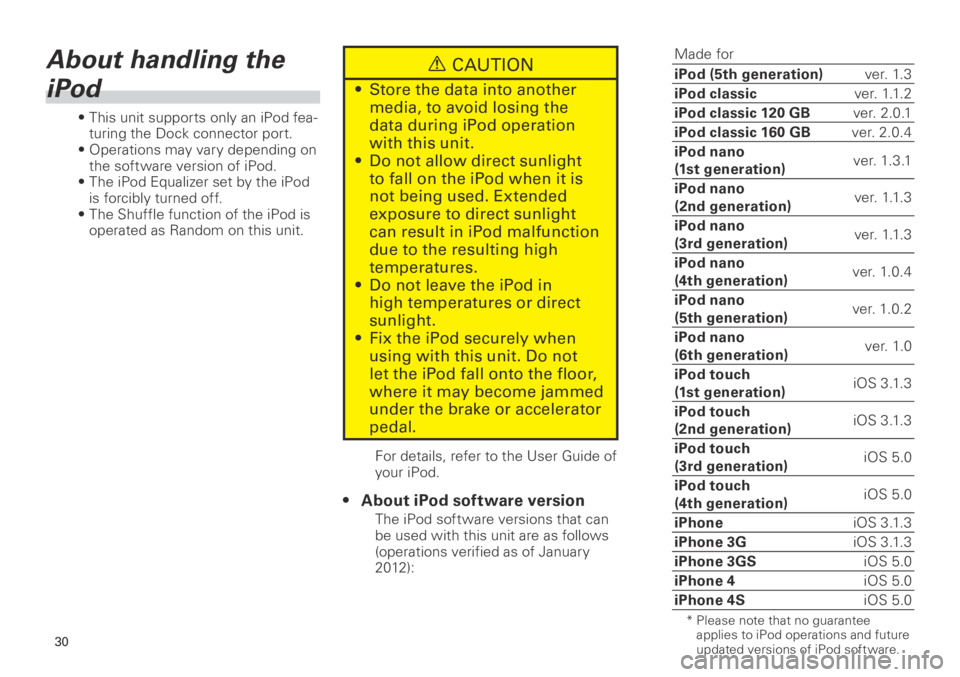

About handling the
iPod
• This unit supports only an iPod fea-
turing the Dock connector port.
• Op e
rations may vary depending on
the software version of iPod.
• Th e i

Pod Equalizer set by the iPod
is forcibly turned off.
• Th e S

huffle function of the iPod is
operated as Random on this unit.
CAUTION
Store the data into another
media, to avoid losing the
data during iPod operation
with this unit.
Do not allow direct sunlight
to fall on the iPod when it is
not being used. Extended
exposure to direct sunlight
can result in iPod malfunction
due to the resulting high
temperatures.
Do not leave the iPod in
high temperatures or direct
sunlight.
Fix the iPod securely when
using with this unit. Do not
let the iPod fall onto the floor,
where it may become jammed
under the brake or accelerator
pedal.
•
•
•
•
For details, refer to the User Guide of
your iPod.
About iPod software version
The iPod software versions that can
be used with this unit are as follows
(operations verified as of January
2012):
•
Made for
iPod (5th generation)
ver. 1.3
iPod classic ver. 1.1.2
iPod classic 120 GB ver. 2.0.1
iPod classic 160 GB ver. 2.0.4
iPod nano
(1st generation) ver. 1.3.1
iPod nano
(2nd generation) ver. 1.1.3
iPod nano
(3rd generation) ver. 1.1.3
iPod nano
(4th generation) ver. 1.0.4
iPod nano
(5th generation) ver. 1.0.2
iPod nano
(6th generation) ver. 1.0
iPod touch
(1st generation) iOS 3.1.3
iPod touch
(2nd generation) iOS 3.1.3
iPod touch
(3rd generation) iOS 5.0
iPod touch
(4th generation) iOS 5.0
iPhone iOS 3.1.3
iPhone 3G iOS 3.1.3
iPhone 3GS iOS 5.0
iPhone 4 iOS 5.0
iPhone 4S iOS 5.0
* Please note that no guarantee
applies to iPod operations and future
updated versions of iPod software.
