TOYOTA tC 2013 Accessories, Audio & Navigation (in English)

1
1
Current Pandora account (Free
account and paid accounts
available from Pandora; create a
free account online at http://www.
pandora.com/register or through
the Pandora application for the
iPhone).
iPhone Data Plan.
Note: if the Data Plan for your iPhone
does not provide for unlimited data
usage, additional charges from the cel-
lular phone carrier may
apply for accessing the Pandora
service via its 3G, GSM/EDGE and/or
CDMA networks.
Connection to the Internet via
3G, GSM/EDGE, CDMA or WiFi
network.
Refer to Connecting the iPod
(iPhone) (page 31) for information
regarding how to connect iPhone.
Limitations: Access to the Pandora
® internet
radio will depend on the
availability of a cellular and/or
WiFi network for purposes of
allowing your iPhone to connect
to the Internet.
Ability of this system to access
Pandora
® is subject to change
without notice and could be
•
•
•
•
•
•
af fected by any of the following:
compatibility issues with future
firmware versions of iPhones;
compatibility issues with
future firmware versions of
the Pandora application for the
iPhone; changes to the internet
radio service by Pandora;
discontinuation of the internet
radio service by Pandora.
Certain functionality of Pandora
®
is not available when accessing
the service through this system,
including, but not limited to,
creating new stations, deleting
stations, emailing current
stations, buying songs from
iTunes, viewing additional
text information, logging in to
Pandora
®, and adjusting Cell
Network Audio Quality.
Pandora® internet radio is a internet radio
service not affiliated with Pioneer and
SCION. More information is available
at http://www.pandora.com. Pandora,
the Pandora logo, and the Pandora
trade dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
•
NOTICE
Park your vehicle in a safe place
before attempting to use the
iPhone and launch the Pandora
®
application installed on the
phone.
You will not be able to control
Pandora by your iPhone while
listening Pandora.



Skipping to the Next Track
Touch [].The next track will be determined by
the server.
Refer to the Pandora homepage for
more information regarding these
operations.
Pausing Playback of Songs on
Pandora®
Touch [] while the song is being
played back to pause playback.
Touch it again to resume playback.
Giving a Thumbs UP/Thumbs
DOWN to a Song that is Playing
Touch on either the thumbs up or the
thumbs down sign while the song is
playing (or when playback has been
paused).
When casting a thumbs up or a
thumbs down, this information
is saved as a log in the Pandora
®
account on the server and serves as
a source of information influencing
the content of future song selection.
[] Credits the song being
played back with a
Thumbs UP, which is
sent to the server via
iPhone.
•
•
•[]Gives the song being
played back a Thumbs
DOWN, which is
sent to the server via
iPhone. When a song
is given a Thumbs
DOWN, the next
song begins. A song
receiving a Thumbs
DOWN will not be
played in the future
on the station you are
listening to.
If the Track UP restriction
number is exceeded, even
songs receiving Thumbs
DOWN continue to be
played back.
Bookmarking Songs that are
Being Played Back
Touch [] when a song is being
played back (or when playback has
been paused), and then touch either
[SONG] or [ARTIST]. The songs
and artists that you enjoy become
bookmark-registered information
sent to the server via iPhone. This
information cannot be called up later.
Bookmarked songs can only be refer-
enced via a PC.
Touch [CANCEL] to cancel the book-
mark registration.
• Calling Up Stations Created on
a PC
Touch [Station] to display the Select
Station screen.
You can touch either of these to
select the order in which your
favorite stations come up.
By Date
Shared station icon:
Indicates shared stations that have
been registered.
[By Date] Stations created using
a PC are displayed as a
list in the order that they
were registered. Touch
on the station that you
want to listen to.
[A-Z] Stations created using a PC are displayed as a
list in alphabetical order.
Touch on the station that
you want to listen to.
•

3
3
Scrolling through the pages of the list
Touch [] while the list is being dis-
played to display the previous page.
Touch [
] while the list is being dis-
played to display the next page.

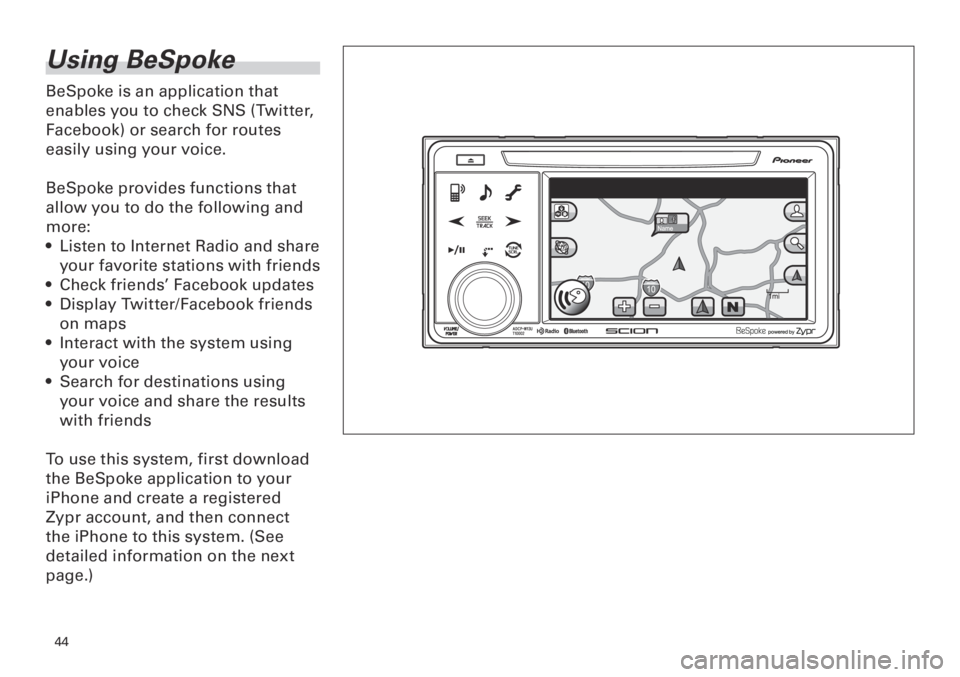

Using BeSpoke
BeSpoke is an application that
enables you to check SNS (Twitter,
Facebook) or search for routes
easily using your voice.
BeSpoke provides functions that
allow you to do the following and
more:Listen to Internet Radio and share
your favorite stations with friends
Check friends’ Facebook updates
Display Twitter/Facebook friends
on maps
Interact with the system using
your voice
Search for destinations using
your voice and share the results
with friends
To use this system, first download
the BeSpoke application to your
iPhone and create a registered
Zypr account, and then connect
the iPhone to this system. (See
detailed information on the next
page.) •
•
•
•
•

5
5

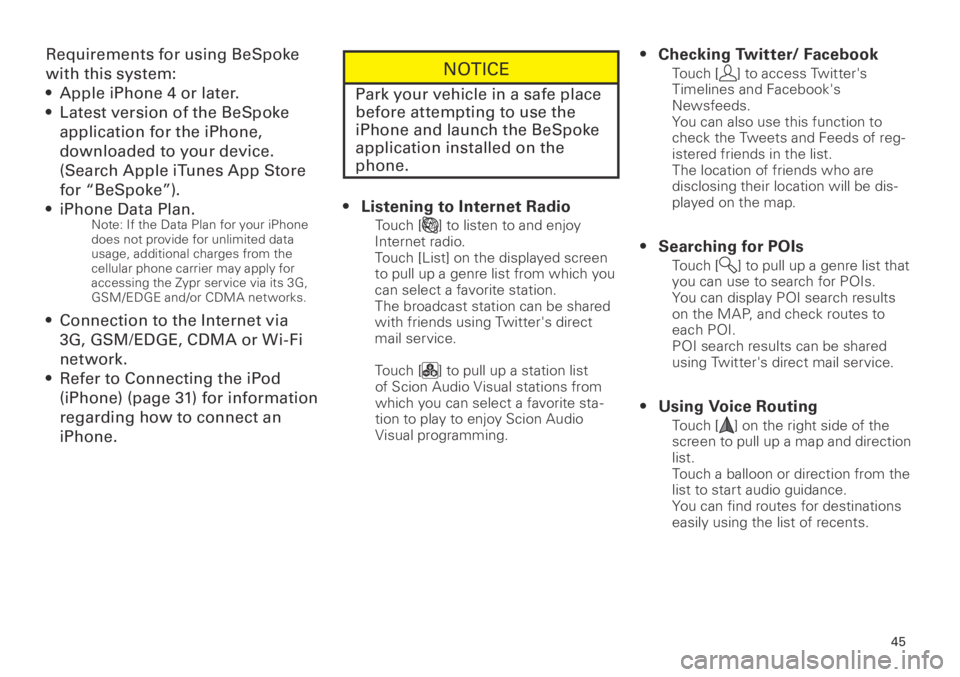

Requirements for using BeSpoke
with this system:Appl
e iPhone  or later.
Latest version of the BeSpoke
application for the iPhone,
downloaded to your device.
(Search Apple iTunes App Store
for “BeSpoke”).
iPhone Data Plan.
Note: If the Data Plan for your iPhone
does not provide for unlimited data
usage, additional charges from the
cellular phone carrier may apply for
accessing the Zypr service via its 3G,
GSM/EDGE and/or CDMA networks.
Connection to the Internet via
3G, GSM/EDGE, CDMA or Wi-Fi
network.
Refer to Connecting the iPod
(iPhone) (page 31) for information
regarding how to connect an
iPhone.
•
•
•
•
•
NOTICE
Park your vehicle in a safe place
before attempting to use the
iPhone and launch the BeSpoke
application installed on the
phone.
Listening to Internet Radio
Touch [] to listen to and enjoy
Internet radio.
Touch [List] on the displayed screen
to pull up a genre list from which you
can select a favorite station.
The broadcast station can be shared
with friends using Twitter's direct
mail service.
Touch [
] to pull up a station list
of Scion Audio Visual stations from
which you can select a favorite sta-
tion to play to enjoy Scion Audio
Visual programming.
• Checking Twitter/ Facebook
Touch [] to access Twitter's
Timelines and Facebook's
Newsfeeds.
You can also use this function to
check the Tweets and Feeds of reg-
istered friends in the list.
The location of friends who are
disclosing their location will be dis-
played on the map.
Searching for POIs
Touch [] to pull up a genre list that
you can use to search for POIs.
You can display POI search results
on the MAP, and check routes to
each POI.
POI search results can be shared
using Twitter's direct mail service.
Using Voice Routing
Touch [] on the right side of the
screen to pull up a map and direction
list.
Touch a balloon or direction from the
list to start audio guidance.
You can find routes for destinations
easily using the list of recents.
•
•
•

6
6

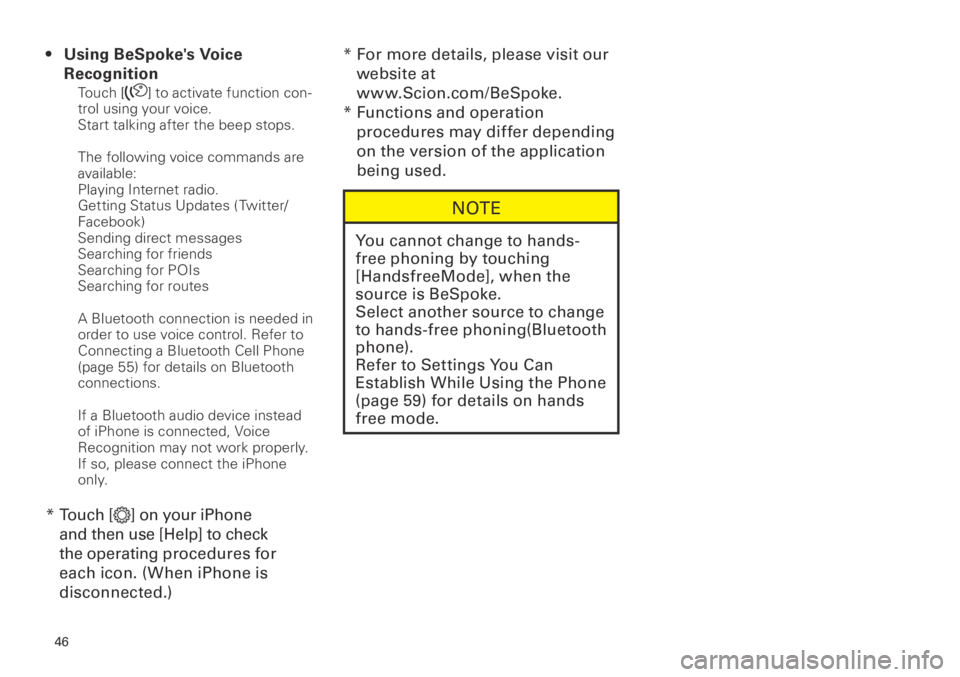

Using BeSpoke's Voice
Recognition
Touch [] to activate function con-
trol using your voice.
Start talking after the beep stops.
The following voice commands are
available:
Playing Internet radio.
Getting Status Updates ( Twitter/
Facebook)
Sending direct messages
Searching for friends
Searching for POIs
Searching for routes
A Bluetooth connection is needed in
order to use voice control. Refer to
Connecting a Bluetooth Cell Phone
(page 55) for details on Bluetooth
connections.
If a Bluetooth audio device instead
of iPhone is connected, Voice
Recognition may not work properly.
If so, please connect the iPhone
only.
* Touch [] on your iPhone
and then use [Help] to check
the operating procedures for
each icon. (When iPhone is
disconnected.)
•
*
Fo r m
ore details, please visit our
website at
w w w.Scion.com/BeSpoke.
* Fu n

ctions and operation
procedures may dif fer depending
on the version of the application
being used.
NOTE
You cannot change to hands-
free phoning by touching
[HandsfreeMode], when the
source is BeSpoke.
Select another source to change
to hands-free phoning(Bluetooth
phone).
Refer to Settings You Can
Establish While Using the Phone
(page 59) for details on hands
free mode.

7
7

8
8

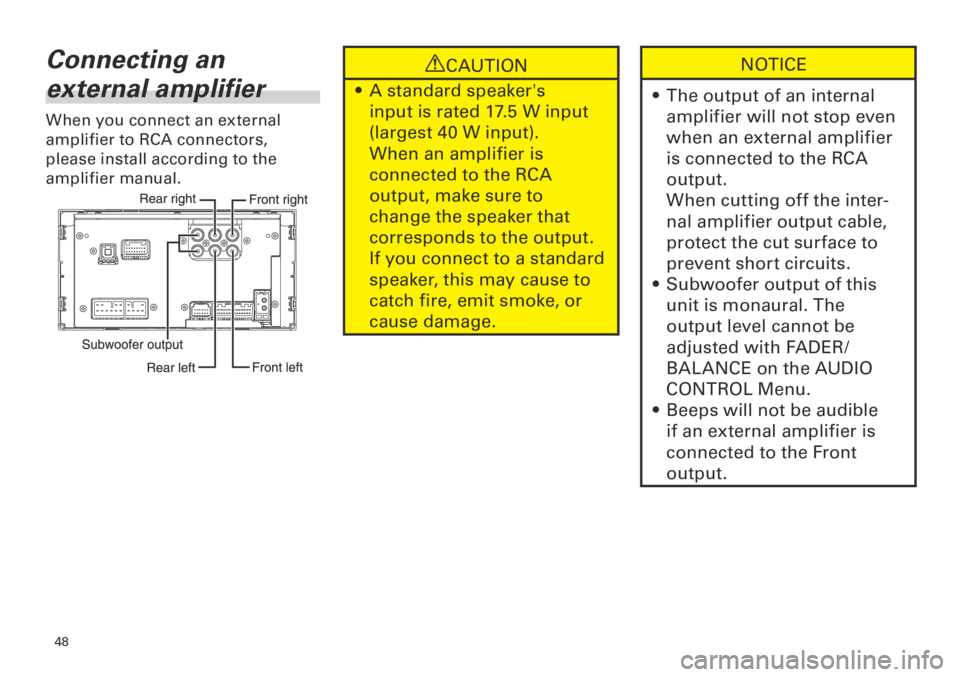

Connecting an
external amplifier
When you connect an external
amplifier to RCA connectors,
please install according to the
amplifier manual.
CAUTION
A standard speaker's
input is rated 17.5 W input
(la r

gest  0 W input).
When an amplifier is
connected to the RCA
output, make sure to
change the speaker that
corresponds to the output.
If you connect to a standard
speaker, this may cause to
catch fire, emit smoke, or
cause damage.
•
NOTICE
The output of an internal
amplifier will not stop even
when an external amplifier
is connected to the RCA
output.
When cutting off the inter-
nal amplifier output cable,
protect the cut surface to
prevent short circuits.
Subwoofer output of this
unit is monaural. The
output level cannot be
adjusted with FADER/
BALANCE on the AUDIO
CONTROL Menu.
Beeps will not be audible
if an external amplifier is
connected to the Front
output.
•
•
•

9
9

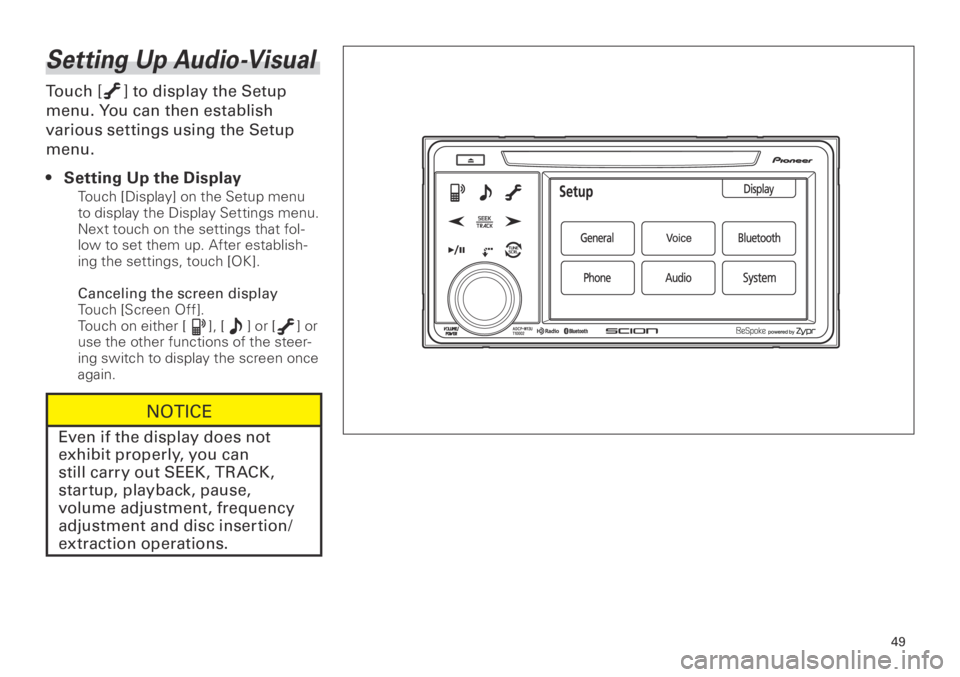

Setting Up Audio-Visual
Touch [] to display the Setup
menu. You can then establish
various settings using the Setup
menu.
Setting Up the Display
Touch [Display] on the Setup menu
to display the Display Settings menu.
Next touch on the settings that fol-
low to set them up. After establish-
ing the settings, touch [OK].
Canceling the screen display
Touch [Screen Off].
Touch on either [
], [] or [] or
use the other functions of the steer-
ing switch to display the screen once
again.
NOTICE
Even if the display does not
exhibit properly, you can
still carry out SEEK, TRACK,
startup, playback, pause,
volume adjustment, frequency
adjustment and disc insertion/
extraction operations.
•

50
50

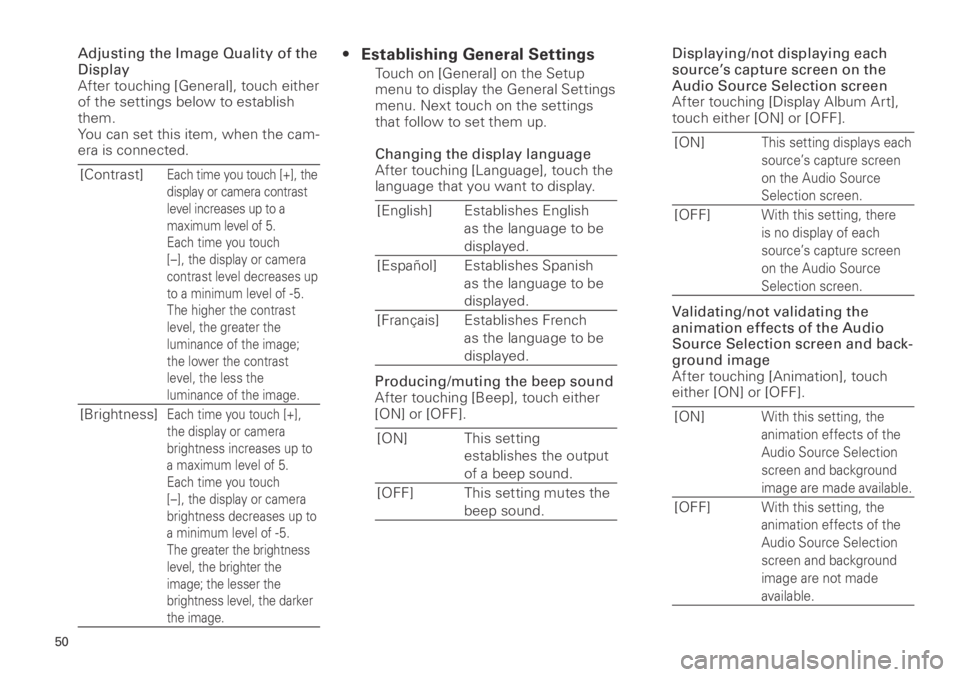

Adjusting the Image Quality of the
Display
After touching [General], touch either
of the settings below to establish
them.
You can set this item, when the cam-
era is connected.
[Contrast]Each time you touch [+], the
display or camera contrast
level increases up to a
maximum level of 5.
Each time you touch
[–], the display or camera
contrast level decreases up
to a minimum level of - 5.
The higher the contrast
level, the greater the
luminance of the image;
the lower the contrast
level, the less the
luminance of the image.
[Brightness]Each time you touch [+],
the display or camera
brightness increases up to
a maximum level of 5.
Each time you touch
[–], the display or camera
brightness decreases up to
a minimum level of - 5.
The greater the brightness
level, the brighter the
image; the lesser the
brightness level, the darker
the image.
Establishing General Settings
Touch on [General] on the Setup
menu to display the General Settings
menu. Next touch on the settings
that follow to set them up.
Changing the display language
After touching [Language], touch the
language that you want to display.
[English] Establishes English as the language to be
displayed.
[Español] Establishes Spanish as the language to be
displayed.
[Français] Establishes French as the language to be
displayed.
Producing/muting the beep sound
After touching [Beep], touch either
[ON] or [OFF].
[ON] This setting establishes the output
of a beep sound.
[OFF] This setting mutes the beep sound.
•Displaying/not displaying each
source’s capture screen on the
Audio Source Selection screen
After touching [Display Album Art],
touch either [ON] or [OFF].
[ON]This setting displays each
source’s capture screen
on the Audio Source
Selection screen.
[OFF]With this setting, there
is no display of each
source’s capture screen
on the Audio Source
Selection screen.
Validating/not validating the
animation ef fects of the Audio
Source Selection screen and back-
ground image
After touching [Animation], touch
either [ON] or [OFF].
[ON]With this setting, the
animation effects of the
Audio Source Selection
screen and background
image are made available.
[OFF]With this setting, the
animation effects of the
Audio Source Selection
screen and background
image are not made
available.
