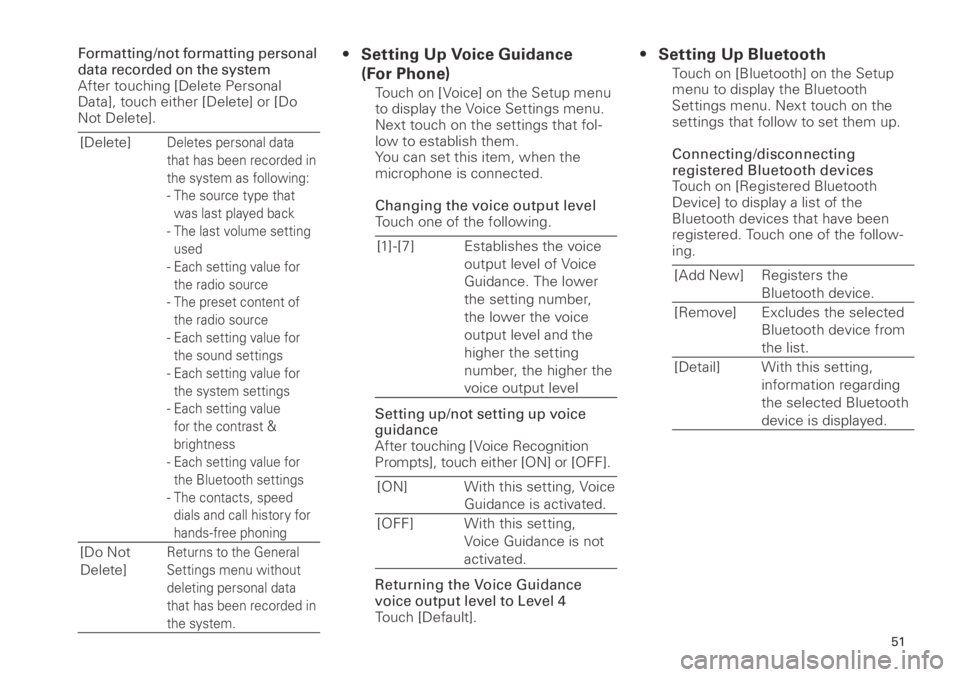

51
Formatting/not formatting personal
data recorded on the system
After touching [Delete Personal
Data], touch either [Delete] or [Do
Not Delete].
[Delete]Deletes personal data
that has been recorded in
the system as following:
- Th e s
ource type that
was last played back
- Th e l
ast volume setting
used
- Ea c
h setting value for
the radio source
- Th e p
reset content of
the radio source
- Ea c
h setting value for
the sound settings
- Ea c
h setting value for
the system settings
- Ea c
h setting value
for the contrast &
brightness
- Ea c
h setting value for
the Bluetooth settings
- Th e c
ontacts, speed
dials and call history for
hands-free phoning
[Do Not
Delete]Returns to the General
Settings menu without
deleting personal data
that has been recorded in
the system.
Setting Up Voice Guidance
(For Phone)
Touch on [Voice] on the Setup menu
to display the Voice Settings menu.
Next touch on the settings that fol-
low to establish them.
You can set this item, when the
microphone is connected.
Changing the voice output level
Touch one of the following.
[1] -[7] Establishes the voice output level of Voice
Guidance. The lower
the setting number,
the lower the voice
output level and the
higher the setting
number, the higher the
voice output level
Setting up/not setting up voice
guidance
After touching [Voice Recognition
Prompts], touch either [ON] or [OFF].
[ON] With this setting, Voice Guidance is activated.
[OFF] With this setting, Voice Guidance is not
activated.
Returning the Voice Guidance
v oi c
e output level to Level
Touch [Default].
• Setting Up Bluetooth
Touch on [Bluetooth] on the Setup
menu to display the Bluetooth
Settings menu. Next touch on the
settings that follow to set them up.
Connecting/disconnecting
registered Bluetooth devices
Touch on [Registered Bluetooth
Device] to display a list of the
Bluetooth devices that have been
registered. Touch one of the follow-
ing.
[Add New] Registers the
Bluetooth device.
[Remove] Excludes the selected Bluetooth device from
the list.
[Detail] With this setting, information regarding
the selected Bluetooth
device is displayed.
•
Page 52 of 76

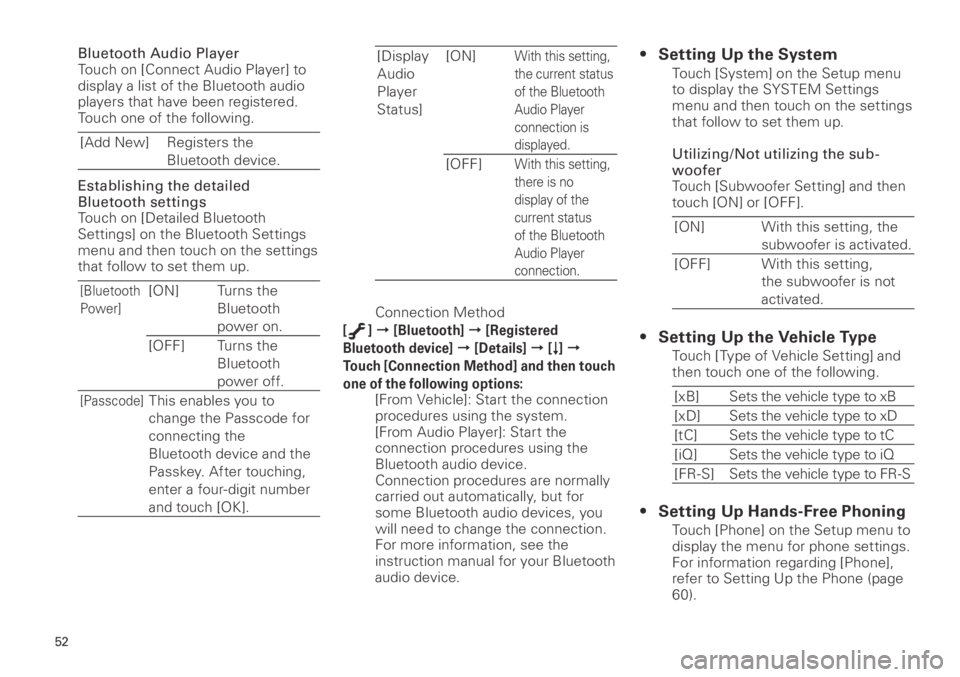

5
Bluetooth Audio Player
Touch on [Connect Audio Player] to
display a list of the Bluetooth audio
players that have been registered.
Touch one of the following.
[Add New] Registers the Bluetooth device.
Establishing the detailed
Bluetooth settings
Touch on [Detailed Bluetooth
Settings] on the Bluetooth Settings
menu and then touch on the settings
that follow to set them up.
[Bluetooth
Power][ON] Turns the Bluetooth
power on.
[OFF] Turns the Bluetooth
power off.
[Passcode]This enables you to
change the Passcode for
connecting the
Bluetooth device and the
Passkey. After touching,
enter a four- digit number
and touch [OK].
[Display
Audio
Player
Status][ON]With this setting,
the current status
of the Bluetooth
Audio Player
connection is
displayed.
[OFF]With this setting,
there is no
display of the
current status
of the Bluetooth
Audio Player
connection.
Connection Method
[]
d [Bluetooth] d [Registered
Bluetooth device] d [Details] d [ ] d
Touch [Connection Method] and then touch
one of the following options:
[From Vehicle]: Start the connection
procedures using the system.
[From Audio Player]: Start the
connection procedures using the
Bluetooth audio device.
Connection procedures are normally
carried out automatically, but for
some Bluetooth audio devices, you
will need to change the connection.
For more information, see the
instruction manual for your Bluetooth
audio device.
Setting Up the System
Touch [System] on the Setup menu
to display the SYSTEM Settings
menu and then touch on the settings
that follow to set them up.
Utilizing/Not utilizing the sub-
woofer
Touch [Subwoofer Setting] and then
touch [ON] or [OFF].
[ON] With this setting, the subwoofer is activated.
[OFF] With this setting, the subwoofer is not
activated.
Setting Up the Vehicle Type
Touch [Type of Vehicle Setting] and
then touch one of the following.
[xB] Sets the vehicle type to xB
[xD] Sets the vehicle type to xD
[tC] Sets the vehicle type to tC
[iQ] Sets the vehicle type to iQ
[FR-S] Sets the vehicle type to FR-S
Setting Up Hands-Free Phoning
Touch [Phone] on the Setup menu to
display the menu for phone settings.
For information regarding [Phone],
refer to Setting Up the Phone (page
60).
•
•
•
Page 53 of 76
![TOYOTA tC 2013 Accessories, Audio & Navigation (in English) 53
<CRB3839-A/S>53
Setting Up the Sound
Quality
Touch on [] for each mode
screen to display the SOUND
SET TINGS MENU. On the SOUND
SET TINGS MENU, a variety of
settings related to sound quality
TOYOTA tC 2013 Accessories, Audio & Navigation (in English) 53
<CRB3839-A/S>53
Setting Up the Sound
Quality
Touch on [] for each mode
screen to display the SOUND
SET TINGS MENU. On the SOUND
SET TINGS MENU, a variety of
settings related to sound quality](/img/14/43276/w960_43276-52.png)

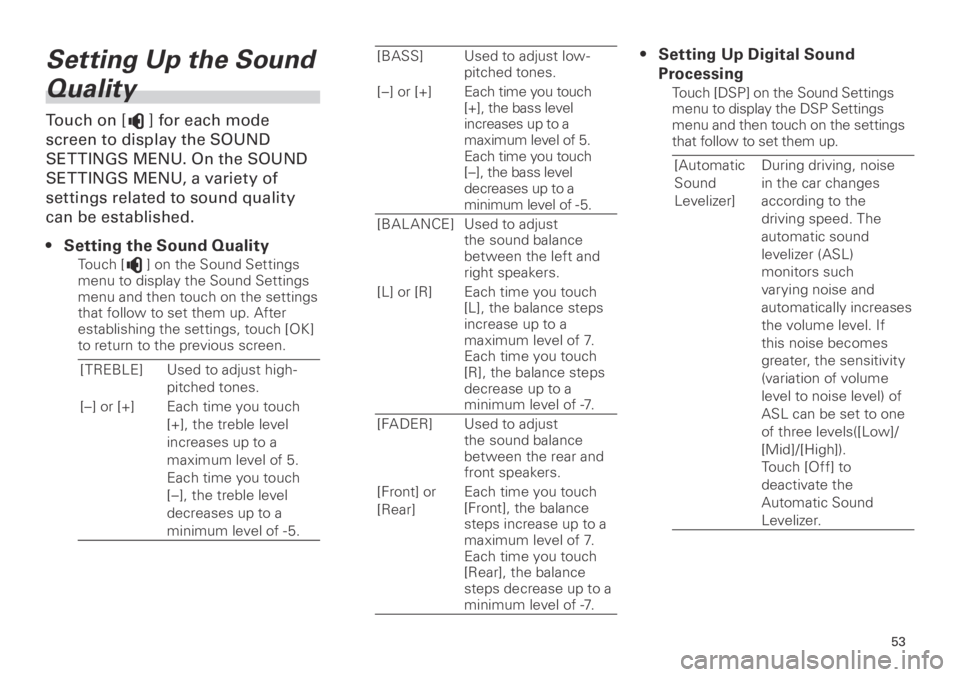

53
Setting Up the Sound
Quality
Touch on [] for each mode
screen to display the SOUND
SET TINGS MENU. On the SOUND
SET TINGS MENU, a variety of
settings related to sound quality
can be established.
Setting the Sound Quality
Touch [] on the Sound Settings
menu to display the Sound Settings
menu and then touch on the settings
that follow to set them up. After
establishing the settings, touch [OK]
to return to the previous screen.
[TREBLE] Used to adjust high-
pitched tones.
[–] or [+] Each time you touch [+], the treble level
increases up to a
maximum level of 5.
Each time you touch
[–], the treble level
decreases up to a
minimum level of - 5.
•
[BASS] Used to adjust low-pitched tones.
[–] or [+] Each time you touch [+], the bass level
increases up to a
maximum level of 5.
Each time you touch
[–], the bass level
decreases up to a
minimum level of -5.
[BAL ANCE] Used to adjust the sound balance
between the left and
right speakers.
[L] or [R] Each time you touch [L], the balance steps
increase up to a
maximum level of 7.
Each time you touch
[R], the balance steps
decrease up to a
minimum level of -7.
[FADER] Used to adjust the sound balance
between the rear and
front speakers.
[Front] or
[Rear] Each time you touch
[Front], the balance
steps increase up to a
maximum level of 7.
Each time you touch
[Rear], the balance
steps decrease up to a
minimum level of -7.Setting Up Digital Sound
Processing
Touch [DSP] on the Sound Settings
menu to display the DSP Settings
menu and then touch on the settings
that follow to set them up.
[Automatic
Sound
Levelizer]During driving, noise
in the car changes
according to the
driving speed. The
automatic sound
levelizer (ASL)
monitors such
varying noise and
automatically increases
the volume level. If
this noise becomes
greater, the sensitivity
(variation of volume
level to noise level) of
ASL can be set to one
of three levels([Low]/
[Mid]/[High]).
Touch [Off] to
deactivate the
Automatic Sound
Levelizer.
•
Page 54 of 76

5
[Advanced
Sound
Retriever]The Sound Retriever
function provides a
wide, deep and rich
quality to CD/MP3/
WMA /USB/iPod
sound, which gives
the user a lively
impression.
Establish the Sound
Retriever mode by
touching either [Low
Rate] or [High Rate].
Touch [Off] to
deactivate the Sound
Retriever.NOTICE
The Sound Retriever function
can only be selected when
playing MP3/ WMA from CD
and iPod, USB portable audio
player/USB memory.
The Sound Retriever function
does not support external
compressed audio media.
BASS function and TREBLE
function values can be set for
each of the modes (AM, FM,
CD/MP3/ WMA, iPod/ USB
portable audio player/ USB
memory, XM Satellite Radio).
When you switch modes, the
settings change to the BASS
and TREBLE values set for the
selected mode.
The ASL function is only
ef fective when the vehicle is
moving.
•
•
•
•
Setting Up the Subwoofer
Touch [Sub -W] on the Sound
Settings menu to display the
Subwoofer Settings Menu and then
touch on the settings that follow to
set them up.
( This will only display when the sub -
woofer settings have been activated.
You can set this item, when the
[Subwoofer Setting] is set to [ON].
(page 52)) After the end of setup,
touch [OK] to return to the previous
screen.
[Phase] Establish the
Subwoofer Output
Phase mode by
touching either
[NORMAL] or
[REVERSE].
[Level
Adjustment] Each time you touch
[+], the subwoofer
level steps increase
up to a maximum level
of 6.
Each time you touch
[–], the subwoofer
level steps decrease
down to a minimum
level of -24.
•
Page 55 of 76
![TOYOTA tC 2013 Accessories, Audio & Navigation (in English) 55
<CRB3839-A/S>55
Establishing the SSP (Scion
Sound Processing) Mode
SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
Touch [SSP] on the TOYOTA tC 2013 Accessories, Audio & Navigation (in English) 55
<CRB3839-A/S>55
Establishing the SSP (Scion
Sound Processing) Mode
SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
Touch [SSP] on the](/img/14/43276/w960_43276-54.png)

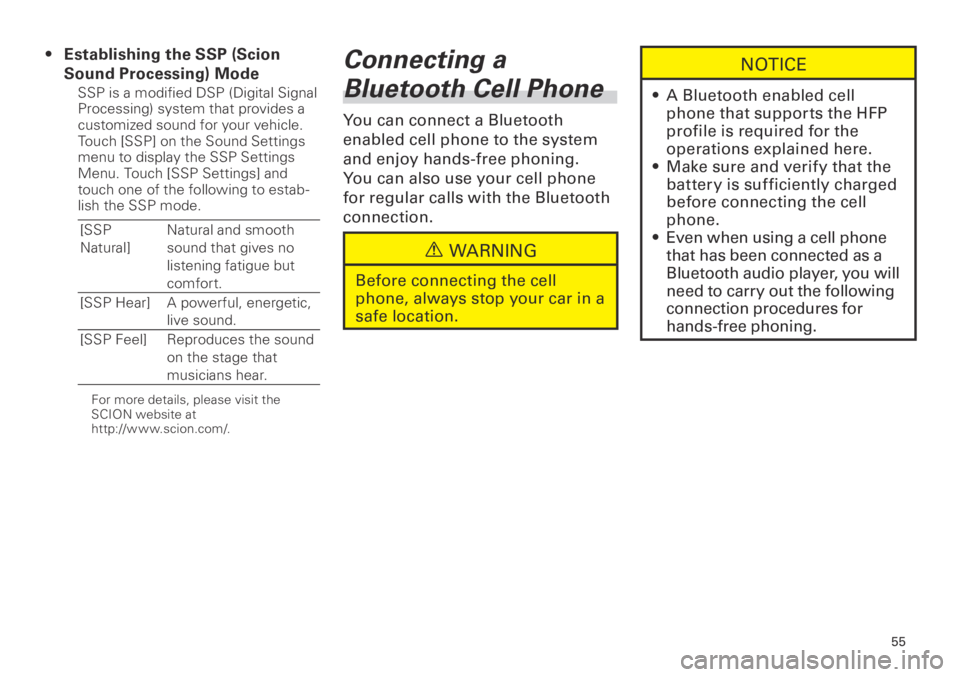

55
Establishing the SSP (Scion
Sound Processing) Mode
SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
Touch [SSP] on the Sound Settings
menu to display the SSP Settings
Menu. Touch [SSP Settings] and
touch one of the following to estab -
lish the SSP mode.
[SSP
Natural]Natural and smooth
sound that gives no
listening fatigue but
comfort.
[SSP Hear] A powerful, energetic, live sound.
[SSP Feel] Reproduces the sound on the stage that
musicians hear.
For more details, please visit the
SCION website at
http://www.scion.com/.
•Connecting a
Bluetooth Cell Phone
You can connect a Bluetooth
enabled cell phone to the system
and enjoy hands-free phoning.
You can also use your cell phone
for regular calls with the Bluetooth
connection.
WARNING
Before connecting the cell
phone, always stop your car in a
safe location.
NOTICE
A Bluetooth enabled cell
phone that supports the HFP
profile is required for the
operations explained here.
Make sure and verif y that the
battery is suf ficiently charged
before connecting the cell
phone.
Even when using a cell phone
that has been connected as a
Bluetooth audio player, you will
need to carry out the following
connection procedures for
hands-free phoning.
•
•
•
Page 56 of 76

56

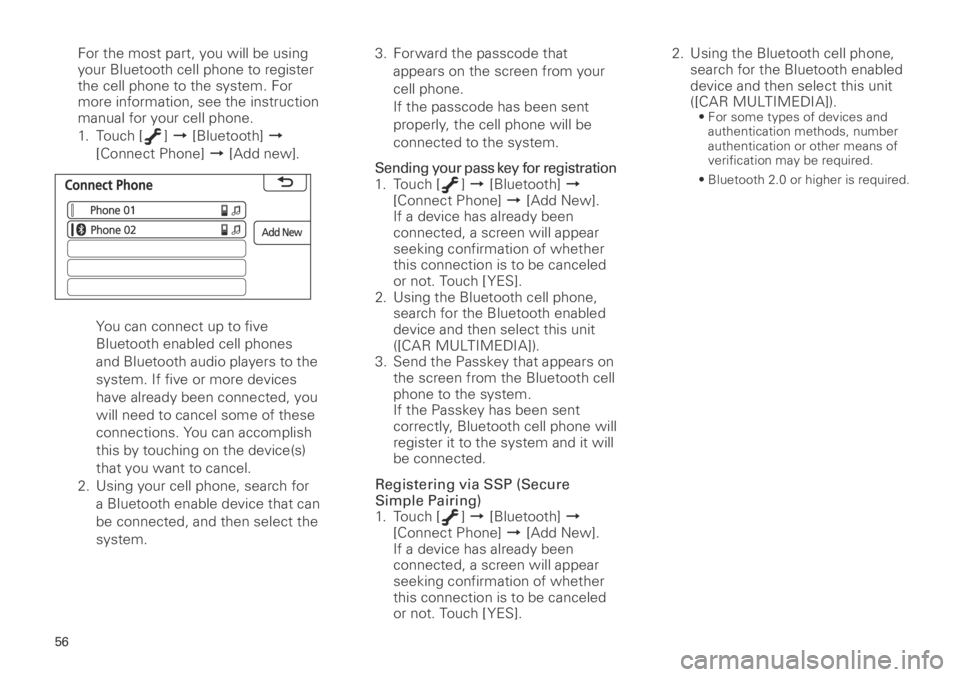

For the most part, you will be using
your Bluetooth cell phone to register
the cell phone to the system. For
more information, see the instruction
manual for your cell phone.
1. To
uch [
] d [Bluetooth] d
[Connect Phone] d [Add new].
Phone 01
Phone 02
You can connect up to five
Bluetooth enabled cell phones
and Bluetooth audio players to the
system. If five or more devices
have already been connected, you
will need to cancel some of these
connections. You can accomplish
this by touching on the device(s)
that you want to cancel.
2 . U s
ing your cell phone, search for
a Bluetooth enable device that can
be connected, and then select the
system. 3
. Fo
rward the passcode that
appears on the screen from your
cell phone.
If the p
asscode has been sent
properly, the cell phone will be
connected to the system.
Sending your pass key for registration
1. To
uch [] d [Bluetooth] d
[Connect Phone] d [Add New].
If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be canceled
or not. Touch [YES].
2 . U s
ing the Bluetooth cell phone,
search for the Bluetooth enabled
device and then select this unit
([CAR MULTIMEDIA]).
3. Se
nd the Passkey that appears on
the screen from the Bluetooth cell
phone to the system.
If th e P
asskey has been sent
correctly, Bluetooth cell phone will
register it to the system and it will
be connected.
Registering via SSP (Secure
Simple Pairing)
1. To
uch [] d [Bluetooth] d
[Connect Phone] d [Add New].
If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be canceled
or not. Touch [YES]. 2
. U s
ing the Bluetooth cell phone,
search for the Bluetooth enabled
device and then select this unit
([CAR MULTIMEDIA]).
• For some types of devices and
authentication methods, number
authentication or other means of
verification may be required.
• Blu
etooth 2.0 or higher is required.
Page 57 of 76

57

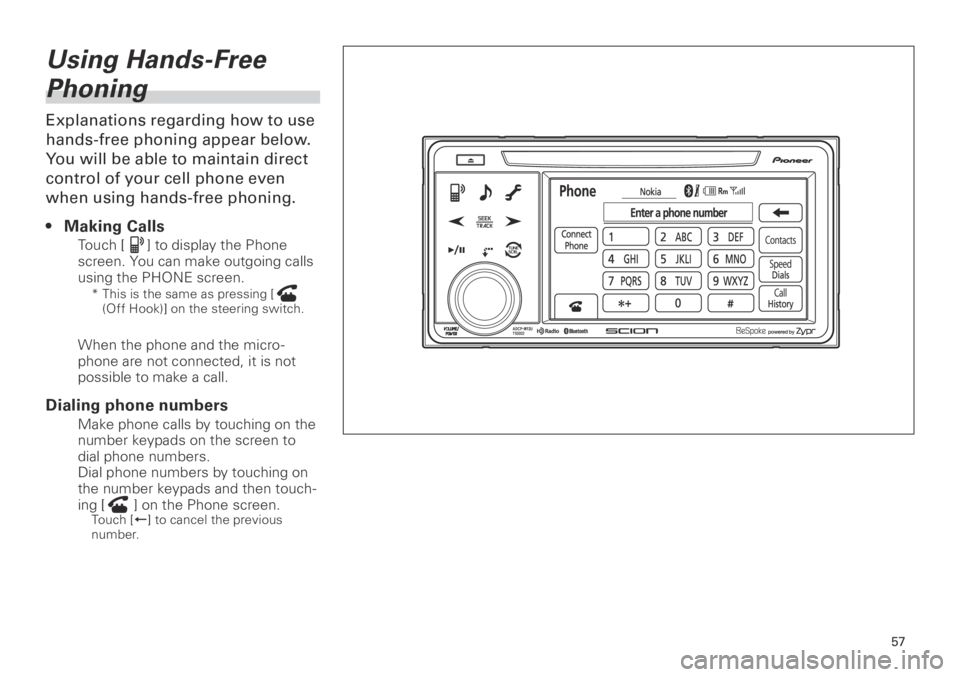

Using Hands-Free
Phoning
Explanations regarding how to use
hands-free phoning appear below.
You will be able to maintain direct
control of your cell phone even
when using hands-free phoning.Making Calls
Touch [] to display the Phone
screen. You can make outgoing calls
using the PHONE screen.
* This is the same as pressing [(Off Hook)] on the steering switch.
When the phone and the micro -
phone are not connected, it is not
possible to make a call.
Dialing phone numbers
Make phone calls by touching on the
number keypads on the screen to
dial phone numbers.
Dial phone numbers by touching on
the number keypads and then touch-
ing [
] on the Phone screen.Touch [ ] to cancel the previous
number.
•
Page 58 of 76

58

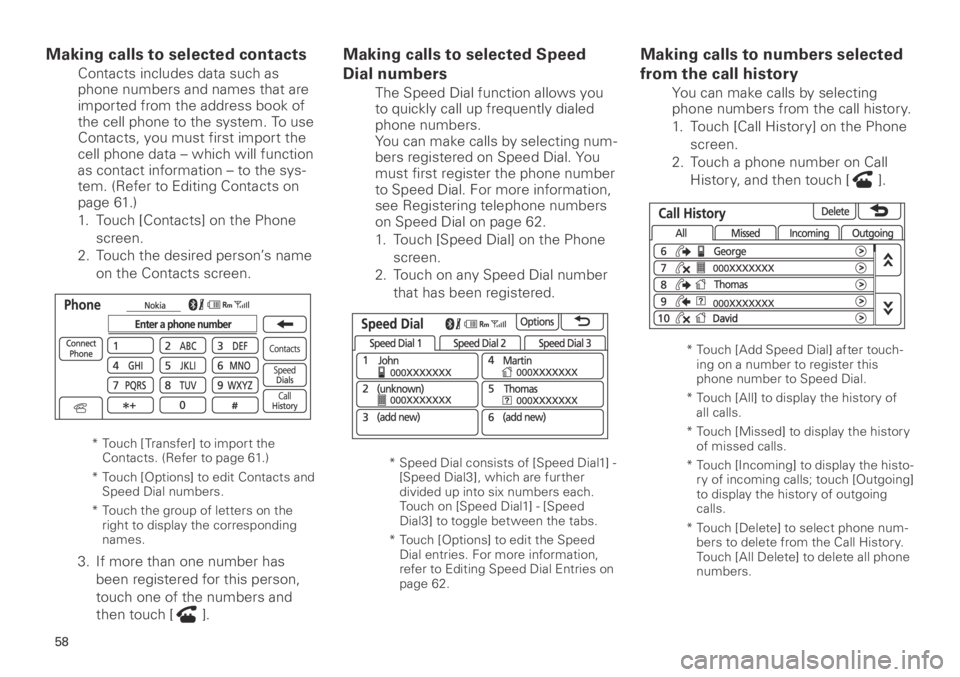

Making calls to selected Speed
Dial numbers
The Speed Dial function allows you
to quickly call up frequently dialed
phone numbers.
You can make calls by selecting num-
bers registered on Speed Dial. You
must first register the phone number
to Speed Dial. For more information,
see Registering telephone numbers
on Speed Dial on page 62.
1. To
uch [Speed Dial] on the Phone
screen.
2. To
uch on any Speed Dial number
that has been registered.
* Speed Dial consists of [Speed Dial1] -
[Speed Dial3], which are further
divided up into six numbers each.
Touch on [Speed Dial1] - [Speed
Dial3] to toggle between the tabs.
* Tou
ch [Options] to edit the Speed
Dial entries. For more information,
refer to Editing Speed Dial Entries on
page 62.
Making calls to numbers selected
from the call history
You can make calls by selecting
phone numbers from the call history.
1. To
uch [Call History] on the Phone
screen.
2. To
uch a phone number on Call
History, and then touch [
].
* Touch [Add Speed Dial] after touch-
ing on a number to register this
phone number to Speed Dial.
* Tou
ch [All] to display the history of
all calls.
* To u
ch [Missed] to display the history
of missed calls.
* To u
ch [Incoming] to display the histo -
ry of incoming calls; touch [Outgoing]
to display the history of outgoing
calls.
* To u
ch [Delete] to select phone num-
bers to delete from the Call History.
Touch [All Delete] to delete all phone
numbers.
Making calls to selected contacts
Contacts includes data such as
phone numbers and names that are
imported from the address book of
the cell phone to the system. To use
Contacts, you must first import the
cell phone data – which will function
as contact information – to the sys-
tem. (Refer to Editing Contacts on
page 61.)
1 . To
uch [Contacts] on the Phone
screen.
2. To
uch the desired person’s name
on the Contacts screen.
* Touch [ Transfer] to import the
Contacts. (Refer to page 61.)
* Tou
ch [Options] to edit Contacts and
Speed Dial numbers.
* To u
ch the group of letters on the
right to display the corresponding
names.
3. If more than one number has
been registered for this person,
touch one of the numbers and
then touch [
].
Page 59 of 76
![TOYOTA tC 2013 Accessories, Audio & Navigation (in English) 59
<CRB3839-A/S>59
Taking Phone Calls
The following screen appears when
a call comes in.
[]Use to answer the
phone.
[
] Use to hang up
without answering the
phone.
[Volume] Use to adjust the ring TOYOTA tC 2013 Accessories, Audio & Navigation (in English) 59
<CRB3839-A/S>59
Taking Phone Calls
The following screen appears when
a call comes in.
[]Use to answer the
phone.
[
] Use to hang up
without answering the
phone.
[Volume] Use to adjust the ring](/img/14/43276/w960_43276-58.png)
59

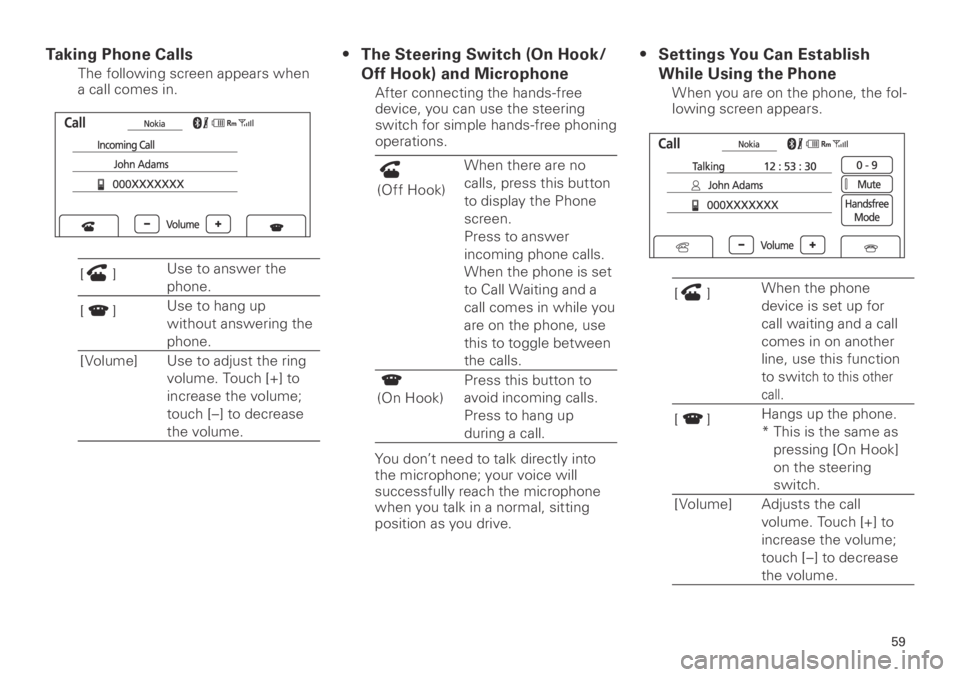

Taking Phone Calls
The following screen appears when
a call comes in.
[]Use to answer the
phone.
[
] Use to hang up
without answering the
phone.
[Volume] Use to adjust the ring volume. Touch [+] to
increase the volume;
touch [–] to decrease
the volume.
The Steering Switch (On Hook/
Off Hook) and Microphone
After connecting the hands-free
device, you can use the steering
switch for simple hands-free phoning
operations.
(Off Hook)When there are no
calls, press this button
to display the Phone
screen.
Press to answer
incoming phone calls.
When the phone is set
to Call Waiting and a
call comes in while you
are on the phone, use
this to toggle between
the calls.
(On Hook)
Press this button to
avoid incoming calls.
Press to hang up
during a call.
You don’t need to talk directly into
the microphone; your voice will
successfully reach the microphone
when you talk in a normal, sitting
position as you drive.
• Settings You Can Establish
While Using the Phone
When you are on the phone, the fol-
lowing screen appears.
[]When the phone
device is set up for
call waiting and a call
comes in on another
line, use this function
to swi
tch to this other
call.
[] Hangs up the phone.
*
Th i
s is the same as
pressing [On Hook]
on the steering
switch.
[Volume] Adjusts the call volume. Touch [+] to
increase the volume;
touch [–] to decrease
the volume.
•
Page 60 of 76

60

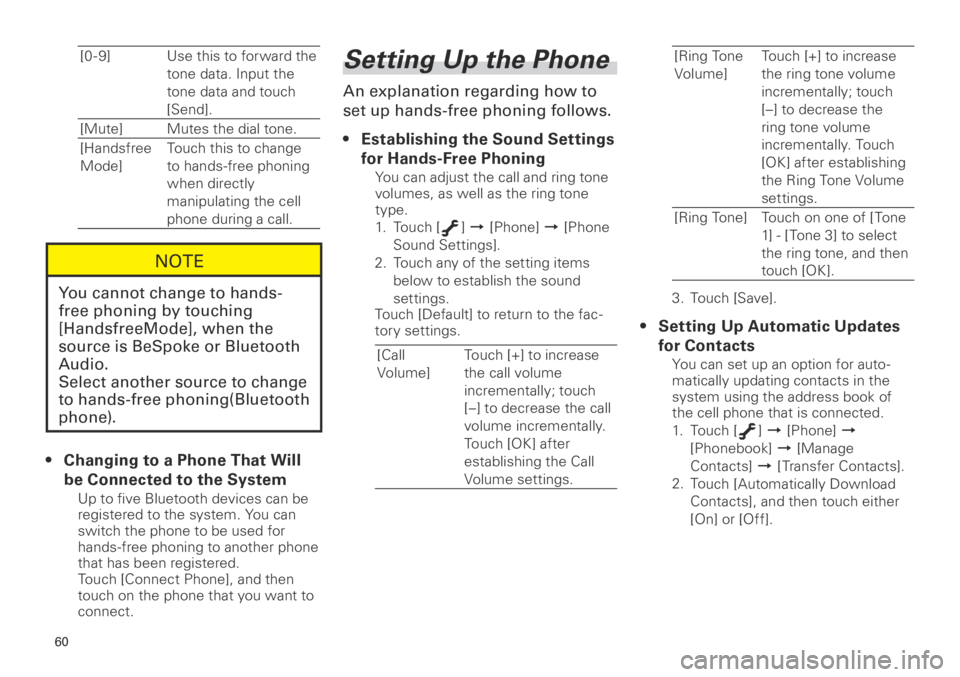

Setting Up the Phone
An explanation regarding how to
set up hands-free phoning follows.Establishing the Sound Settings
for Hands-Free Phoning
You can adjust the call and ring tone
volumes, as well as the ring tone
type.
1. To
uch [
] d [Phone] d [Phone
Sound Settings].
2. To
uch any of the setting items
below to establish the sound
settings.
Touch [Default] to return to the fac-
tory settings.
[Call
Volume] Touch [+] to increase
the call volume
incrementally; touch
[–] to decrease the call
volume incrementally.
Touch [OK] after
establishing the Call
Volume settings.
•
[Ring Tone
Volume]Touch [+] to increase
the ring tone volume
incrementally; touch
[–] to decrease the
ring tone volume
incrementally. Touch
[OK] after establishing
the Ring Tone Volume
settings.
[Ring Tone] Touch on one of [Tone 1] - [Tone 3] to select
the ring tone, and then
touch [OK].
3 . To
uch [Save].
Setting Up Automatic Updates
for Contacts
You can set up an option for auto -
matically updating contacts in the
system using the address book of
the cell phone that is connected.
1. To
uch [
] d [Phone] d
[Phonebook] d [Manage
Contacts] d [Transfer Contacts].
2. To
uch [Automatically Download
Contacts], and then touch either
[On] or [Off].
•
[0 - 9] Use this to forward the tone data. Input the
tone data and touch
[Send].
[Mute] Mutes the dial tone.
[Handsfree
Mode] Touch this to change
to hands-free phoning
when directly
manipulating the cell
phone during a call.
NOTE
You cannot change to hands-
free phoning by touching
[HandsfreeMode], when the
source is BeSpoke or Bluetooth
Audio.
Select another source to change
to hands-free phoning(Bluetooth
phone).
Changing to a Phone That Will
be Connected to the System
Up to five Bluetooth devices can be
registered to the system. You can
switch the phone to be used for
hands-free phoning to another phone
that has been registered.
Touch [Connect Phone], and then
touch on the phone that you want to
connect.
•
