TOYOTA TUNDRA 2008 2.G Navigation Manual

OTHER FUNCTIONS
1272008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
5U5139G
3. Touch “Settings” to display “Settings”
screen.
5U5140G
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5141G
5. Touch “Register” to connect your cel-
lular phone to the system.
XS00126
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
5U5143G
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
5U5144G
When this screen is displayed, follow the
guidance on the screen to try again.

OTHER FUNCTIONS
1282008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Connecting a Bluetooth phone
(i) Automatically
5U5145G
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth
 phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.
5U5309G
When the engine switch is turned to the
ACC or ON position, the selected Blue-
tooth
 phone will be automatically con-
nected and the connection result is dis-
played.
This screen appears when the Bluetooth

phone is first connected after the engine
switch is turned to the ACC or ON position.(ii) Manually
When the auto connection failed or turned
off, you have to connect Bluetooth

manually.
5U5146G
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
5U5147G
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth
 phone.

OTHER FUNCTIONS
1292008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Reconnecting the Bluetooth phone
If the Bluetooth
 phone is disconnected
with a poor reception from the Bluetooth
network when the engine switch is turned
to the ACC or ON position, the system au-
tomatically reconnects the Bluetooth

phone. In this case, the connection result
is not displayed.
If the Bluetooth
 is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.
— Call on the Bluetooth
phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5149G
1. Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
2. Touch
or push the switch of the
steering wheel.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
5U5150G
1. Touch “Phone Book” to display
“Phone Book” screen.

OTHER FUNCTIONS
1302008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
5U5151G
2. Select the desired number from the list.
5U5152G
3. Touch or push the switch of the
steering wheel.(iii) By dialed numbers
You can call by dialed number. The sys-
tem memorizes up to 5 dialed numbers. If
it is over than 5, the oldest number is de-
leted.
This cannot be operated while driving.
5U5153G
1. Touch “Call Log” to display “Outgoing
Calls” screen.
5U5154G
When you call by phone book, the name
(if registered) is displayed.
When you call the same number
continuously, only the newest number is
registered.
2. Select the desired number from the list.
5U5156G
3. Touch or push the switch of the
steering wheel.

OTHER FUNCTIONS
1312008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) (iv) By received calls
You can call by received calls. When a call
is received, the system memorizes up to 5
numbers. If it is over than 5, the oldest
number is deleted.
This cannot be operated while driving.
5U5153G
1. Touch “Call Log” to display “Outgoing
Calls” screen.
5U5154G
2. Touch “Incoming Calls” to display
“Incoming Calls” screen.
5U5155G
When a telephone number registered in
the phone book is received, the name and
the number are displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Unnoticed telephone number such as a
public telephone is not memorized in the
system.
3. Select the desired number from the list.
5U5156G
4. Touch or push the switch of the
steering wheel.
A international phone call may not be
made depending on the cellular phone
which you have.

OTHER FUNCTIONS

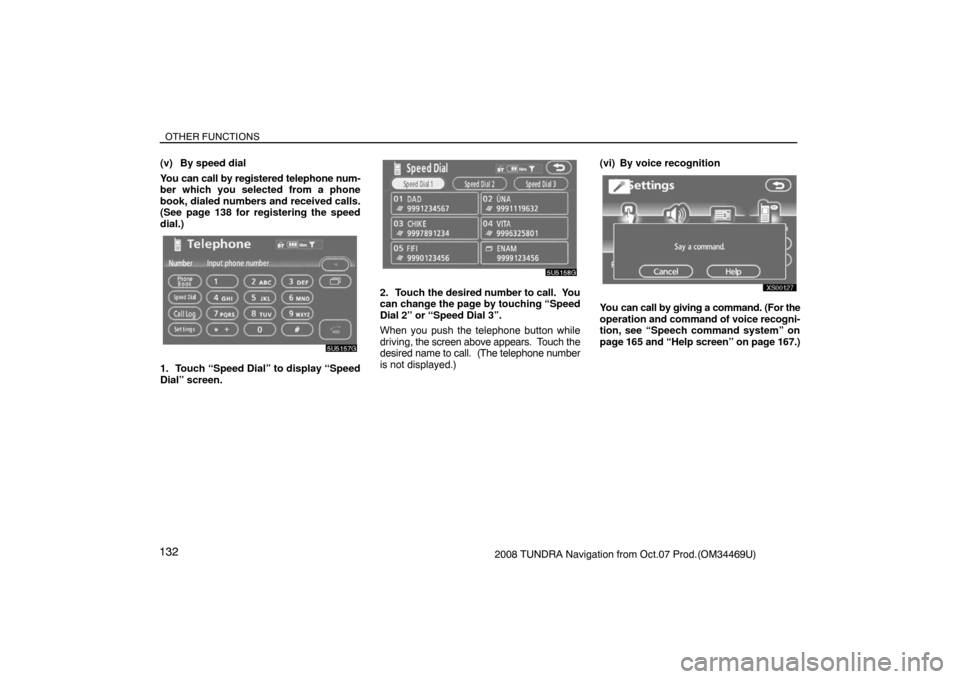

1322008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) (v) By speed dial
You can call by registered telephone num-
ber which you selected from a phone
book, dialed numbers and received calls.
(See page 138 for registering the speed
dial.)
5U5157G
1. Touch “Speed Dial” to display “Speed
Dial” screen.
5U5158G
2. Touch the desired number to call. You
can change the page by touching “Speed
Dial 2” or “Speed Dial 3”.
When you push the telephone button while
driving, the screen above appears. Touch the
desired name to call. (The telephone number
is not displayed.)(vi) By voice recognition
XS00127
You can call by giving a command. (For the
operation and command of voice recogni-
tion, see “Speech command system” on
page 165 and “Help screen” on page 167.)

OTHER FUNCTIONS
1332008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

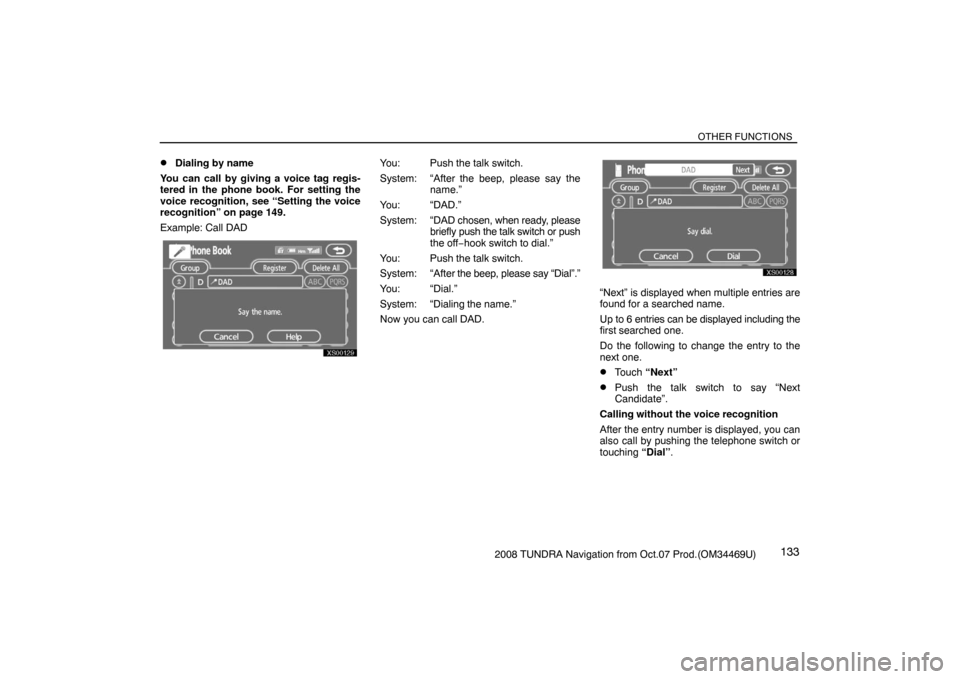

Dialing by name
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “Setting the voice
recognition” on page 149.
Example: Call DAD
XS00129
You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “DAD.”
System: “DAD chosen, when ready, please
briefly push the talk switch or push
the off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please say “Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you can call DAD.
XS00128
“Next” is displayed when multiple entries are
found for a searched name.
Up to 6 entries can be displayed including the
first searched one.
Do the following to change the entry to the
next one.
Touch “Next”
Push the talk switch to say “Next
Candidate”.
Calling without the voice recognition
After the entry number is displayed, you can
also call by pushing the telephone switch or
touching “Dial”.

OTHER FUNCTIONS
1342008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch
Push the switch of the steering wheel.
Touch “Cancel”. (Except for recognizing
the command)
Say “Cancel”

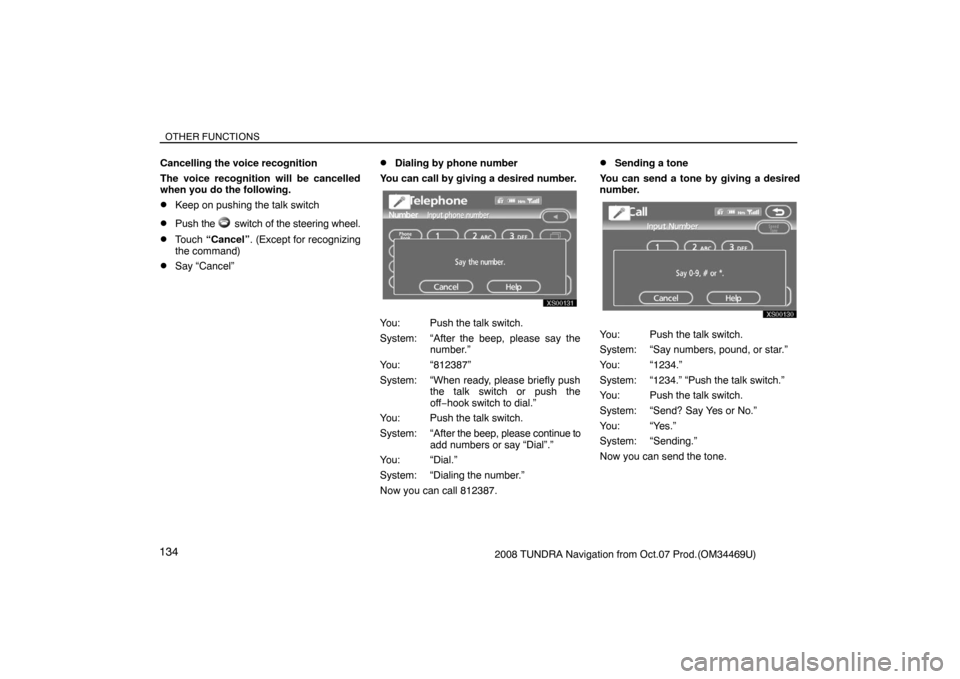

Dialing by phone number
You can call by giving a desired number.
XS00131
You: Push the talk switch.
System: “After the beep, please say the
number.”
You: “812387”
System: “When ready, please briefly push
the talk switch or push the
off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please continue to
add numbers or say “Dial”.”
You: “Dial.”
System: “Dialing the number.”
Now you can call 812387.
Sending a tone
You can send a tone by giving a desired
number.
XS00130
You: Push the talk switch.
System: “Say numbers, pound, or star.”
You: “1234.”
System: “1234.” “Push the talk switch.”
You: Push the talk switch.
System: “Send? Say Yes or No.”
You: “Yes.”
System: “Sending.”
Now you can send the tone.

OTHER FUNCTIONS
1352008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) (vii) By POI call
5U5339G
You can call by touching when it is
displayed on the screen from navigation
system. (See page 27 for details.)
— Receive on the Bluetooth
phone
5U5160G
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
— Talk on the Bluetooth
phone
5U5161G
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.

OTHER FUNCTIONS
1362008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) You cannot change from Hands−free call to
cellular phone call while driving.
When you change from cellular phone call to
Hands−free call, the Hands−free screen will
be displayed and you can operate it on the
screen.
Transferring method and behavior are differ-
ent depending on the cellular phone which
you have.
For the operation of the phone, see the manu-
al that comes with your cellular phone.

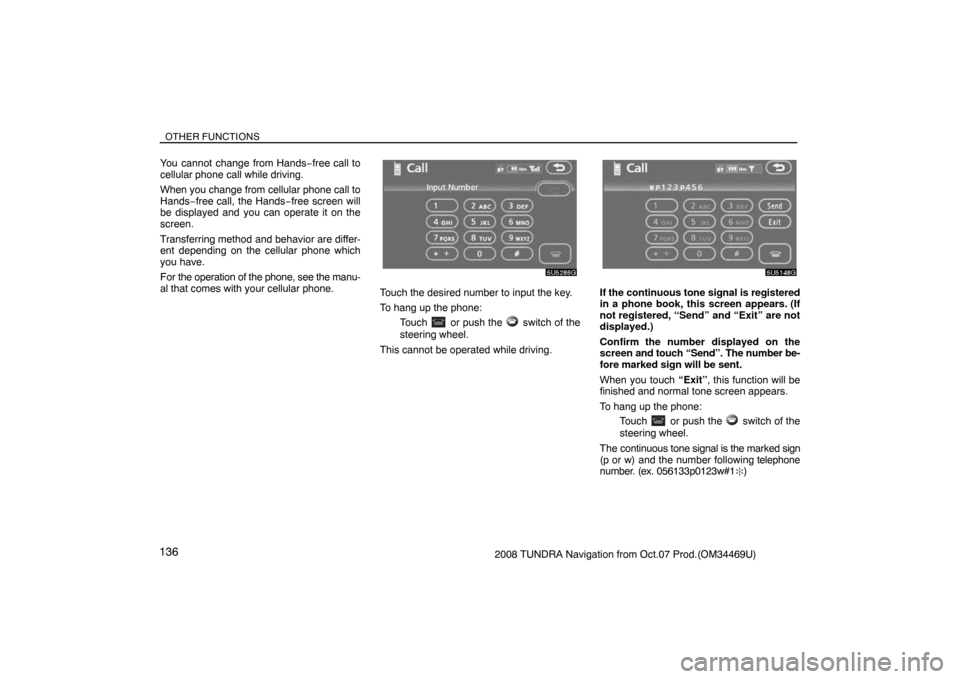

5U5286G
Touch the desired number to input the key.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
This cannot be operated while driving.
5U5148G
If the continuous tone signal is registered
in a phone book, this screen appears. (If
not registered, “Send” and “Exit” are not
displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number be-
fore marked sign will be sent.
When you touch “Exit”, this function will be
finished and normal tone screen appears.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
The continuous tone signal is the marked sign
(p or w) and the number following telephone
number. (ex. 056133p0123w#1
)
