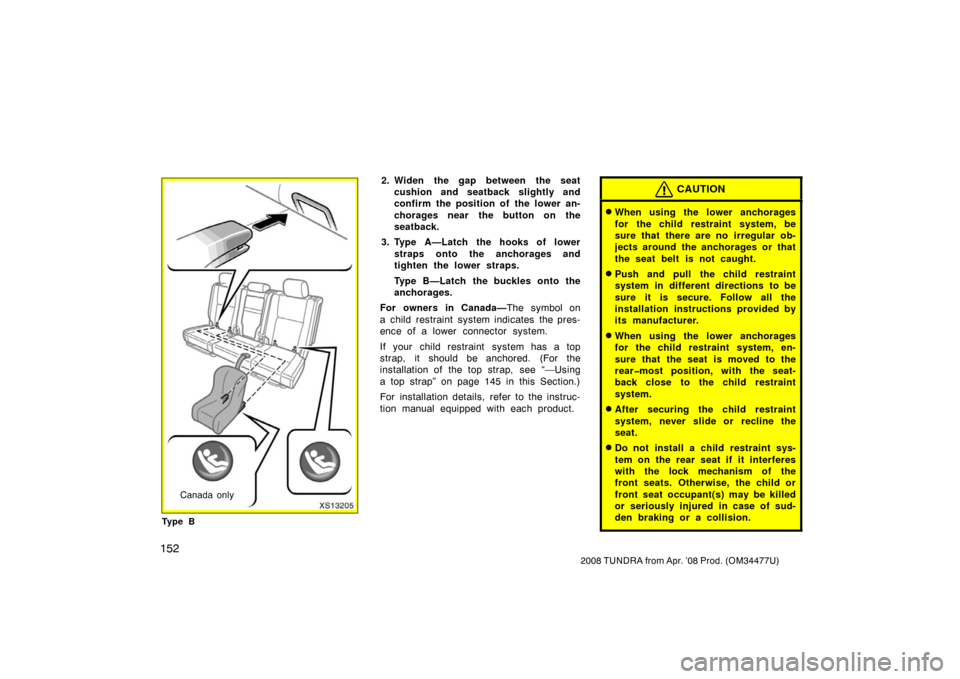

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats as shown in the
illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
XS13206
3rd lock
position1st lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION

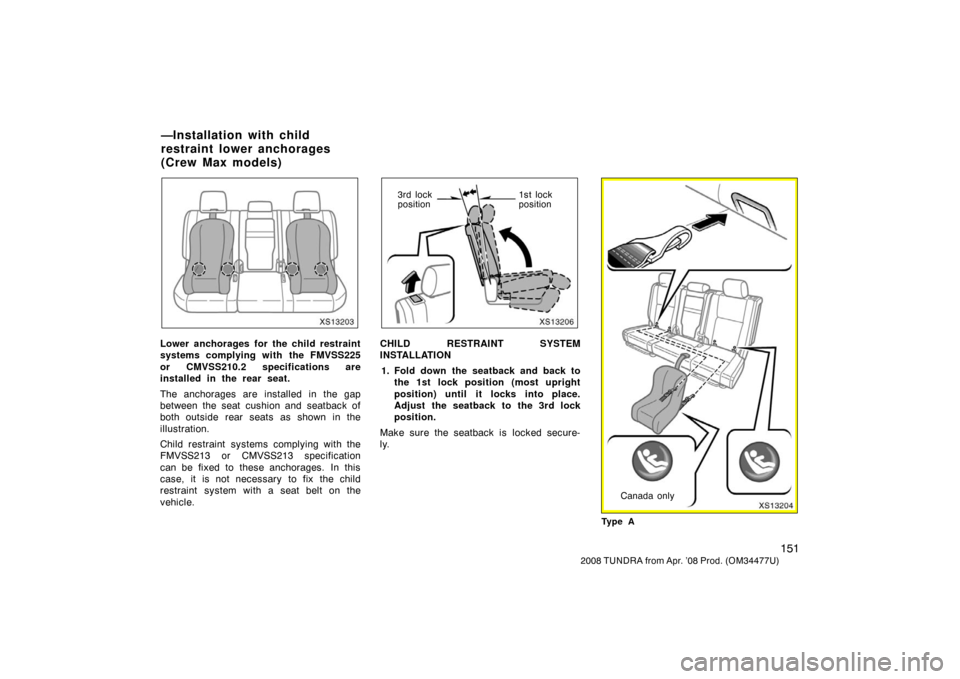

1. Fold down the seatback and back to the 1st lock position (most upright
position) until it locks into place.
Adjust the seatback to the 3rd lock
position.
Make sure the seatback is locked secure-
ly.XS13204
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
( C rew Max mo d els)

152
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13205
Canada only
Ty p e B
2. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 145 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

153
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Tilt and telescopic steering wheel 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power tilt and telescopic steering wheel 155
. . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 159
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 160
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Vanity mirrors 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

154
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

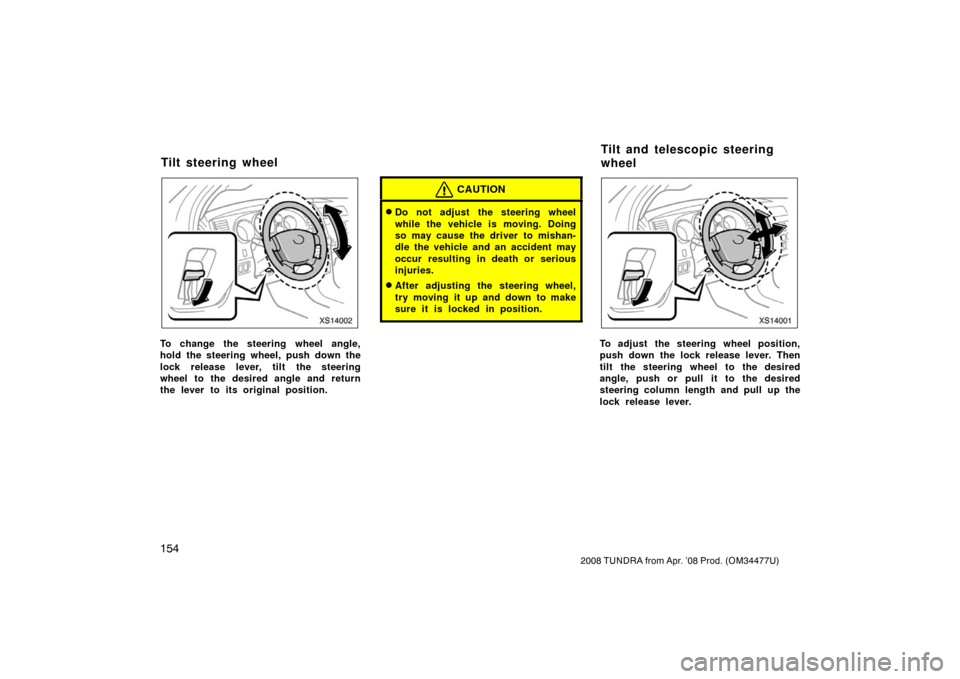

XS14002
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
XS14001
To adjust the steering wheel position,
push down the lock release lever. Then
tilt the steering wheel to the desired
angle, push or pull it to the desired
steering column length and pull up the
lock release lever.
Tilt steering wheel Tilt and telescopic steering
wheel

155
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
XS14003
ADJUSTMENT OF STEERING WHEEL
TILT

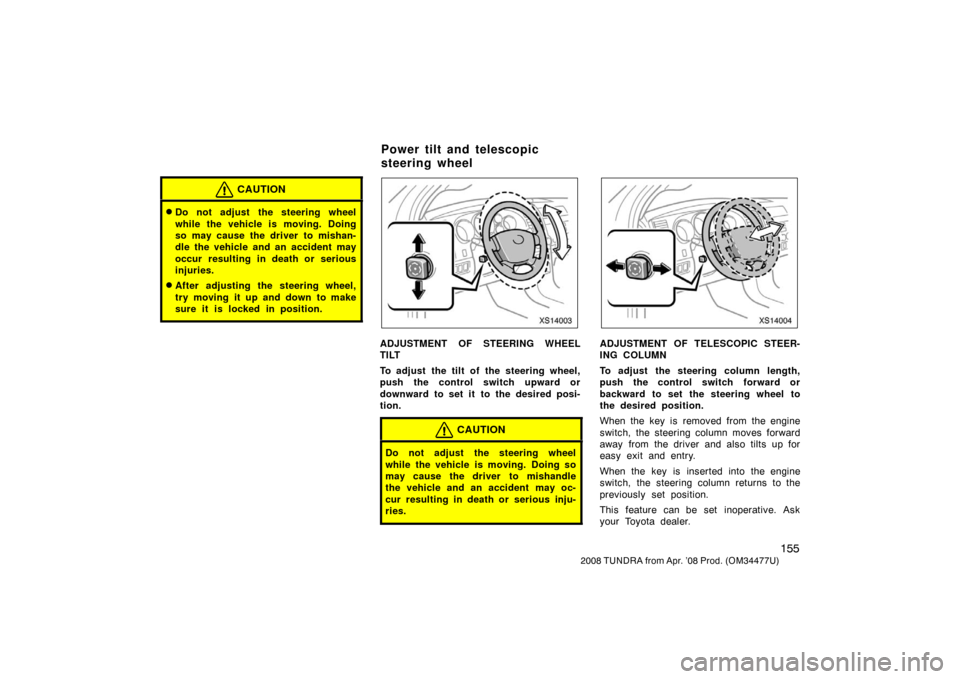

To adjust the tilt of the steering wheel,
push the control switch upward or
downward to set it to the desired posi-
tion.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing so
may cause the driver to mishandle
the vehicle and an accident may oc-
cur resulting in death or serious inju-
ries.
XS14004
ADJUSTMENT OF TELESCOPIC STEER-
ING COLUMN
To adjust the steering column length,
push the control switch forward or
backward to set the steering wheel to
the desired position.
When the key is removed from the engine
switch, the steering column moves forward
away from the driver and also tilts up for
easy exit and entry.
When the key is inserted into the engine
switch, the steering column returns to the
previously set position.
This feature can be set inoperative. Ask
your Toyota dealer.
Power tilt and telescopic
steering wheel

156
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Do not adjust the steering column
while the vehicle is moving. Doing so
may cause the driver to mishandle
the vehicle and an accident may oc-
cur resulting in death or serious inju-
ries.
XS14005
Normal type
XS14021
Extend type

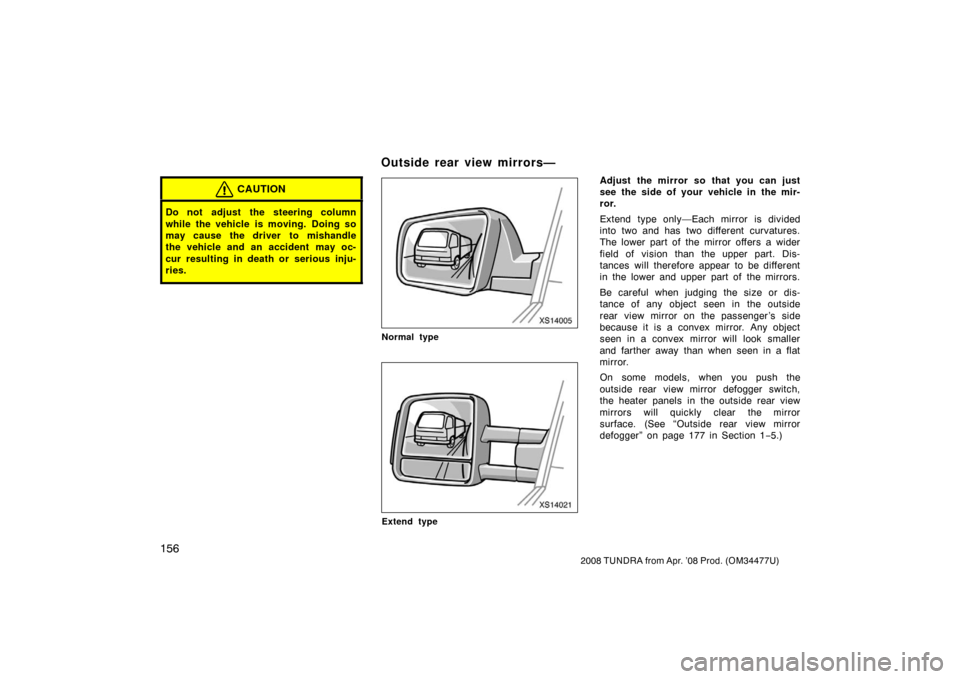

Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Extend type only—Each mirror is divided
into two and has two different curvatures.
The lower part of the mirror offers a wider
field of vision than the upper part. Dis-
tances will therefore appear to be different
in the lower and upper part of the mirrors.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the
outside rear view mirror defogger switch,
the heater panels in the outside rear view
mirrors will quickly clear the mirror
surface. (See “Outside rear view mirror
defogger” on page 177 in Section 1 −5.)
Outside rear view mirrors—

157
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
XS14006a
Ty p e A
XS14007a
Ty p e B

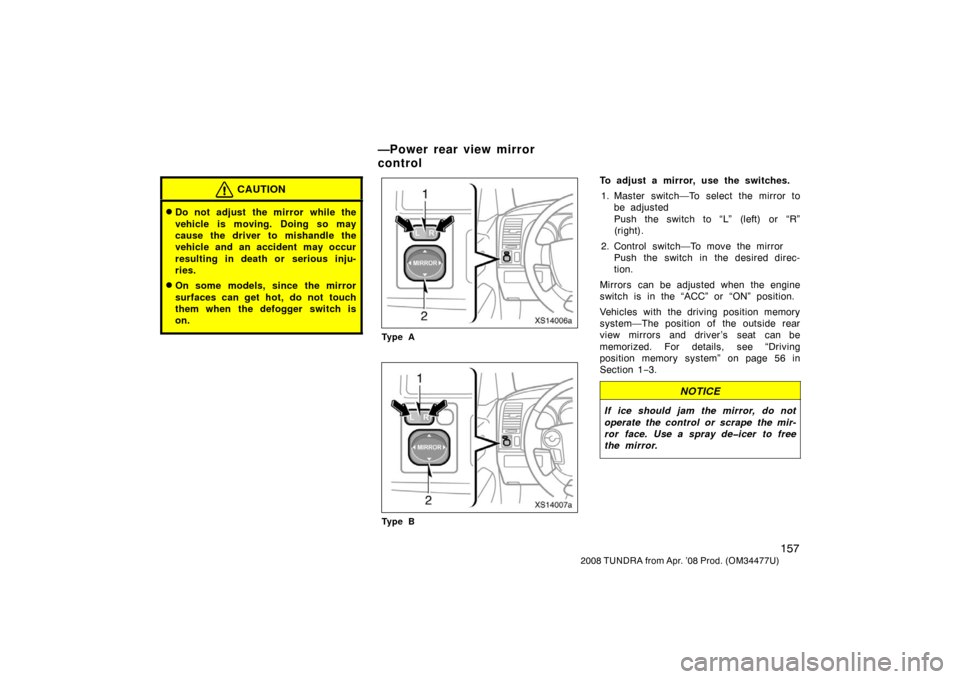

To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the engine
switch is in the “ACC” or “ON” position.
Vehicles with the driving position memory
system—The position of the outside rear
view mirrors and driver’s seat can be
memorized. For details, see “Driving
position memory system” on page 56 in
Section 1 −3.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

158
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS14008

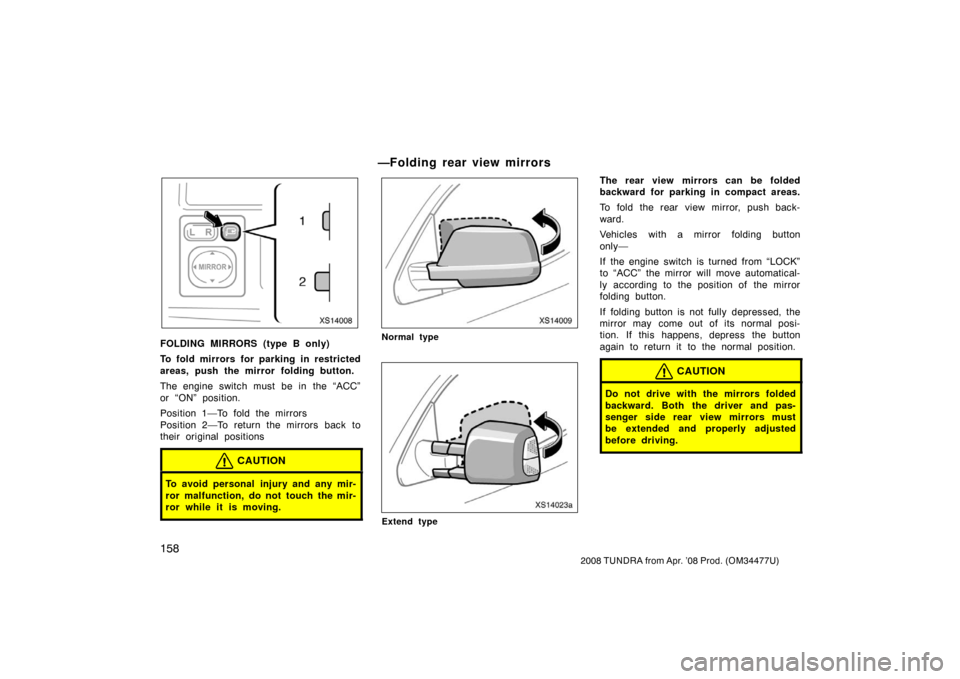

FOLDING MIRRORS (type B only)
To fold mirrors for parking in restricted
areas, push the mirror folding button.
The engine switch must be in the “ACC”
or “ON” position.
Position 1—To fold the mirrors
Position 2—To return the mirrors back to
their original positions
CAUTION
To avoid personal injury and any mir-
ror malfunction, do not touch the mir-
ror while it is moving.
XS14009
Normal type
XS14023a
Extend type
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
Vehicles with a mirror folding button
only—
If the engine switch is turned from “LOCK”
to “ACC” the mirror will move automatical-
ly according to the position of the mirror
folding button.
If folding button is not fully depressed, the
mirror may come out of its normal posi-
tion. If this happens, depress the button
again to return it to the normal position.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
—Folding rear view mirrors

159
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS14022

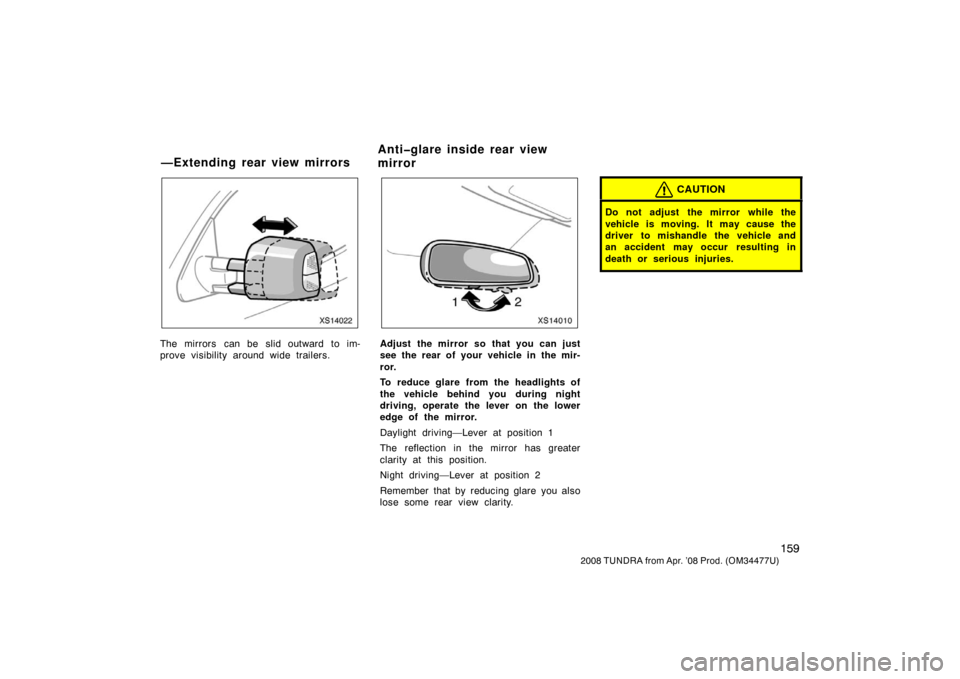

The mirrors can be slid outward to im-
prove visibility around wide trailers.
XS14010
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
—Extending rear view mirrors Antiglare inside rear view
mirror

160
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS14011

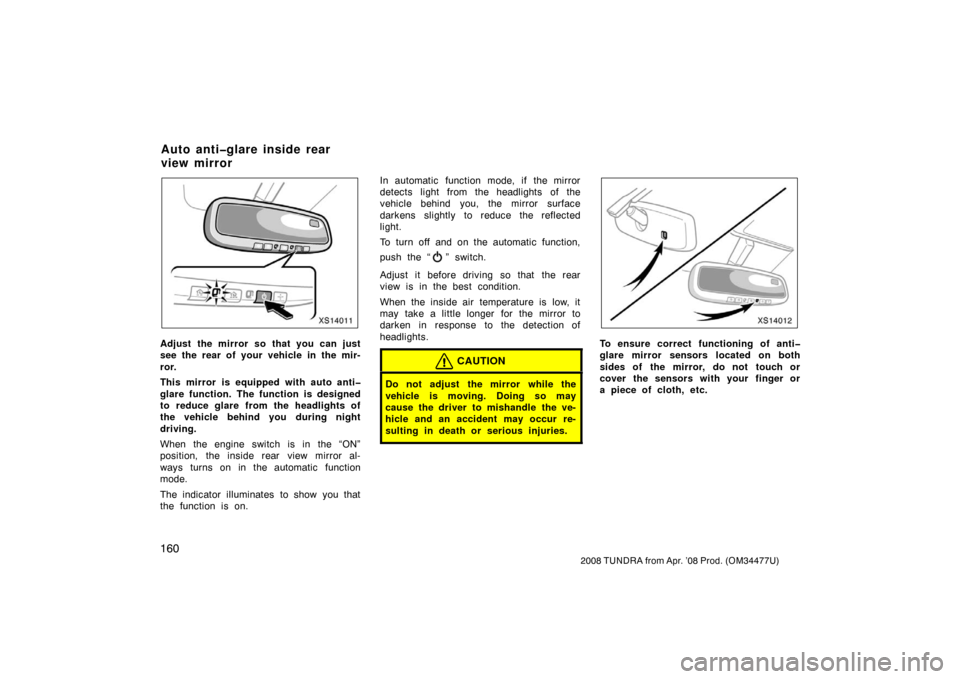

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the engine switch is in the “ON”
position, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on. In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off and on the automatic function,
push the “
” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
XS14012
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
Auto antiglare inside rear
