TOYOTA TUNDRA 2008 2.G Owners Manual

161
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

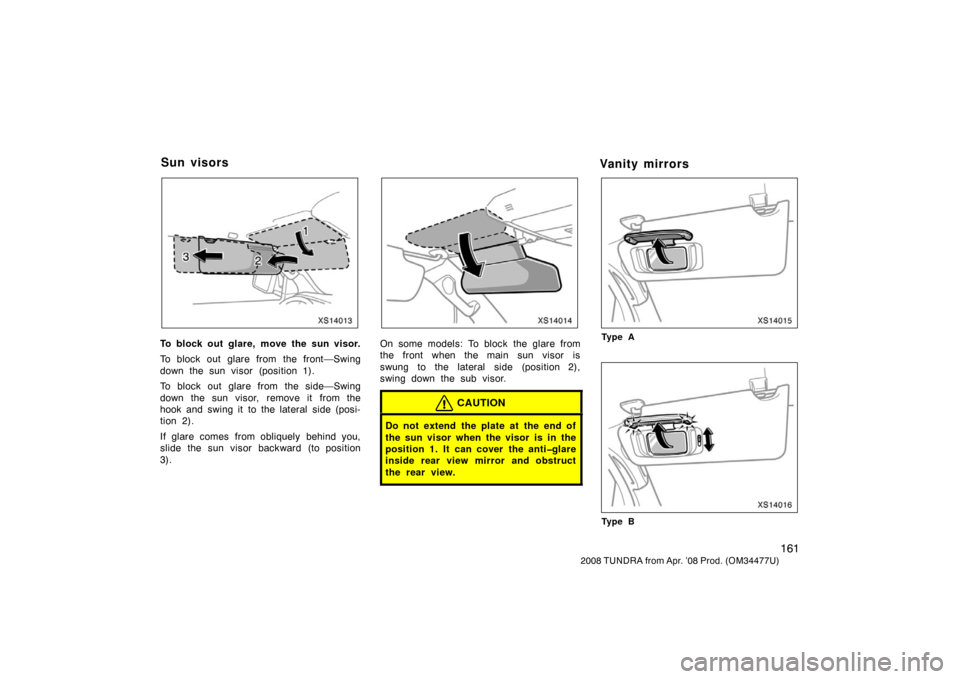

XS14013
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
slide the sun visor backward (to position
3).
XS14014
On some models: To block the glare from
the front when the main sun visor is
swung to the lateral side (position 2),
swing down the sub visor.
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Vanity mirrors
XS14015
Ty p e A
XS14016
Ty p e B
Sun visors

162
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To use the vanity mirror, swing down
the sun visor and open the cover.
Vanity lights (type B only)—
The lights come on when you open the
cover.
To adjust the brightness of the lights, slide
the switch.

163
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights and Wipers
Headlights and turn signals 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior lights 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Personal lights 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Illuminated entry system 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Cargo lamp 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Exterior foot lights 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Windshield wipers and washer 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defoggers and front windshield wiper de −icer 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Back window and outside rear view mirror defoggers and front windshield wiper de −icer 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 5

164
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
LS15028a
For the U.S.A.
LS15027
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate and
instrument panel lights
For Canada—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight low beam
indicator light (green light) on the instru-
ment panel will tell you that the low
beams are on.
Automatic light cut off system
The lights automatically turn off after 30
seconds when any of the doors is opened
and closed with the engine switch in the
“ACC” or “LOCK” position and the lever at
position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately. To turn them on again, turn the engine
switch to the “ON” position or actuate the
headlight switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The timing for the headlights turning off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
(without automatic light
control system)

165
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Daytime running light (DRL) system (on
some models)
The Daytime Running Light (DRL) system
can make it easier for others to see the
front of your vehicle during the day. The
DRL system can be helpful in many differ-
ent driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset.
The DRL system will make your front turn
signal lights come on when:
The engine switch is on with the en-
gine running.
The knob is in the “OFF” position or
position 1.
The parking brake is released.
To turn off the DRL system, twist the knob
to position 2, flashing the high beam
headlights or turn the engine switch to the
“ACC” or “LOCK” position.
LS15025a
HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

LS15026a
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The engine switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.

166
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS15019b
For the U.S.A.
XS15010b
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator lights
up in the instrument cluster.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight indicator
lights up in the instrument cluster.
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
When the tail lights/headlights are turned
on, the brightness of the instrument clus-
ter will be reduced slightly unless the in-
strument panel light control knob is turned
fully upward. However, the brightness of the instrument
cluster, air conditioning controls indicator
lights and passenger airbag on
−off indica-
tor light will not be reduced in daytime
even when the tail lights/headlights are
turned on.
Headlights and turn signals
(with automatic light control
system)

167
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS15011
The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer. Automatic light cut off system
Position 1 or position 3 with the tail
lights on—
The lights automatically turn off when the
driver ’s door is opened with the engine
switch in the “ACC” or “LOCK” position.
Position 2 or 3 with the headlights on—
The lights automatically turn off after 30
seconds when any of the doors is opened
and closed with the engine switch in the
“ACC” or “LOCK” position.
If the lock switch of the wireless remote
control transmitter is pushed when all the
doors are already locked, the lights auto-
matically turn off immediately.
The time before the headlights turn off
can be changed. If your vehicle is
equipped with the multi
−information dis-
play, it can be changed by yourself. For
details, contact your Toyota dealer.
If any of the doors is left open, the lights
automatically turn off after 20 minutes.
To turn them on again, turn the engine
switch to the “ON” position or actuate the
headlight switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime Running Light (DRL) system
(on some models)
The Daytime Running Light (DRL) system
can make it easier for others to see the
front of your vehicle during the day. The
DRL system can be helpful in many differ-
ent driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset.
The DRL system will make the front turn
signal lights come on when:
The engine is on with the engine run-
ning.
The knob is in the “OFF” position,
position 1 or position 3 with the tail
lights on.
The parking brake is released.
To turn off the DRL system, twist the knob
to position 2 or position 3 with the head-
lights on, flashing the high beam head-
lights or turn the engine switch to the
“ACC” or “LOCK” position.

168
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

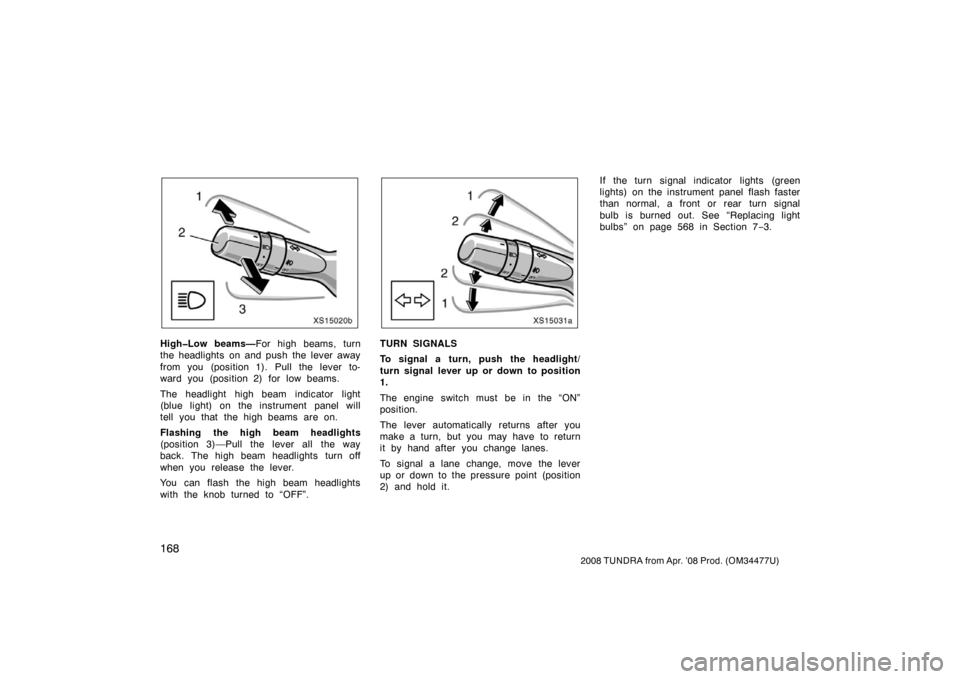

XS15020b
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
XS15031a
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The engine switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it. If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 568 in Section 7
−3.

169
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS15002a
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
XS15003
To adjust the brightness of the instru-
ment panel lights, turn the dial.
With the dial set in the full intensity posi-
tion, the intensity of the instrument panel
lights will not be reduced even when the
tail lights/headlights are turned on.
Emergency flashers Instrument panel light control

170
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

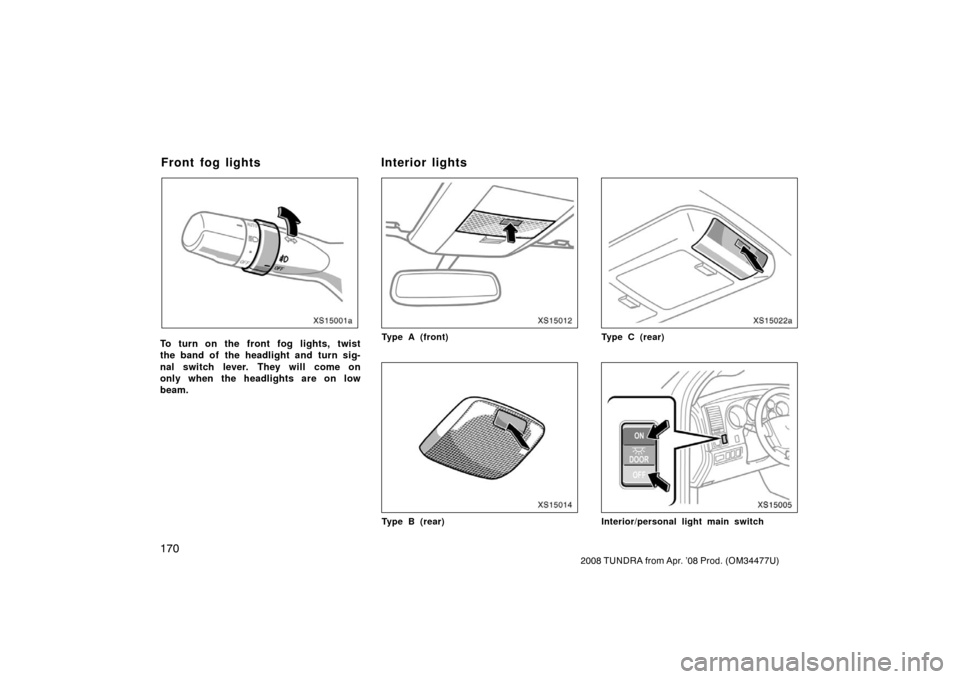

XS15001a
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
XS15012
Type A (front)
XS15014
Type B (rear)
XS15022a
Type C (rear)
XS15005
Interior/personal light main switch
Front fog lights Interior lights
