TOYOTA TUNDRA 2008 2.G Owners Manual

131
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

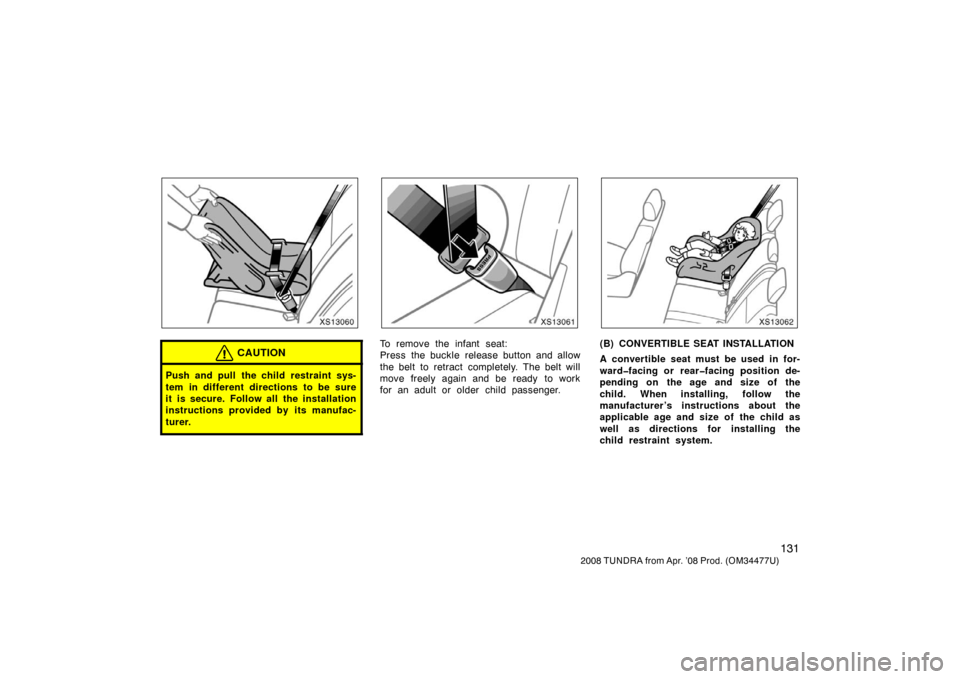

XS13060
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
XS13061
To remove the infant seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.
XS13062
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.

132
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Turn the engine switch to the “ON” position.
2. Move the right front passenger seat to the rearward position.
3. When it is unavoidable, put the child restraint system on the front passenger
seat without putting your weight on the
front passenger seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.
The passenger airbag on −off indicator light
should indicate “OFF” when the engine
switch is in the “ON” position and the
child is in the child restraint system after
following these procedures. The “OFF” in-
dicator indicates the SRS front passenger
airbag and side airbag on the passenger
side will not deploy. if the indicator light
indicates “ON”, do the following procedure: 1. Turn the engine switch off.
2. Remove the child restraint system.
3. When reinstalling a child restraint sys-
tem, make sure the seatback does not
press the child restraint system into
the seat cushion. If this occurs, adjust
the seatback angle slightly.
4. Then make sure the head restraint is not pressing the child restraint system
into the seat cushion. If this occurs,
raise the head restraint.
5. Turn the engine switch on again.
The passenger airbag on −off indicator light
should indicate “OFF”. If the indicator light
still indicates “ON” when the engine switch
is turned to the “ON” position, then the
SRS front passenger airbag and side air-
bag on the passenger side may deploy in
an accident. Do not drive the vehicle in
this condition. Remove the child restraint
system and contact your Toyota dealer.

133
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. A forwardfacing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy, and the impact could cause
death or serious injury to the child.
XS13063
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the passenger air-
bag onoff indicator light indicates
“OFF”. In the event of an accident,
the impact of the rapid inflation of
the front passenger airbag could
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
XS13064
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the passenger
airbag onoff indicator light indi-
cates “OFF”, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.

134
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

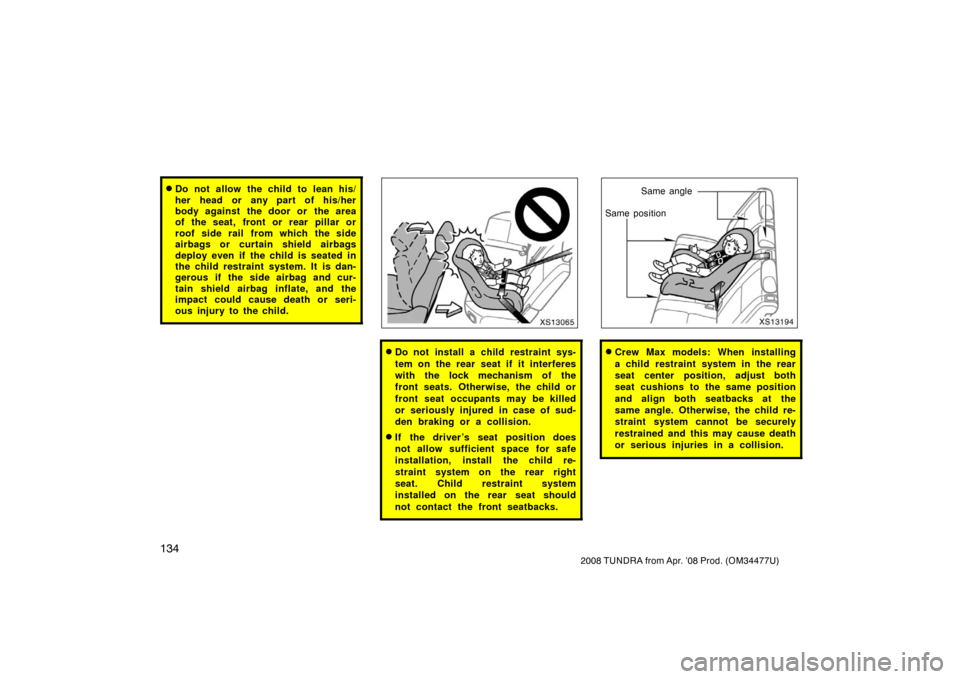

Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
XS13065
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupants may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat. Child restraint system
installed on the rear seat should
not contact the front seatbacks.
XS13194
Same angle
Same position
Crew Max models: When installing
a child restraint system in the rear
seat center position, adjust both
seat cushions to the same position
and align both seatbacks at the
same angle. Otherwise, the child re-
straint system cannot be securely
restrained and this may cause death
or serious injuries in a collision.

135
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13066

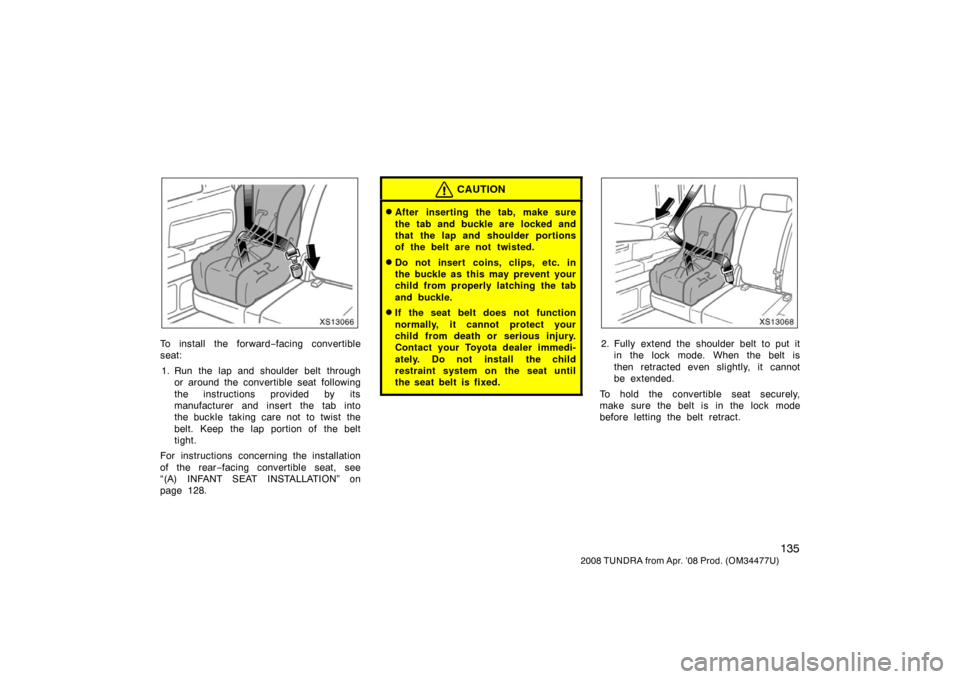

To install the forward−facing convertible
seat:
1. Run the lap and shoulder belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
For instructions concerning the installation
of the rear −facing convertible seat, see
“(A) INFANT SEAT INSTALLATION” on
page 128.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

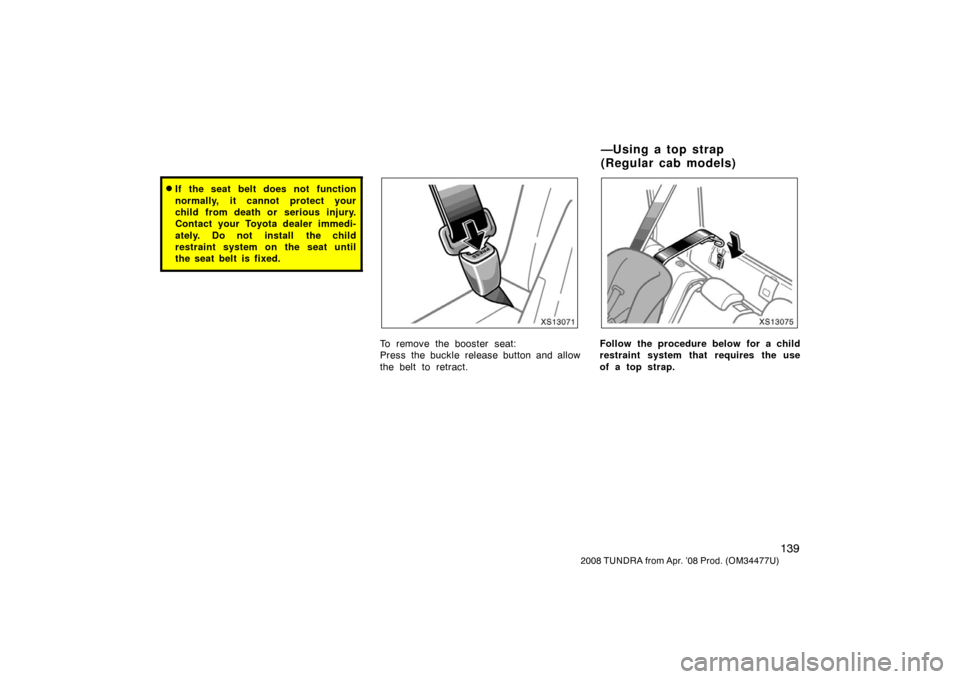

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
XS13068
2. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

136
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13069

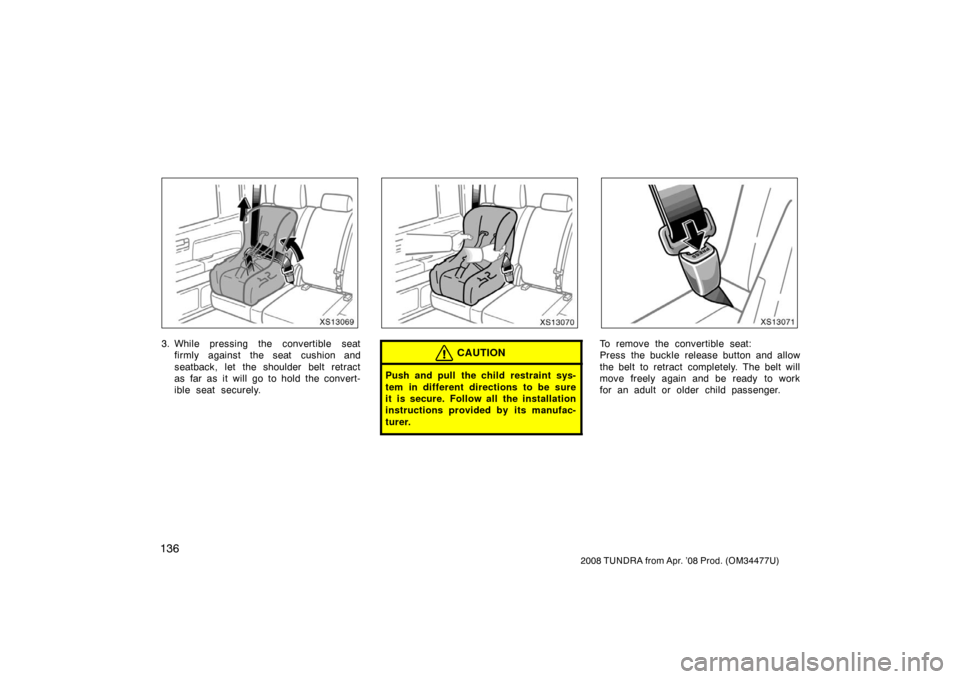

3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
XS13070
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
XS13071
To remove the convertible seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.

137
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13072

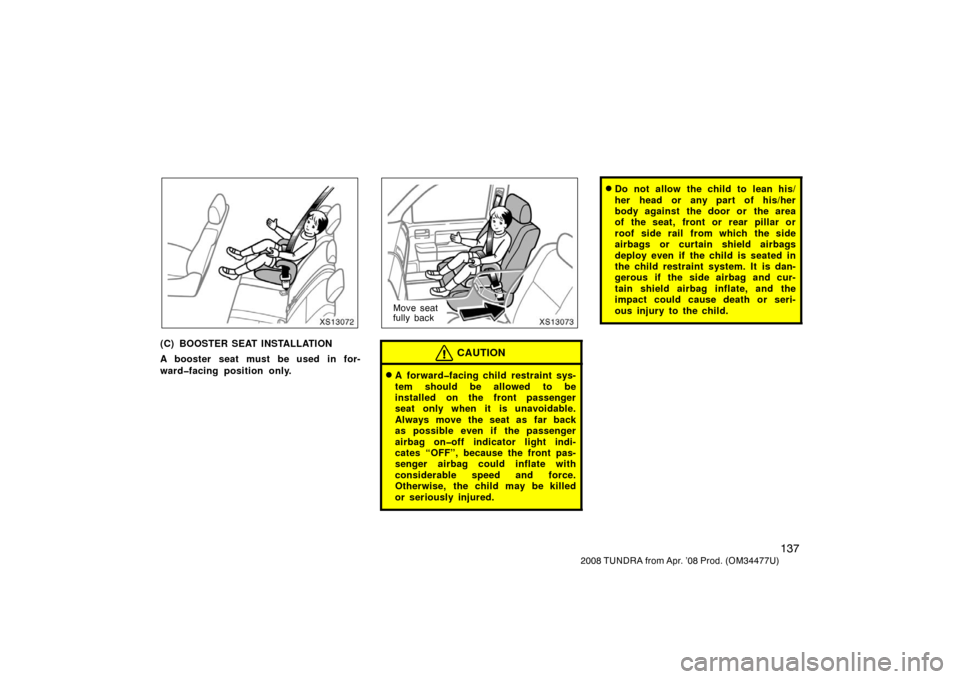

(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
XS13073
Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the passenger
airbag onoff indicator light indi-
cates “OFF”, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.

138
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13195
Same angle
Same position
Crew Max models: When installing
a child restraint system in the rear
seat center position, adjust both
seat cushions to the same position
and align both seatbacks at the
same angle. Otherwise, the child re-
straint system cannot be securely
restrained and this may cause death
or serious injuries in a collision.
XS13074

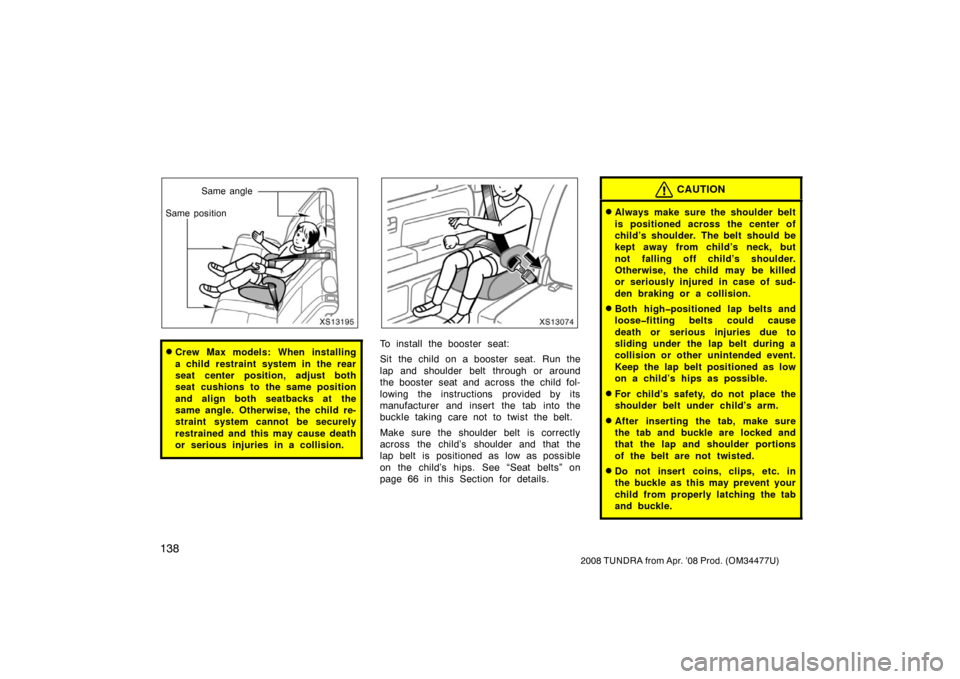

To install the booster seat:
Sit the child on a booster seat. Run the
lap and shoulder belt through or around
the booster seat and across the child fol-
lowing the instructions provided by its
manufacturer and insert the tab into the
buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 66 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

139
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
XS13071
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.
XS13075
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
—U sin g a to p st rap
(Regular cab models)

140
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13076a
Symbol mark
Anchor brackets
Bench seats
XS13144aSymbol mark Anchor
bracket
Separate seats

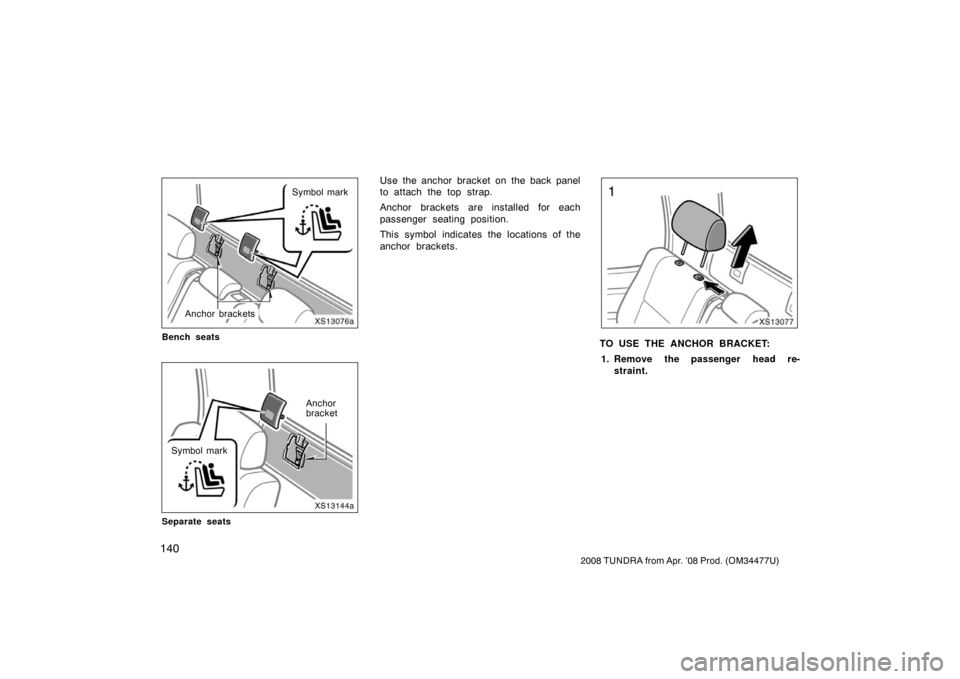

Use the anchor bracket on the back panel
to attach the top strap.
Anchor brackets are installed for each
passenger seating position.
This symbol indicates the locations of the
anchor brackets.
XS13077
TO USE THE ANCHOR BRACKET:
1. Remove the passenger head re- straint.
