OTHER FUNCTIONS
132
An antenna for the Bluetooth connec-
tion is built in the display. The indica-
tion of the Bluetooth
 connection may
turn yellow and the system may not
function when you use the Bluetooth

phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth
 phone on the place
where “Blue” indication is displayed.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data.
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

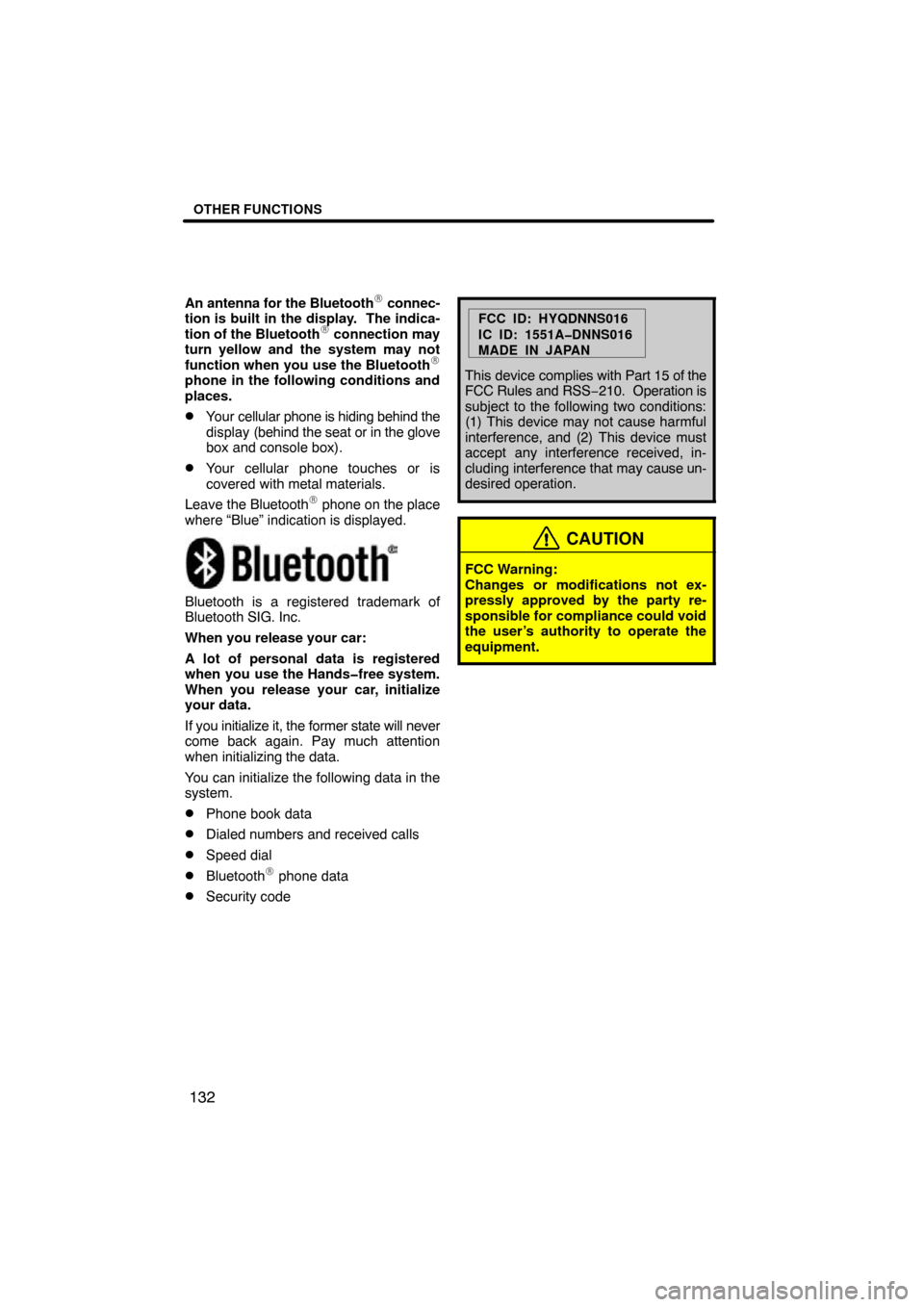

FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions:
(1) This device may not cause harmful
interference, and (2) This device must
accept any interference received, in-
cluding interference that may cause un-
desired operation.
CAUTION
FCC Warning:
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

OTHER FUNCTIONS
133

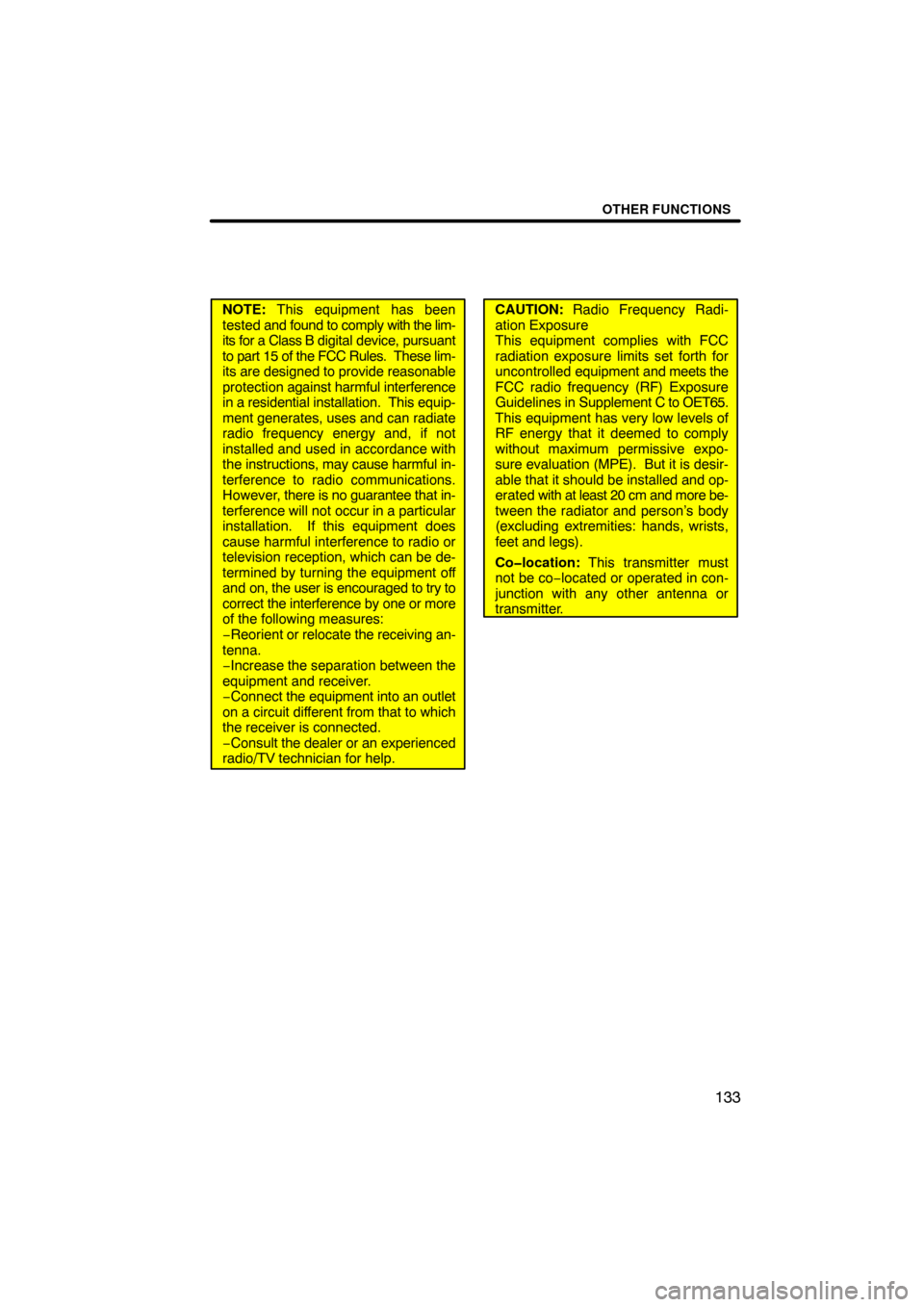

NOTE: This equipment has been
tested and found to comply with the lim-
its for a Class B digital device, pursuant
to part 15 of the FCC Rules. These lim-
its are designed to provide reasonable
protection against harmful interference
in a residential installation. This equip-
ment generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful in-
terference to radio communications.
However, there is no guarantee that in-
terference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television reception, which can be de-
termined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and op-
erated with at least 20 cm and more be-
tween the radiator and person’s body
(excluding extremities: hands, wrists,
feet and legs).
Colocation: This transmitter must
not be co −located or operated in con-
junction with any other antenna or
transmitter.

OTHER FUNCTIONS
134
To use the handsfree system, you
need to enter your cellular phone into
the system. Once you have registered
it, you can make a handsfree call.
XS00403
1. Push the “INFO” button to display
the “Information” screen.
5U5022aF
2. Touch “Telephone” to display
“Telephone” screen.
You can also push the
switch of the
steering wheel to display this screen when
the vehicle is stopped.
5U5023F
3. Touch “Settings” to display
“Settings” screen.
5U5024F
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
5U5025F
5. Touch “Register” to connect your
cellular phone to the system.
— Enter a Bluetooth
phone

OTHER FUNCTIONS
135
5U5026F
6. When this screen is displayed, input
the Passkey displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
5U5027F
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case
of using the same one.
5U5028F
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
(i) Automatically
5U5029F
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the Blue-
tooth
 phone in a condition where con-
nection can be established.
Each time you touch “Auto Connect”,
auto connection will be switched on or off.
5U5030F
When the engine switch is turned to the
ACC or ON position, the selected Blue-
tooth
 phone will be automatically con-
nected and the connection result is dis-
played.
This screen appears when the Bluetooth

phone is first connected after the engine
switch is turned to the ACC or ON position.

OTHER FUNCTIONS
136
(ii) Manually
When the auto connection failed or
turned off, you have to connect Blue-
tooth
 manually.
5U5031F
Touch “Connect” after having enabled
the Bluetooth connection on the
phone.
5U5032F
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth
 phone.
Reconnecting the Bluetooth
phone
If the Bluetooth
 phone is discon-
nected with a poor reception from the
Bluetooth
 network when the engine
switch is turned to the ACC or ON posi-
tion, the system automatically recon-
nects the Bluetooth
 phone. In this
case, the connection result is not dis-
played.
If the Bluetooth
 is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

OTHER FUNCTIONS
137
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5033F
1. Touch the desired key to input the
telephone number.
Each time you touch , an inputted digit is
deleted.
When you touch
, the number you
called last is inputted.
2. Touch
or push the switch of
the steering wheel. (ii) By phone book
You can call by phone book data which
is transferred from your cellular phone.
The system has one phone book. You
can register up to 1000 numbers.
This cannot be operated while driving.
5U5034F
1. Touch “Phone Book” to display
“Phone Book” screen.
5U5035F
2. Select the desired number from the
list.
5U5036F
3. Touch or push the switch of
the steering wheel.
— Call on the Bluetooth
phone

OTHER FUNCTIONS
138
(iii) By dialed numbers
You can call by dialed number. The sys-
tem memorizes up to 5 dialed numbers.
If it is over than 5, the oldest number is
deleted.
This cannot be operated while driving.
5U5037F
1. Touch “Call Log” to display
“Outgoing Calls” screen.
5U5038F
When you call by phone book, the
name (if registered) is displayed.
When you call the same number continuously, only the newest
number is registered.
2. Select the desired number from the
list.
5U5039F
3. Touch or push the switch of
the steering wheel.

OTHER FUNCTIONS
139
(iv) By received calls
You can call by received calls. When a
call is received, the system memorizes
up to 5 numbers. If it is more than 5, the
oldest number is deleted.
This cannot be operated while driving.
5U5040F
1. Touch “Call Log” to display
“Outgoing Calls” screen.
5U5041F
2. Touch “Incoming Calls” to display
“Incoming Calls” screen.
5U5042F
When a telephone number registered
in the phone book is received, the
name and the number are displayed.
Received calls which you did not
answer are also memorized in the
system and “Abs.” is displayed
on the left side of the number.
Unnoticed telephone number such as a public telephone is not
memorized in the system.
3. Select the desired number from the
list.
5U5043F
4. Touch or push the switch of
the steering wheel.
A international phone call may not be made depending on the cellular
phone which you have.

OTHER FUNCTIONS
140
(v) By speed dial
You can call by registered telephone
number which you selected from a
phone book, dialed numbers and re-
ceived calls. (See page 146 for register-
ing the speed dial.)
5U5044F
1. Touch “Speed Dial” to display
“Speed Dial” screen.
5U5045F
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3”.
When you push the telephone button while
driving, the screen above appears. T ouch
the desired name to call. (The telephone
number is not displayed.) (vi) By voice recognition
5U5046F
You can call by giving a command. (For
the operation and command of voice
recognition, see “Speech command
system” on page 175 and “Help
screen” on page 178.)

OTHER FUNCTIONS
141

Dialing by name
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “Setting the
voice recognition” on page 159.
Example: Call DAD
XS00332
You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “DAD.”
System: “DAD chosen, when ready, please briefly
push the talk
switch or push the
off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please say “Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you can call DAD.
5U5048F
“Next” is displayed when multiple entries
are found for a searched name.
Up to 6 entries can be displayed including
the first searched one.
Do the following to change the entry to the
next one.
Touch “Next”
Push the talk switch to say “Next
Candidate”.
Calling without the voice recognition
After the entry number is displayed, you
can also call by pushing the telephone
switch or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch
Push the switch of the steering
wheel.
Touch “Cancel” . (Except for recogniz-
ing the command)
Say “Cancel”
