TOYOTA URBAN CRUISER 2014 Owners Manual

271
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■

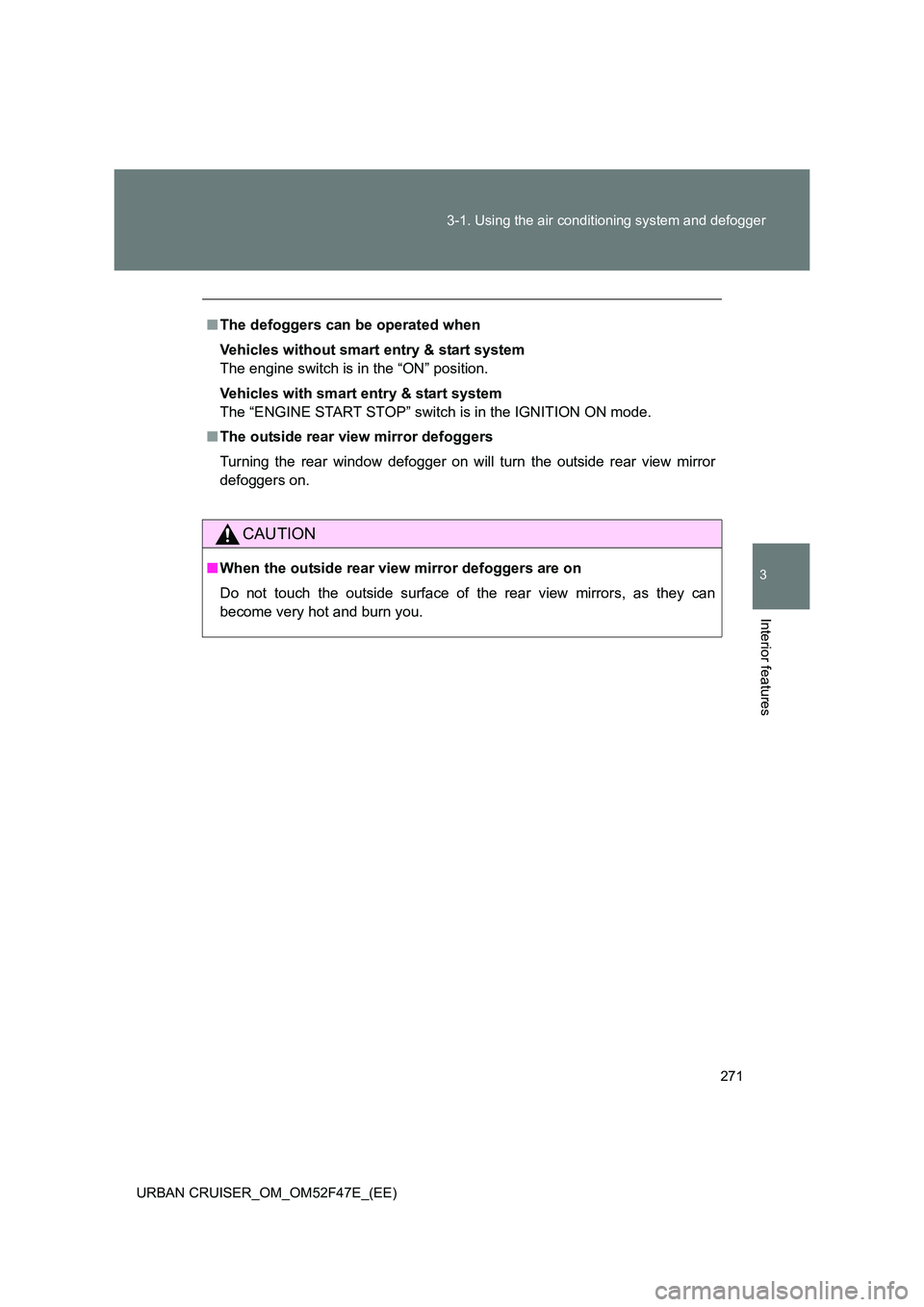

The defoggers can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.

272
URBAN CRUISER_OM_OM52F47E_(EE)
3-2. Using the audio system

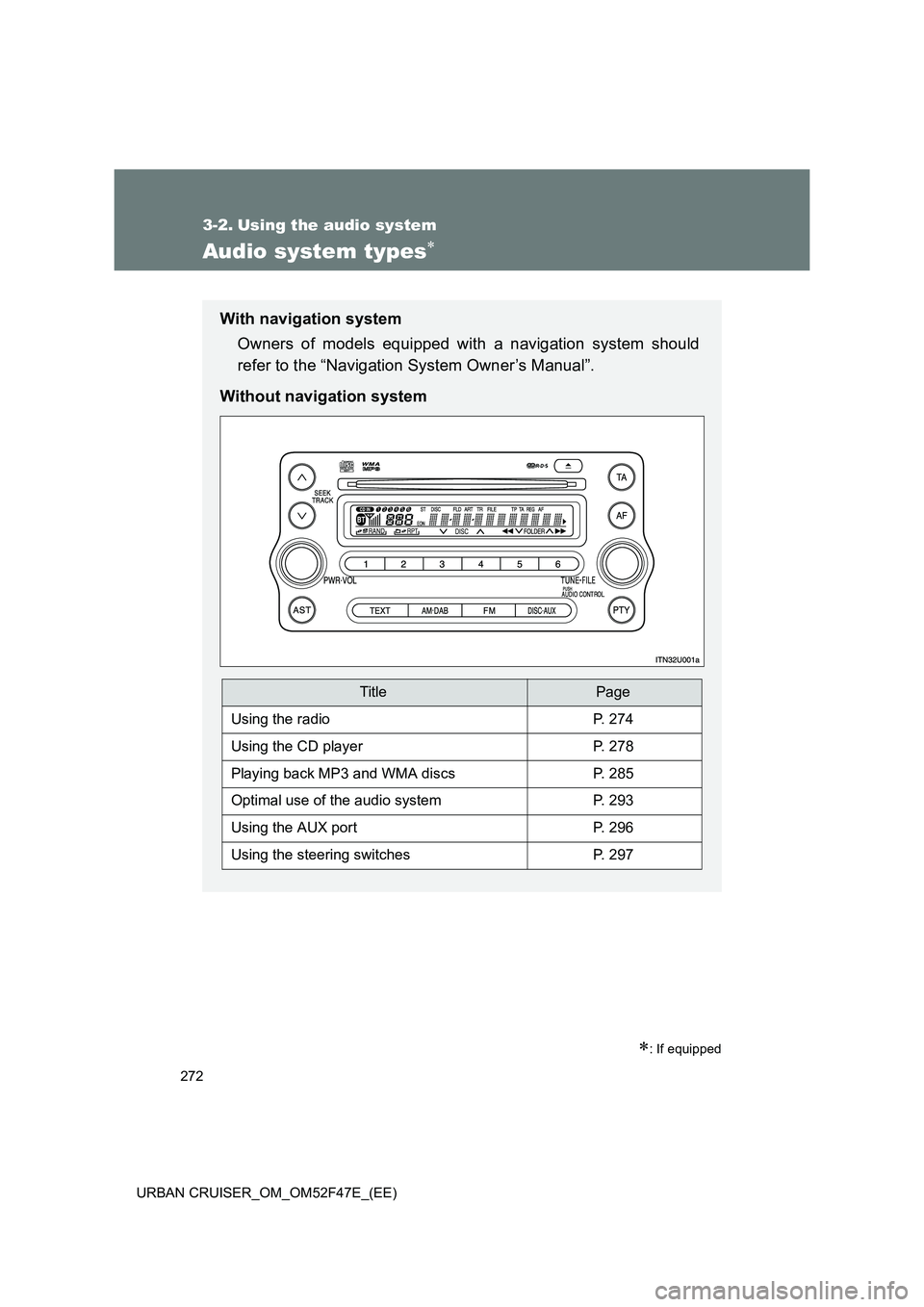

Audio system types∗
∗: If equipped
With navigation system Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navigation system
TitlePage
Using the radioP. 274
Using the CD playerP. 278
Playing back MP3 and WMA discsP. 285
Optimal use of the audio systemP. 293
Using the AUX portP. 296
Using the steering switchesP. 297

273
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■

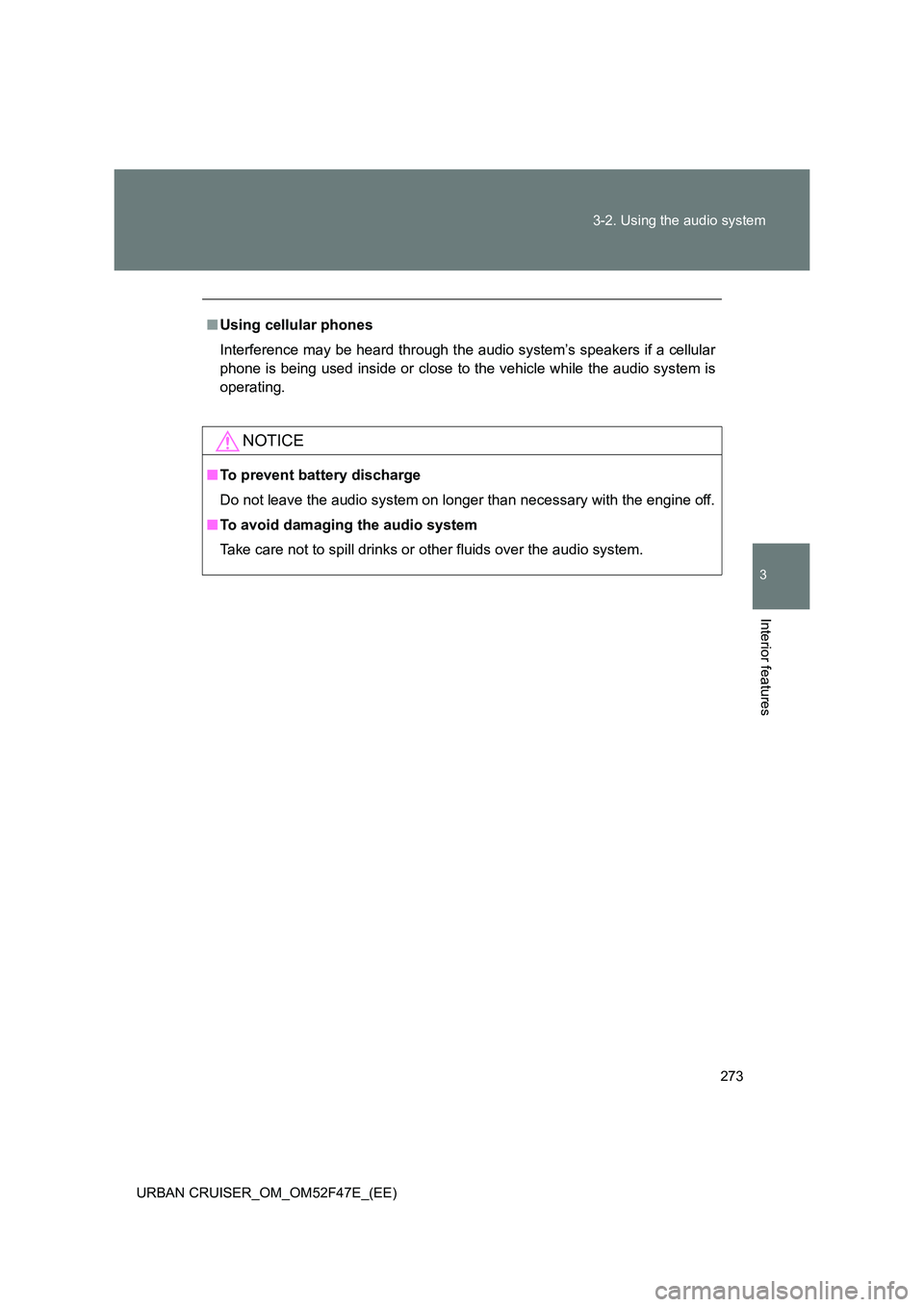

Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

274
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)

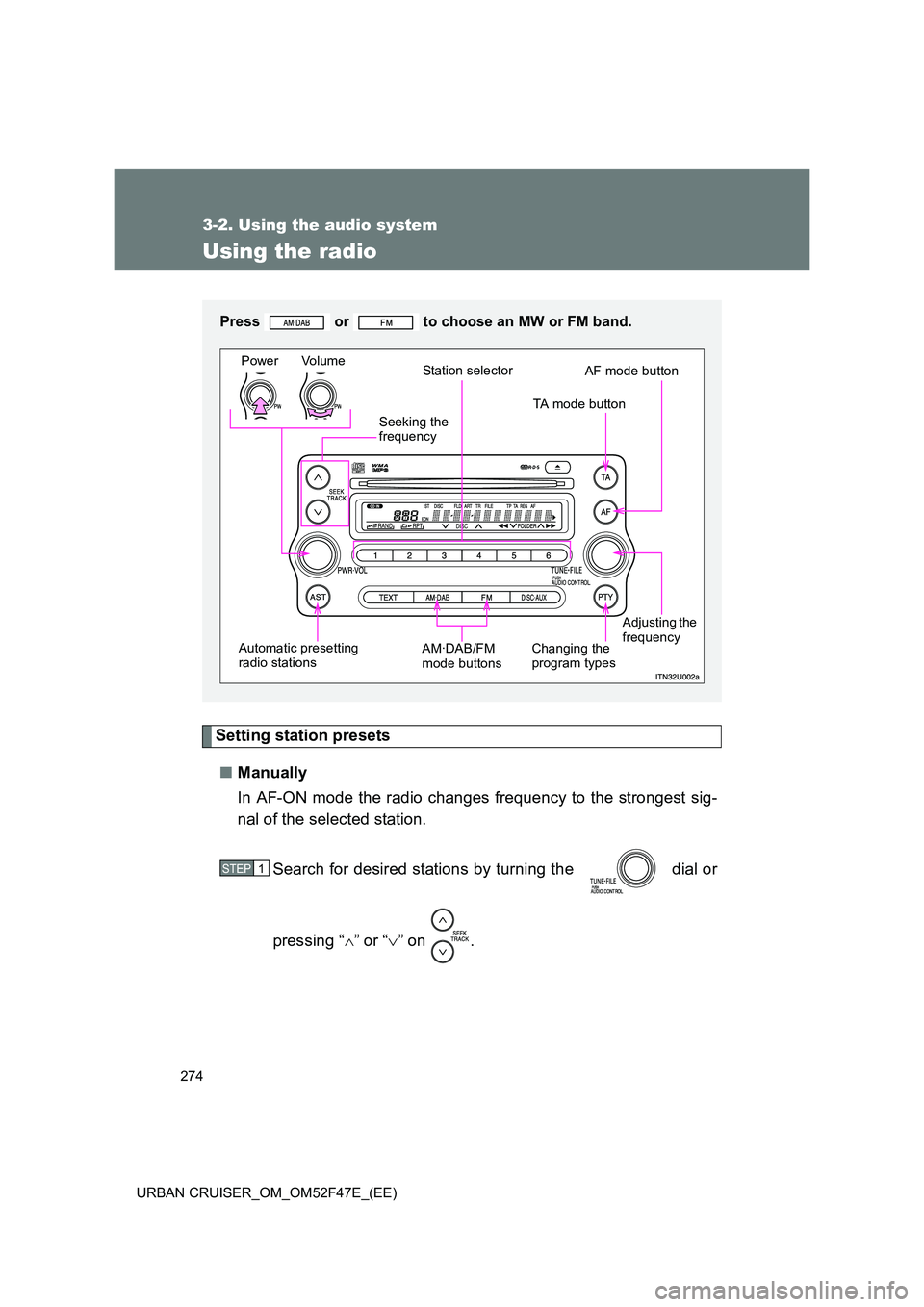

Using the radio
Setting station presets■ Manually
In AF-ON mode the radio changes frequency to the strongest sig-
nal of the selected station.
Search for desired stations by turning the dial or
pressing “ ∧” or “ ∨” on .
Press or to choose an MW or FM band.
Power Volume
Station selector
TA mode button
Adjusting the
frequency
AF mode button
Changing the
program types
AM·DAB/FM
mode buttons
Automatic presetting
radio stations Seeking the
frequency
STEP1

275
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

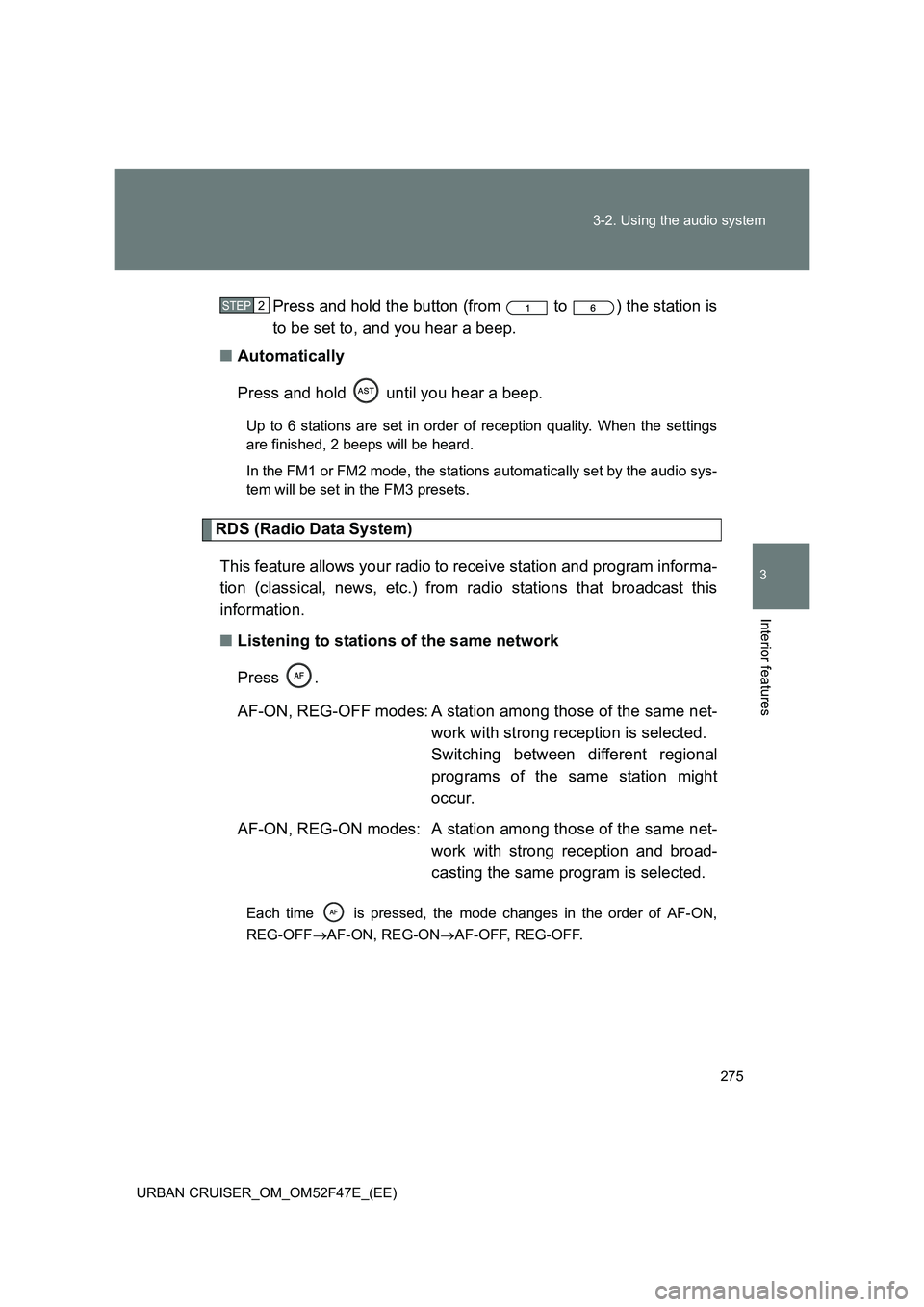

Press and hold the button (from to ) the station is
to be set to, and you hear a beep.
■ Automatically
Press and hold until you hear a beep.
Up to 6 stations are set in order of reception quality. When the settings
are finished, 2 beeps will be heard.
In the FM1 or FM2 mode, the stations automatically set by the audio sys-
tem will be set in the FM3 presets.
RDS (Radio Data System)
This feature allows your radio to receive station and program informa-
tion (classical, news, etc.) from radio stations that broadcast this
information.
■ Listening to stations of the same network
Press .
AF-ON, REG-OFF modes: A station among those of the same net-
work with strong reception is selected.
Switching between different regional
programs of the same station might
occur.
AF-ON, REG-ON modes: A station among those of the same net- work with strong reception and broad-
casting the same program is selected.
Each time is pressed, the mode changes in the order of AF-ON,
REG-OFF→AF-ON, REG-ON →AF-OFF, REG-OFF.
STEP2

276
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)

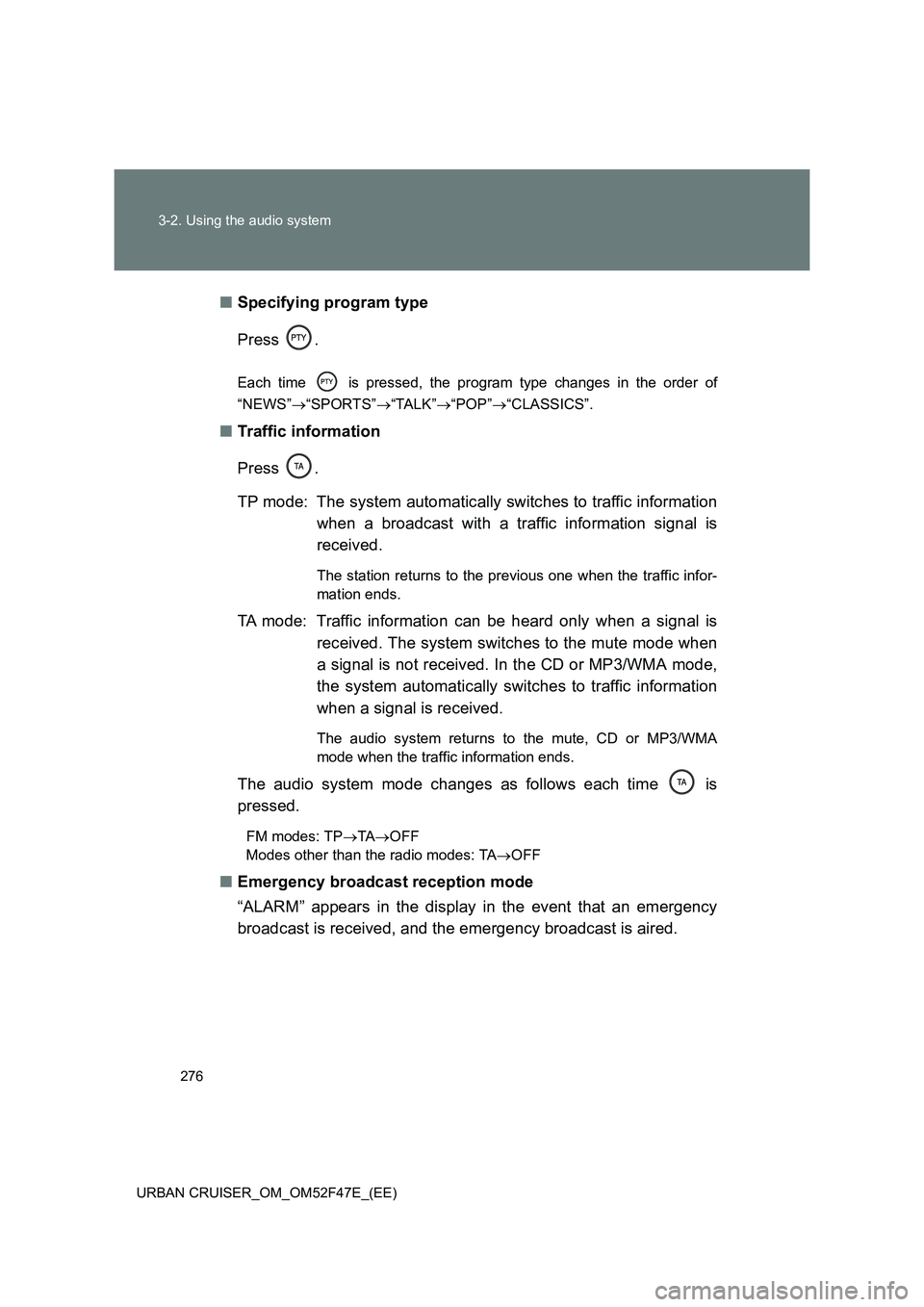

■ Specifying program type
Press .
Each time is pressed, the program type changes in the order of
“NEWS” →“SPORTS” →“TALK” →“POP” →“CLASSICS”.
■ Traffic information
Press .
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
TA mode: Traffic information can be heard only when a signal is
received. The system switches to the mute mode when
a signal is not received. In the CD or MP3/WMA mode,
the system automatically switches to traffic information
when a signal is received.
The audio system returns to the mute, CD or MP3/WMA
mode when the traffic information ends.
The audio system mode changes as follows each time is
pressed.
FM modes: TP →TA →OFF
Modes other than the radio modes: TA →OFF
■ Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

277
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■

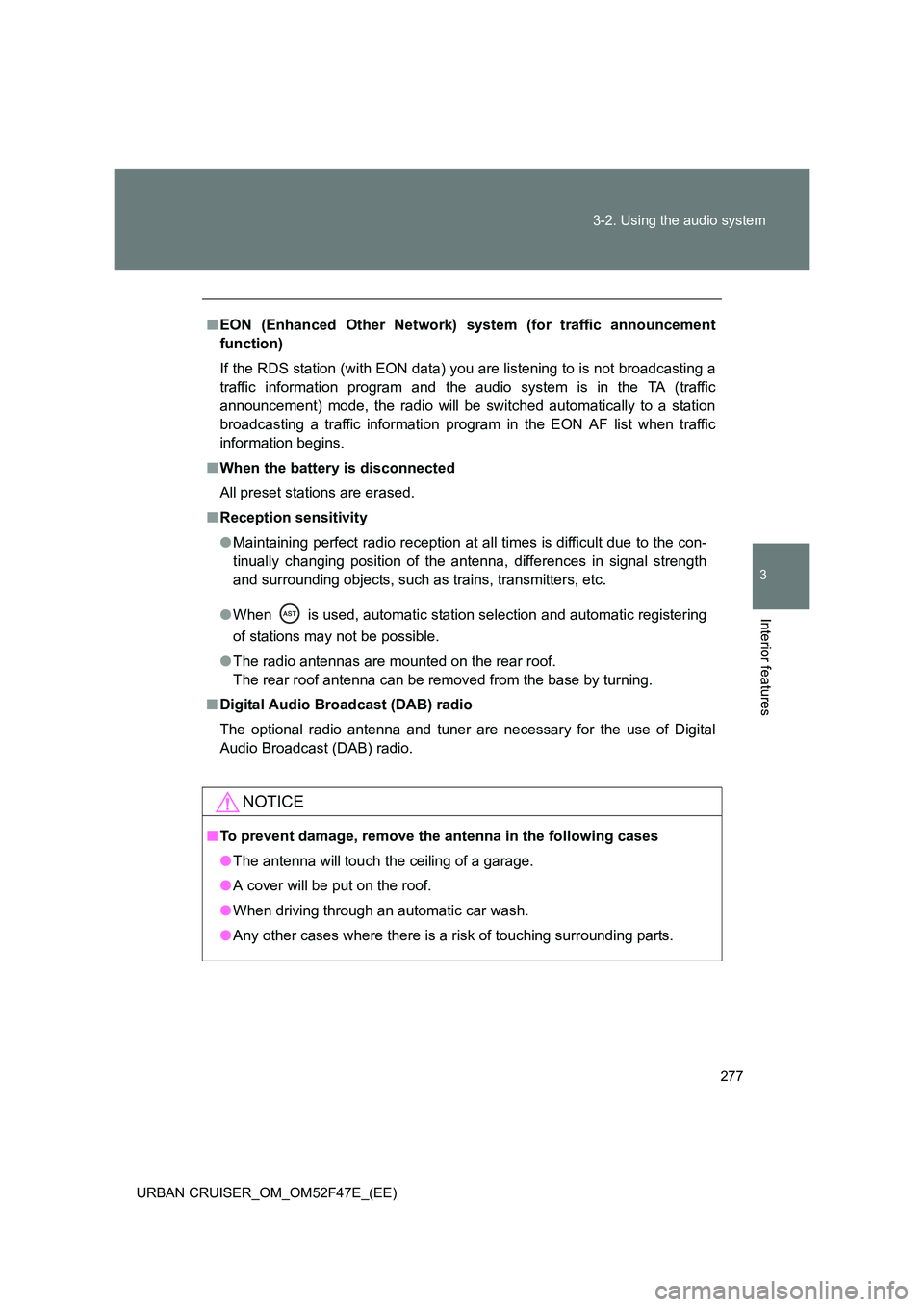

EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information progr am in the EON AF list when traffic
information begins.
■ When the battery is disconnected
All preset stations are erased.
■ Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● When is used, automatic station selection and automatic registering
of stations may not be possible.
● The radio antennas are mounted on the rear roof.
The rear roof antenna can be removed from the base by turning.
■ Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
■To prevent damage, remove the antenna in the following cases
●The antenna will touch the ceiling of a garage.
● A cover will be put on the roof.
● When driving through an automatic car wash.
● Any other cases where there is a risk of touching surrounding parts.

278
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)

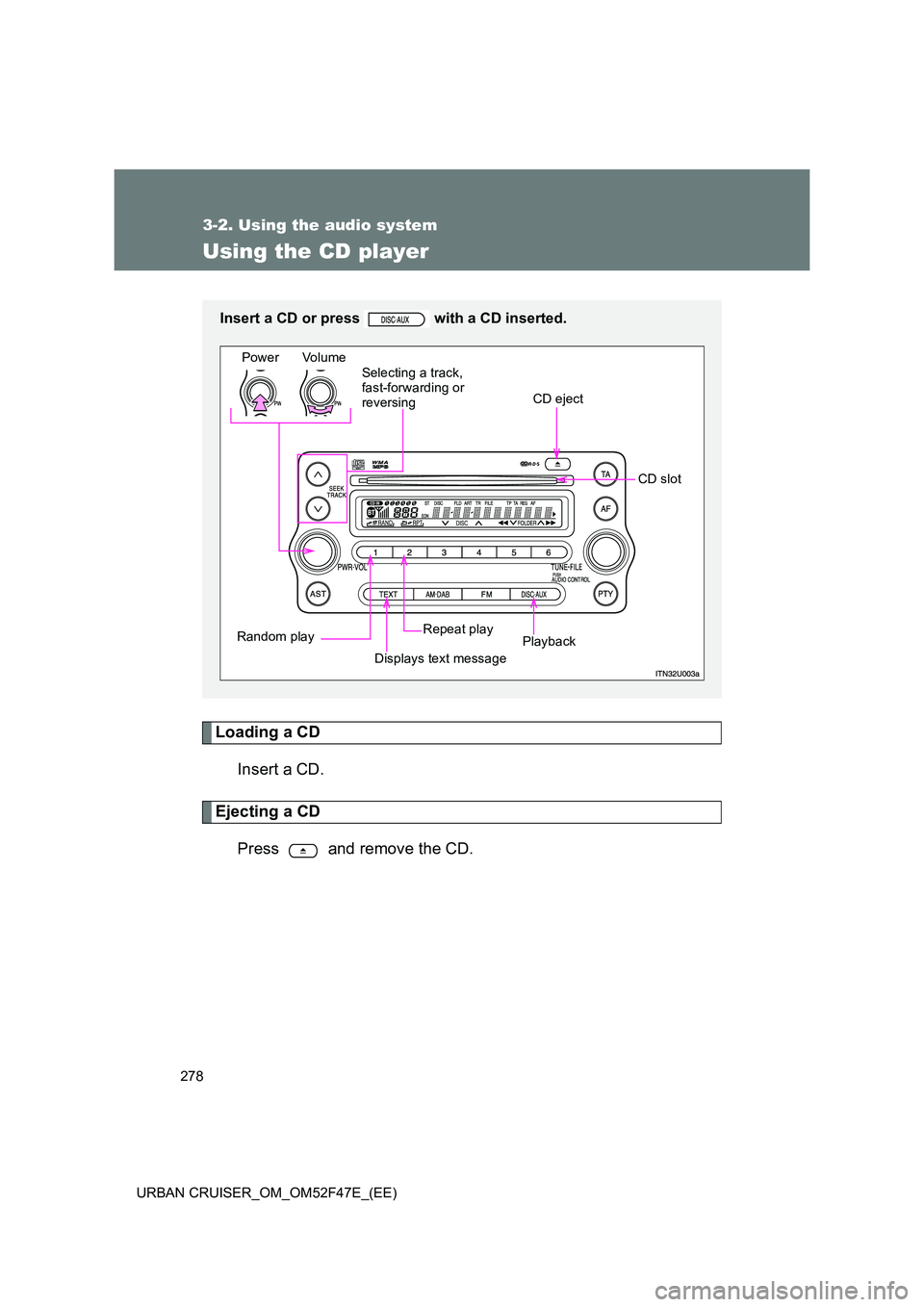

Using the CD player
Loading a CDInsert a CD.
Ejecting a CD
Press and remove the CD.
Insert a CD or press with a CD inserted.
Power Volume
CD eject
Playback
Repeat play
Displays text message
Random play Selecting a track,
fast-forwarding or
reversing
CD slot

279
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

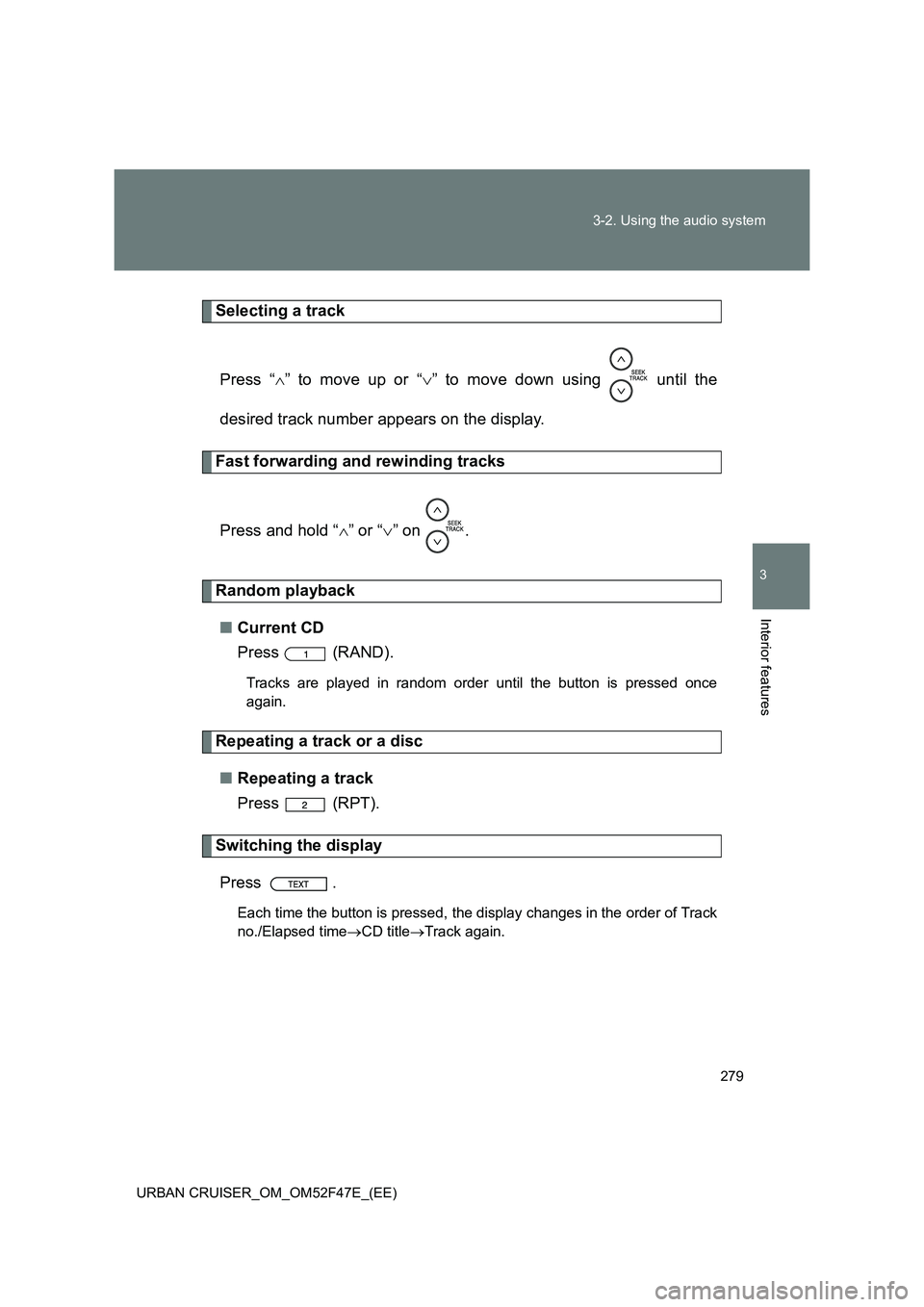

Selecting a track
Press “ ∧” to move up or “ ∨” to move down using until the
desired track number appears on the display.
Fast forwarding and rewinding tracks
Press and hold “ ∧” or “ ∨” on .
Random playback
■ Current CD
Press (RAND).
Tracks are played in random order until the button is pressed once
again.
Repeating a track or a disc
■ Repeating a track
Press (RPT).
Switching the display
Press .
Each time the button is pressed, the display changes in the order of Track
no./Elapsed time →CD title →Track again.

280
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)

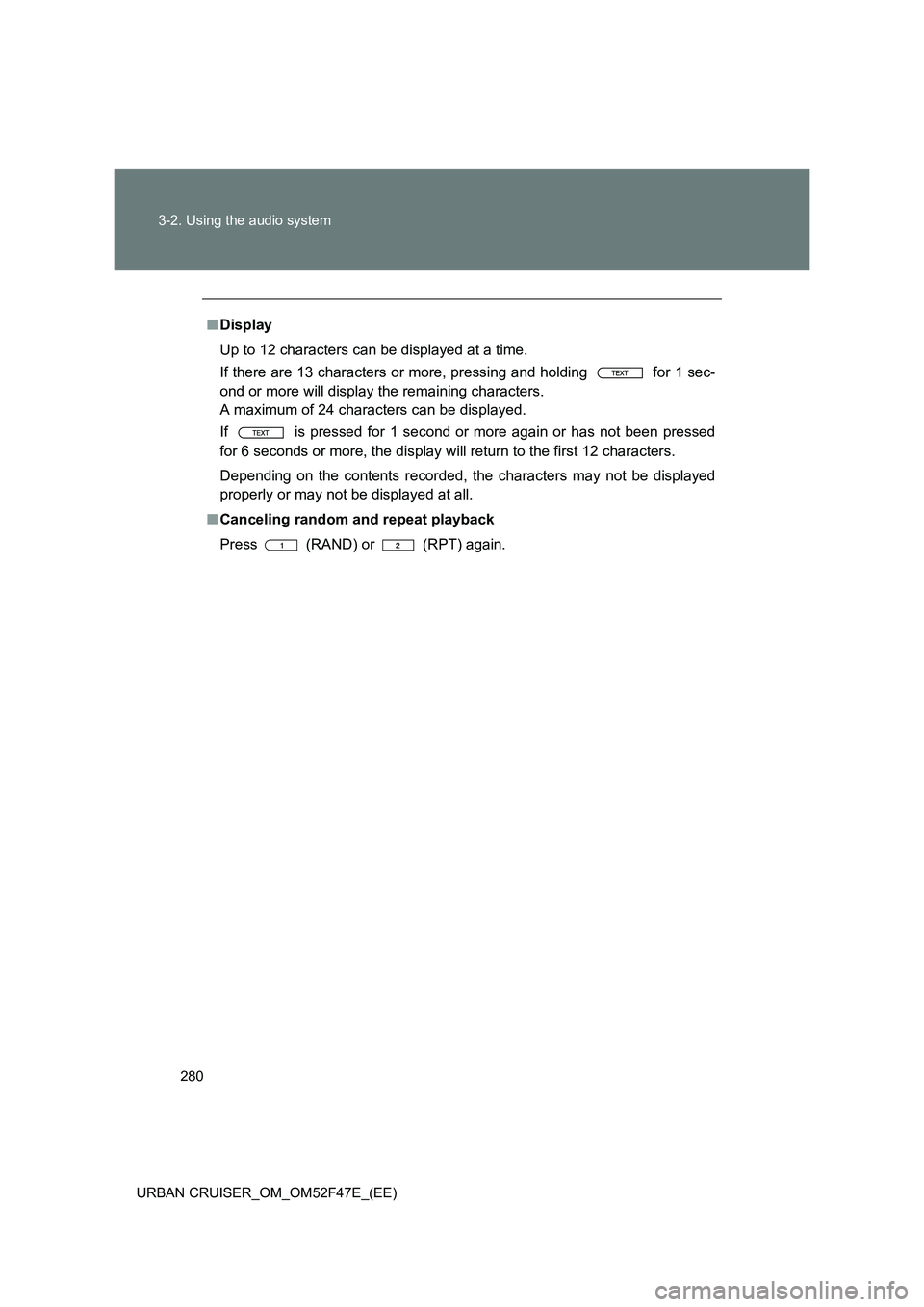

■ Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 sec-
ond or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed
for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random and repeat playback
Press
(RAND) or (RPT) again.
