TOYOTA URBAN CRUISER 2014 Owners Manual

311
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Speed dialing
Press .
Press the preset button in which the desired number is regis-
tered.
Press .
When receiving a phone call■ Answering the phone
Press .
■ Refusing the call
Press .
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods: a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *.
*: This operation can be performed only when transferring a callfrom the cellular phone to the system during a call.
STEP1
STEP2
STEP3

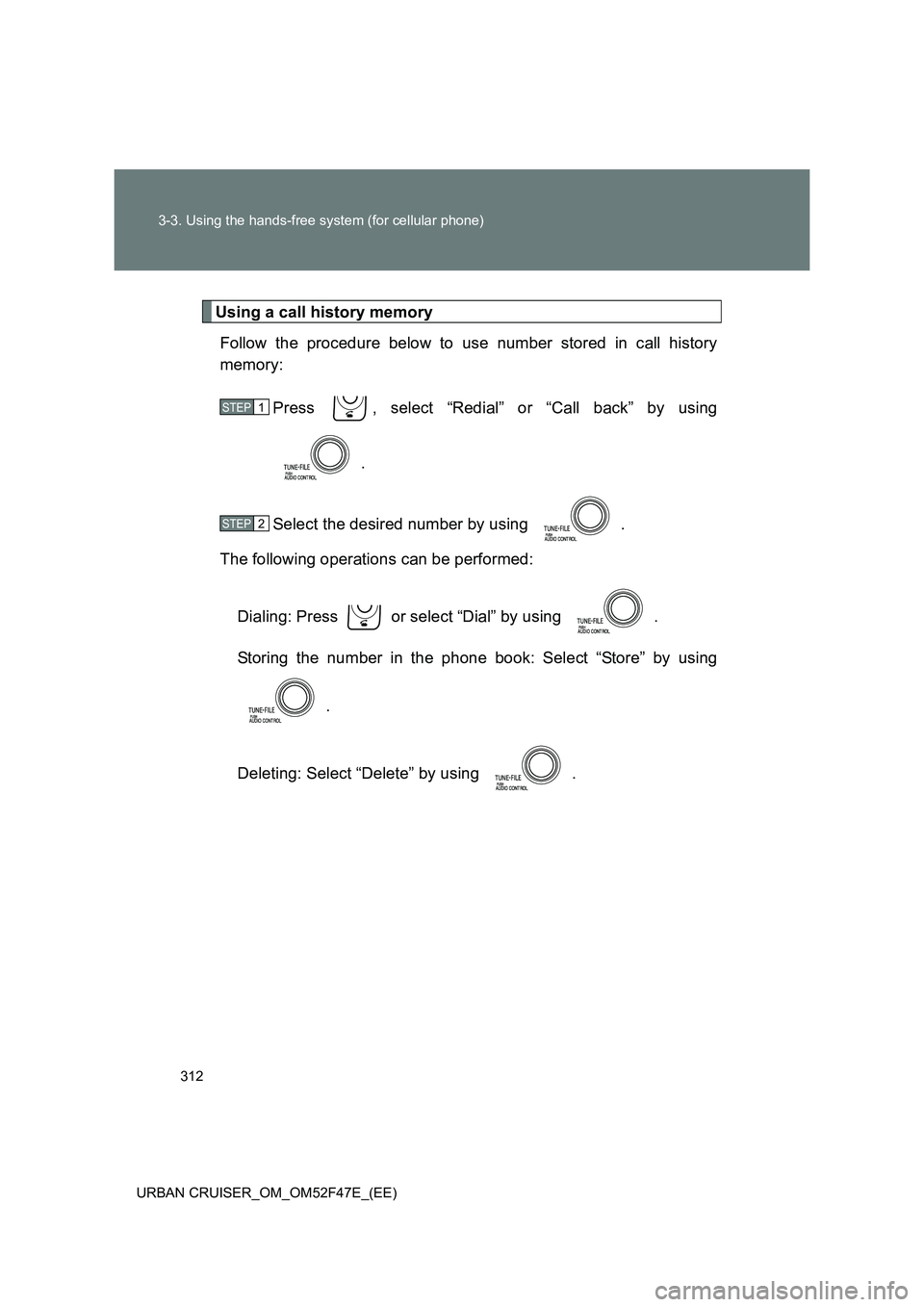

312
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
Using a call history memory Follow the procedure below to use number stored in call history
memory:
Press , select “Redial” or “Call back” by using
.
Select the desired number by using .
The following operations can be performed:
Dialing: Press or select “Dial” by using .
Storing the number in the phone book: Select “Store” by using .
Deleting: Select “Delete” by using .
STEP1
STEP2

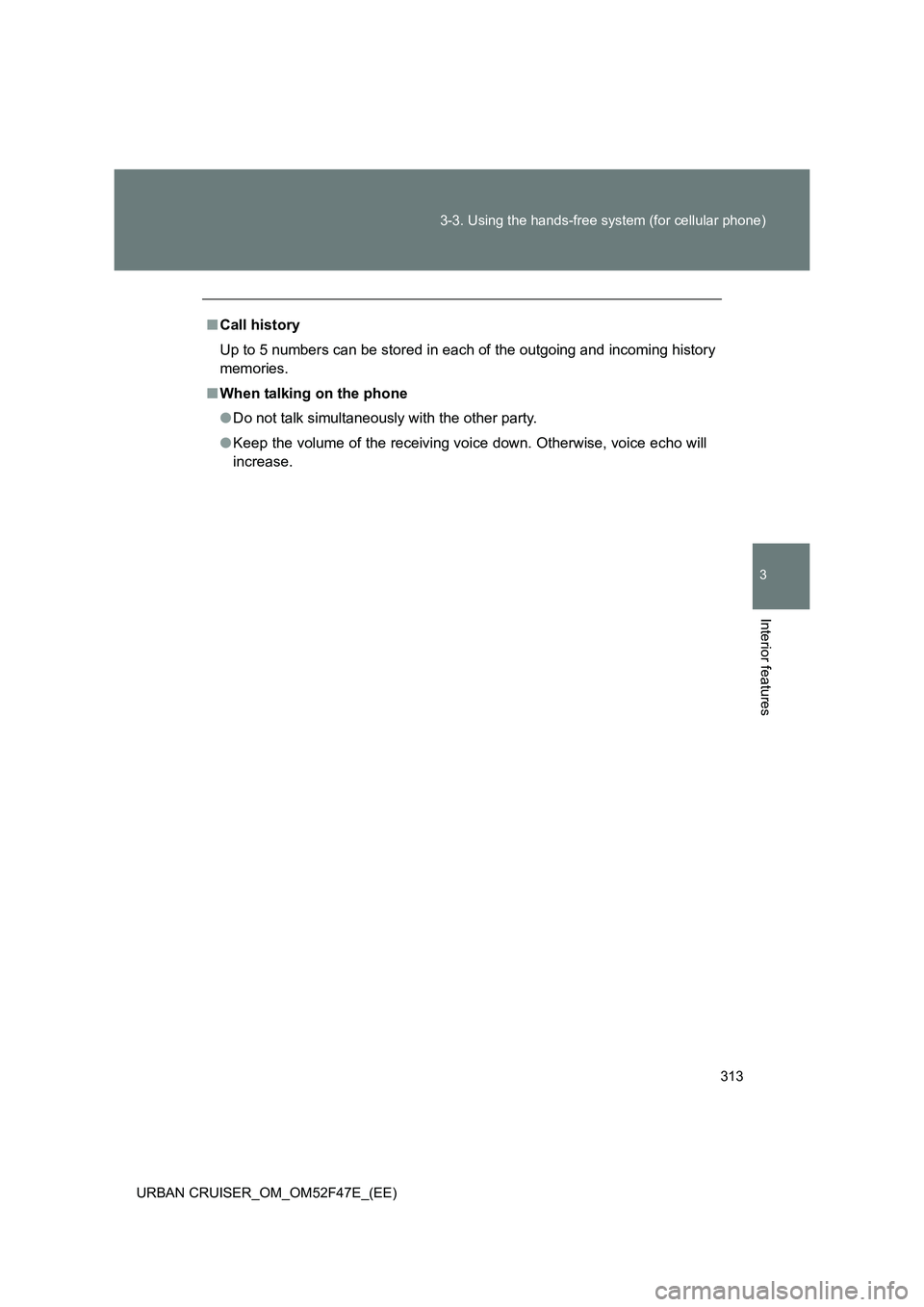

313
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■
Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
■ When talking on the phone
●Do not talk simultaneously with the other party.
● Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.

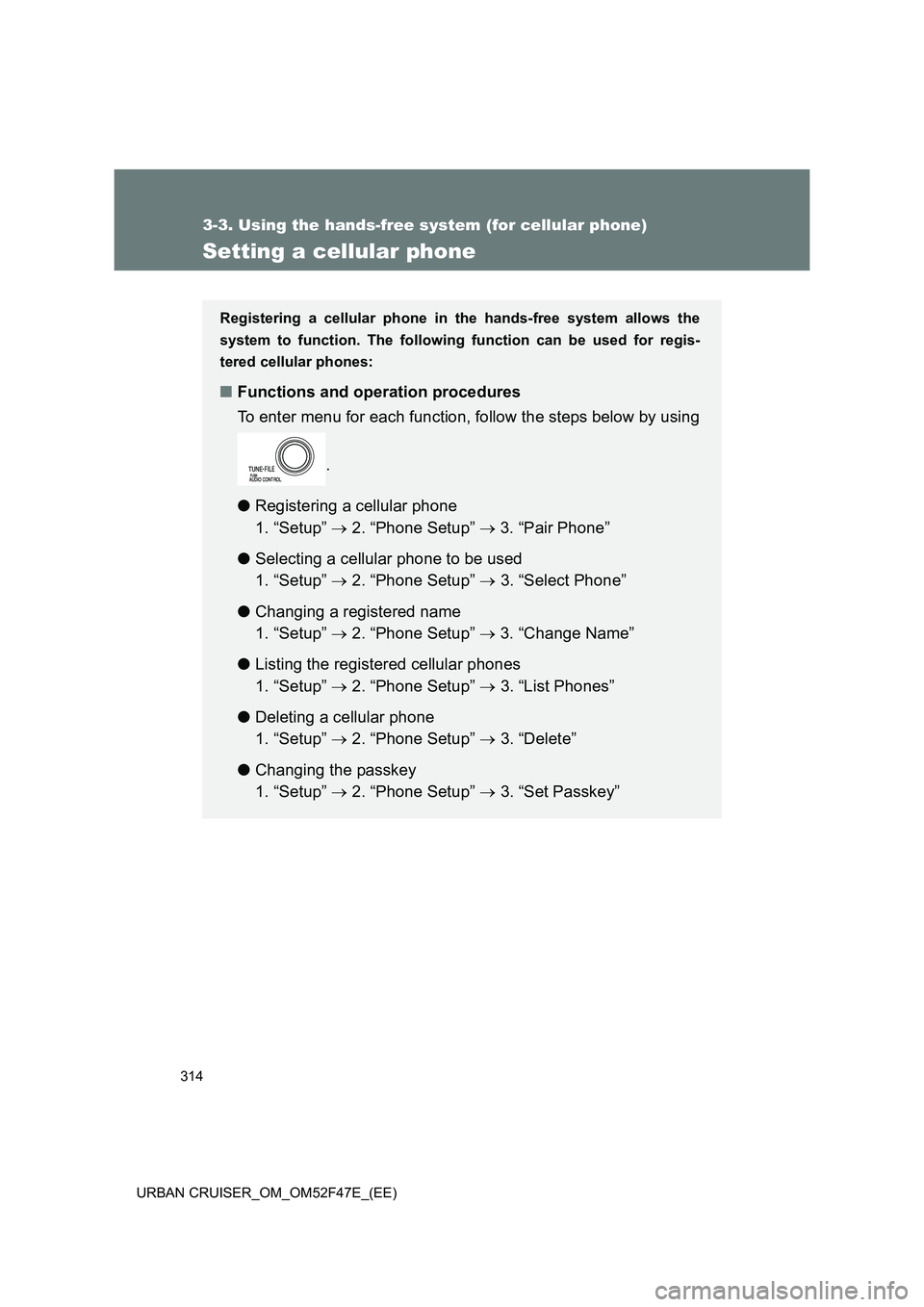

314
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following function can be used for regis-
tered cellular phones:
■Functions and operation procedures
To enter menu for each function, follow the steps below by using
.
● Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
● Selecting a cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Select Phone”
● Changing a registered name
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
● Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
● Deleting a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete”
● Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”

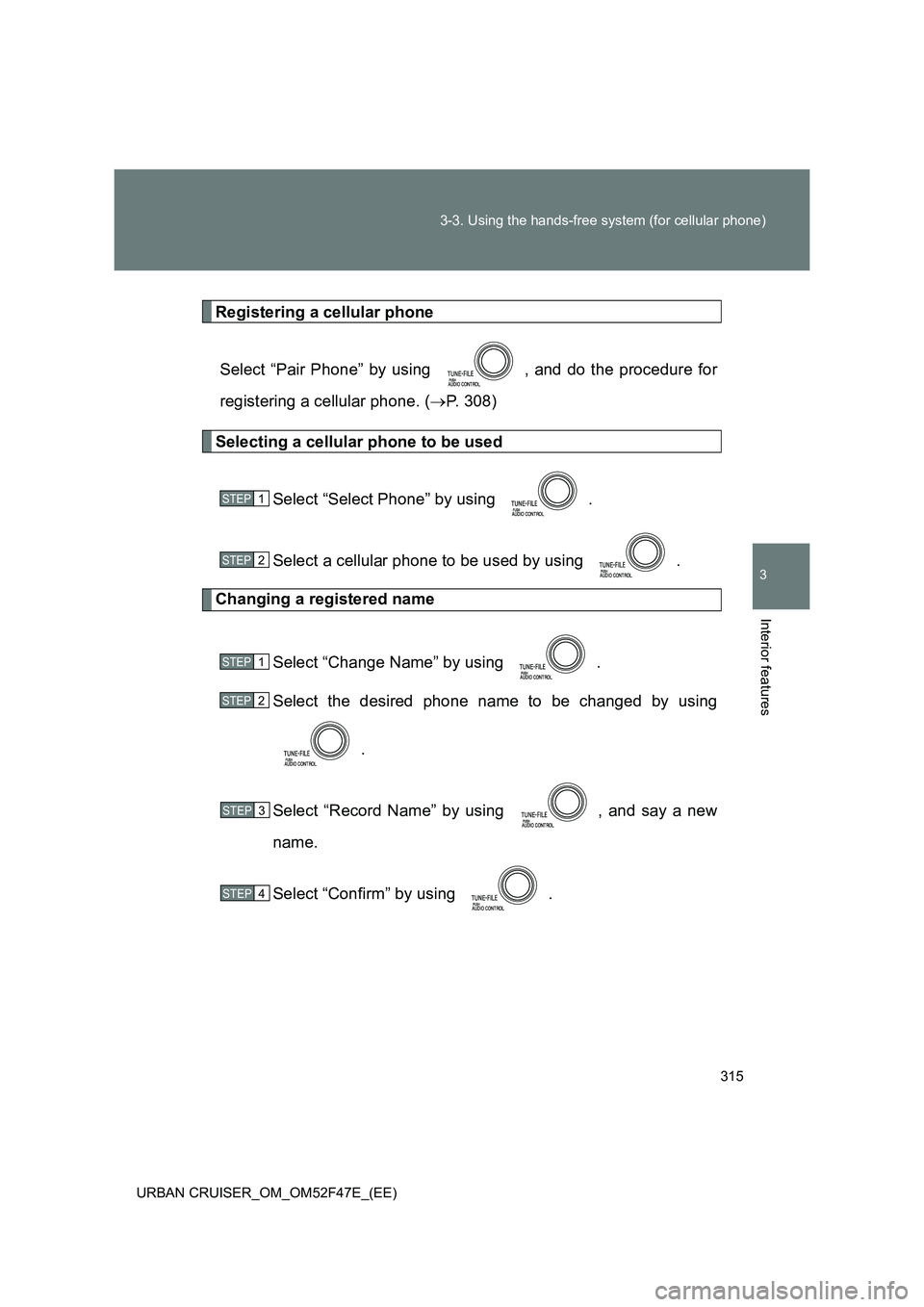

315
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Registering a cellular phone
Select “Pair Phone” by using , and do the procedure for
registering a cellular phone. ( →P. 308)
Selecting a cellular phone to be used
Select “Select Phone” by using .
Select a cellular phone to be used by using .
Changing a registered name
Select “Change Name” by using .
Select the desired phone name to be changed by using .
Select “Record Name” by using , and say a new
name.
Select “Confirm” by using .
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4

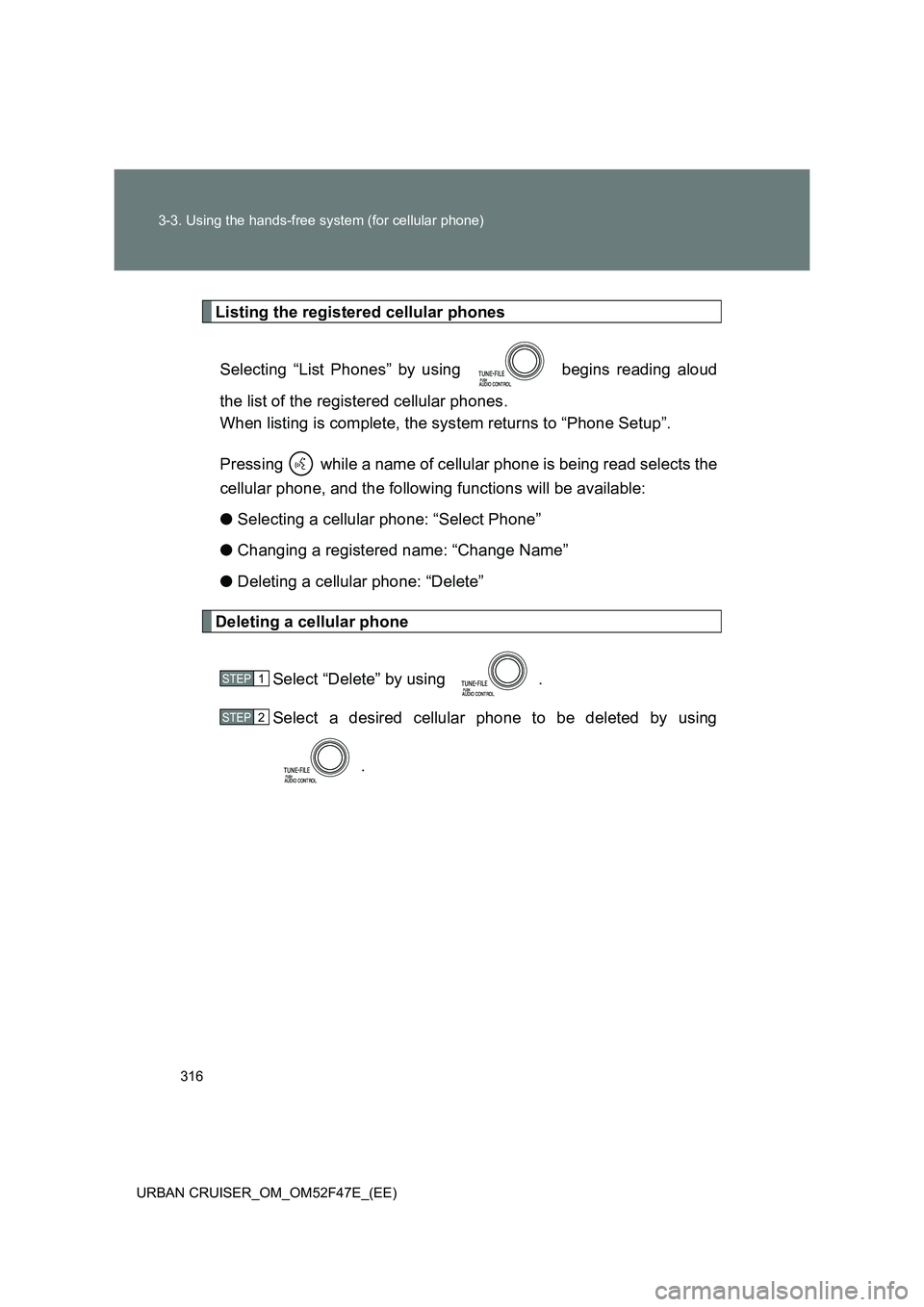

316
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
Listing the registered cellular phones Selecting “List Phones” by using begins reading aloud
the list of the registered cellular phones.
When listing is complete, the system returns to “Phone Setup”.
Pressing while a name of cellular phone is being read selects the
cellular phone, and the following functions will be available:
● Selecting a cellular phone: “Select Phone”
● Changing a registered name: “Change Name”
● Deleting a cellular phone: “Delete”
Deleting a cellular phone
Select “Delete” by using .
Select a desired cellular phone to be deleted by using .
STEP1
STEP2

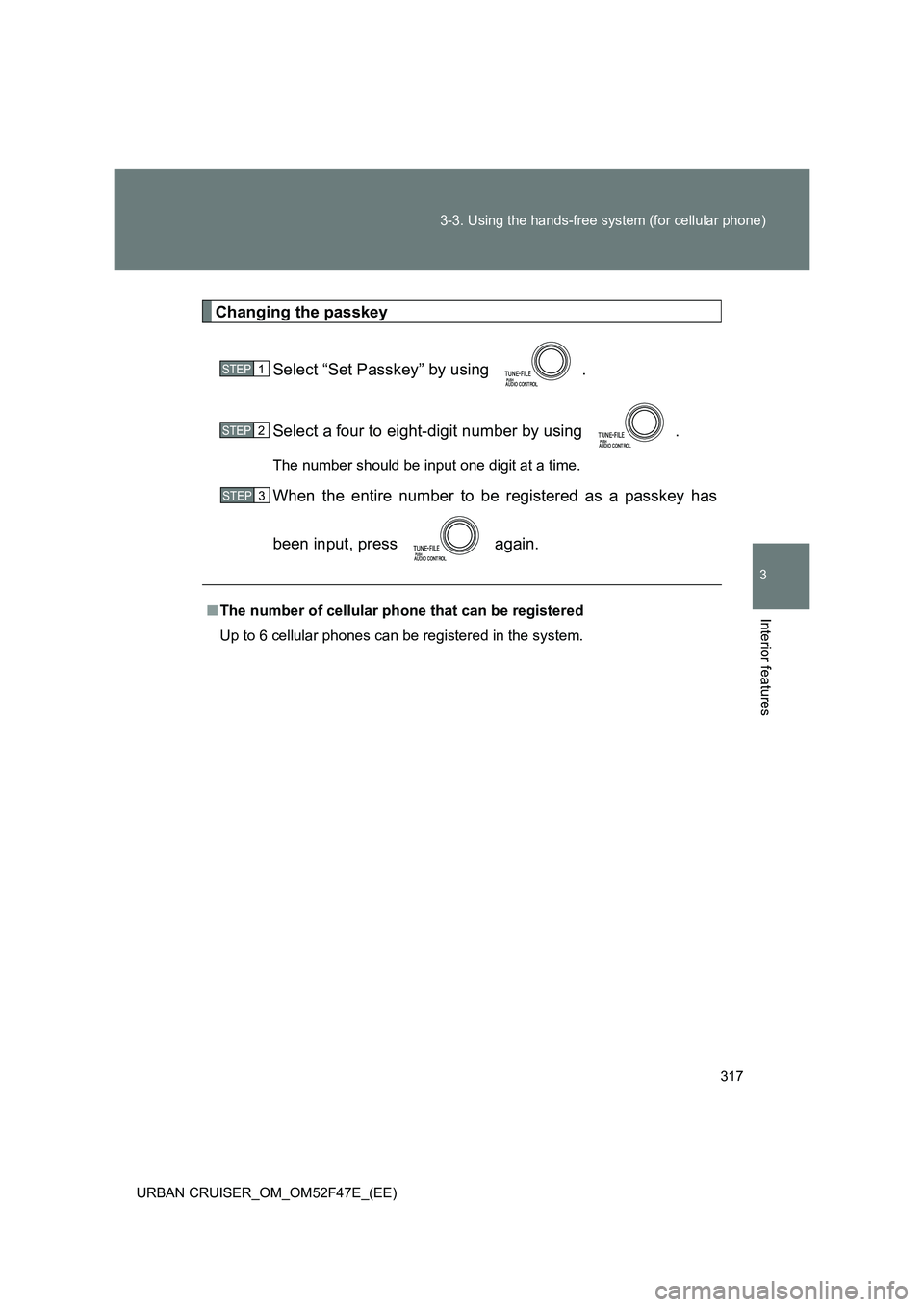

317
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Changing the passkey
Select “Set Passkey” by using .
Select a four to eight-digit number by using .
The number should be input one digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
■The number of cellular phone that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP3

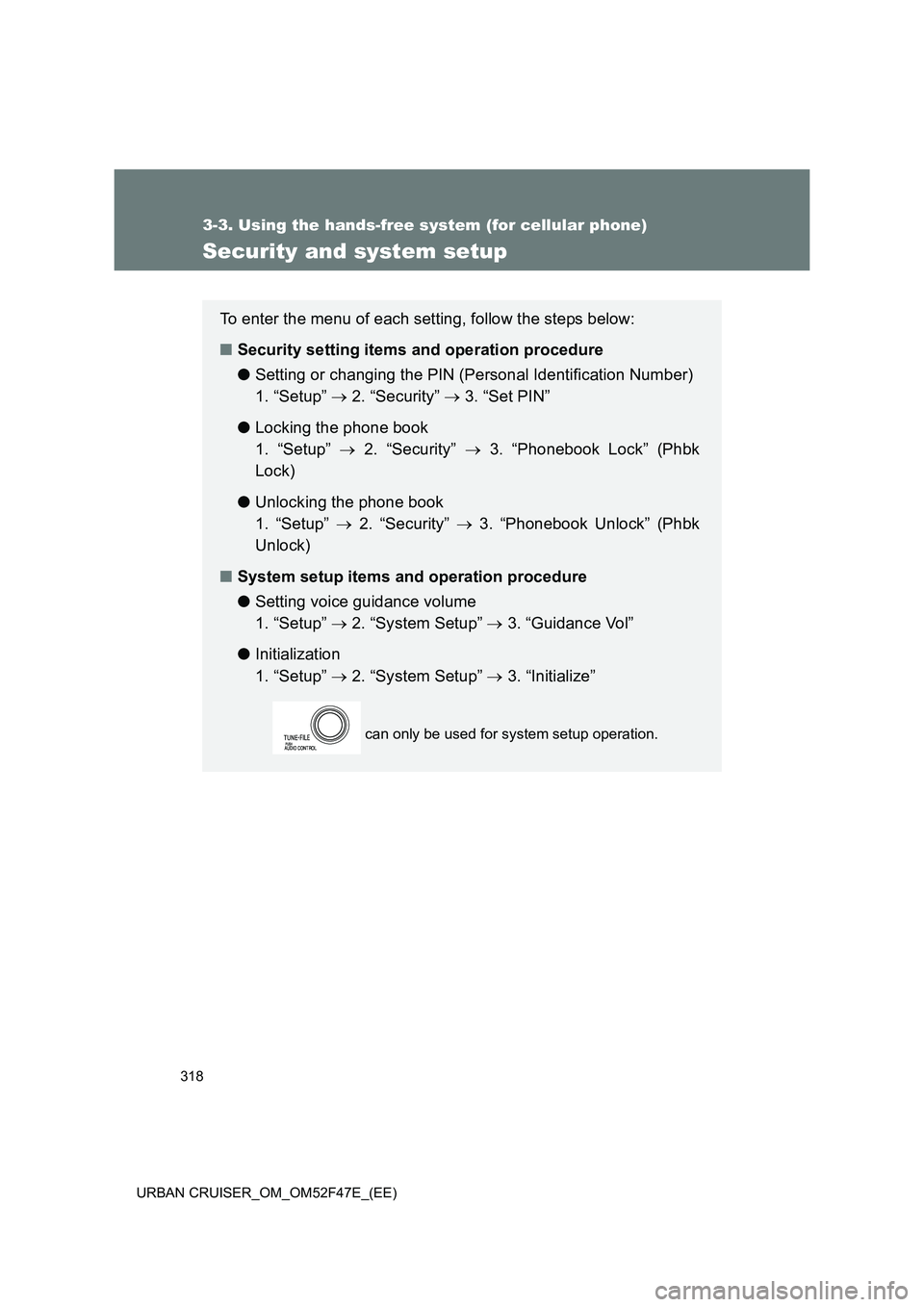

318
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
Security and system setup
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
● Setting or changing the PIN (Personal Identification Number)
1. “Setup” → 2. “Security” → 3. “Set PIN”
● Locking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Lock” (Phbk
Lock)
● Unlocking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Unlock” (Phbk
Unlock)
■ System setup items and operation procedure
● Setting voice guidance volume
1. “Setup” → 2. “System Setup” → 3. “Guidance Vol”
● Initialization
1. “Setup” → 2. “System Setup” → 3. “Initialize”
can only be used for system setup operation.

319
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

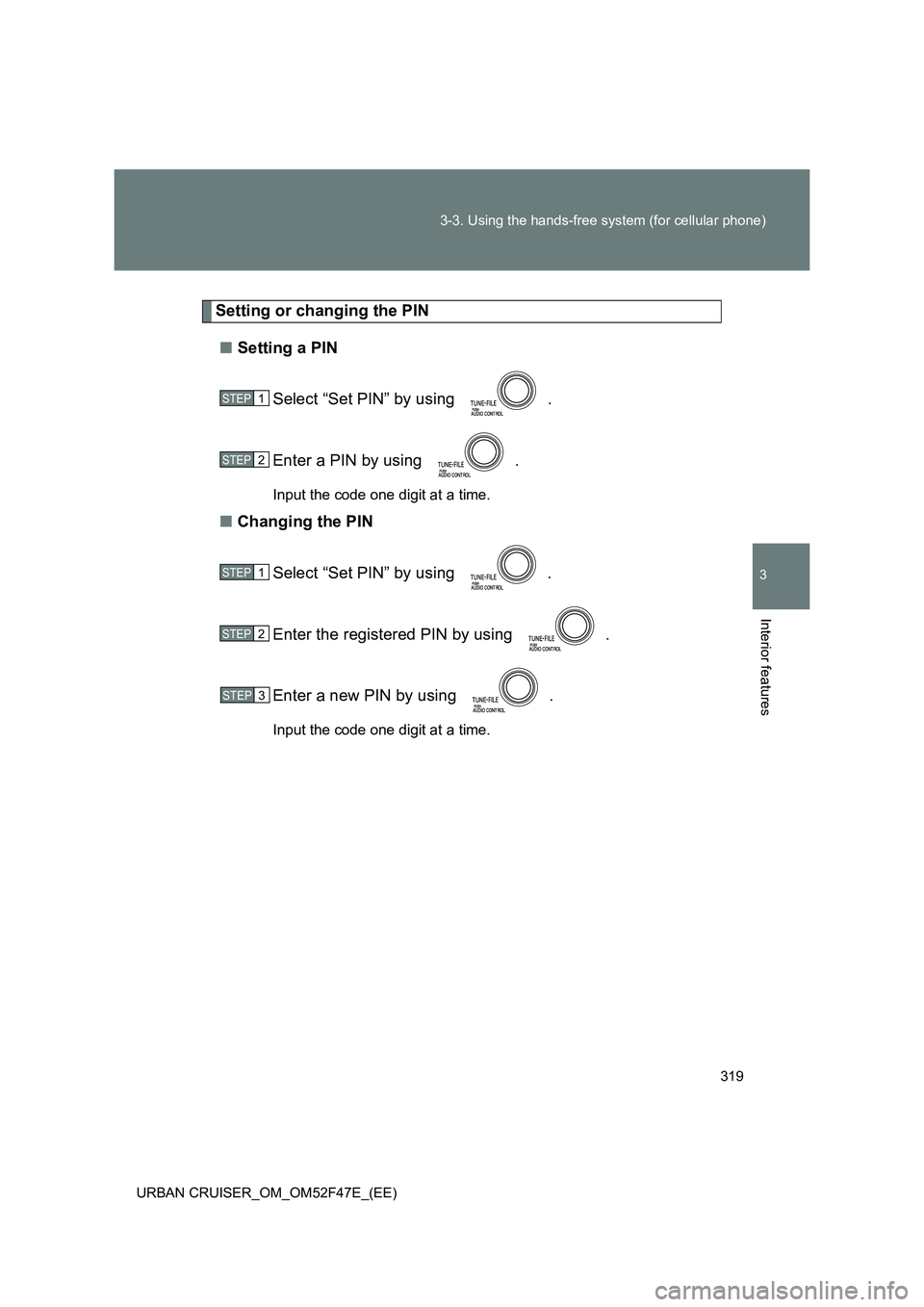

Setting or changing the PIN
■ Setting a PIN
Select “Set PIN” by using .
Enter a PIN by using .
Input the code one digit at a time.
■Changing the PIN
Select “Set PIN” by using .
Enter the registered PIN by using .
Enter a new PIN by using .
Input the code one digit at a time.
STEP1
STEP2
STEP1
STEP2
STEP3

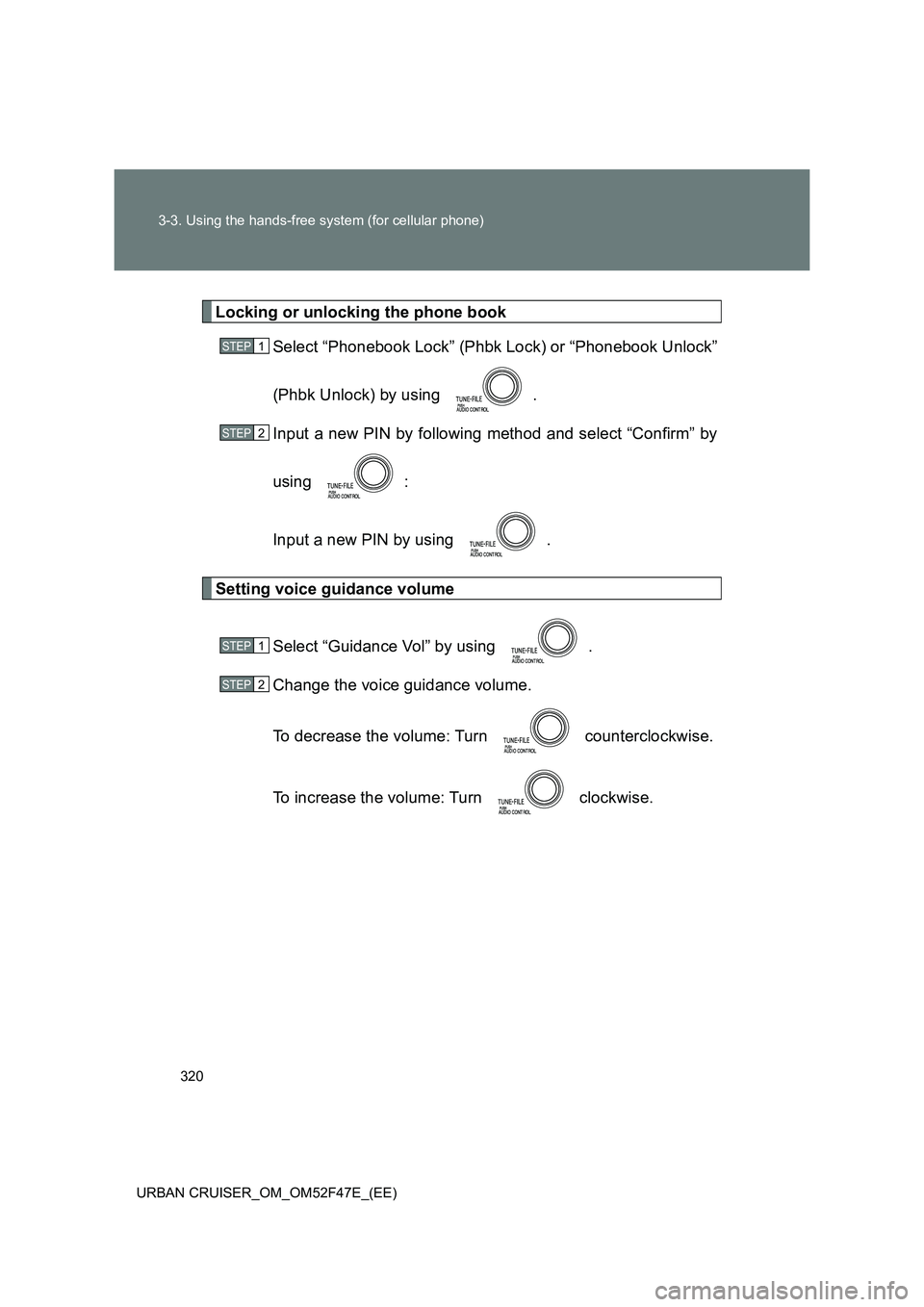

320
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
Locking or unlocking the phone book Select “Phonebook Lock” (Phbk Lock) or “Phonebook Unlock”
(Phbk Unlock) by using .
Input a new PIN by following method and select “Confirm” by
using :
Input a new PIN by using .
Setting voice guidance volume
Select “Guidance Vol” by using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
STEP1
STEP2
STEP1
STEP2
