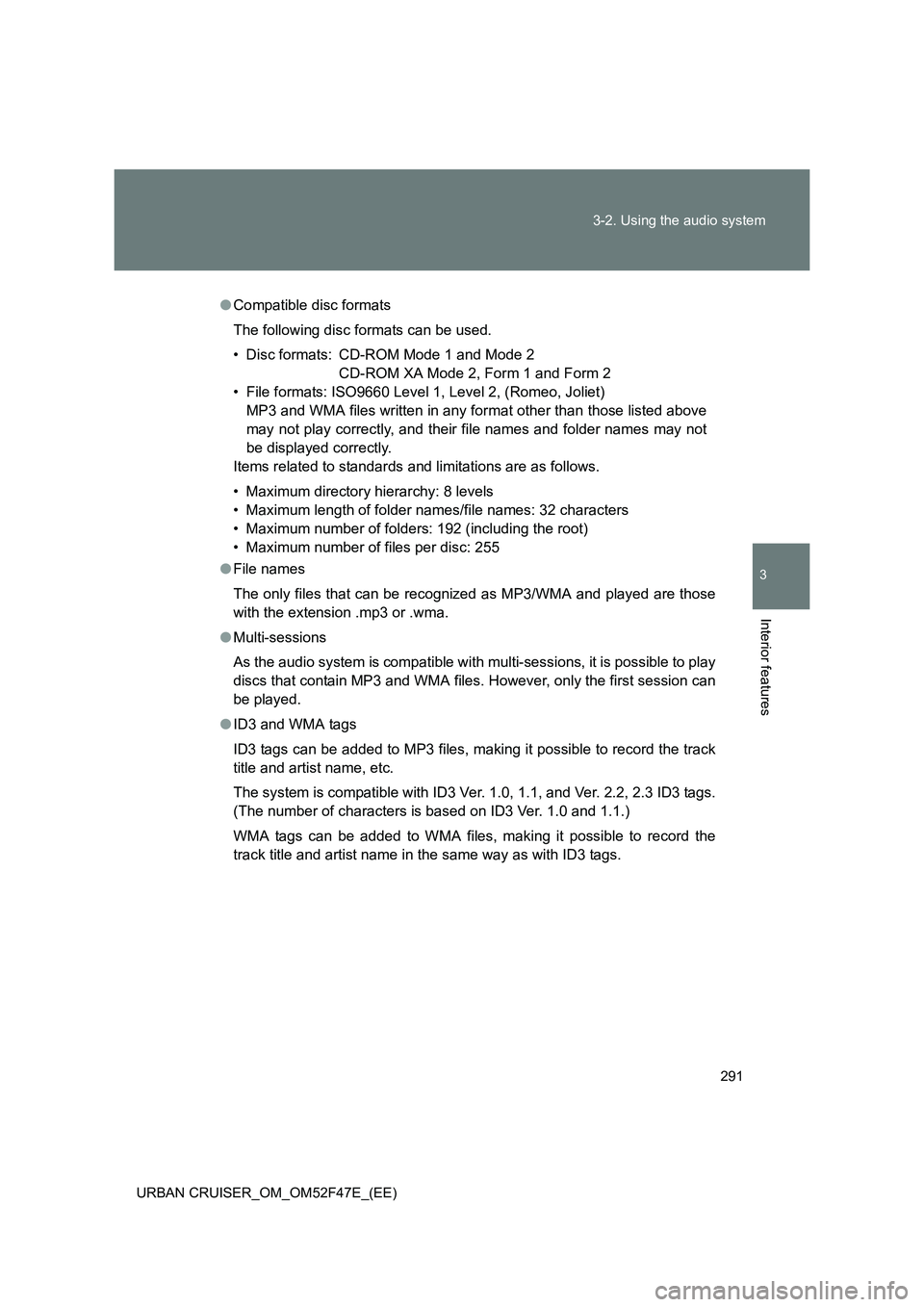

291
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
●
Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.

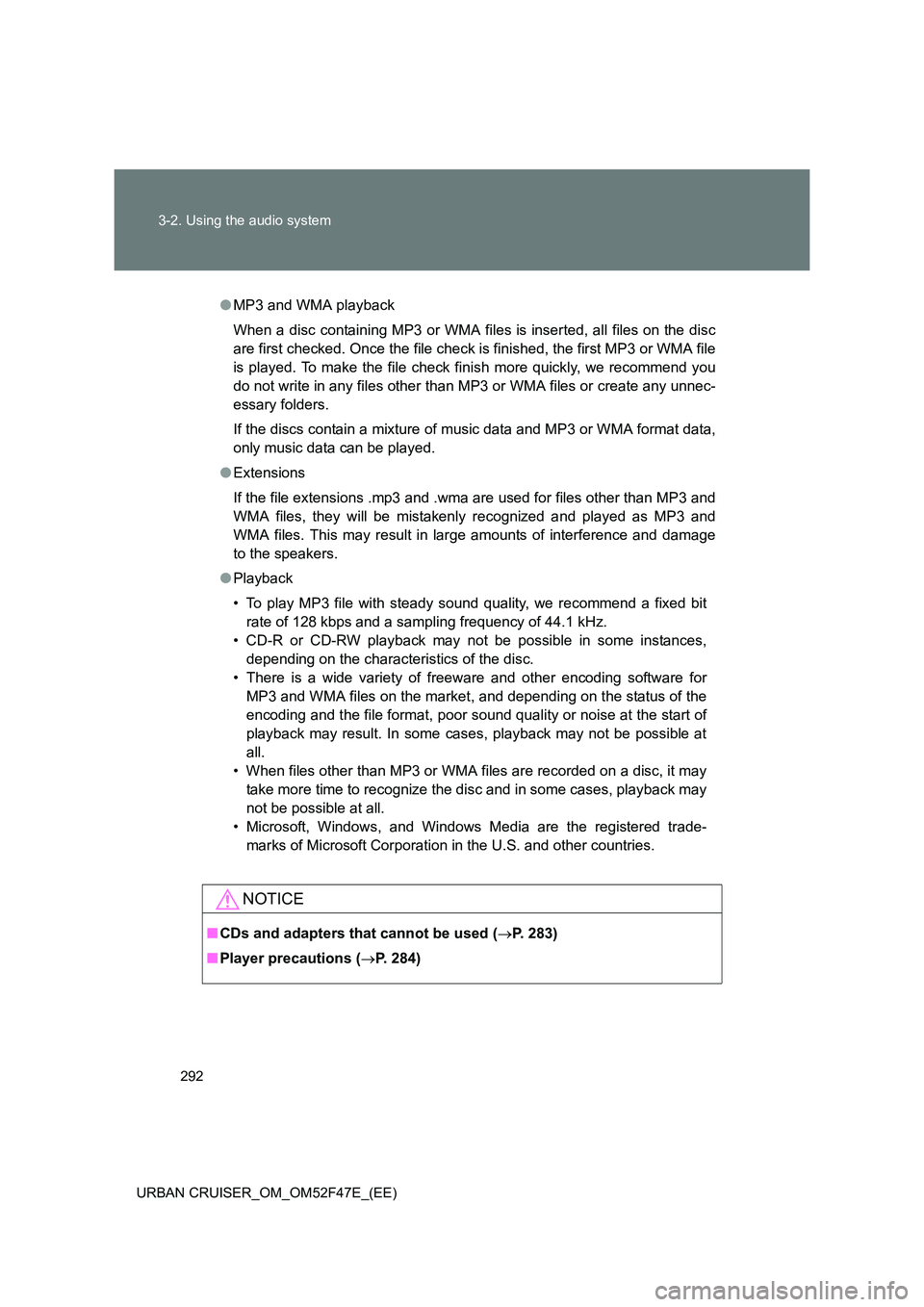

292
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec-
essary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
● Playback
• To play MP3 file with steady so und quality, we recommend a fixed bit
rate of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• When files other than MP3 or WMA files are recorded on a disc, it may take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trade- marks of Microsoft Corporation in the U.S. and other countries.
NOTICE
■ CDs and adapters that cannot be used ( →P. 283)
■ Player precautions ( →P. 284)

293
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Optimal use of the audio system
Using the AUDIO CONTROL function■ Changing sound quality modes
Pressing selects the mode to be changed in the fol-
lowing order.
“BAS” →“TRE” →“FAD” →“BAL” →“ASL”
Displays the current mode
Changes the following set-
tings
• Sound quality and vol-
ume balance
The sound quality and bal-
ance setting can be
changed to produce the
best sound.
• Automatic sound levelizer
on/off

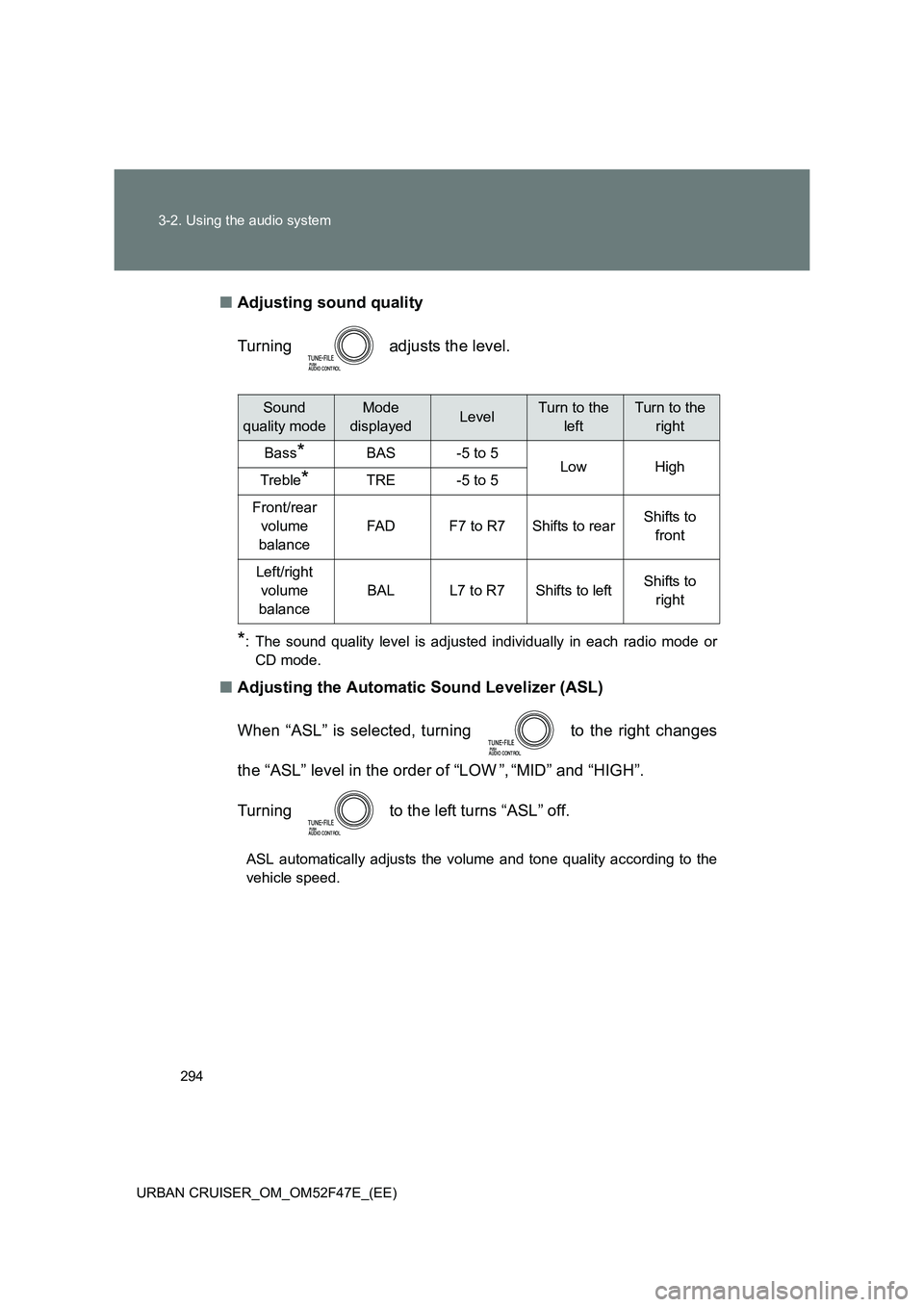

294
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
■ Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each radio mode or
CD mode.
■ Adjusting the Automatic Sound Levelizer (ASL)
When “ASL” is selected, turning to the right changes
the “ASL” level in the order of “LOW ”, “MID” and “HIGH”.
Turning to the left turns “ASL” off.
ASL automatically adjusts the volume and tone quality according to the
vehicle speed.
Sound
quality modeMode
displayedLevelTurn to the leftTurn to the right
Bass*BAS-5 to 5LowHighTreble*TRE-5 to 5
Front/rear volume
balance
FA DF7 to R7Shifts to rearShifts to front
Left/right volume
balance
BALL7 to R7Shifts to leftShifts to right

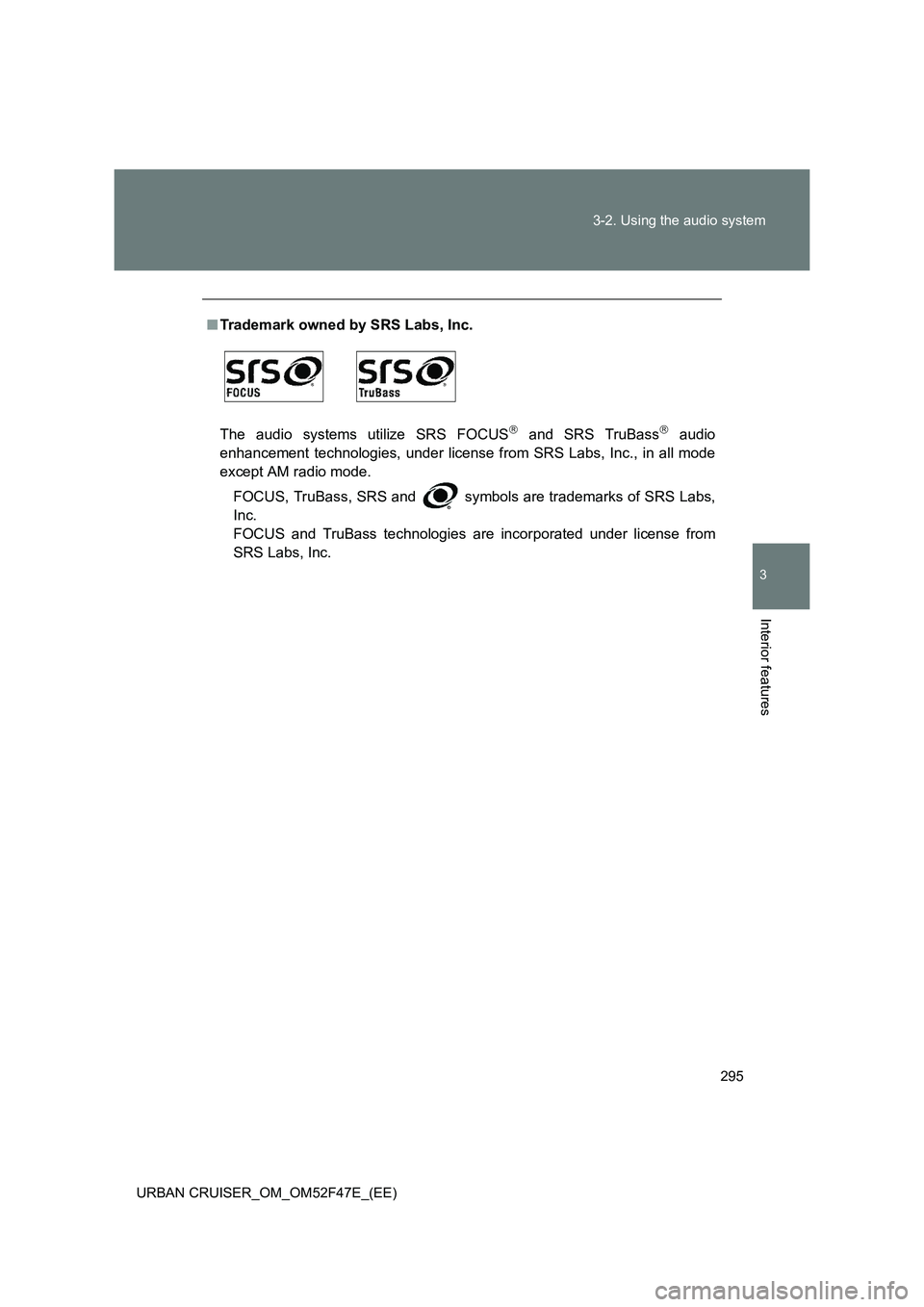

295
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■
Trademark owned by SRS Labs, Inc.
The audio systems utilize SRS FOCUS
 and SRS TruBass audio
enhancement technologies, under license from SRS Labs, Inc., in all mode
except AM radio mode.
FOCUS, TruBass, SRS and
symbols are trademarks of SRS Labs,
Inc.
FOCUS and TruBass technologies ar e incorporated under license from
SRS Labs, Inc.R

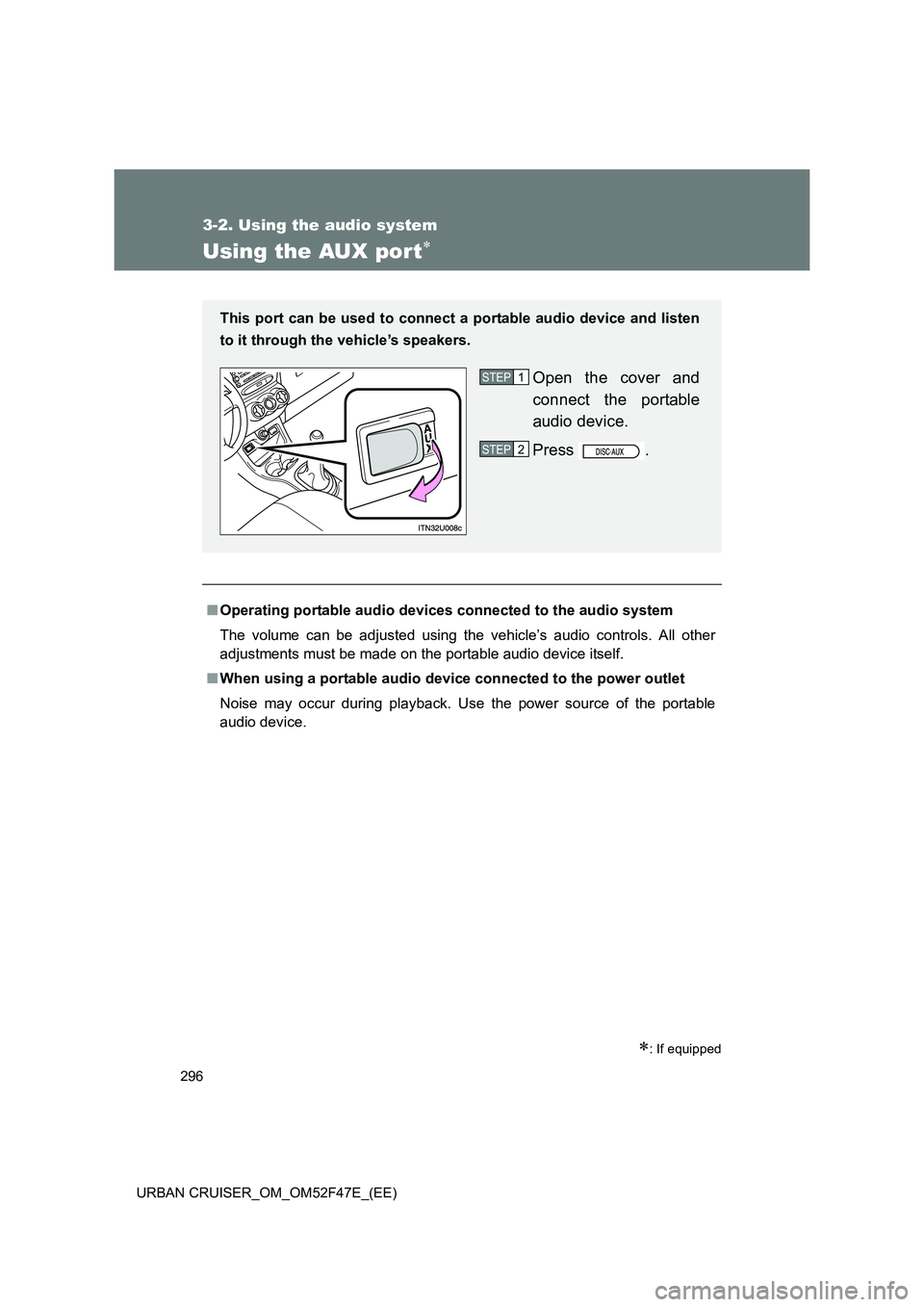

296
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
Using the AUX port∗
∗: If equipped
■Operating portable audio devi ces connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device. This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the cover and
connect the portable
audio device.
Press .STEP1
STEP2

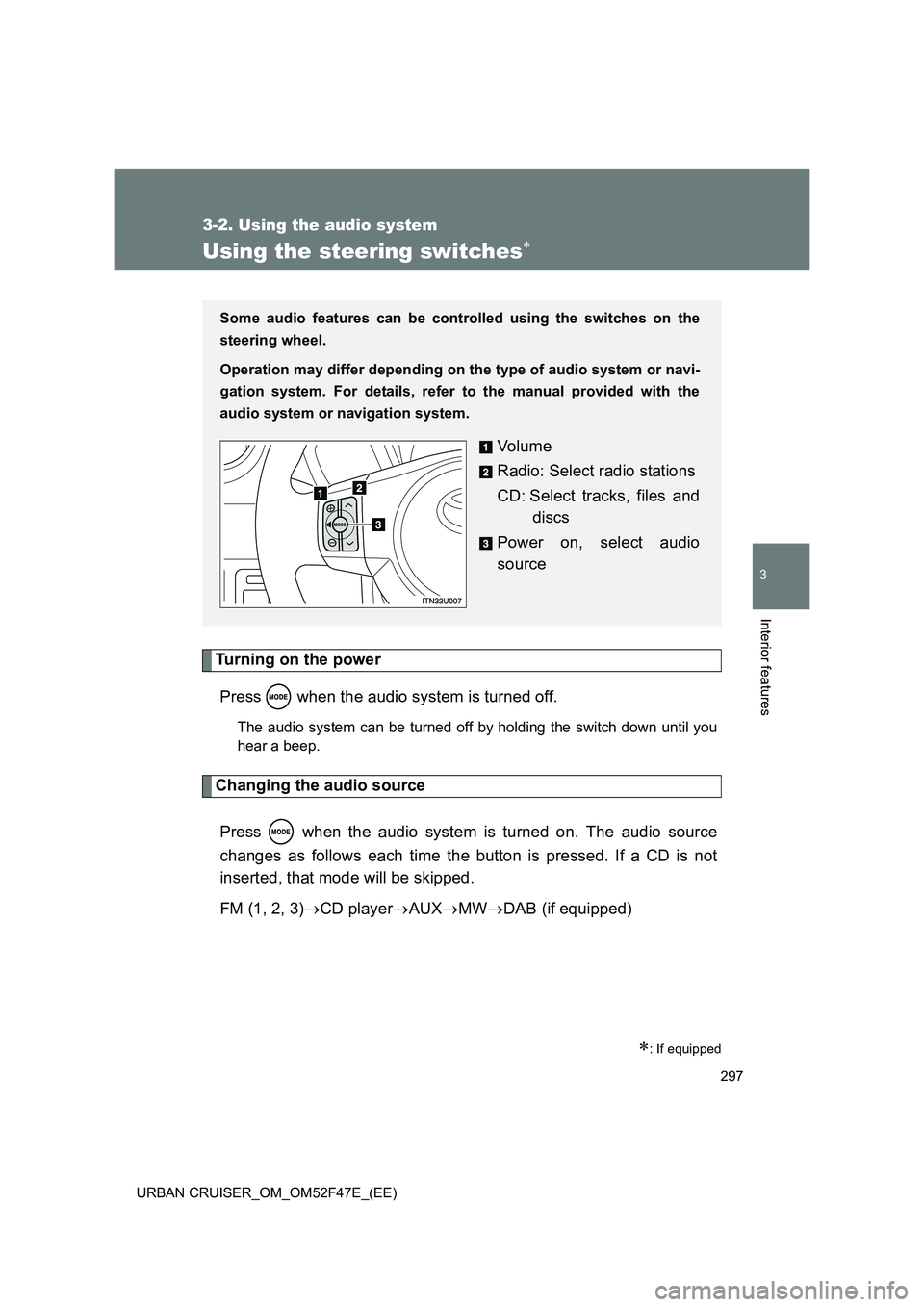

297
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Using the steering switches∗
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If a CD is not
inserted, that mode will be skipped.
FM (1, 2, 3) →CD player →AUX →MW →DAB (if equipped)
∗: If equipped
Some audio features can be cont rolled using the switches on the
steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
Vo lu m e
Radio: Select radio stations
CD: Select tracks, files and discs
Power on, select audio
source

298
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
Adjusting the volume Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down the button to continue increasing or decreasing the volume.
Selecting a radio stationIn AF-ON mode the radio changes frequency to the strongest signal
of the selected station. Press to select the radio mode.
Press “∧” or “ ∨” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file
Press to select the CD mode.
Press “∧” or “ ∨” on to select the desired track/file.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2

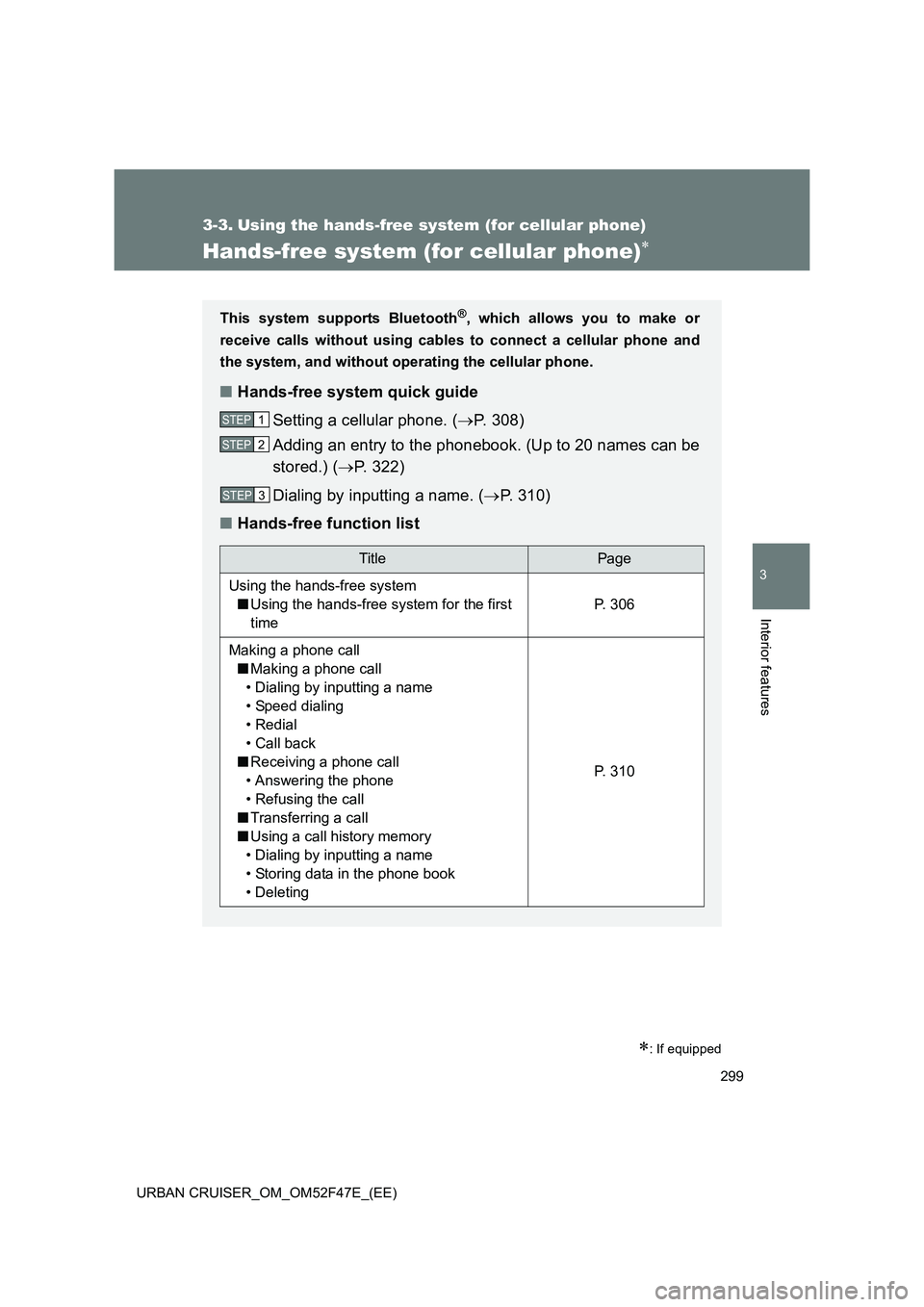

299
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)∗
∗: If equipped
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
■ Hands-free system quick guide
Setting a cellular phone. ( →P. 308)
Adding an entry to the phonebook. (Up to 20 names can be
stored.) ( →P. 322)
Dialing by inputting a name. ( →P. 310)
■ Hands-free function list
TitlePage
Using the hands-free system
■ Using the hands-free system for the first
time
P. 306
Making a phone call
■ Making a phone call
• Dialing by inputting a name
• Speed dialing
• Redial
• Call back
■ Receiving a phone call
• Answering the phone
• Refusing the call
■ Transferring a call
■ Using a call history memory
• Dialing by inputting a name
• Storing data in the phone book
• Deleting
P. 310
STEP1
STEP2
STEP3

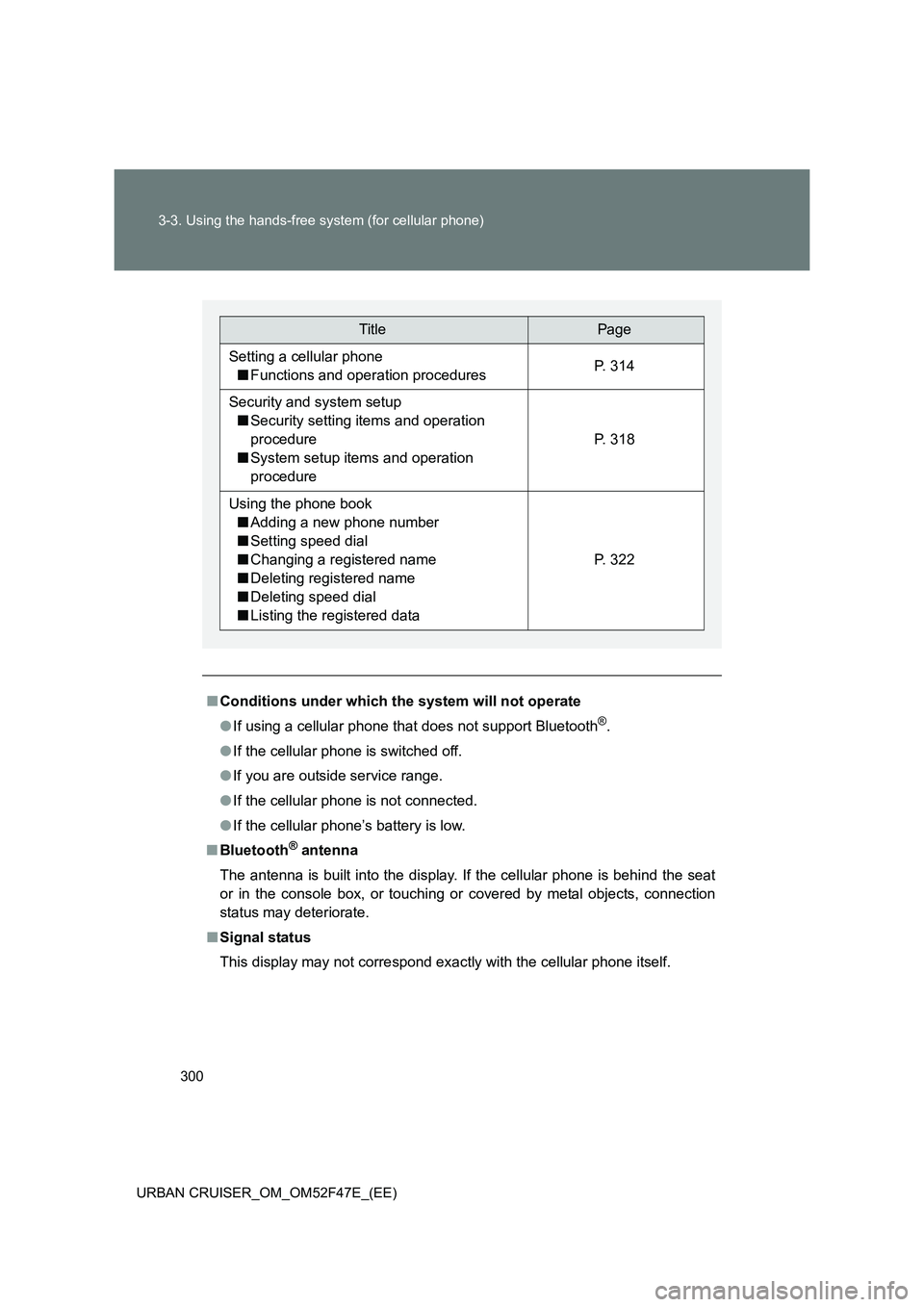

300
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
■ Conditions under which the system will not operate
●If using a cellular phone that does not support Bluetooth
®.
● If the cellular phone is switched off.
● If you are outside service range.
● If the cellular phone is not connected.
● If the cellular phone’s battery is low.
■ Bluetooth
® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
■ Signal status
This display may not correspond exactly with the cellular phone itself.
TitlePage
Setting a cellular phone
■ Functions and operation proceduresP. 314
Security and system setup
■ Security setting items and operation
procedure
■ System setup items and operation
procedure
P. 318
Using the phone book
■ Adding a new phone number
■ Setting speed dial
■ Changing a registered name
■ Deleting registered name
■ Deleting speed dial
■ Listing the registered data
P. 322
