TOYOTA URBAN CRUISER 2014 Owners Manual

3Interior features
251
URBAN CRUISER_OM_OM52F47E_(EE)

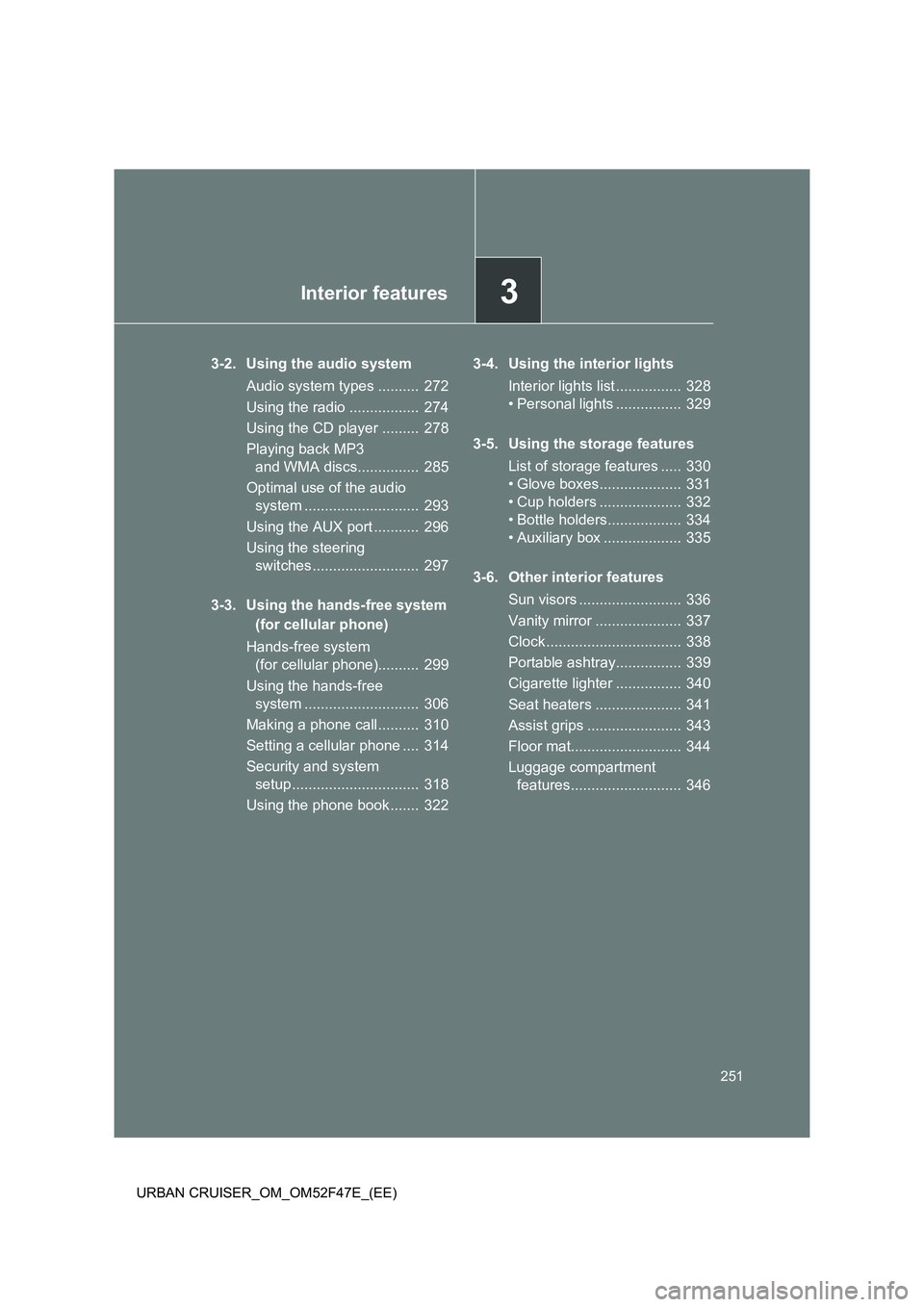

3-2. Using the audio system Audio system types .......... 272
Using the radio ................. 274
Using the CD player ......... 278
Playing back MP3 and WMA discs............... 285
Optimal use of the audio system ............................ 293
Using the AUX port ........... 296
Using the steering switches .......................... 297
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone).......... 299
Using the hands-free system ............................ 306
Making a phone call.......... 310
Setting a cellular phone .... 314
Security and system setup ............................... 318
Using the phone book....... 322 3-4. Using the interior lights
Interior lights list ................ 328
• Personal lights ................ 329
3-5. Using the storage features List of storage features ..... 330
• Glove boxes.................... 331
• Cup holders .................... 332
• Bottle holders.................. 334
• Auxiliary box ................... 335
3-6. Other interior features Sun visors ......................... 336
Vanity mirror ..................... 337
Clock ................................. 338
Portable ashtray................ 339
Cigarette lighter ................ 340
Seat heaters ..................... 341
Assist grips ....................... 343
Floor mat........................... 344
Luggage compartment features........................... 346

252
URBAN CRUISER_OM_OM52F47E_(EE)
3-1. Using the air conditioning system and defogger

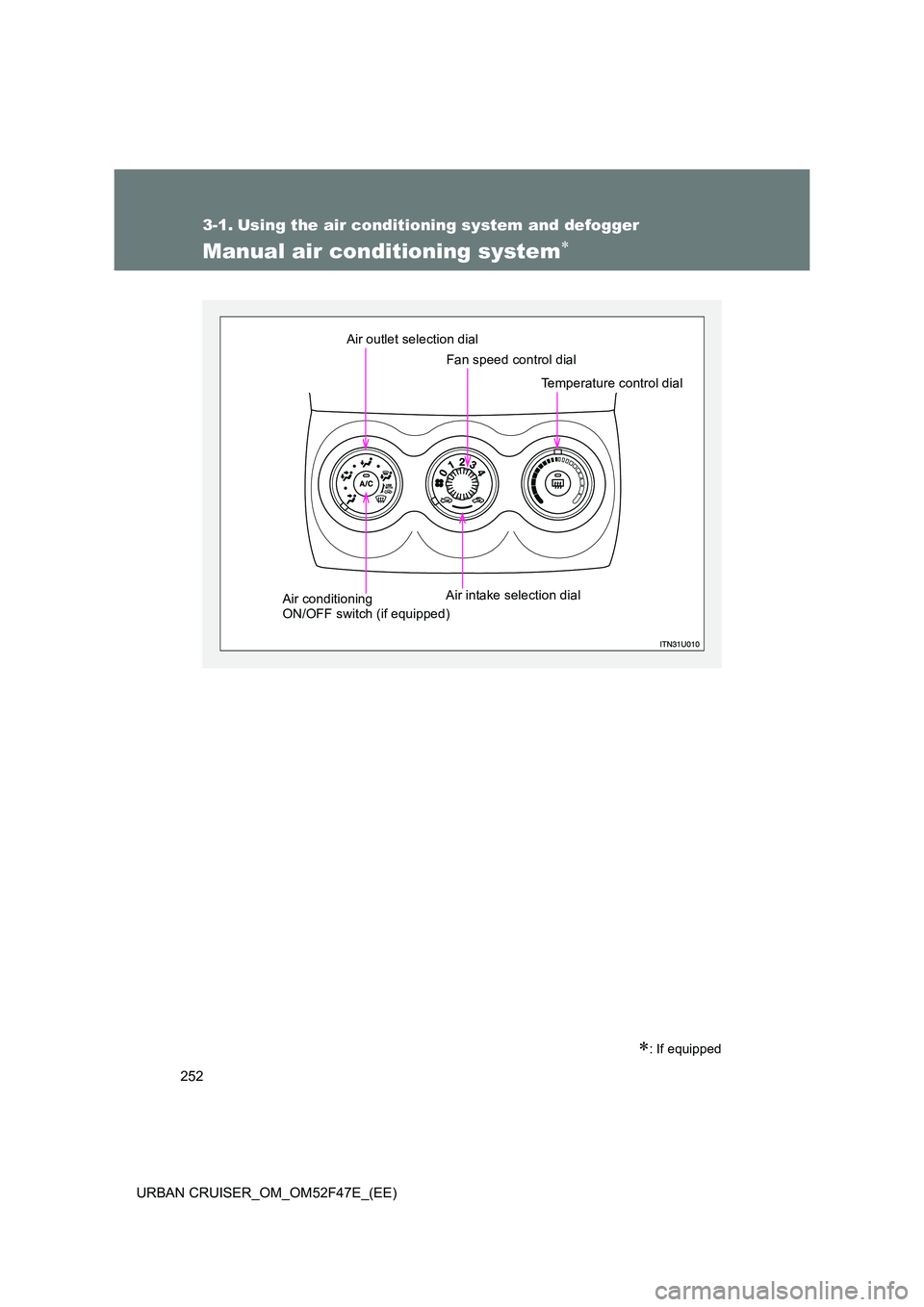

Manual air conditioning system∗
∗: If equipped
Air outlet selection dial Fan speed control dial
Temperature control dial
Air conditioning
ON/OFF switch (if equipped) Air intake selection dial

253
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

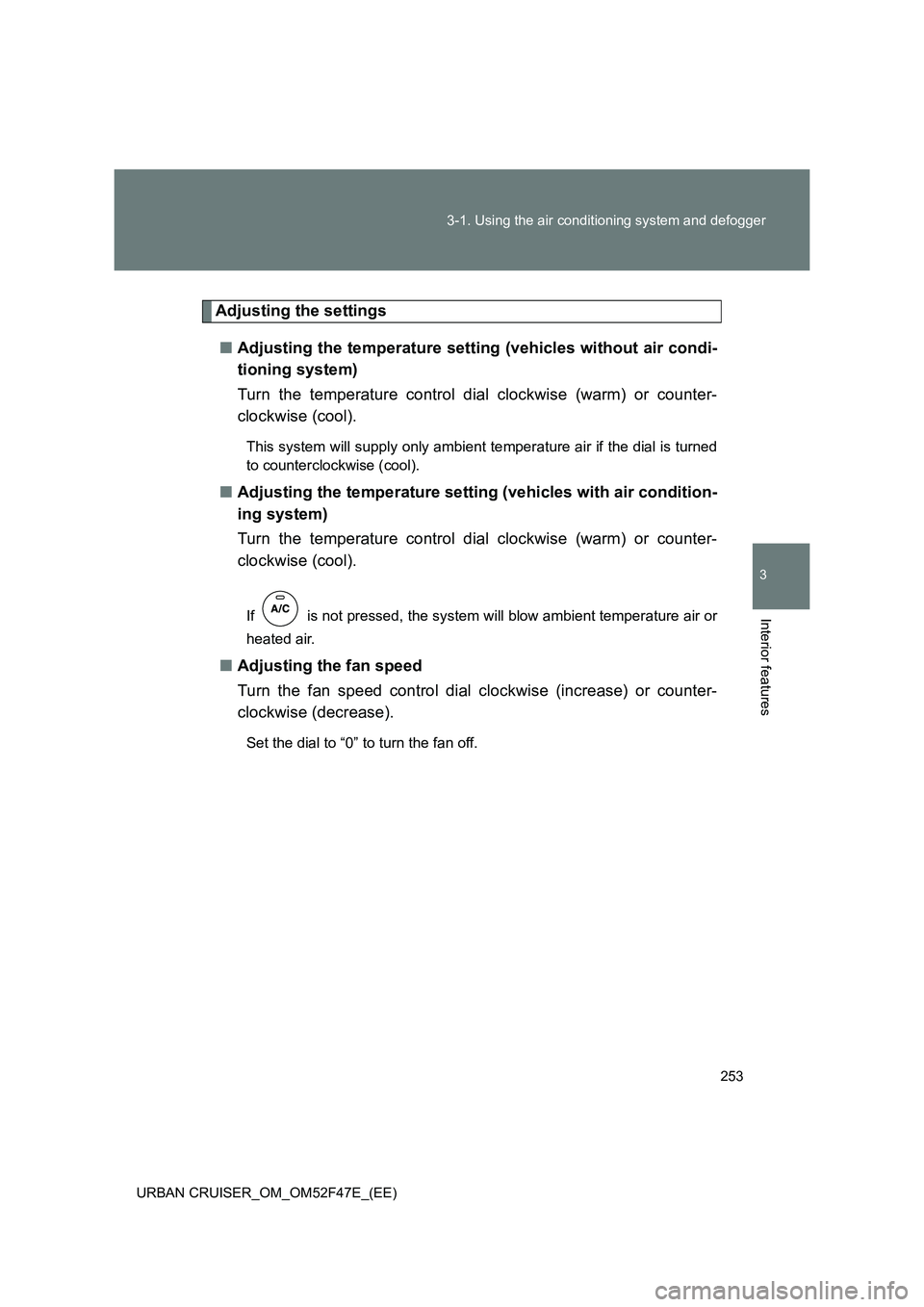

Adjusting the settings
■ Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
This system will supply only ambient te mperature air if the dial is turned
to counterclockwise (cool).
■ Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Set the dial to “0” to turn the fan off.

254
3-1. Using the air conditioning system and defogger
URBAN CRUISER_OM_OM52F47E_(EE)

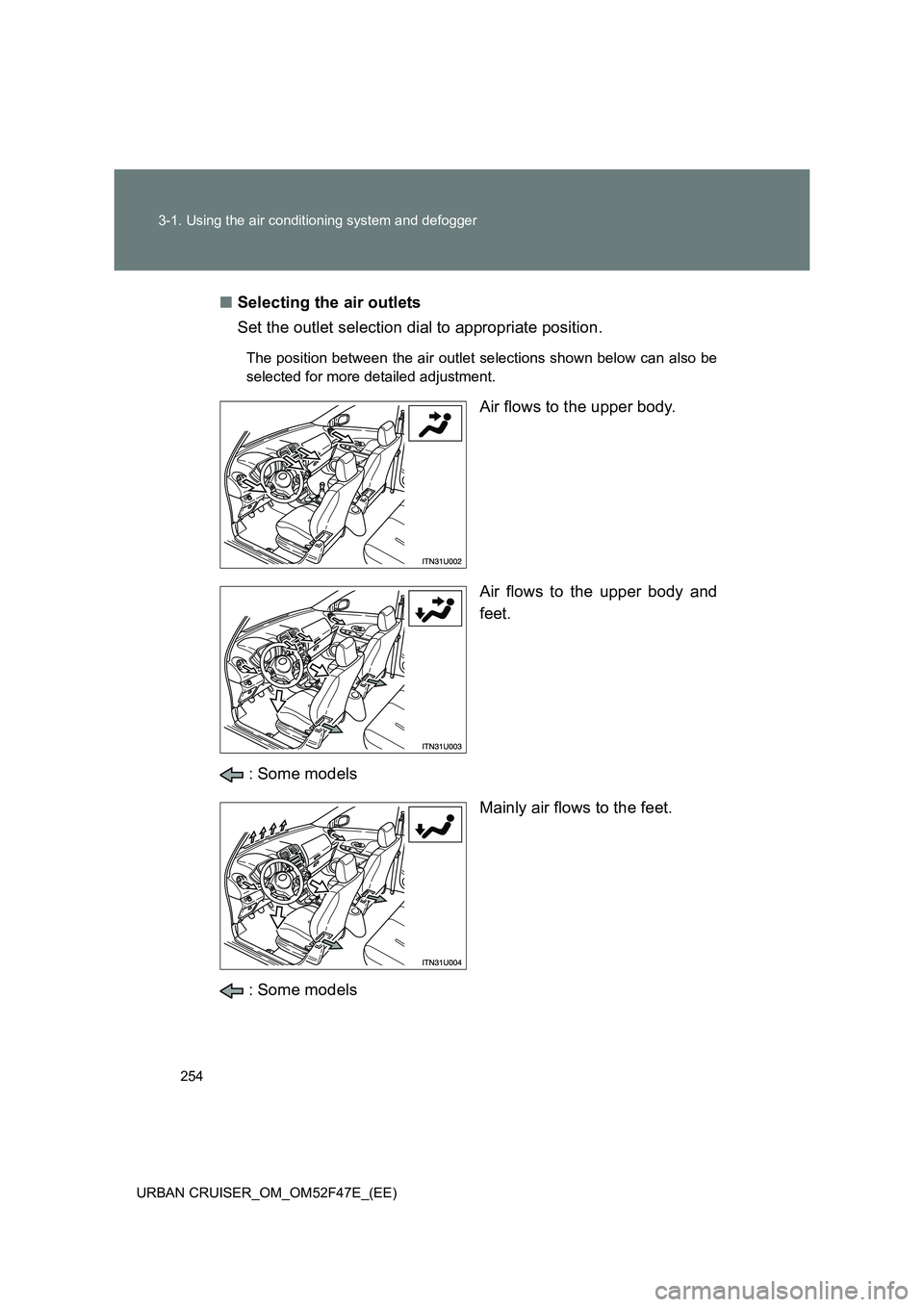

■ Selecting the air outlets
Set the outlet selection dial to appropriate position.
The position between the air outlet se lections shown below can also be
selected for more detailed adjustment.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models Mainly air flows to the feet.
: Some models

255
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

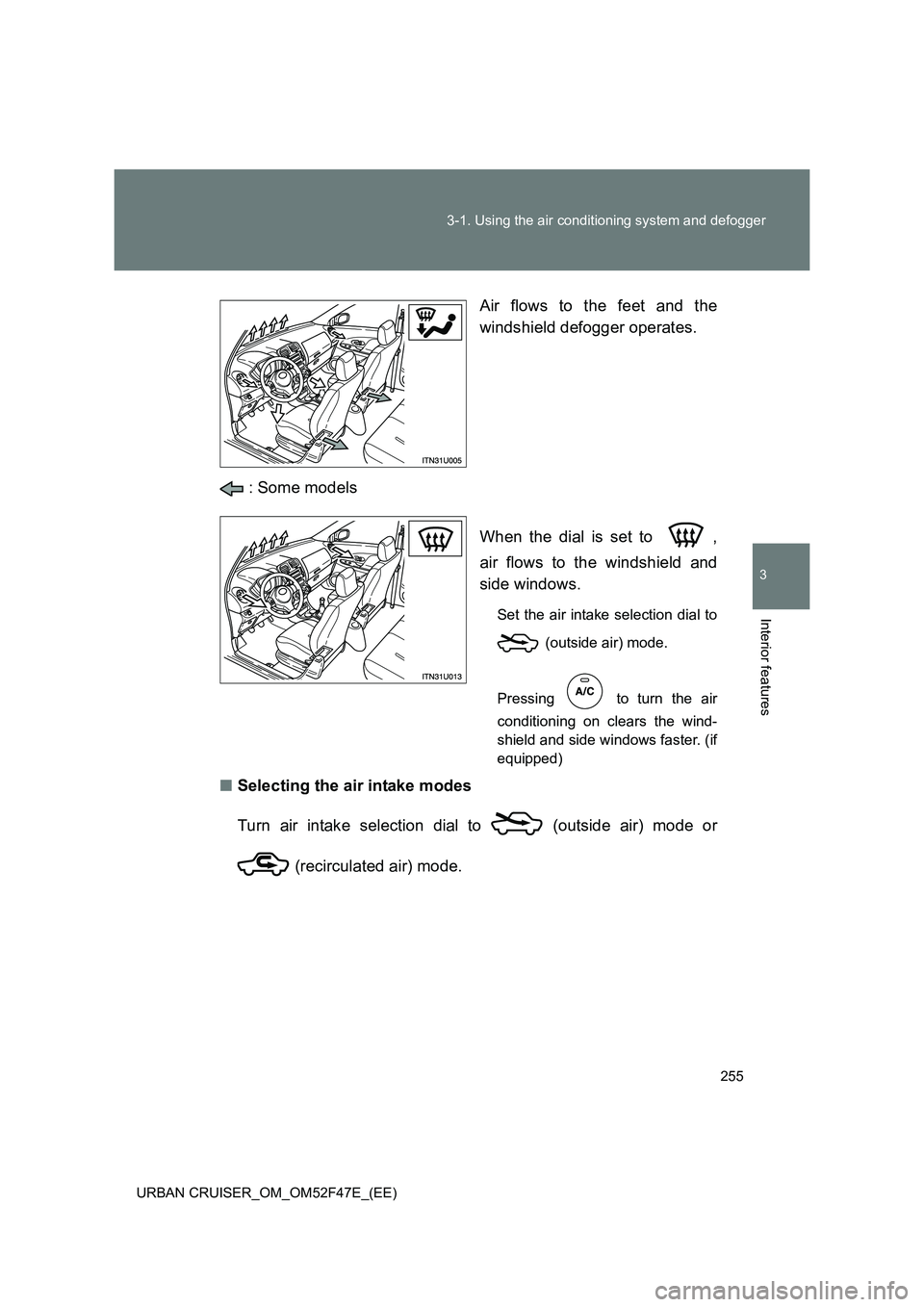

Air flows to the feet and the
windshield defogger operates.
: Some models When the dial is set to ,
air flows to the windshield and
side windows.
Set the air intake selection dial to (outside air) mode.
Pressing to turn the air
conditioning on clears the wind-
shield and side windows faster. (if
equipped)
■ Selecting the air intake modes
Turn air intake selection dial to (outside air) mode or
(recirculated air) mode.

256
3-1. Using the air conditioning system and defogger
URBAN CRUISER_OM_OM52F47E_(EE)

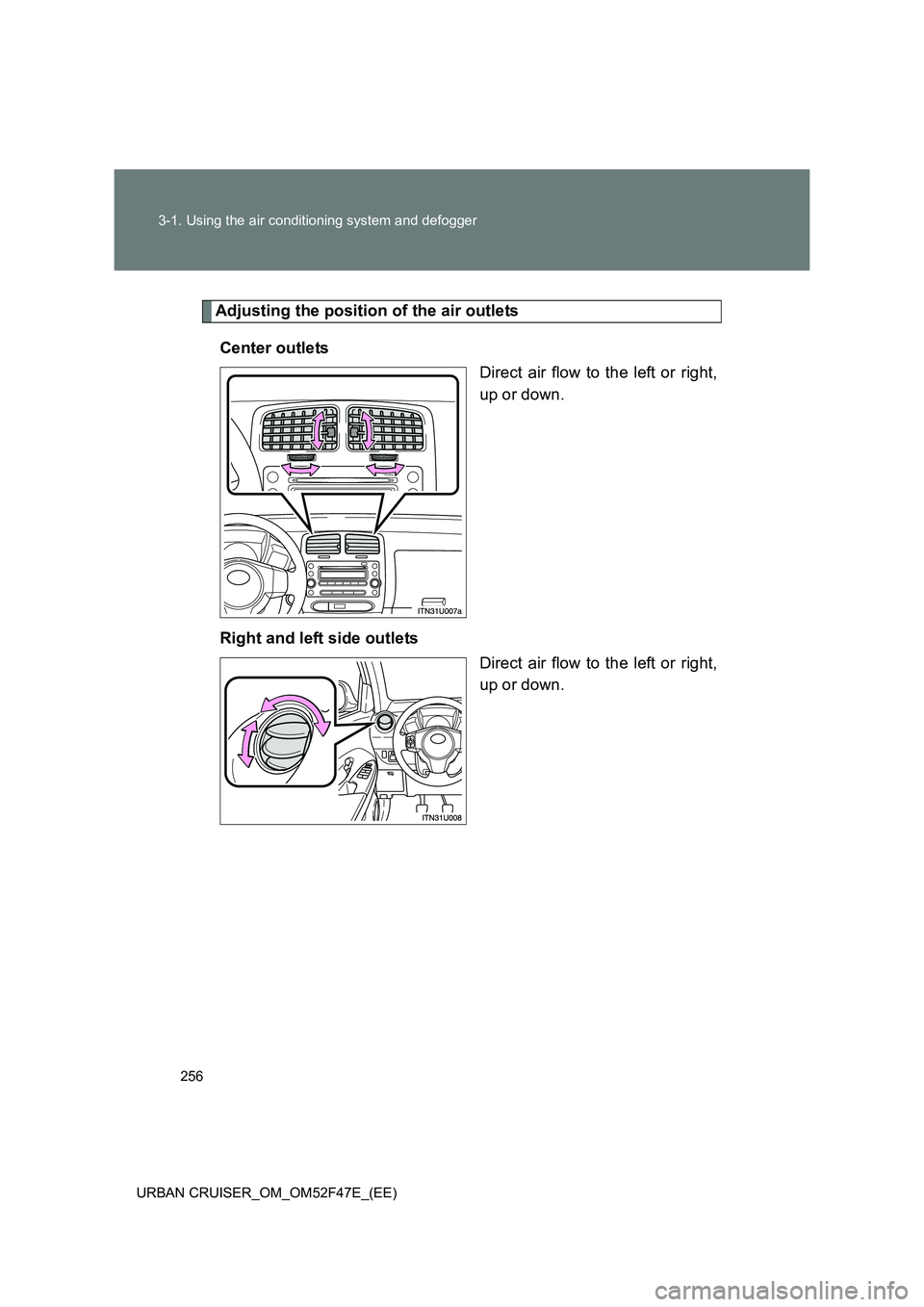

Adjusting the position of the air outlets Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.

257
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

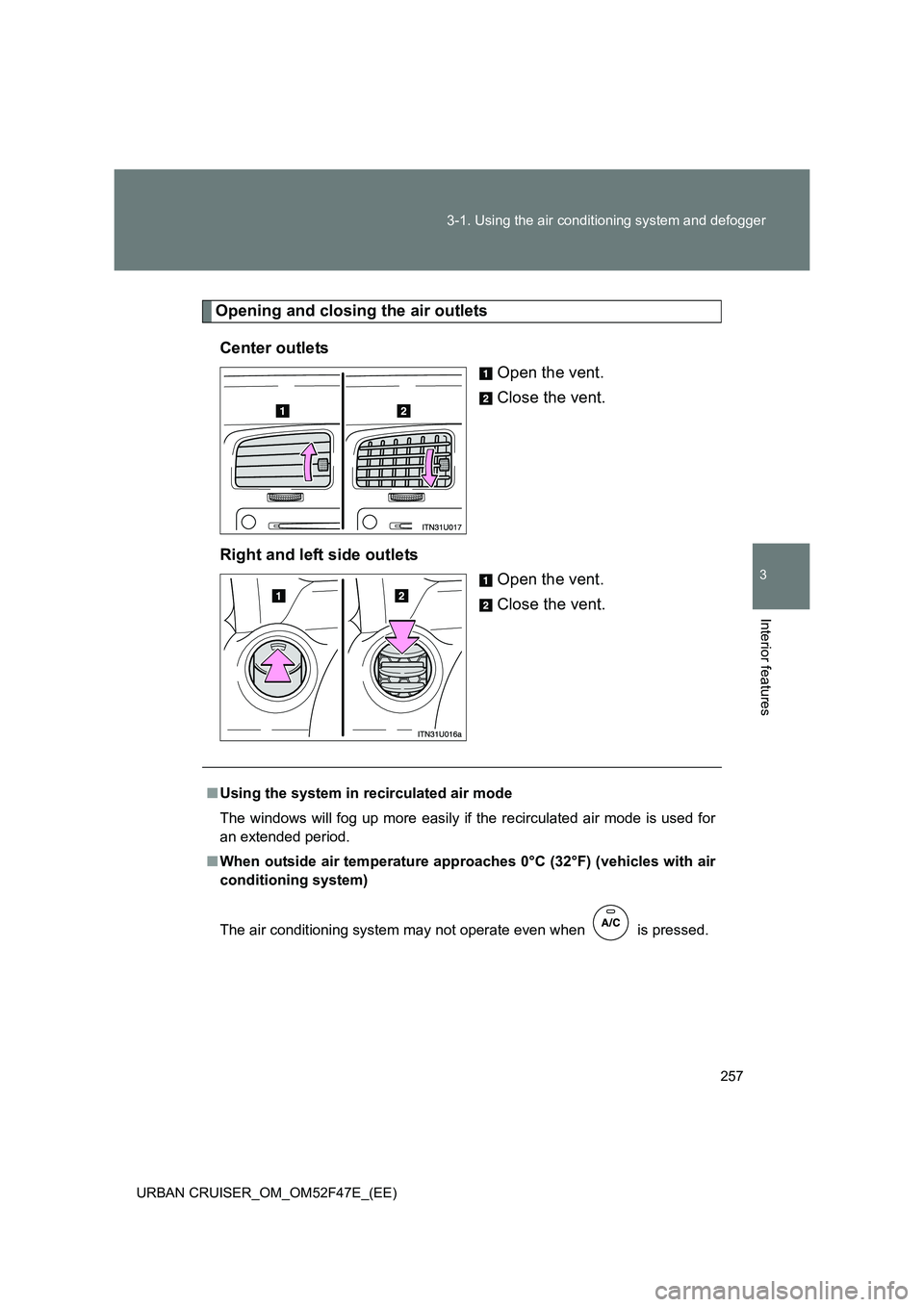

Opening and closing the air outlets
Center outlets Open the vent.
Close the vent.
Right and left side outlets Open the vent.
Close the vent.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ When outside air temperature appro aches 0°C (32°F) (vehicles with air
conditioning system)
The air conditioning system may not operate even when is pressed.

258
3-1. Using the air conditioning system and defogger
URBAN CRUISER_OM_OM52F47E_(EE)

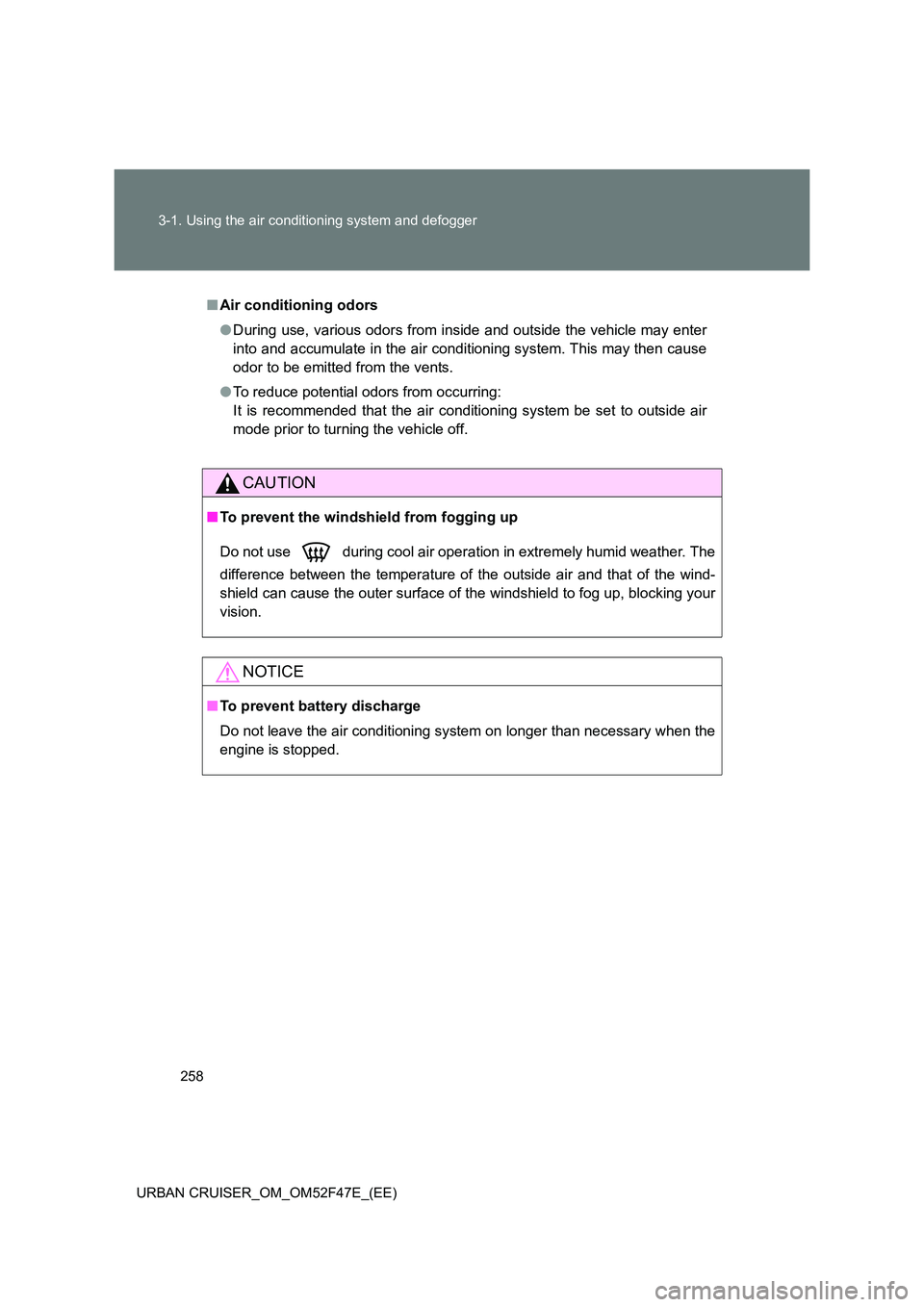

■ Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

259
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

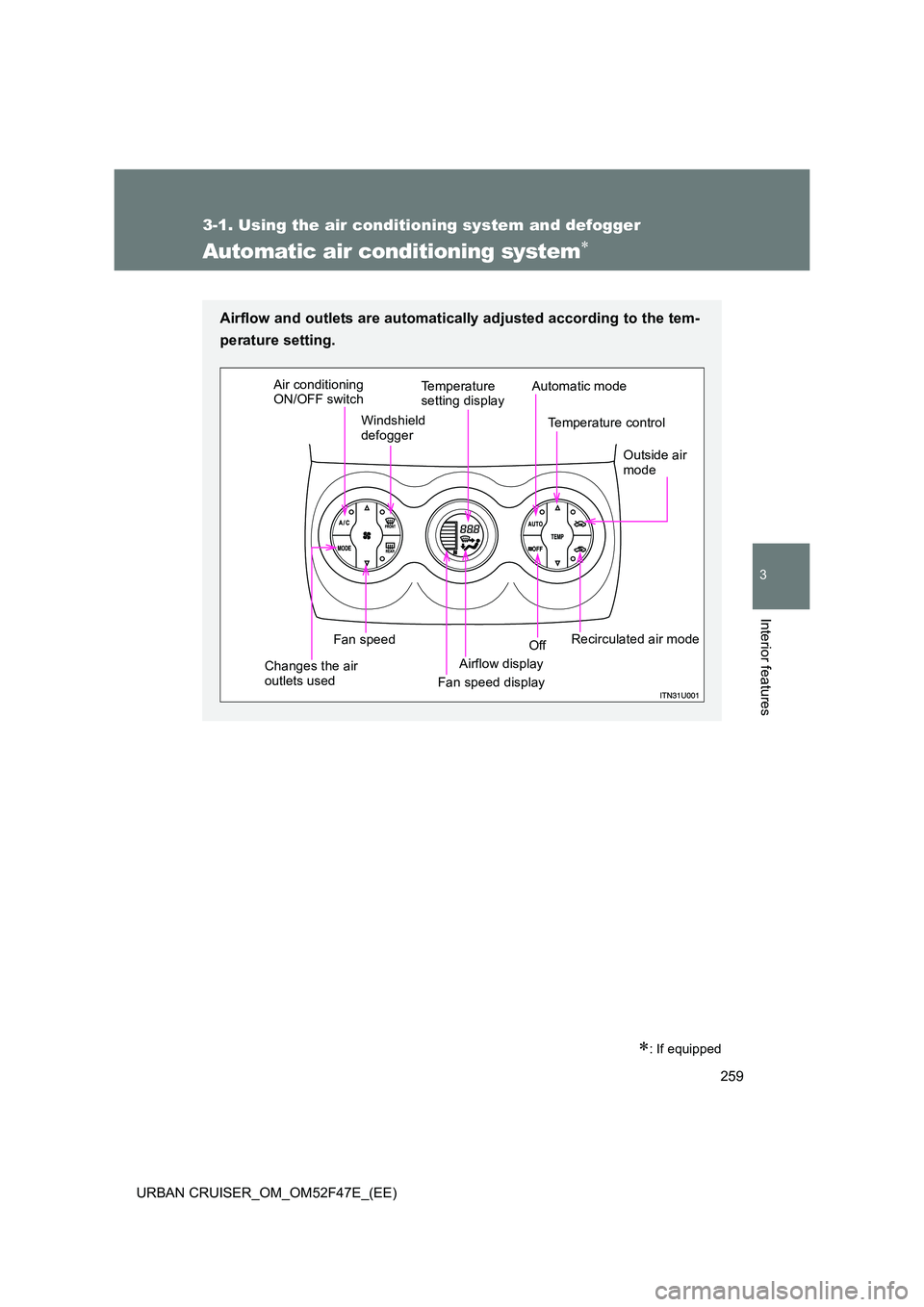

Automatic air conditioning system∗
∗: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Temperature
setting display
Temperature control
Airflow display
Windshield
defogger
Outside air
mode
Fan speed display Off
Fan speed
Air conditioning
ON/OFF switch
Automatic mode
Recirculated air mode
Changes the air
outlets used

260
3-1. Using the air conditioning system and defogger
URBAN CRUISER_OM_OM52F47E_(EE)

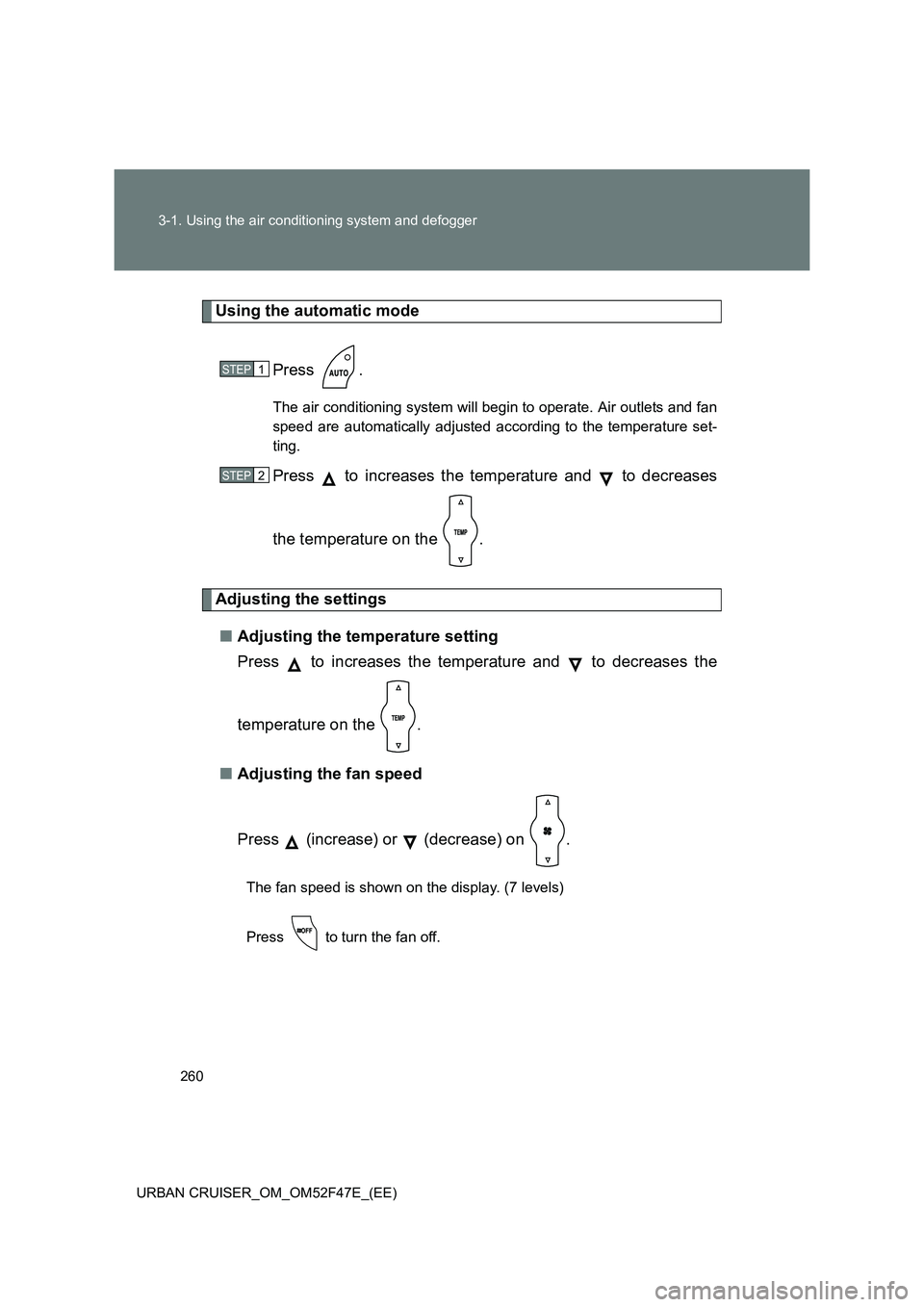

Using the automatic mode Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press to increases the temperature and to decreases
the temperature on the .
Adjusting the settings■ Adjusting the temperature setting
Press to increases the temperature and to decreases the
temperature on the .
■ Adjusting the fan speed
Press (increase) or (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
STEP1
STEP2
