TOYOTA URBAN CRUISER 2014 Owners Manual

331
3-5. Using the storage features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

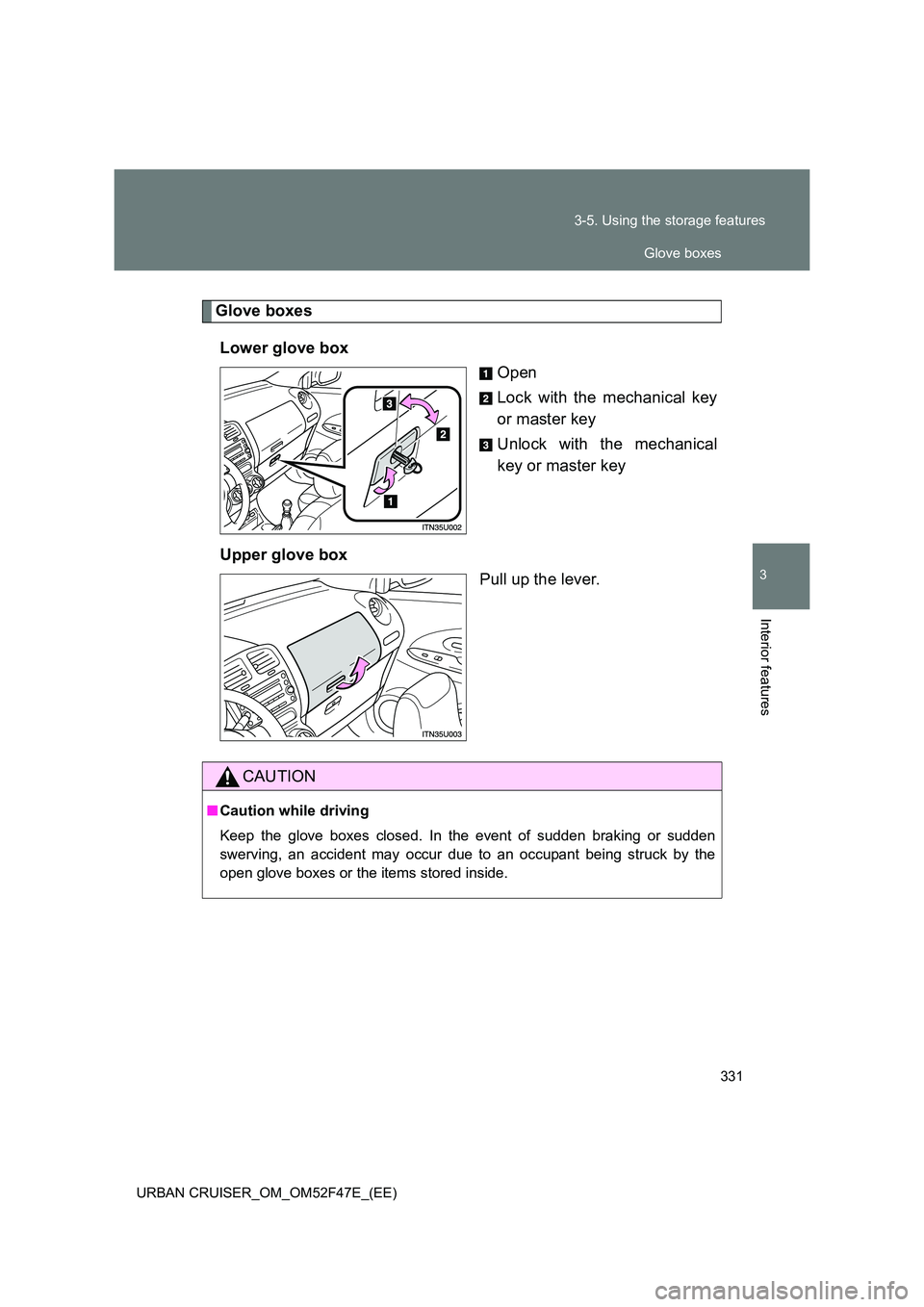

Glove boxes
Lower glove box Open
Lock with the mechanical key
or master key
Unlock with the mechanical
key or master key
Upper glove box Pull up the lever.
CAUTION
■Caution while driving
Keep the glove boxes closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open glove boxes or the items stored inside.
Glove boxes

332
3-5. Using the storage features
URBAN CRUISER_OM_OM52F47E_(EE)

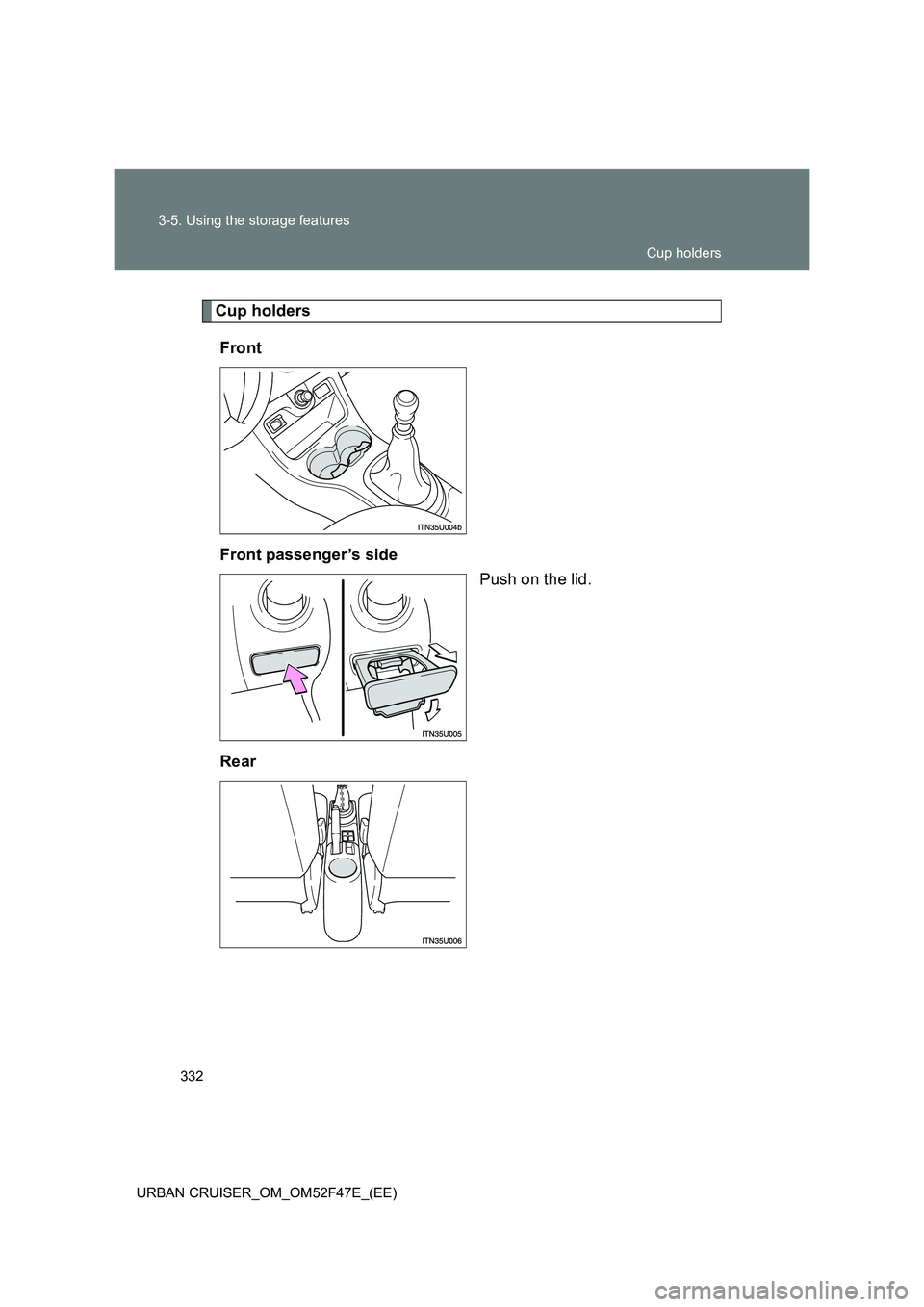

Cup holders Front
Front passenger’s side Push on the lid.
Rear
Cup holders

333
3-5. Using the storage features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

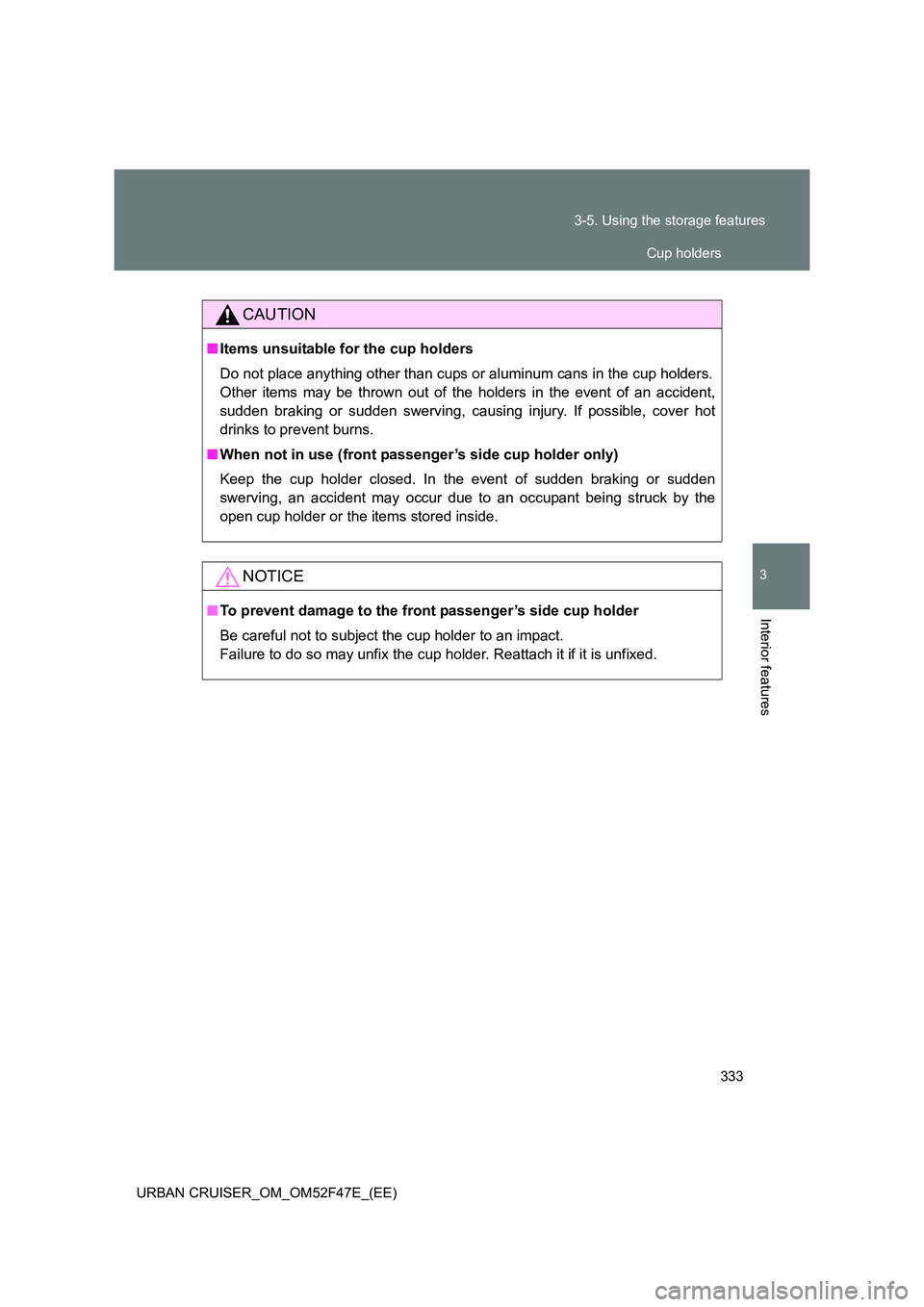

CAUTION
■
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident,
sudden braking or sudden swerving, causing injury. If possible, cover hot
drinks to prevent burns.
■ When not in use (front passenger’s side cup holder only)
Keep the cup holder closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open cup holder or the items stored inside.
NOTICE
■To prevent damage to the front passenger’s side cup holder
Be careful not to subject the cup holder to an impact.
Failure to do so may unfix the cup holder. Reattach it if it is unfixed.
Cup holders

334
3-5. Using the storage features
URBAN CRUISER_OM_OM52F47E_(EE)

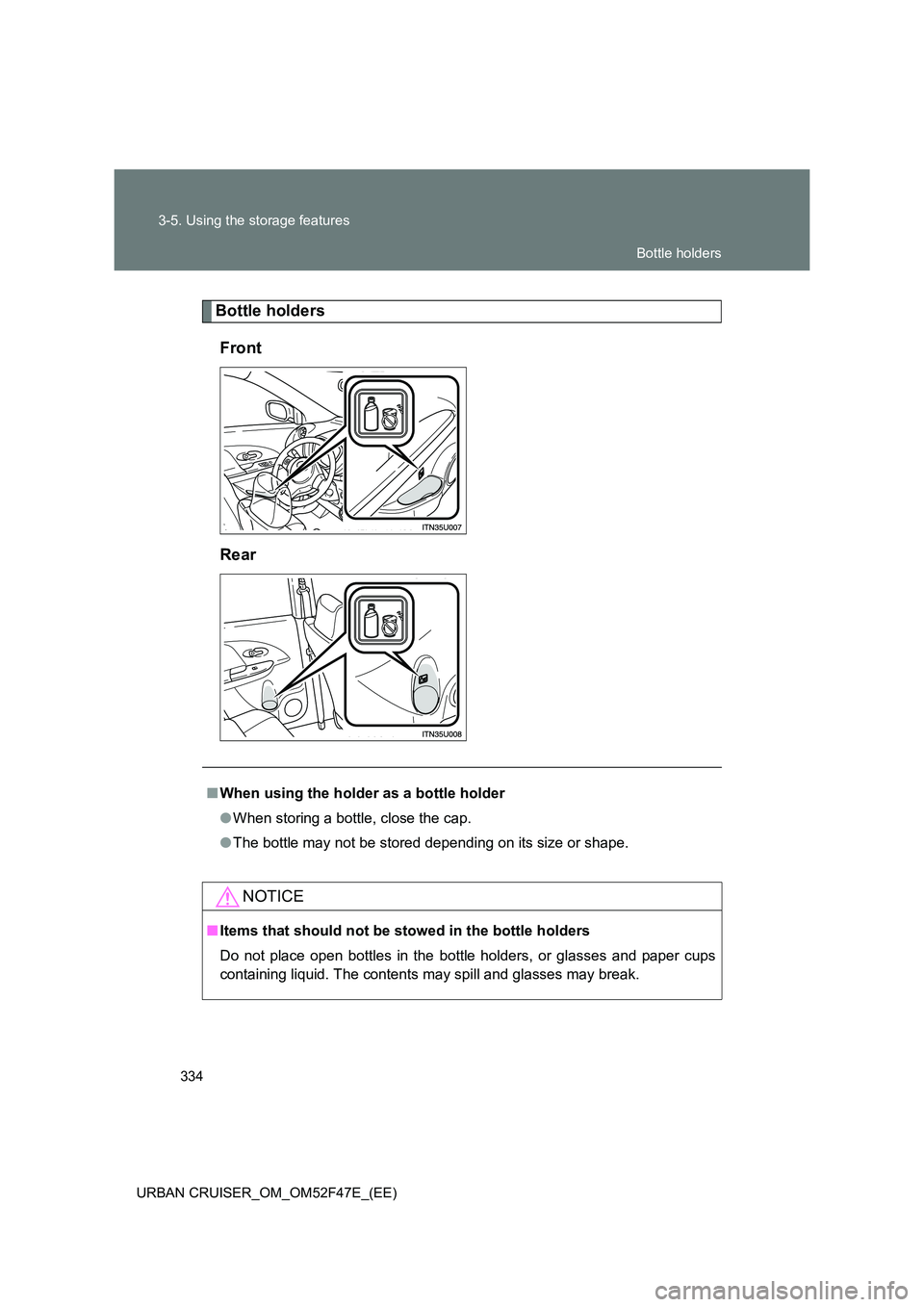

Bottle holders Front
Rear
■ When using the holder as a bottle holder
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
NOTICE
■Items that should not be st owed in the bottle holders
Do not place open bottles in the bottle holders, or glasses and paper cups
containing liquid. The contents may spill and glasses may break.
Bottle holders

335
3-5. Using the storage features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

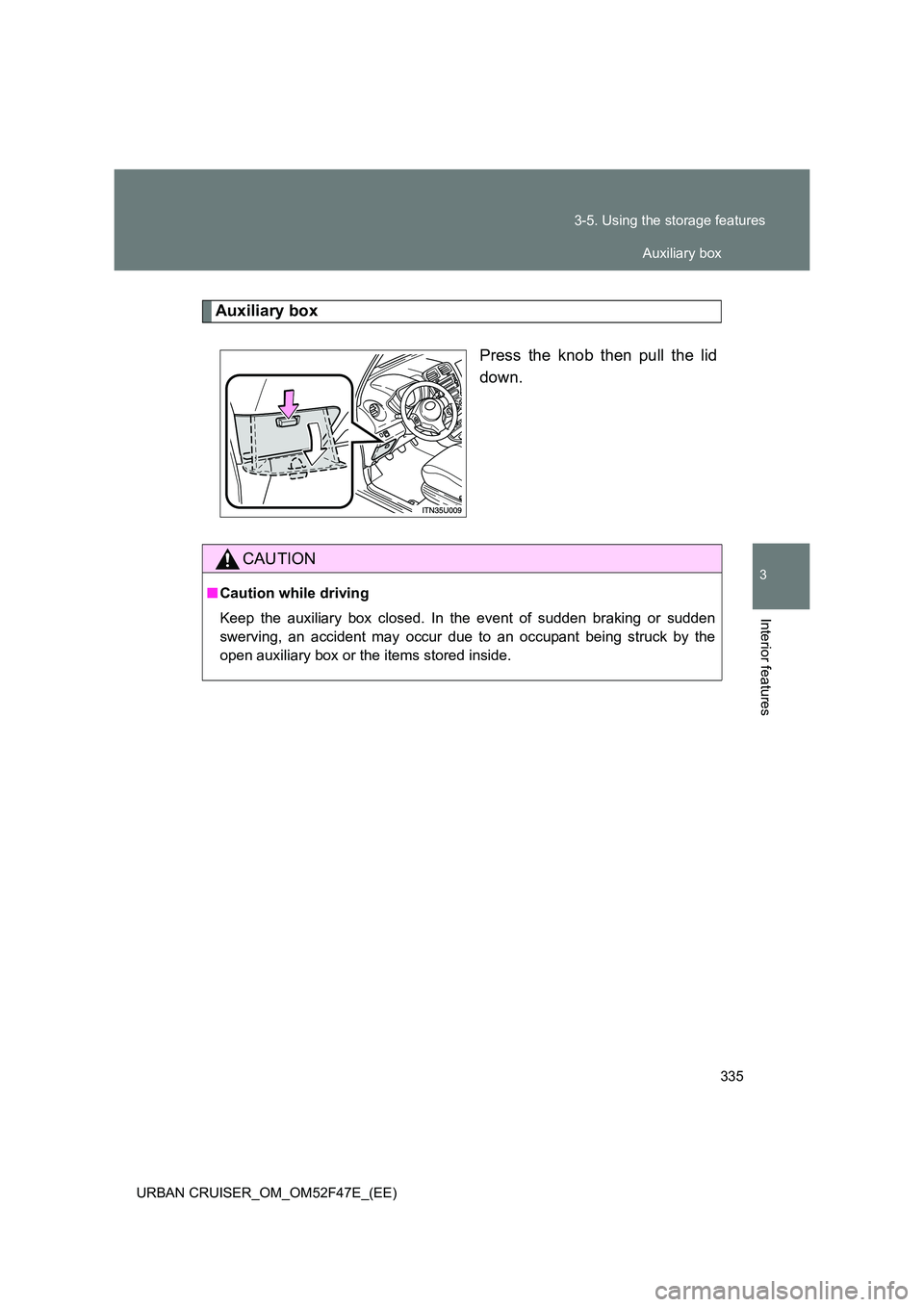

Auxiliary box
Press the knob then pull the lid
down.
CAUTION
■Caution while driving
Keep the auxiliary box closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open auxiliary box or the items stored inside.
Auxiliary box

336
URBAN CRUISER_OM_OM52F47E_(EE)
3-6. Other interior features

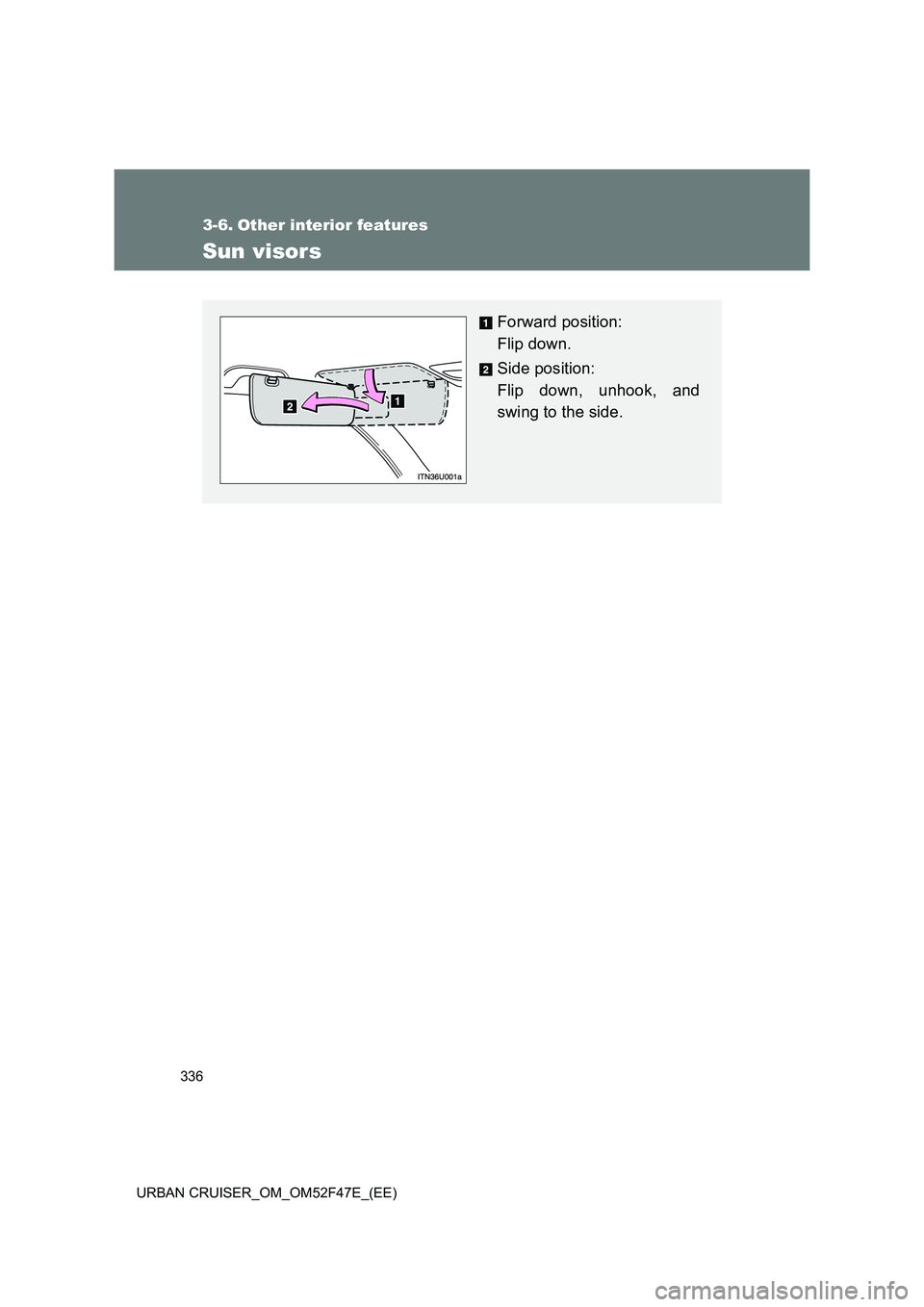

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

337
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

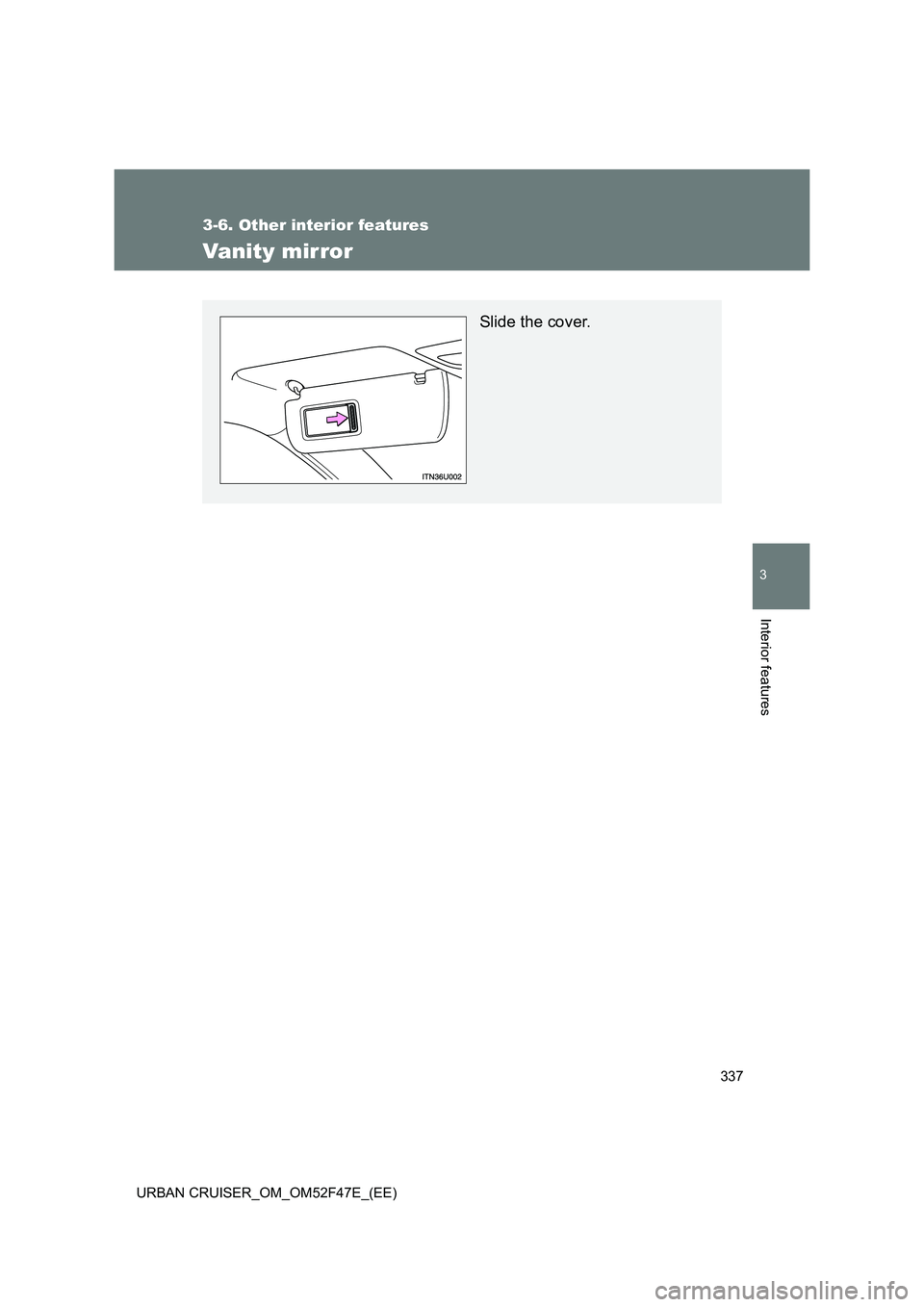

Vanity mirror
Slide the cover.

338
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

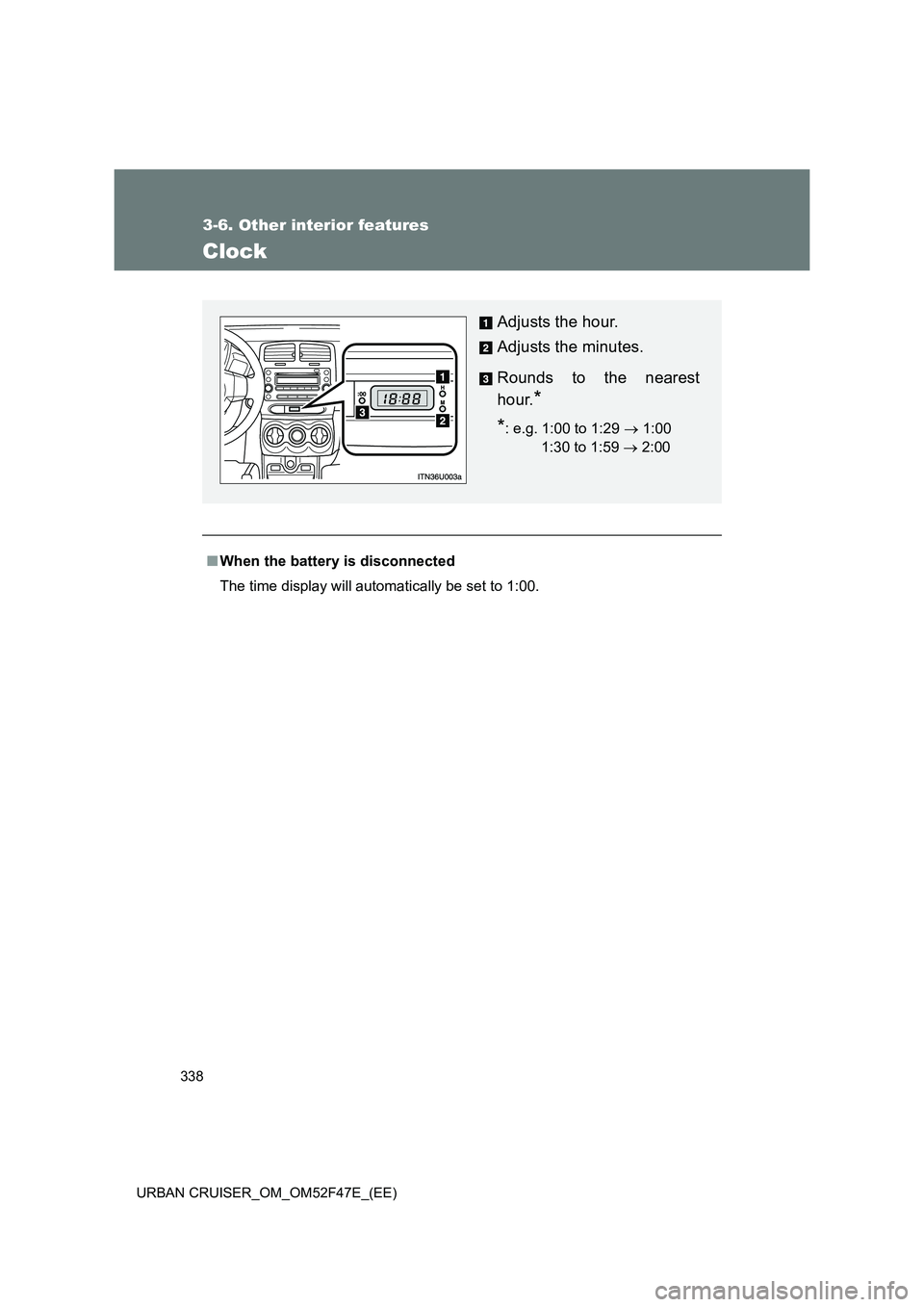

Clock
■When the battery is disconnected
The time display will automatically be set to 1:00.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.
*
*
: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

339
3-6. Other interior features
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

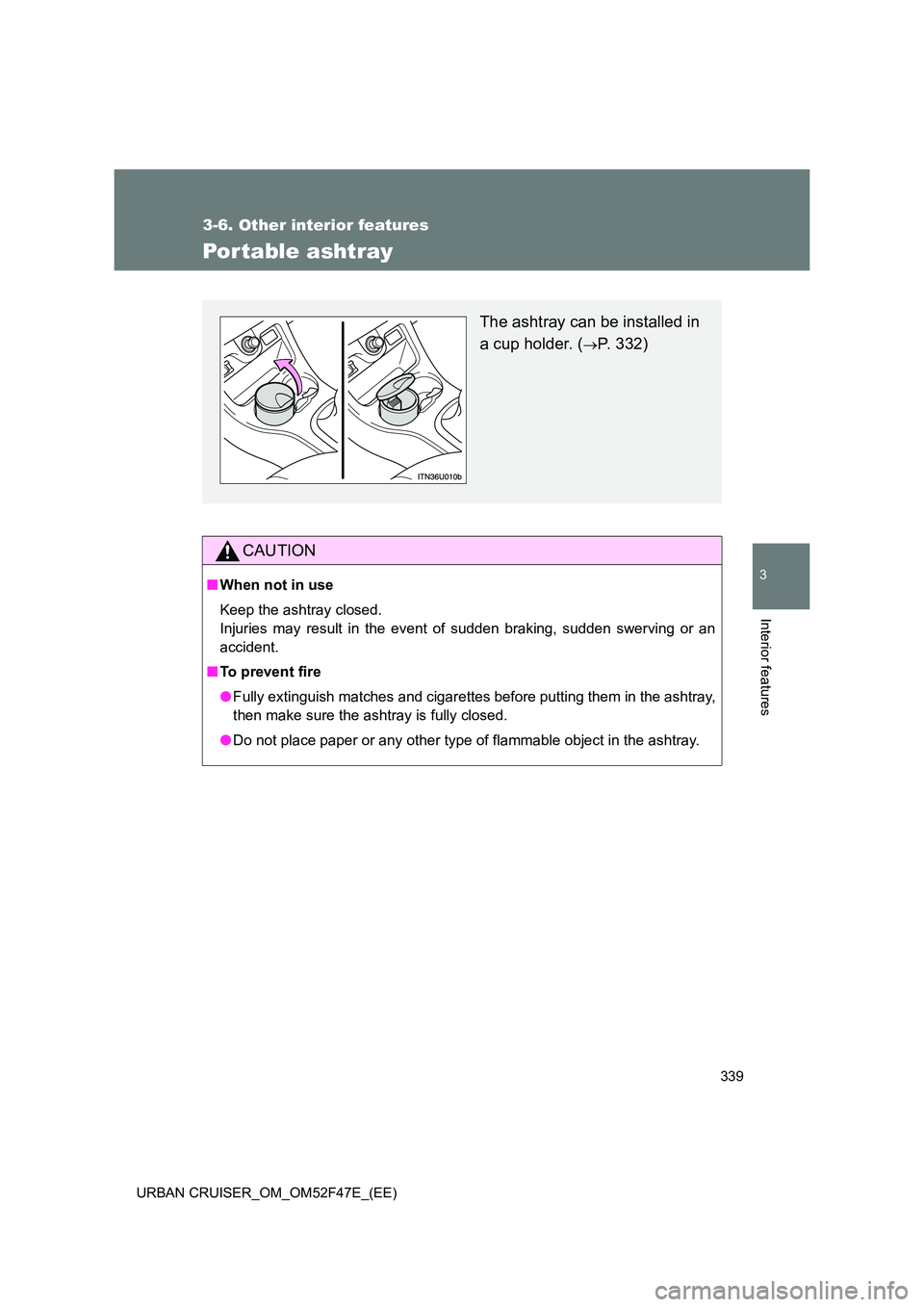

Por table ashtray
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
The ashtray can be installed in
a cup holder. (
→P. 332)

340
3-6. Other interior features
URBAN CRUISER_OM_OM52F47E_(EE)

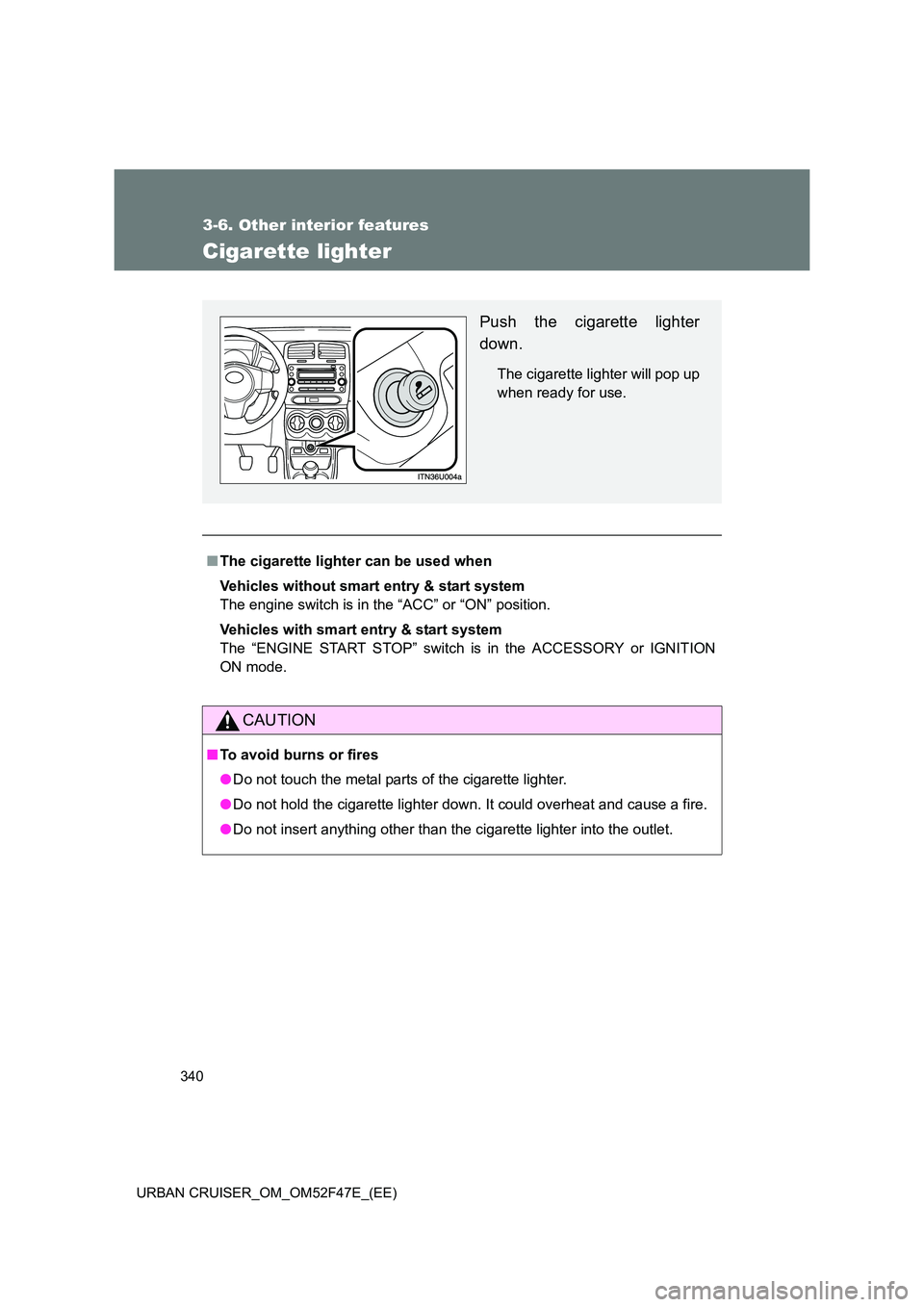

Cigarette lighter
■The cigarette lighter can be used when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter into the outlet.
Push the cigarette lighter
down.
The cigarette lighter will pop up
when ready for use.
