TOYOTA URBAN CRUISER 2015 Owners Manual

141
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Deactivating the front passenger airbag
Vehicles with a smart entry &
start system
Insert the mechanical key into
the cylinder and rotate to the
“OFF” position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
Vehicles without a smart entry
& start system
Insert the key into the cylinder
and turn to the “OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).

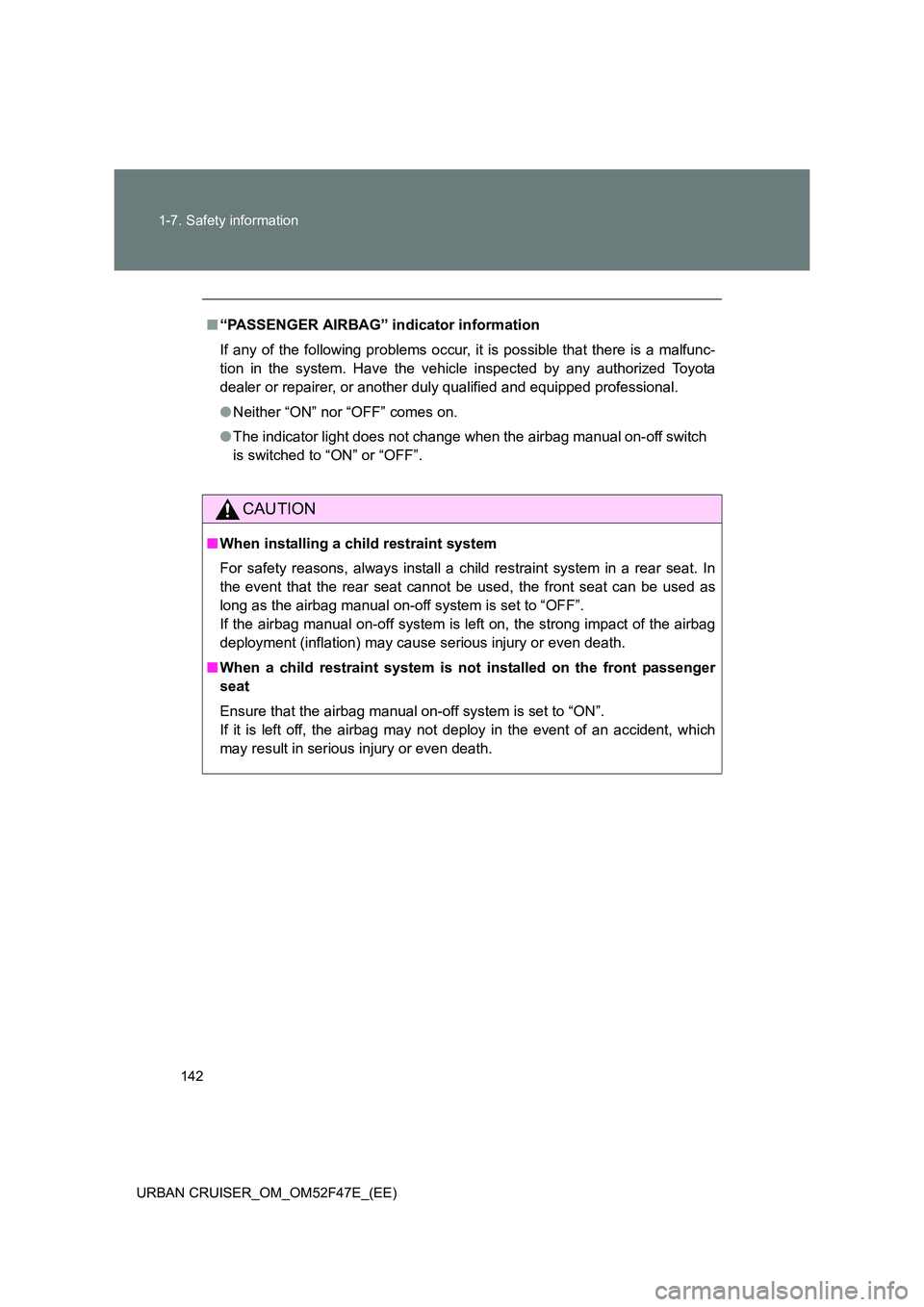

142
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
■ “PASSENGER AIRBAG” indicator information
If any of the following problems occur, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
● The indicator light does not change when the airbag manual on-off switch
is switched to “ON” or “OFF”.
CAUTION
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

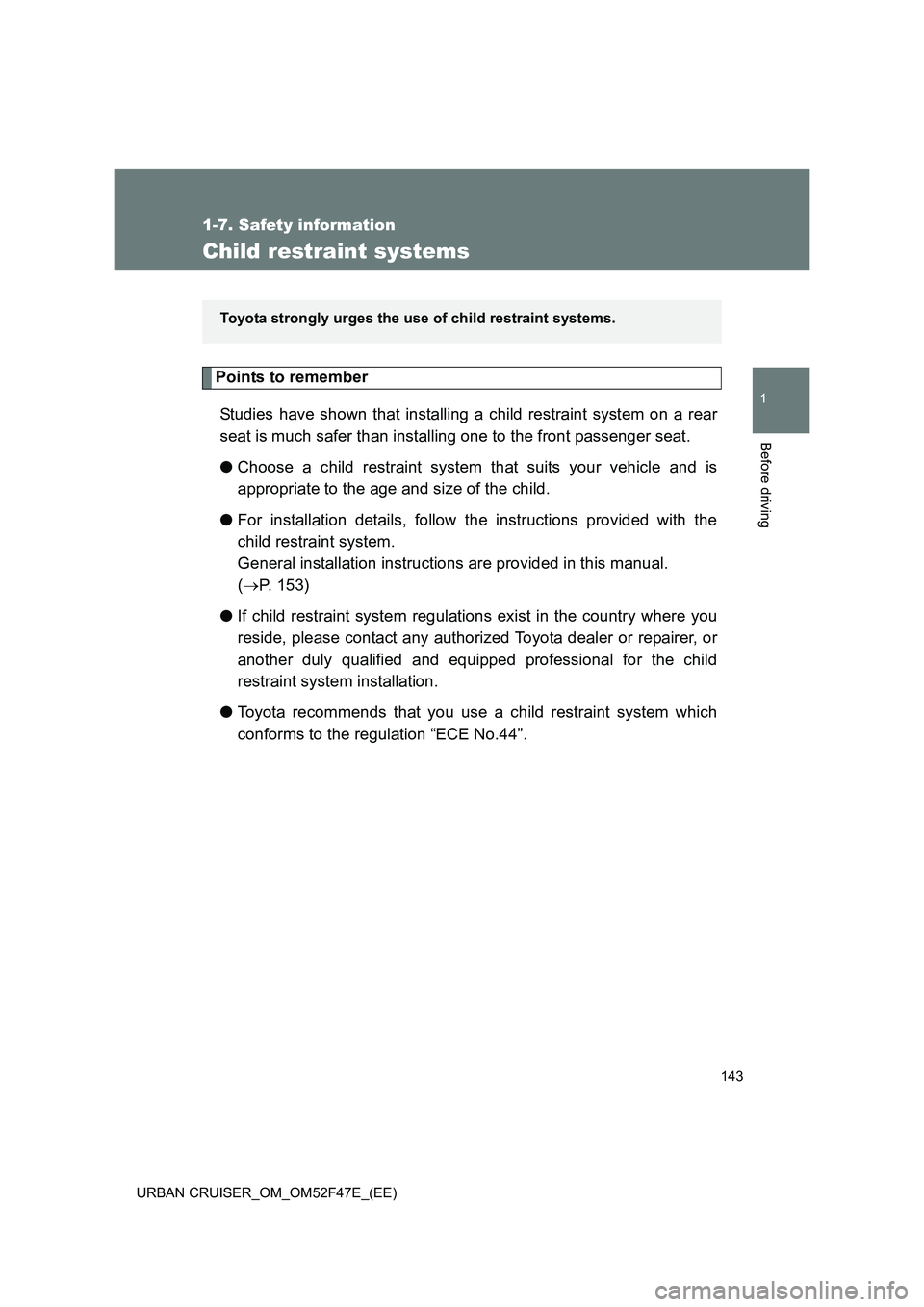

143
1
1-7. Safety information
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Child restraint systems
Points to rememberStudies have shown that installing a child restraint system on a rear
seat is much safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is
appropriate to the age and size of the child.
● For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(→ P. 153)
● If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
● Toyota recommends that you use a child restraint system which
conforms to the regulation “ECE No.44”.
Toyota strongly urges the u se of child restraint systems.

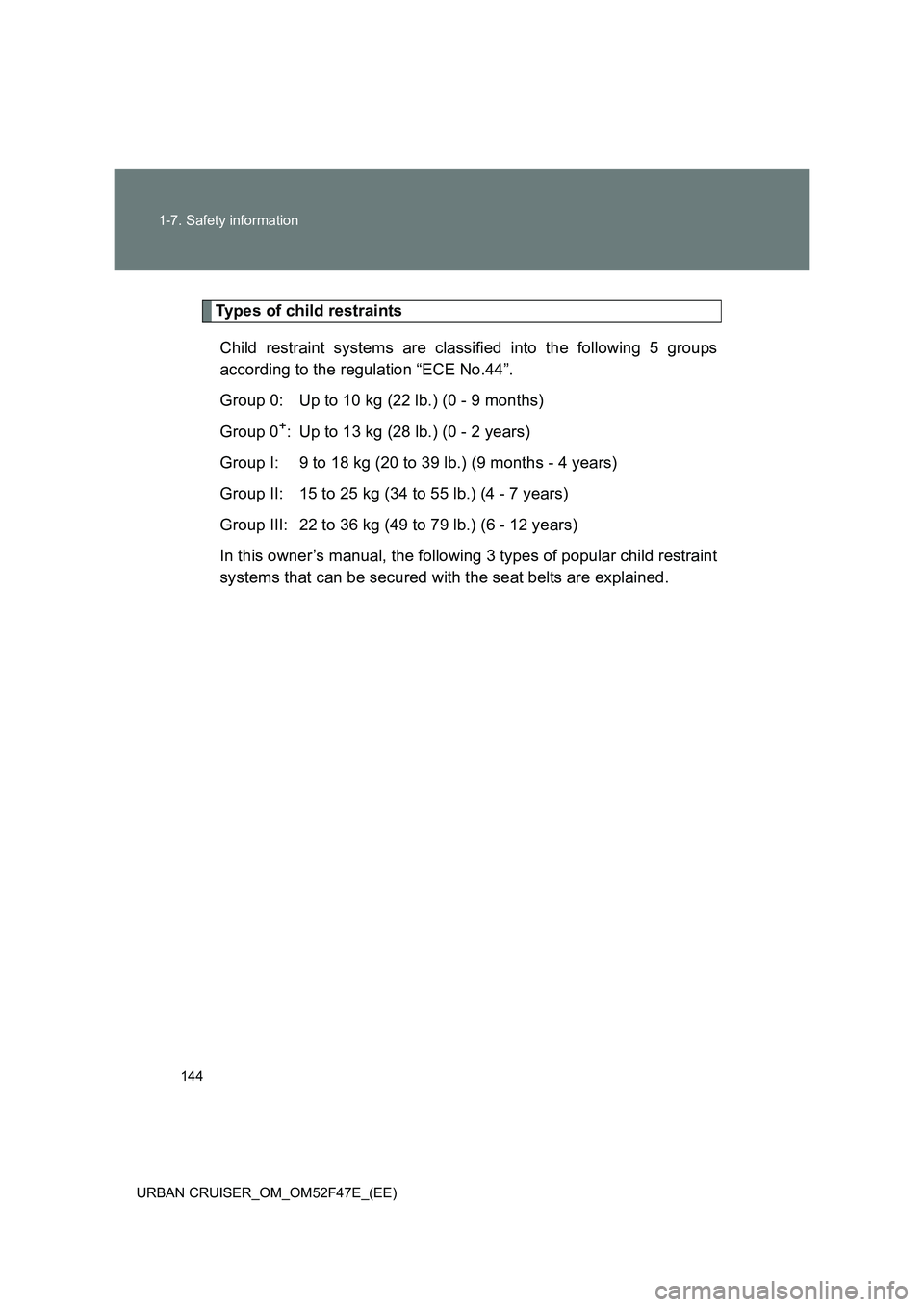

144
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
Types of child restraints Child restraint systems are classified into the following 5 groups
according to the regulation “ECE No.44”.
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained.

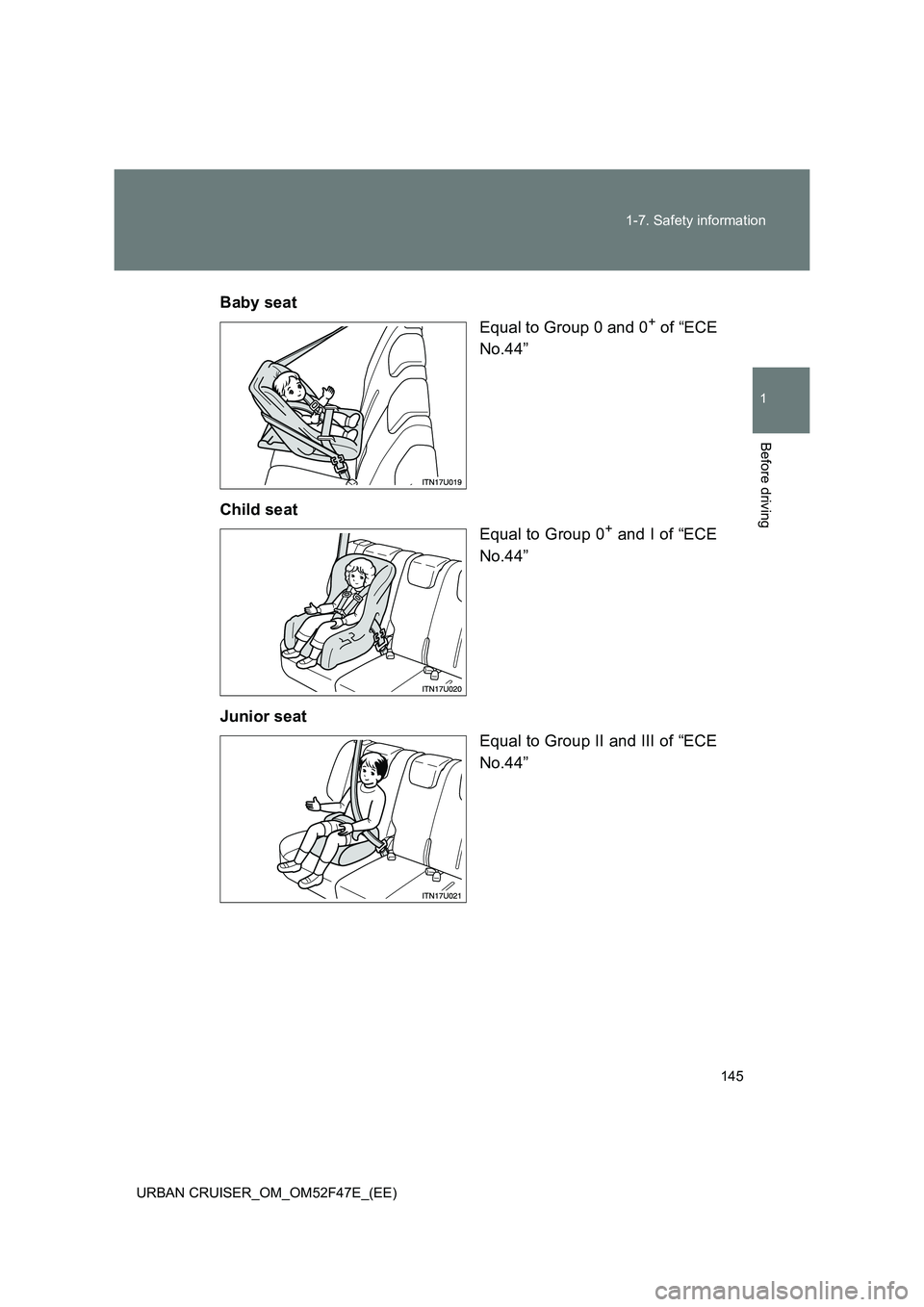

145
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Baby seat
Equal to Group 0 and 0
+ of “ECE
No.44”
Child seat Equal to Group 0
+ and I of “ECE
No.44”
Junior seat Equal to Group II and III of “ECE
No.44”

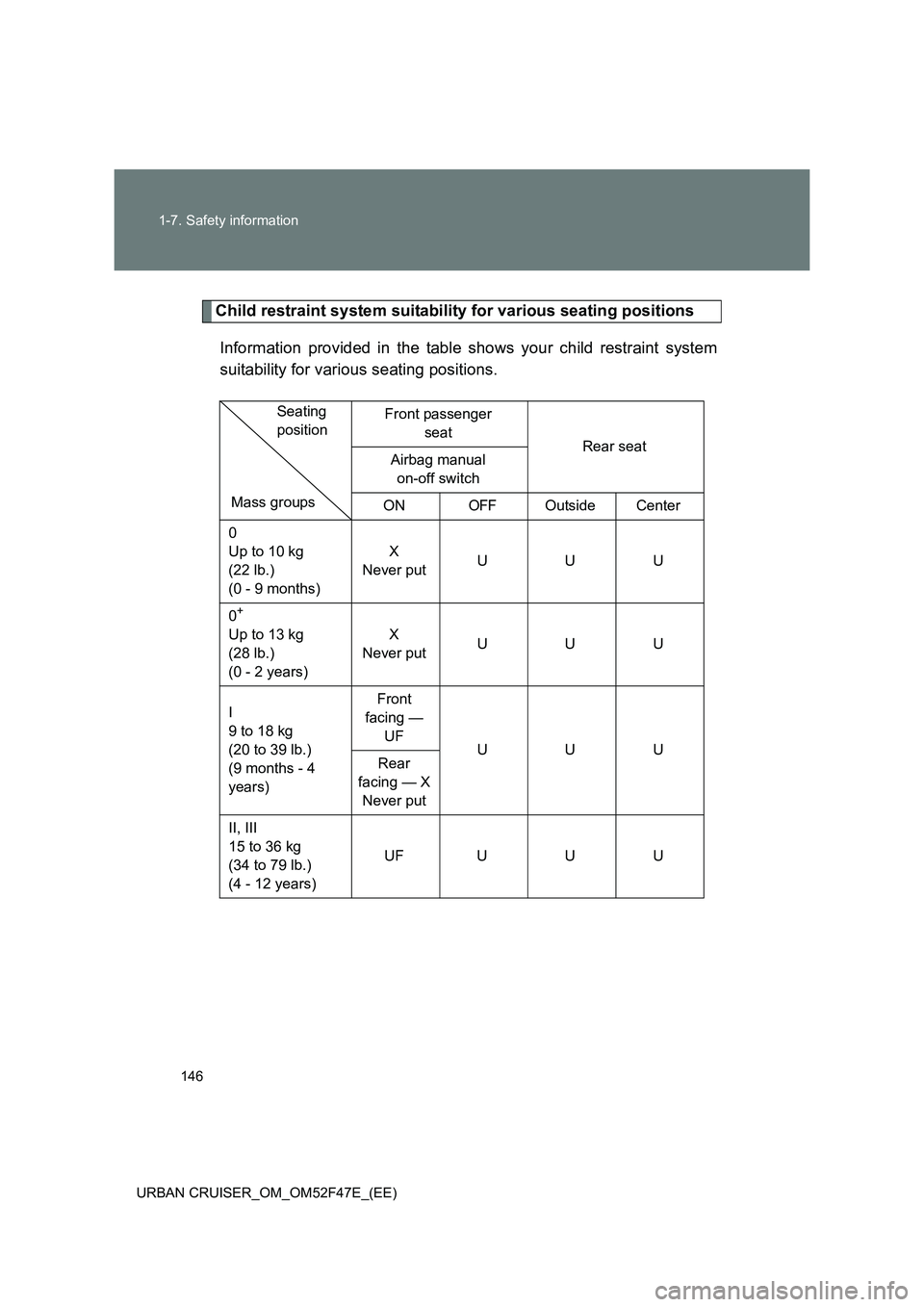

146
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
Child restraint system suitability for various seating positions Information provided in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat Rear seat
Airbag manual
on-off switch
ON
OFFOutside Center
0
Up to 10 kg
(22 lb.)
(0 - 9 months) X
Never put UUU
0
+
Up to 13 kg
(28 lb.)
(0 - 2 years) X
Never put UUU
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4
years) Front
facing — UF UUU
Rear
facing — X Never put
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years) UF U U U
Mass groupsSeating
position

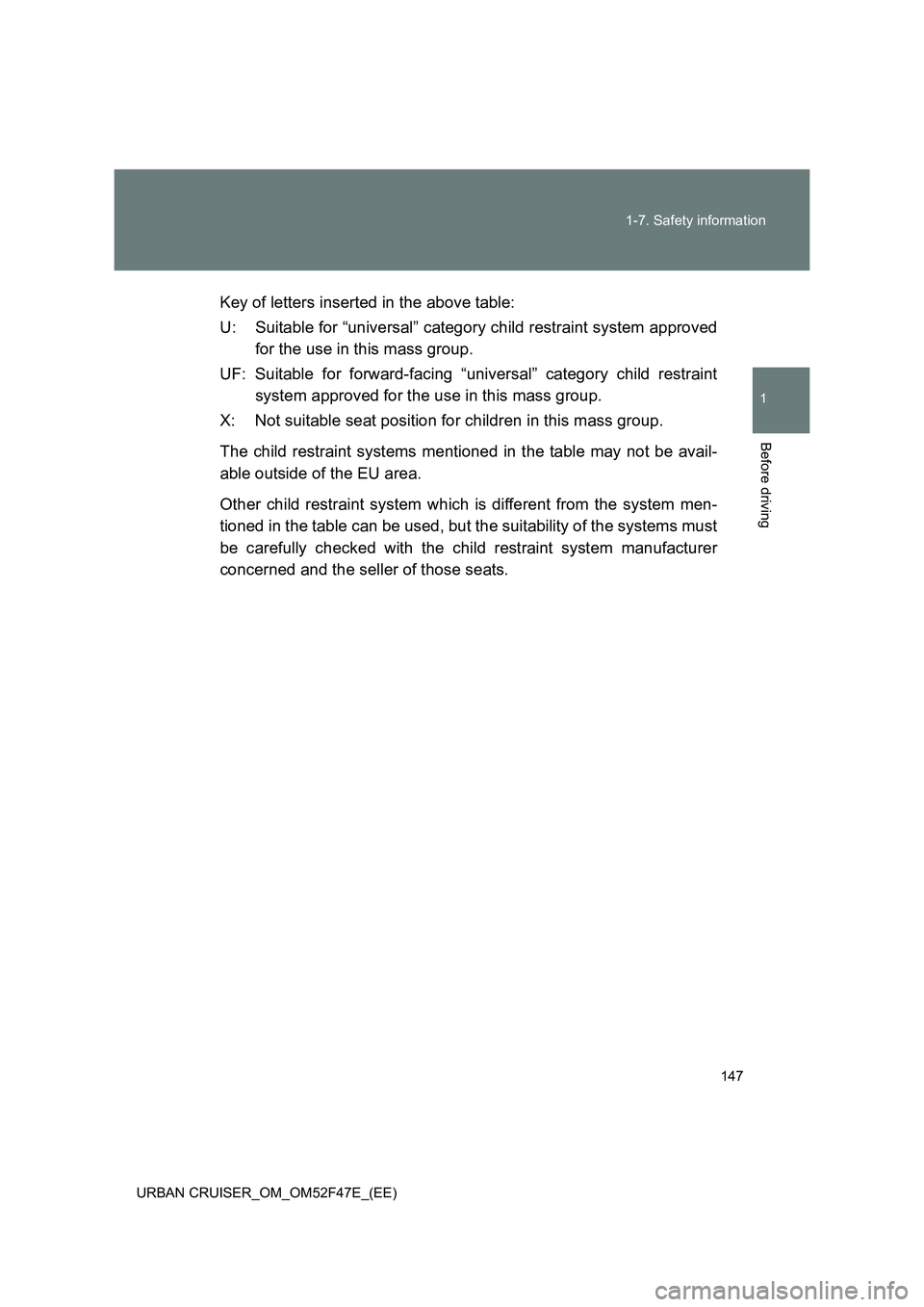

147
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint system approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer
concerned and the seller of those seats.

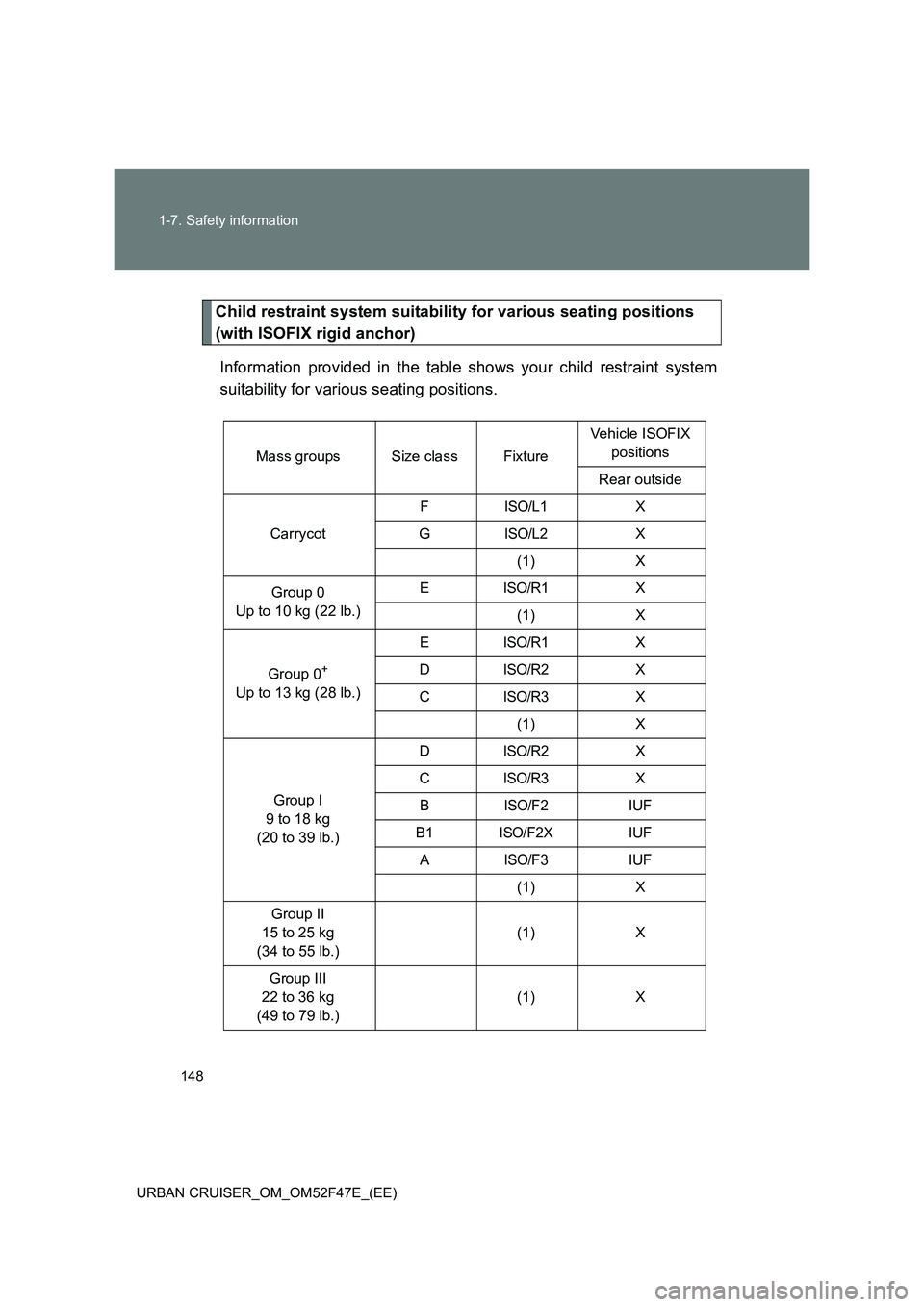

148
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor) Information provided in the table shows your child restraint system
suitability for various seating positions.
Mass groups Size class Fixture Vehicle ISOFIX
positions
Rear outside
Carrycot F
ISO/L1X
G
ISO/L2X
(1) X
Group 0
Up to 10 kg (22 lb.) E
ISO/R1X
(1) X
Group 0
+
Up to 13 kg (28 lb.) E
ISO/R1X
D
ISO/R2X
C
ISO/R3X
(1) X
Group I
9 to 18 kg
(20 to 39 lb.) D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF
B1
ISO/F2XIUF
A
ISO/F3IUF
(1) X
Group II
15 to 25 kg
(34 to 55 lb.) (1) X
Group III
22 to 36 kg
(49 to 79 lb.) (1) X

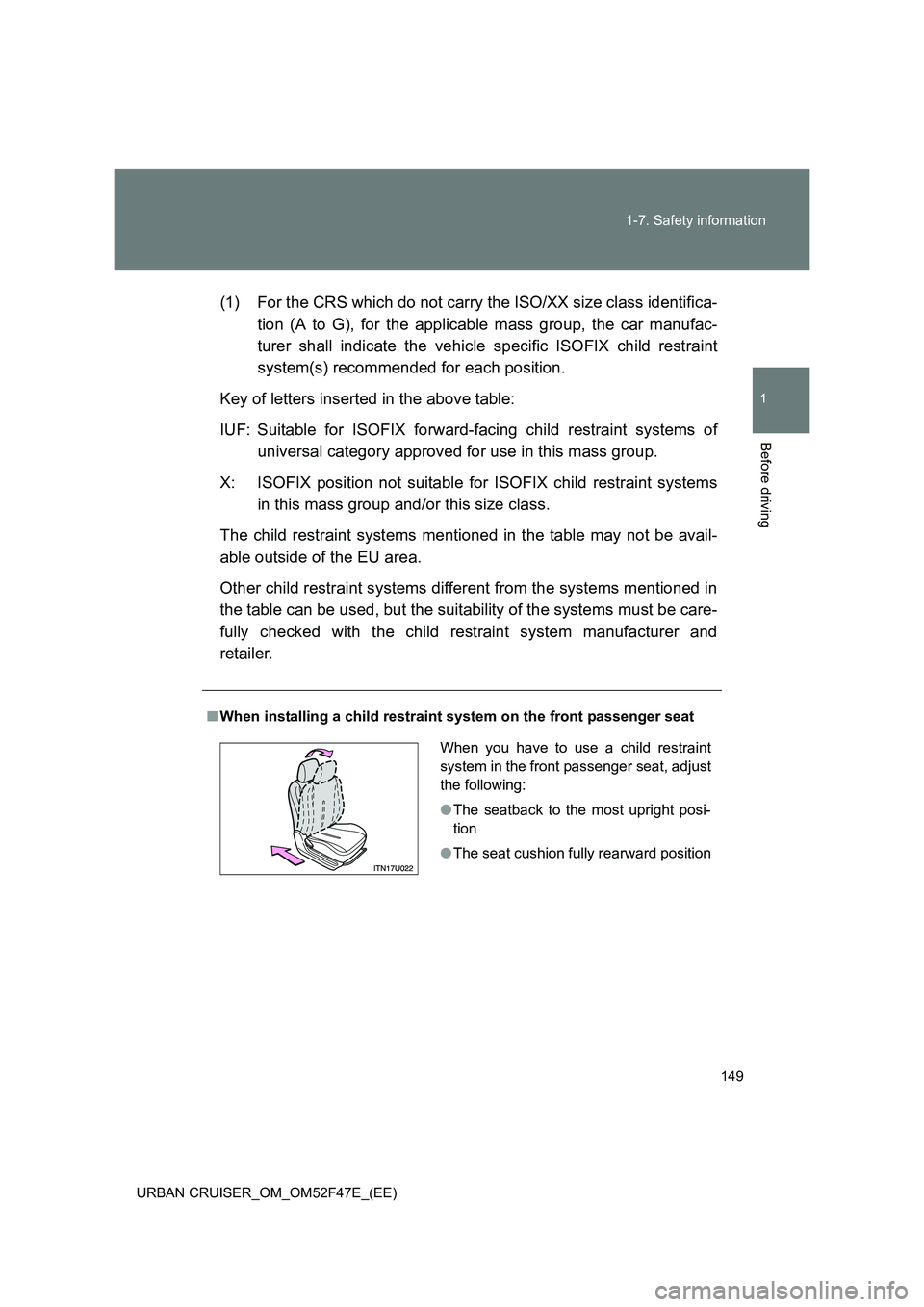

149
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.
■ When installing a child restraint system on the front passenger seat
When you have to use a child restraint
system in the front passenger seat, adjust
the following:
●The seatback to the most upright posi-
tion
● The seat cushion fully rearward position

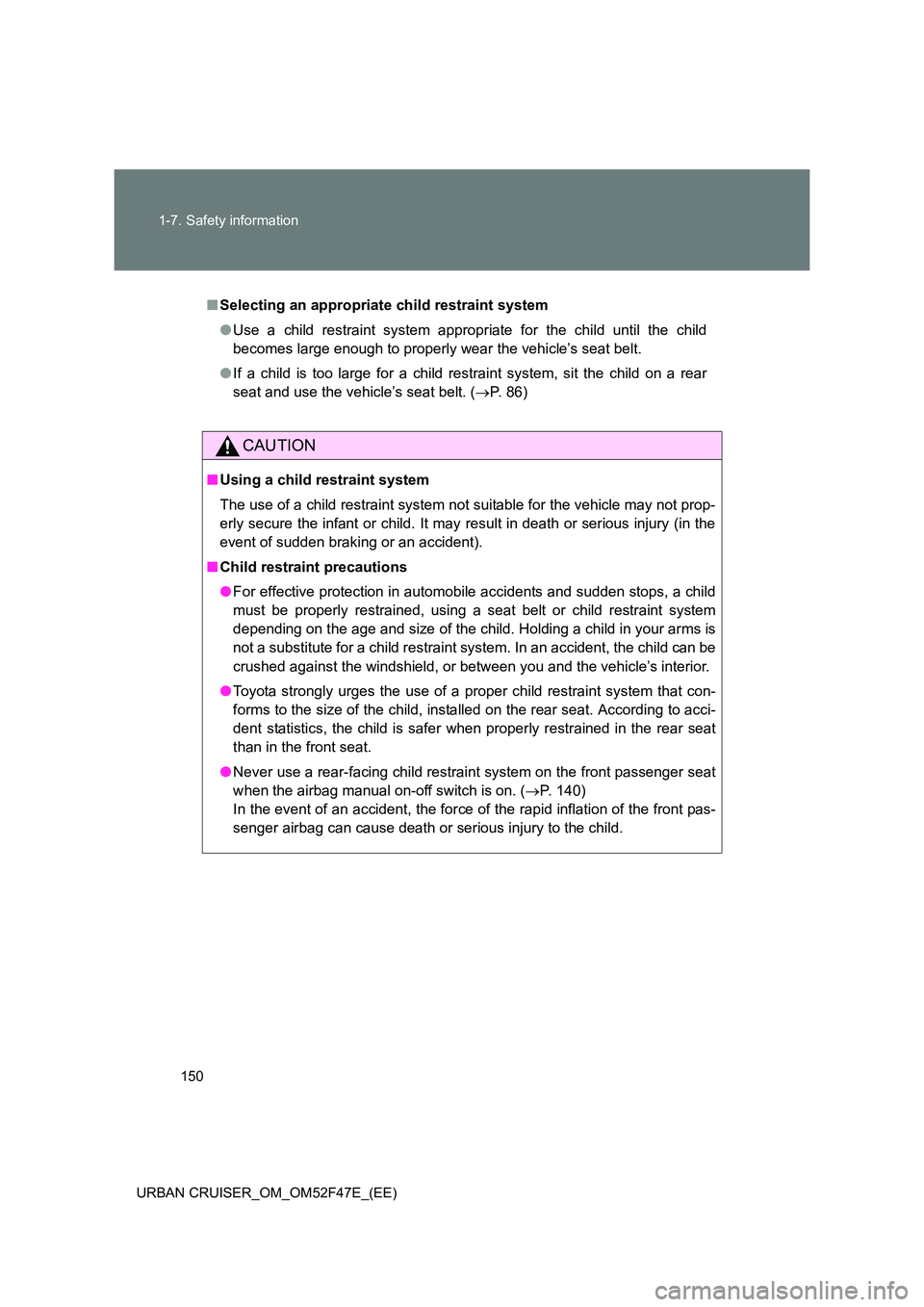

150
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
■ Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
● If a child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. ( →P. 86)
CAUTION
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■ Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. ( →P. 140)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
