Page 161 of 544

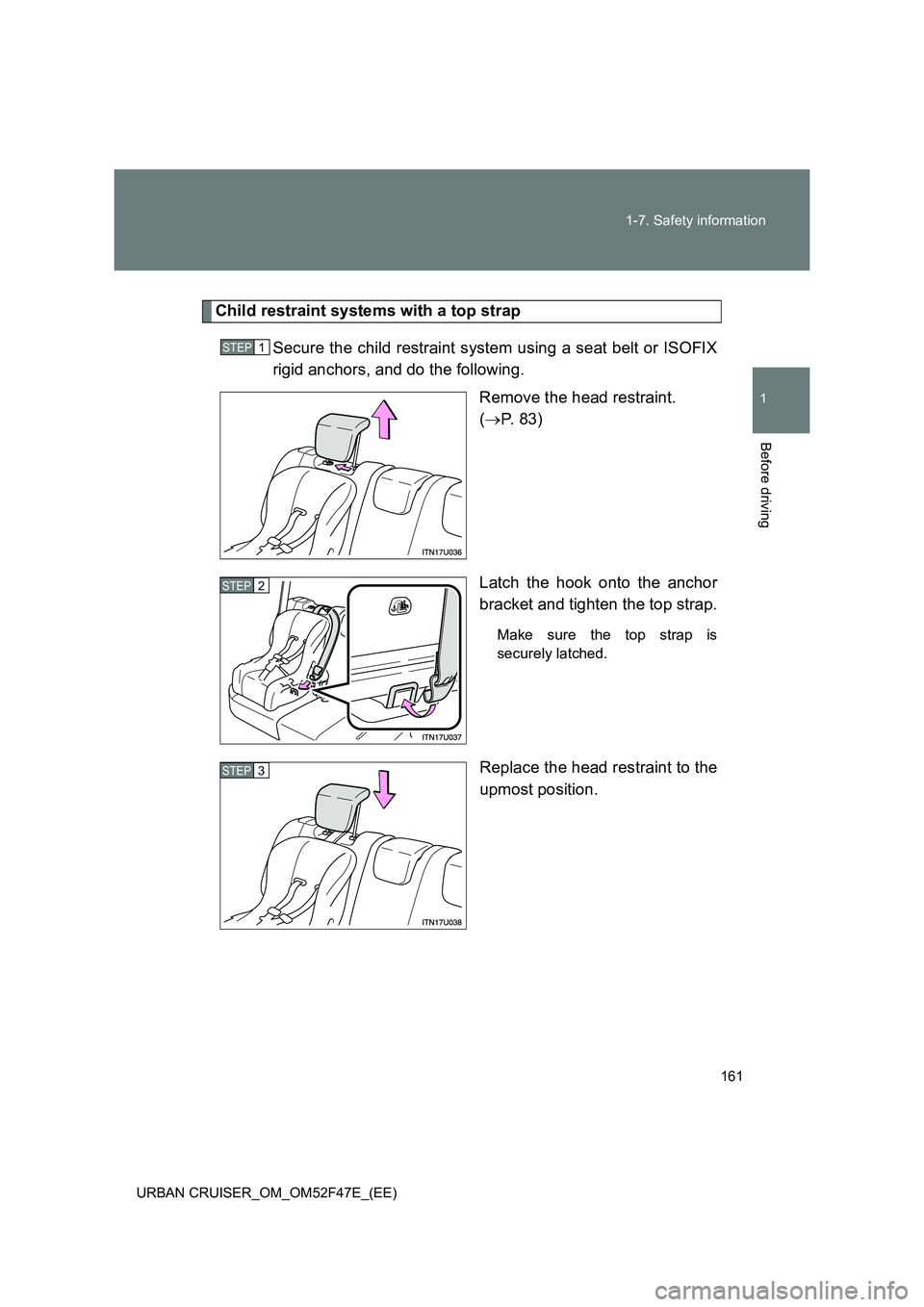

161
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Child restraint systems with a top strap
Secure the child restraint system using a seat belt or ISOFIX
rigid anchors, and do the following. Remove the head restraint.
(→ P. 8 3 )
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Replace the head restraint to the
upmost position.
STEP1
STEP2
STEP3
Page 162 of 544

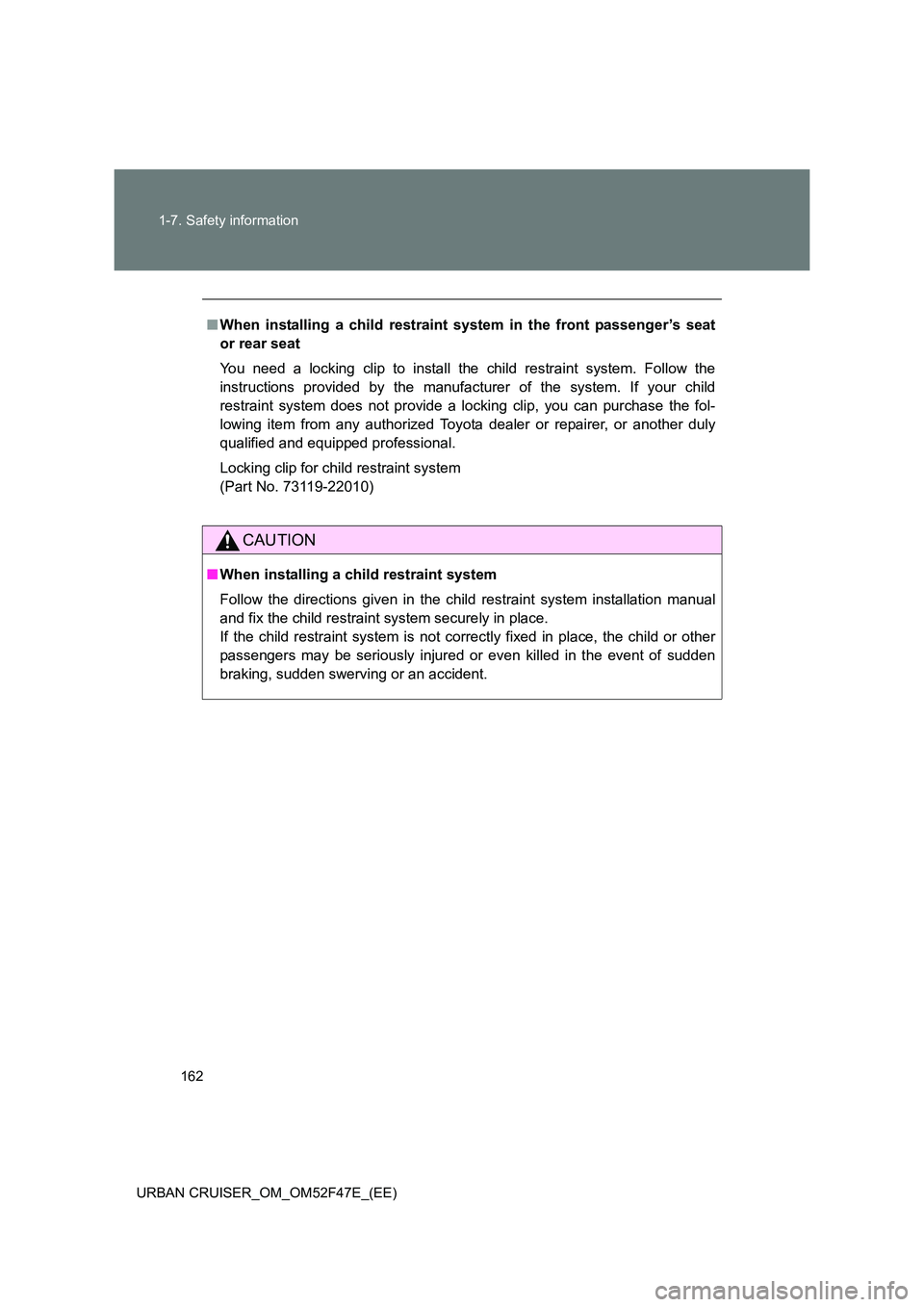

162
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
■ When installing a child restraint system in the front passenger’s seat
or rear seat
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)
CAUTION
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.

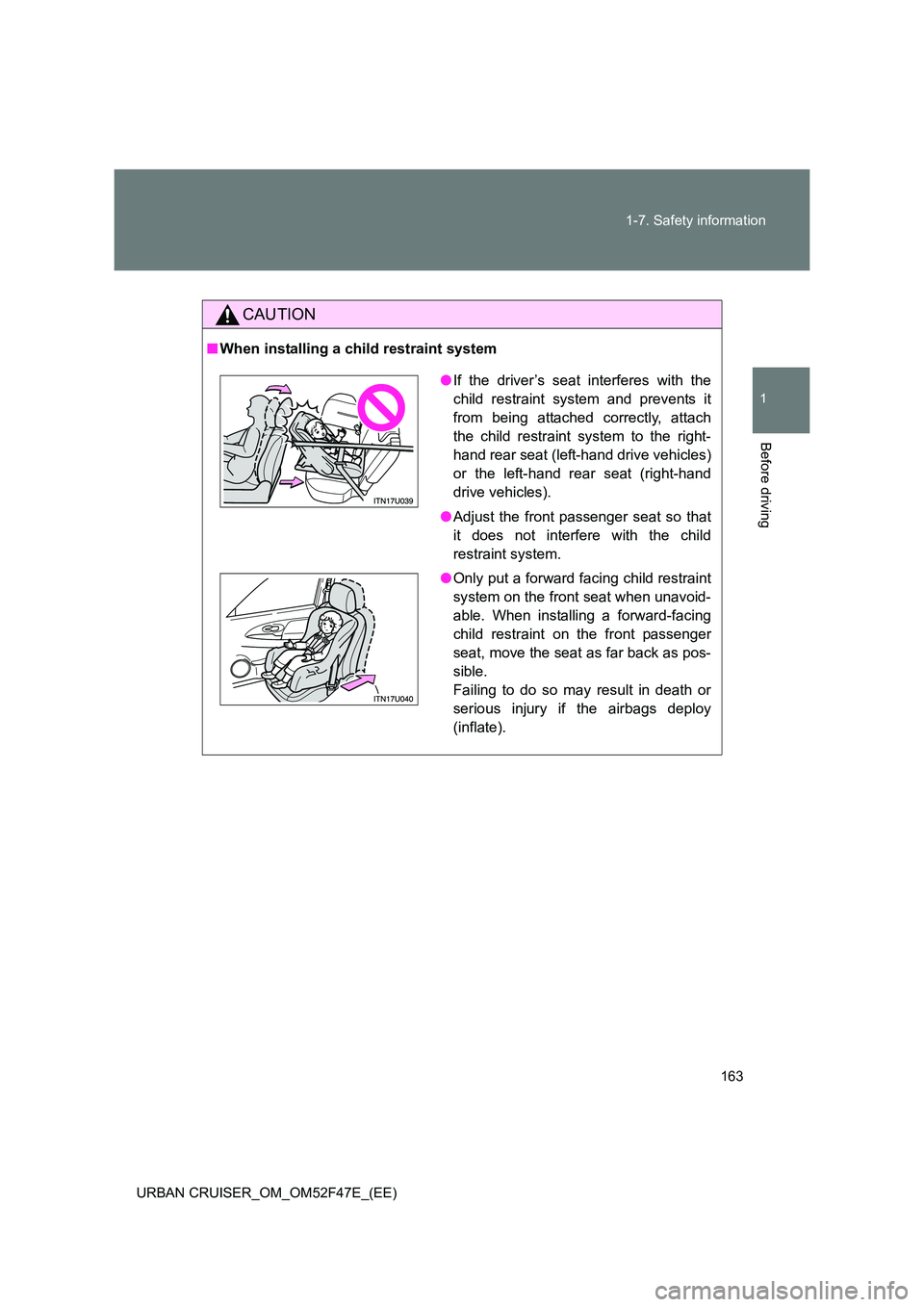

Page 163 of 544

163
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■
When installing a child restraint system
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

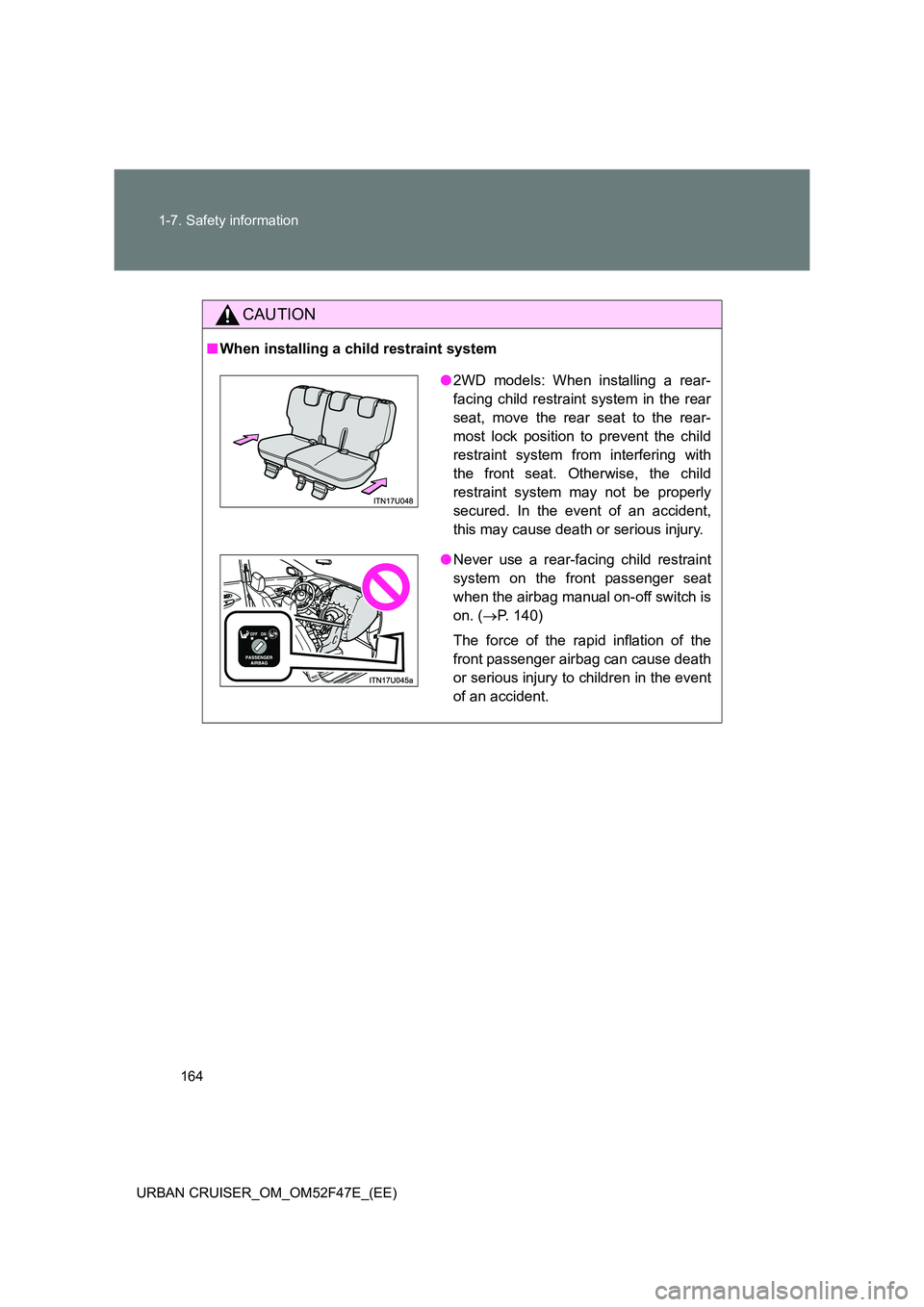

Page 164 of 544

164
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ When installing a child restraint system
●2WD models: When installing a rear-
facing child restraint system in the rear
seat, move the rear seat to the rear-
most lock position to prevent the child
restraint system from interfering with
the front seat. Otherwise, the child
restraint system may not be properly
secured. In the event of an accident,
this may cause death or serious injury.
● Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( →P. 140)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
Page 165 of 544

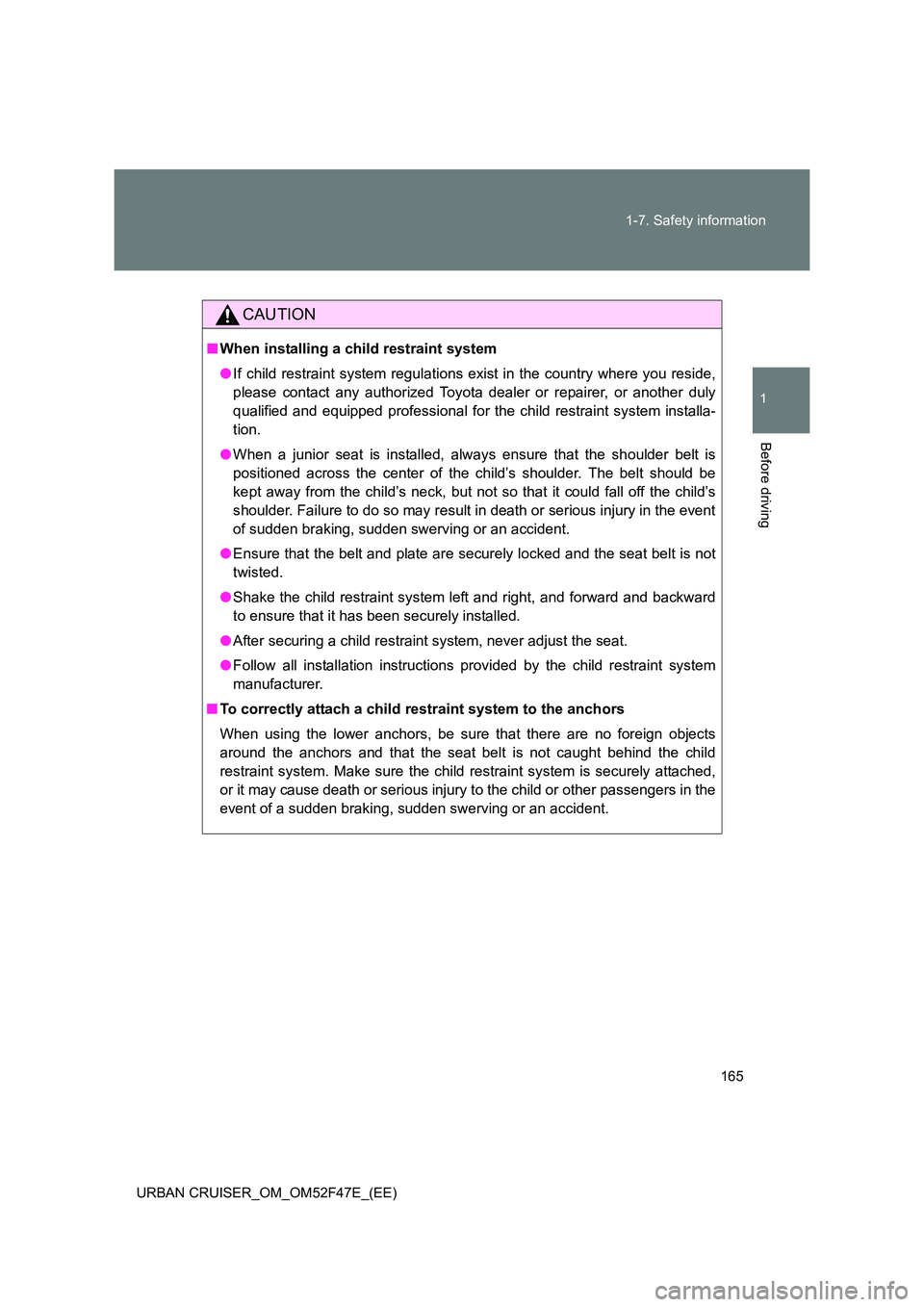

165
1-7. Safety information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■
When installing a child restraint system
●If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of a sudden braking, sudden swerving or an accident.
Page 166 of 544

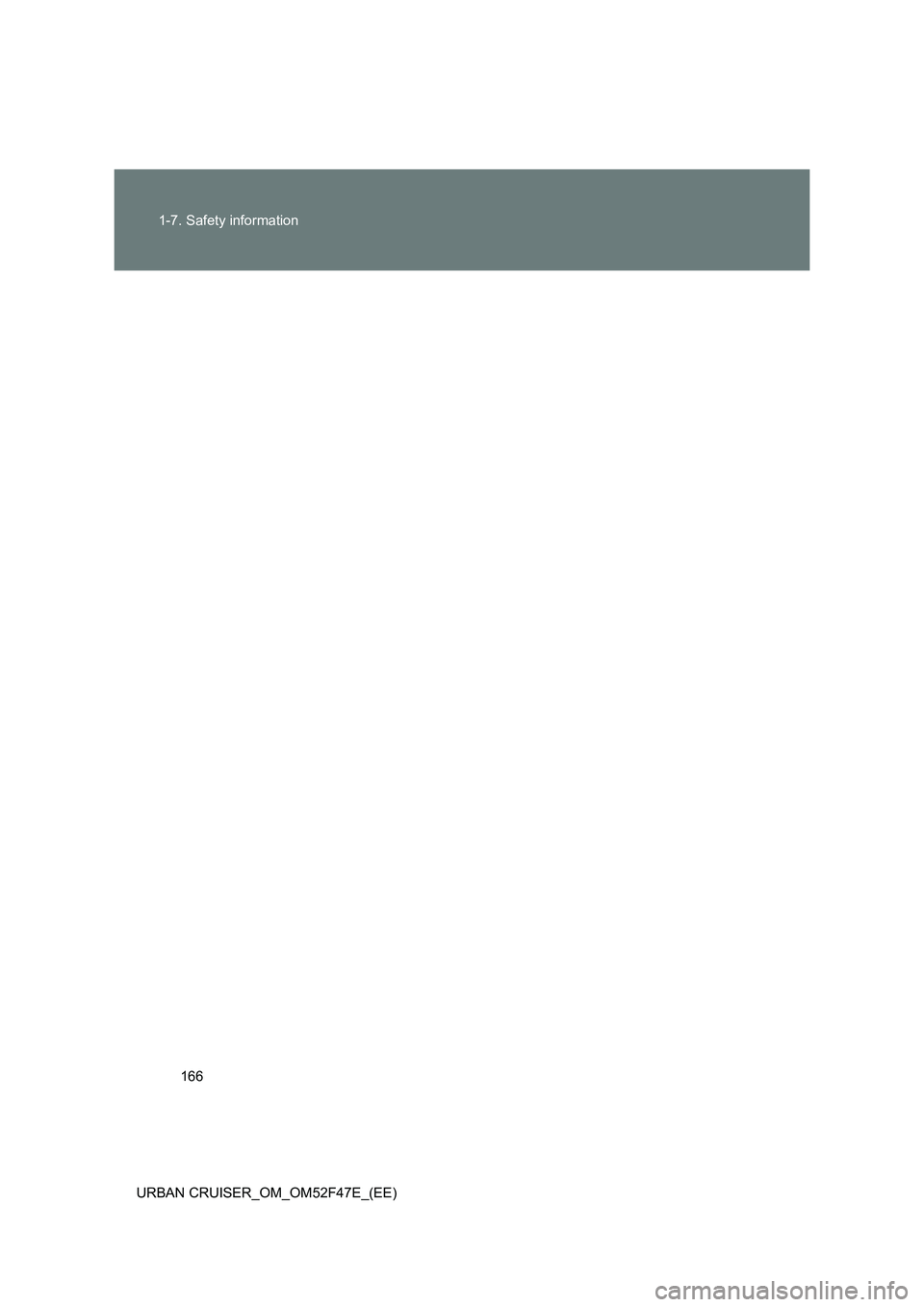

166
1-7. Safety information
URBAN CRUISER_OM_OM52F47E_(EE)
Page 167 of 544

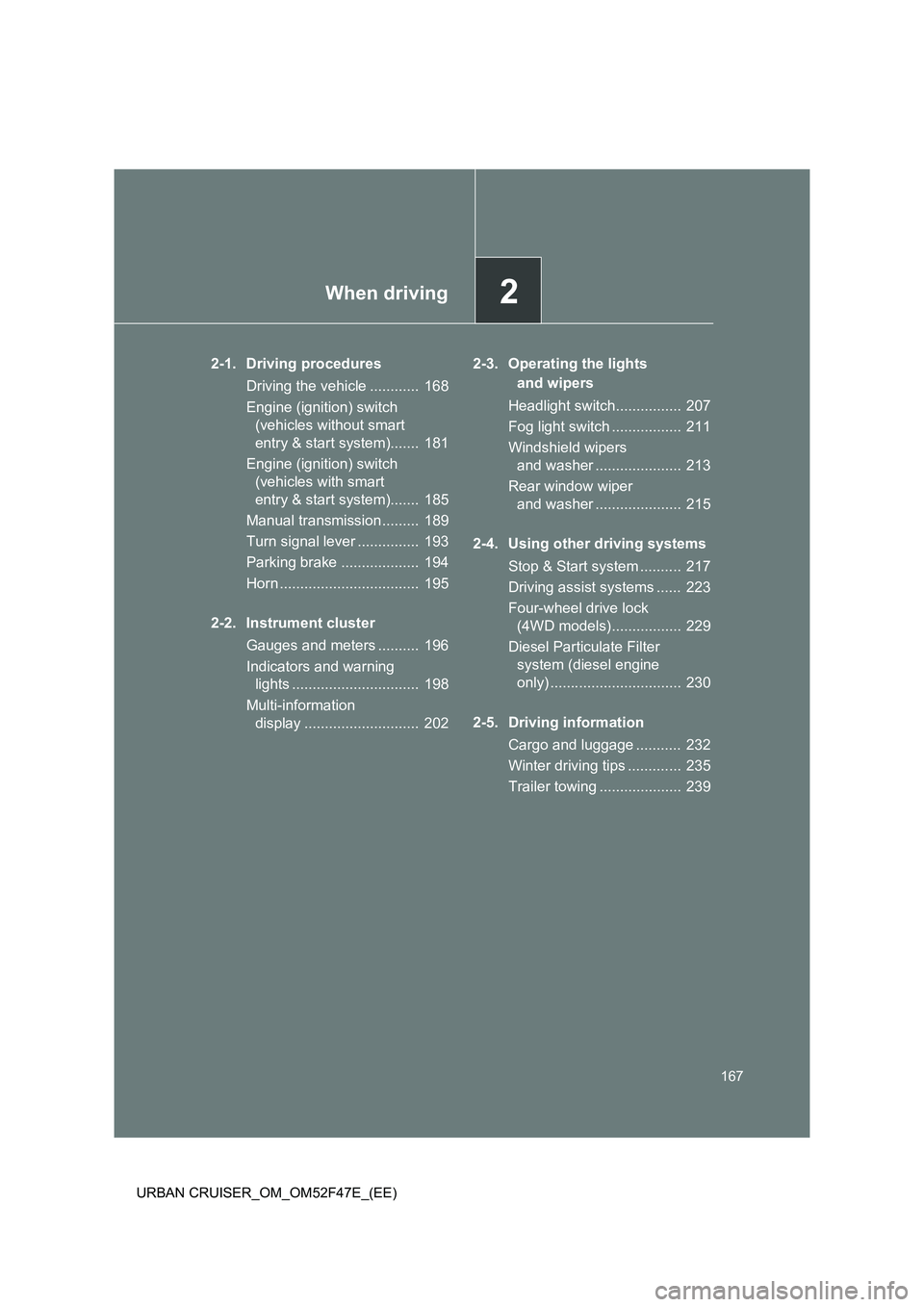

2When driving
167
URBAN CRUISER_OM_OM52F47E_(EE)
2-1. Driving procedures Driving the vehicle ............ 168
Engine (ignition) switch (vehicles without smart
entry & start system)....... 181
Engine (ignition) switch (vehicles with smart
entry & start system)....... 185
Manual transmission......... 189
Turn signal lever ............... 193
Parking brake ................... 194
Horn .................................. 195
2-2. Instrument cluster Gauges and meters .......... 196
Indicators and warning lights ............................... 198
Multi-information display ............................ 202 2-3. Operating the lights
and wipers
Headlight switch................ 207
Fog light switch ................. 211
Windshield wipers and washer ..................... 213
Rear window wiper and washer ..................... 215
2-4. Using other driving systems Stop & Start system .......... 217
Driving assist systems ...... 223
Four-wheel drive lock (4WD models)................. 229
Diesel Particulate Filter system (diesel engine
only) ................................ 230
2-5. Driving information Cargo and luggage ........... 232
Winter driving tips ............. 235
Trailer towing .................... 239
Page 168 of 544

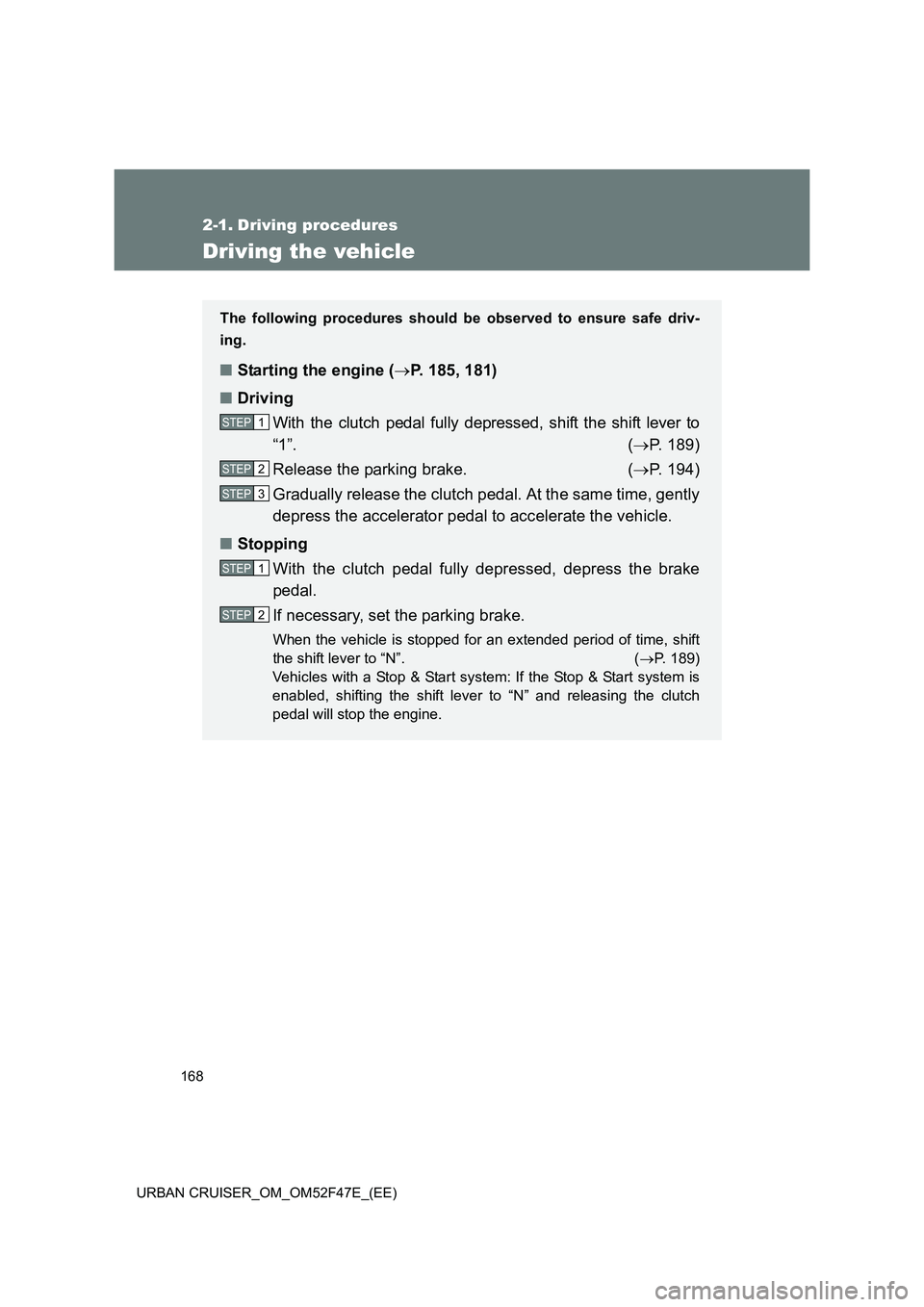

168
URBAN CRUISER_OM_OM52F47E_(EE)
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the engine ( →P. 185, 181)
■ Driving
With the clutch pedal fully depressed, shift the shift lever to
“1”. ( →P. 189)
Release the parking brake. ( →P. 194)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to “N”. ( →P. 189)
Vehicles with a Stop & Start system: If the Stop & Start system is
enabled, shifting the shift lever to “N” and releasing the clutch
pedal will stop the engine.
STEP1
STEP2
STEP3
STEP1
STEP2
Page 169 of 544

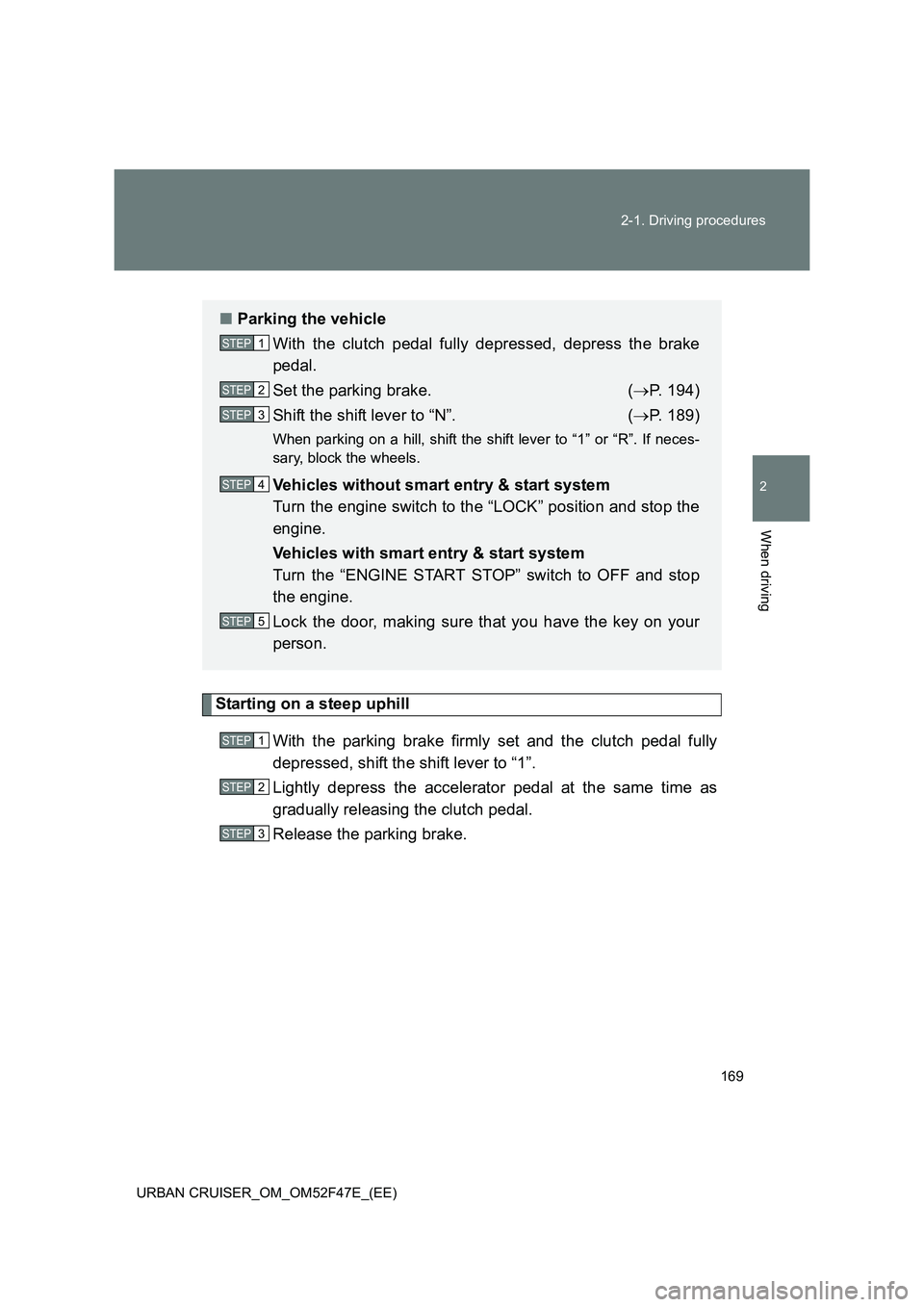

169
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Starting on a steep uphill
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to “1”.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
■Parking the vehicle
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. ( →P. 194)
Shift the shift lever to “N”. ( →P. 189)
When parking on a hill, shift the shift lever to “1” or “R”. If neces-
sary, block the wheels.
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position and stop the
engine.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch to OFF and stop
the engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
Page 170 of 544

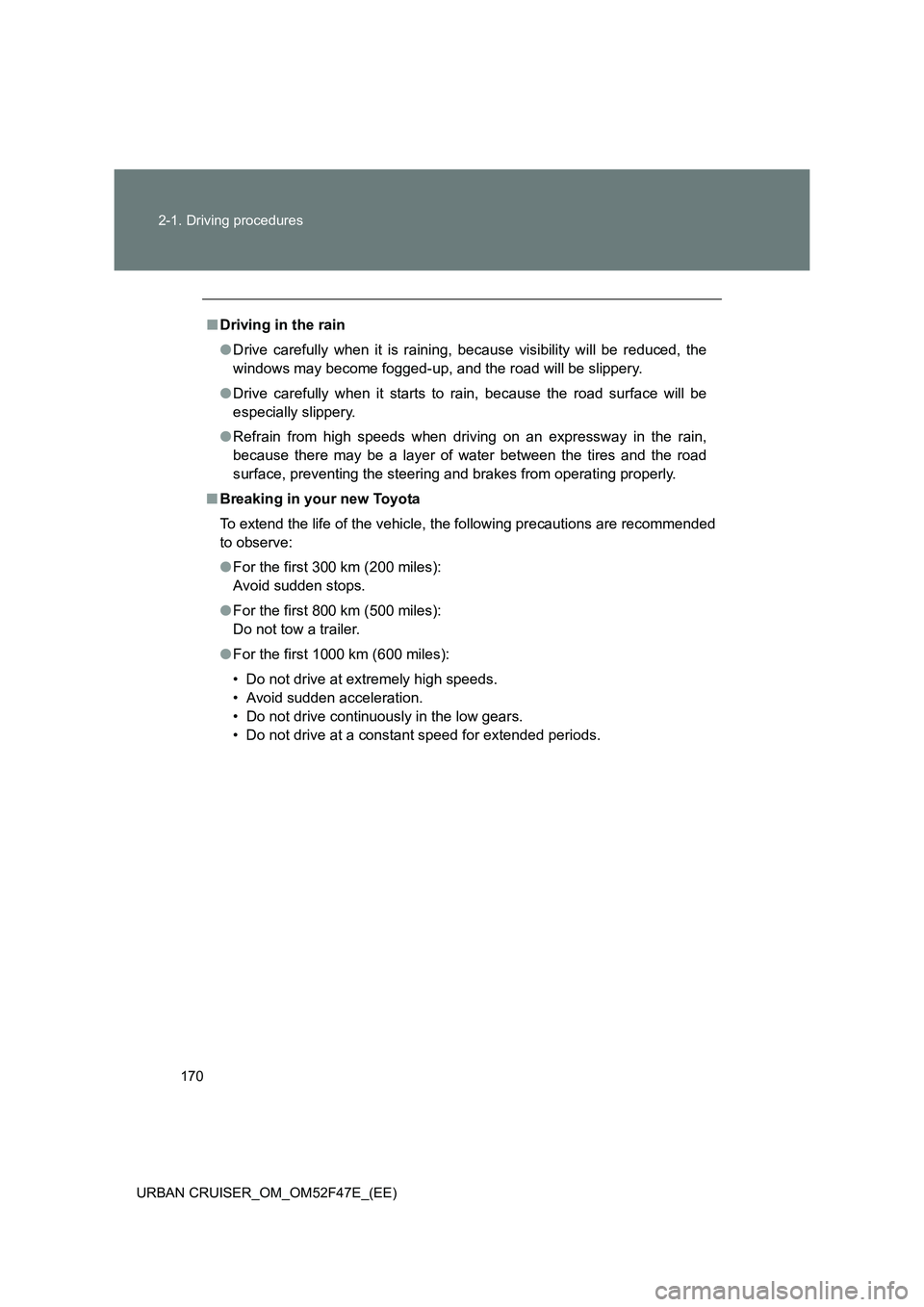

170
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be
especially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
●For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 800 km (500 miles):
Do not tow a trailer.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
