TOYOTA URBAN CRUISER 2015 Owners Manual

181
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

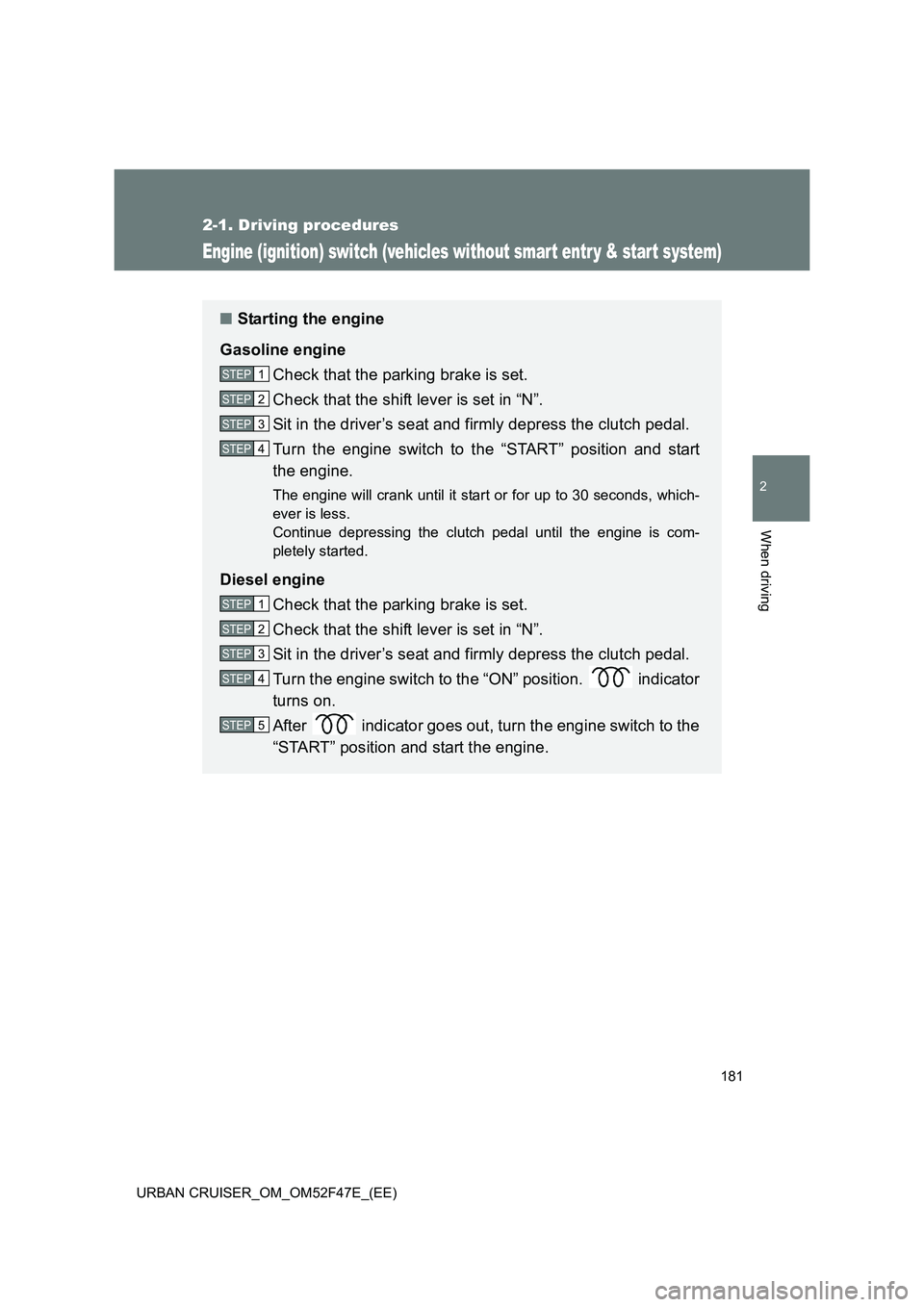

Engine (ignition) switch (vehicles without smart entr y & start system)
■Starting the engine
Gasoline engine Check that the parking brake is set.
Check that the shift lever is set in “N”.
Sit in the driver’s seat and firmly depress the clutch pedal.
Turn the engine switch to the “START” position and start
the engine.
The engine will crank until it start or for up to 30 seconds, which-
ever is less.
Continue depressing the clutch pedal until the engine is com-
pletely started.
Diesel engineCheck that the parking brake is set.
Check that the shift lever is set in “N”.
Sit in the driver’s seat and firmly depress the clutch pedal.
Turn the engine switch to the “ON” position. indicator
turns on.
After indicator goes out, turn the engine switch to the
“START” position and start the engine.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4
STEP5

182
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

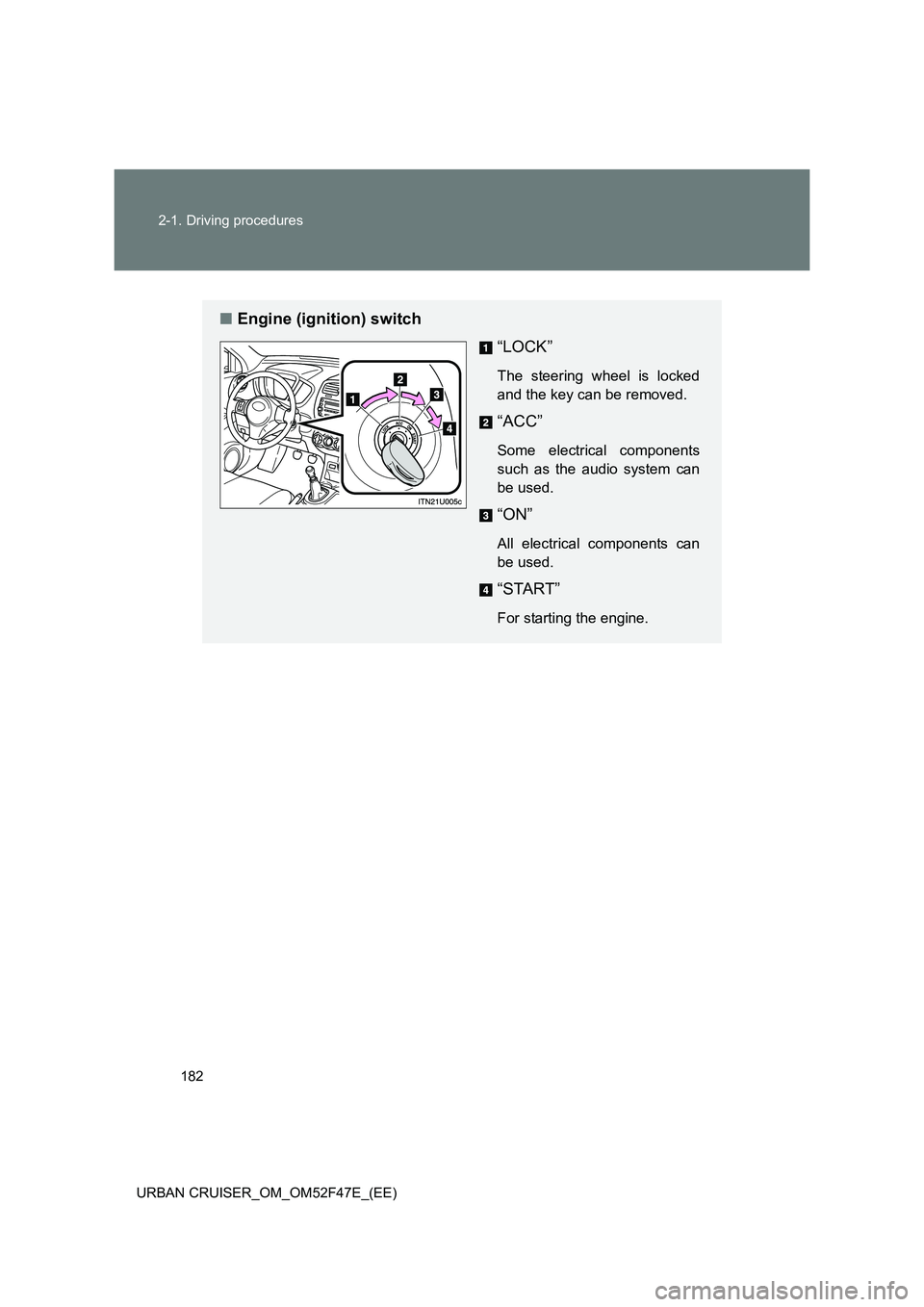

■ Engine (ignition) switch
“LOCK”
The steering wheel is locked
and the key can be removed.
“ACC”
Some electrical components
such as the audio system can
be used.
“ON”
All electrical components can
be used.
“START”
For starting the engine.

183
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

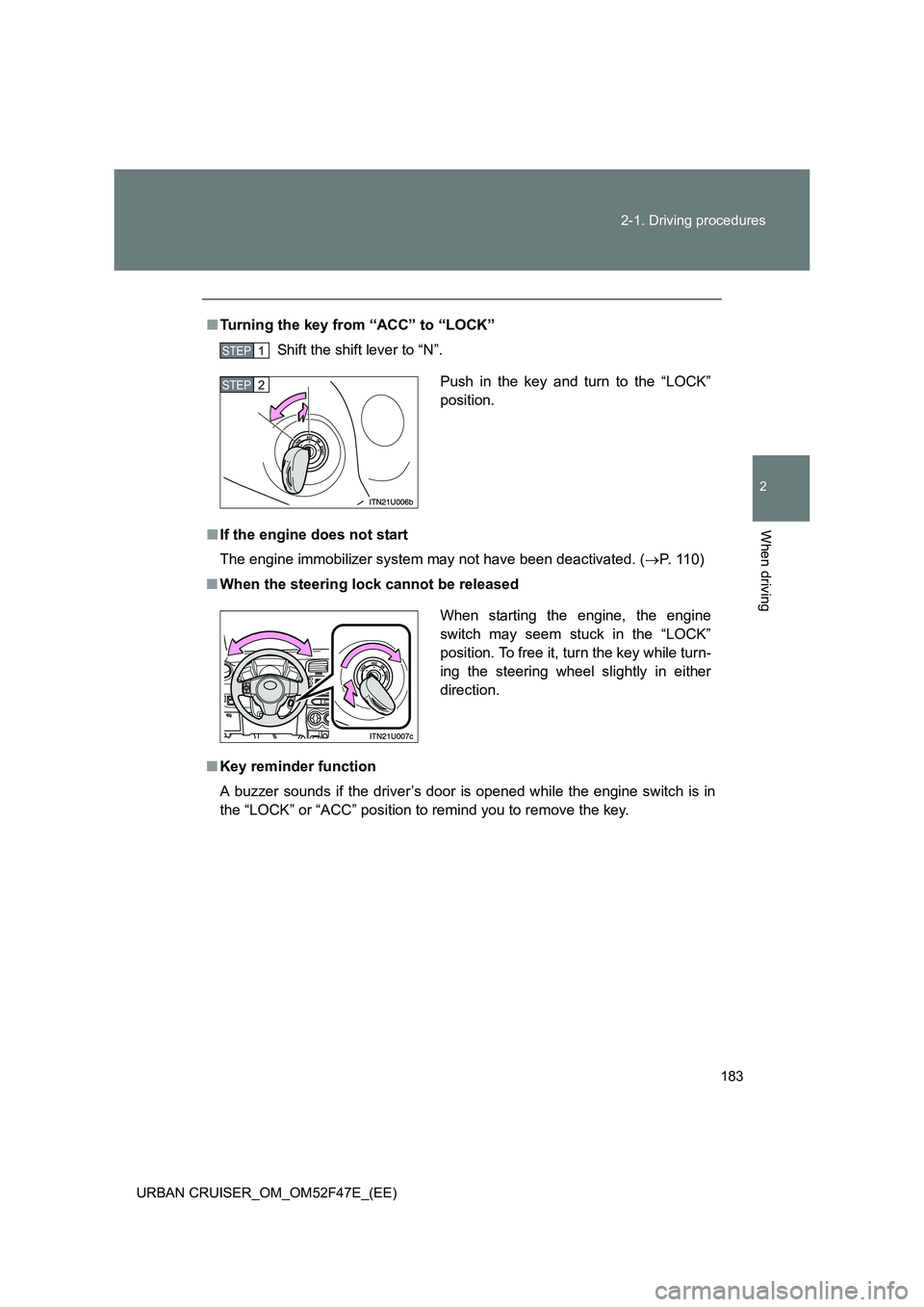

Turning the key from “ACC” to “LOCK”
Shift the shift lever to “N”.
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( →P. 110)
■ When the steering lock cannot be released
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key.
STEP1
Push in the key and turn to the “LOCK”
position.STEP2
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly in either
direction.

184
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

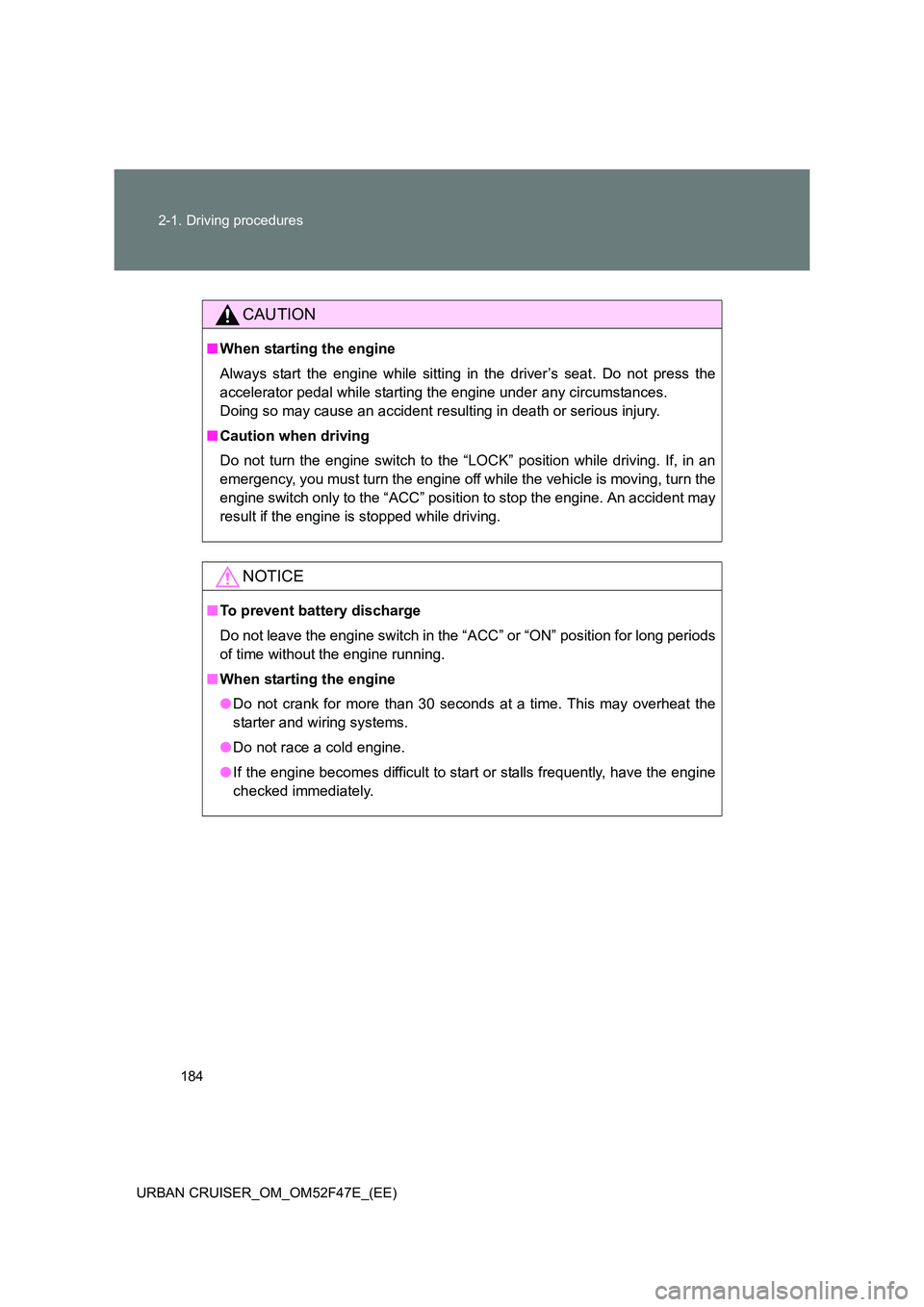

CAUTION
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not press the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn the
engine switch only to the “ACC” position to stop the engine. An accident may
result if the engine is stopped while driving.
NOTICE
■To prevent battery discharge
Do not leave the engine switch in the “A CC” or “ON” position for long periods
of time without the engine running.
■ When starting the engine
●Do not crank for more than 30 seconds at a time. This may overheat the
starter and wiring systems.
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

185
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

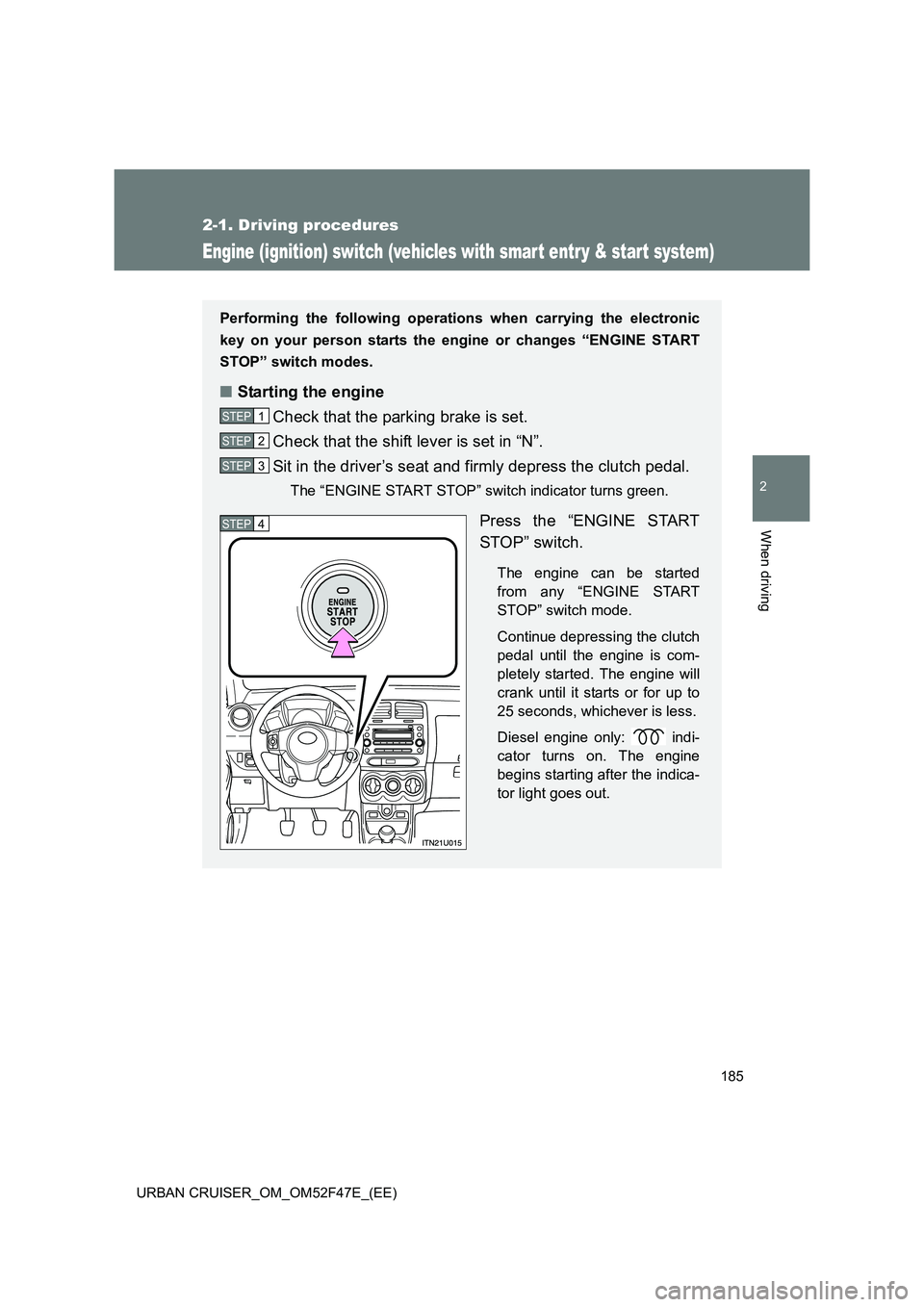

Engine (ignition) switch (vehicles with smart entry & start system)
Performing the following operations when carrying the electronic
key on your person starts the engine or changes “ENGINE START
STOP” switch modes.
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in “N”.
Sit in the driver’s seat and firmly depress the clutch pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
The engine can be started
from any “ENGINE START
STOP” switch mode.
Continue depressing the clutch
pedal until the engine is com-
pletely started. The engine will
crank until it starts or for up to
25 seconds, whichever is less.
Diesel engine only: indi-
cator turns on. The engine
begins starting after the indica-
tor light goes out.
STEP1
STEP2
STEP3
STEP4

186
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

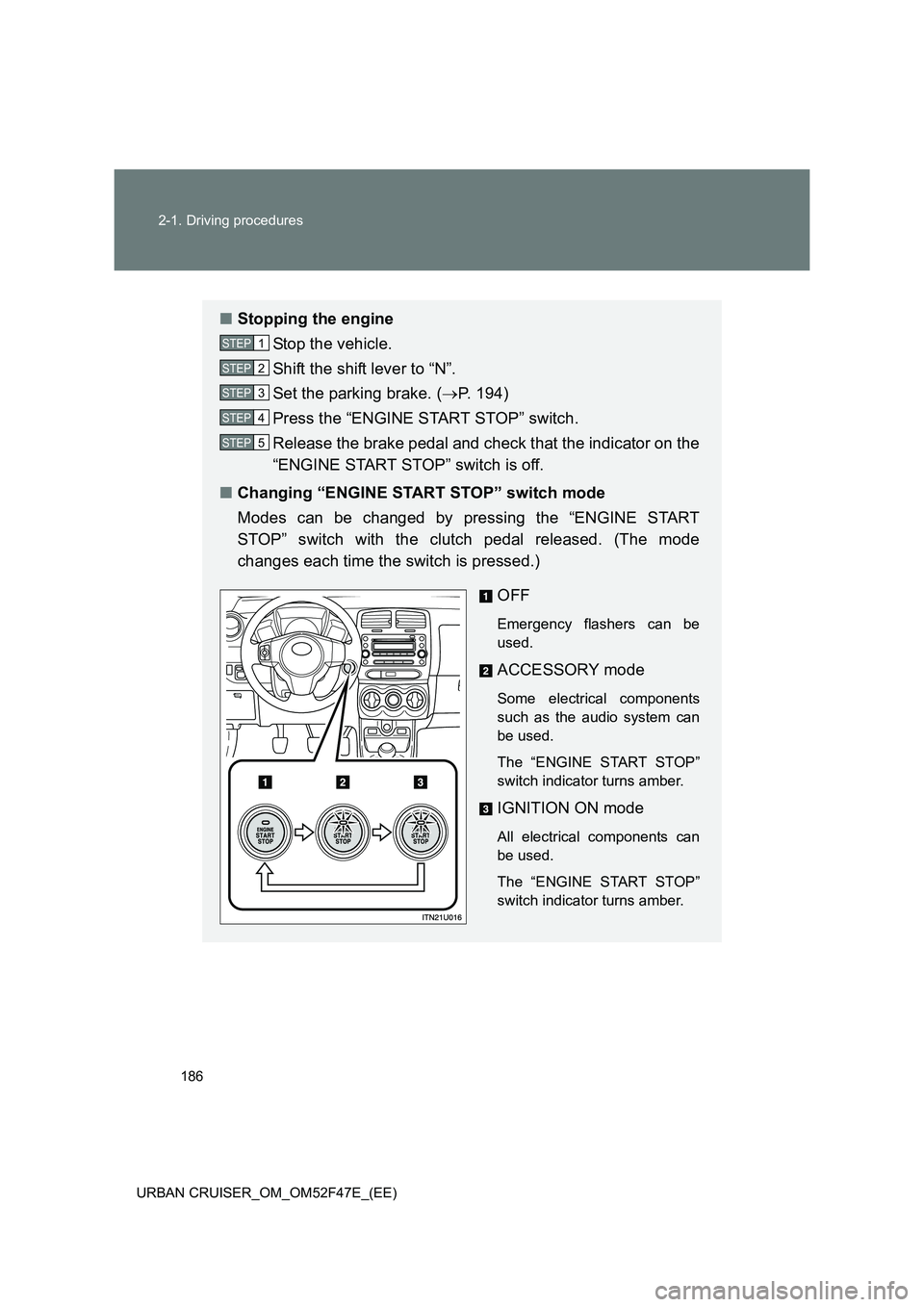

■ Stopping the engine
Stop the vehicle.
Shift the shift lever to “N”.
Set the parking brake. ( →P. 194)
Press the “ENGINE START STOP” switch.
Release the brake pedal and check that the indicator on the
“ENGINE START STOP” switch is off.
■ Changing “ENGINE START STOP” switch mode
Modes can be changed by pressing the “ENGINE START
STOP” switch with the clutch pedal released. (The mode
changes each time the switch is pressed.)
OFF
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
STEP1
STEP2
STEP3
STEP4
STEP5

187
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

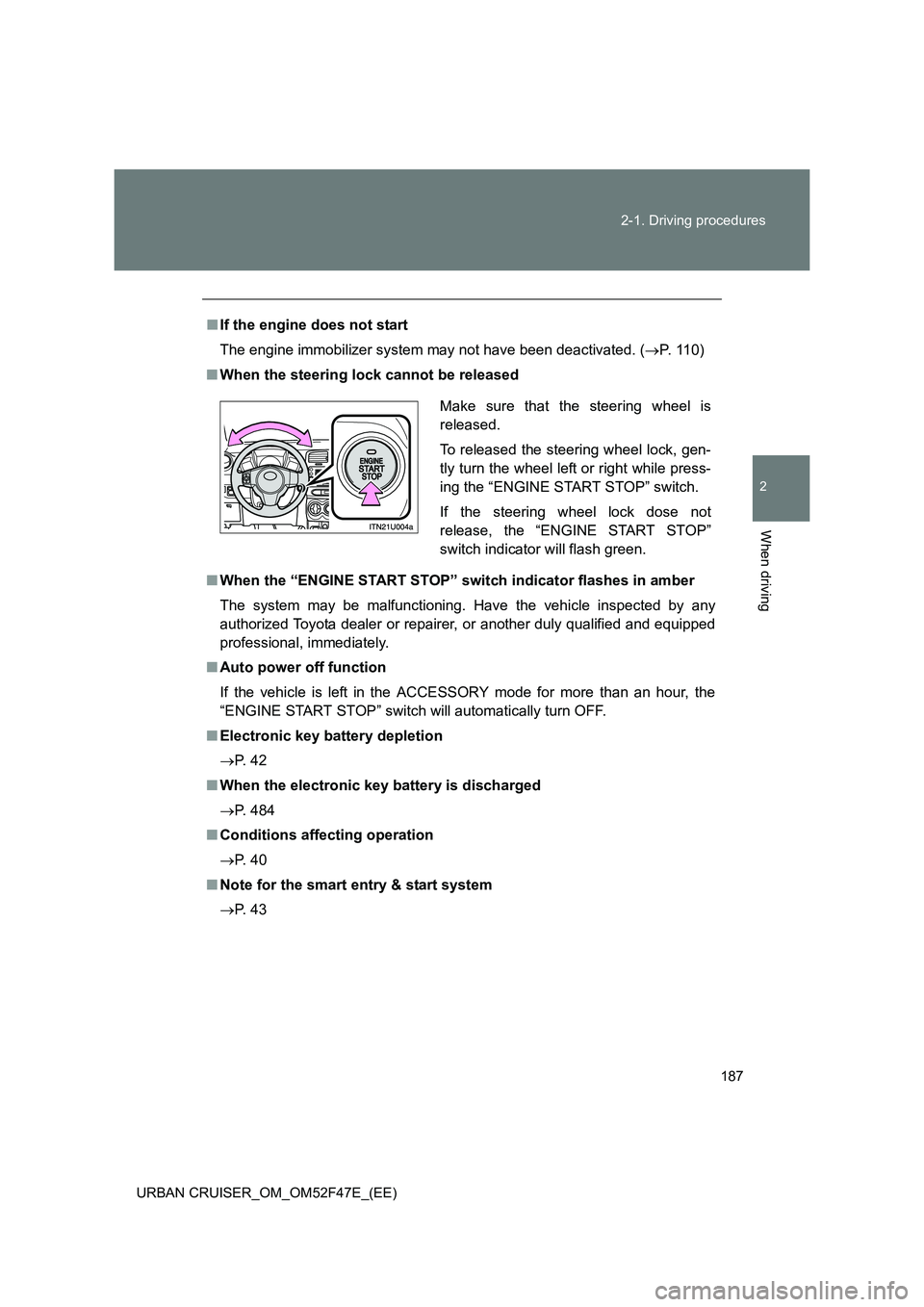

If the engine does not start
The engine immobilizer system may not have been deactivated. ( →P. 110)
■ When the steering lock cannot be released
■ When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately.
■ Auto power off function
If the vehicle is left in the ACCESSORY mode for more than an hour, the
“ENGINE START STOP” switch will automatically turn OFF.
■ Electronic key battery depletion
→ P. 4 2
■ When the electronic key battery is discharged
→ P. 484
■ Conditions affecting operation
→ P. 4 0
■ Note for the smart entry & start system
→ P. 4 3 Make sure that the steering wheel is
released.
To released the steering wheel lock, gen-
tly turn the wheel left or right while press-
ing the “ENGINE START STOP” switch.
If the steering wheel lock dose not
release, the “ENGINE START STOP”
switch indicator will flash green.

188
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

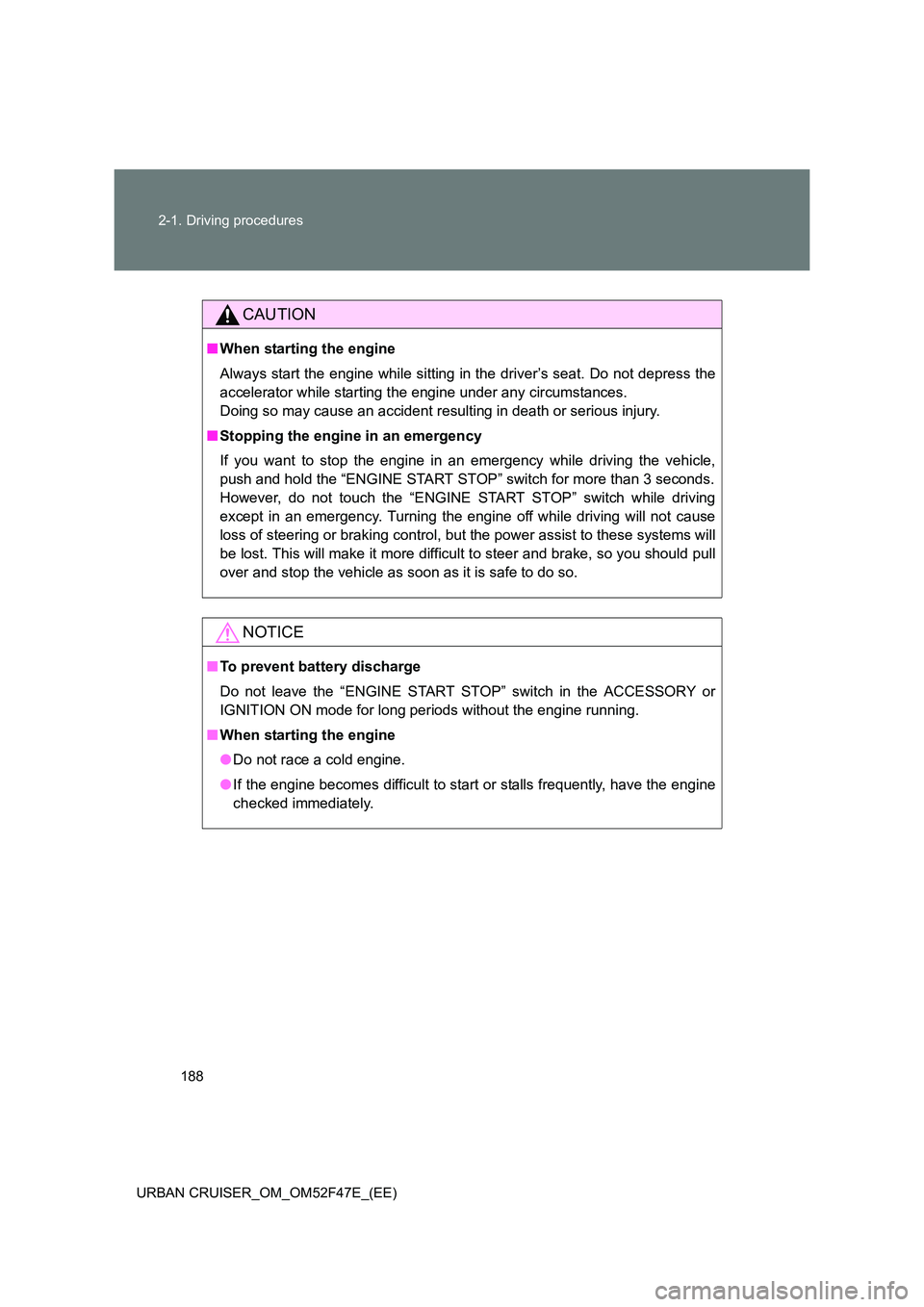

CAUTION
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
push and hold the “ENGINE START STOP” switch for more than 3 seconds.
However, do not touch the “ENGINE START STOP” switch while driving
except in an emergency. Turning the engine off while driving will not cause
loss of steering or braking control, but the power assist to these systems will
be lost. This will make it more difficult to steer and brake, so you should pull
over and stop the vehicle as soon as it is safe to do so.
NOTICE
■To prevent battery discharge
Do not leave the “ENGINE START STOP” switch in the ACCESSORY or
IGNITION ON mode for long periods without the engine running.
■ When starting the engine
●Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

189
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

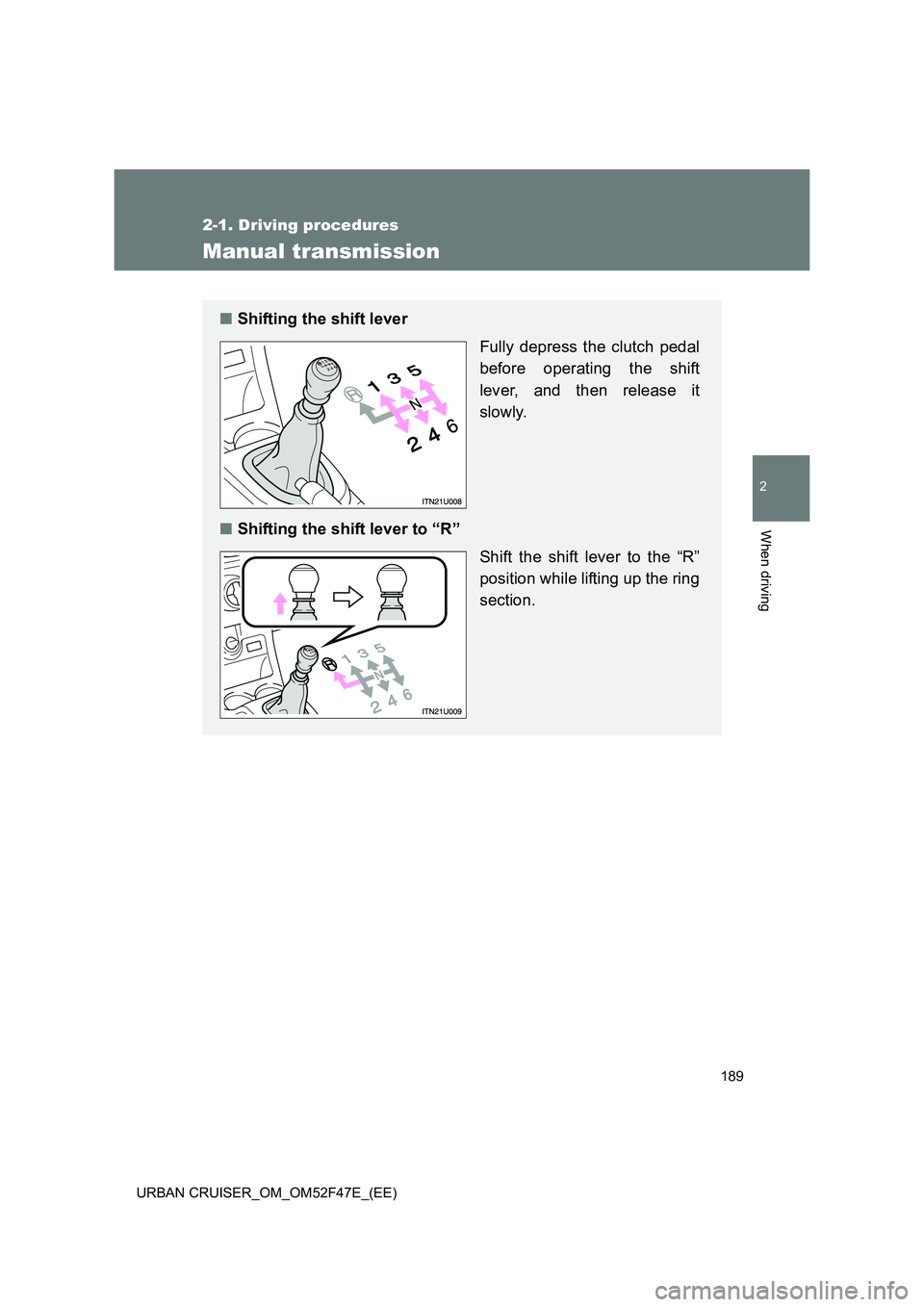

Manual transmission
■Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release it
slowly.
■ Shifting the shift lever to “R”
Shift the shift lever to the “R”
position while lifting up the ring
section.

190
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

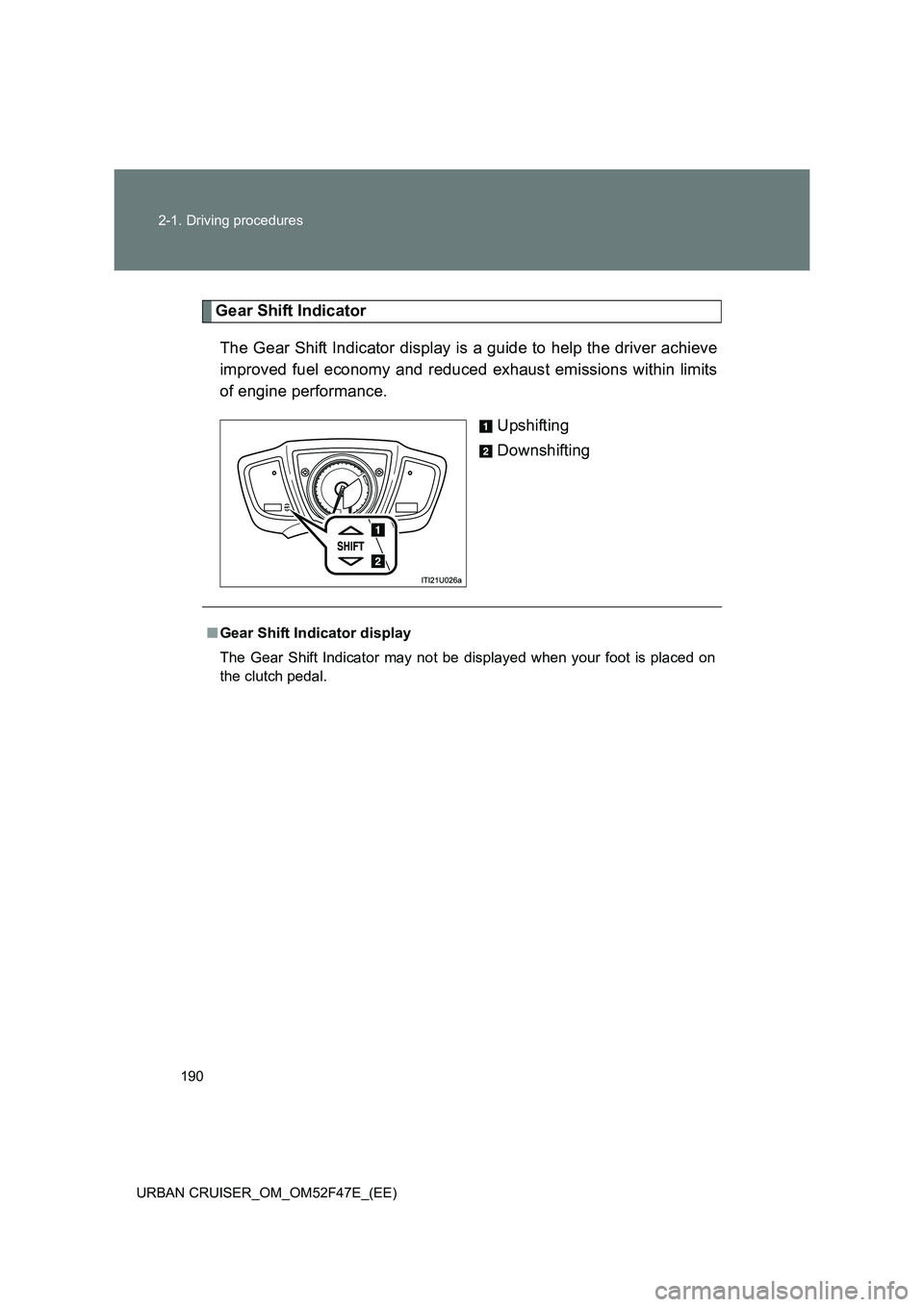

Gear Shift Indicator The Gear Shift Indicator display is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance. Upshifting
Downshifting
■Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
