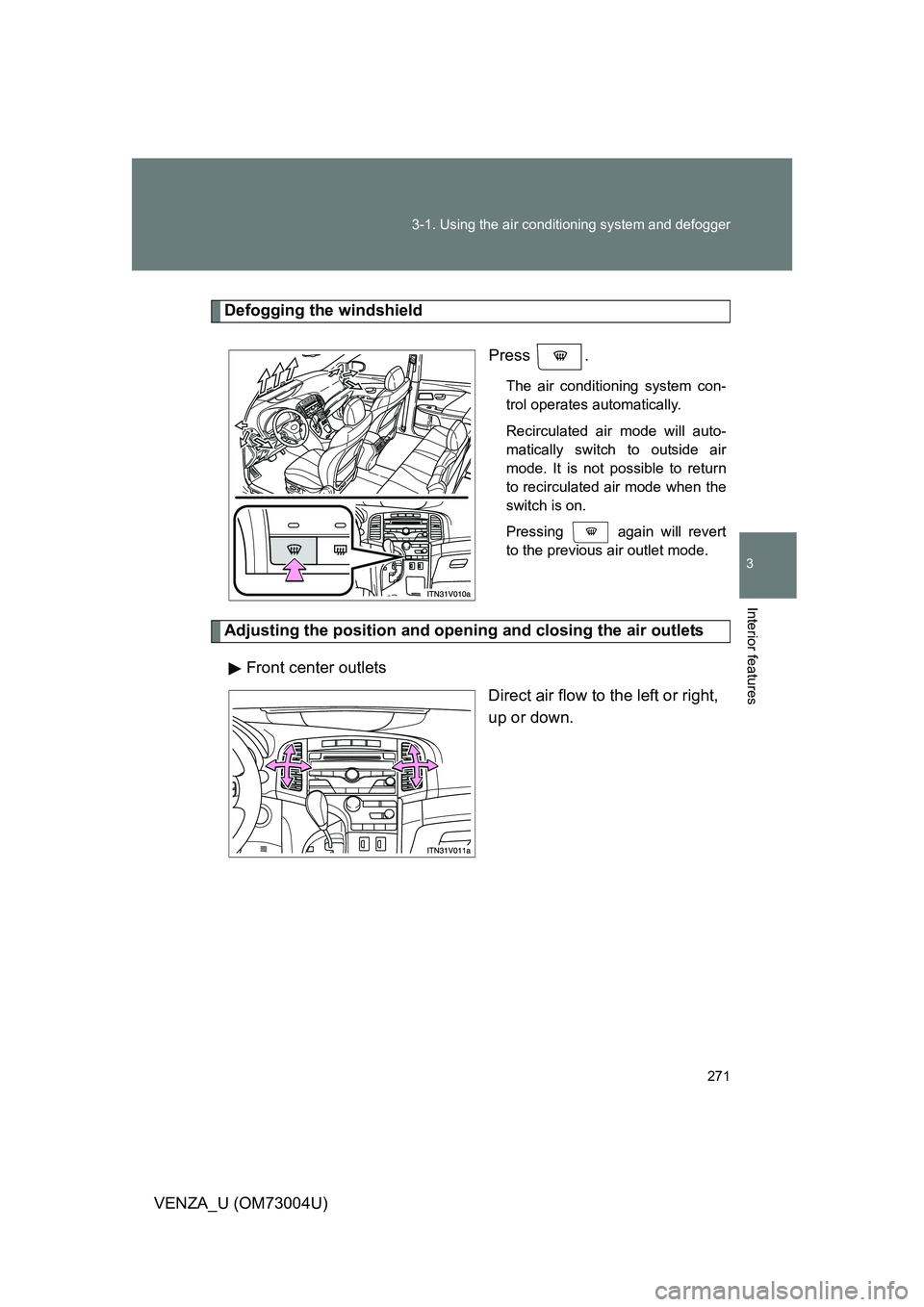

Page 271 of 620
271
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73004U)
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.
Pressing again will revert
to the previous air outlet mode.
Adjusting the position and opening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.

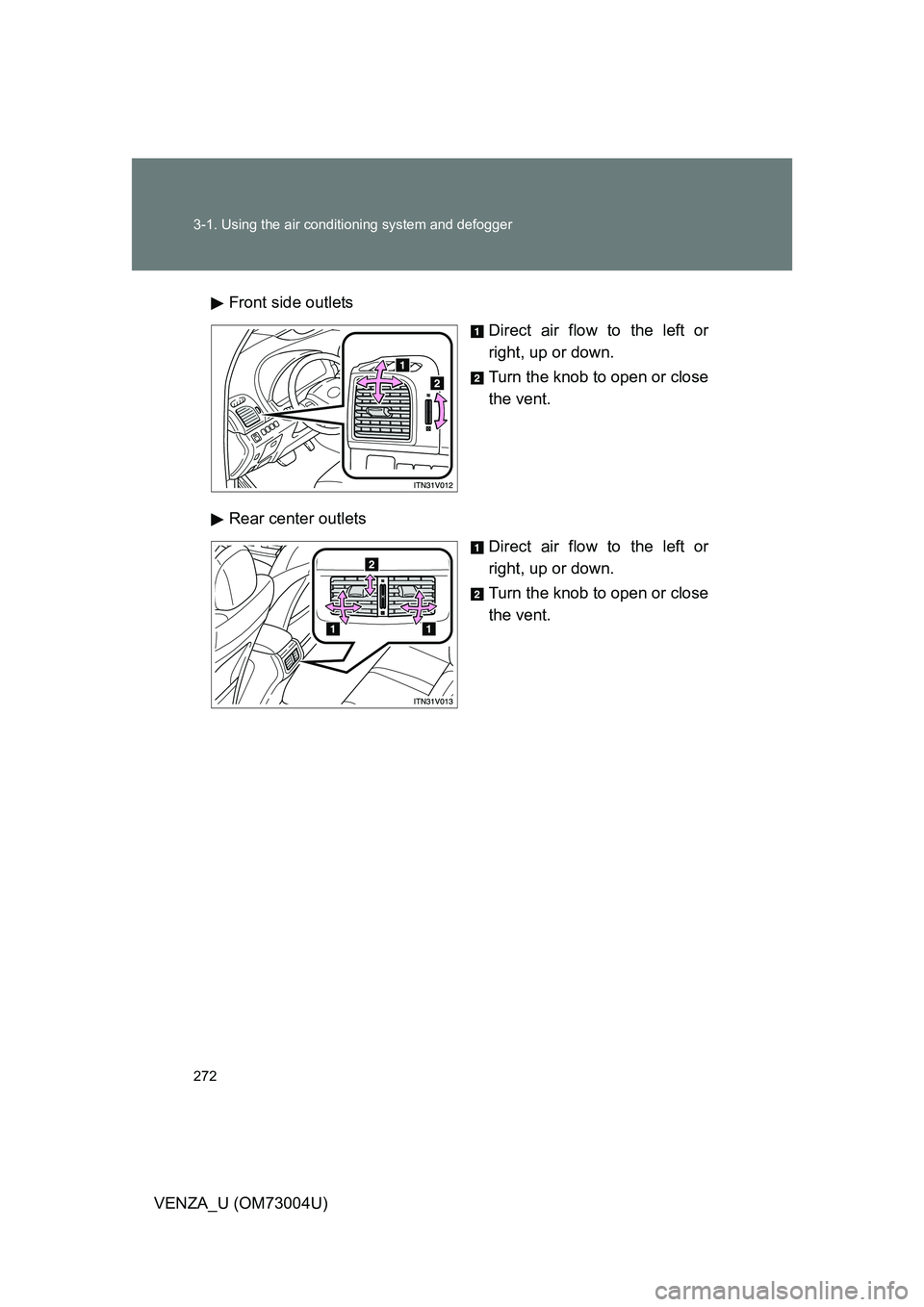

Page 272 of 620
272 3-1. Using the air conditioning system and defogger
VENZA_U (OM73004U)Front side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

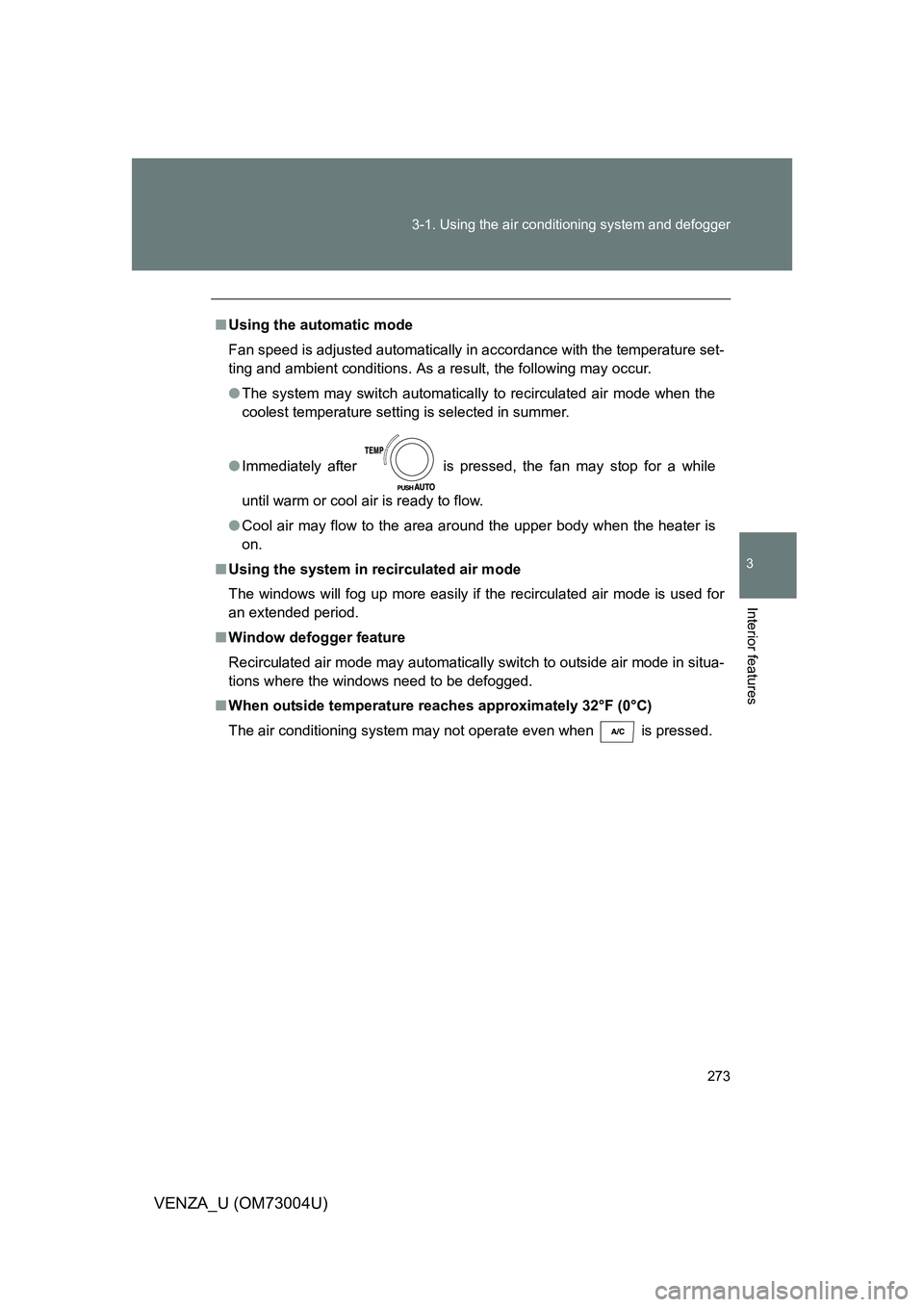

Page 273 of 620
273
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73004U)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
● The system may switch automatically to recirculated air mode when the
coolest temperature setting is selected in summer.
● Immediately after is pressed, the fan may stop for a while
until warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside temperature r eaches approximately 32°F (0°C)
The air conditioning system may not operate even when is pressed.

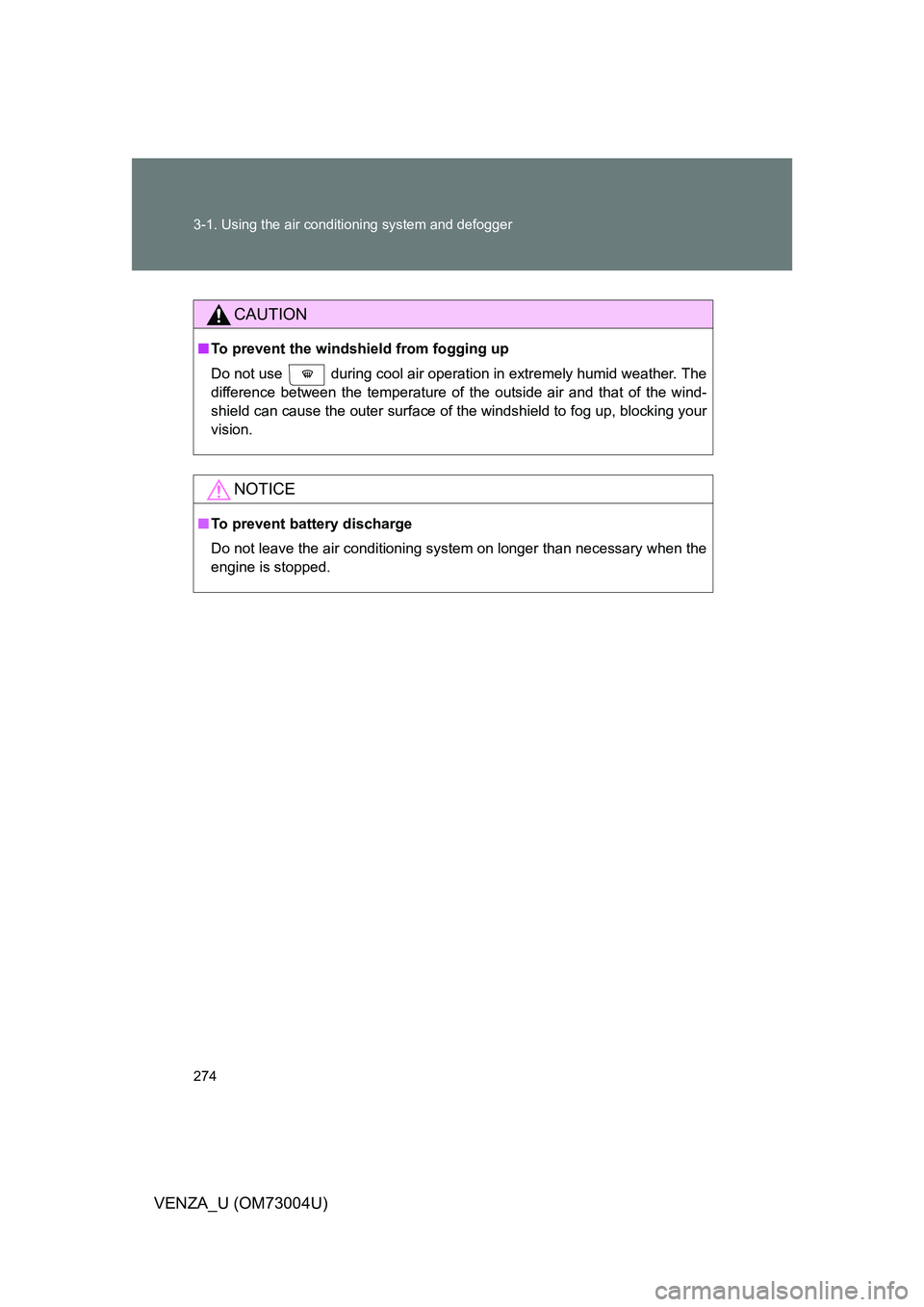

Page 274 of 620
274 3-1. Using the air conditioning system and defogger
VENZA_U (OM73004U)
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

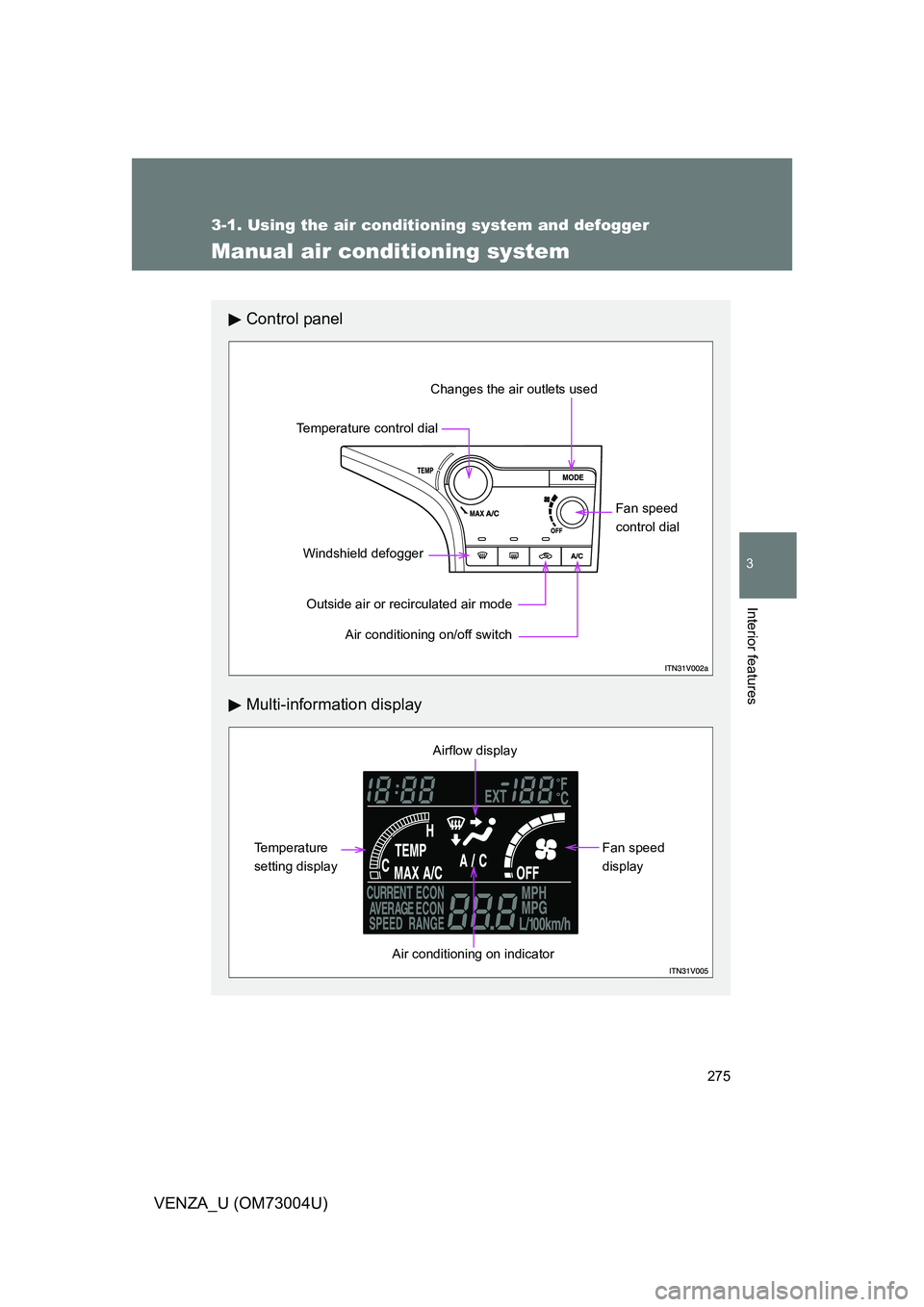

Page 275 of 620
275
3-1. Using the air conditioning system and defogger
3
Interior features
VENZA_U (OM73004U)
Manual air conditioning system
Control panel
Multi-information display
Temperature control dial
Changes the air outlets used
Fan speed
control dial
Outside air or recirculated air mode Air conditioning on/off switch
Windshield defogger
Airflow display
Temperature
setting display
Air conditioning on indicator
Fan speed
display

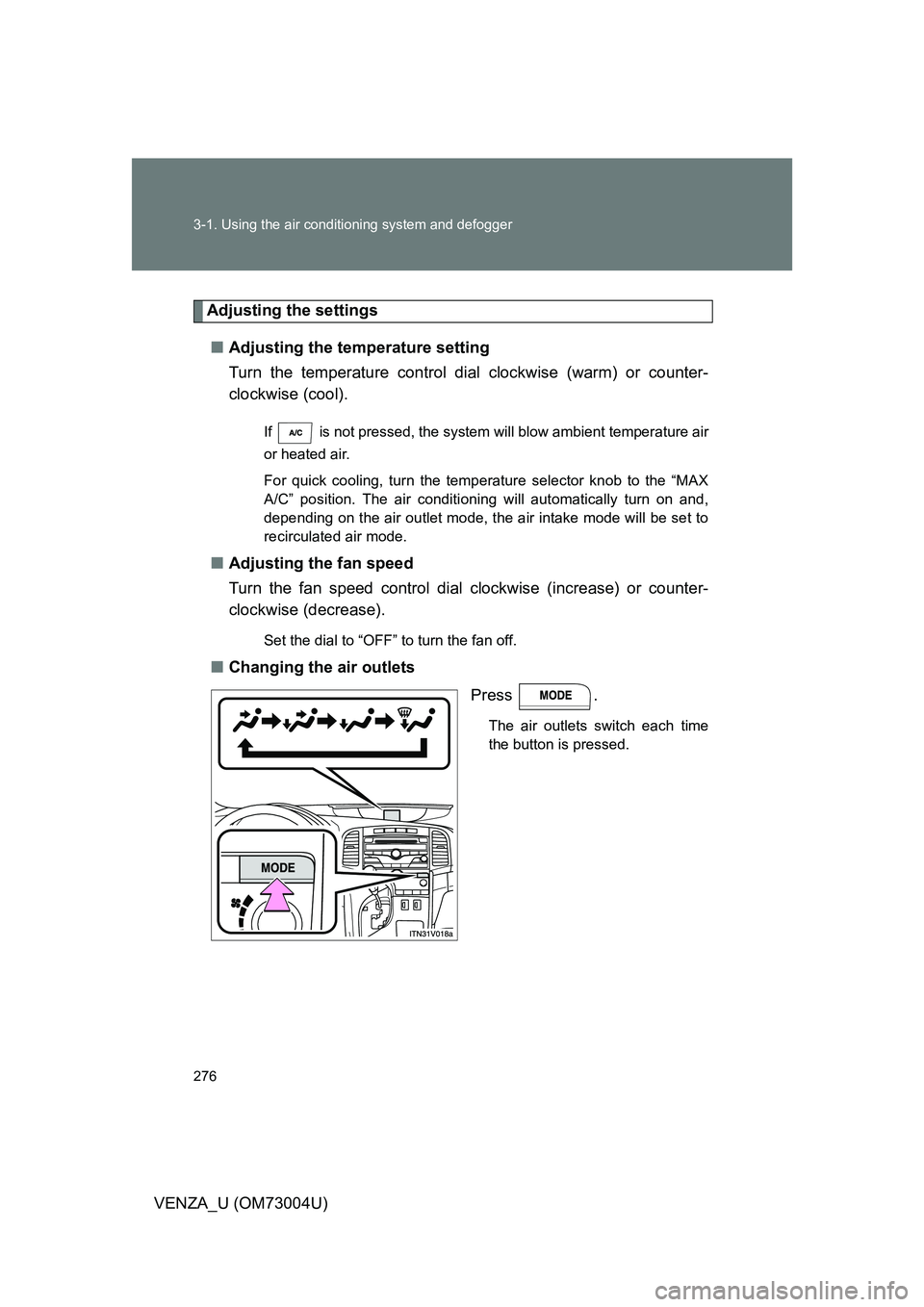

Page 276 of 620
276 3-1. Using the air conditioning system and defogger
VENZA_U (OM73004U)
Adjusting the settings
■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
For quick cooling, turn the temperature selector knob to the “MAX
A/C” position. The air conditi oning will automatically turn on and,
depending on the air outlet mode, the air intake mode will be set to
recirculated air mode.
■ Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Set the dial to “OFF” to turn the fan off.
■ Changing the air outlets
Press .
The air outlets switch each time
the button is pressed.

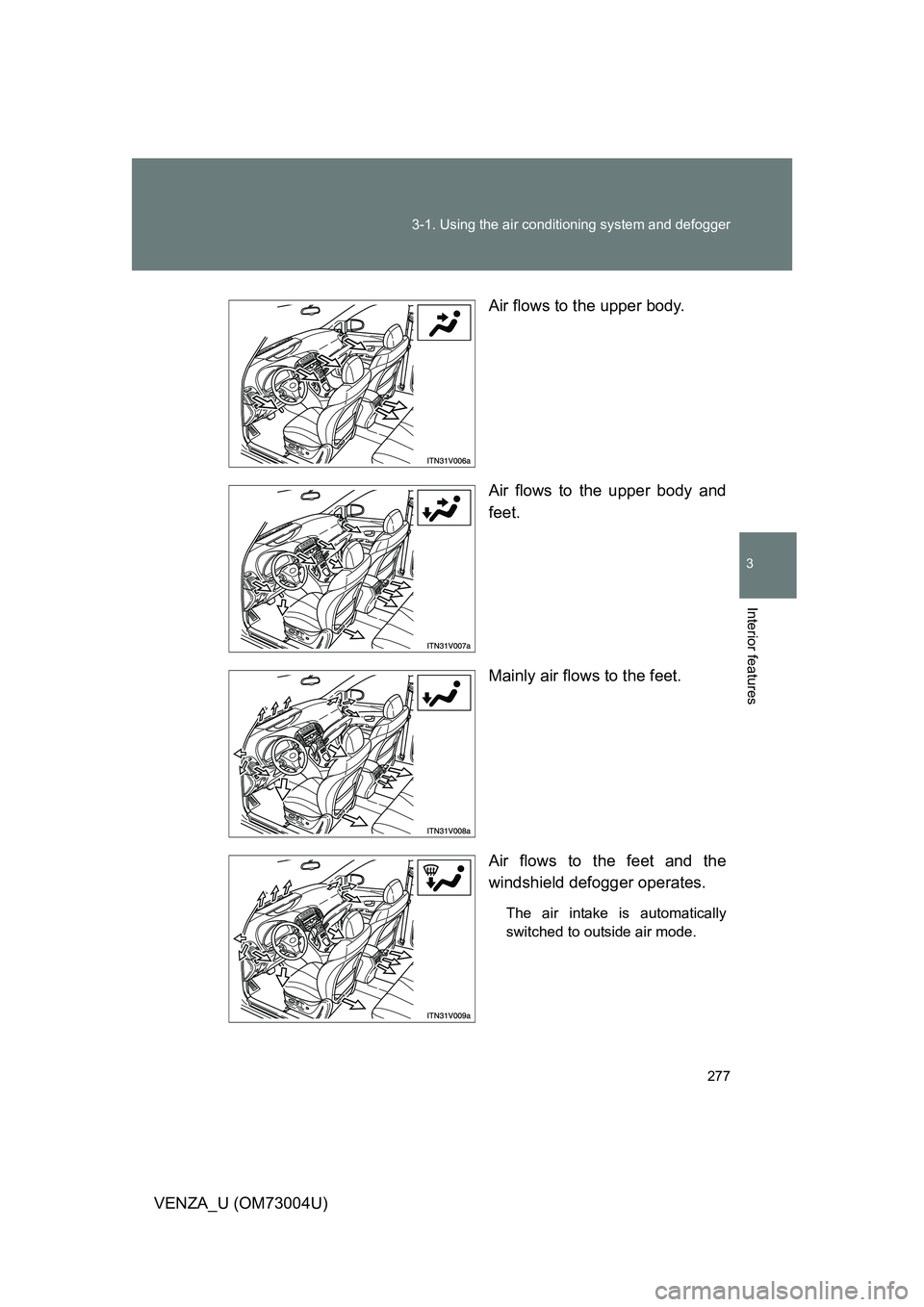

Page 277 of 620
277
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73004U) Air flows to the upper body.
Air flows to the upper body and
feet.
Mainly air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode.

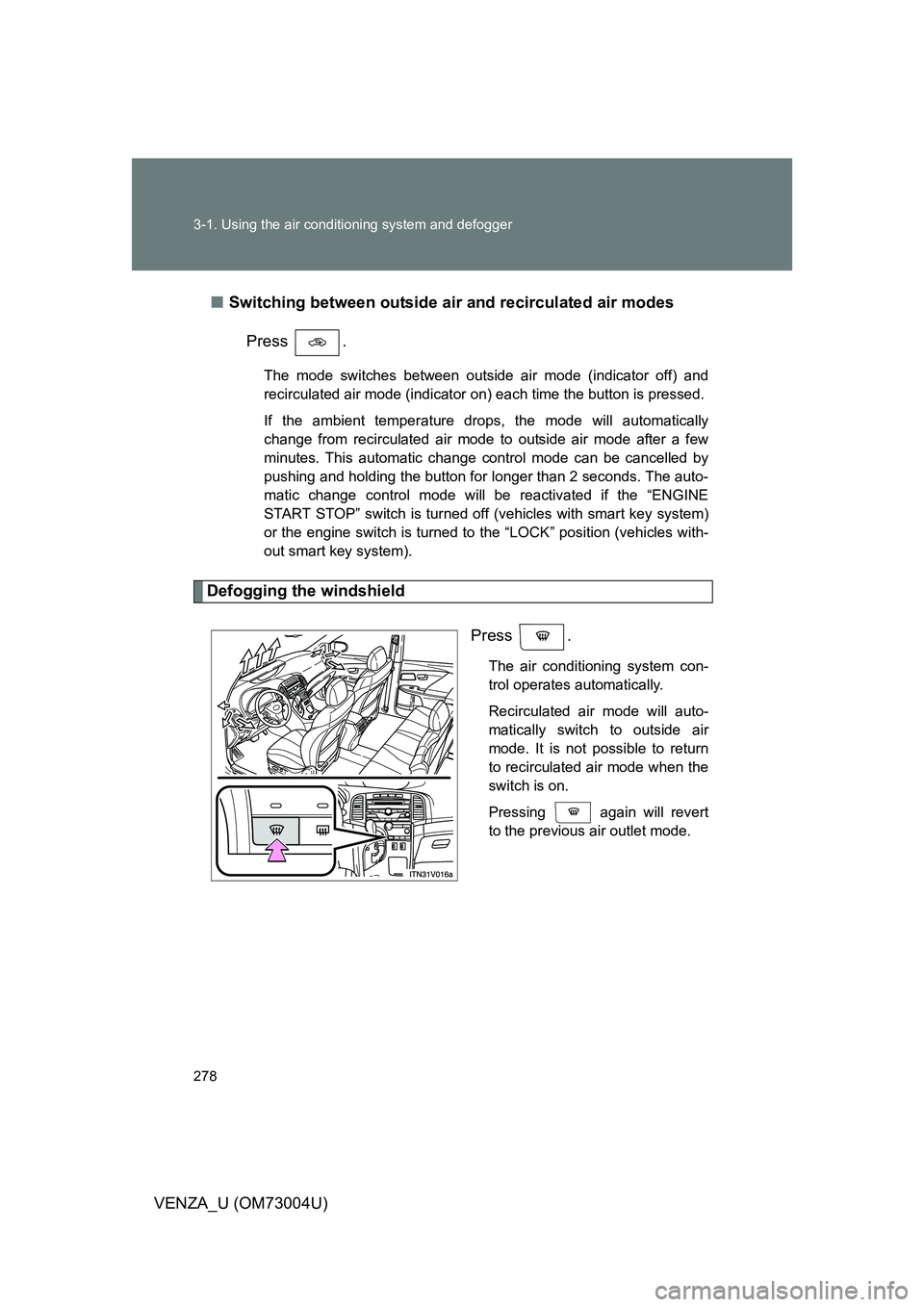

Page 278 of 620

278 3-1. Using the air conditioning system and defogger
VENZA_U (OM73004U)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and
recirculated air mode (indicator on) each time the button is pressed.
If the ambient temperature drops, the mode will automatically
change from recirculated air mode to outside air mode after a few
minutes. This automatic change control mode can be cancelled by
pushing and holding the button for longer than 2 seconds. The auto-
matic change control mode will be reactivated if the “ENGINE
START STOP” switch is turned off (vehicles with smart key system)
or the engine switch is turned to the “LOCK” position (vehicles with-
out smart key system).
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.
Pressing again will revert
to the previous air outlet mode.

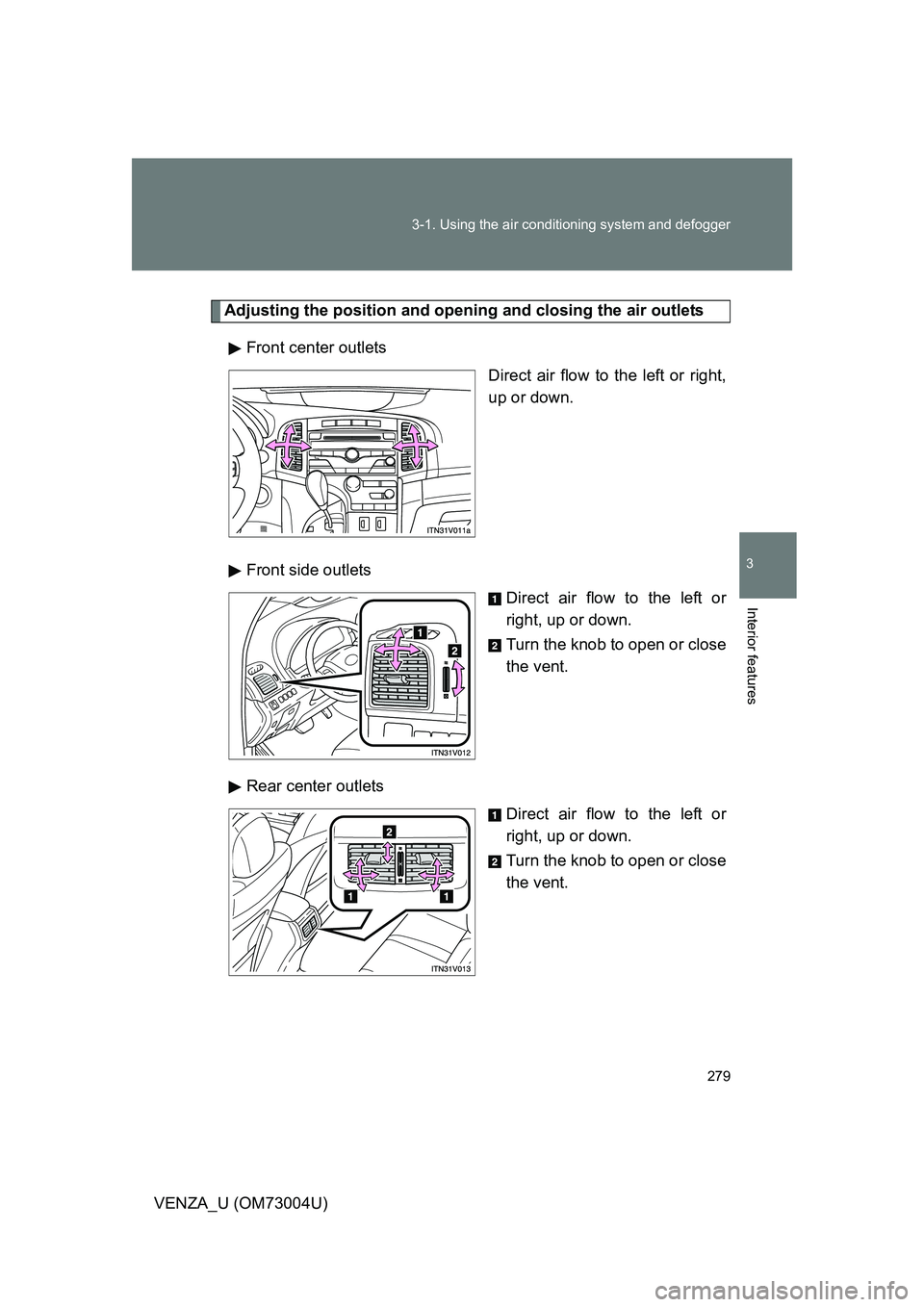

Page 279 of 620
279
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73004U)
Adjusting the position and opening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.
Front side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

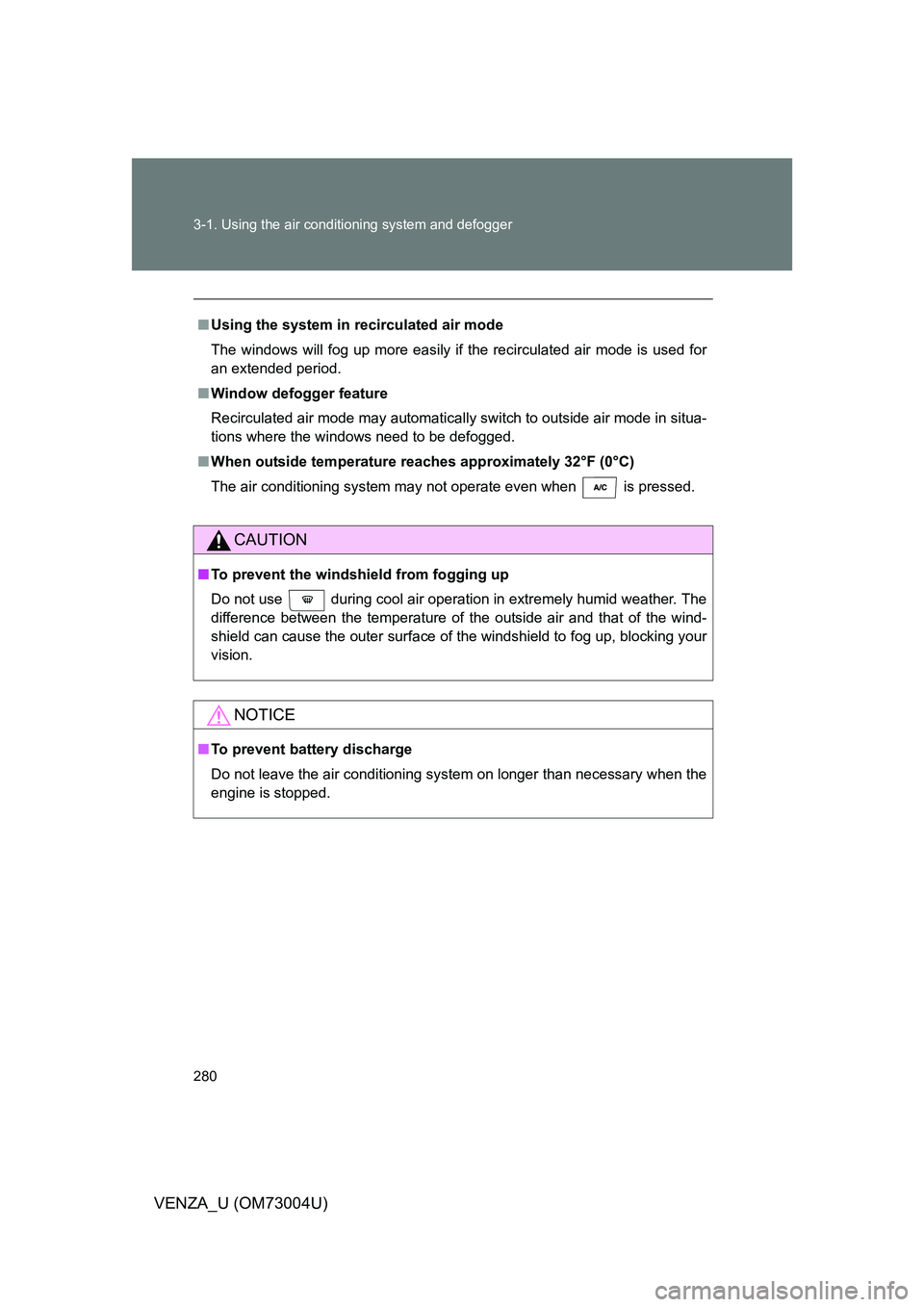

Page 280 of 620
280 3-1. Using the air conditioning system and defogger
VENZA_U (OM73004U)
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside temperature reaches approximately 32°F (0°C)
The air conditioning system may not operate even when is pressed.
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
