TOYOTA VENZA 2009 Owners Manual (in English)

311
3-2. Using the audio system
3
Interior features
VENZA_U (OM73004U)
■

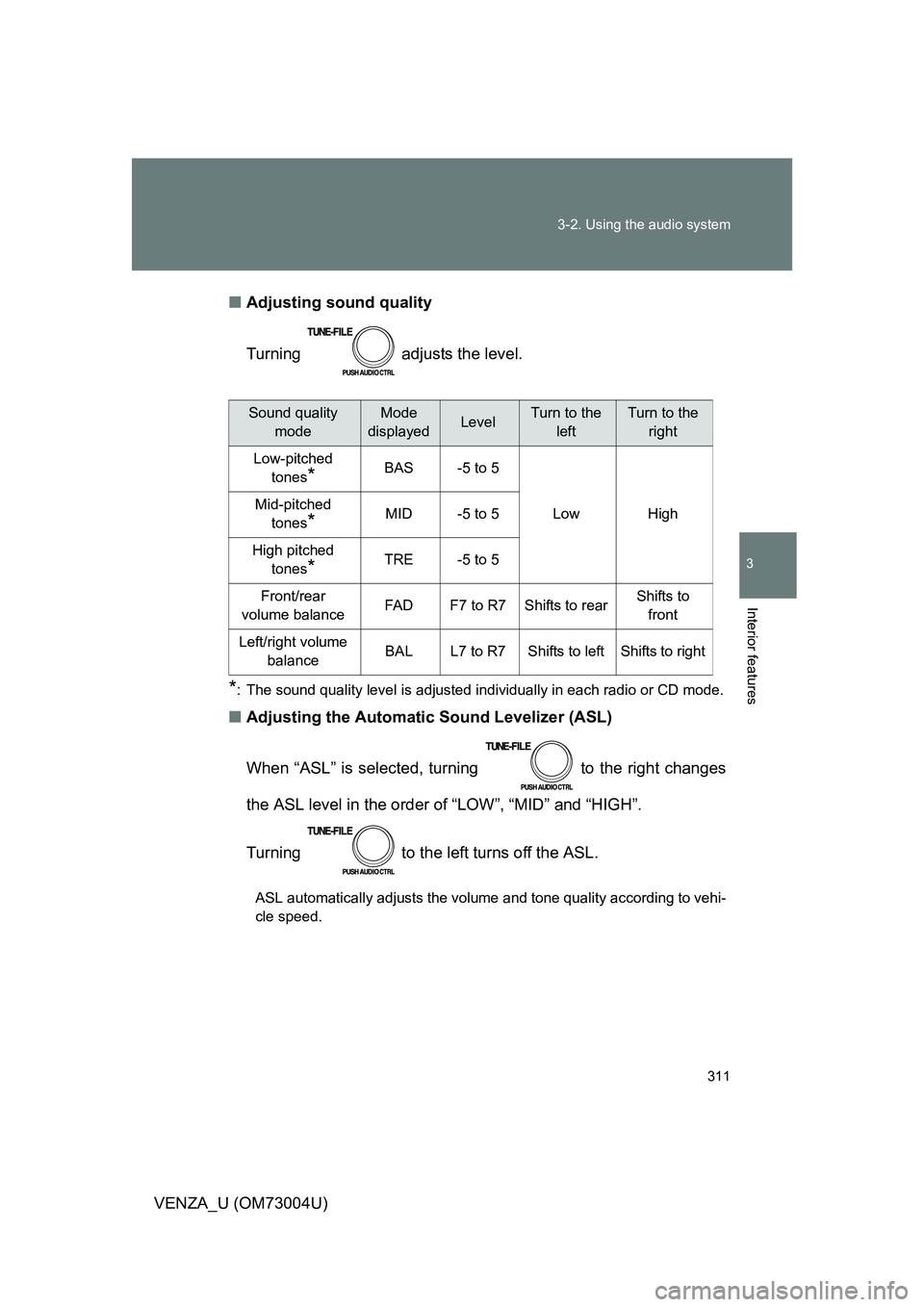

Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each radio or CD mode.
■Adjusting the Automatic Sound Levelizer (ASL)
When “ASL” is selected, tu rning to the right changes
the ASL level in the order of “LOW”, “MID” and “HIGH”.
Turning to the left turns off the ASL.
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Sound quality modeMode
displayedLevelTurn to the leftTurn to the right
Low-pitched tones
*BAS -5 to 5
Low High
Mid-pitched
tones
*MID -5 to 5
High pitched tones
*TRE -5 to 5
Front/rear
volume balance FAD F7 to R7 Shifts to rear Shifts to
front
Left/right volume balance BAL L7 to R7 Shifts to left Shifts to right

312
3-2. Using the audio system
VENZA_U (OM73004U)

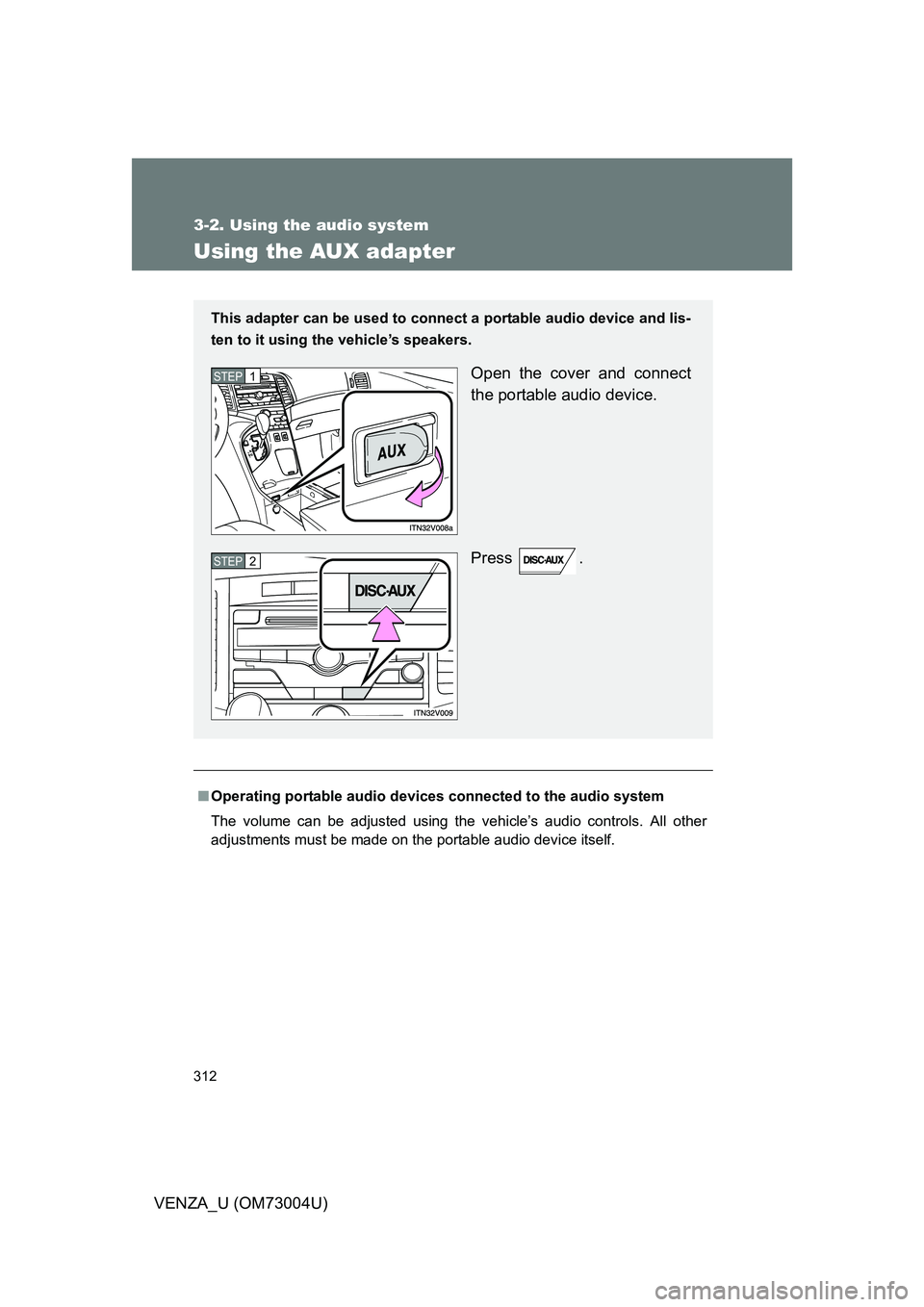

Using the AUX adapter
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
This adapter can be used to connect a portable audio device and lis-
ten to it using the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press .STEP1
STEP2

313
3-2. Using the audio system
3
Interior features
VENZA_U (OM73004U)

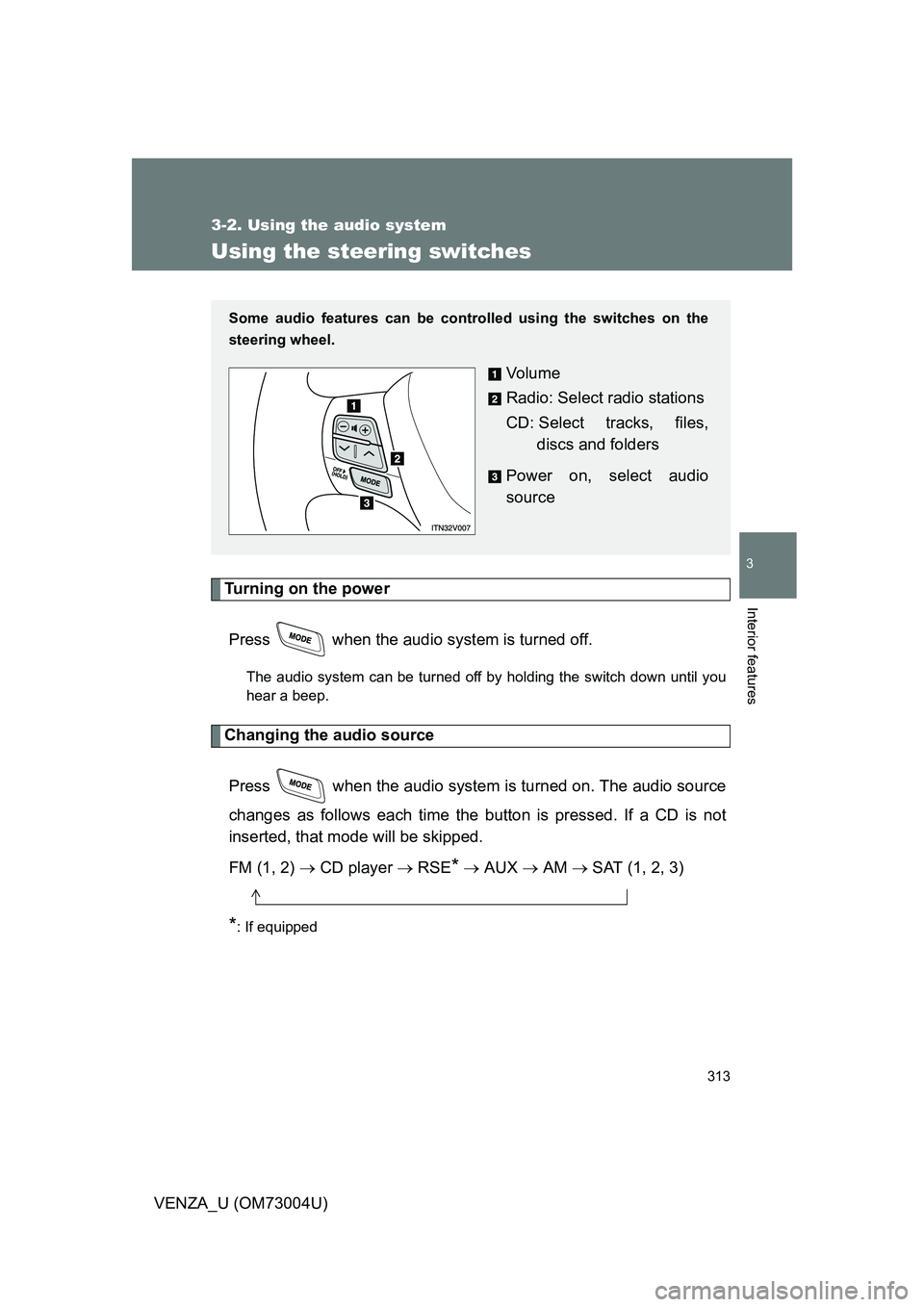

Using the steering switches
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time the bu tton is pressed. If a CD is not
inserted, that mode will be skipped.
FM (1, 2)  CD player  RSE
*  AUX  AM  SAT (1, 2, 3)
*: If equipped
Some audio features can be cont rolled using the switches on the
steering wheel.
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files, discs and folders
Power on, select audio
source

314 3-2. Using the audio system
VENZA_U (OM73004U)

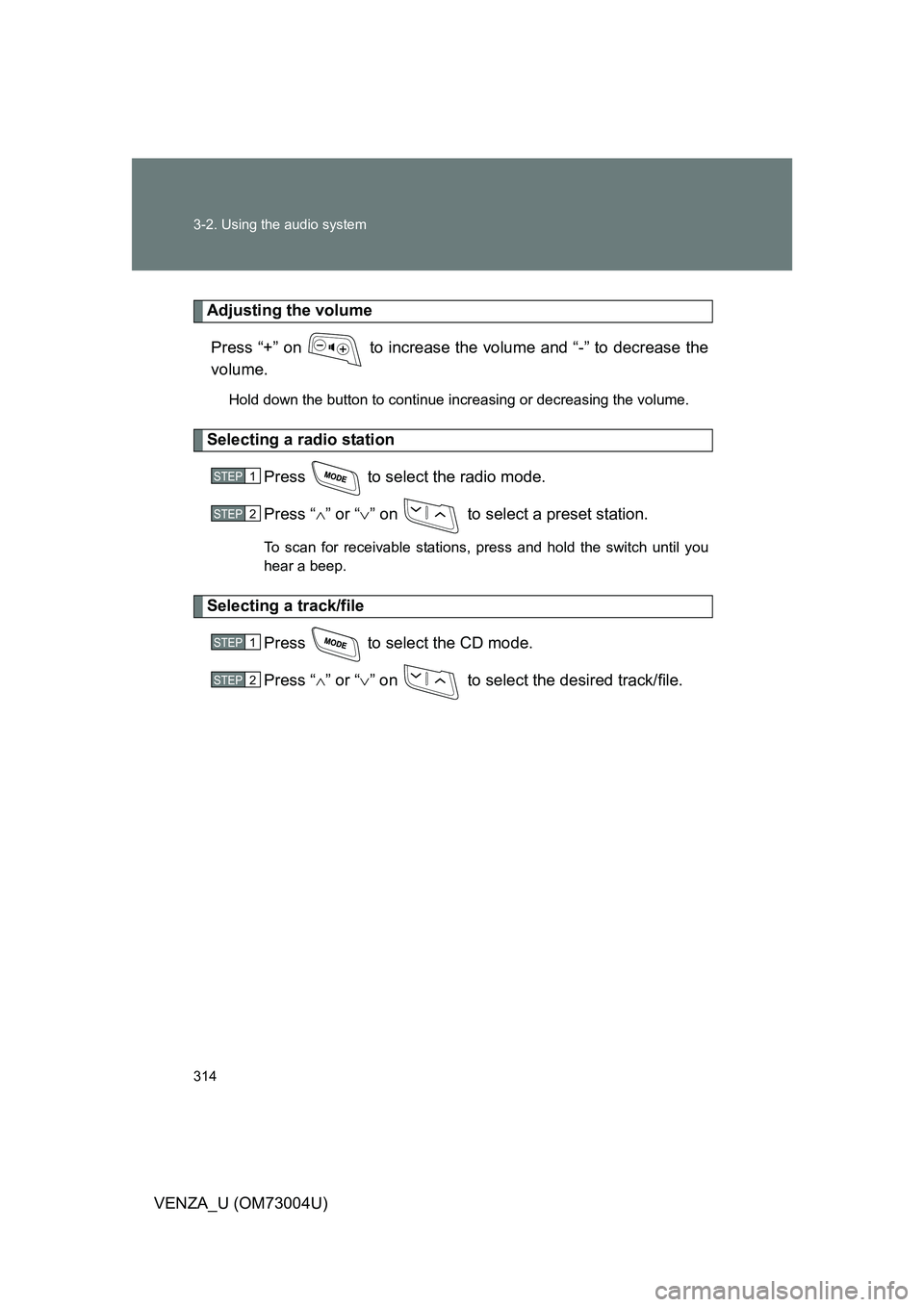

Adjusting the volumePress “+” on to increase the volume and “-” to decrease the
volume.
Hold down the button to continue increasing or decreasing the volume.
Selecting a radio station Press to select the radio mode.
Press “” or “ ” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file
Press to select the CD mode.
Press “” or “ ” on to select the desired track/file.
STEP1
STEP2
STEP1
STEP2

315
3-2. Using the audio system
3
Interior features
VENZA_U (OM73004U)

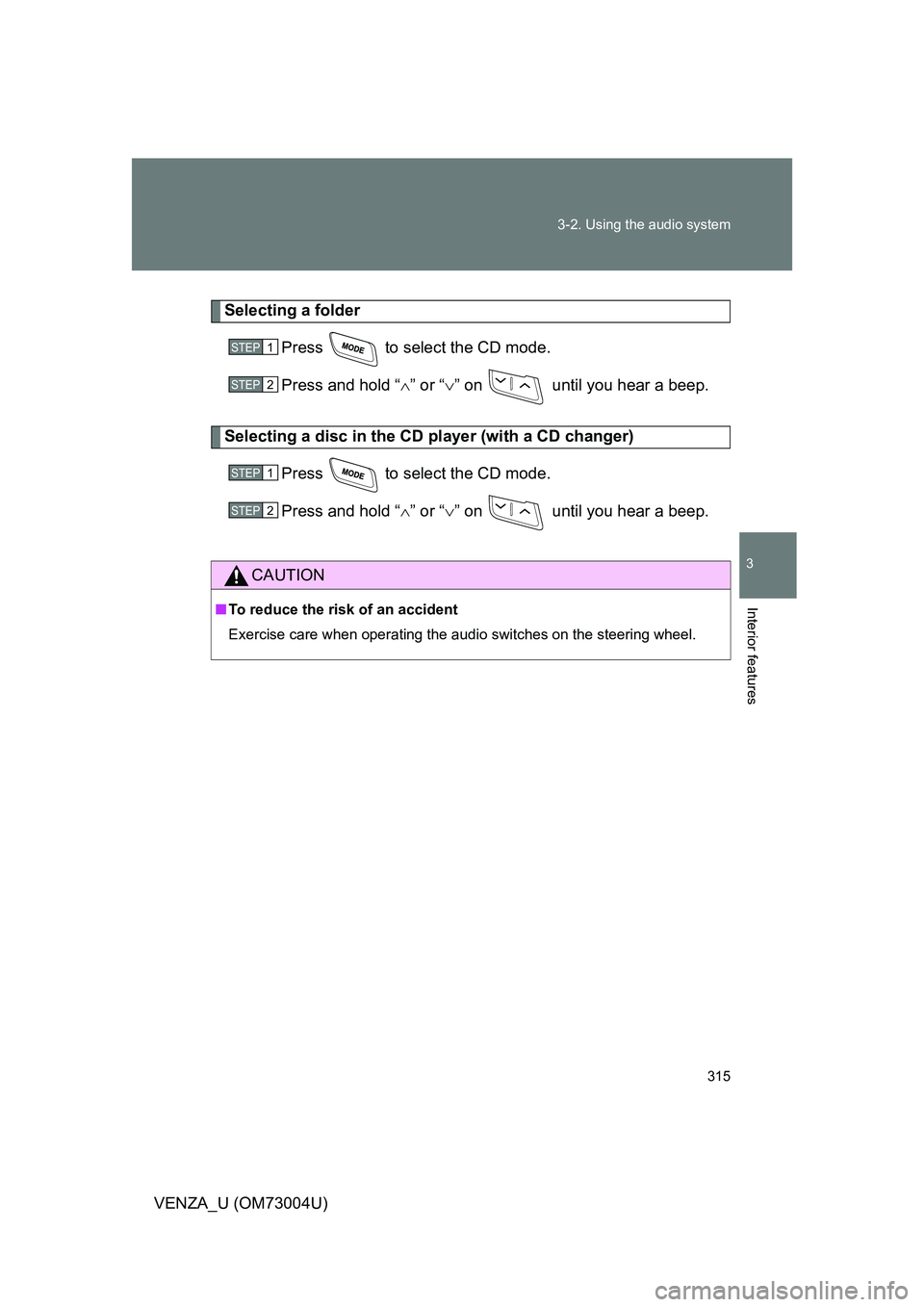

Selecting a folder
Press to select the CD mode.
Press and hold “ ” or “ ” on until you hear a beep.
Selecting a disc in the CD player (with a CD changer)
Press to select the CD mode.
Press and hold “ ” or “ ” on until you hear a beep.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2

316
VENZA_U (OM73004U)

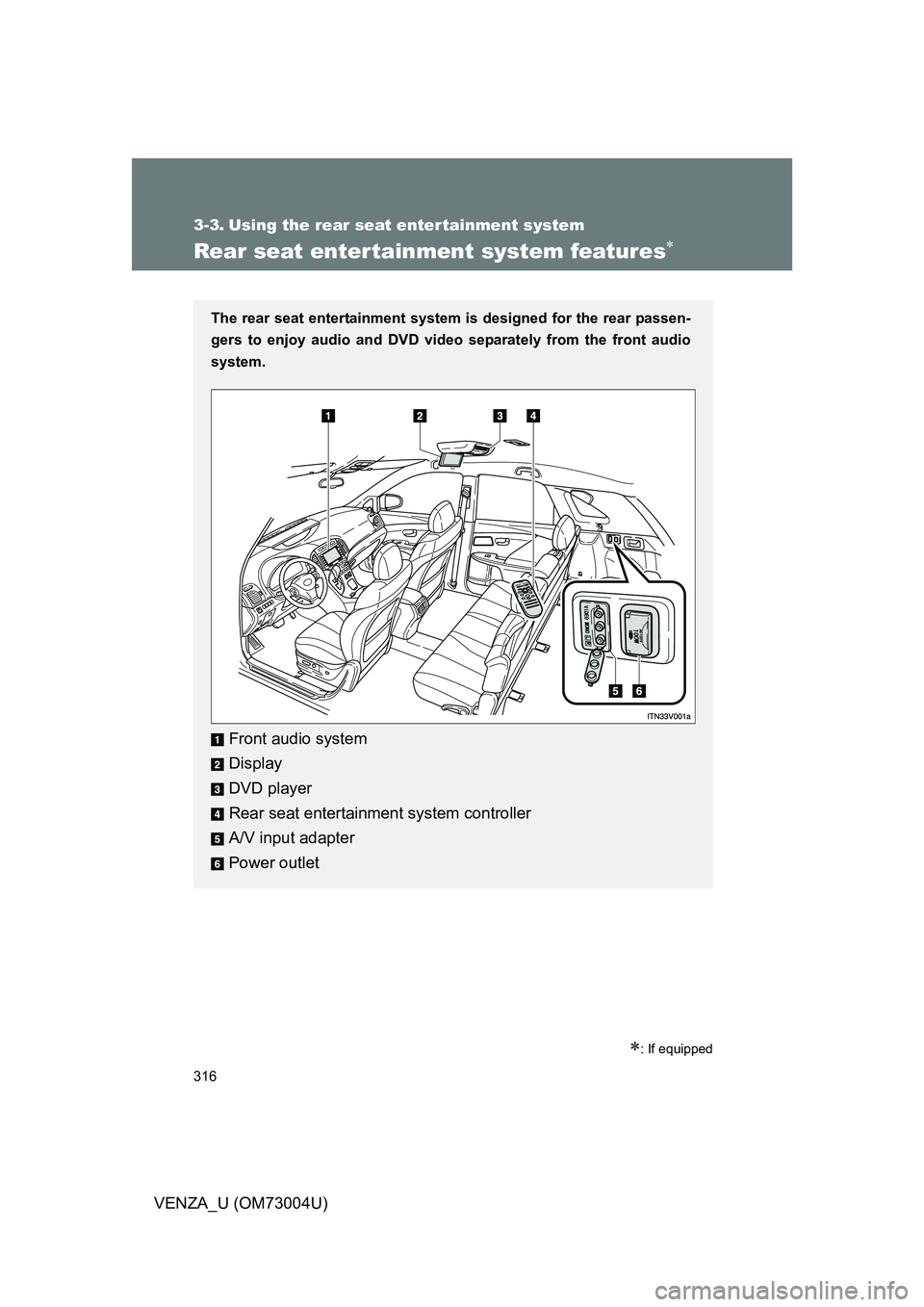

3-3. Using the rear seat enter tainment system
Rear seat entertainment system features
: If equipped
The rear seat entertainment system is designed for the rear passen-
gers to enjoy audio and DVD vide o separately from the front audio
system.
Front audio system
Display
DVD player
Rear seat entertainment system controller
A/V input adapter
Power outlet

317
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)

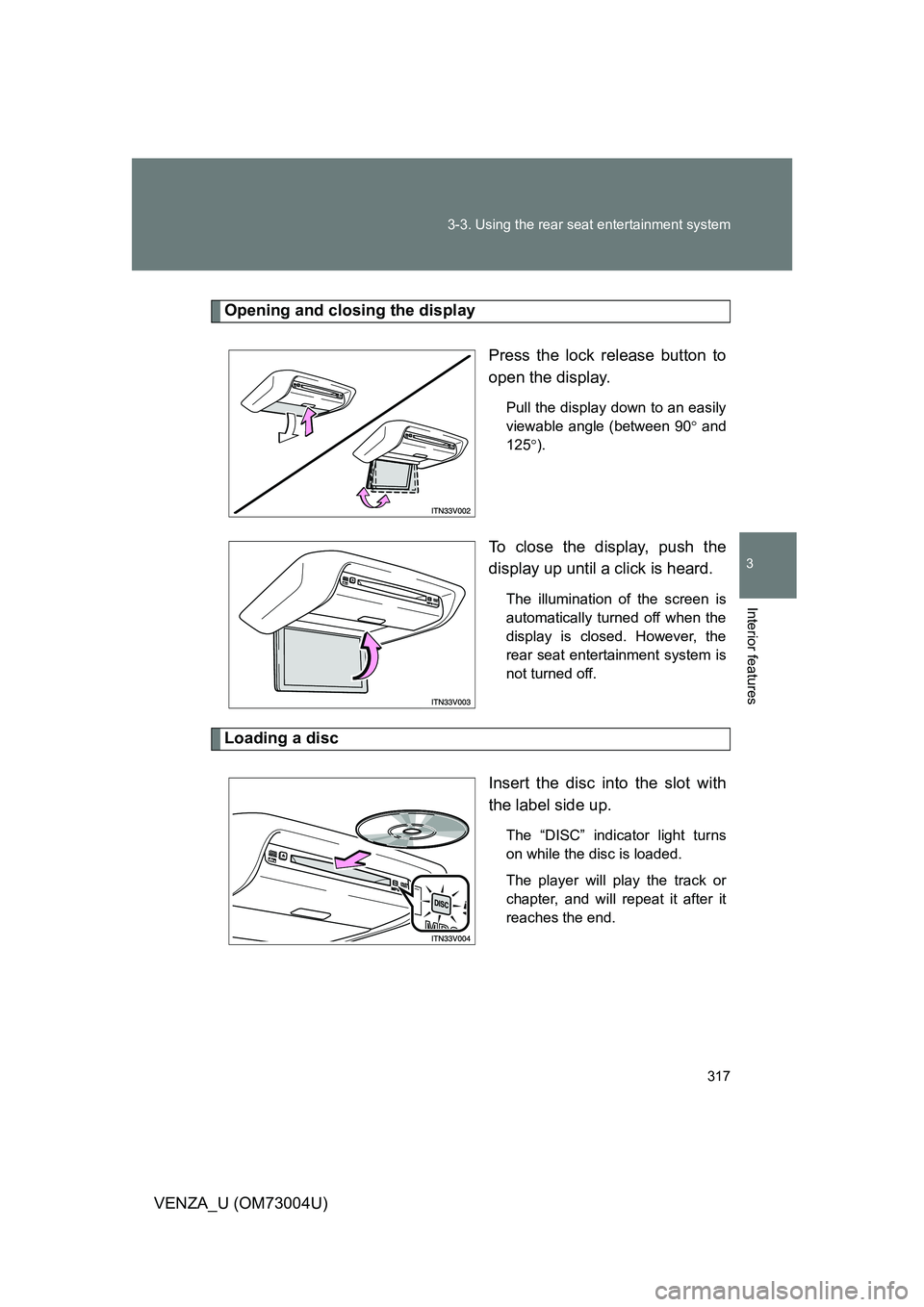

Opening and closing the display
Press the lock release button to
open the display.
Pull the display down to an easily
viewable angle (between 90 and
125 ).
To close the display, push the
display up until a click is heard.
The illumination of the screen is
automatically turned off when the
display is closed. However, the
rear seat entertainment system is
not turned off.
Loading a disc
Insert the disc into the slot with
the label side up.
The “DISC” indicator light turns
on while the disc is loaded.
The player will play the track or
chapter, and will repeat it after it
reaches the end.

318 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)

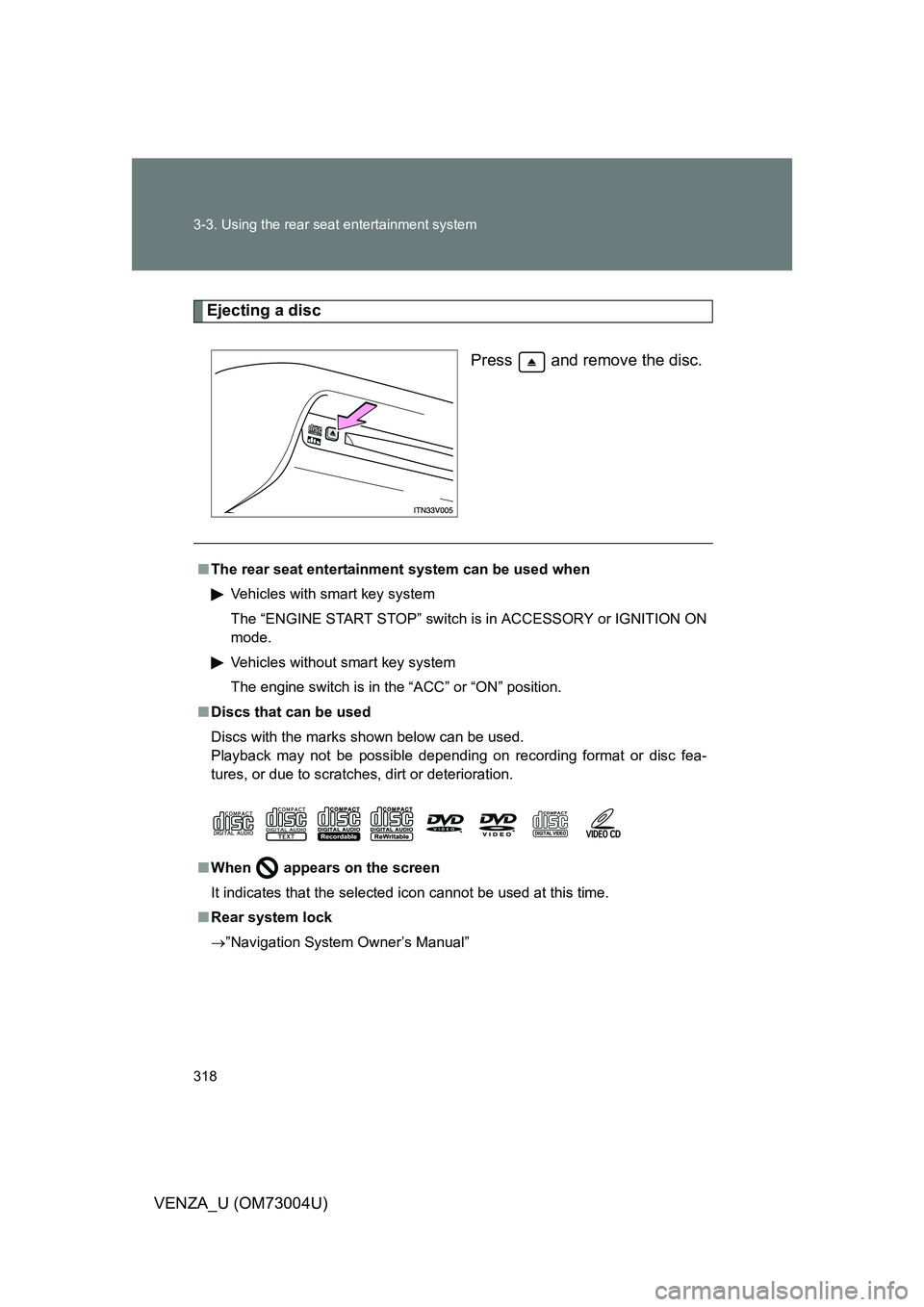

Ejecting a discPress and remove the disc.
■The rear seat entertainmen t system can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
■ When
appears on the screen
It indicates that the selected icon cannot be used at this time.
■ Rear system lock
 ”Navigation System Owner’s Manual”

319
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
■
If a disc is removed from the fr ont audio system while the rear seat
entertainment system is in use
The rear seat entertainment system will be turned off.
■ Error messages
DISC CHECK: Indicates that the disc is dirty, damaged or was inserted
upside down. Clean the disc or insert it correctly.
REGION CODE ERROR: Indicates that the DVD region code is not set
properly.
DVD ERROR: Indicates that there is a problem inside the player. Eject the
disc. Set the disc again.
If the malfunction still exists, take the vehicle to your Toyota
dealer.
■ Before using the controller (for new vehicle owners)
Remove the cover.
Remove the insulating sheet.STEP1
STEP2

320 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)

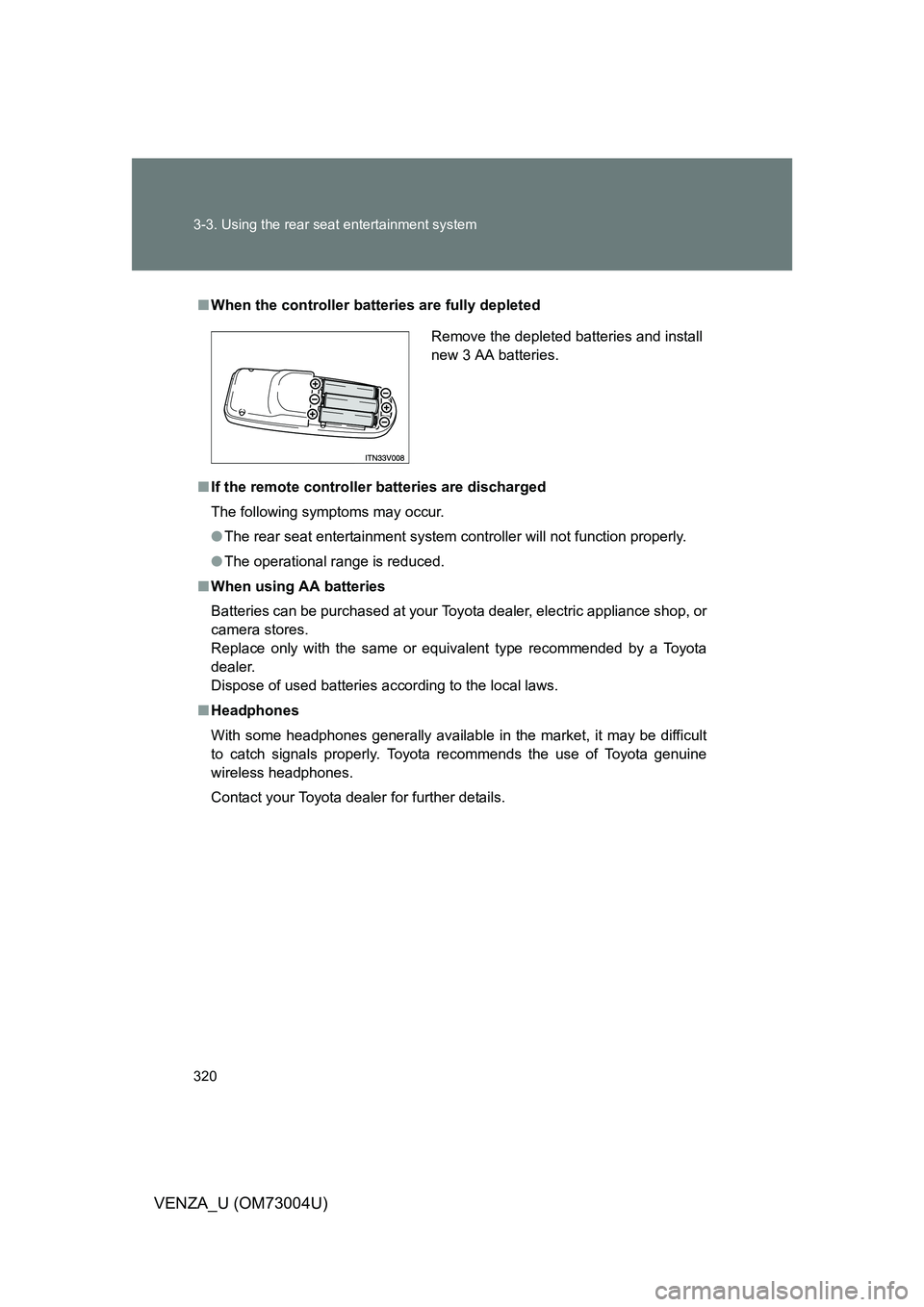

■When the controller batt eries are fully depleted
■ If the remote controller batteries are discharged
The following symptoms may occur.
● The rear seat entertainment system controller will not function properly.
● The operational range is reduced.
■ When using AA batteries
Batteries can be purchased at your Toyota dealer, electric appliance shop, or
camera stores.
Replace only with the same or equivalent type recommended by a Toyota
dealer.
Dispose of used batteries according to the local laws.
■ Headphones
With some headphones generally available in the market, it may be difficult
to catch signals properly. Toyota recommends the use of Toyota genuine
wireless headphones.
Contact your Toyota dealer for further details.
Remove the depleted batteries and install
new 3 AA batteries.
